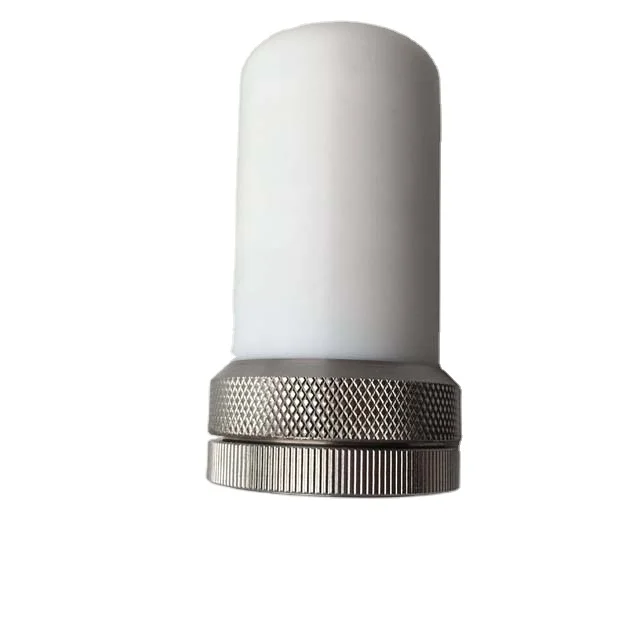

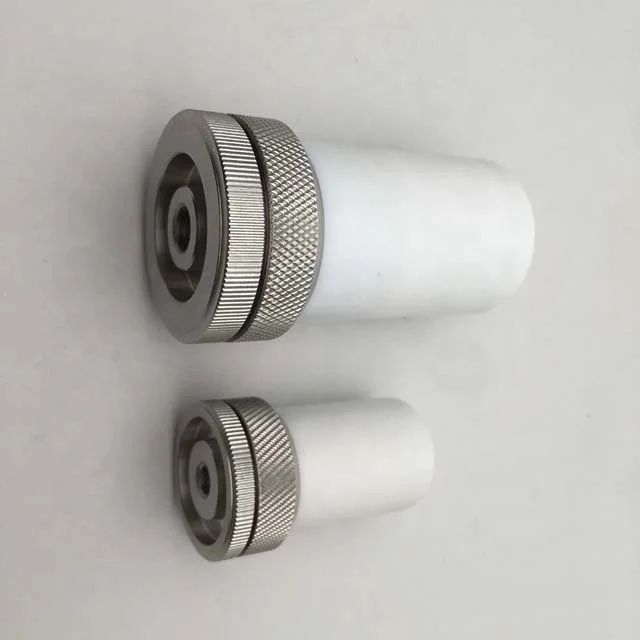

SKA 1002 NBIOT and Bluetooth 5.0 wireless temperature vibrate sensor
- Category: >>>
- Supplier: Shanghai Kara Instruments Co. Ltd.
Share on (1600336397939):
Product Overview
Description
NBIOT and Bluetooth 5.0 wireless temperature vibration sensor
Product Introduction
The product integrates Bluetooth 5.0 and NB-IOT technology, which can be connected with mobile app through Bluetooth or directly
connected to the cloud through NB-IOT
Application :
Monitor valuable mechanical equipment and optimize its reliability；
Prolong the life of the equipment；
Data provision and maintenance decision based on monitoring；
Reduce equipment maintenance costs；
Reduce the risk of unplanned downtime；
Wireless sensor provides a simple and convenient solution for traditional complex wired cable laying, especially in dangerous gas
places；
The product integrates Bluetooth 5.0 and NB-IOT technology, which can be connected with mobile app through Bluetooth or directly
connected to the cloud through NB-IOT
Application :
Monitor valuable mechanical equipment and optimize its reliability；
Prolong the life of the equipment；
Data provision and maintenance decision based on monitoring；
Reduce equipment maintenance costs；
Reduce the risk of unplanned downtime；
Wireless sensor provides a simple and convenient solution for traditional complex wired cable laying, especially in dangerous gas
places；
Mechanical application field
WS11M Wireless temperature vibration sensor is applicable to mechanical equipment with rod bearing:
* Blender
* Air compressor
* Ball mill
* Blower
* Centrifuge
* Pump and cooling tower
* Electric generator
* Small reciprocating compressor
* Steam turbine
Hardware features
WS11MDifferent configurations of wireless sensors are suitable for a variety of occasions.
* Uniaxial or triaxial acceleration and speed monitoring, waveform and spectrum data can be uploaded;
* Frequency response range: 0.1Hz to 10K
* Equipment surface temperature monitoring;
* Different installation methods have wide applicability;
* Replaceable high-capacity lithium sub battery, working for three years;
* IP68 waterproof and dustproof protection grade;
* Super power design, anti data loss design;
* Inside antenna, small size;
* No gateway, cloud experience.
* Temporary acquisition of waveform, spectrum and hardware diagnosis by Bluetooth
WS11M Wireless temperature vibration sensor is applicable to mechanical equipment with rod bearing:
* Blender
* Air compressor
* Ball mill
* Blower
* Centrifuge
* Pump and cooling tower
* Electric generator
* Small reciprocating compressor
* Steam turbine
Hardware features
WS11MDifferent configurations of wireless sensors are suitable for a variety of occasions.
* Uniaxial or triaxial acceleration and speed monitoring, waveform and spectrum data can be uploaded;
* Frequency response range: 0.1Hz to 10K
* Equipment surface temperature monitoring;
* Different installation methods have wide applicability;
* Replaceable high-capacity lithium sub battery, working for three years;
* IP68 waterproof and dustproof protection grade;
* Super power design, anti data loss design;
* Inside antenna, small size;
* No gateway, cloud experience.
* Temporary acquisition of waveform, spectrum and hardware diagnosis by Bluetooth
Software features
* Sensor configuration via Bluetooth, easy to operate
* The acquisition of speed and displacement;
* Network disconnection cache monitoring and automatic retransmission;
* Intelligent diagnosis algorithm;
Hazardous area permit
The wireless temperature vibration sensor adopts intrinsically safe design and can be used dangerous places
in Zone 0 class IIC gas environment.
* ExiaIICT4
* Sensor configuration via Bluetooth, easy to operate
* The acquisition of speed and displacement;
* Network disconnection cache monitoring and automatic retransmission;
* Intelligent diagnosis algorithm;
Hazardous area permit
The wireless temperature vibration sensor adopts intrinsically safe design and can be used dangerous places
in Zone 0 class IIC gas environment.
* ExiaIICT4
Parameter specification
Number of axes | Single axis or 3-axis | |
Sensing unit | Piezoelectric ceramics or MEMS | |
Amplitude range | ± 50 g peak z-axis or ± 16 g peak X and y-axis (available in three-axis version) | |
Acceleration | Accuracy | ±5% (160 Hz) Z / X / Y axis (available in three-axis version) |
Lateral sensitivity (typ.) | 7% (100 Hz) | |
Acceleration frequency range | Z axis: 0.1 Hz (±3dB) to 10 kHz (±3dB) | |
X and Y axis: 0.5 Hz (±3dB) to 1.6 kHz (±3dB) (available in three-axis version) | ||
\\Acceleration amplitude range | ± 50 g | |
ADC Accuracy | 24 bits ADC | |
Sampling rate | 1KHz - 50KHz | |
Data acquisition | Sampling length | 2K bytes - 2m bytes, long waveform is collected by Bluetooth |
Measurement interval | 10 minute index and 2-hour time domain waveform | |
Output mode | Total value, RMS and spectrum time domain waveform | |
-40°C to 120°C (-40 °F to 248°F) (The surface temperature of the equipment shall not be confused with the working temperature of the product. The working temperature is limited by the battery. The battery is a distance from the sensing part at the bottom) | ||
Measuring range | ||
Temperature acquisition | Accuracy | 0.1°C |
Bluetooth profile | Bluetooth 5.0 | |
Bluetooth band | 2.4 GHz ISM band 2.4GHz ~ 2.483GHz | |
Bluetooth power | 5dbm | |
Telecommunications | NB-IOT | B5 band 850mhz (China Telecom) B8 band 900MHz (China Mobile) |
Upgrade mode | Automatically updated via wireless | |
Replaceable C 3.6V disposable lithium sub battery | ||
Battery | Battery model | Warning: only the battery models can be used: Eve er26500 or Xeno energy xl-14 5f, and secondary processing is required. |
Life | It can work for 3 years according to the default configuration definition. | |
Working conditions | Working temperature | -40°C to 60°C (-40°F to 165°F) (Working at or beyond the limit temperature for a long time will affect the service life of the battery and even damage the monitor) |
Corrosion resistance | Stainless steel body, solution resistant PC material | |
Drop resistance | No problem for 1m drop to concrete | |
Weight | 228 g (including battery) | |
Mechanical parameters | Overall dimension | Height: 85 mm; Diameter: 43 mm |
Body material | 304 stainless steel base and reinforced impact resistant glass fiber PC upper cover | |
Fixing hole | M6 x 1mm X 7mm internal thread | |
IP level | IP68 waterproof and dustproof grade | |
EMC standard | IEC 61326-1 | |
Wireless spectrum | ETSI EN 300 328 | |
Security | Meet the technical requirements of micro power short-range radio equipment | |
Standards | Explosion proof safety | ExiaIICT4 Zone 0 IIC gas invironment |
Authentication | Meet CE requirements | |
