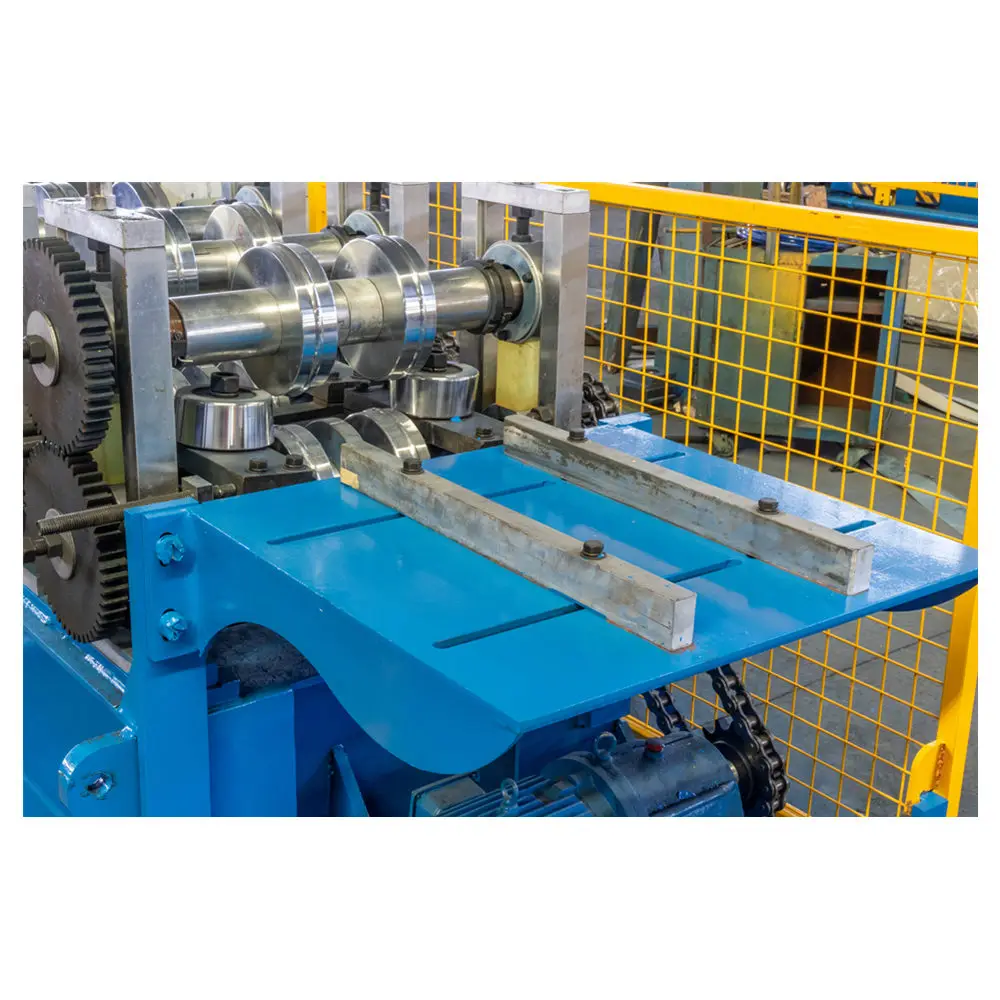

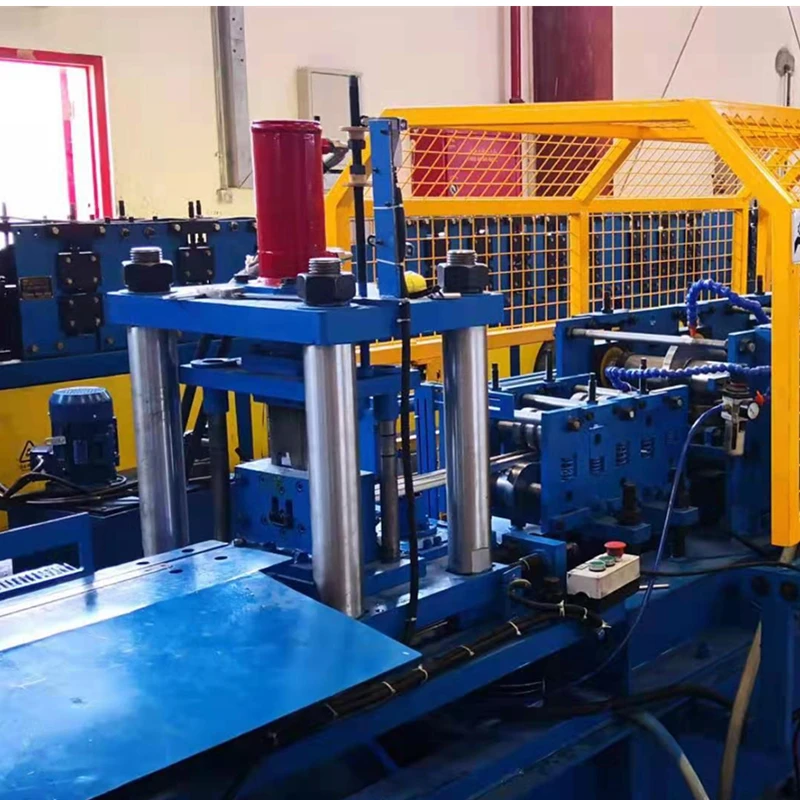

Slotted Strut Unitrust steel C U Channel Roll Forming Making Machine
- Category: >>>
- Supplier: Xiamen Zhengliming Metallurgical Machinery Co. Ltd.
Share on (1600336677611):
Product Overview
Description
Product Description
Type | Roll former for U PURLINE |
Shearing Thickness | Up to Max. 0.8mm |
Thickness | 1.0mm-1.5mm |
Frame Design | Wall-plate-frame-design /New-stand-frame-design |
Roll Stages | 10 stages |
Material Of Forming Roller | GCr15, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
Main Motor Power | 7.5KW |
Max. Line Speed of Roll Former | 12-14m/min (Higher speed is available, depends on the specification required by the buyer) |
Hydraulic Group Power | 4 KW |
Material of Cutting Blade | Cr12, hear treatment |
Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
Machine Dimensions | 6420mm×1020mm×1380mm (estimated only) |
Major Color of Machine Painted | RAL 5015 (Blue) or as per customer’s requirements |
Service After Sell:
In correct operation & maintaining, the machine is guaranteed for one year since leaving. our factory excluding the electric elements.
Installation:
(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.
a) Position the machine in the buyer’s factory.
b) Prepare necessary electric wiring.
c) Prepare material of trial running.
d) Provide labors for assistance and installation during installation.
e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly.
