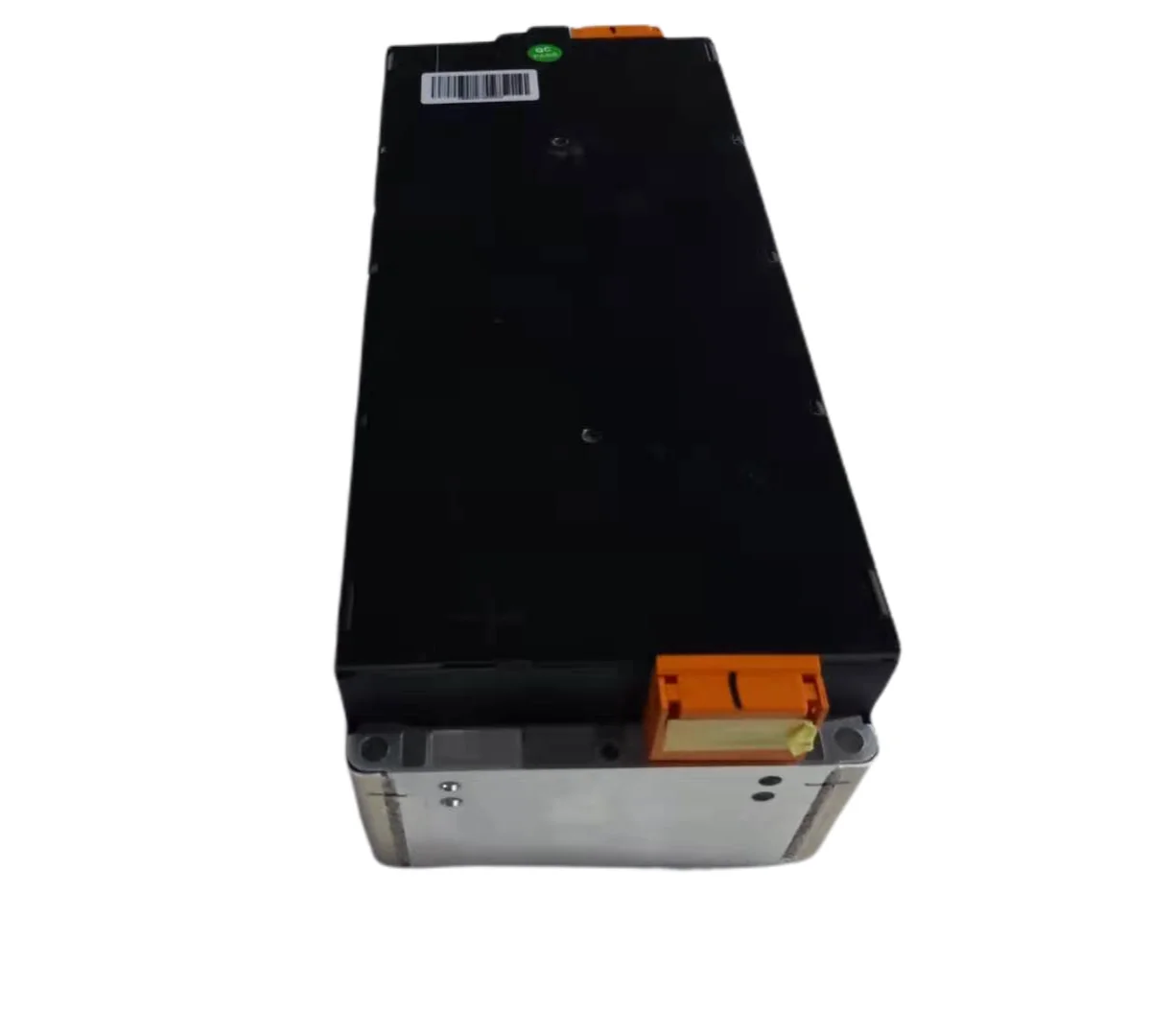

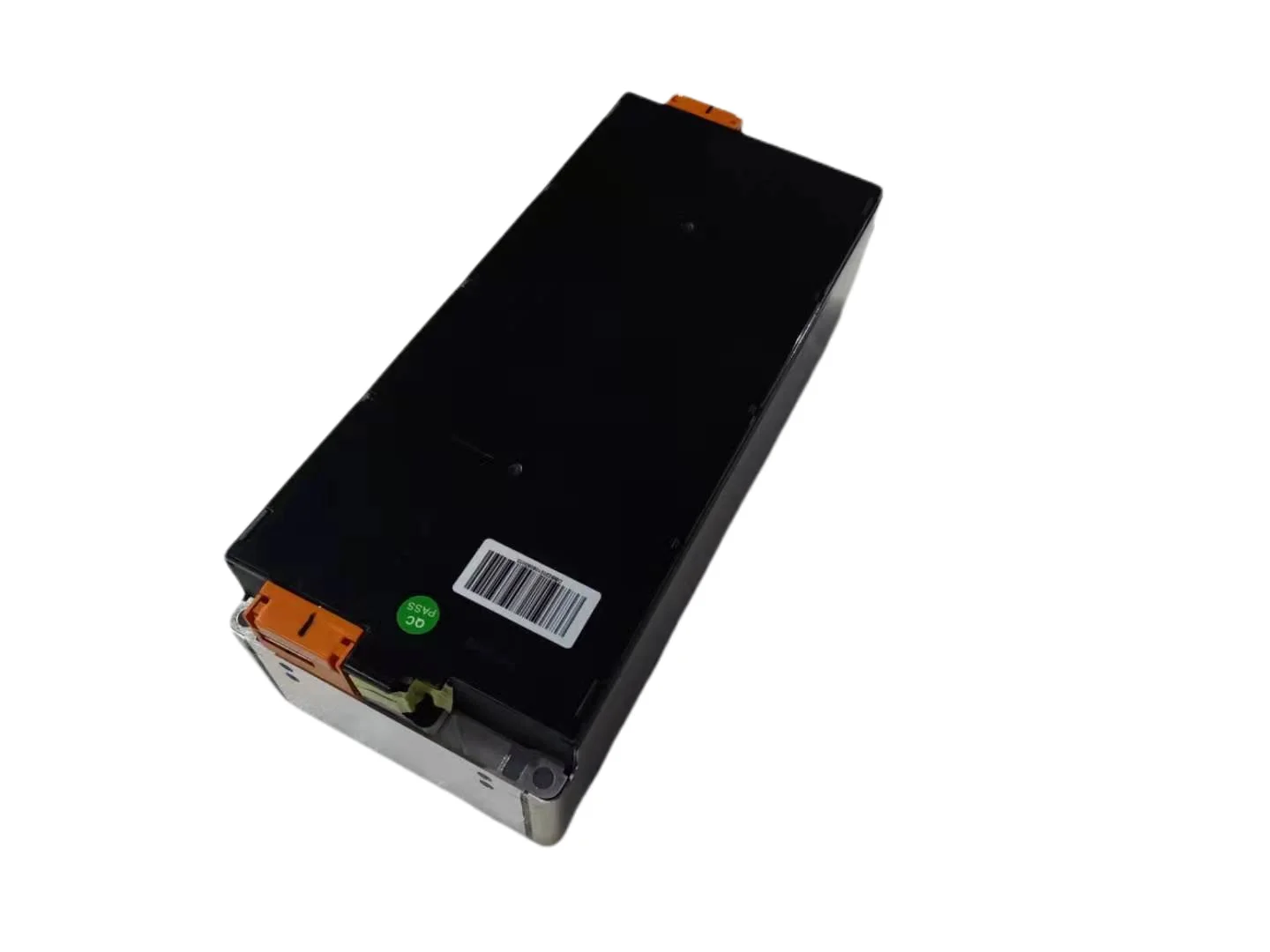

Manufacturing Vda Catl lithium Battery Module NCM Lithium Ion Prismatic Batteries NCM Module for vehicles
- Category: >>>
- Supplier: Lithium Storage Co. Ltd.
Share on (1600336844490):
Product Overview
Description
NO | Item | NCM102Ah STANDARD MODULE | Note | ||
22.2V102A | |||||
102Ah1P6S | |||||
1 | Nominal voltage(V) | 22.2 | |||
2 | Operating voltage(V) | min | 16.8 | ||
3 | max | 25.8 | |||
4 | Nominal capacity(Ah) | 102 | 25±2℃,1/3C | ||
5 | Nominal energy（KWh ） | 2.2644 | 25±2℃,1/3C | ||
6 | Available energy（KWh ） | ≥2.219 | |||
7 | Group mode | 1P6S | |||
8 | End of life residual capacity (Ah) | 81.6 | Residual capacity≥80% initial capacity，@25℃ | ||
9 | Module weight（Kg） | 11.2±0.3 | |||
10 | Maximum continuous charge current（A） | 102 | |||
11 | Maximum short pulse charge current（≤10s） | 204 | |||
12 | Maximum continuous discharge current（A） | 102 | |||
13 | Maximum short pulse discharge current（≤10s）（A） | 306 | |||
14 | SOC operating range（%） | 10~90 | |||
15 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | ||
16 | Module cooling method | Natural cooling | |||
17 | Module heating method | No | |||
18 | Shipping capacity (SOC) | 30%~70% | SOC is consistency in the same batch | ||
19 | Shipping consistency（mv） | ＜20 | Voltage difference between cell of module＜20mV | ||
20 | Coulomb efficiency | ≥95% | |||
21 | Module self-discharge | ≤3% | 25±2℃,50%SOC | ||
22 | Dimension L （mm） | 355 | |||
Dimension B （mm） | 151.5 | ||||
Dimension H （mm） | 108.5 | ||||
We care every procedure
Lithium Storage Focuses on Providing the Highest Cost-Effective Batteries
Step1:Raw material testing and quality assurance
Step2: Particle and work dust control
BIS
UL 1642
IEC
JET
IATF
UL 1973
Q1: Can Lithium Storage accept small orders?
A1: Surely,we accept small order.Whether small order or big order,you are our client, we will serve you well.If you have orders, don't hesitate to contact us by email:kaylaliu@lithiumstoragebattery.com or ALi
Q2.: Does Lithium Storage support door to door shipping? drop ship ?
A2: Yes. If battery unit weight is below 30kg, we delivery it via Air Express. If battery unit weight is above 30kg, we delivery it via sea . If you want to us to help you to make custom clearance, we would like to do that. We support drop ship.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Lithium Storage is leading lithium technology provider
Local branch in the United Kingdom
Local service allowing us for rapid response to customers' inquiry
Wide range in applications
Higher energy density for EV and longer cycle life for ESS is our strategy of product development
Customized Offer
We will produce proposals based on the idea of production for multiple projects to adapt your needs
