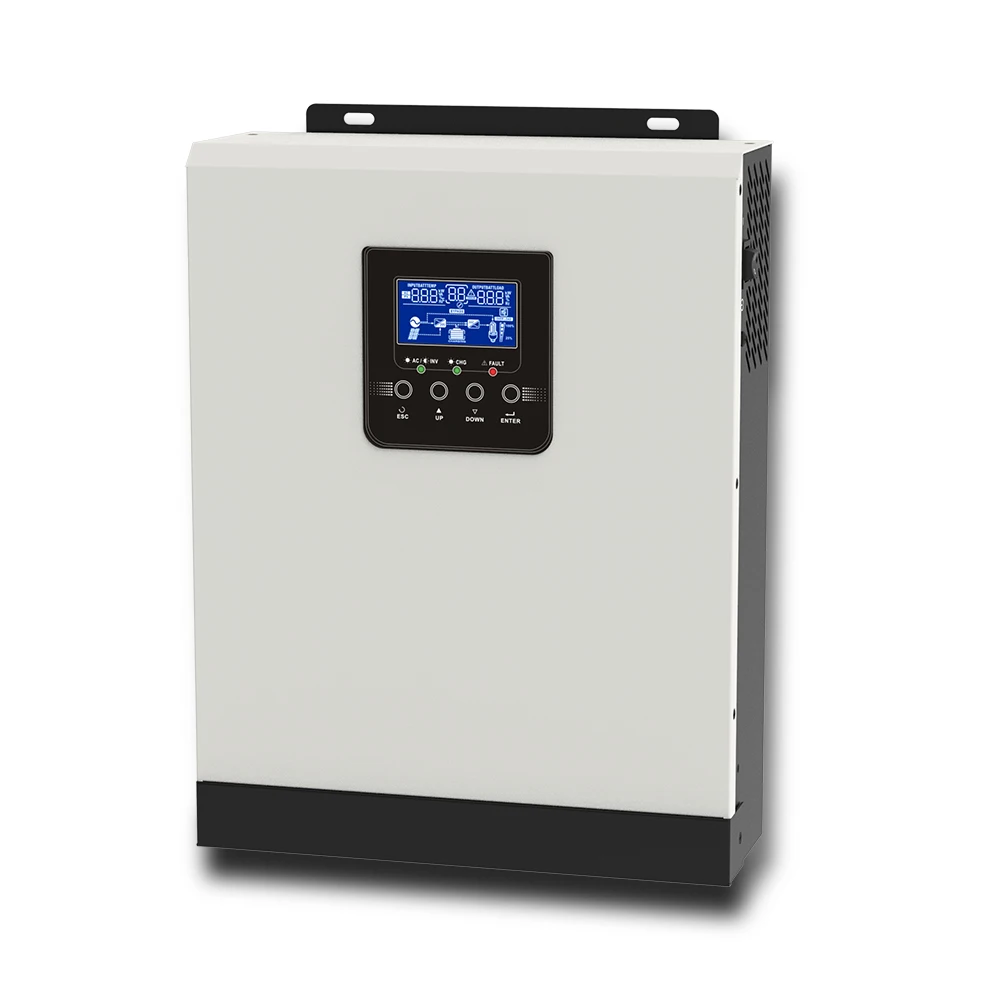

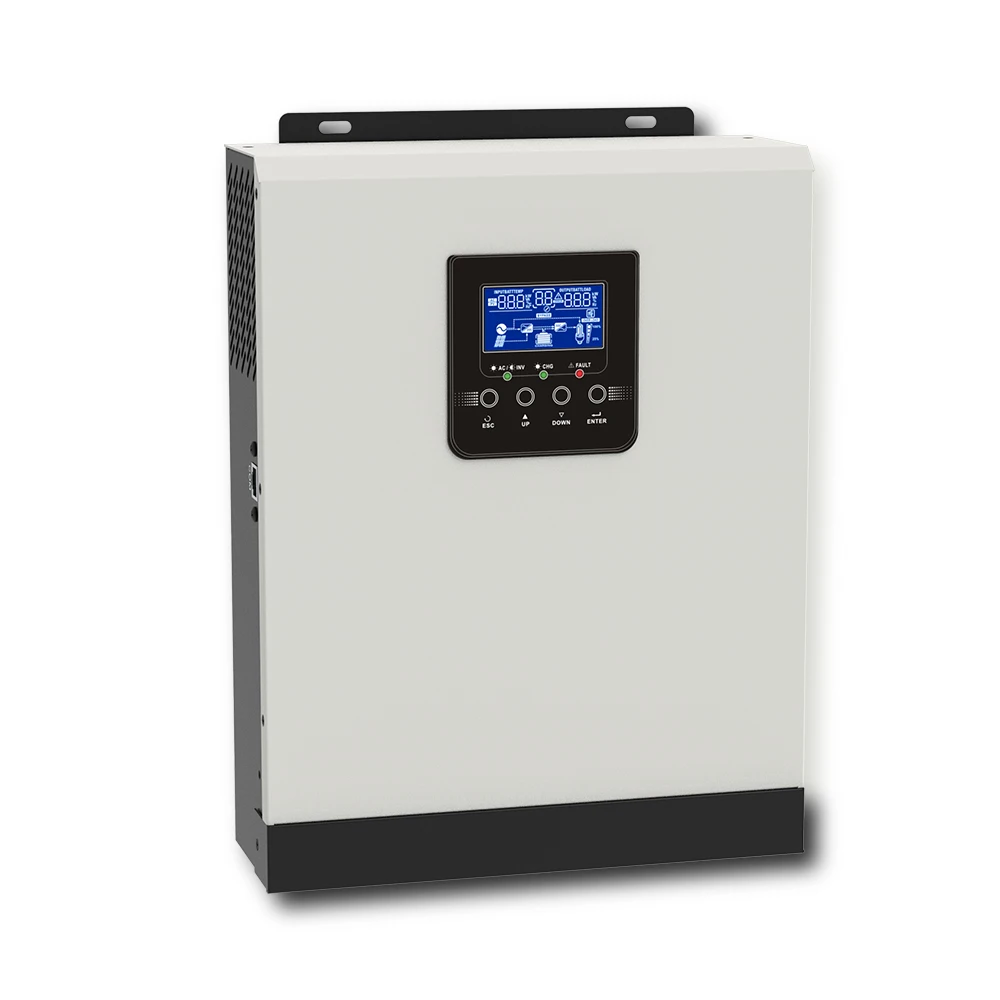

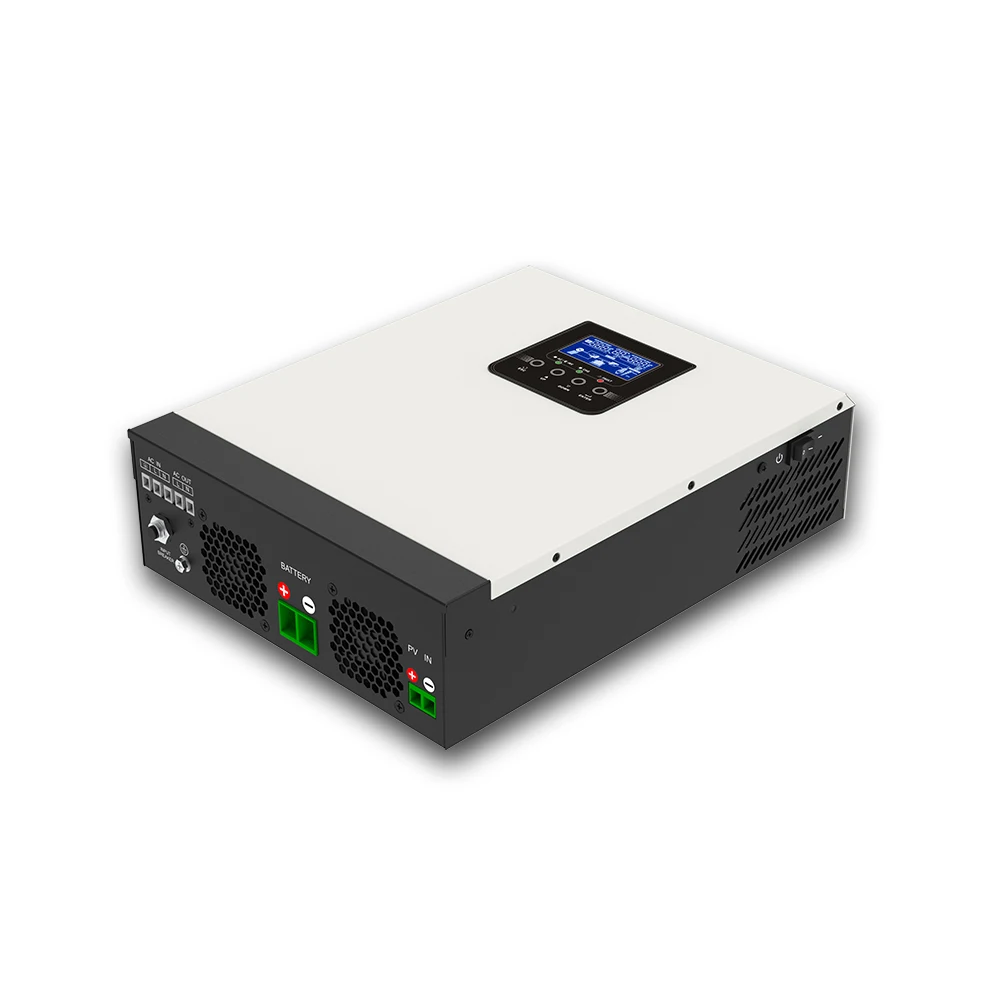

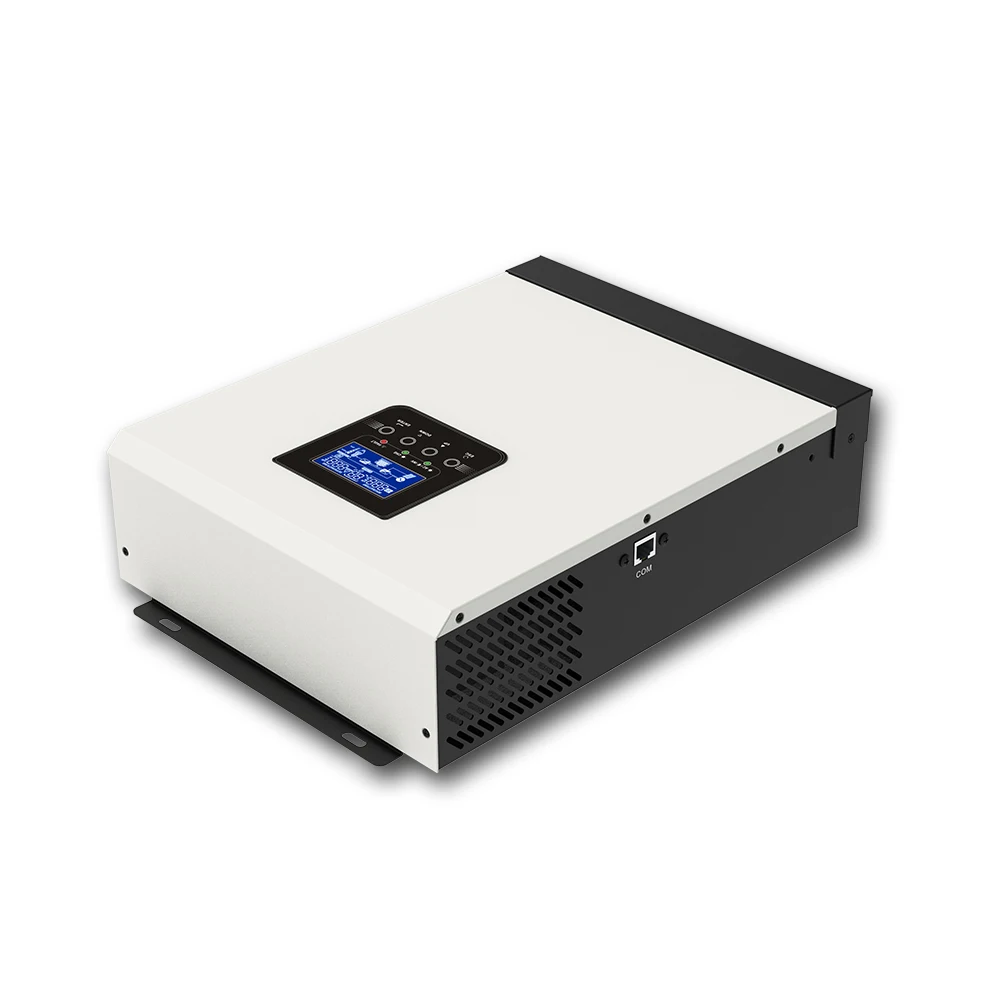

HMS series 3kva 24vdc 220vac off grid pure sine wave solar inverter
- Category: >>>
- Supplier: Shenzhen Sunray Power Co. Ltd.
Share on (1600336971738):
Product Overview
Description

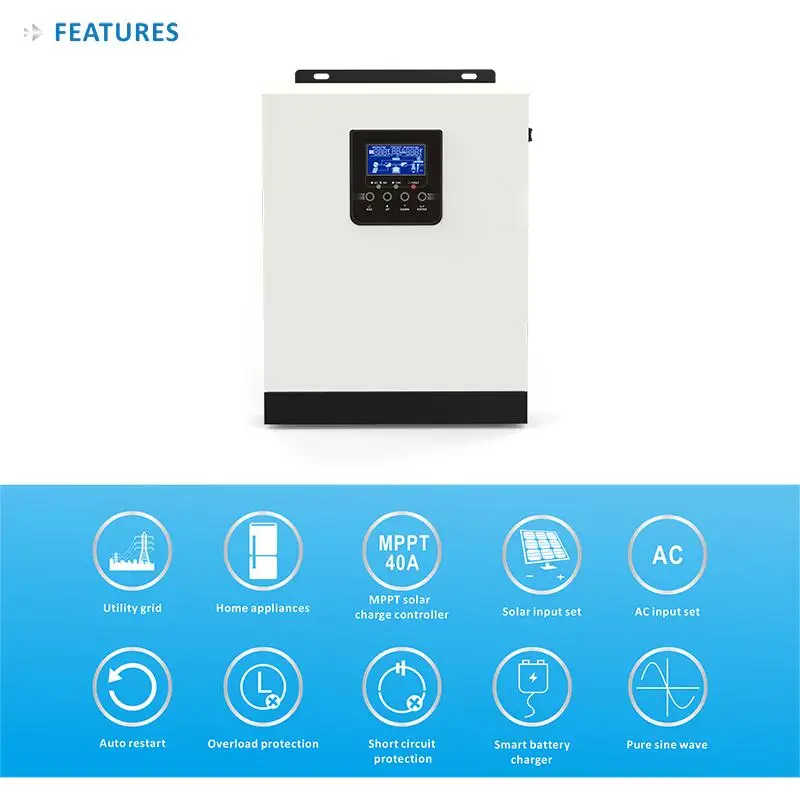

Features:
Built-in MPPT solar charge controller
Selectable input voltage range for home appliances and personal computers.
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
LCD Display
Overview
Solar system connection
Product Data sheet
Model No. | HMS 3K-24 |
Rated power | 3000VA/2400W |
INPUT | |
Voltage | 230VAC |
Selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (For home appliances) |
Frequency range | 50Hz/60Hz (auto sensing) |
OUTPUT | |
AC voltage regulation (Batt. mode) | 230VAC±5% |
Surge power | 3000VA |
Efficiency (peak) | 90%-93% |
Transfer time | 10ms (for personal computers) 20ms (for home appliances) |
Waveform | pure sine wave |
BATTERY & AC CHARGER | |
Battery voltage | 24VDC |
Floating charge voltage | 27VDC |
Overcharge protection | 31VDC |
Maximum charge current | 20A or 30A |
SOLAR CHAGER | |
MAX PV array power | 1000W |
MPPT range@ operating voltage | 30-80Vdc |
Maximum PV array open circuit voltage | 102VDC |
Maximum charging current | 40A |
Maximum efficiency | 98% |
Standby power consumption | 2W |
PHYSICAL | |

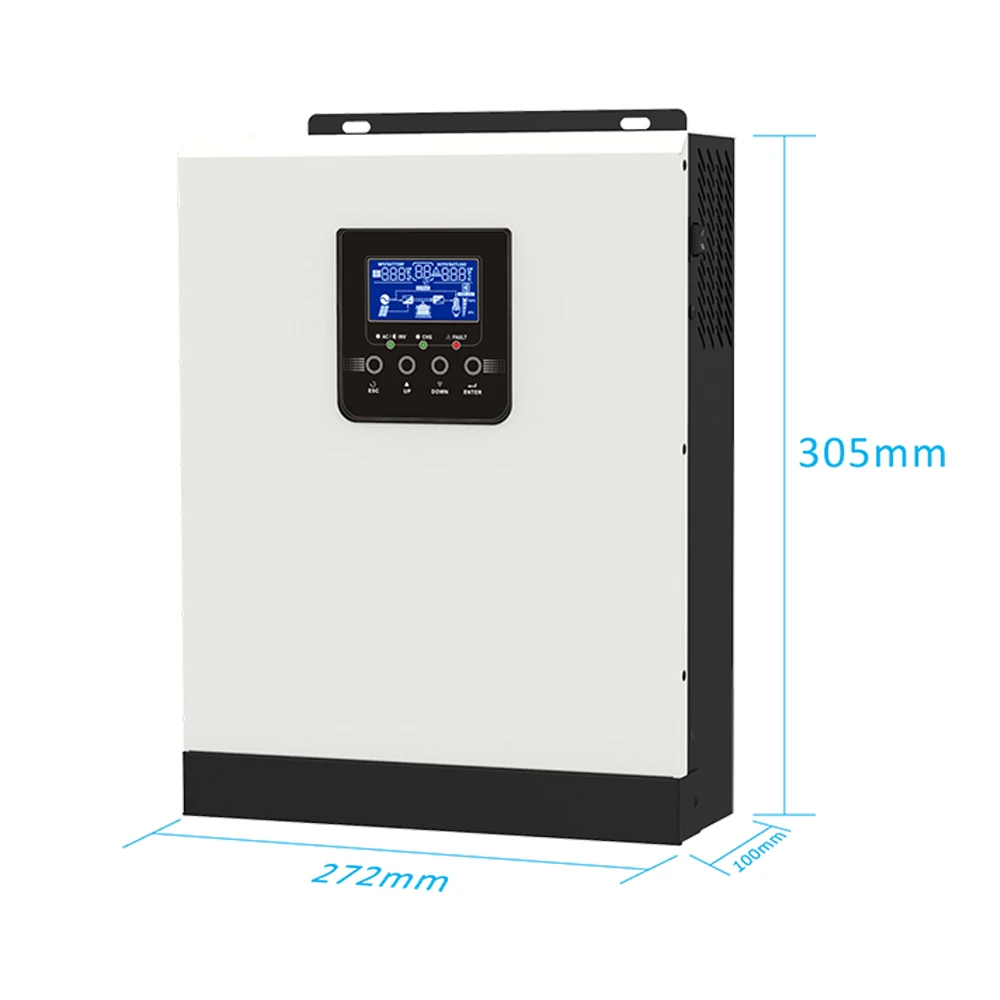

Dimension, D*W*H (mm) | 305*272*110mm |
Net weight (kg) | 5.2kg |
OPERATING ENVIRONMENT | |
Humidity | 5%-95% relative humidity (non-condensing) |
Operating temperature | 0℃-55℃ |
Storage temperature | -15℃-60℃ |
Product packaging
