Hot Sale Automatic Hydraulic Plate Bending Machine Panel Bender for Sheet Metal
- Category: >>>
- Supplier: Shandong Lanhao Intelligent Technology Co. Ltd
Share on (1600336985137):
Product Overview
Description
Product Overview
2500P Panel Bender
Automatic Panel bender is a high-tech product developed and produced to improve production efficiency, reduce labor cost.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Maximum bending speed | 0.2 s/time |
2 | Maximum bending width | 2500mm |
3 | Maximum bending size | 2500*1250mm |
4 | Bending height | 170mm |
5 | The rated voltage | 380V |
6 | Peak power | 28KW |
7 | CNC system | PC-Base New Independent Research and Development 15 Axis Linkage Full Servo CNC System |
8 | Lathe bed | Casting bed |
PRODUCT CONFIGURATION
Product Paramenters
Name | Brands |
Operating system | Above Windows 7 |
Control system | 9 axis + concurrent linkage control system |
Servo motor | Independent R&D, full closed-loop control |
Screw | Taiwan-HIWIN |
Bearing | NSK or NACHI |
Linear guide | Taiwan-HIWIN／Nanjing Gongyi |
Machine bed | High grade casting integral forming |
Bending knife | Patented ball cutter head, more wear-resistant, longer service life |
Sucker | AIRBEST |
Pneumatic component | Japan SMC/Taiwan Yadec |
Oil system | Taiwan Yuxiang |
Product Display
Our Advantages

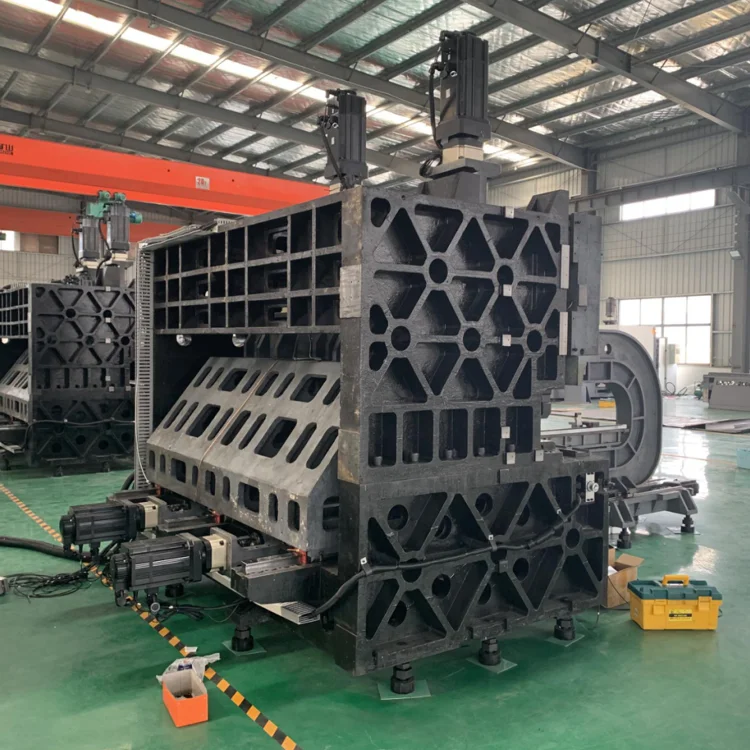

Casting iron machine bed
QT500-7&HT300 casting bed，Every time the casting label shall be measured by the testing instrument. After precise finite element
force analysis, the frame adopts the most stable triangular interconnection design, which greatly ensures the stability under high
tonnage impact force.
force analysis, the frame adopts the most stable triangular interconnection design, which greatly ensures the stability under high
tonnage impact force.
High standard welding
No matter large or small parts, carbon dioxide protection welding is used in the whole welding process, welding point adopts full
welding process, to ensure that the welded parts are firm and beautiful.
welding process, to ensure that the welded parts are firm and beautiful.
Precise maching
High-precision multi-axis machining center is used to finish the spare parts, ensuring the accuracy of the parts.
Strict test
Using high-precision micrometer U table, with marble platform and marble square, precise measurement for each workpiece, strictly control the processing quality of each workpiece to ensure that the assembly accuracy of the whole machine conforms to the high precision machine standard.
We have applied for more than 80 patents and obtained more than 30 authorized patents, got ISO certificate, etc.
