ip68 waterproof pg7 type nylon cable gland
- Category: Cable Glands >>>
- Supplier: Yueqing,Jixiang,Connector,Co.,Ltd.
Share on:
Product Overview
Description

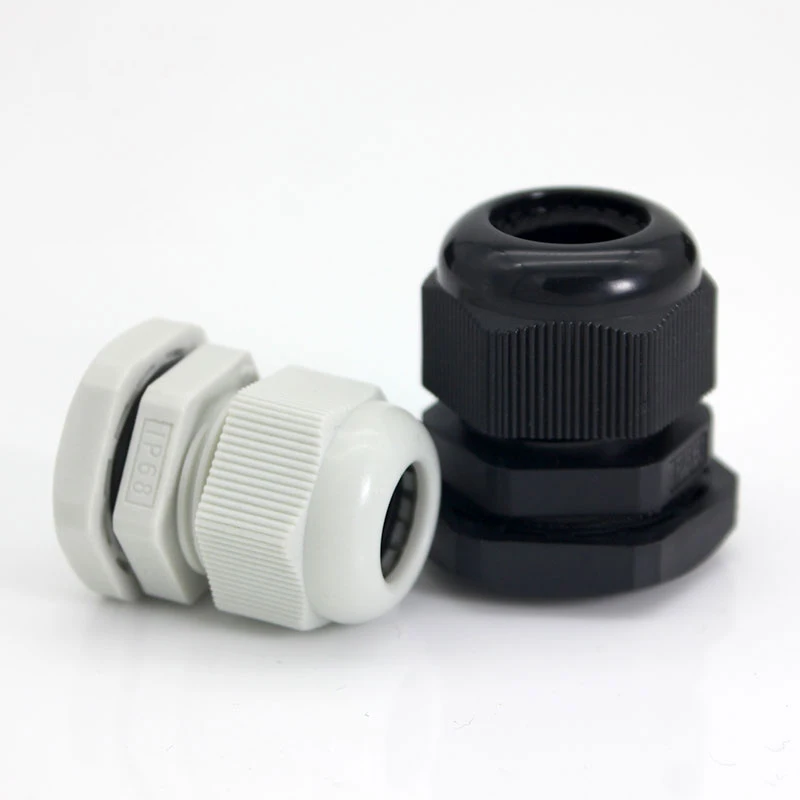

IP68 waterproof nylon cable gland
Product Description
| Product Name: | Waterproof plastic cable gland |
| Main material: | Nylon PA6 |
| Standard size: | M12-M70; PG7-PG63; NPT1/4-NPT2; G1/4 -G2 |
| Certification: | RoHS, CE, IP68, ISO9001 |

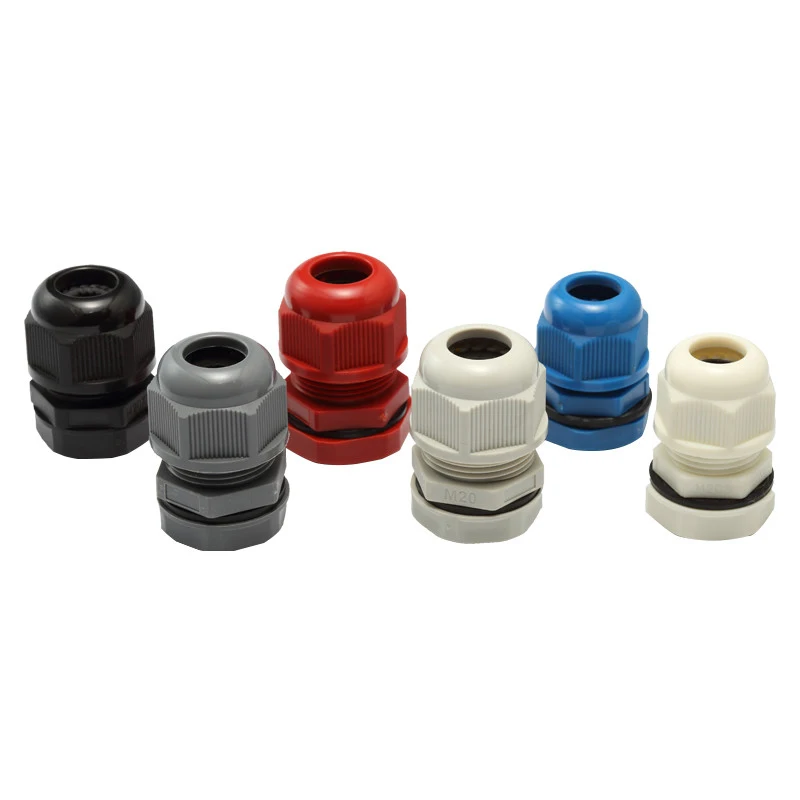

| Option color: | Light grey/ Black/ Others |
products Images
| AG item | Cable Range(mm) | Thread O.D.(mm) | Thread Length(mm) | Spanner Size(mm) |
| Cable Gland M12x1.5 | 3-6.5 | 12 | 8 | 16 |
| M16x1.5 | 4-8 | 16 | 8 | 19 |
| M18x1.5 | 5-10 | 18 | 8 | 20 |
| M20x1.5 | 6-12 | 20 | 10 | 24 |
| M24x1.5 | 12-16 | 24 | 10 | 27 |
| M27x1.5 | 13-18 | 27 | 10 | 33 |
| M32x1.5 | 16-21 | 32 | 11 | 35 |
| ..... | ..... | ..... | ..... | ..... |
| M70x1.5 | 42-50 | 70 | ||
| cable gland PG7 | 3-6.5 | 12.5 | 8 | 16 |
| PG9 | 4-8 | 15.2 | 8 | 19 |
| PG11 | 5-10 | 18.6 | 8 | 22 |
| PG13.5 | 6-12 | 20.4 | 10 | 24 |
| PG16 | 10-14 | 22.5 | 10 | 27 |
| PG21 | 13-18 | 28.3 | 10 | 33 |
| ..... | ..... | ..... | ..... | ..... |
| PG63 | 42-50 | 71 | 28 | 77 |
| cable gland NPT1/4 | 3-6.5 | 13.6 | 8.5 | 19 |
| NPT3/8 | 4-8 | 17 | 10 | 22 |
| NPT1/2 | 6-12 | 21.2 | 10 | 24 |
| NPT3/4 | 13-18 | 26.5 | 15 | 33 |
| NPT1 | 18-25 | 33.2 | 15 | 41 |
| ..... | ..... | ..... | ..... | ..... |
| NPT2 | 37-44 | 60 | ||
| cable gland G1/4 | 3-6.5 | 13.1 | 8.5 | 19/19 |
| G3/8 | 4-8 | 16.6 | 10 | 22/22 |
| G1/2 | 6-12 | 20.9 | 10 | 27/24 |
| G3/4 | 13-18 | 26.4 | 12 | 36/33 |
| G1 | 18-25 | 33.2 | 15 | 46/41 |
| ..... | ..... | ..... | ..... | ..... |
| G2 | 37-44 | 59.6 | 18 | 60/62 |
More size information, kindly contact us directly..
We are cable gland manufacturer, we provide customization service
Packing & Shipping
Cable gland packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
Certification
Application
