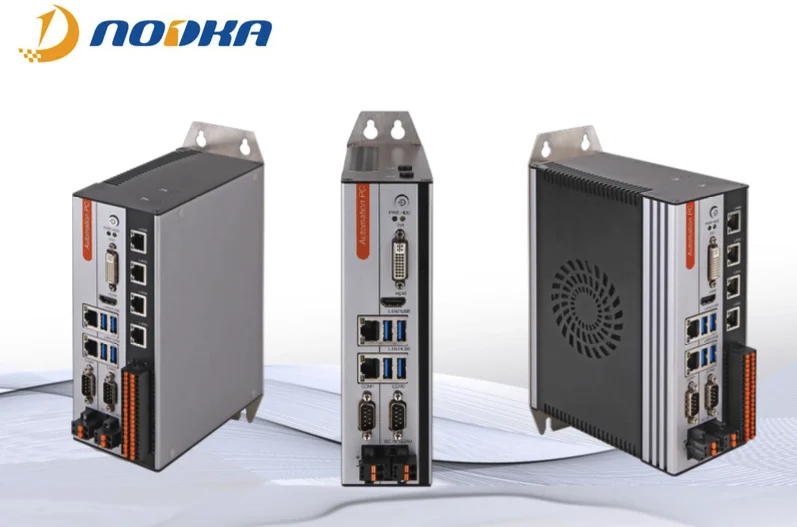

  • 24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case

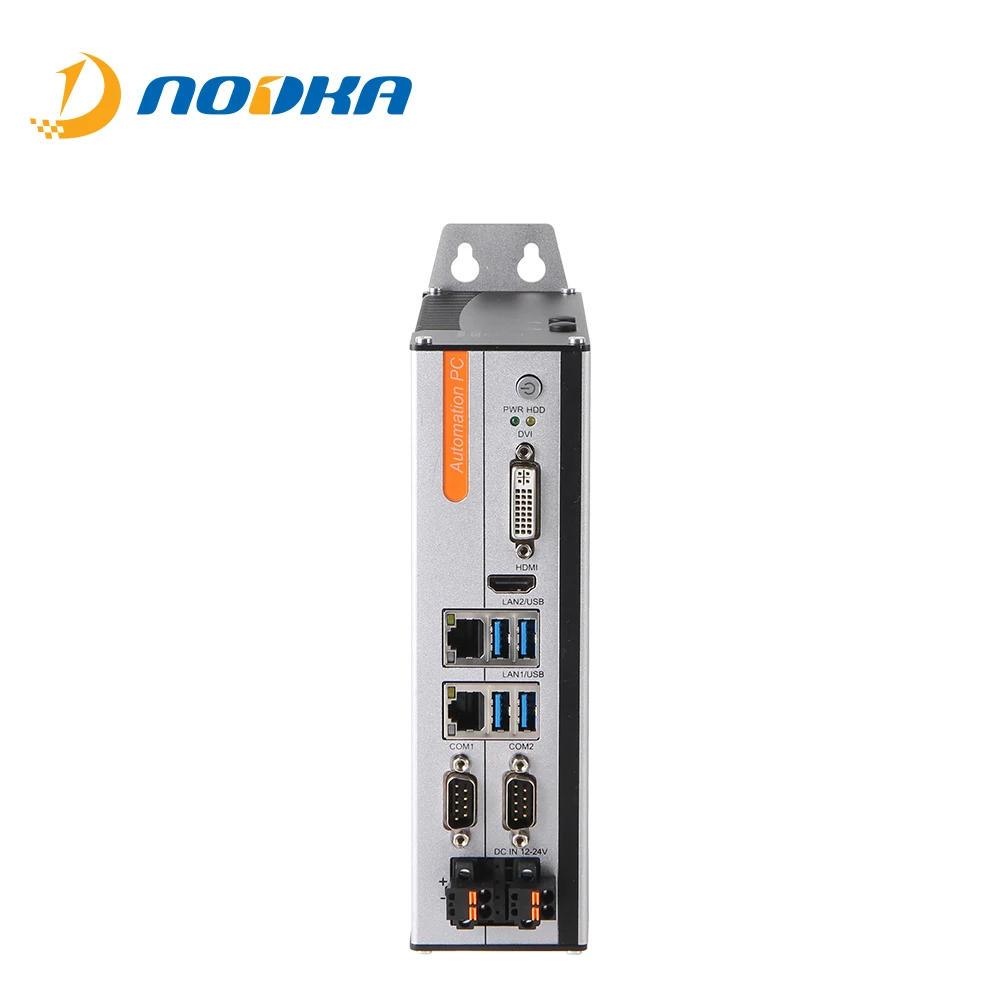

24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case
24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case
24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case
24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case
24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case
24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case
24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case

24V Industrial Mini PC I3 8100 X86 Win10 Linux Mini Small embedded Computer with Aluminum Case

Share on (1600337015004):


Price:

Quantity:


Product Overview

Description





Products Description


System
CPU
In-tel Core 6th /7th /8th generation i7/i5/i3/pentium/celeron, LGA1151
BIOS
AMI EFI 64Mbit
Memory
DDR4-2400MHz
Capacity
Up to 32GB
DIMM
2 x 260-pin SODIMM
Storage
1x mini SATA
DVI
Support 1920 x 1200 @ 60Hz
HDM-I
1920 x 1200
Dual display
Yes, HDM-I + DVI

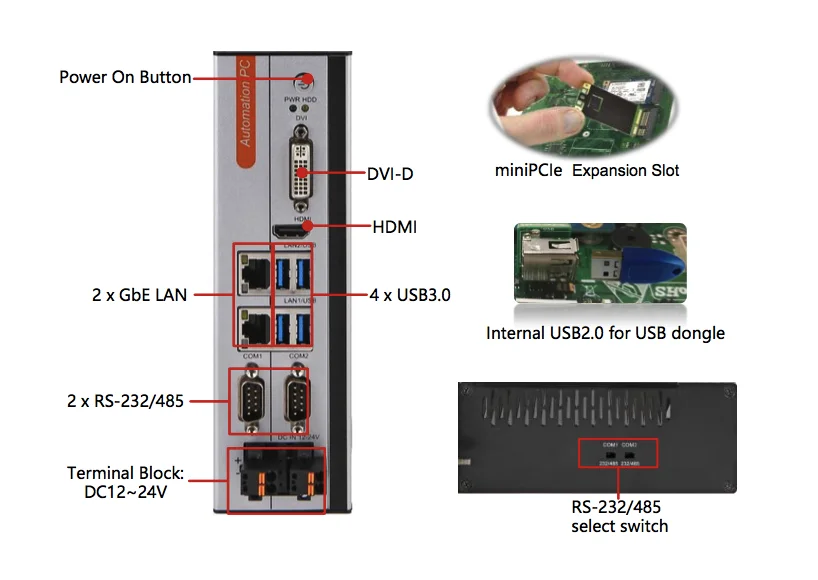

COM
2 x RS232 /RS485 (option)，optical isolated, automatic flow control supported
LAN
2 x In-tel i210AT Gbe LAN controller
USB
4 x USB3.0，1 x USB2.0(internally for USB Dongle)
Mini PCIe
1x mini PCIe slot ( option 3G/4G with SIM holder, WIFI)
WatchDog
0-255 seconds programmable
OS
Win 10, Ubuntu, Realtime
PowerType
AT
Power Input
12~24VDC ±10%, overcurrent, overvoltage and polarity inverse protection
Power Dissipation
Typical:27W ,120W in maximum
Power Dissipation
full-load:  250W in maximum(depend on CPU type, light control and the PoE)
Box structure

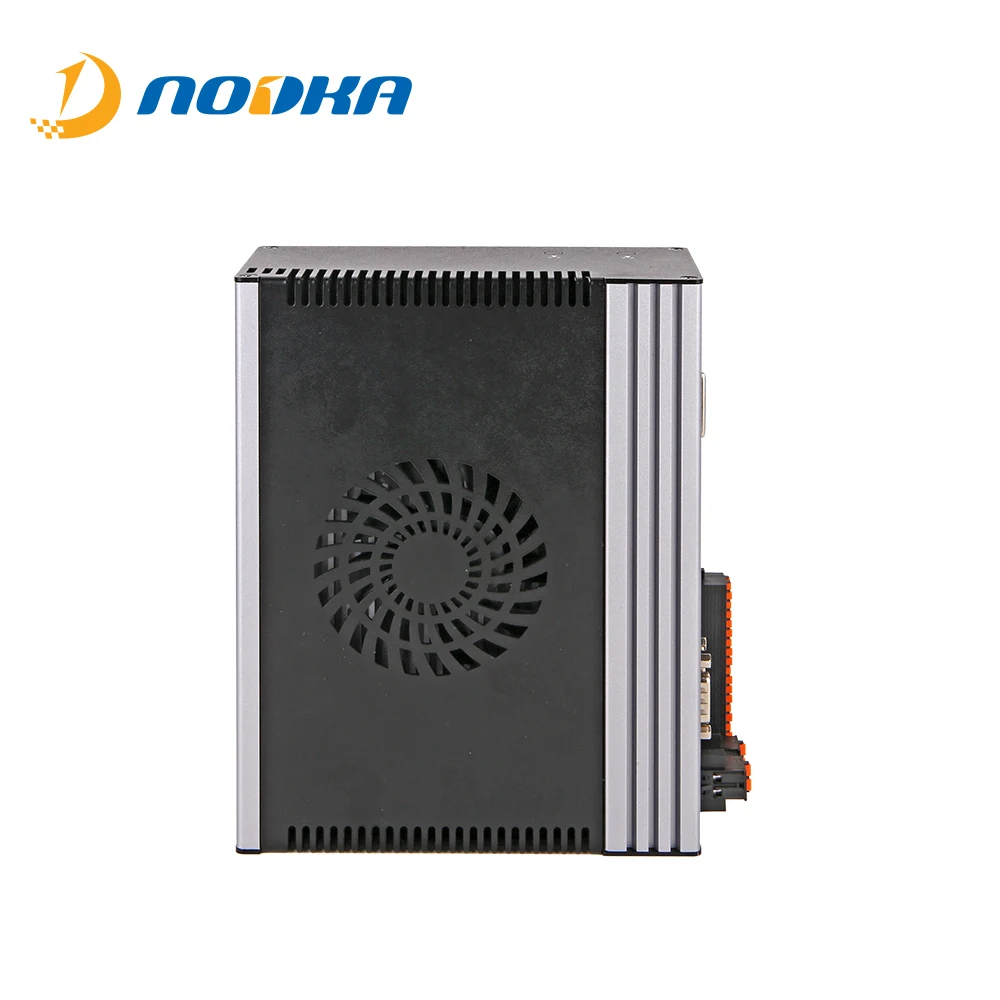

Aluminum-magnesium alloy BOX with fan embedded to assist cooling
Mounting
Wall-mounted mounting
Dimensions(LxWxH)
(L)200.4mm x (W)154.5mm x (H)57.6mm
NW
1.9kg
Work Temperature
-20~60°C(-4°F~140°F)(Wide temperature SSD),
0~45°C(32°F~113°F)(General temperature HDD/SSD)
Storage Temperature
-40~80°C(-40~176°F)
Relative humidity
5~95%(Non condensation)
Shake
SSD applied:1.5Grms, IEC60068-2-64, random,5~500 Hz, 1 hr/axis
Shock
SSD applied:10G, IEC60068-2-64, Half-sine wave, 11ms duration
EMC
CE/FCC Class B
WIN OS
Win10 IoT
Linux
Ubuntu

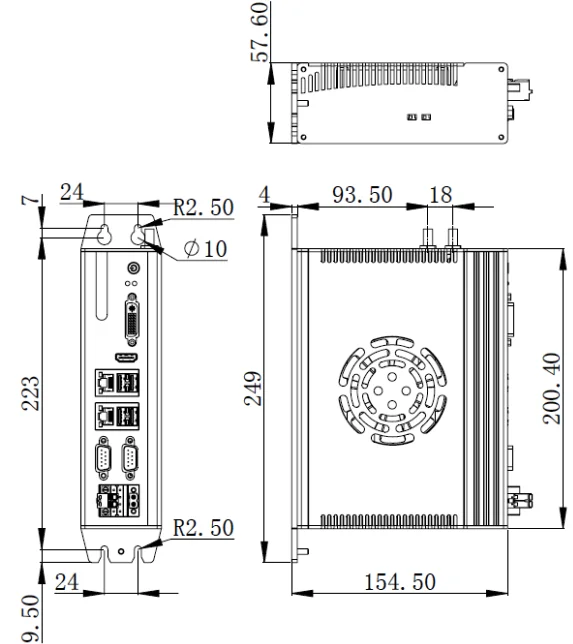

Dimensions






Ordering Information


Model Name
Description
NP-6122
CPU:NULL,RAM:NULL,mSATA:NULL, 2 x RS232/485(Selectable), 2 x LAN, 4 x USB3.0, DVI-D/HDMI display port, DC12~24V Power input
CPU
LGA1151 In-tel Celeron/Pentium/6th 7th 8th Core i3 i5 i7 Processor
Memory
DDR4 4G/8G/16G/32G
Mini SATA SSD
64G/128G/256G/512G
Option Item
12V Adapter
Adapter KPL-060F, with 2 Pin terminal(Taiwan Jinlian)
Power Cord
CN/EU/US/UK


Recommend Products






Company Profile




Packing and Shipping




FAQ


Q: Are you trading company or manufacturer ? May I visit your factory?
A: We are manufacturer, welcome to visit us and very pleased to show NODKA abilities for you.

Q: What's your MOQ ?
A: 1 unit.

Q: Can you provide customized design ?
A: Of course, modified and customer design is available.

Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not for free charge.

Q: What is your terms of payment ?
A: Payment<=100000USD, 100% T/T in advance.

If you have another question, pls feel free to contact us with email: vikki@nodka.com
