Product Overview

Description

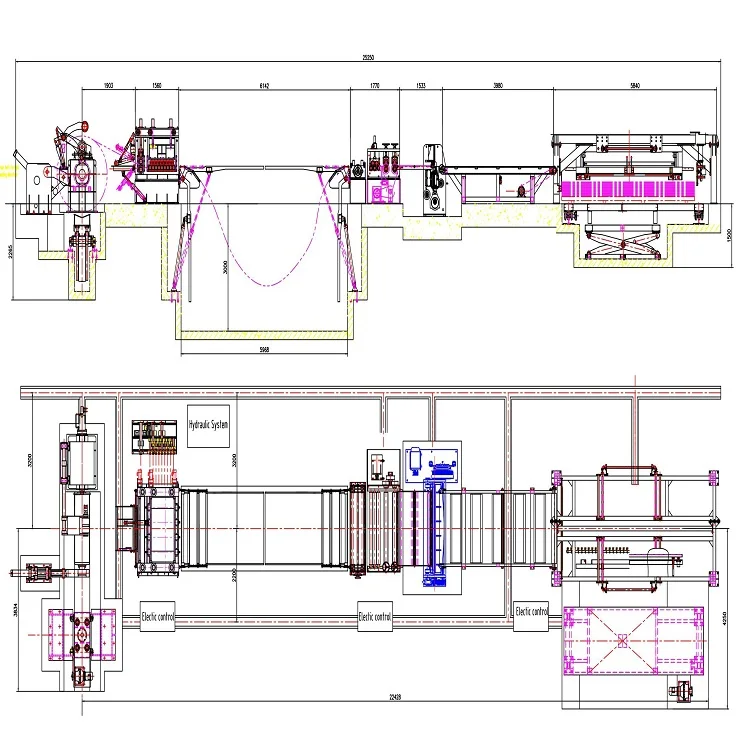

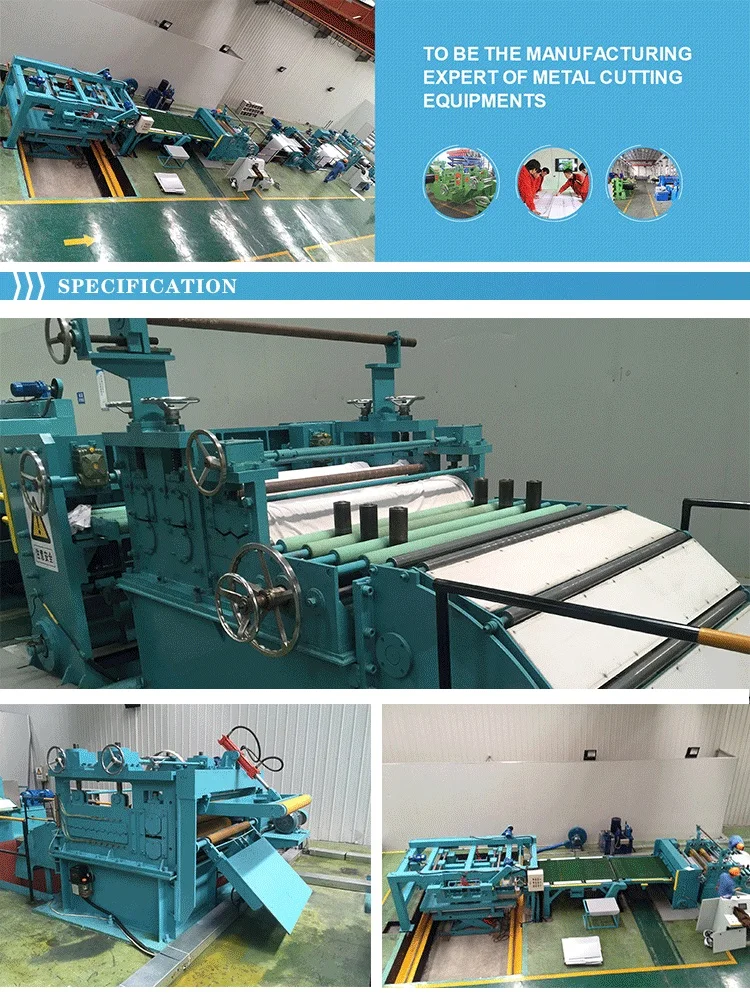

Cut to length line layout

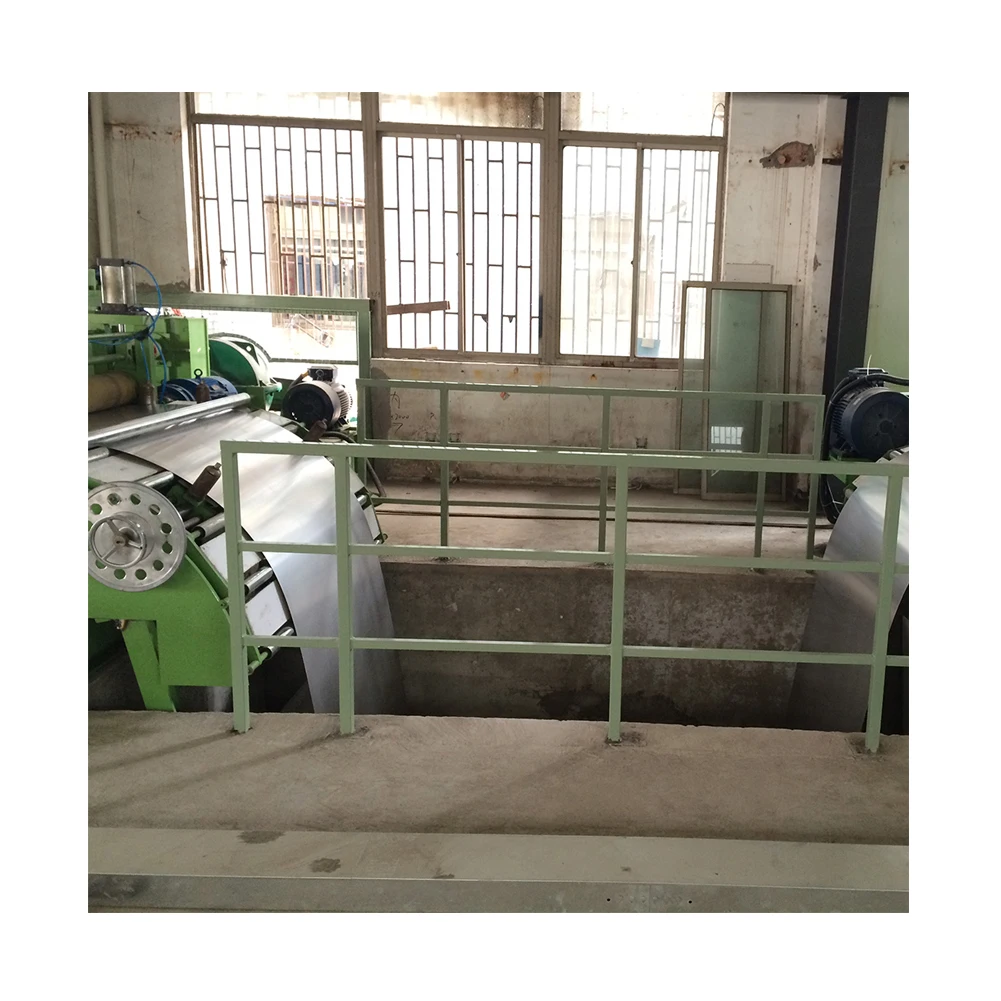

From left to right, they are : entry coil car + decoiler -press and pinch device + leveling machine -looper + lifting bridges- side guide device + servo straightening machine-high speed cutter-transition table-pneumatic piling device+ x-shaped lifting table + exit sheet car-Hydraulic and electrical control system



Technical parameters

Item		specifications
Raw materials	Materials feature	CR, GI, PPGI
	thickness	0.3mm—3.0mm
	width	500mm—1600mm
	O.D	Φ1000mm—φ1800mm
	I.D	φ508mm
	Coil weight	Max 20T
Finished product	Cutting length	500mm—4000mm
	Cutting tolerance:	±0.5mm( length tolerance) ±1.0mm( diagonal tolerance) Match the standard GB/T709-88
Leveling speed		0—60m/min
Max cutting thickness		3mm
Center line of the line ( to the ground)		800mm

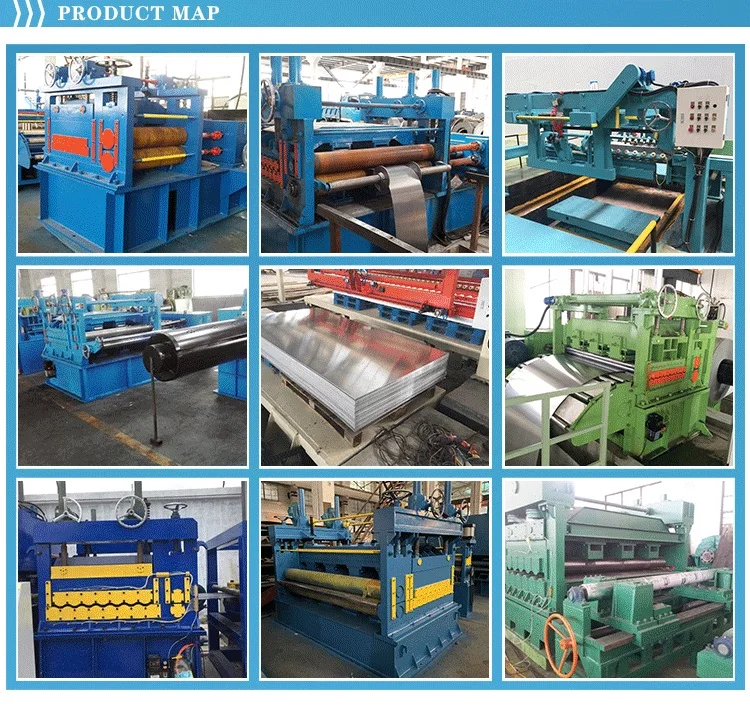

Other machines model size



thin steel high speed cut to length machine
Model	Sheet Thickness (mm)	Coil Width(mm)	Leveling Accuracy(mm)	Tolerance(mm/m)	Line Speed (m/min)	Coil Weight(t)
2*750	0.3-2	200-750	1	±0.5	60	5,10
2*1000	0.3-2	300-1000	1	±0.5	60	5,10
2*1250	0.3-2	400-1250	1	±0.5	60	10,15
2*1600	0.3-2	500-1600	1	±0.5	60	15,20
3*1600	0.4-3	500-1600	1	±0.5	60	3,5
4*1600	0.5-4	400-1600	1.2	±0.5	60	10,15
4*2000	0.5-4	800-2000	1.2	±0.5	60	15,20
