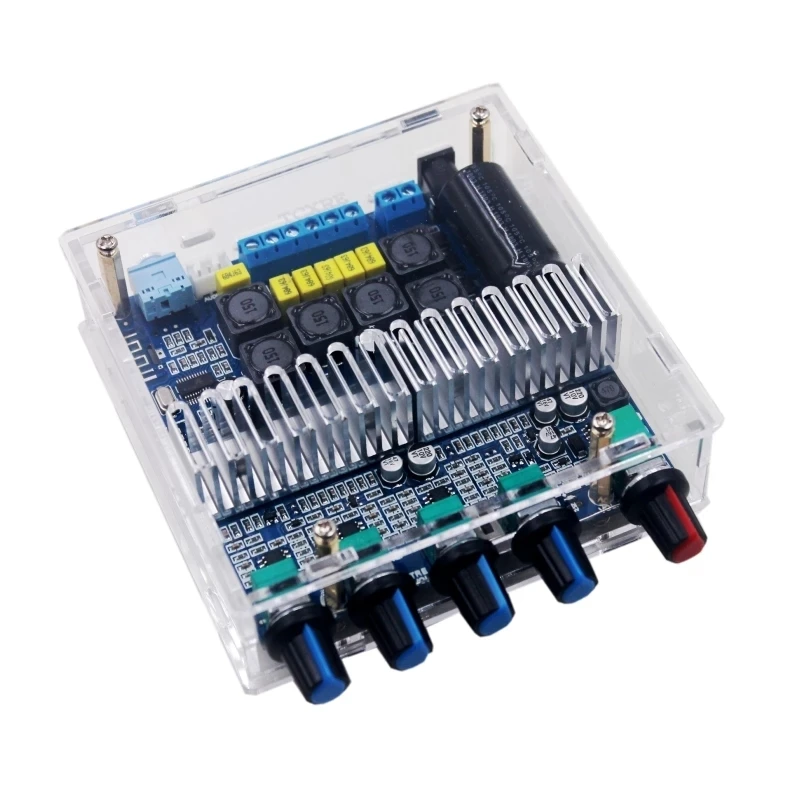

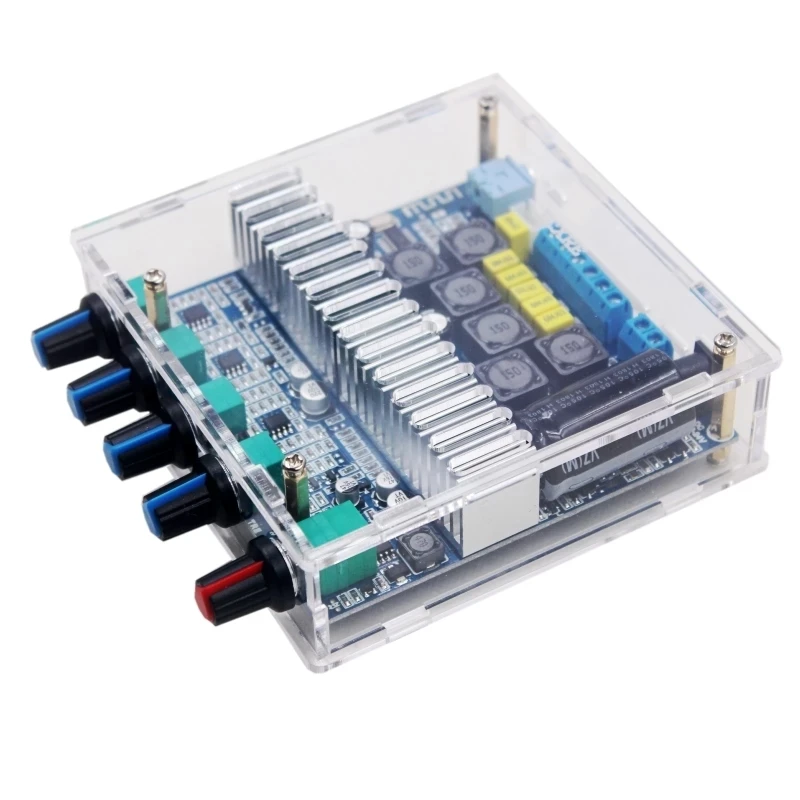

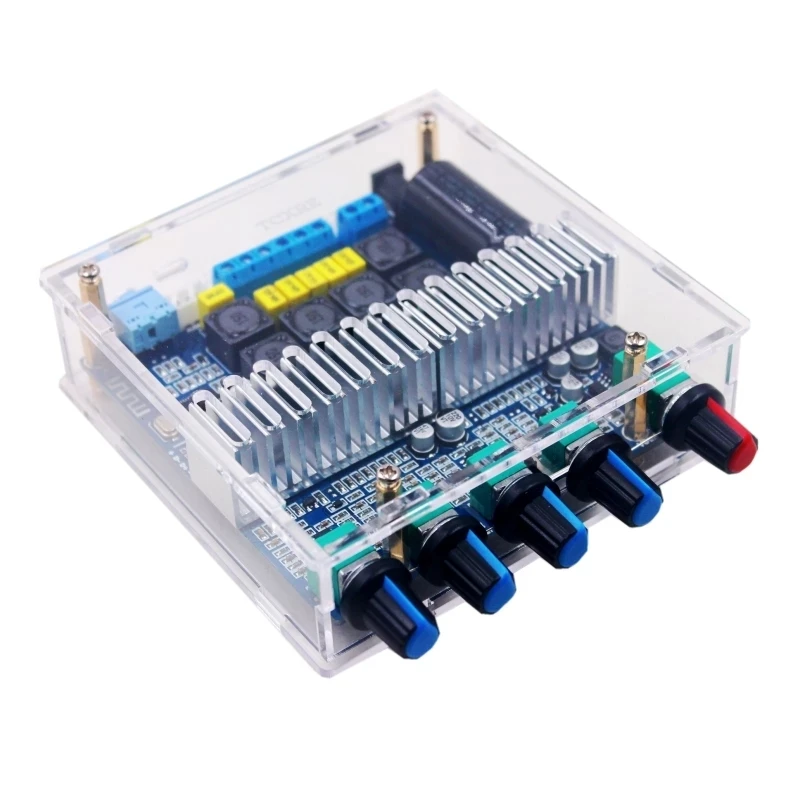

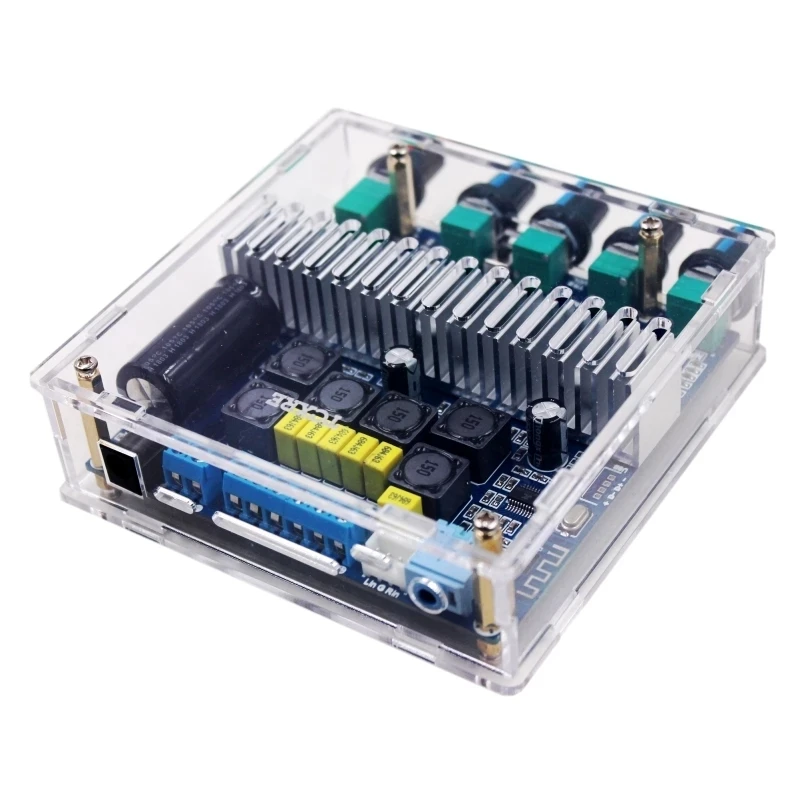

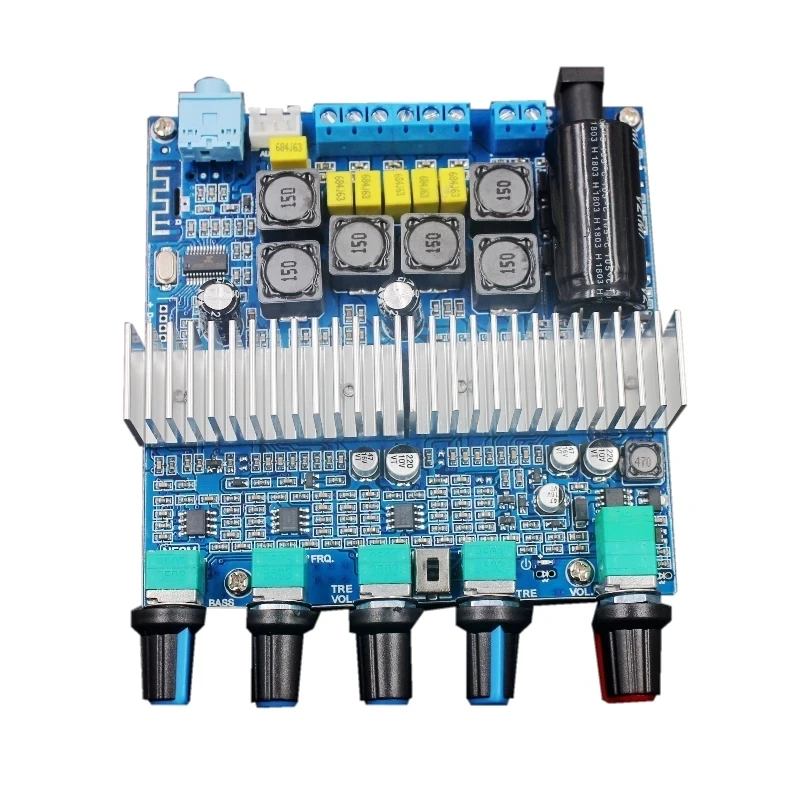

TPA3116D2 Subwoofer Amplifier Board 2.1 Channel High Power Audio Stereo Amplifier Board 2*50W 100W Bass AMP
- Category: >>>
- Supplier: Shenzhen Lingyue Longteng Technology Co. Ltd.
Share on (1600337051192):
Product Overview
Description
Products Description
This is a 12-24V DC single power supply, using TI's TPA3116D2 high-performance digital power amplifier chip as the core, one for
the parallel bridge bass channel power amplifier output, one for the left and right channel power amplifier output. Can support
100W (bass channel) + 50W (left channel) + 50W (right channel) three-channel output.
Support audio receiving, external audio source input interface, with preamplification, bass frequency division
processing; bass volume, bass frequency, left and right channel volume, treble, function control switch / total volume, 5
adjustment potentiometers.
Wide operating voltage, power-saving design, efficiency up to 90%. Can use a good switching power supply, notebook computer
switching power supply, can also use a charging bottle, or car power supply, etc.
The main product parameters:
Size (L * W * H): 101 x 100 x 25mm, excluding potentiometer and socket projection
Operating voltage range: DC 11-25V (current 3-4A, or 19-24V / 4-5A, such as high power requirements 20-24V / 8-9A above)
Note that the DC no-load voltage should not be greater than 25.5V.
receiving distance:> 8 m (meters)
Audio input sensitivity: 600-800mV
Frequency response range: 20Hz-20KHz
Speaker impedance: left and right channel speakers: 4-8 ohm
bass speaker impedance: 2-8 ohm
The output power is related to the supply voltage/current, the speaker impedance, and the size of the audio input. When the power
supply voltage/current is sufficient, usually the power supply voltage is higher and the relative output power can be made larger.
Speakers with different impedances have different output powers. Usually, the speaker impedance is smaller and the power is easier
to achieve.
Function switch Instructions for use:
1. Plug in the power on default mode
2. disconnected, long press the switch can switch to the audio input mode
3. play status, short press the switch to pause / play
the parallel bridge bass channel power amplifier output, one for the left and right channel power amplifier output. Can support
100W (bass channel) + 50W (left channel) + 50W (right channel) three-channel output.
Support audio receiving, external audio source input interface, with preamplification, bass frequency division
processing; bass volume, bass frequency, left and right channel volume, treble, function control switch / total volume, 5
adjustment potentiometers.
Wide operating voltage, power-saving design, efficiency up to 90%. Can use a good switching power supply, notebook computer
switching power supply, can also use a charging bottle, or car power supply, etc.
The main product parameters:
Size (L * W * H): 101 x 100 x 25mm, excluding potentiometer and socket projection
Operating voltage range: DC 11-25V (current 3-4A, or 19-24V / 4-5A, such as high power requirements 20-24V / 8-9A above)
Note that the DC no-load voltage should not be greater than 25.5V.
receiving distance:> 8 m (meters)
Audio input sensitivity: 600-800mV
Frequency response range: 20Hz-20KHz
Speaker impedance: left and right channel speakers: 4-8 ohm
bass speaker impedance: 2-8 ohm
The output power is related to the supply voltage/current, the speaker impedance, and the size of the audio input. When the power
supply voltage/current is sufficient, usually the power supply voltage is higher and the relative output power can be made larger.
Speakers with different impedances have different output powers. Usually, the speaker impedance is smaller and the power is easier
to achieve.
Function switch Instructions for use:
1. Plug in the power on default mode
2. disconnected, long press the switch can switch to the audio input mode
3. play status, short press the switch to pause / play
Details Images
Packing & Delivery
Each set in a box or bubble wrap with strong carton.
Packing can be customized.
About Delivery
Support various modes of transportation by land, air and sea.
Support various modes of transportation by land, air and sea.
