2.2kw ER25 220v/380v air cooled spindle motor with flange With 2.2KW Fuling Inverter
- Category: >>>
- Supplier: Suzhou Penny Machinery Equipment Co. Ltd.
Share on (1600337066989):
Product Overview
Description

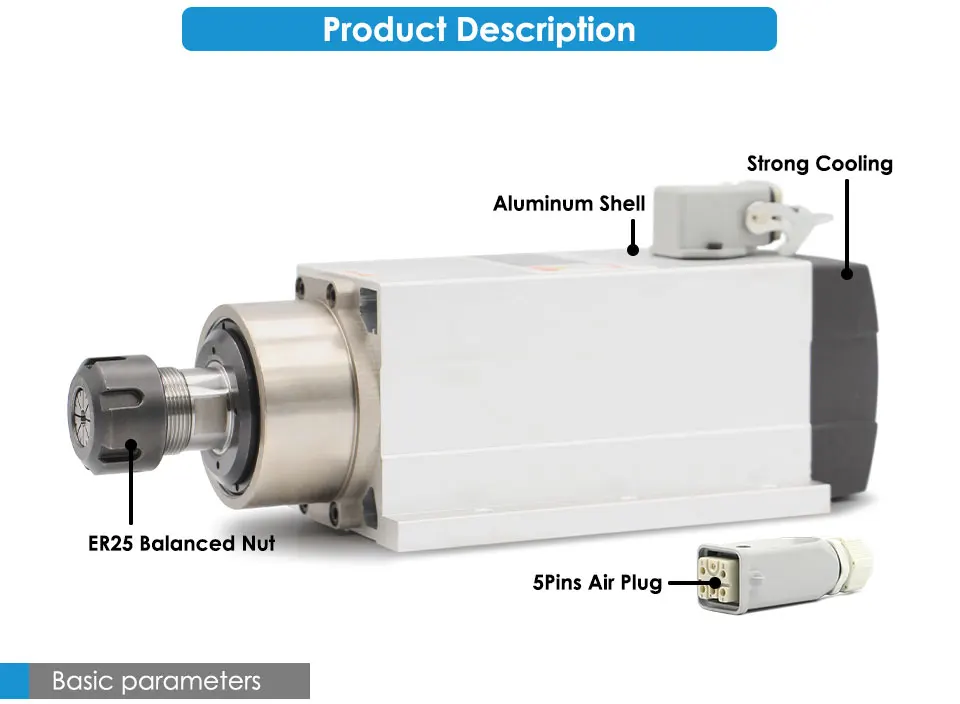

Product Description
1 pcs -- 220v/380v 2.2kw ER25 air cooled spindle motor 4pcs ceramic ball bearings With mounting flange
1 pcs -- 2.2KW FuLing Inverter/VFD

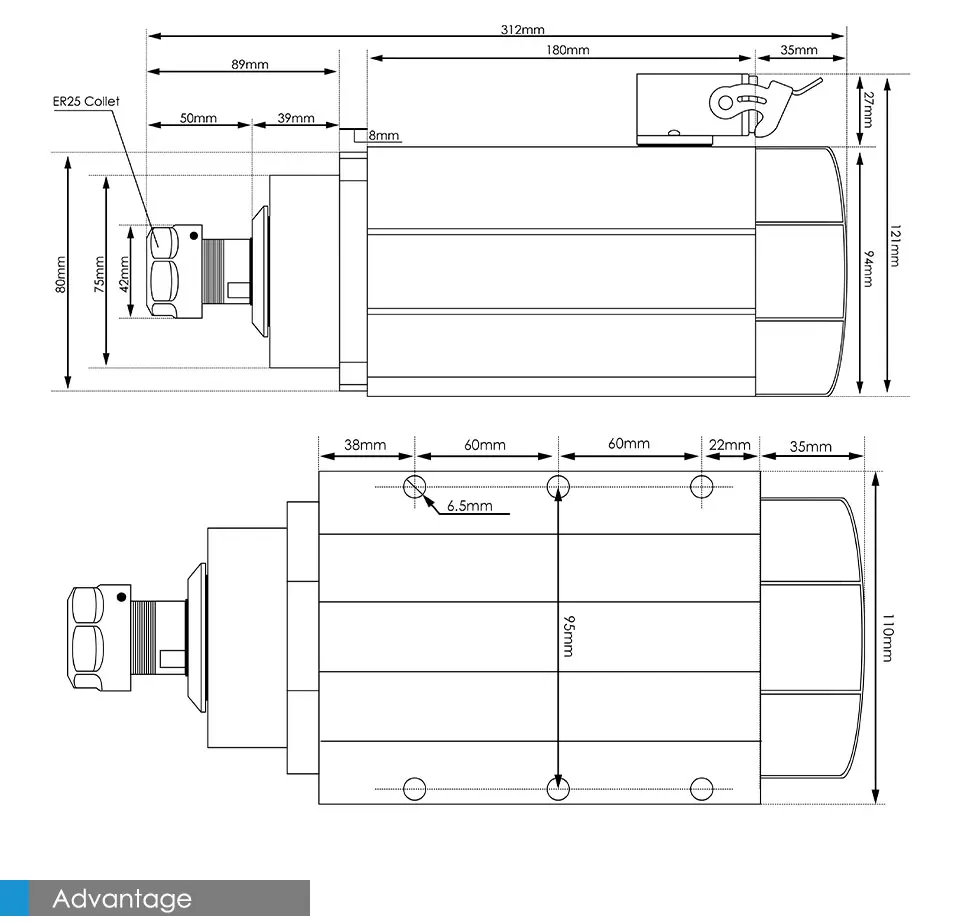

* Size: 180x110x94mm
* Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling:Air cooling

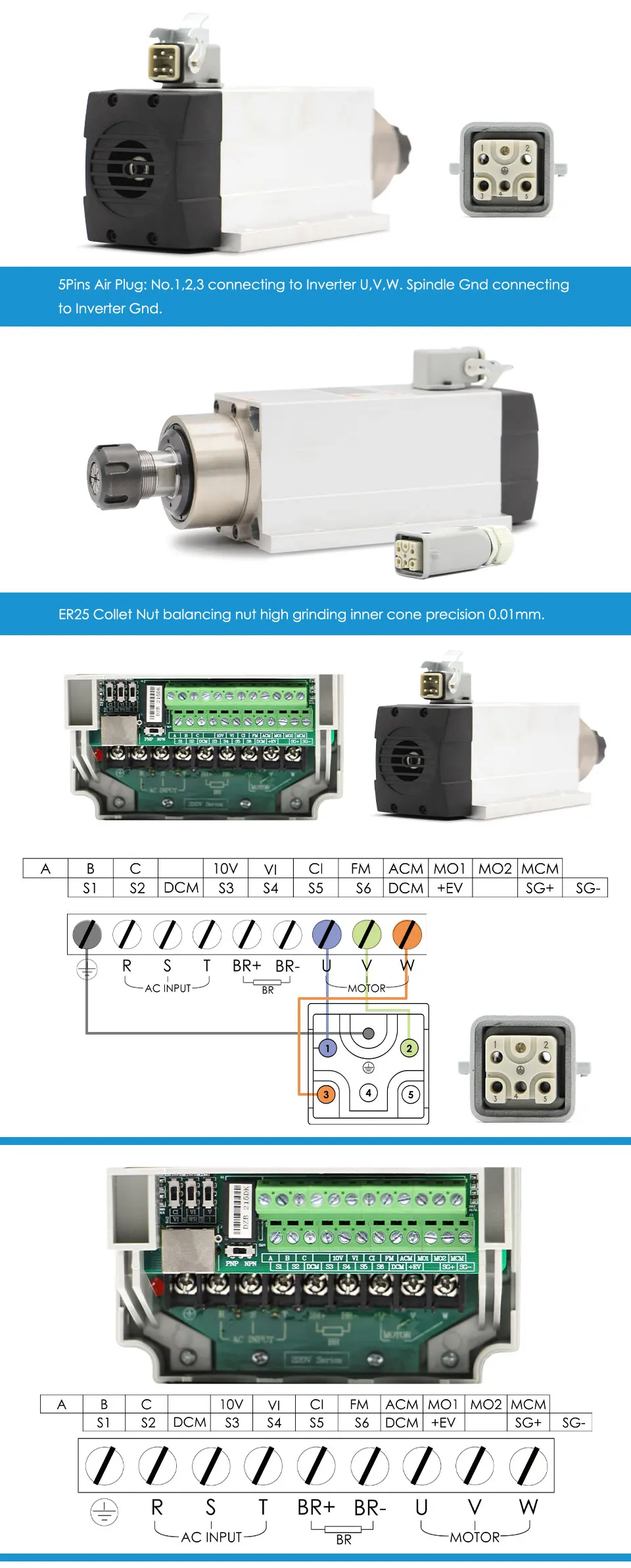

* Power Interface:Optional waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
* Power:2.2kw (1HP=0.735w)
* Voltage: 220v(If you need 380v spindle ,please leave message to us,thank you)
* Current: 8.5A
* Frequency: 0-300Hz
* Speed: 0-18000rpm
* Runout Off:Less than 0.01mm
* Bearing type:2x7007C P4 DB & 2x7002C P4 DB (4 pcs ceramic ball bearings)
* Collet:ER25
* Clip Knifediameter:1mm,2mm,3mm,3.175mm(1/8),4mm,5mm,6mm,6.35mm(1/4),7mm, 8mm,9mm,10mm,11mm,12mm,12.7mm(1/2),13mm,14mm,15mm,16mm
* Grease Lubrication
* Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
* Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
* Cooling:Air cooling
* Power Interface:Optional waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)
* Power:2.2kw (1HP=0.735w)
* Voltage: 220v(If you need 380v spindle ,please leave message to us,thank you)
* Current: 8.5A
* Frequency: 0-300Hz
* Speed: 0-18000rpm
* Runout Off:Less than 0.01mm
* Bearing type:2x7007C P4 DB & 2x7002C P4 DB (4 pcs ceramic ball bearings)
* Collet:ER25
* Clip Knifediameter:1mm,2mm,3mm,3.175mm(1/8),4mm,5mm,6mm,6.35mm(1/4),7mm, 8mm,9mm,10mm,11mm,12mm,12.7mm(1/2),13mm,14mm,15mm,16mm
* Grease Lubrication
* Main Application: Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
Size | Power | Voltage | Current |
180x110x94mm | 2.2kw | 220v | 8.5A |
Frequency | Speed | Lubrication | Collet |
0-300Hz | 0-18000rpm | Grease | ER25 |
● Bearing is P4 grade,2×7007C P4 DB & 2x7002C P4 DB. 4pcs ceramic ball bearings,increase the spindle life.
● 2.2kw ER25 air cooled spindle, the collet nut range from 1mm to 16mm, better than ER20 collet.
● High precision,runout off less than 0.01mm.Coaxial degree less than 0.0025mm
● Shipment within four days,there is no fake tracking number,make sure that you receive time.
● We are the spindle manufacturer,we offer only best quality and best price to you.
● 2.2kw ER25 air cooled spindle, the collet nut range from 1mm to 16mm, better than ER20 collet.
● High precision,runout off less than 0.01mm.Coaxial degree less than 0.0025mm
● Shipment within four days,there is no fake tracking number,make sure that you receive time.
● We are the spindle manufacturer,we offer only best quality and best price to you.

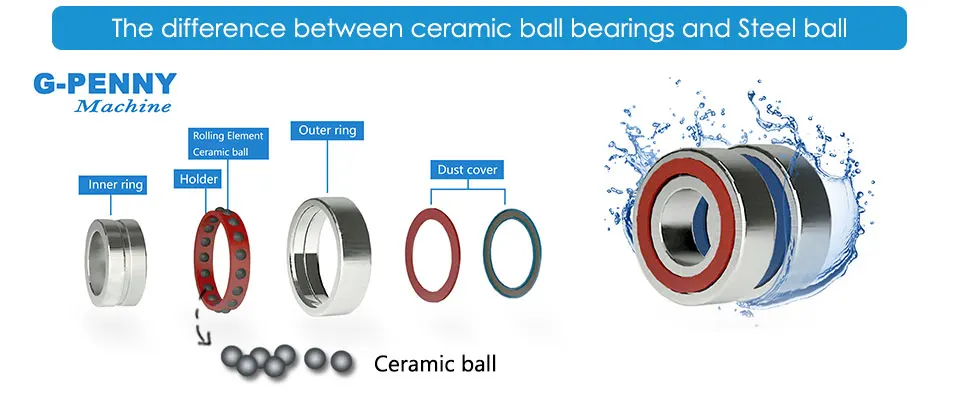

1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings
during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings
2. Ceramic ball bearings are resistant to high temperatures and low heat , usually 3-5 degrees lower than steel ball bearings
during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings
Structural Features
● High-speed electric main bearings used in all C class high-speed angular contact ball bearings, axial pre-load feature, improved
support stiffness and live spindle grinding accuracy under high-speed rotation.
● Spindle speed according to different uses can be high-speed grease and oil mist lubrication two ways.
● Spindle speed rotation temperature rise caused by the use of coolant circulation system eliminated.
● High-speed electric main bearings used in all C class high-speed angular contact ball bearings, axial pre-load feature, improved
support stiffness and live spindle grinding accuracy under high-speed rotation.
● Spindle speed according to different uses can be high-speed grease and oil mist lubrication two ways.
● Spindle speed rotation temperature rise caused by the use of coolant circulation system eliminated.

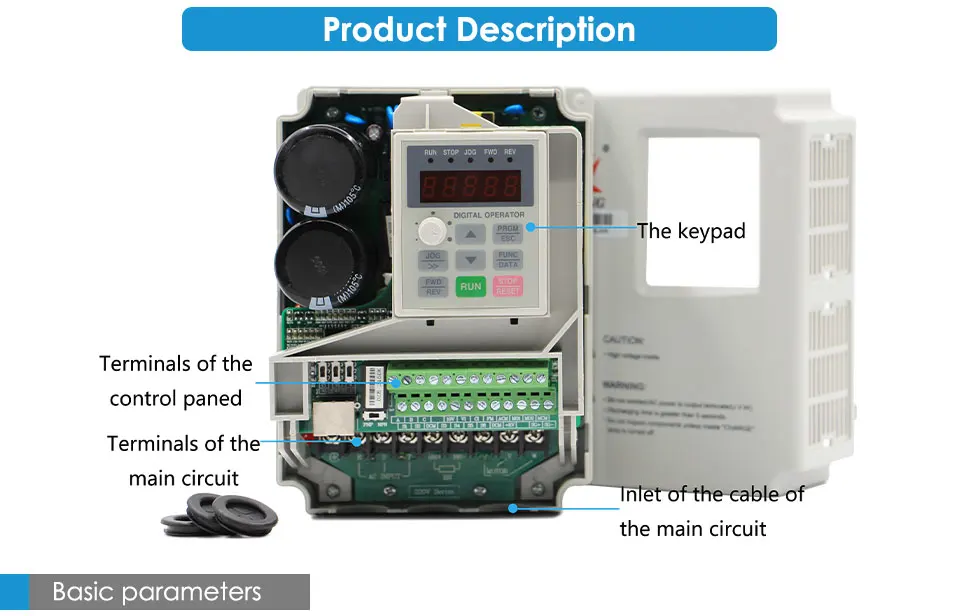

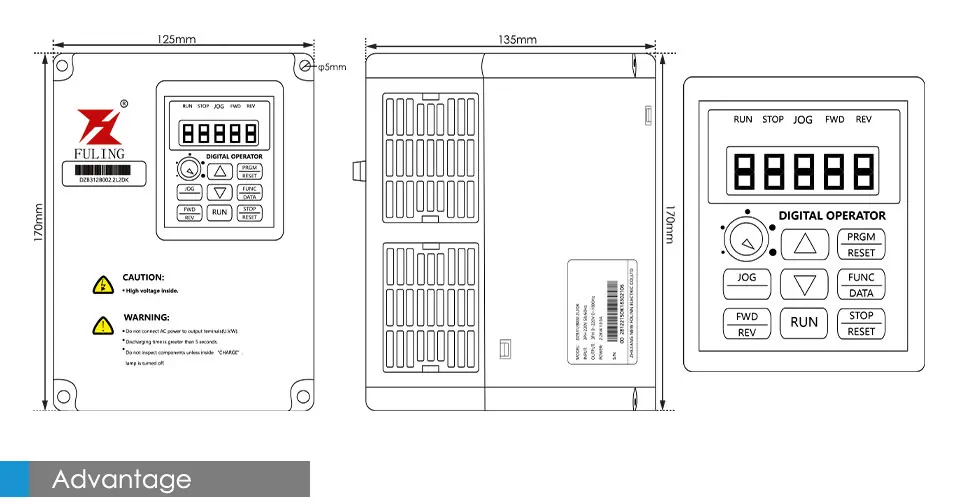

* Inverter Number: Fuling 220v 2.2kw
* Input Voltage: 220v(+/-15%)
* Input Frequency: 50/60Hz
* Input Phase: 1 or 3 phase
* Output Voltage: 220vAC
* Output Frequency: 0-1000 Hz
* Output Current:15A
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased
* Input Voltage: 220v(+/-15%)
* Input Frequency: 50/60Hz
* Input Phase: 1 or 3 phase
* Output Voltage: 220vAC
* Output Frequency: 0-1000 Hz
* Output Current:15A
* Output Phase: 3 phase
* Warranty: 1 year from the date you purchased

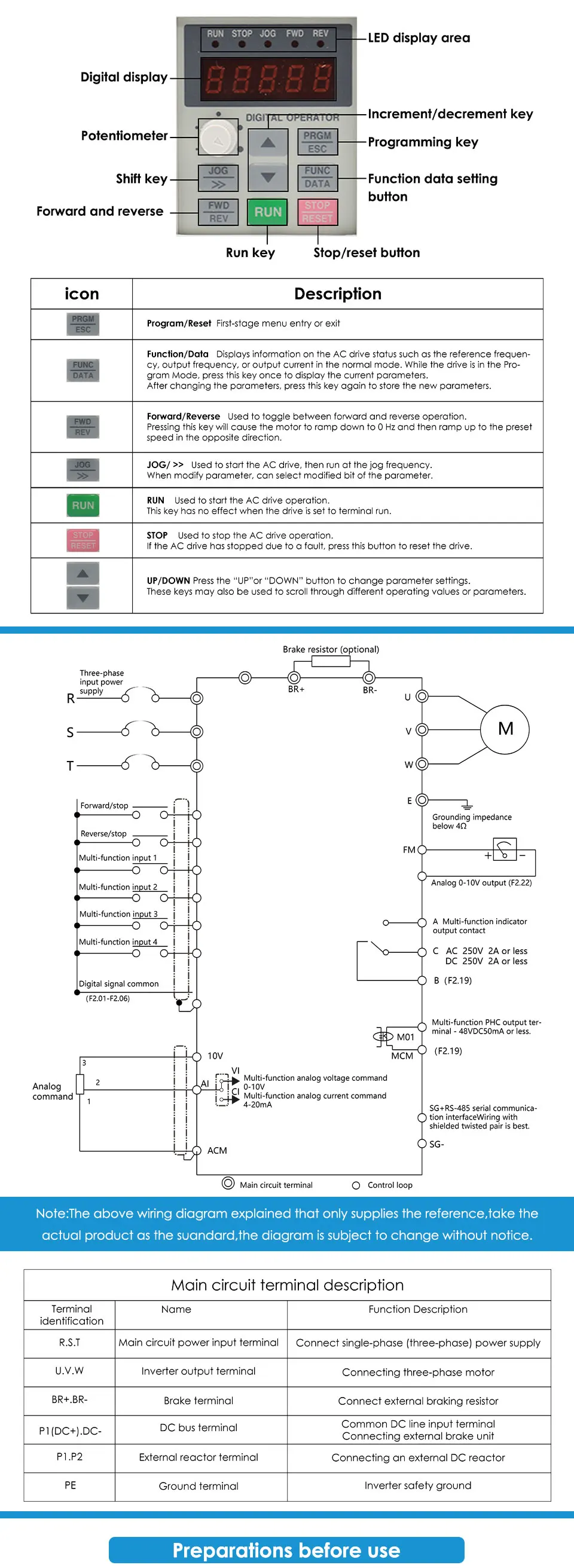

◆ Provide multiple fault protection functions: over current, over voltage, under voltage, overheat, phase loss, overload, etc
◆ Control modes: V/F control mode
◆ 8-stage simple PLC, multi-stage speed control and PID control
◆ Input and output terminals are free to program, and users can combine multiple working modes according to their needs
◆ 0.75~15KW built-in braking units of various specifications, can connect the braking resistor directly if need to stop quickly.
◆ Support many frequency setting modes: digital setting, analog setting, PID setting, communication setting.
◆ With instantaneous power-off and non-stop function.
◆ The inverter above 37KW has a built-in DC reactor to improve the input side power factor and the efficiency and stability of the
whole machine.
◆ 8-stage simple PLC, multi-stage speed control and PID control
◆ Input and output terminals are free to program, and users can combine multiple working modes according to their needs
◆ 0.75~15KW built-in braking units of various specifications, can connect the braking resistor directly if need to stop quickly.
◆ Support many frequency setting modes: digital setting, analog setting, PID setting, communication setting.
◆ With instantaneous power-off and non-stop function.
◆ The inverter above 37KW has a built-in DC reactor to improve the input side power factor and the efficiency and stability of the
whole machine.
Applications：
◆ Metal processing, CNC machine tools, wire drawing machines, and other mechanical equipment
◆ Municipal engineering, central air conditioning energy-saving transformation
◆ Papermaking equipment, chemical industry, pharmaceutical industry, textile industry,etc.
◆ Various fan and pump loads
◆ Metal processing, CNC machine tools, wire drawing machines, and other mechanical equipment
◆ Municipal engineering, central air conditioning energy-saving transformation
◆ Papermaking equipment, chemical industry, pharmaceutical industry, textile industry,etc.
◆ Various fan and pump loads
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
Please contact us, we have manuals, videos and pictures to help you.

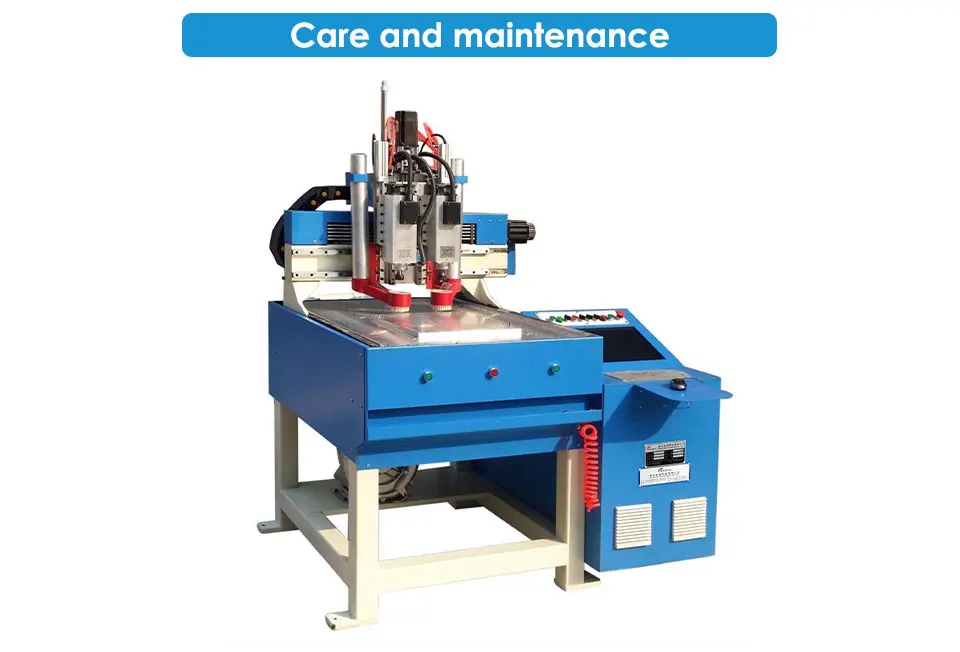

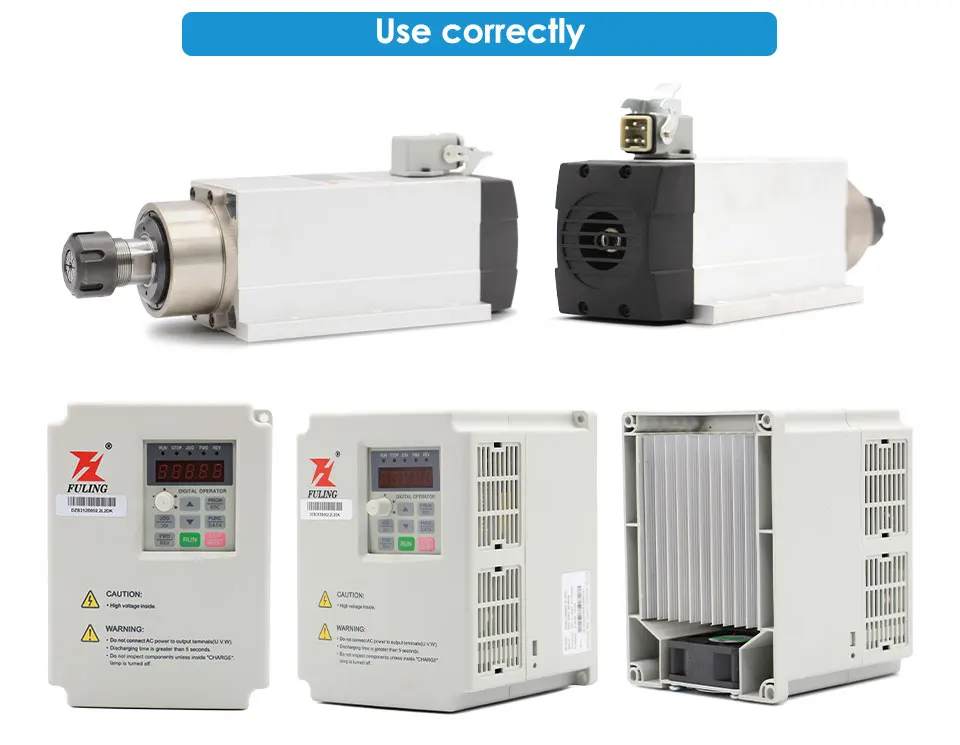

* Spindle working environment temperature is usually -10 ~ 40 .
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
* Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.(Because of high-speed grease inside the bearing state will change,when you get the spindle, maybe the noise sounds not normal.Please run it 30 minutes or even more, the noise will be normal.)
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
* Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
* During normal operation, air-cooled spindle often encounter the phenomenon of heat, always check whether the air-cooled spindle housing and duct clogging dust.If clogging dust, to promptly clean up. If you do not clean up, it is easily to make the spindle burned.
* Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts, collets, cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
● If thespindle will not be used for a long time, please keep the spindle oil sealed to prevent rust from being unused for a long time.
● Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
● Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
* Spindle frequency power supply connected rated voltage, frequency should be consistent with the technical parameters of the
electro-spindle, spindle speed can be adjusted to change the frequency, and voltage is proportional to the change.
* Spindle being not used, the application of compressed air to blow the pipes static coolant.To prevent rust, clogging water
holes. Spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.
* To replace the spindle bearings, certain professional and technical personnel should be replaced.Supporting special tools,
bearings should be replaced fully cleaned without removing the stator coils.
electro-spindle, spindle speed can be adjusted to change the frequency, and voltage is proportional to the change.
* Spindle being not used, the application of compressed air to blow the pipes static coolant.To prevent rust, clogging water
holes. Spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.
* To replace the spindle bearings, certain professional and technical personnel should be replaced.Supporting special tools,
bearings should be replaced fully cleaned without removing the stator coils.

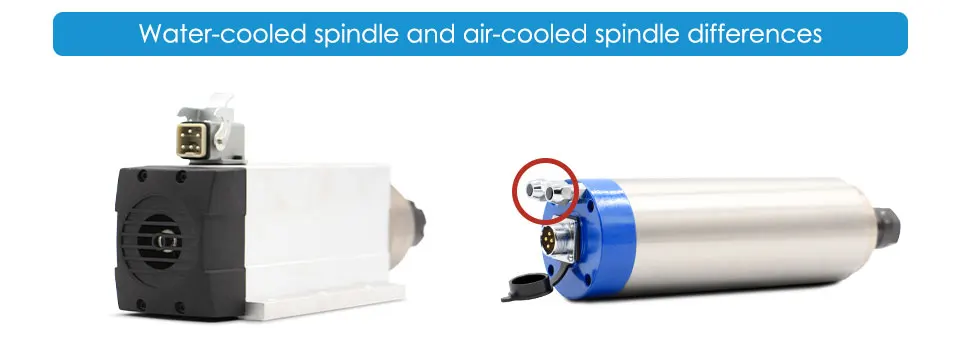

1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
* We will 100% guarantee security to the hands of the guests.
* Spindle from the production - assembly - test, and finally the perfect packaging .
* Spindle from the production - assembly - test, and finally the perfect packaging .
