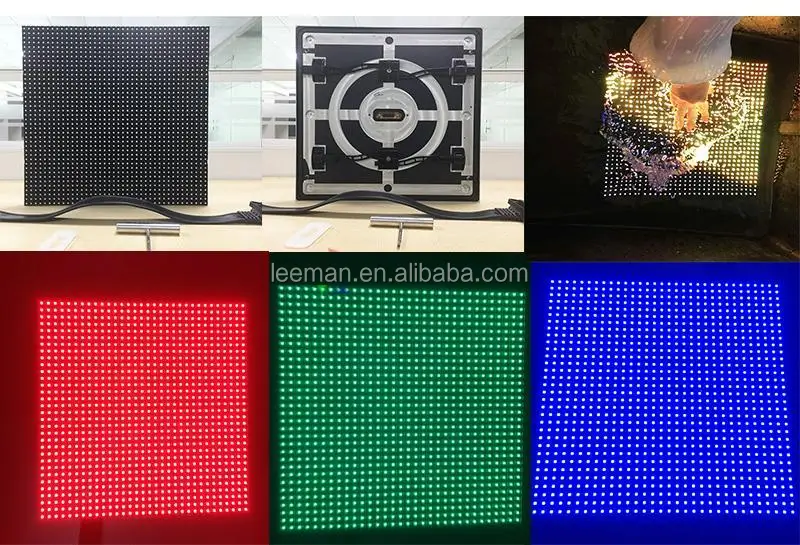

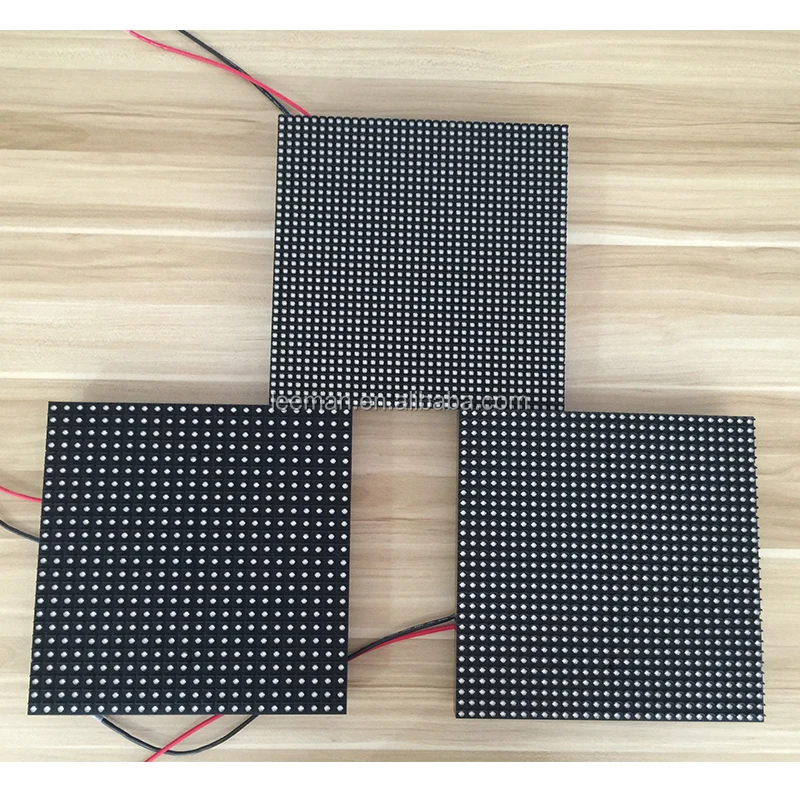

P8 P10 P6.67 P4 320X320mm Outdoor Frontal Service LED Display Module

Product Overview

Description

LEEMAN Outdoor P6.6 P8 P10 P16 Front maintenance & Front open service Led display module 320mm x 320mm

Outdoor Indoor SMD Full Color Video LED Display P1.25mm / P1.56mm / P1.667mm / P1.875mm / P1.976mm / P2mm / P2.5mm / P2.604mm / P2.976mm / P3mm / P3.33mm / P3.91mm / P4mm / P4.81mm / P5mm / P5.33mm / P6mm / P6.67mm / P8mm / P10mm / P16mm / P20mm

LED Display Screen

LED Display Module

LED Controller card

HDMI video processor

LED Stage light

DLP Projector

LCD Projector

LED light box



P8mm front and rear service LED display,P8 smd outdoor front access led video wall, Service from front side, front service outdoor led billboard

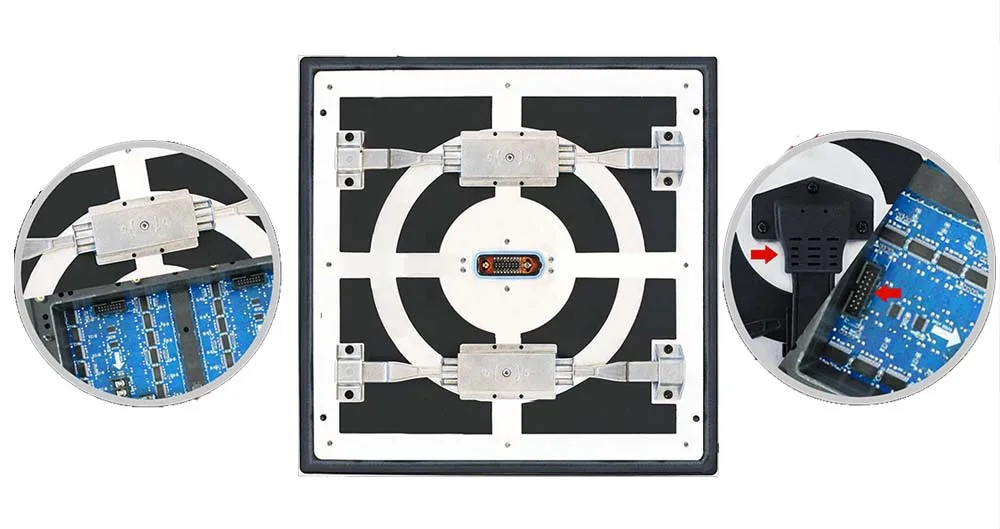

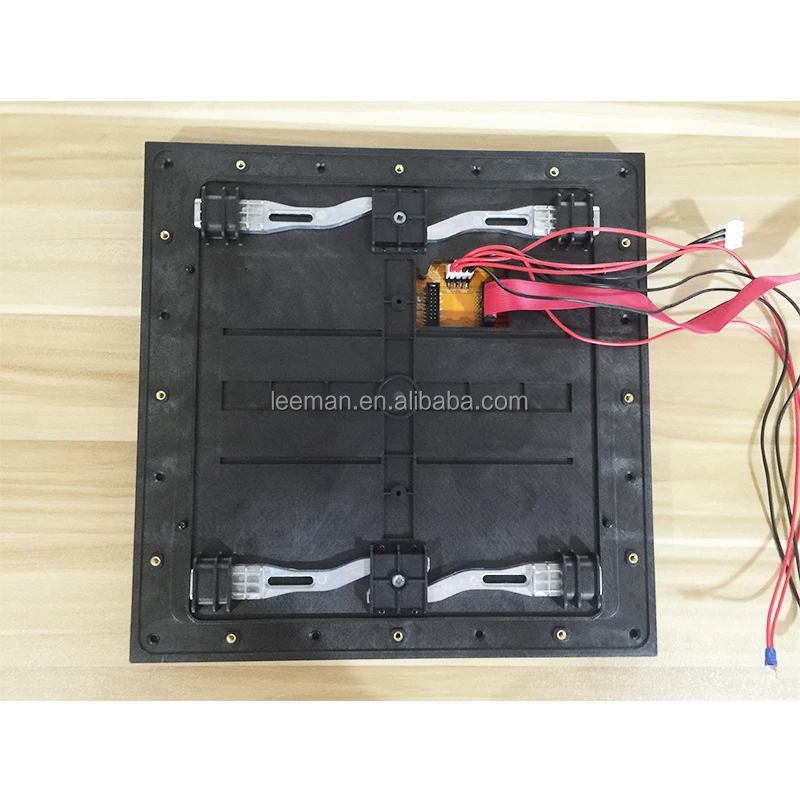

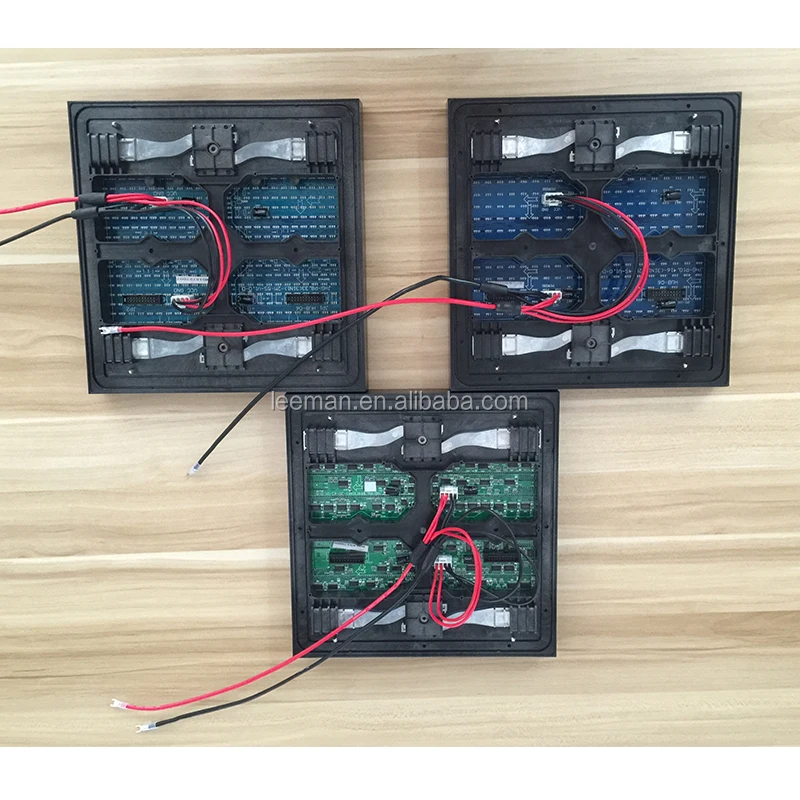

Front service and rear open double maintenance

 Product Features

- General Module design makes perfect flatness on the surface; minimize the gap between modules & cabinets.

- Ultra high brightness (7000 Nits) outdoor PH 6.6mm SMD LEDs with low power consumption (average 180W/sqm).

- High refresh rate with software adjustable, suitable for videos, picture and filming.

- High gray scale (16 bits) with perfect real visual performance and effects.

- High Contrast ratio (2000:1) with self-developed black mask and black coating technique.

- Wide viewing angle (greater than 110° in horizontal); IP65 protection rating.

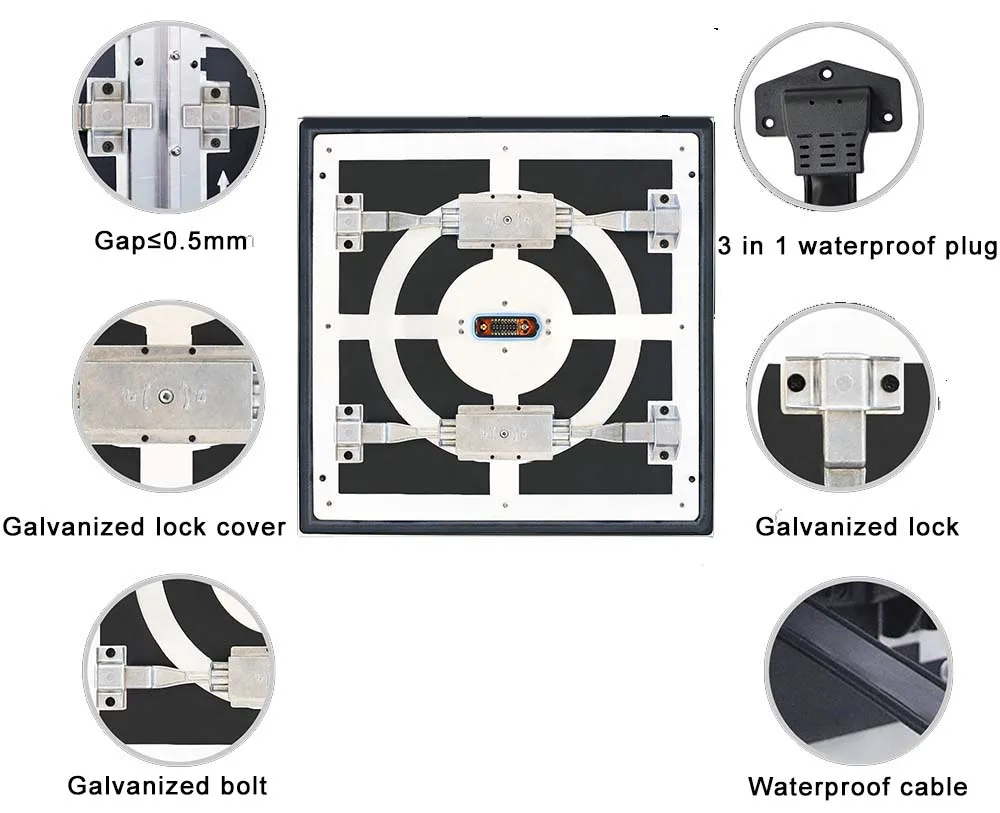

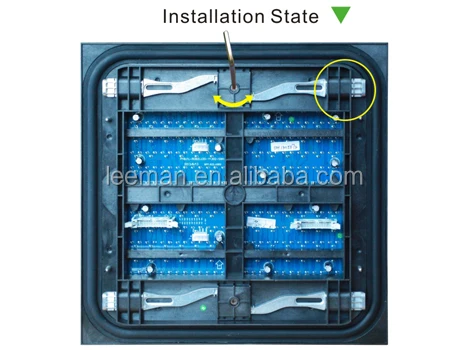

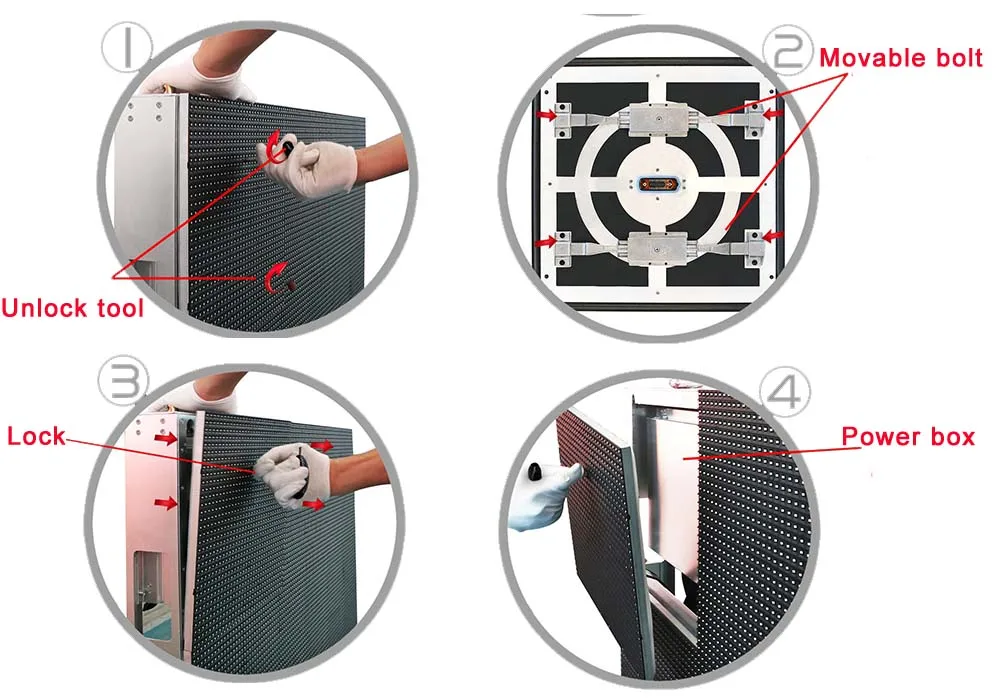

- Easy and fast installation and maintaining design. (Install or remove a module only takes 8 seconds).

- High reliability and long lifespan (MTBF ≥ 5000 hours). And on-site pixel by pixel brightness and color correction bring greater uniformity.



Item	Technical Parameters
Nationstar REESTAR SMD LED Lamp Parameters
Item Name	LED Type
Red LED	SMD 3535
Green LED	SMD 3535
Blue LED	SMD 3535
LEEMAN LED Display Module Specification
Pixel Pitch	P10mm P8mm P6.67mm
Pixels Density	10,000 pixels/m2

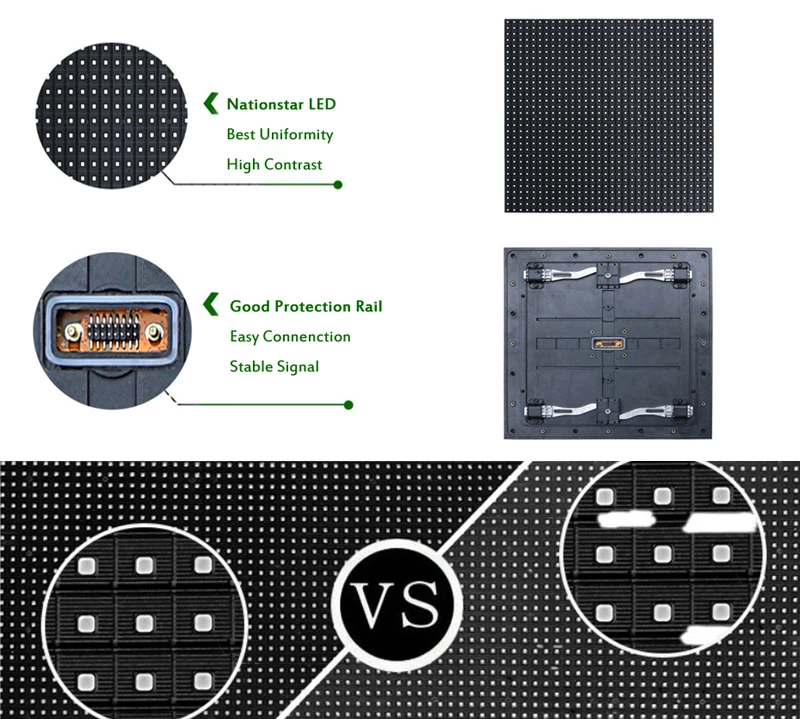

LED Configuration	Nationstar SMD RGB 3in1
Package Mode	SMD3535

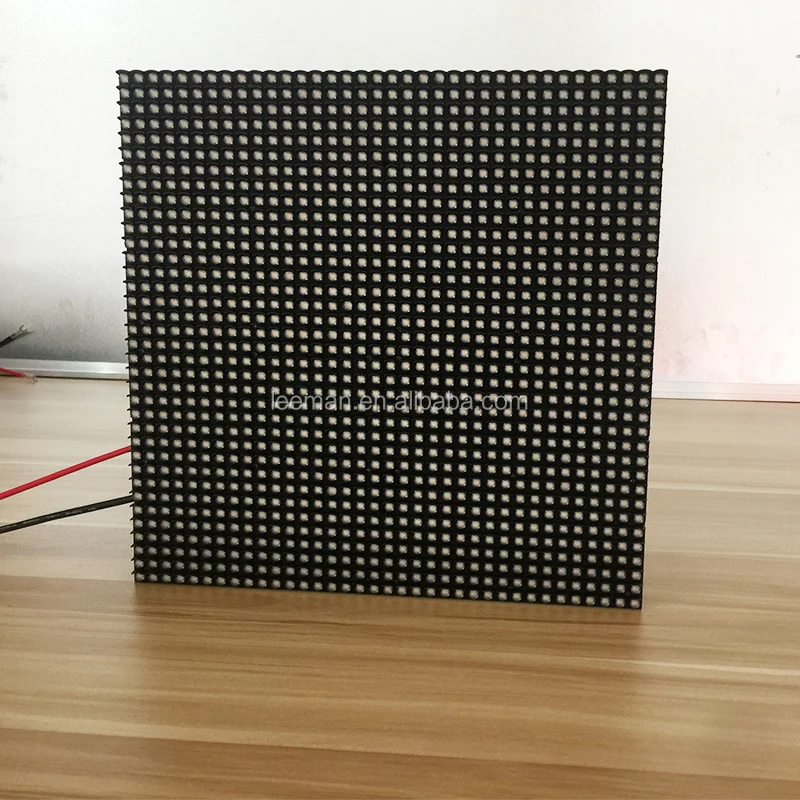

Module Size	320mm X 320mm
Module Resolution	32dots(H)*32dots(V)
Module Pixles	1024 pixels
Max Power Consumpion	50W
Module Thickness	35mm
PCB Board	4 Layer PCB Board With 1.6mm
Driving IC	ICN2037 ICN2038 ICN2153 MBI5124
Drive Type	Constant drive
Driving Method Scan Mode	Dynamic 1/2 Duty constant current
Port Interface Type	HUB75
Module Input Voltage	DC 5V
Brightness of White Balance	≥8000cd/m2

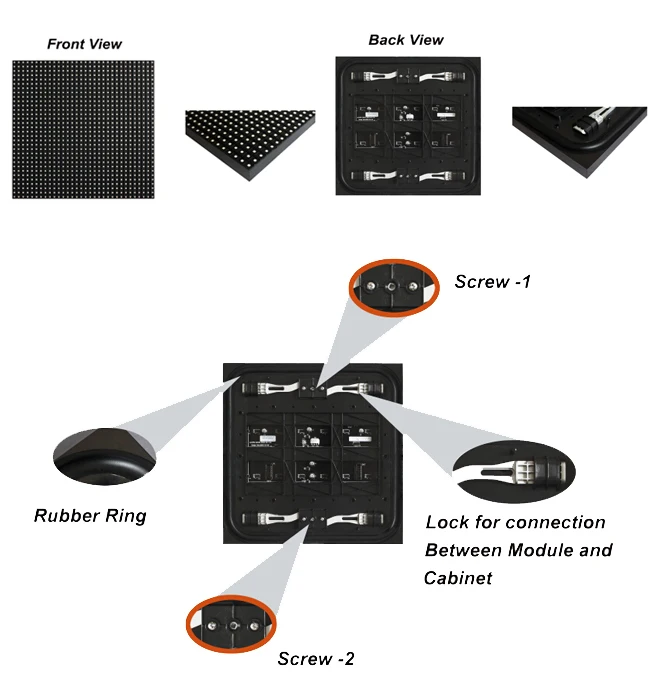

Maintenance	Front and Rear Maintenance

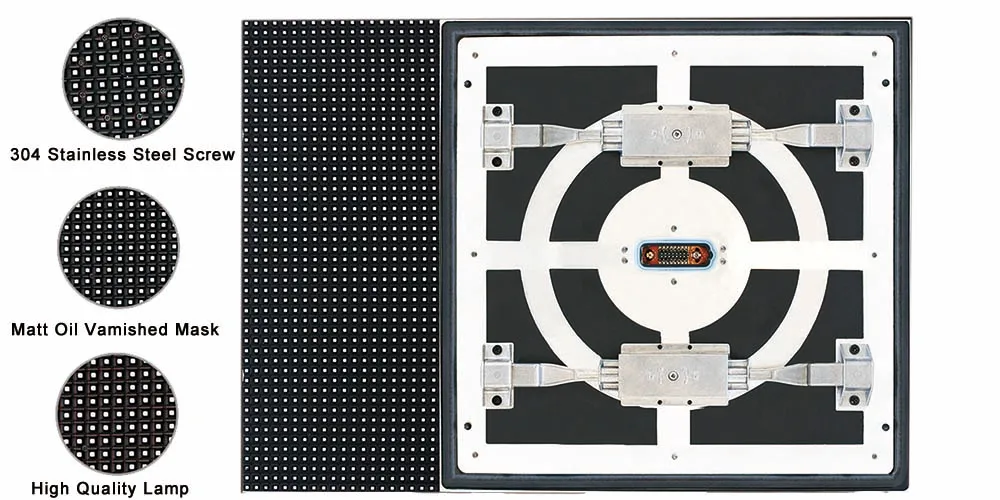

Module Mask	Pure Black mask-high contrast screen
LEEMAN LED Display Cabinet Specification
Cabinet Dimension	960mm* 960mm*100mm (Can be Customized)
Module Quantity	9pcs
Cabinet Resolution	96*96
Cabinet Weight	18kg per cabinet
Cabinet Material	Die Casting Aluminum
Best viewing distance	8M~120M
Best viewing angle	160°(H) 160°(V)
Average Power consumption	400W/m2
Max.Power consumption	≤800W/m2
Frame Frequency	≥60Hz
Refresh frequency	≥3840Hz - 5760HZ
Power Supply Mode	AC220±10%  50Hz/AC110±10%  60Hz
Temperature	storage:-35℃~+85℃
	working:-20℃~+50℃
Humidity	10%-95%

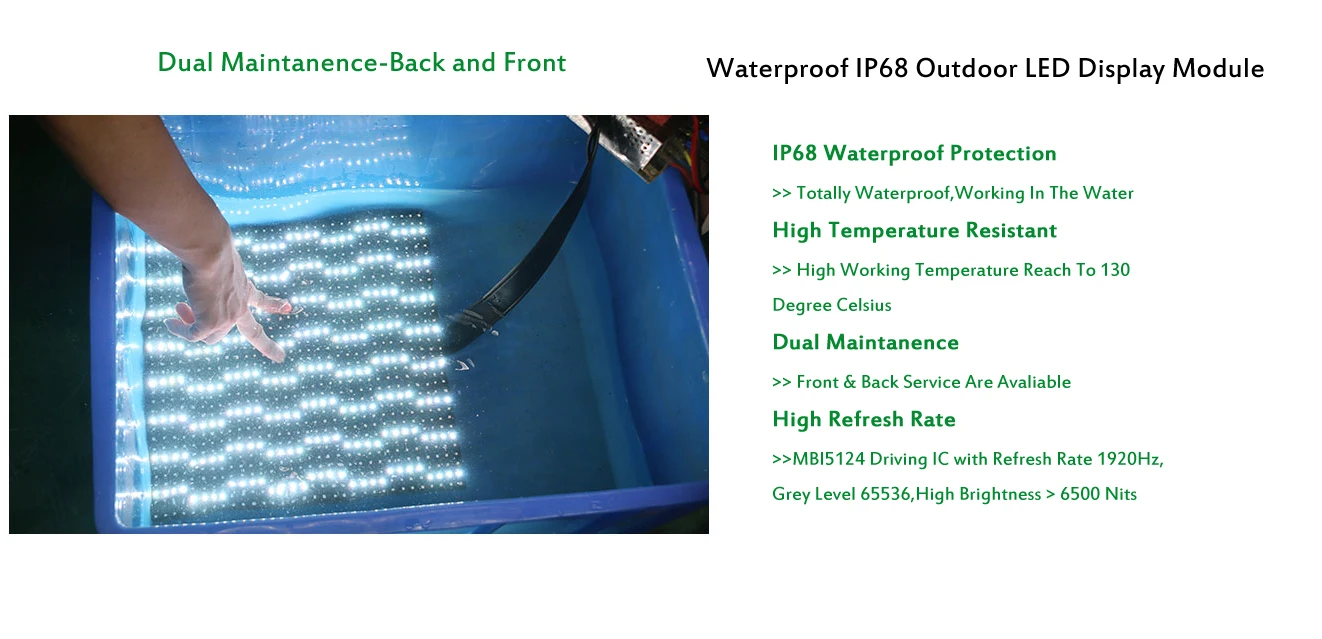

IP Grade	IP66 - IP68
Grey scale/colors	256levels of each color(RGB)/16.7M colors
MTBF	≥5,000hours
Screen Lifespan	≥100,000 hours
Screen Plainness	<±1mm
Blind Spot Rate	<0.0001
CPU	Pentium4 or above
Operation system	WINDOWS 8/10/IOS/NT/XP
Control method	Synchronous display with control PC by DVI
Control System	Linsn LED, Novastar LED, Colorlight LED or as you required
Display Content	VGA, DVI, Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable
Certificate	CE, RoHS, FCC, EMC
Application	Outdoor, Indoor Rental Purpose
