Product Overview
Description
The main function

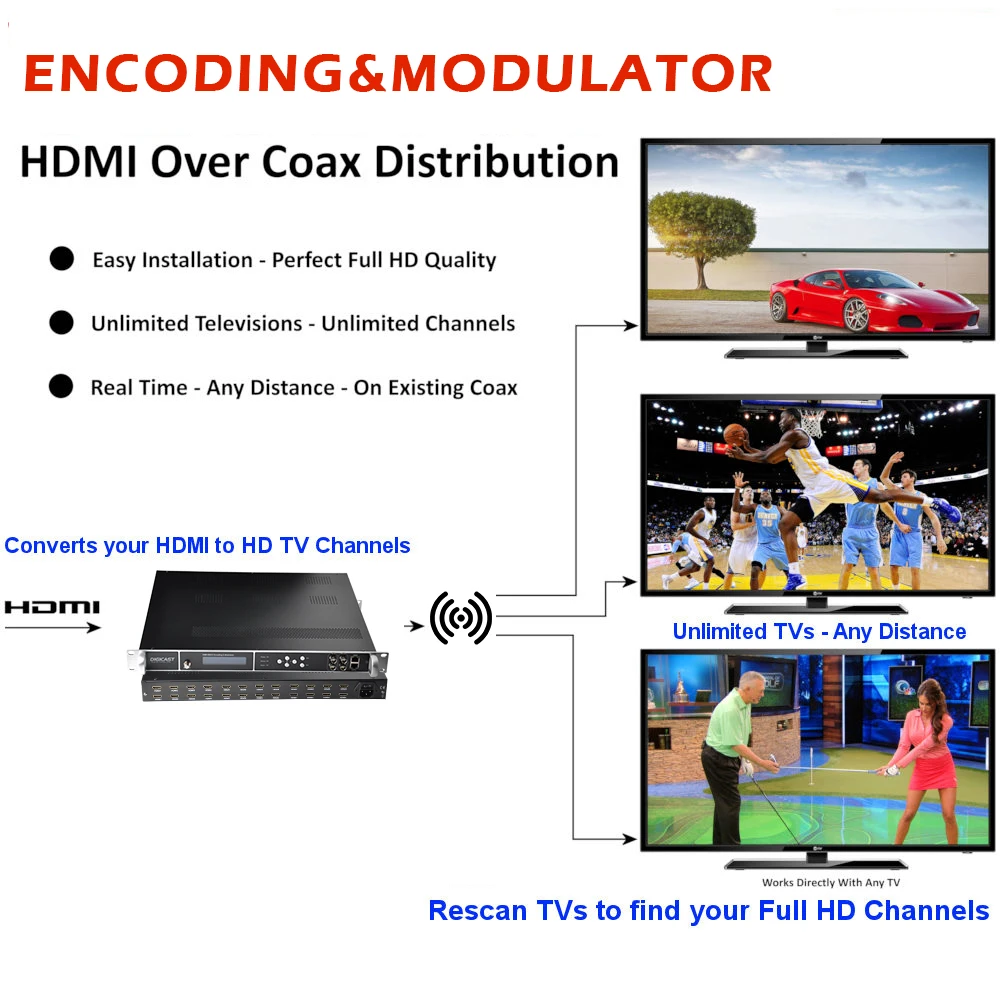

Convertes your HDMI to Digital RF to TVs
DMB-9581E Multi-Channels HD H.264 Encoding & Modulator (4/8 RF out)
DMB-9581E Premium HD H.265 HEVC/H.264 Encoding & Modulator(4/8 RF out)

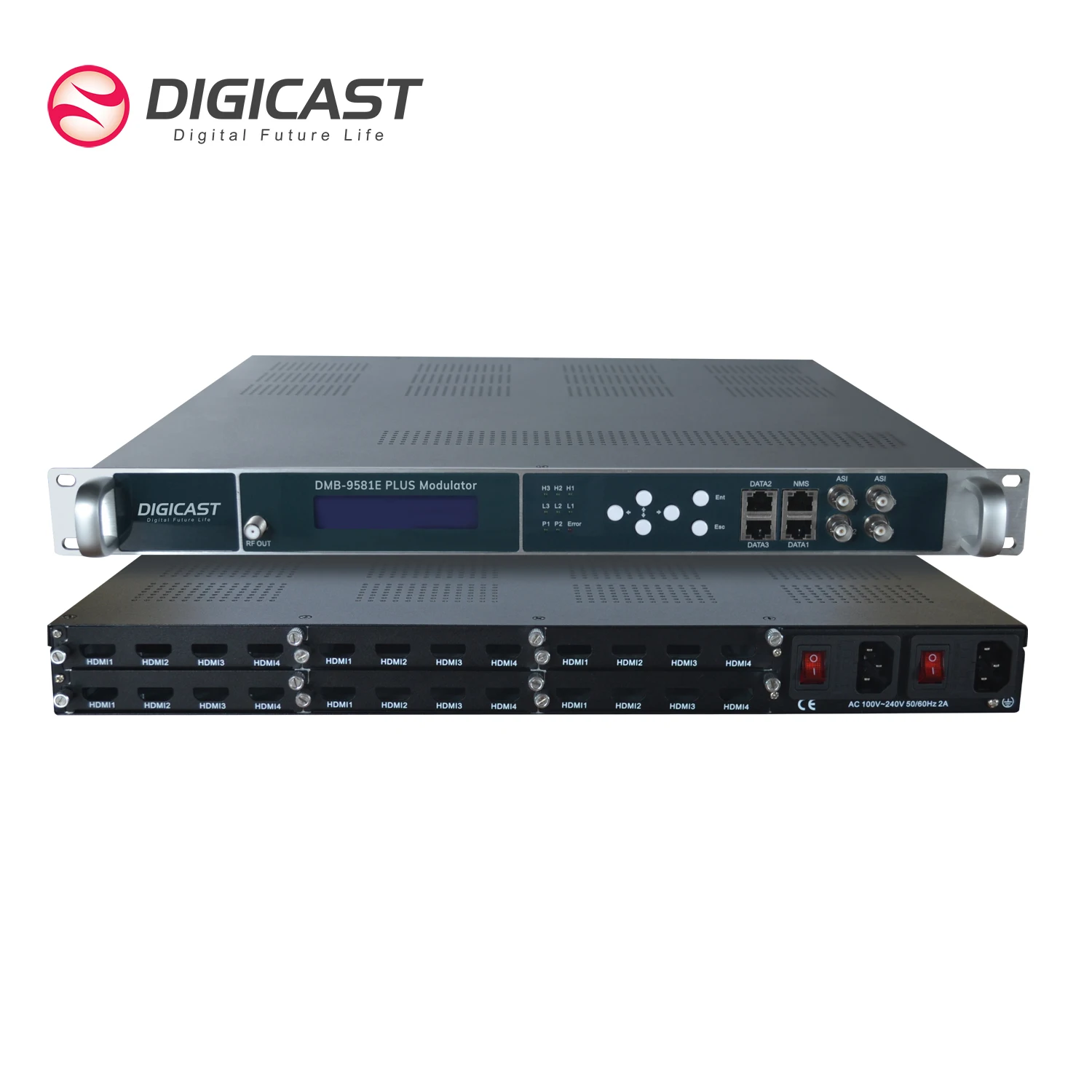

DMB-9581E Plus HD H.265 H264 Encoding & Modulator(8*RF/12*DVB-C out)
DMB-9581E Plus HD H.265 H.264 Encoding & Modulator(16*RF/32*DVB-C out）
DMB-9581E Premium HD H.265 HEVC/H.264 Encoding & Modulator(4/8 RF out)
DMB-9581E Plus HD H.265 H264 Encoding & Modulator(8*RF/12*DVB-C out)
DMB-9581E Plus HD H.265 H.264 Encoding & Modulator(16*RF/32*DVB-C out）
1: Plug-in-Play HDMI Video Distribution system, drives to unlimited TVs directly
2: Max 24 simultaneous hdm i over the existing tv coaxial，pluggable Dual Power supply
3: 4/8 separate multiplexing and Up-converter modulating carrier out
4: Support IP input and output for internet besides coaxial
5: PSI & LCN full control to edit Programs Names, PIDs, Channel Numbers
2: Max 24 simultaneous hdm i over the existing tv coaxial，pluggable Dual Power supply
3: 4/8 separate multiplexing and Up-converter modulating carrier out
4: Support IP input and output for internet besides coaxial
5: PSI & LCN full control to edit Programs Names, PIDs, Channel Numbers

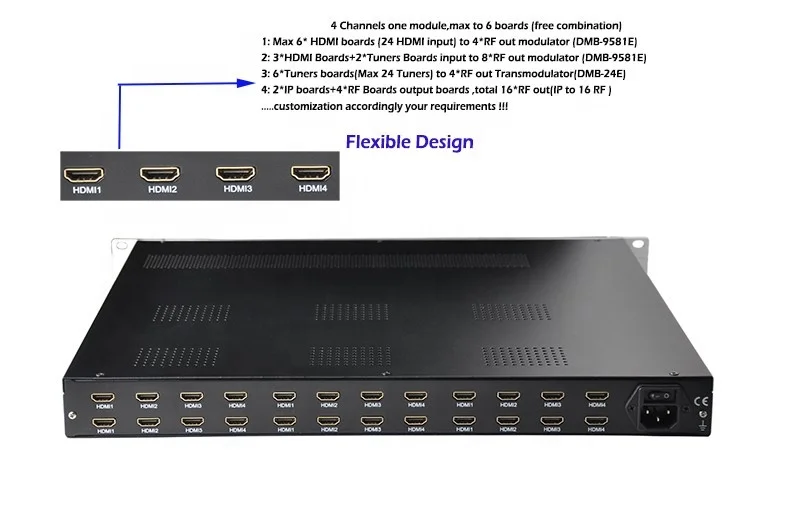

Flexible inside boards combination for Various System
1: Input FTA tuners,IP, HDMI,ASI option, you can chose one or some of them as input
2: Output RF(frequency),IP,ASI,Tuners option, you can chose one or some of them as output
3: Fully customized for your system
2: Output RF(frequency),IP,ASI,Tuners option, you can chose one or some of them as output
3: Fully customized for your system
Product Description
FEATURES

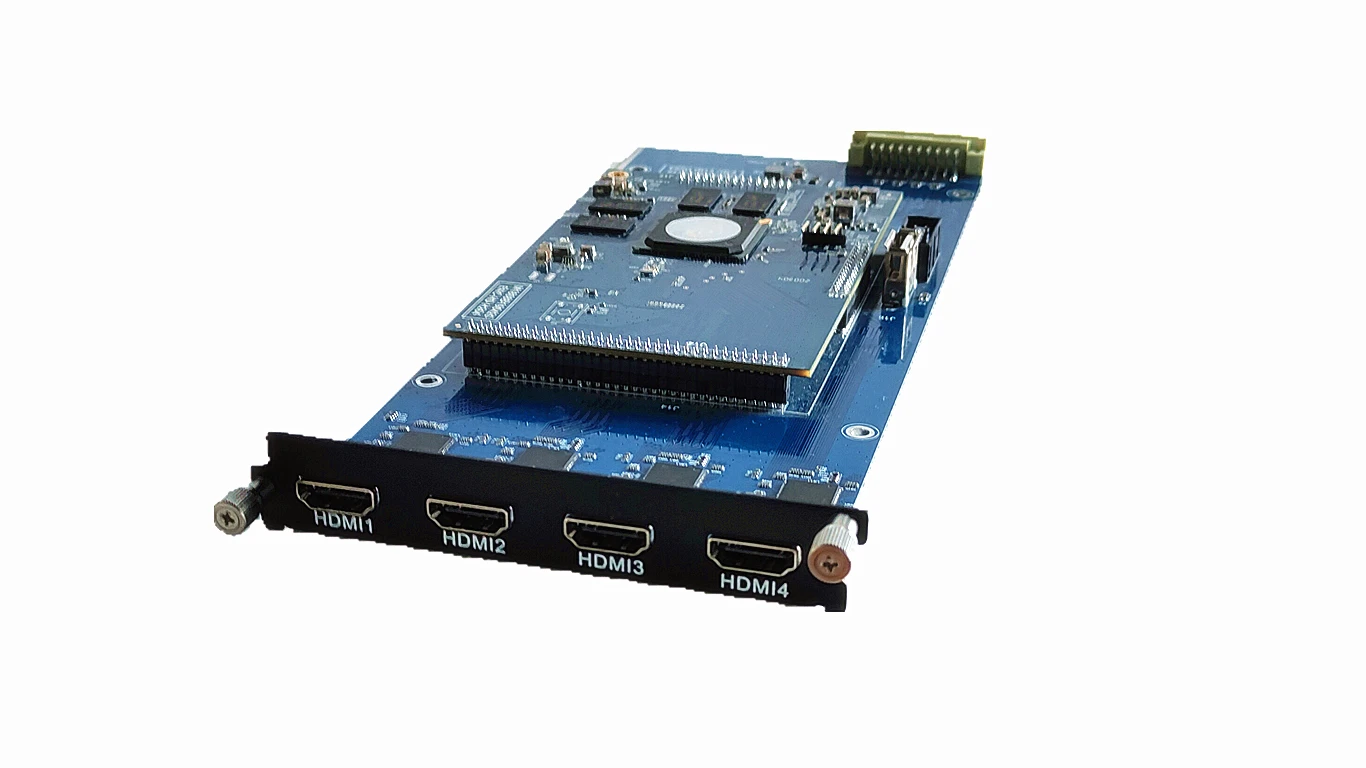

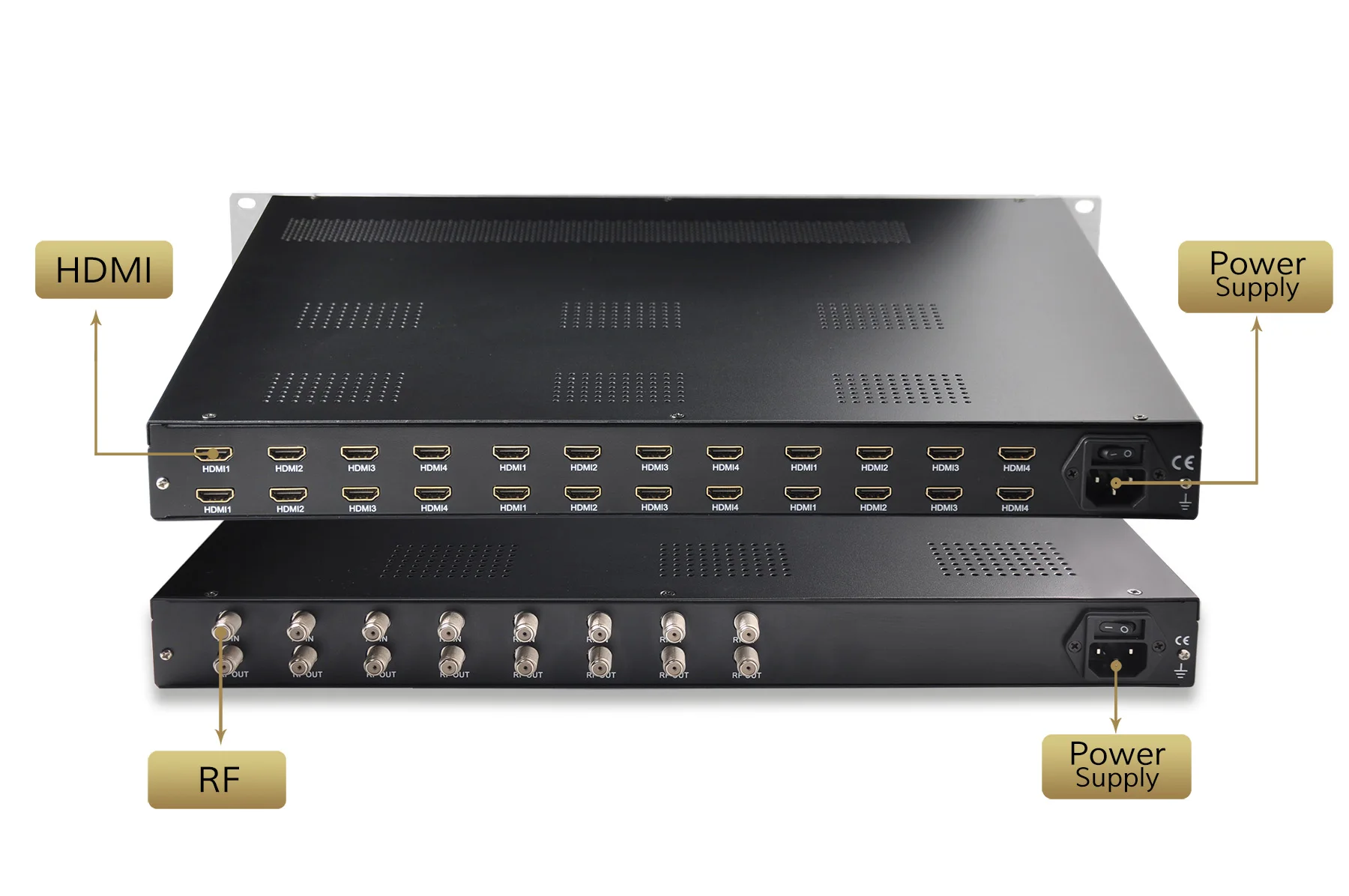

Input: 4/8/12/16/20/24*HDMI,4 HDMI one modules,max 6 pluggable modules
Each Module can be 4*HDMI, 4*Tuners option
l2*ASI independent ASI input,capable of multiplexing
Dual Power supply option, switch to the good power supply auto when one power broken
Two data ports(Data 2,Data3) as IP input (128*IP MPST/SPTS) each data
Data1(G1)used as IP output, IP-8*MPTS & 127*SPTS UDP/RTP IP Output from（G1）
2*ASI independent ASI output
RF output 8*RF DVB-T/ATSC-T/ISDB-T/Tb/DTMB or 12*DVB-C(non-adjacent frequency) .
lOr RF out 16*DVB-T /ATSC-T/ISDB-T/Tb/DTMB or 32*DVB-C(non-adjacent frequency)
Each Module can be 4*HDMI, 4*Tuners option
l2*ASI independent ASI input,capable of multiplexing
Dual Power supply option, switch to the good power supply auto when one power broken
Two data ports(Data 2,Data3) as IP input (128*IP MPST/SPTS) each data
Data1(G1)used as IP output, IP-8*MPTS & 127*SPTS UDP/RTP IP Output from（G1）
2*ASI independent ASI output
RF output 8*RF DVB-T/ATSC-T/ISDB-T/Tb/DTMB or 12*DVB-C(non-adjacent frequency) .
lOr RF out 16*DVB-T /ATSC-T/ISDB-T/Tb/DTMB or 32*DVB-C(non-adjacent frequency)
FEATURES
Support H.264, H.265 HEVC video encoding Compression option. lAudio encoding: MPEG-1 Layer 2,HE-AAC (V2), LC -AAC audio encoding
With Superior Shoulders and modulation quality MER≥40dB Support PID, PSI/SI compilation and LCN setting lSupport Lower power
consumption and high reliability with MTBF(Mean Time Between Failure) ≦87800 Hours lEquipped with multiplexing module, able to
multiplex local programs with external TS,IP lSupport TS over IP out, applied to IPTV applications. lSupport IP empty packet
filtering capability lCut-off memory capability lManagement of support web browser via Ethernet interface
With Superior Shoulders and modulation quality MER≥40dB Support PID, PSI/SI compilation and LCN setting lSupport Lower power
consumption and high reliability with MTBF(Mean Time Between Failure) ≦87800 Hours lEquipped with multiplexing module, able to
multiplex local programs with external TS,IP lSupport TS over IP out, applied to IPTV applications. lSupport IP empty packet
filtering capability lCut-off memory capability lManagement of support web browser via Ethernet interface
Support software
upgrading by Ethernet interface
upgrading by Ethernet interface
SPECIFICATION | ||||||
HD Encoding Module | Video input: 8/12/16/20/24 HD MI ，Pluggable ideo compression standard: MPEG-2, H.265 HEVC option HD video encoding Resolution input : 1920×1080@60P, 1920×1080@60i, 1920×1080@50P, 1920×1080@50i,1280×720@60P, 1280×720@50P 720×576@50i,720×480@60i output: 1920×1080@30P, 1920×1080@25P,1280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Audio input: HD MI Audio compression standard: MPEG1 Layer II(default),(LC-AAC, HE-AAC optional) Audio sampling rate: 48KHz Audio bit-rate: 64 ~ 320kbps | |||||
ASI Input | Channel: 2*ASI Interface: BNC, 75 ohm Input bit-rate: ≤100Mb/s Packet mode: Byte mode Packet length: 188/204 Bytes | |||||
ASI output | Channel: 2*ASI(Independent) Standard: compliant with EN 50083-9 ASI Output loss: >10dB Interface: BNC, 75 ohm | |||||
IP Output | Data1(G1)used as IP output, IP 8*MPTS & 127*SPTS UDP/RTP IP Output from（G1） Support empty packet filtering Interface: RJ45 (10/100M) | |||||
IP input | Two data ports(Data 2,Data3) as IP input (128*IP MPST/SPTS) each data | |||||
Output MODULATION MODULES (optional) | ||||||
DVB-T Modulation | Channel: 8 or 16 *DVB-T frequency Modulation standard: EN300 744, EN304 744 Bandwidth: 6M, 7M, 8M Constellation: QPSK, 16QAM, 64QAM FET mode: 2K, 8K Guard interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥42dB RF output frequency range: 30~960MHz, in 1KHz steps RF output level: -30~10dBm (81~97dbµV), in 0.1dB steps ACLR: 55dB | |||||
DVB-C Modulation | Channel: 12 or 32 *DVB-C adjacent frequencies Modulation standard: J.83A(Europe), J.83B(North America), J.83C(Japan) Constellation: J.83A-6/32/64/128/256QAM; J.83B-64/256QAM; J.83C-64/256QAM RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps MER: ≥40dB RF output frequency range: 30 ~ 960MHz, in 1KHz steps Symbol rate: J.83A-5 ~ 7MSymbol/s, J.83B - fixed; J.83C - fixed Out-of-band rejection: 55dB Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M | |||||
ATSC-T Modulation | Channel: 8VSB* 8 or 16 adjacent frequencies Modulation standard: ATSC A/53 Constellation: 8VSB RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps MER: ≥40dB RF output frequency range: 30~960MHz, in 1KHz steps | |||||
DTMB Modulation | Channel: 8 or 16 *DTMB frequency Modulation standard: GB20600-2006 Bandwidth: 8MHz Constellation: 4QAM, 4QAM-NR,16QAM, 32QAM, 64QAM Qty. of modulation carriers: 1(single carrier) or 3780(multi-carriers) Guard intervals: PN420, PN595, PN945 Internal error correction code: LDPC Encoding efficiency: 0.4, 0.6, 0.8 Interlace depth: 240, 720 MER: ≥42dB ACLR: 55dB Frequency range: 110 ~ 960MHz, in 1KHz steps RF out level: -26dBm ~ -10dBm, in 0.5dB steps | |||||
ISDB-T Modulation | Channel: 8 or 16*ISDB-T frequency Modulation standard: ARIB STD-B31 Modulation mode: mode 1(2k), mode 2(4k), mode 3(8k) Constellation: DQPSK, QPSK, 16QAM, 64QAM Internal code: FEC (1/2, 2/3, 3/4, 5/6, 7/8) External code: RS (204, 188) Guard interval: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6MHz RF output frequency range: 30 ~ 960MHz, in 1KHz steps MER: ≥42dB RF output level: -26dBm ~ -10dBm, in 0.1dB steps | |||||
Top Selling

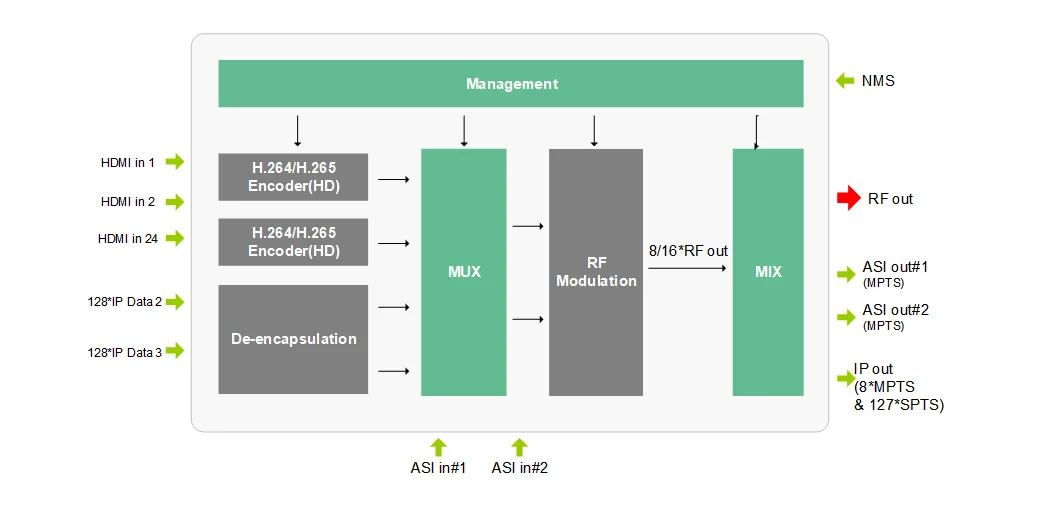

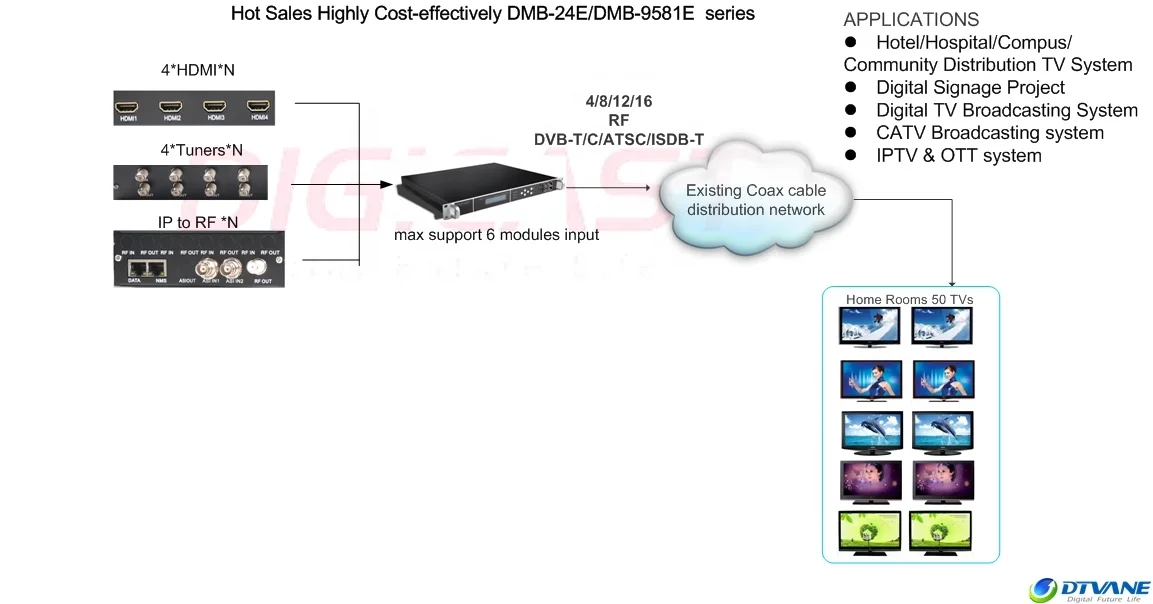

Application & Diagram
Multi-channel H.264 HD Encoding&Modulator
Related Products
Customers who bought this product also bought
DMB-90E UP TO 24 CHANNELS PROFESSIONAL RECEIVER
* Powerful receiver with competitive price, supports up to 24 channels FTA tuners input, supports DVB-S/S2, DVB-C, DVB-T/T2, ATSC, IDSB-T/Tb, DTMB tuner
DMB-8820E up to 24 channels HD HDMI Encoder
* Strong encoder with competitive price, supports up to 24 channels HDMI input
* Smart construct, supports up to 6 module, Input: 2*ASI(separate) + 4/8/12/16/20 and up to 24 Channel HDMI. Output: 2*ASI(one for backup) +
* Smart construct, supports up to 6 module, Input: 2*ASI(separate) + 4/8/12/16/20 and up to 24 Channel HDMI. Output: 2*ASI(one for backup) +
DMB-24E IP to RF
IP & ASI to digital RF Modulator. Swappable module design.
Up to 20*RF output within one device.
Standard Modulation Output: 4*RF[DVB-C(QAM)/DVB-T/ATSC-T(8VSB)/ISDB-T/Tb for option]. Providing 8*RF for option.
Up to 20*RF output within one device.
Standard Modulation Output: 4*RF[DVB-C(QAM)/DVB-T/ATSC-T(8VSB)/ISDB-T/Tb for option]. Providing 8*RF for option.
for IP to 4* ISDB-T /8*ISDB-T out, only 1*ASI input 1*ASI output
DMB-24E Tuner to RF
Input: 2*ASI(separate) + 128*IP(MPTS/SPTS) + FTA 8/12/16/20/24*Tuner in(DVB-T/T2, DVB-C, ATSC, DVB-S/S2, ISDB-T, DTMB for option) (Note: DVB-T/T2, ISDB-T/Tb only with 12*Tuner in).
Output: 4*RF DVB-C(QAM)/DVB-T/ATSC-T(8VSB)/ISDB-T/Tb at same time(switchable from UI menu)+1*IP(SPTS/MPTS) + 2*ASI(one for backup). Capable of multiplexing.
Output: 4*RF DVB-C(QAM)/DVB-T/ATSC-T(8VSB)/ISDB-T/Tb at same time(switchable from UI menu)+1*IP(SPTS/MPTS) + 2*ASI(one for backup). Capable of multiplexing.
