Rotary Drum Fertilizer Granulator Machine/ Drum granulating machine
- Category: >>>
- Supplier: Zhengzhou Yizheng Heavy Machinery Equipment Co. Ltd.
Share on (1600337159407):
Product Overview
Description
Product Overview

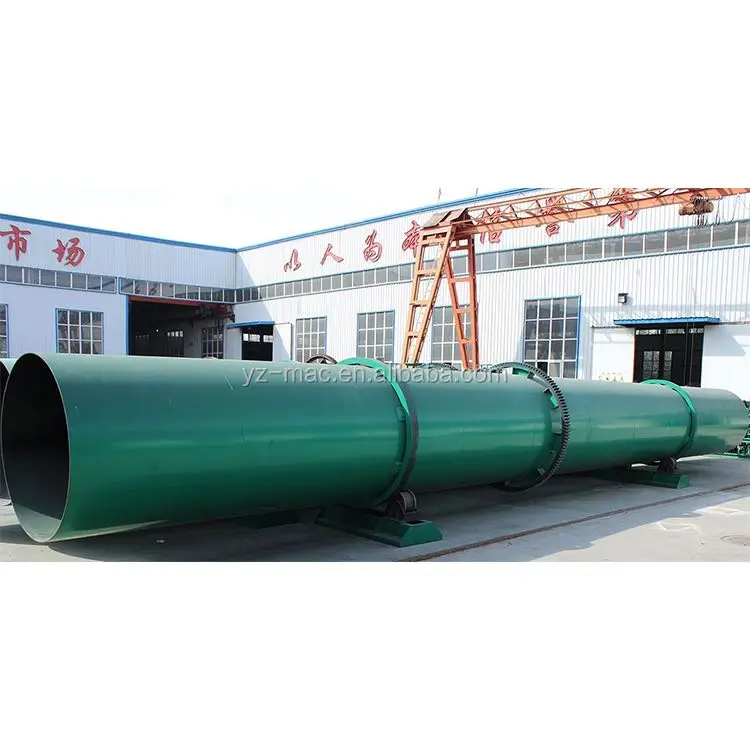

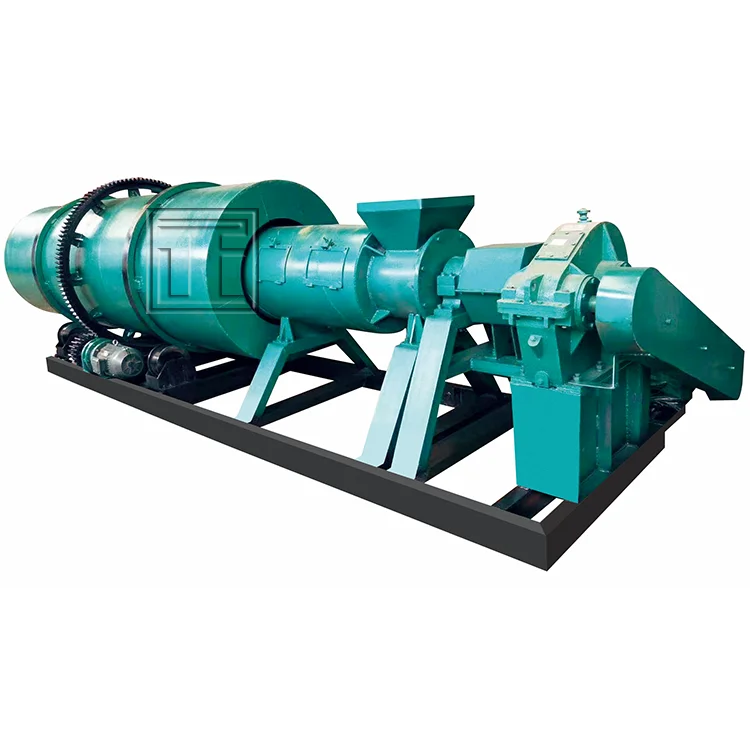

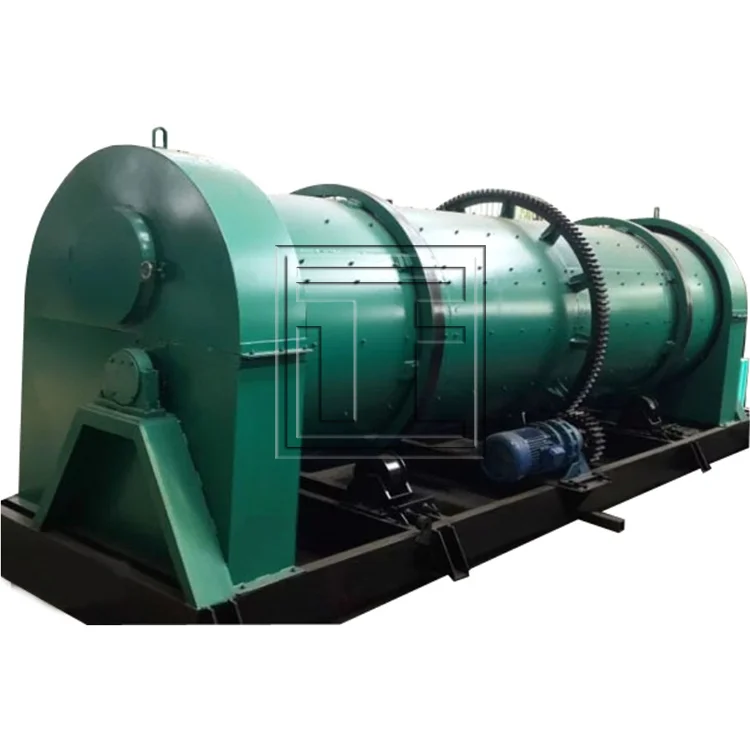

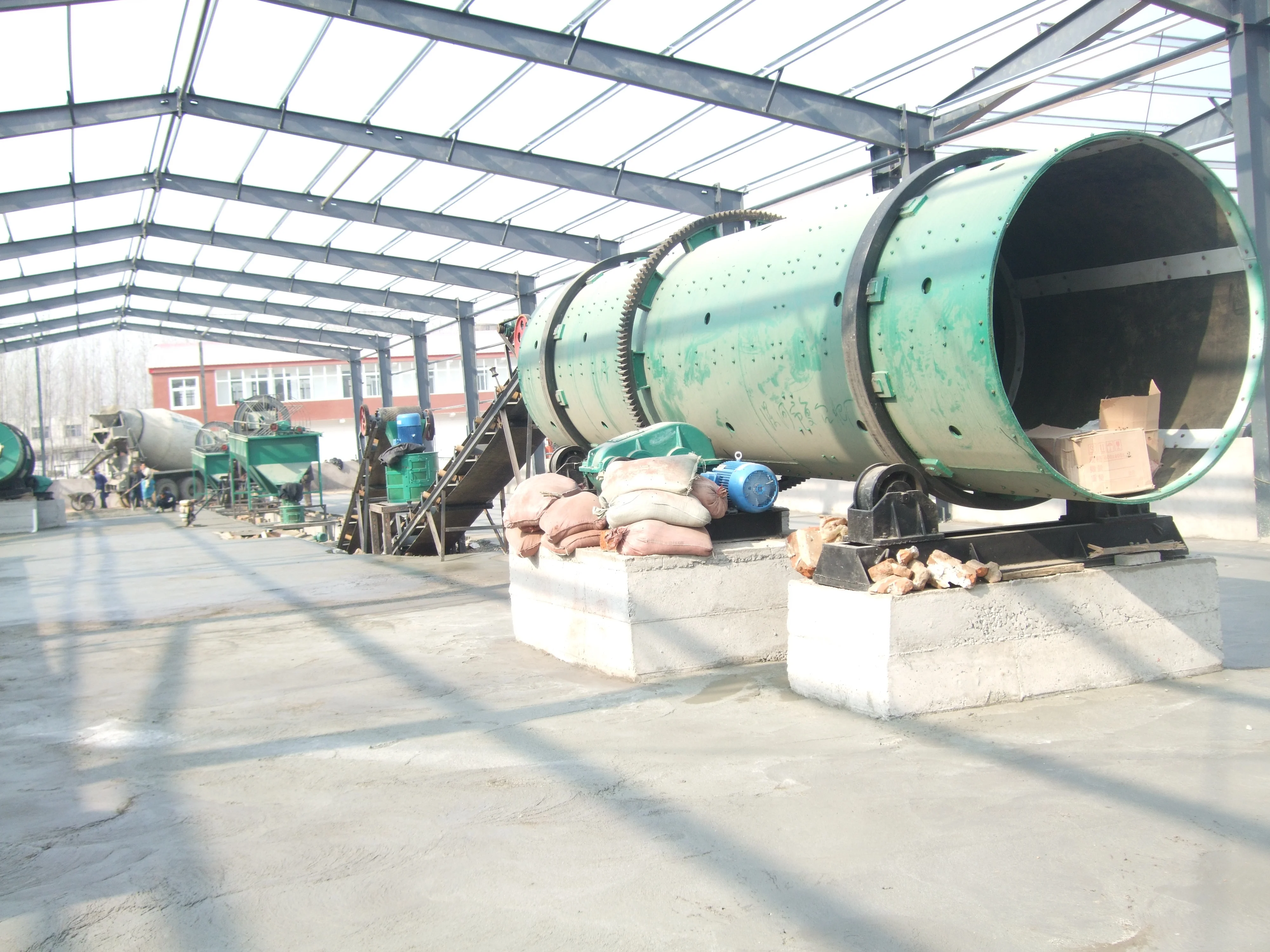

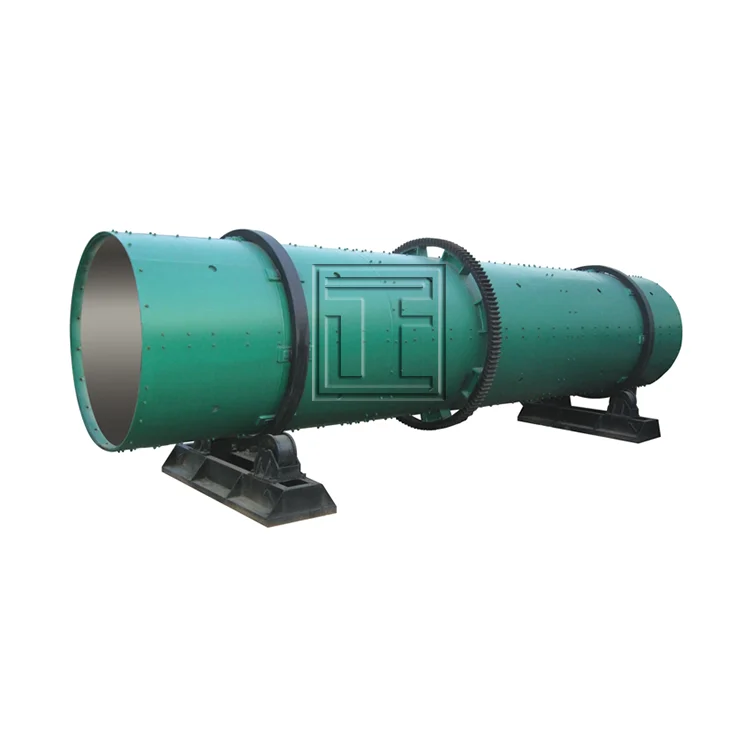

NPK Fertilizer Rotary Drum Granulator
The rotary drum granulator is a granulating machine for making materials into a specific shape. The main work principle is pelleted by wet method. By adding a certain amount of water or steam into the materials, the materials play full chemical reaction after being humidified. Under certain liquid phase conditions, extrusion pressure is generated by the drum rotating and the materials agglomerated into balls under this pressure. The drum of this machine is lined with special rubber sheet or acid-resistant stainless, which can automatically prevent materials from sticking to the drum wall without traditional scraper device. There is no waste discharge in the production process. It has the advantages of high yield, corrosion resistance and wear resistance.
FEATURES AT A GLANCE
High Granulation Rate
Low Energy Consumption
Simple Operation

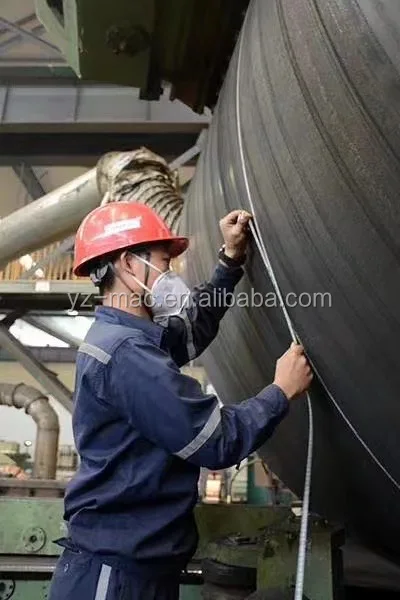

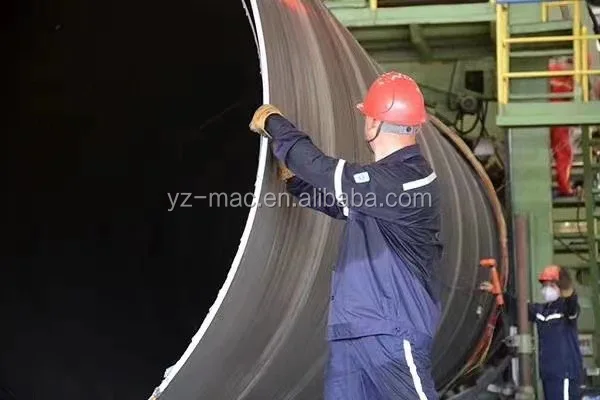

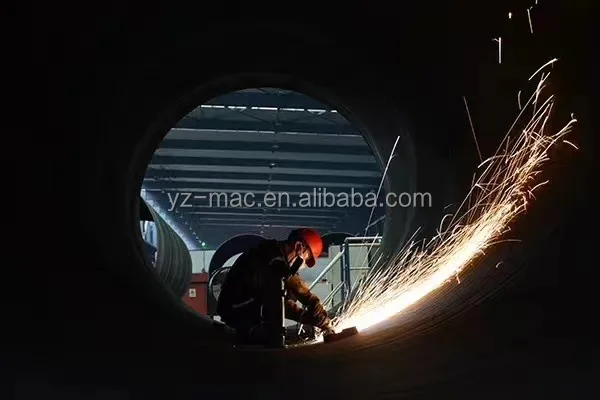

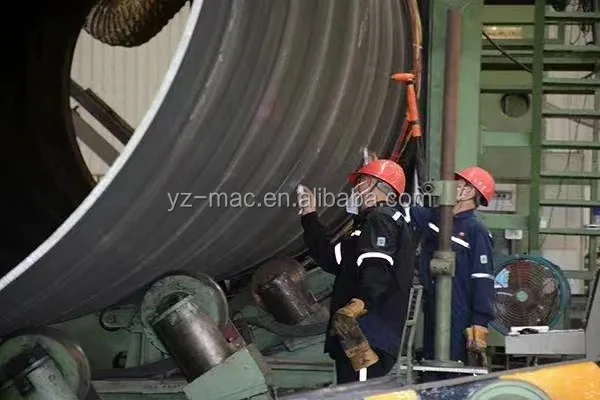

The shell is made of thickened spiral steel tube, which is durable and never deforms.
Right elevation
Front elevation
Left elevation
Advantage
1. Low investment, good economic benefit and reliable performance;
2. Low power, no waste discharge, stable operation, convenient maintenance, reasonable process, advanced technology and low production cost;
3. High pellet strength, good appearance, corrosion resistance, wear resistance, low energy consumption;
4. The granulation rate is up to 70%, and the returned material can be re-granulated;
5. The drum is lined with special rubber sheet or acid-resistant stainless, which can automatically prevent materials from agglomerating and sticking to the drum wall without traditional scraper device.
2. Low power, no waste discharge, stable operation, convenient maintenance, reasonable process, advanced technology and low production cost;
3. High pellet strength, good appearance, corrosion resistance, wear resistance, low energy consumption;
4. The granulation rate is up to 70%, and the returned material can be re-granulated;
5. The drum is lined with special rubber sheet or acid-resistant stainless, which can automatically prevent materials from agglomerating and sticking to the drum wall without traditional scraper device.

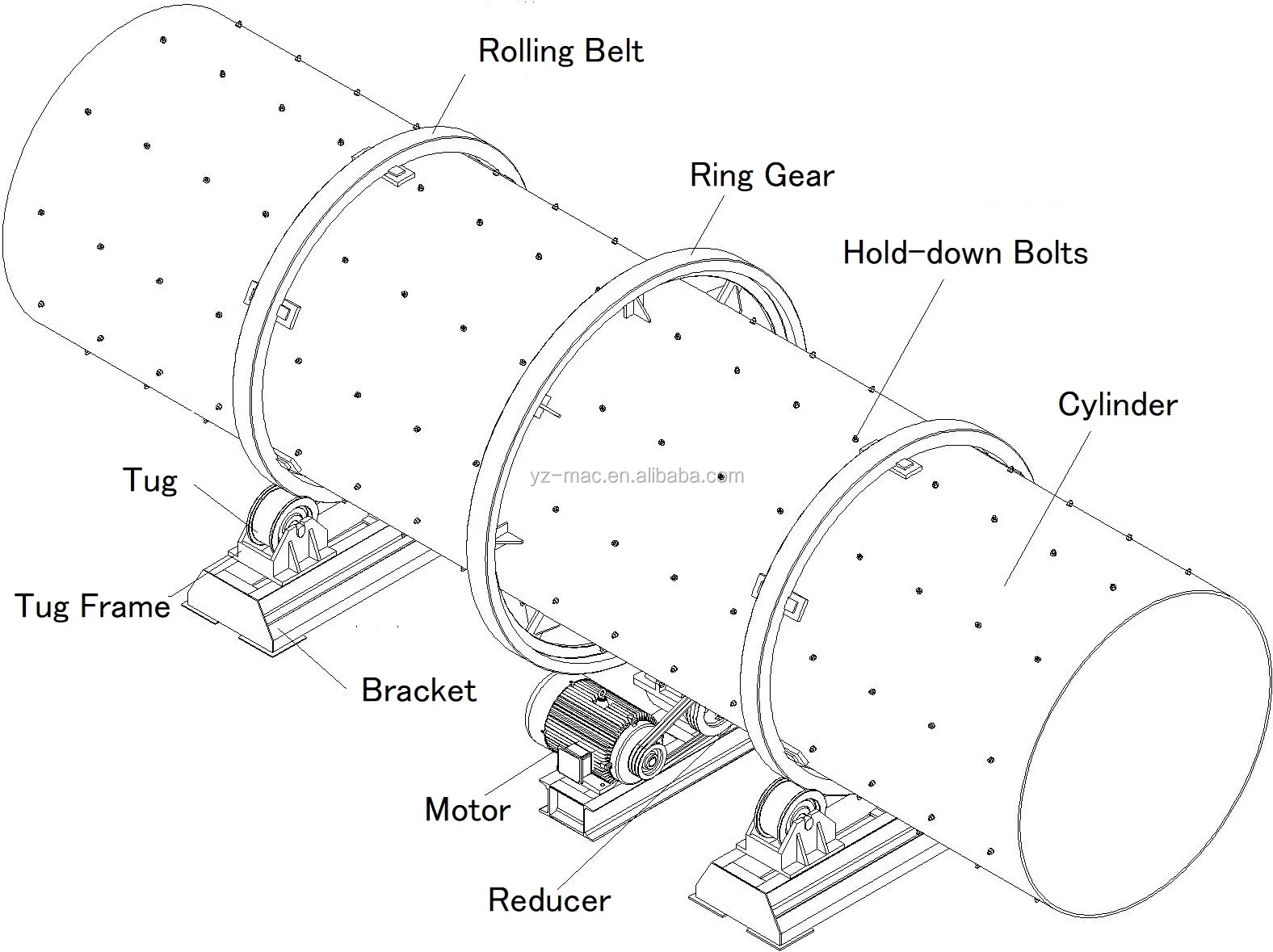

Working Principle
The belt and pulley are driven by the main motor, and the driving shaft is driven by the reducer. The pair of open-gears installed on the driving shaft and the big gear ring fixed on the machine body are combined and work in opposite direction. The materials are fed from the inlet and are made into particles with the drum rotating under certain conditions, the particles finally flow out through the outlet. With the continuous materials feeding and continuous rotating to achieve the mass production.

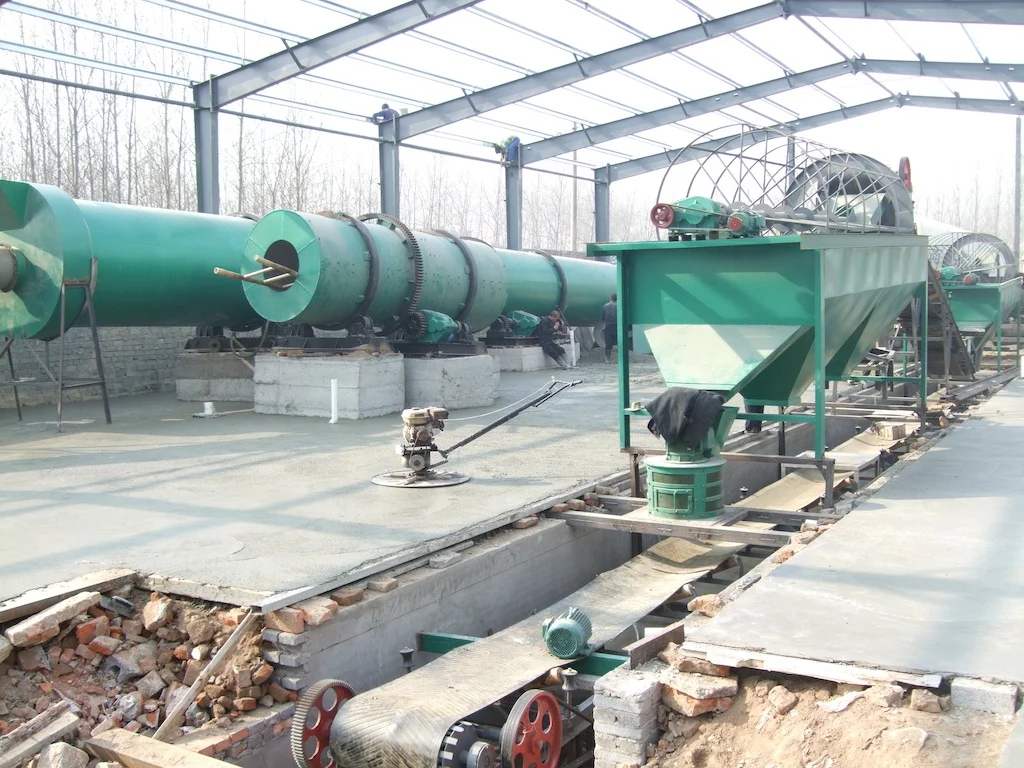

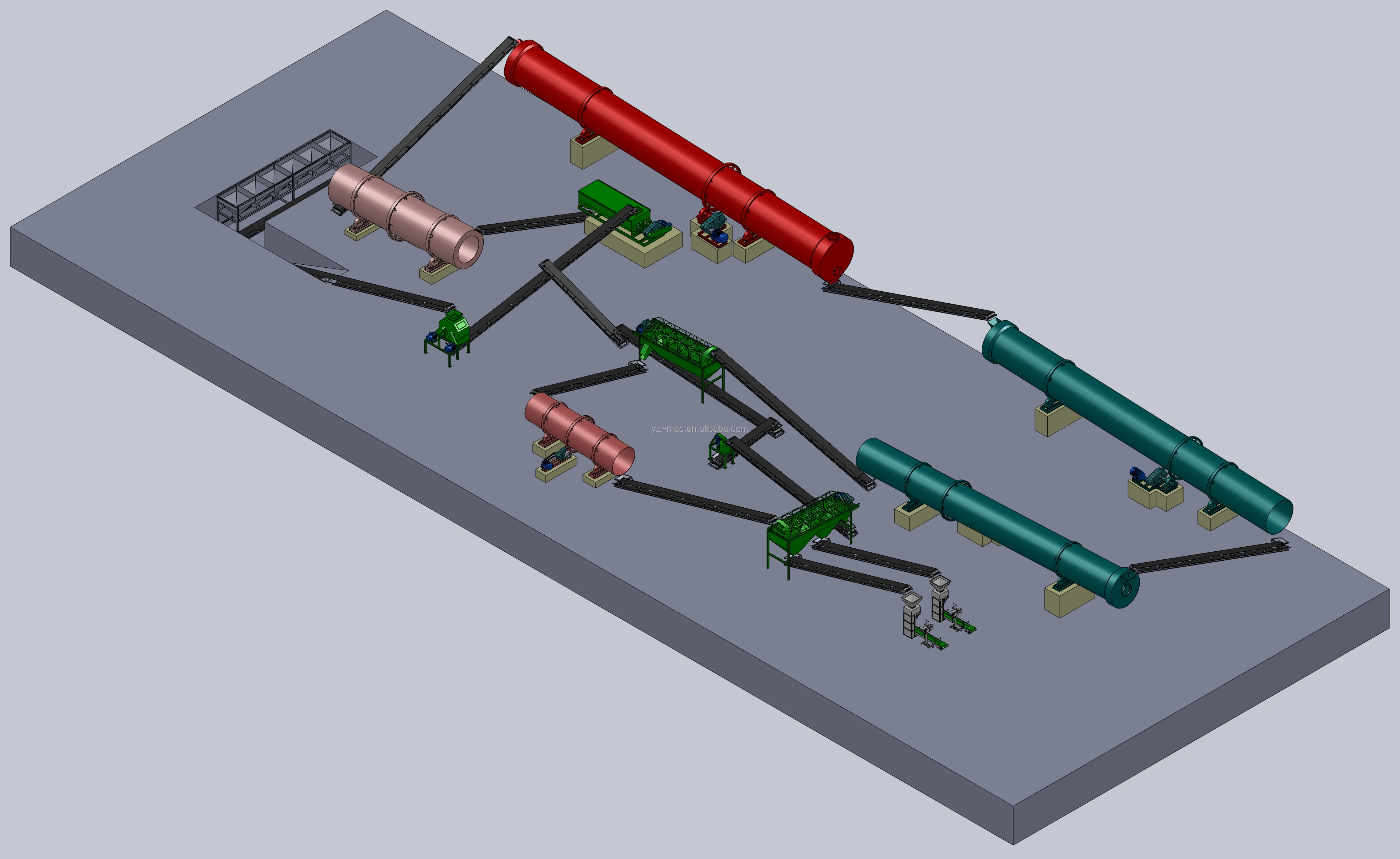

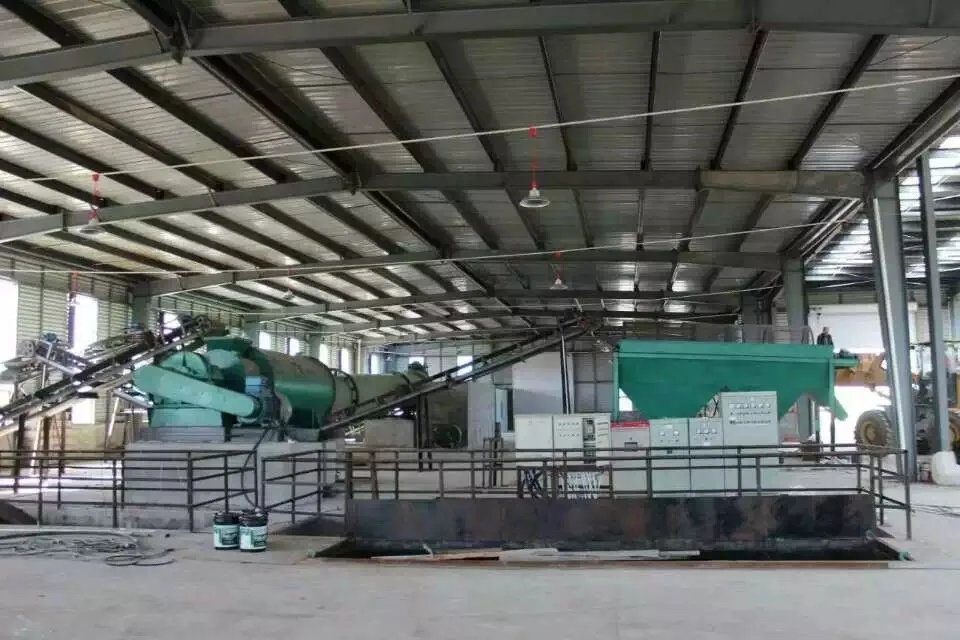

NPK Fertilizer Rotary Drum Granulation Production Line
This Rotary Drum Granulation production line is equipped with static batching machine, double -shaft mixer, rotary drum granulator, chain crusher, rotary drum dryer & cooler, rotary drum screening machine and other auxiliary fertilizer equipment. The annual output can be 30,000 tons. As a professional fertilizer production line manufacturer, we also supply the customers with other granulation lines with different production capacity, such as 20,000 T/Y, 50,000T/Y, and 100,000T/Y, etc.
Process flow
Raw materials batching (Static batching machine)→Mixing (Double shaft mixer)→ Granulating (rotary drum granulator) → Drying (rotary drum dryer) → Cooling (rotary drum cooler) → Finished products screening (rotary drum sifting machine) → Sub-standard granules crushing (vertical fertilizer chain crusher) → Coating (rotary drum coating machine) → Finished products packing (automatic quantitative packager) → Storage (storing in a cool and dry place)
NOTICE: This production line is for your reference only.
NOTICE: This production line is for your reference only.
PRODUCT SPECIFICATIONS
Model | Diameter (mm) | Length (mm) | Angle of inclination | Rotational speed (r/min) | Productivity（t/h） | Weight（t） | Motor type | Power(kw) |
YZZLZG-1240 | 1200 | 4000 | 2～5 | 17 | 1~3 | 2.7 | Y132S-4 | 5.5 |
YZZLZG-1450 | 1400 | 5000 | 14 | 3~5 | 8.5 | Y132M-4 | 7.5 | |
YZZLZG-1660 | 1600 | 6000 | 11.5 | 5~8 | 12 | Y160M-4 | 11 | |
YZZLZG-1870 | 1800 | 7000 | 11.5 | 8~10 | 18 | Y160L-4 | 15 | |
YZZLZG-2080 | 2000 | 8000 | 11 | 10~15 | 22 | Y180M-4 | 18.5 | |
YZZLZG-2280 | 2200 | 8000 | 10.5 | 15~20 | 28 | Y180L-4 | 22 |

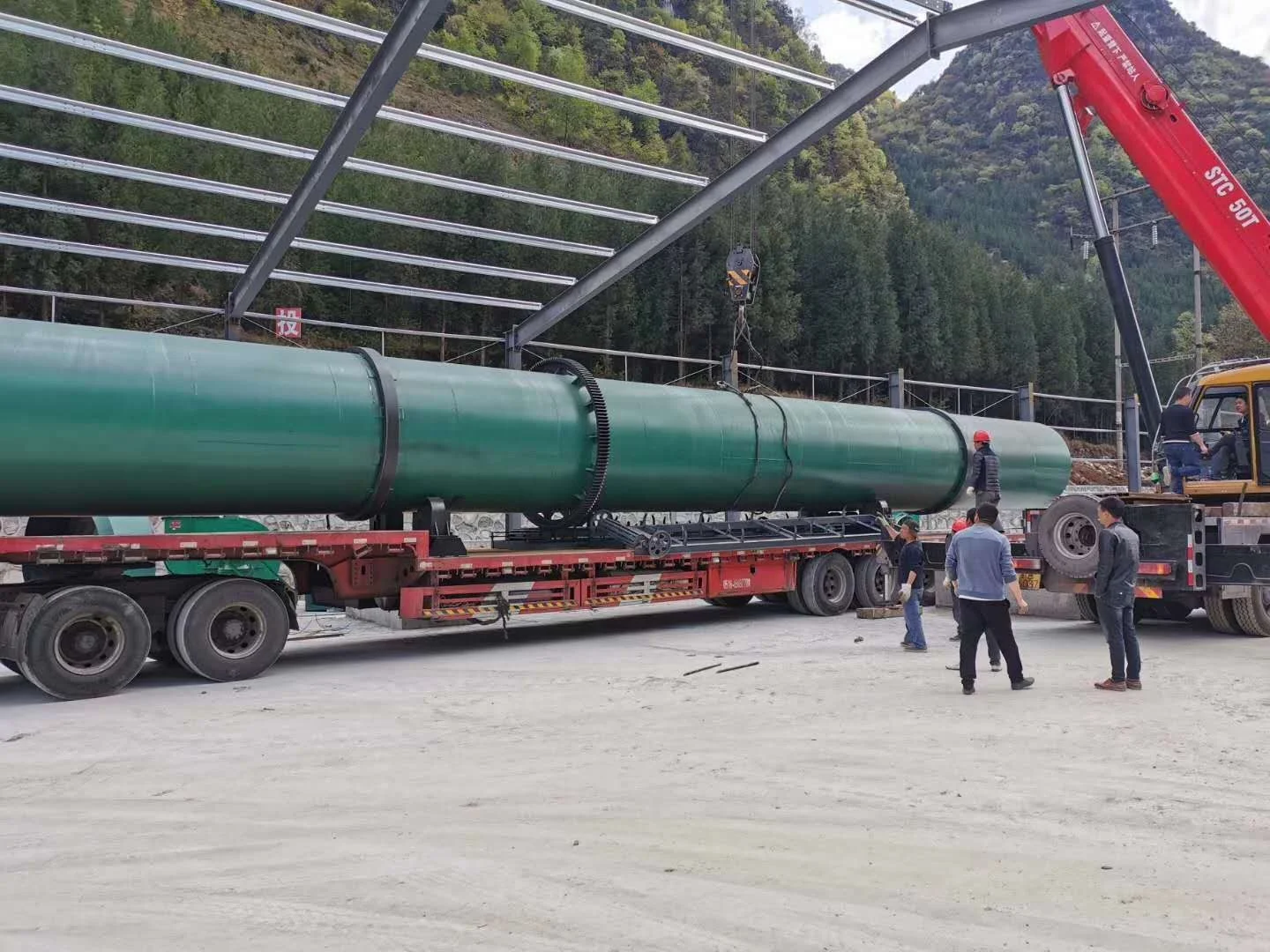

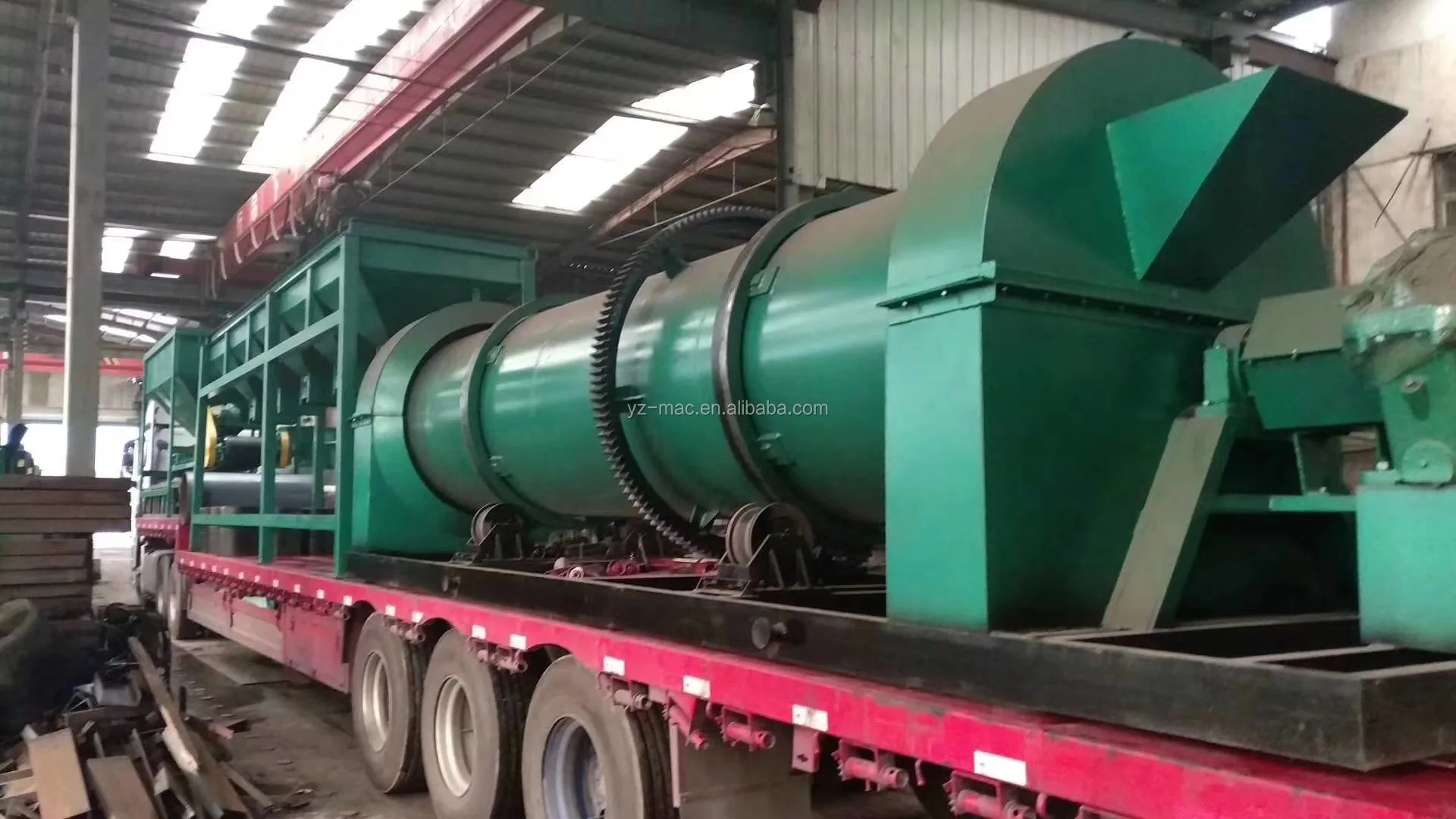

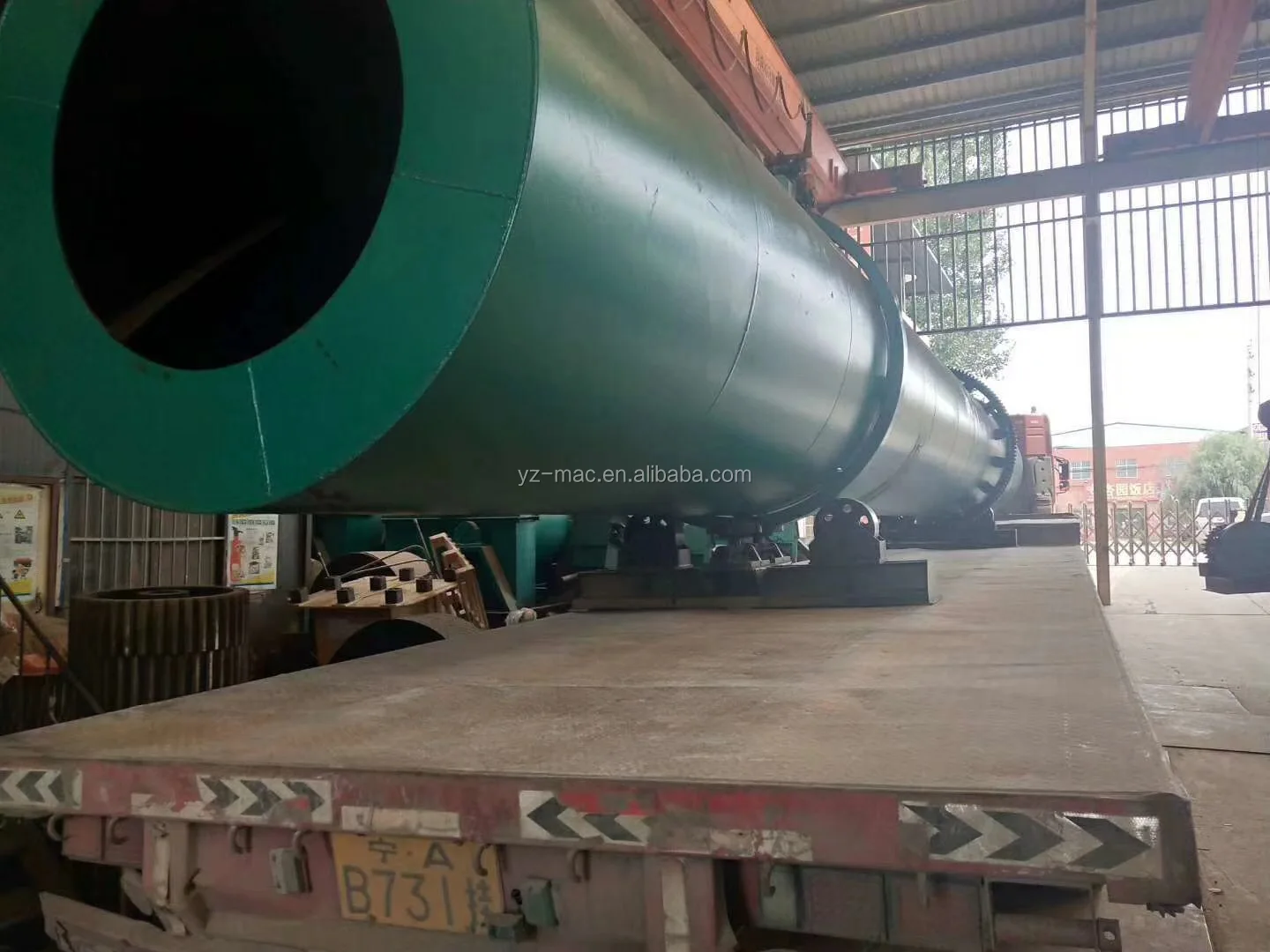

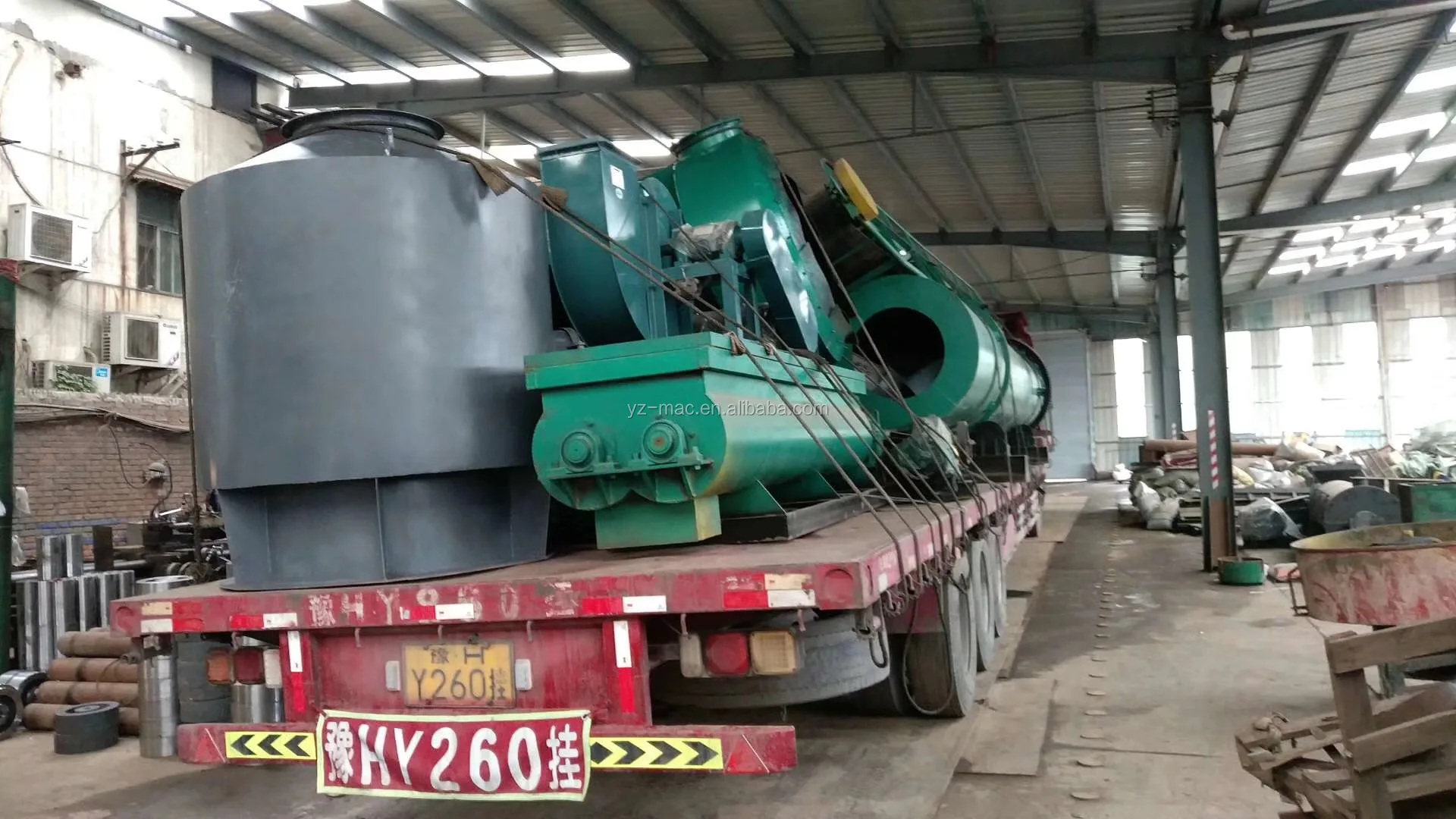

Packing Site
SIMILAR PRODUCTS
FAQ
Q: How could I choose the right packing machine?
A: We have various item of packing machine to suit for pack different materials(products), just let me know your product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are available, we have more than 10 person engineers team and R&D team.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q: How about your delivery time?
A: Generally, it will take 25 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods before delivery?
A: Yes, we do 100% test before delivery.
Q: How do you make our business long-term and good relationship?
A: The first, We keep good quality and competitive price to ensure our customers benefit. Secondly, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.That's the foundation.
A: We have various item of packing machine to suit for pack different materials(products), just let me know your product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are available, we have more than 10 person engineers team and R&D team.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q: How about your delivery time?
A: Generally, it will take 25 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods before delivery?
A: Yes, we do 100% test before delivery.
Q: How do you make our business long-term and good relationship?
A: The first, We keep good quality and competitive price to ensure our customers benefit. Secondly, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.That's the foundation.
Company Introduction

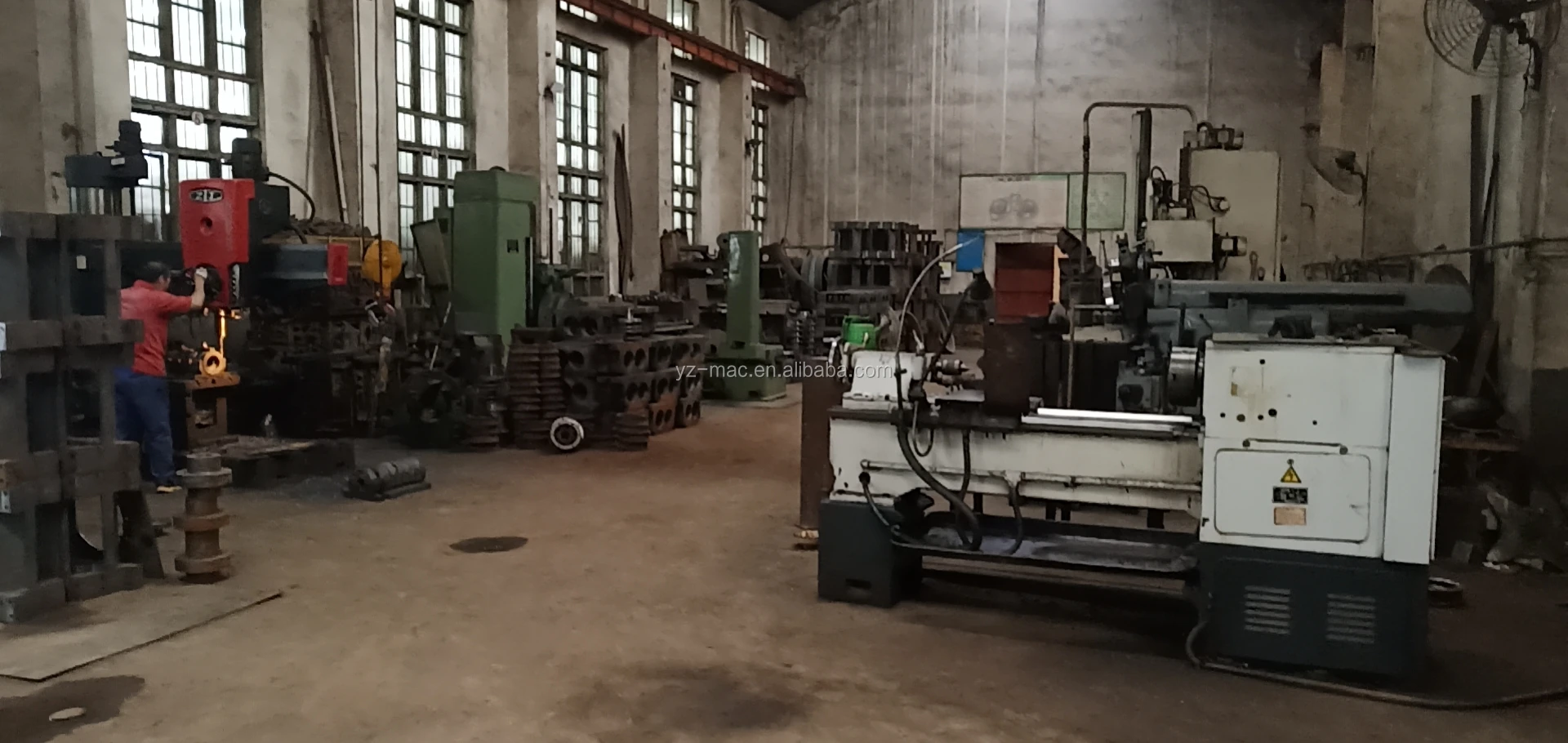

Zhengzhou YiZheng Heavy Machinery Co., Ltd is a high-tech fertilizer machinery manufacturer which founded in 2001. Our company has 360 employees, covering an area of 80,000 square meters and having more than 180 professional processing equipment. In the past 20 years, we devote to producing the organic and inorganic fertilizers making equipment. Our equipment are sold to 22 countries, being the hot sale equipment in global agricultural fertilizers industry. Being a large fertilizer machinery manufacturer, we provide customers with high added value products and services, you can always get the complete solution of advice, design, equipment, installation, training, emergency assistance, field assistance, spare parts and routine maintenance.
