50kg load capacity small robot rubber track for robot platform unmanned combat robot aerial vehicle tracks undercarriage

Product Overview

Description

50kg load capacity small robot rubber track for robot platform unmanned combat robot aerial vehicle tracks undercarriage .



Small robot rubber track is a universal crawler robot chassis with independent Christie suspension, which can help to rduce vibration at the time of heavy load. Its interior is equipped with high torque brushless DC gear motor, making the chassis strong and powerful to surmount any obstacles along its way.

The accurate height of chassis, combined with motor of appropriate power, which gives it many advantages including low vravitational center, outstanding obstacle-surmounting properties, vibration reduction for heavy load and stable operation. That’s why it can be appled to many complex robot movement solutions.

Use your imagination. It can do whatever you want........



Application :

1). Exploration of inspection

2). The rescue vehicle

3). Scientific research and education

4).  Fire control security guard

5). Special photography

6). Special transport



                                                      Specifications:

Product Name	50KG Load Small robot rubber track
speed	0~2m/s
rated power	350w*2
rated voltage	22~26V
rated current	25A
caterpillar width	80mm Rubber mixed Kevlar fiber caterpillar
maximum gradeability	40°
rated payload	50 KG
N.W.	23 KG
measurment	650*480*190
battery tank cap	230*200*110  (maximum 3* 6S 22000mah)
endurance time(with load)	50 minutes 6S 22000mah,  100 minutes 6S 44000mah
body materials	T1.5 stainless steel (W/black paint)
Color	Black





Package included :

Small robot rubber track platform * 1set

SKYDROID T10 Remote controller with Three-body camera * 1set

(Pls note: this price don't include the lipo battery and charger,should buy with additinal fees; if you want to change to other brand controller,pls tell us.)

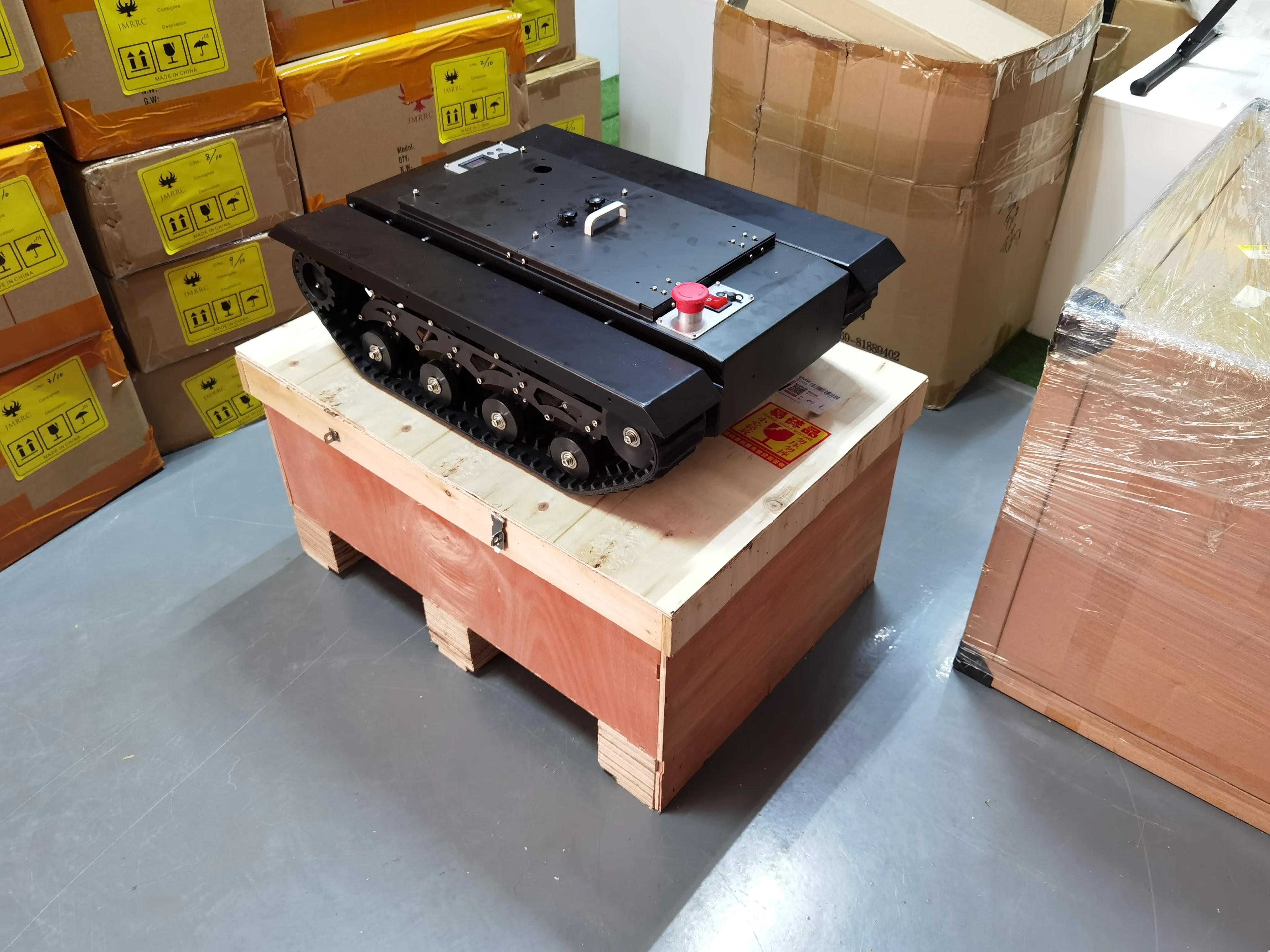

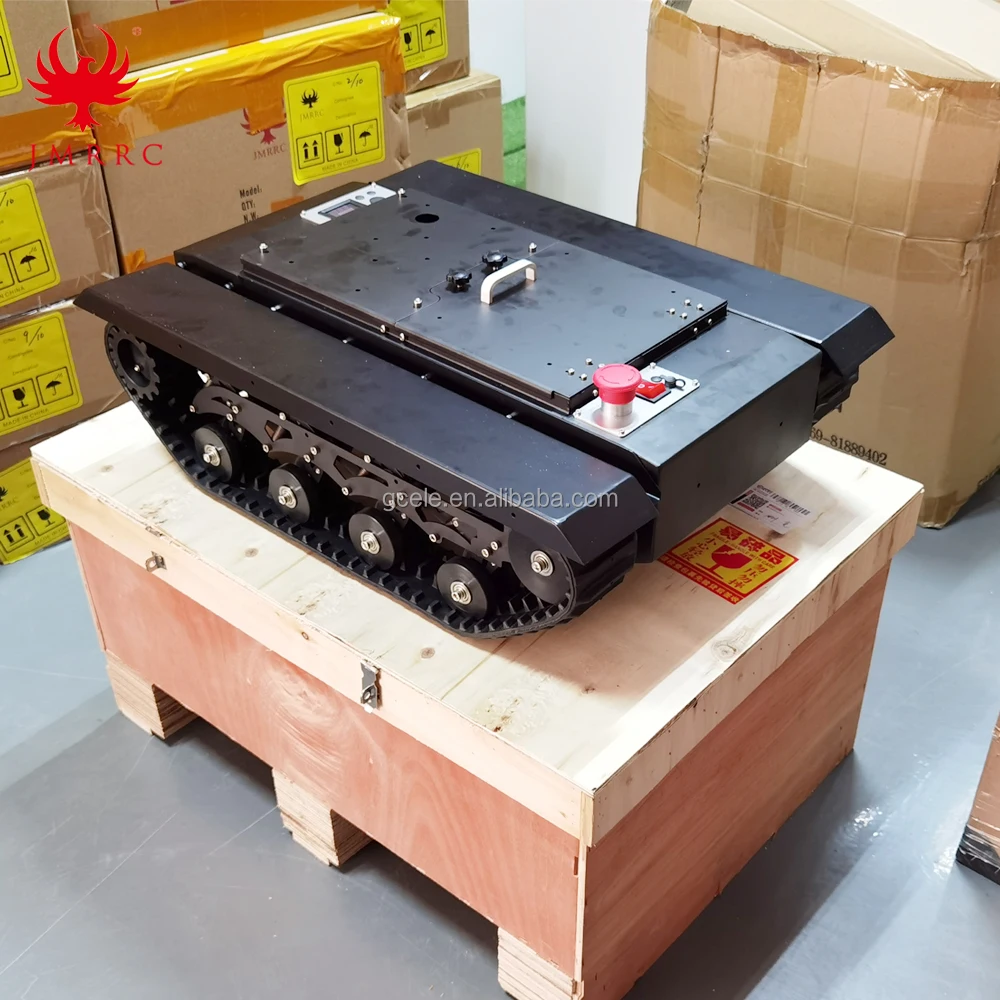

Packing:





If you need the full parts for the drone or other accessories , pls leave messages to me . thank you !!!
