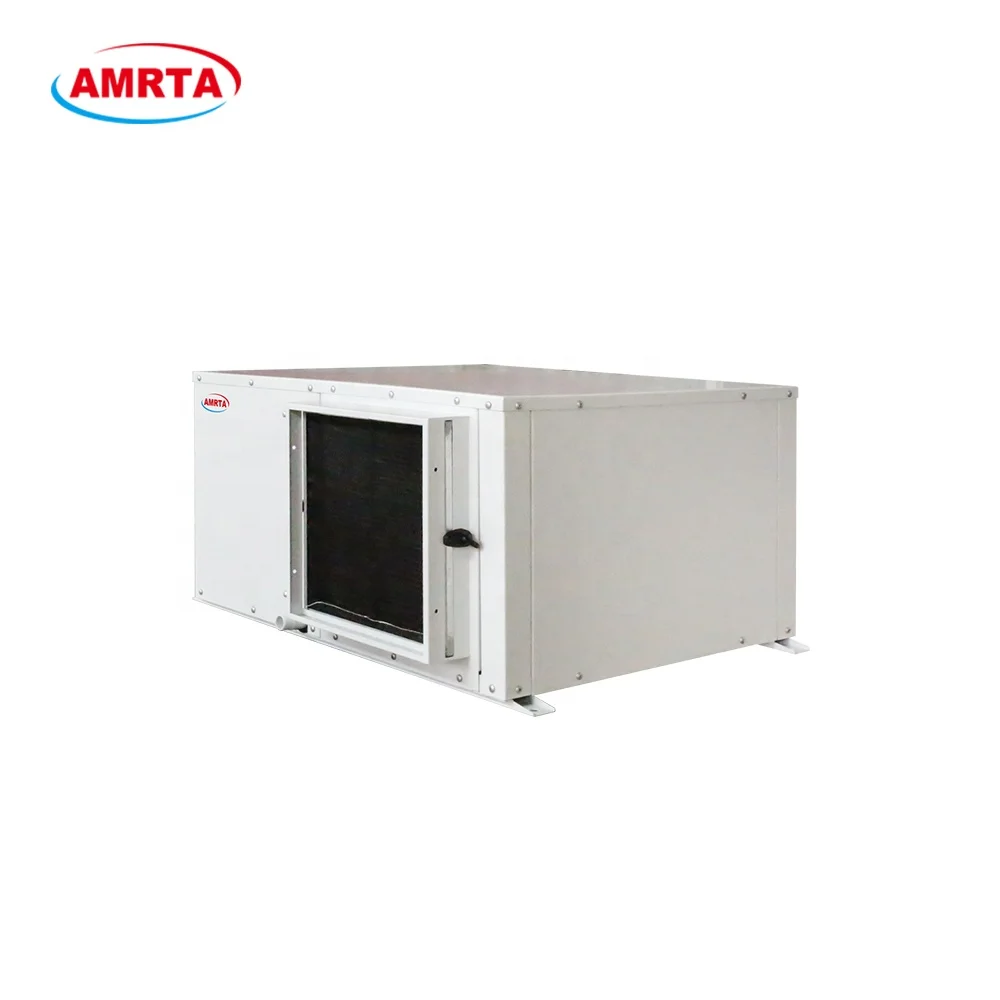

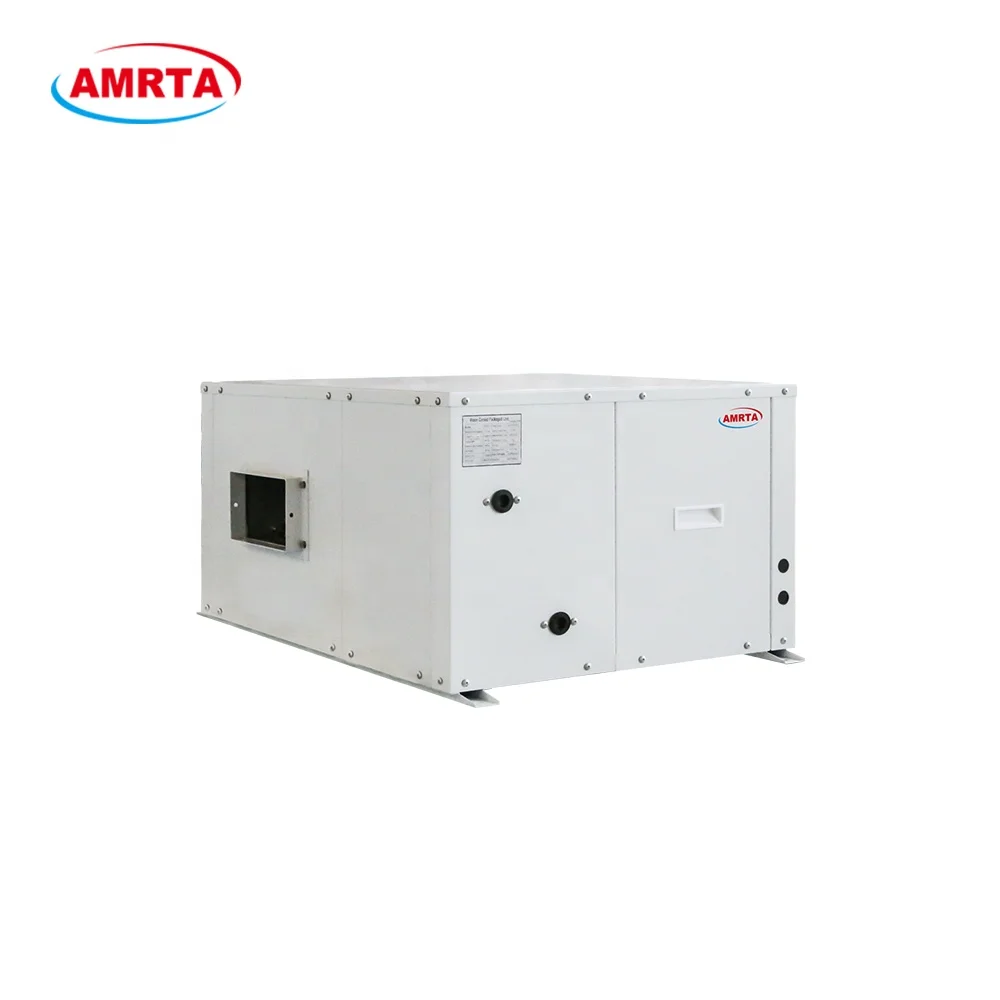

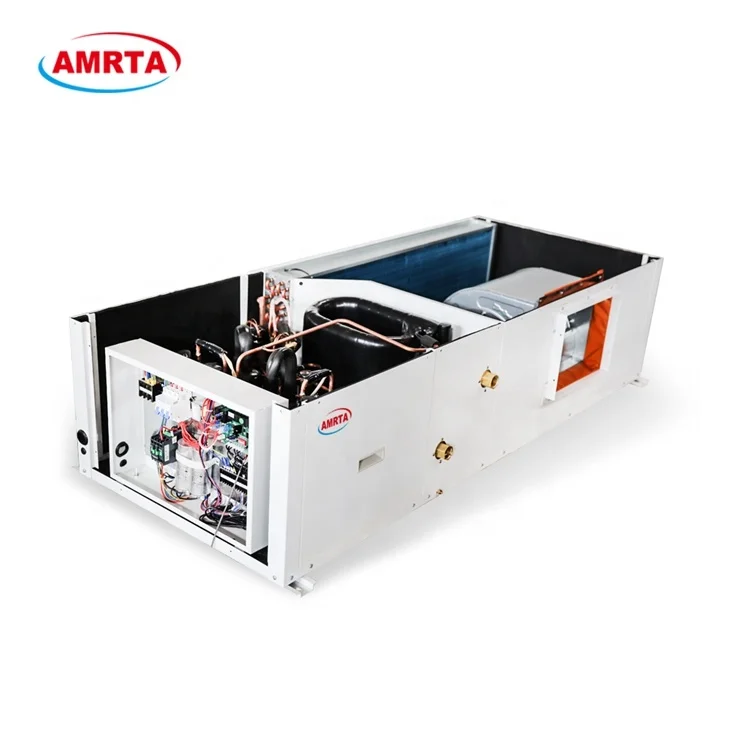

Saving Space Ultrathin Water Loop Heat Pump Packaged Air Conditioner with Rotary Compressor
Saving Space Ultrathin Water Loop Heat Pump Packaged Air Conditioner with Rotary Compressor
Saving Space Ultrathin Water Loop Heat Pump Packaged Air Conditioner with Rotary Compressor
Saving Space Ultrathin Water Loop Heat Pump Packaged Air Conditioner with Rotary Compressor
Saving Space Ultrathin Water Loop Heat Pump Packaged Air Conditioner with Rotary Compressor
Saving Space Ultrathin Water Loop Heat Pump Packaged Air Conditioner with Rotary Compressor
Saving Space Ultrathin Water Loop Heat Pump Packaged Air Conditioner with Rotary Compressor

Saving Space Ultrathin Water Loop Heat Pump Packaged Air Conditioner with Rotary Compressor

Share on (1600337208249):


Price:

Quantity:


Product Overview

Description



Product Description


Characteristics


Structure
Galvanised steel construction, closed cell foam lined compressor and fan compartments, with an insulted and powder coated drain tray for complete moisture protection, the drain tray is easily removed for inspection and cleaning.
Centrifugal fan
High efficiency, double inlet centrifugal fan Protection level IP44. Low noise, low speed, big air flow and high ESP.


Refrigerant
Each unit is factory charged with refrigerant R410a, which is deemed to have zero ozone depletion potential.
Water side heat exchanger
High efficiency coaxial heat exchanger, factory insulated with flexible close cell material.


Hermetic compressor
Single phase rotary compressor is used for this type unit, with built-in thermal overload cut- out, mounted on rubber vibration dampers.
Air filter
An optional filter integrated return air spigot is available on all models.The filter is a washable polypropylene net media. Care should be taken, when locating each unit, that to enough space is provided to enable the one-piece filter to be withdrawn to its full length from either side of the unit.


Electric heater(optional)
Electric heater is optional on cooling only versions. Electric elements have spirally wound stainless steel fins to give increased area and low surface temperature. They are totally enclosed within the unit and are supplied with safety cutouts. An optional fan run-on timer for rapid heat dissipation is available.
Insulation
AMWCP are well insulated to minimise condensation and attenuate noise.
All models are equipped with wire controller with the following features
•7 days programmable timer
•Auto random restart
•Error self diagnostic


Electric panel
Consists of:
Compressor contactor
Compressor protection breaker
Microprocessor with function display
Safety protection
High pressure switch
Low pressure switch
Discharge temperature protection
Anti freezing protection


Technical data


Model
WCP2.5
WCP3.5
WCP5
WCP7
WCP10
WCP12
Nominal cooling capacity
kw
2.5
3.5
5
7
10
12.2
Cooling power input
kw
0.71
0.98
1.4
1.92
2.8
3.32
Nominal heating capacity
kw
3
4.5
6.4
8.1
12.2
14.5
Heating power input
kw
0.72
1.07
1.5
2
2.9
3.25
Power
V/Ph/Hz
220V/1Ph/50Hz
Minimum wiring specification
2×1.5mm2+1×1mm2
2×2.5mm2+1×1.5mm2
2×4mm2+1×2.5mm2
Compressor type
Rotary
Air flow amount
m3/h
490
680
950
1280
1900
2160
External static pressure
Pa
60
60
120
120
160
200
Refrigerant
Type
R410A
Charge
kg
0.4
0.6
0.85
1.1
1,.7
1.9
Condenser
Type
Tube in tube coaxial heat exchanger
Fan
Type
High efficiency low noise centrifugal fan
Power
V/Ph/Hz
220V/1Ph/50Hz
Evaporator
Type
High efficiency copper tubes aluminum fins heat exchanger
Water flow amount
m3/h
0.4
0.6
0.9
1.2
1.7
2.1
Water pressure drop
Kpa
8
8
10
14
16
20
Diameter of water in/out pipe
mm
DN20
Diameter of condensing pipe
mm
DN25
Dimension
L
mm
910
1260
1310
1210
1320
1410
W
mm
660
660
710
790
790
790
H
mm
350
350
450
450
450
450
Weight
kg
70
75
90
100
130
135
Noise level
dB(A)
54
54
57
57
60
60


Model
WCP14
WCP18
WCP23
WCP30
WCP35
WCP45
Nominal cooling capacity
kw
14.4
18
23
30
34
46
Cooling power input
kw
4.06
5.1
6.18
7.8
8.26
11.6
Nominal heating capacity
kw
17.3
22.6
25.9
33
35.4
49
Heating power input
kw
4
5.6
6.86
8.6
9.1
12.84
Power
V/Ph/Hz
220V/1Ph/50Hz
380V/3Ph/50Hz
Minimum wiring specification
2×6mm2+1×4mm2
3×2.5mm2+1×1.5mm2
3×4mm2+1×2.5mm2
Compressor type
Scroll
Air flow amount
m3/h
2500
3200
4000
5200
6200
8000
External static pressure
Pa
200
200
250
250
250
250
Refrigerant
Type
R410A
Charge
kg
2.2
3
4
4.8
6
8
Condenser
Type
Tube in tube coaxial heat exchanger
Fan
Type
High efficiency low noise centrifugal fan
Power
V/Ph/Hz
220V/1Ph/50Hz
380V/50HZ/3PH
Evaporator
Type
High efficiency copper tubes aluminum fins heat exchanger
Water flow amount
m3/h
2.4
3.1
4
5.2
5.8
7.9
Water pressure drop
Kpa
20
23
26
30
33
33
Diameter of water in/out pipe
mm
DN20
DN40
Diameter of condensing pipe
mm
DN25
Dimension
L
mm
1680
1680
2170
1975
2230
2430
W
mm
930
930
1030
1030
1130
1130
H
mm
450
600
500
650
650
900
Weight
kg
140
155
170
200
220
245
Noise level
dB(A)
63
66
66
68
68
69


Note:
1. Norminal cooling capacity test condition: Water side water inlet/outlet 30ºC/35ºC, Ambient temperature DB 27 ºC, WB 19 ºC.
2. Norminal heating capacity test condition: Water side water inlet 20ºC, Ambient temperature DB 20 ºC, WB 15 ºC.
3. Noise level measured in the noise lab with background noise of 25 dB(A) ,at a distance of 1 m.
4. As our continuous products improvement,Lark reserves the right to change specifications and design without notice.

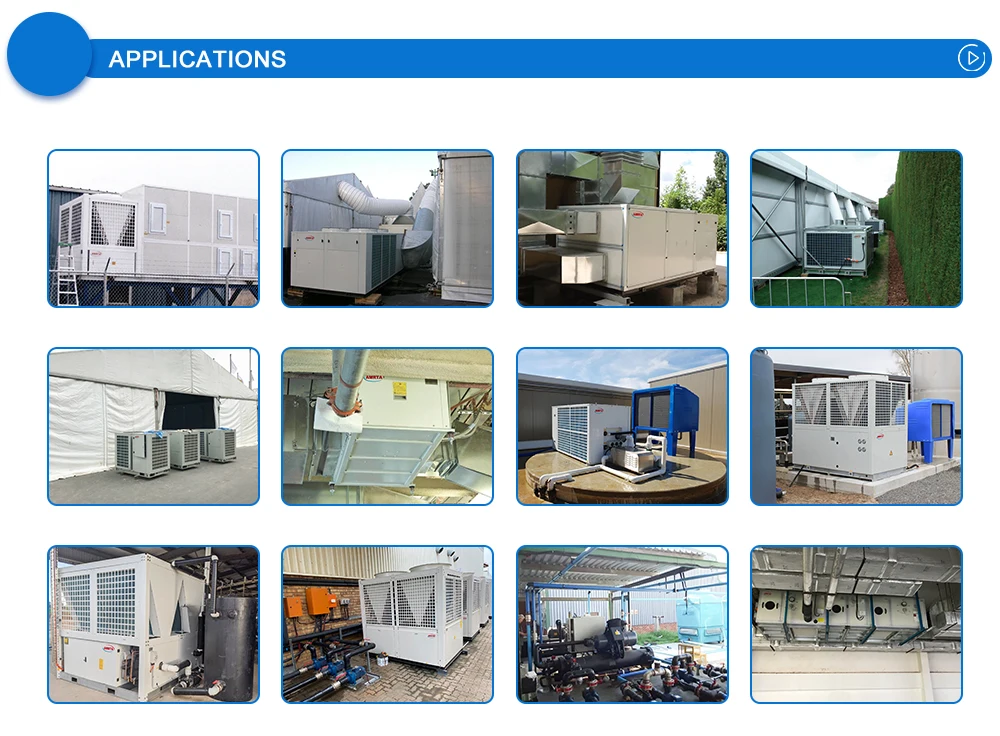

Applications




More Products

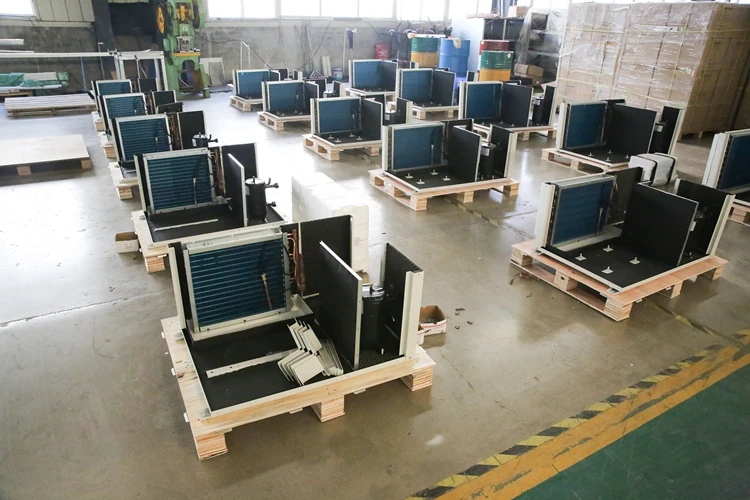

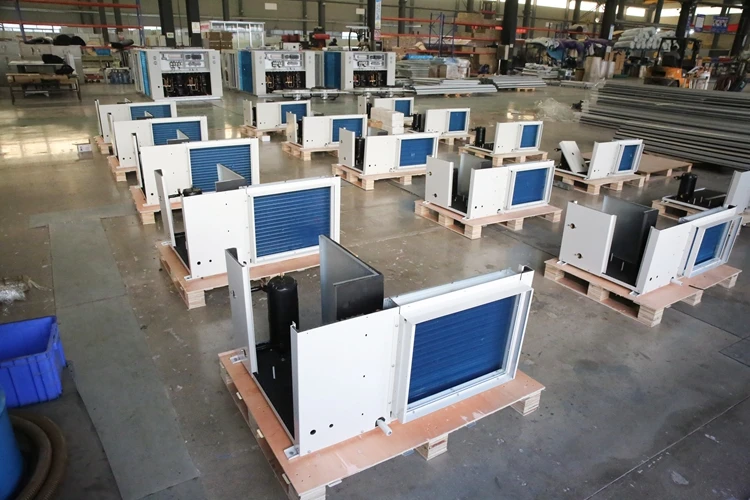

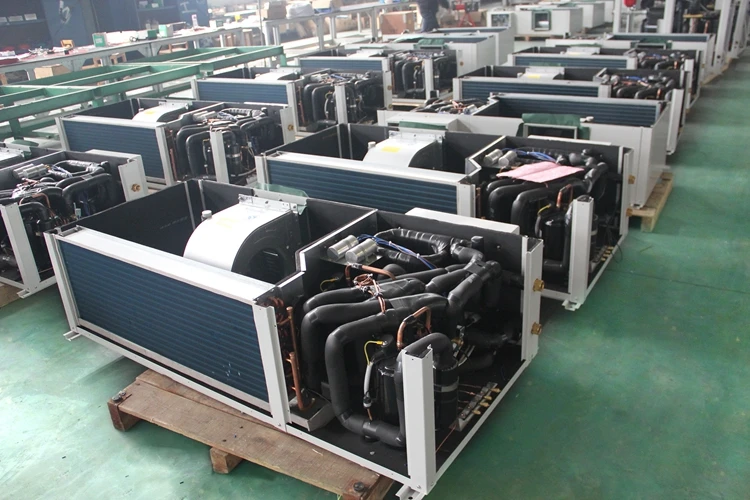

Company View

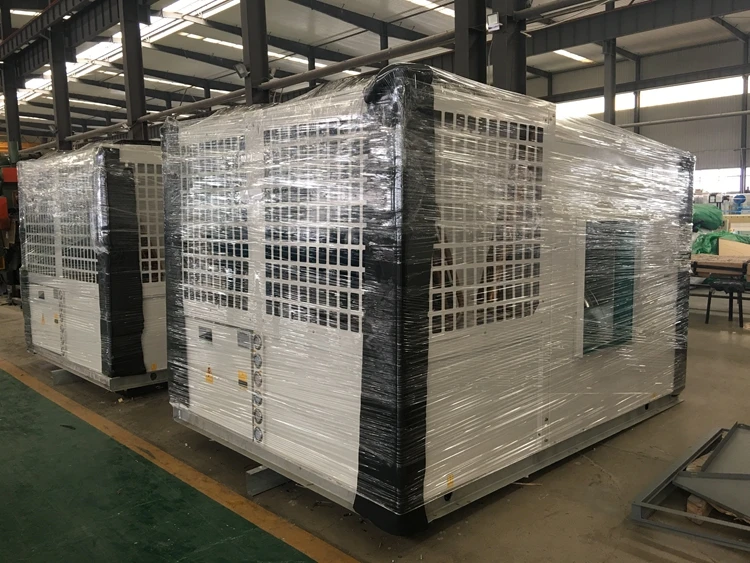

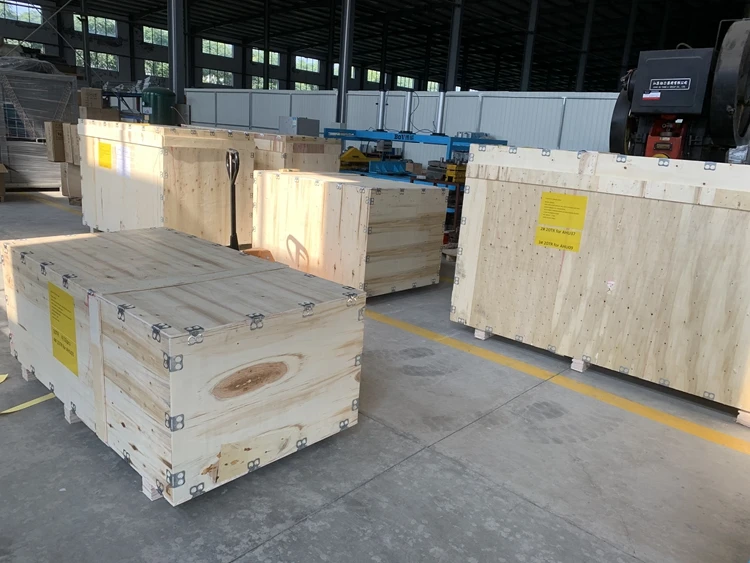

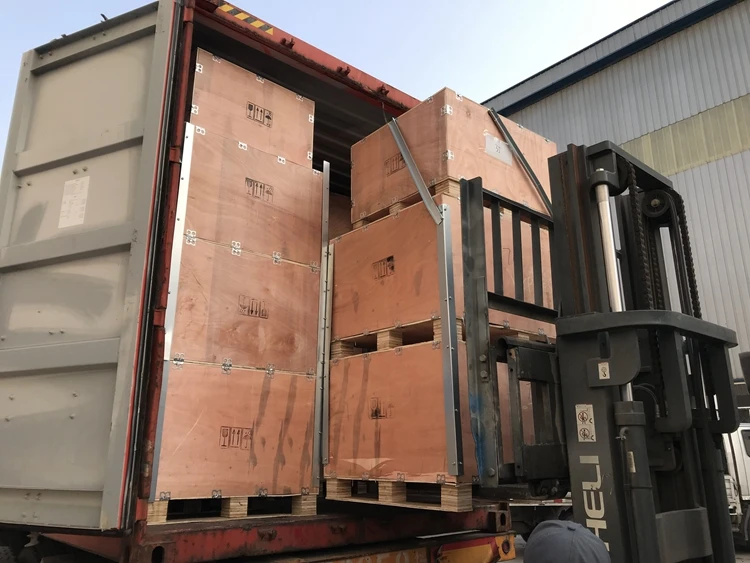

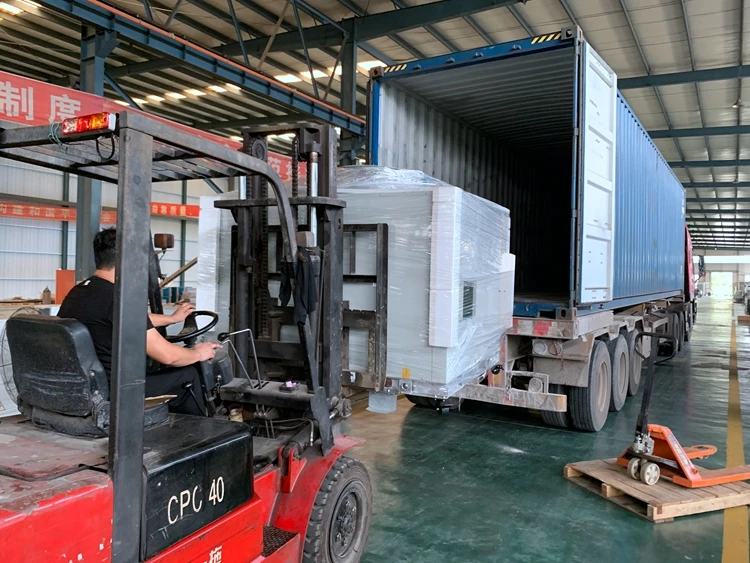

Packaging & Shipping

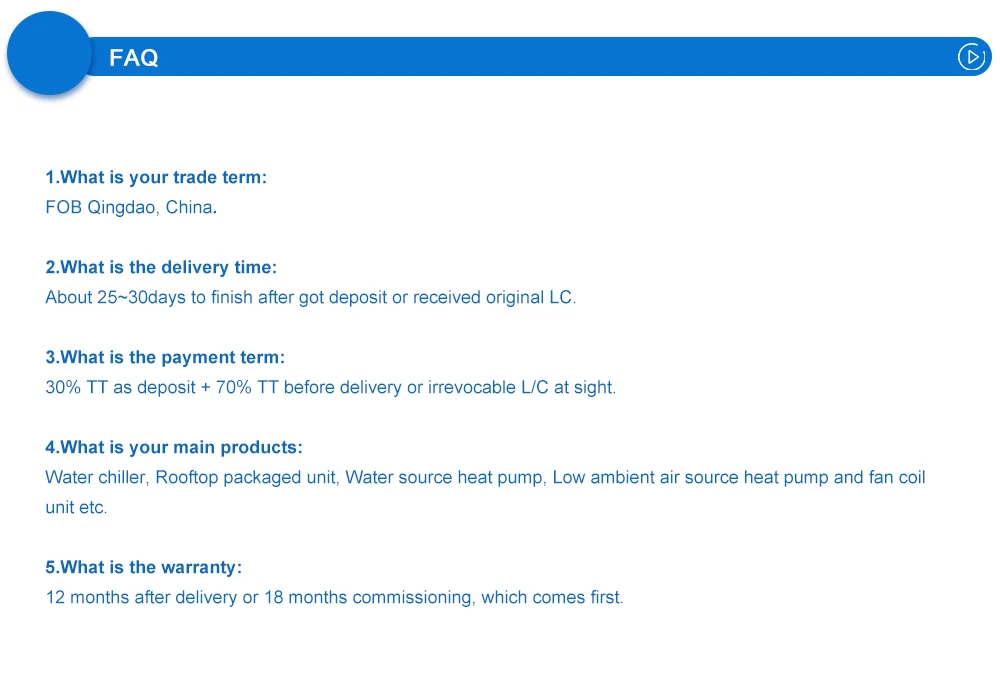

FAQ
