2022 CE горячая Распродажа, компактный офтальмологический рефракционный блок с рефракционным блоком, офтальмологический стул, цена для оптометрического блока
- Category: >>>
- Supplier: Beijing Hongdee Corporation
Share on (1600337220902):
Product Overview
Description
We Can Promise These Services For You:
1. Unconditional return within 10 days if you don't like.
2. A discount of 2% is granted if the shipping is delayed for 2 days.
Product Description

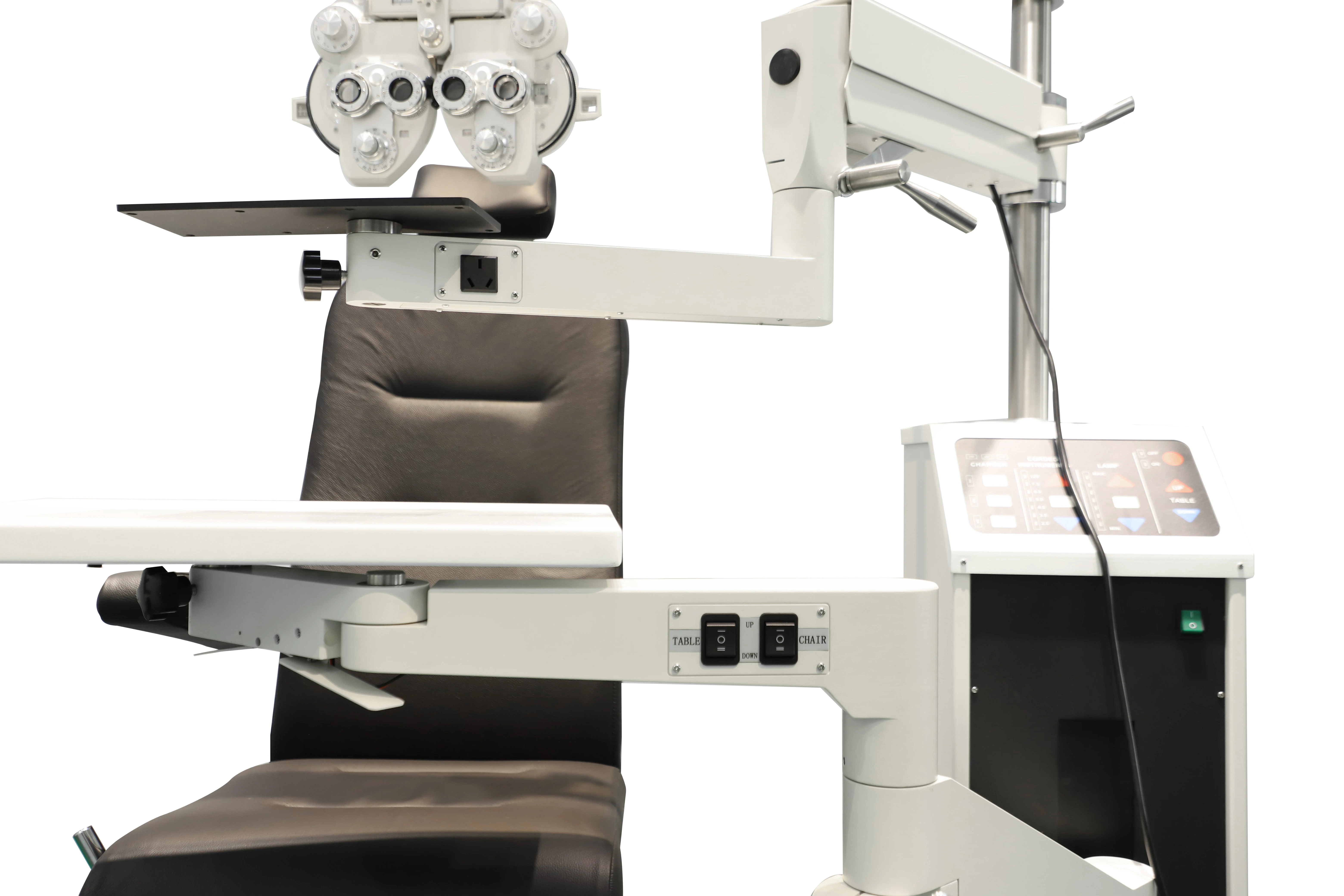

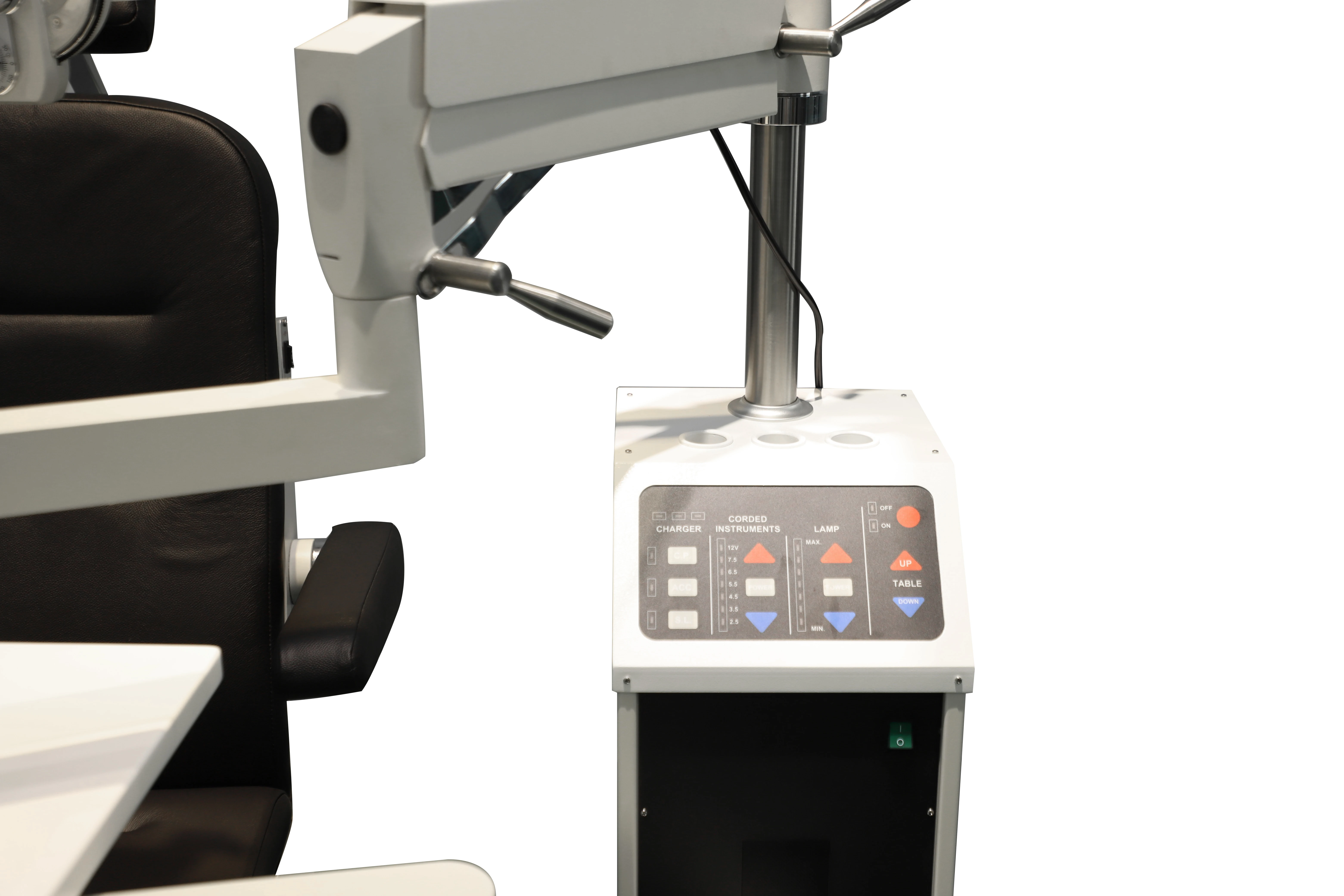

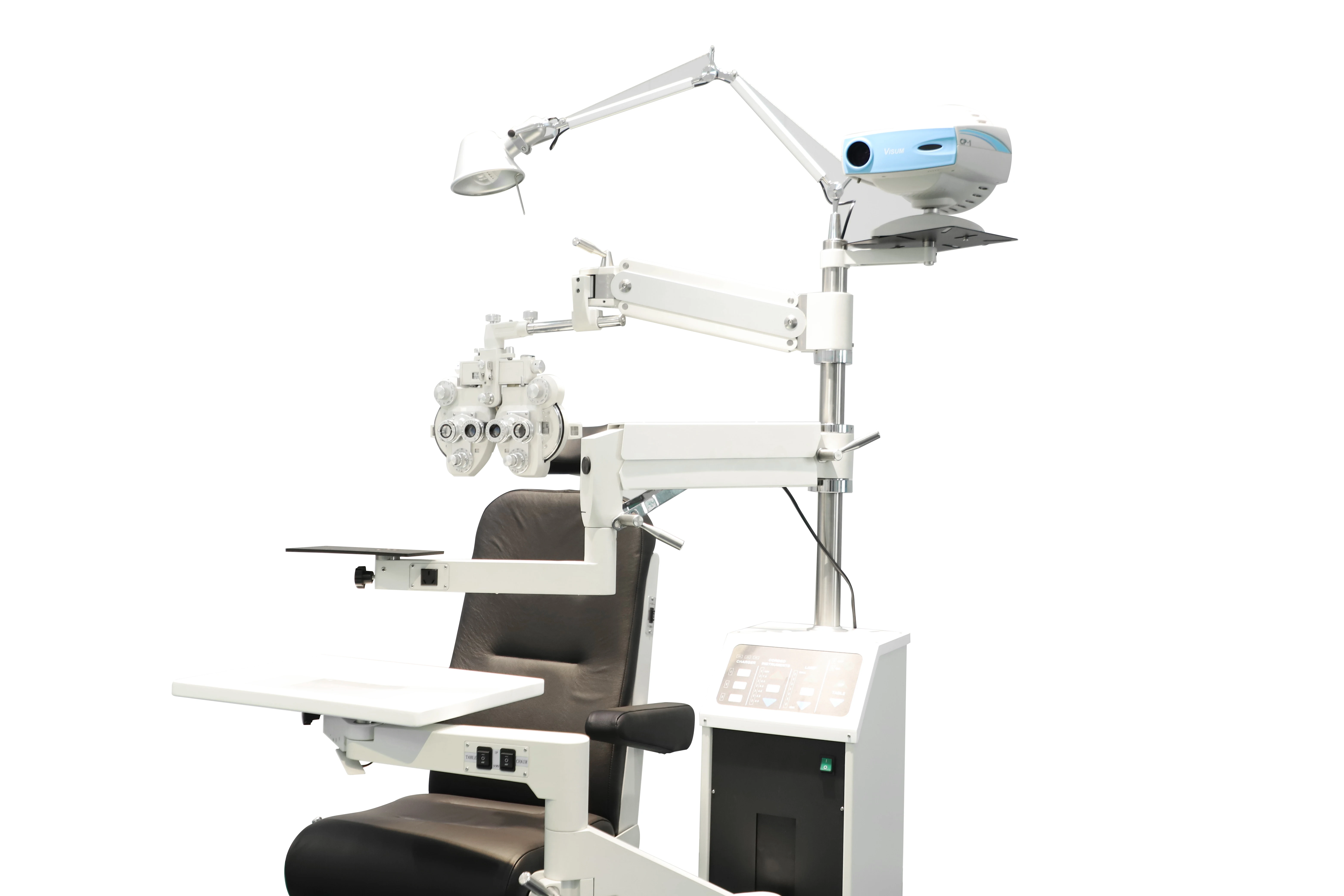

2021 CE Hot Sale Compact Ophthalmic Refraction Unit with refractive unit ophthalmic chair for optometry unit
HD-700A is a fully versatile and multifunctional ophthalmic chair and stand offering maximum working efficiency for the eye exam.
Specification
Mechanical Parameters | ||
Phoroptor swing arm | Swing angle (up and down)±30° Rotary arm: rotation angle 0°-300° Up and down moving range: 900mm(lowest point)+600mm Max load:30kg | |
The curvature of instrument | Swing angle (up and down)±40° The first rotary arm rotates at an Angle360°； The second rotary arm rotates at an Angle0°- 300° The tray can be 360 ° rotation Up and down moving range:780mm(lowest point)+600mm Max load:30kg | |
Projection arm | Angle of rotation for rotary arm360° The tray can be 360 ° rotation Up and down moving range:1030mm(lowest point)+500mm Max load:10kg | |
Table size | 350mm x 200mm x 25mm(Can be customized, maximum size is 700mm x 400mm x 40mm) Max load:50kg | |
Table movement range | within a semicircle with a radius of 824mm; vertical movement: 716mm (lowest point) + 300±5mm | |
Table rotational angle | The first rotary arm rotates at an Angle0°- 180°； The second rotary arm rotates at an Angle0°- 360° The third rotary arm rotates at an Angle0°- 180°； Table-board rotational angle: 360° | |

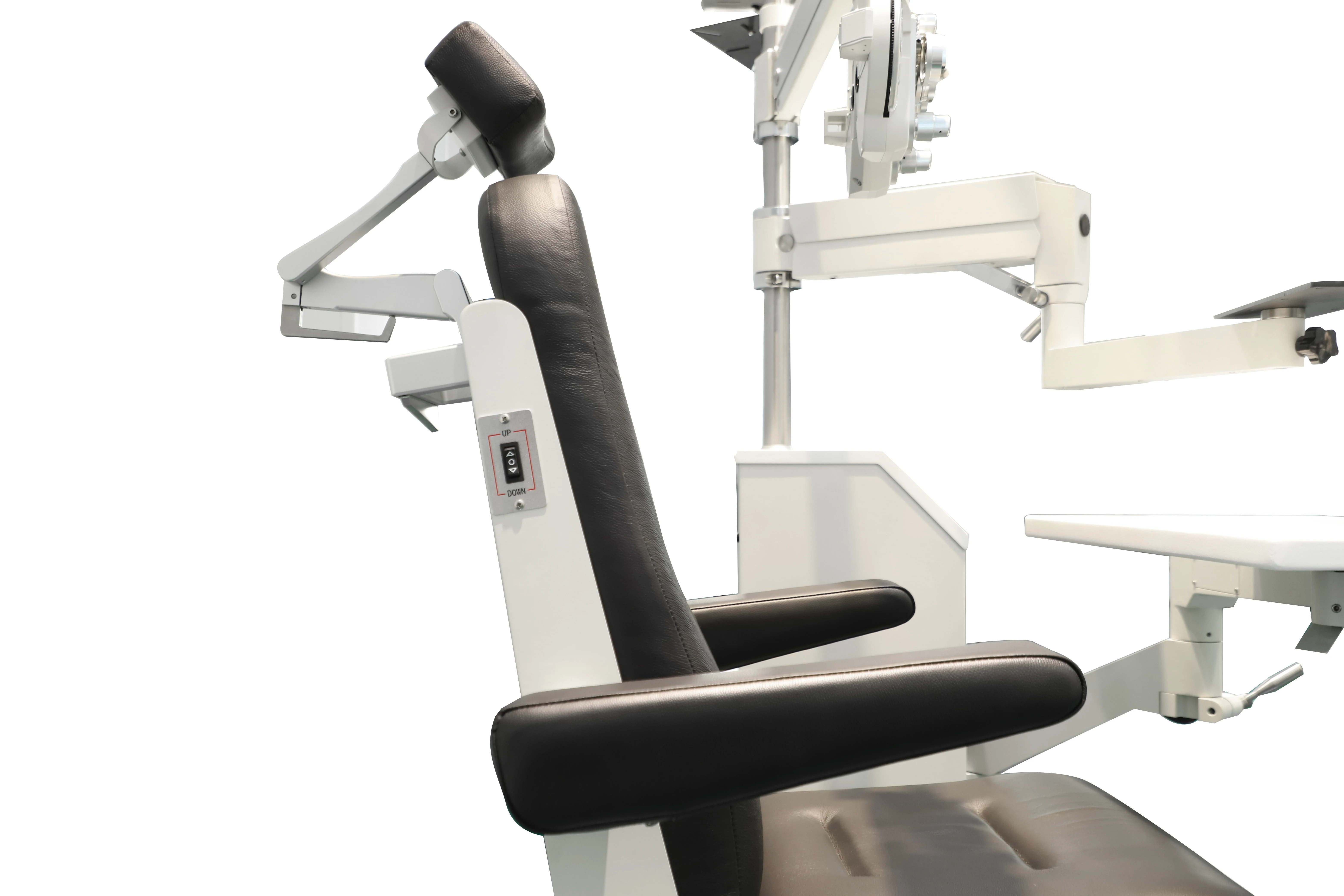

Seat parameter | Lifting range 568mm(lowest position+140+5mm) Headrest adjusting range 250mm Seat rotation angle 0-3602 Footrest height from ground: minimum 88mm Backrest adjusting angle 80-180 Max. load:150kg | |
Electrical Parameters | ||
In voltage | 100-120V AC 50Hz/60Hz， 200-240V AC 50Hz/60Hz； | |
Output voltage | 100-120V AC 50Hz/60Hz， 200-240V AC 50Hz/60Hz； 2.5V 3.5V 4.5V 5.5V 6.5V 7.5V 12V AC | |
Charging voltage | 5V DC | |
Engine power | 28V 1.5A DC | |
Light luminary | 5/16W 24V DC | |
Fuse | 5A 130/250V AC | |
Power without load | 1W | |
Pressure test | 2KV | |
Working mode | S1 | |
Main wire | 10A 120V/250V | |
Working temperature | －30ºC~＋50ºC | |
Relative humidity | less than 90% | |
Force of pressing key | 1~5N | |
Cooling mode | Nature cooling | |
Installation Dimension | 1884mm x 1316mm x 1663mm (Not including table top or lighting) | |
