Impact Crushers may be used as primary, secondary, or tertiary crushers depending on the Producer’s final-product-size needs. Impact Crushers are available in stationary, and portable configurations meeting any demand for any of these industries. Although Impact Crushers generally have a higher operating cost than other crushers, they tend to produce a more uniform particle shape (cubical) which is desirable and produce more fines for hot asphalt producers. Common types of Impact Crushers are Horizontal Shaft Impactor (HSI) and Vertical Shaft Impactor (VSI).
Impact crusher is used for crushing coal, various rocks, constructing railway, expressway roadbed and dam area of the power station, producing artificial sand for the building industry, etc. Cement concrete batching plant is used to crush coarse, medium, and fine stones whose compressive strength is no more than 300MPa and Moh's hardness is lower than the 8th degree, such as limestone, basalt, granite, concrete, slag, cement block, etc.
More details and free quotation , Please click "INQUIRY" to get them .
Product Advantages

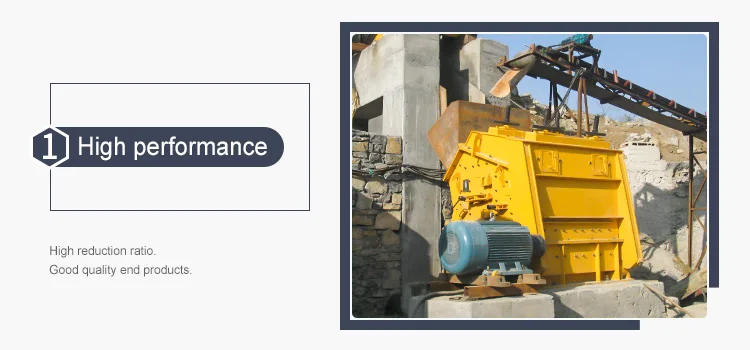

High performance
Dewo impact crushers consist of heavy rotor, wear resistant materials, and an optimal crusher chamber design. This combination has proven revolutionary in improving capacity and product quality, as well as in reducing operating and wear costs.

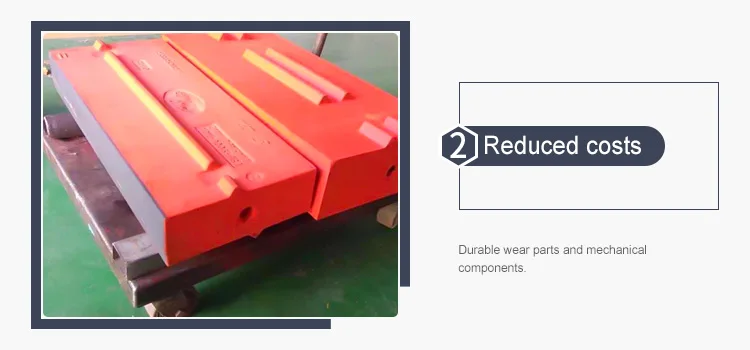

Reduced plant operating costs
Long experience in crushing, and continuous collaboration with customers and research laboratories have resulted in technical innovations, durable wear parts and mechanical components reduce maintenance costs.

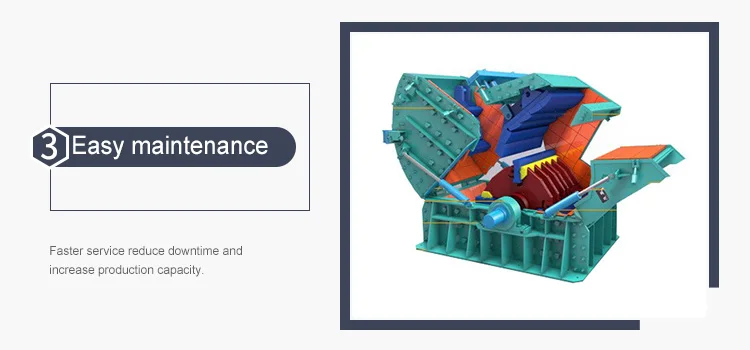

Easy maintenance
Impact crushers are designed to be mechanically resistant. Whenever maintenance is required, changing parts is made simple and easy.
More details and free quotation , Please click "INQUIRY" to get them .
Product Parameters
Model | Rotor Spec. (mm) | Feed Opening (mm) | Max. Feeding Size (mm) | Capacity (t/h) | Power (kw) | Overall Dimensions (mm) | ||||||
PFW Series | ||||||||||||
PFW1214II | Ф1150*1400 | 1100*1430 | 500 | 130-200 | 132 | 2400*2310*2550 | ||||||
PFW1315II | Ф1300*1500 | 1200*1530 | 600 | 180-320 | 200 | 2700*2570*2800 | ||||||
PFW1318II | Ф1300*1800 | 1200*1830 | 700 | 240-400 | 250 | 2700*2870*2800 | ||||||
PFW1415II | Ф1400*1500 | 1450*1530 | 700 | 300-480 | 250 | 2900*2700*3000 | ||||||
PFW1214III | Ф1150*1400 | 570*1430 | 250 | 90-170 | 132 | 2550*2310*2100 | ||||||
PFW1315III | Ф1300*1500 | 625*1530 | 300 | 180-270 | 200 | 2960*2570*2380 | ||||||
PFW1318III | Ф1300*1800 | 625*1830 | 300 | 220-300 | 250 | 2960*2870*2380 | ||||||
PFW1415III | Ф1400*1500 | 800*1530 | 350 | 280-350 | 250 | 3120*2650*2660 | ||||||
PF Series | ||||||||||||
PF1007 | Ф1000*700 | 400*730 | 250 | 15-60 | 45 | 2330*1660*2300 | ||||||
PF1010 | Ф1000*1050 | 400*1080 | 300 | 50-90 | 75 | 2455*2086*2800 | ||||||
PF1210 | Ф1250*1050 | 400*1080 | 300 | 70-130 | 110 | 2590*2050*2810 | ||||||
PF1214 | Ф1250*1400 | 400*1430 | 300 | 90-180 | 132 | 2590*2400*2810 | ||||||
PF1315 | Ф1320*1500 | 860*1520 | 350 | 120-250 | 200 | 2930*2760*3050 | ||||||
PF1320 | Ф1320*2000 | 860*2030 | 500 | 160-350 | 340 | 3320*3218*2613 | ||||||
More details and free quotation , Please click "INQUIRY" to get them .

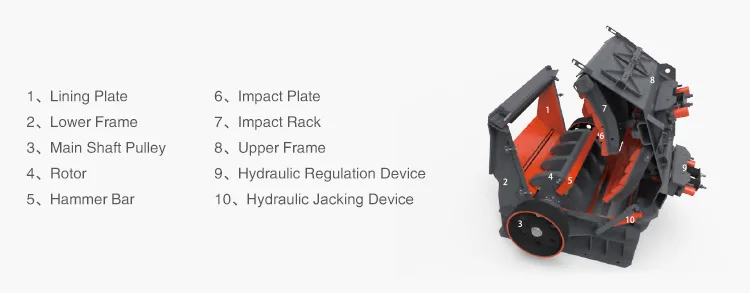

Product Structure
Hammers are a critical part when it comes to crushing with Horizontal Shaft Impactors. The metallic composition of the hammers matters greatly; choosing the wrong bar for your application may decrease production, and increase repair/replacement costs. The hammers can be made from the hybrid alloy, manganese, low chrome, high chrome, and high chrome ceramic. Below are the best-suited applications per hammer material:
High Chrome: asphalt, highly abrasive materials, smaller feed size
Medium Chrome: most steel contaminants, some asphalt, larger feed size
Low Chrome: concrete, demolition, aggregates, heavy steel contaminants, very large feed size
Manganese: abrasive materials, asphalt, concrete, light aggregates, some steel or rebar contaminants, larger feed size
High Chrome: asphalt, highly abrasive materials, smaller feed size
Medium Chrome: most steel contaminants, some asphalt, larger feed size
Low Chrome: concrete, demolition, aggregates, heavy steel contaminants, very large feed size
Manganese: abrasive materials, asphalt, concrete, light aggregates, some steel or rebar contaminants, larger feed size

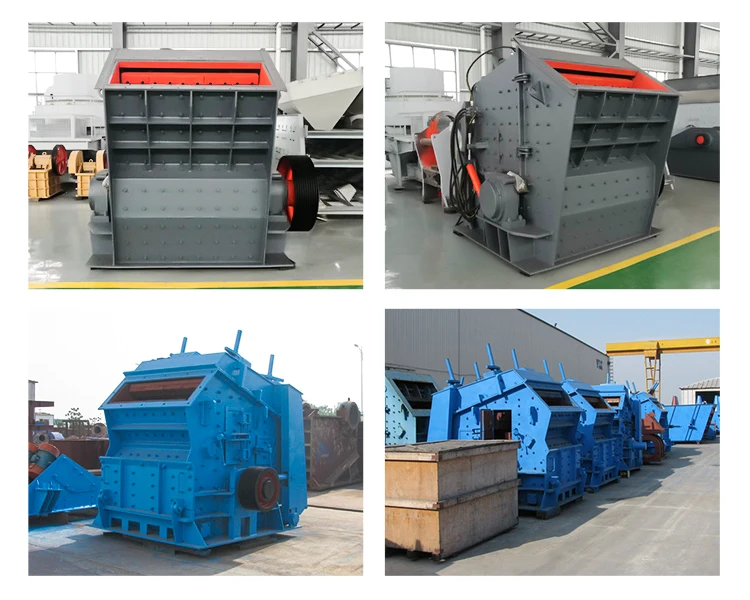

Physical Display
Kinds of flexible configuration
There must be one pattern ideal for you
More details and free quotation , Please click "INQUIRY" to get them .

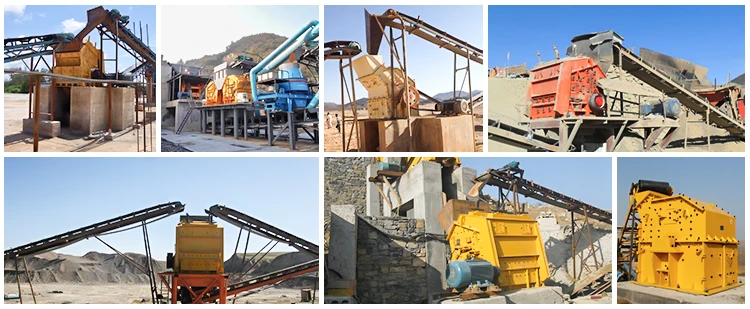

Customer Case

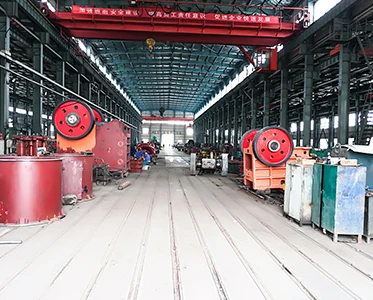

Every year, we export our grinders and crushers to South Asia, Africa, South America, Middle East and other regions. Our Machines enjoy a high reputation in the foreign market. You are very welcomed to visit our factory, and hope there is a chance for us to have long term cooperation.
More details and free quotation , Please click "INQUIRY" to get them .
Our Service
Pre-Sale:
Professinal Technical consultation 24-hour online service; Professional suggestion，free designing, customize production.
OnSale:
Support online orders, you can get 100% full pretection & credit insurance protection; Multiple currency payment methods
support. TT,L/C,D/P,D/A,Western Union etc; Support Global DDU/DDP delivery service.
After-Sale:
Professional logistics service ensuring safety and timely delivery of products all over the world through ocean,
airline, road and railway; Send the engineers to guide the installation，Install and adjust the equipment for customers;
Professional after-sales team assuring that all our products under first rate maintenance and performance
OnSale:
Support online orders, you can get 100% full pretection & credit insurance protection; Multiple currency payment methods
support. TT,L/C,D/P,D/A,Western Union etc; Support Global DDU/DDP delivery service.
After-Sale:
Professional logistics service ensuring safety and timely delivery of products all over the world through ocean,
airline, road and railway; Send the engineers to guide the installation，Install and adjust the equipment for customers;
Professional after-sales team assuring that all our products under first rate maintenance and performance
Company Profile

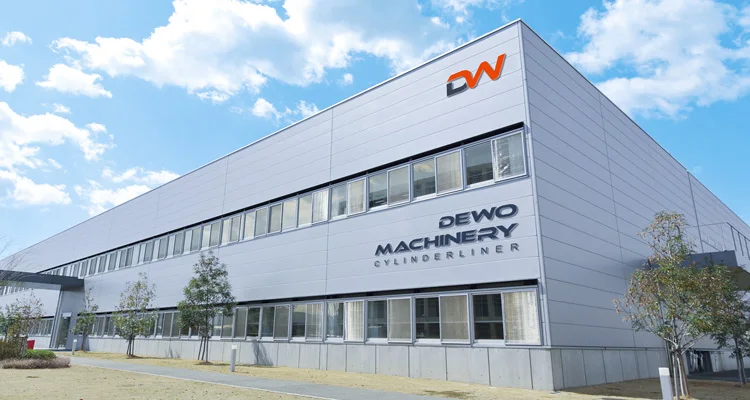

Dewo Machinery which established in 2008 is an international enterprise integrating R & D, production, sales and service of large-scale equipment required for national infrastructures construction projects such as mining, construction, energy and other industry. We provide professional EPC one-stop solutions and mature supporting equipment. Our products include crushing and sand making equipment, with a wide range of categories and series. Excellent product performance and perfect after-sales service system have won high praise from customers in more than 160 countries around the world. We are committed to developing intelligent solutions to improve our customers' profitability and achieve sustainable business development.
