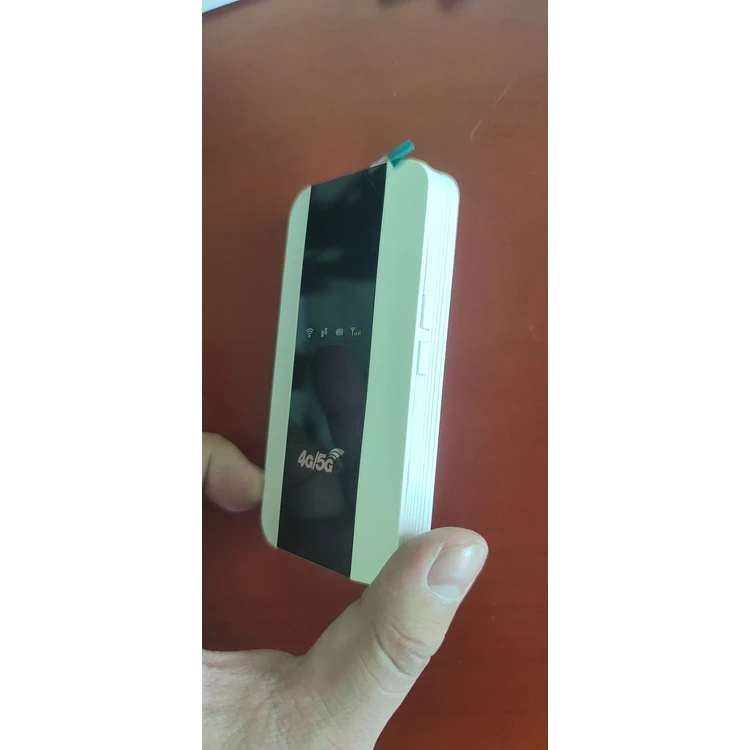

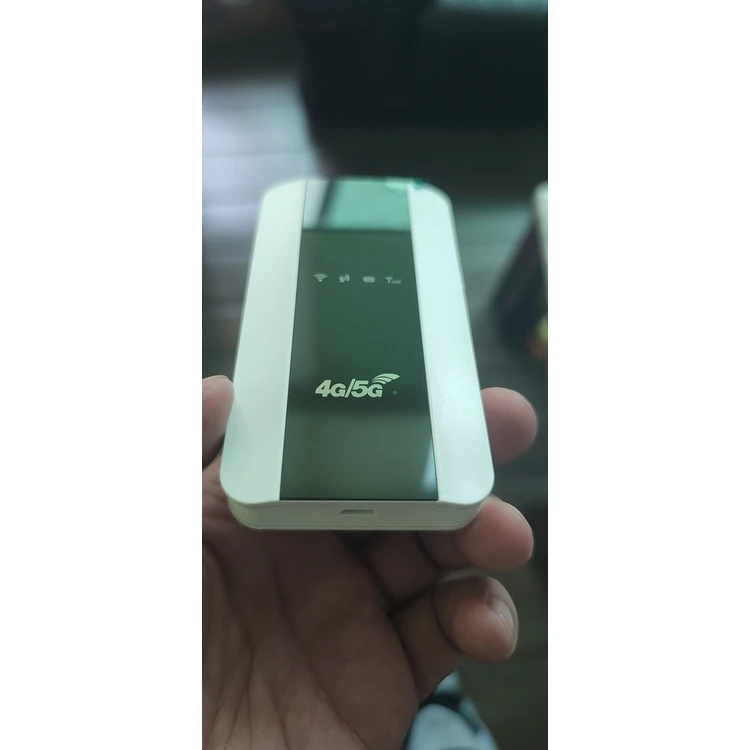

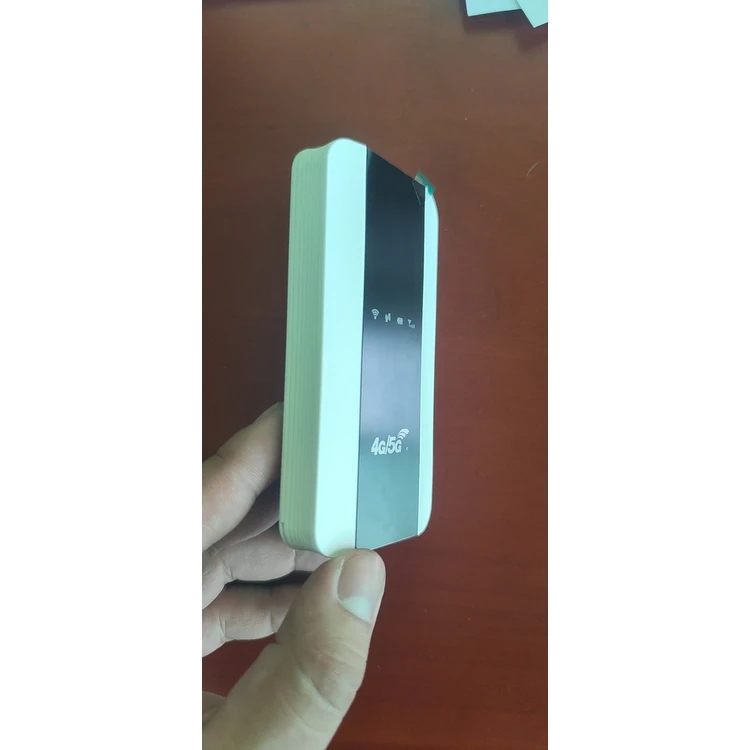

New product 4G portable wifi outdoor car modulation unlimited hotspot router
- Category: >>>
- Supplier: Hunan Danuo Technology Co. Ltd.
Share on (1600337294307):
Product Overview
Description
Product Paramenters
◇ Basic Product Information | Item |
◇ Model D623 | 4G LTE Router |
◇ Platform (chip) | Marvell (ASR 1802S) |
◇ SA Time | 3.2016 |
◇ Band/Mode | LTE FDD-LTE: B1/B3/B7/B8/B20 LTE TDD: B38/B40 UMTS:B1/B8 |
◇ Type | Portable hotspot device with LCD |
◇ Size(mm) | 98.07*59.34*15.44mm |
◇ Weight(g) | About 125g (including battery) |
◇ System memory | NorFlash 128MG |
◇ HW Description | Item | Remark/Supplier |
◇ Main CPU or Co-CPU (MHz) | ||
* CPU (MHz) | 550MHz | |
* Air interfaces | GSM/GPRS/EDGE | DTM (simple class A), multislot class 12 |
TD-SCDMA | R5 1.28 TDD-HSDPA 2.8 Mbps DL R7 1.28 TDD-HSUPA 2.2 Mbps UL R8 1.28 TDD-HSPA+ 4.2 Mbps DL / 2.2 Mbps UL | |
UMTS | R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL | |
TDD-LTE | Cat4 100 Mbps DL / 50 Mbps UL | |
FDD-LTE | Cat4 150 Mbps DL / 50Mbps UL |
◇ Memory | ||||
* System memory | NorFlash 128MG | |||
* External memory | up to 32GB | Micro-SD | ||
◇ WIFI | ||||
* Frequency Band | 2.4GHz | |||
* 802.11b/g/n | up to 150Mbps | Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz) | ||
* User amount | Max to 10 | 10个 | ||
* AP Features | Security modes | Open WEP WPA-PSK WPA2-PSK WPA-WPA2 Hybrid mode (Mixed Mode) TKIP-CCMP Hybrid mode (Mixed Mode) WPS 2.0 Hidden SSID supported | ||
Concurrency (FC quality for LE1.0) | AP-STA mSSID (AP-AP) – up to 2 SSID's STA-STA communication block/allow between two SSIDs Independent security modes (Open, WEP, WPA, WPA2, WAPI) for concurrency modes above except WEP in both interfaces Channel of operation - same channel | |||
Other | QoS and PS WMM WMM-PS/uAPSD ERP protection Coexistence LTE coexistence (static channel selection) Data Switching/Forwarding | |||
◇ Interface | ||||
* Antenna | 4G/3GMain antenna 4G MIMO/3G Rx Diversity antenna WiFi antenna | Internal | ||
* LCD | 1.44" 128×128 TFT | |||
* USB | Micro USB | USB 2.0 High Speed | ||
* SIM/USIM Card slot | Yes | Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 | ||
* Micro-SD Card slot | Yes | |||
* L*H*W （mm) | 59.34*98.07*15.44mm | |||
*Weight(g) | About 125g (including battery) | |||
◇ Button | ||||
* Power | Yes | |||
* WPS | Yes | |||
* Reset | Yes | |||
◇ Battery | Item | Remark/Supplier | ||
* Lion battery | 2100mAh | |||
◇ Other Description | Item | Remark/Supplier | ||
◇ Electrical performance spec | ||||
* RF Power Spec | Class 4 for UMTS/HSPA/LTE; | |||
* Power supply input | Yes | 3.4-4.2V INPUT（5V-1A） | ||
◇Environmental reliability test condition | ||||
* Normal Operation | 0°C to +45°C | |||
* Restricted Operation | -10°C to +55°C | |||
* Storage | -20°C to +70°C | |||
Products Description
Company Profile
Hunan Danuo Technology Co., Ltd. The newly built production, research and development base in Chenzhou City, is invested by Shenzhen Danuo communication technology Co., Ltd. with 30 million US dollars. 14 years of experience in the field of communication technology allows Danuo to specialize in technology innovation, equipment manufacturing and sales.The first phase of the production site covers an area of 14,000 square meters, equipped with placement machines, injection molding machines, packaging machines, etc., using the latest intelligent automatic production lines, and equipped with various testing laboratories.For more than ten years, Danuo has been committed to the production and research and development of intelligent application equipment for the Internet of Things. It has four independent brands, and its products are exported to all continents of the world.
Transportation
FAQ
1.What's the order process?
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---official quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Sample usually takes about 10-20days depending on product type. Bulk order usually takes about 35 days.
5.How would I get a price list for a wholesaler ?
Please e-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
1)Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---official quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Sample usually takes about 10-20days depending on product type. Bulk order usually takes about 35 days.
5.How would I get a price list for a wholesaler ?
Please e-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
