Air hygiene in the room large space air diffuser commercial humidifier
- Category: Air Cleaning Equipment >>>
- Supplier: UCAN Co. Ltd.
Share on (1600337339259):
Product Overview
Description
Products Description
UC-TJ1000N

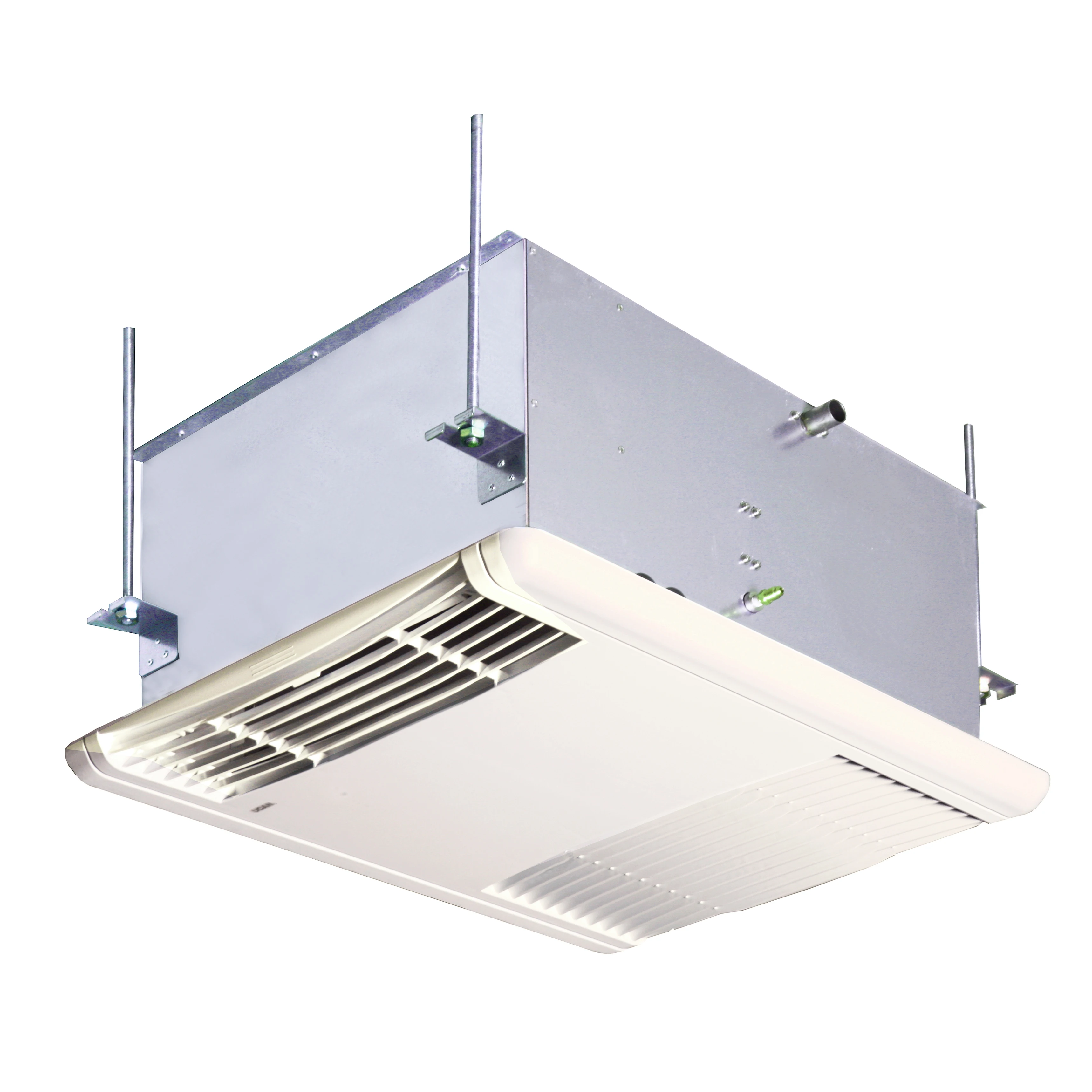

Highly reliable JAPAN-MADE cassette type PTC steam humidifier.
Only 1 steam humidifier product approved by national institute which can install into the ceiling.
Only 1 steam humidifier product approved by national institute which can install into the ceiling.
Office
Hospital
Humidity capacity High: 1.1 kg/h Low: 0.5 kg/h

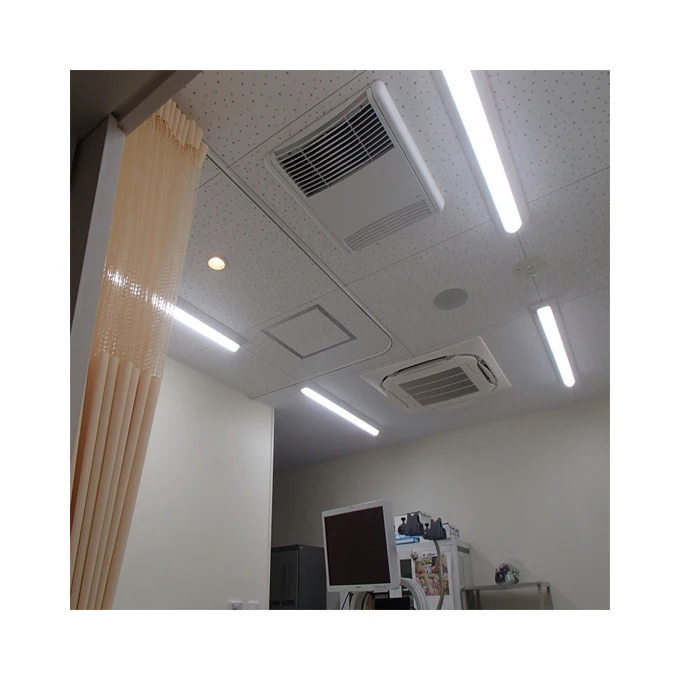

Applications Suitable for hospital, surgery room, elderly home, offices, schools, etc.
Gives hygienical, sterilized, odorless air by boiled steam humidification.

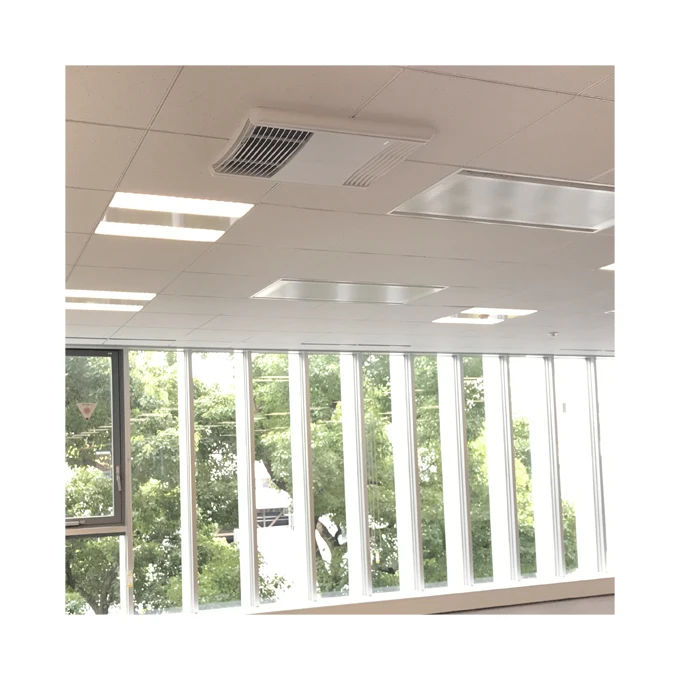

Cassette type It humidifiers directly from the ceiling.
Nano-E* system It supports to keep the air hygiene in the room. (*”Nano-E” is brand of Panasonic.)
Applications Suitable for hospital, surgery room, elderly home, offices, schools, etc.
Gives hygienical, sterilized, odorless air by boiled steam humidification.
Cassette type It humidifiers directly from the ceiling.
Nano-E* system It supports to keep the air hygiene in the room. (*”Nano-E” is brand of Panasonic.)

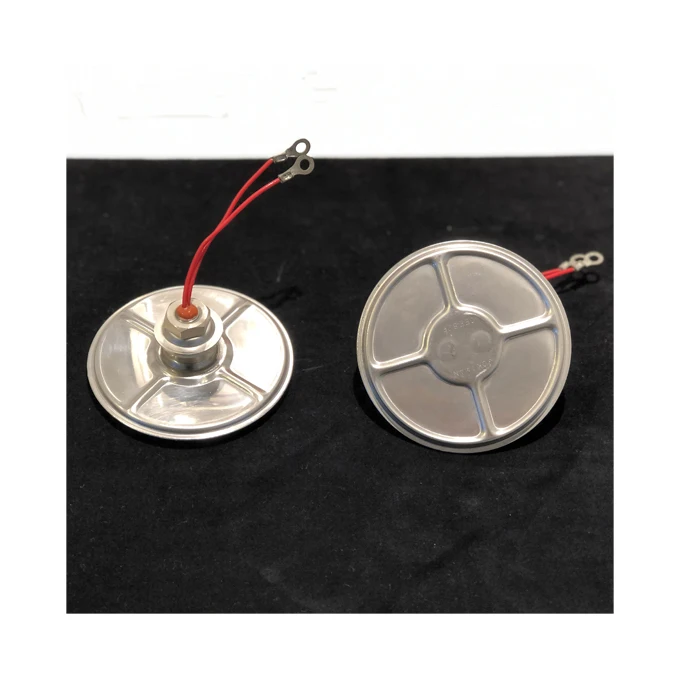

High safety PTC immersion heater has self-temperature controlled system. It has high-powered output in the water but little current flow in the air by its self-controlled system. Resistivity of heater stays constant to a certain temperature, if the heater temperature rises over it, the resistivity will rise up rapidly (reach Curie point) and control the current flow.
Model | UC-TJ1000N | ||
Steam Capacity （kg/h) | High:1.1 Low:0.5 | ||
Power supply | 1φ2W AC230V * (Other power supply types are available on request)) | ||
Rated power (kW) | H: 1.1 L: 0.6 | ||
Rated current (A) | H: 5.5 L: 3.0 | ||
Weight （kg) | Dry : 27.0 | Operating : 30.0 | |
Water quality | R.O treated water (1 to 20 μS / cm), purified water | ||
Water supply system | Automatic water supply system by float switch and water supply solenoid valve | ||
Water supply pressure | 0.03…0.3MPa (0.3…3.0 kgf / cm2) | ||
Control system | On/Off control | ||
LED indicator lamp (Main unit) | Power supply, Operation, Abnormal alarm | ||
Remote controller | Operation, Air volume (High/ Middle/ Low), Abnormal Alarm | ||
External signal | Operation, Blanket warning (Water depletion, overflow, leakage, overheat) | ||
Safety function | Device to prevent to waterless operation, Water supply shutoff valve, Overflow sensor, Circuit breaker Water leakage sensor, Thermostat for overheat protection | ||
Company Profile
Comfortable Humidity for All
As a specialized manufacturer of industrial humidifiers and air conditioning peripherals, we UCAN Co.,Ltd. have been developing many uniquely and innovative products, which had not found in other makers.
Mainly through air conditioning by humidification, we support the living infrastructure such as realizing a healthy and comfortable environment and maintaining the freshness of agricultural products.
UCAN exports to about 30 countries and regions. We have dealers in Europe, Asia and ASEAN countries. Our “Made in Japan” quality, we have high praise from users.
Mainly through air conditioning by humidification, we support the living infrastructure such as realizing a healthy and comfortable environment and maintaining the freshness of agricultural products.
UCAN exports to about 30 countries and regions. We have dealers in Europe, Asia and ASEAN countries. Our “Made in Japan” quality, we have high praise from users.
