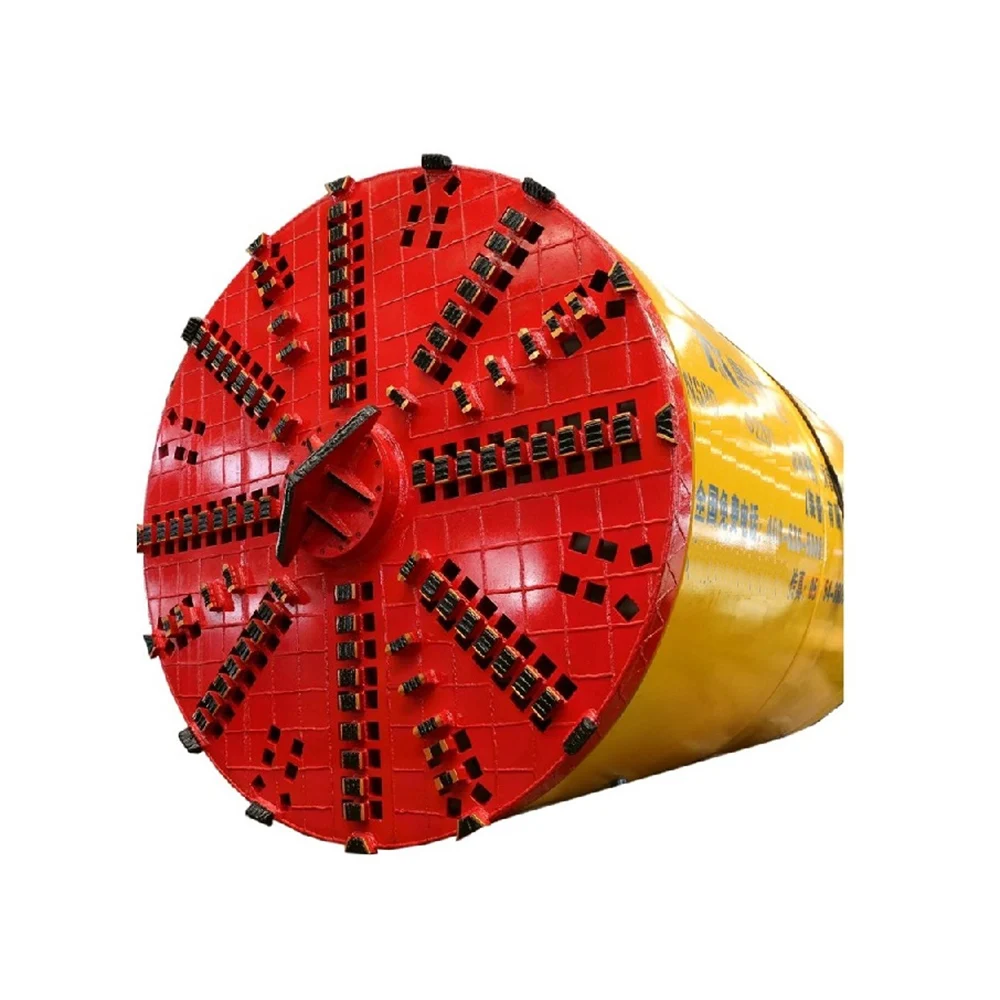

hot Sale Pipe jacking machine micro tunnel boring machine
hot Sale Pipe jacking machine micro tunnel boring machine
hot Sale Pipe jacking machine micro tunnel boring machine

hot Sale Pipe jacking machine micro tunnel boring machine

Share on (1600337367789):


Price:$323,500.00

Quantity:


Product Overview

Description



1) Independent water injection and grouting system improves excavation soil condition applied to different ground..


2) Eco-friendly, less disturbtion to eviroment;
3) Applied for normal soil condition.
4) Central supported cutter ,compact and lightweight ,long service life,easy maintenance.
5) Screw conveyor transfers the soil in large quantity and conveyable grain size.
6) 2.5.steer angle ,controlled by electrical system ,easy operation ,quickly response,digital displayed.
7) Full section cutting,100% opening rate.






*One year repair for the main part of the power system at the normal use,excluding man-made damage
*Six months repair and replacement for hydraulic parts
*Six months replacement for electrical parts


*Excluding vulnerable parts: displacement sensor, direct ball valve and cutter)


















































































Dimensions



Pipe Jacking Machine OD


2660mm


Length


4200mm





           Cutter head



Cutter Head Motor Power


4*22KW



Revolution Speed




1.99 RPM



Torque


 422 KN.m









Steering System



Cylinder No.


8


Thrust


80T*8


Max. Steering Angle


2.5°


Pump Station Max. Pressure


31.5MPa


Cylinder Stroke


60mm


Pump Station Motor Power


4kw



Machine Total Power



95kw



Total Weight



22T



Control




Remote PLC Control(Touch Screen)




Soil




Soft soil, sand, clay

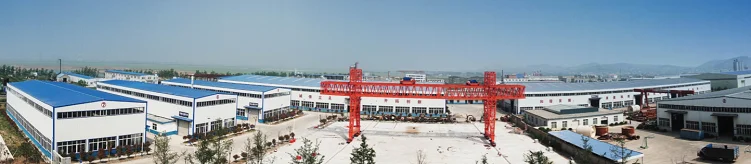

♥. Established in 2005, a high-tech enterprise concentrates on manufacturing and designing trenchless pipe jacking machine and provides integral solutions of trenchless engineering technology and equipment.


♥. Integrates R&D,design,manufacturing and sales for variety types of pipe jacking machines or Tunnel Boring Machines: Slurry balance series, Earth balance series,compound with Slurry&Earth,Open-face,Hard rock series,Rectangular series and Microtunneling machines,

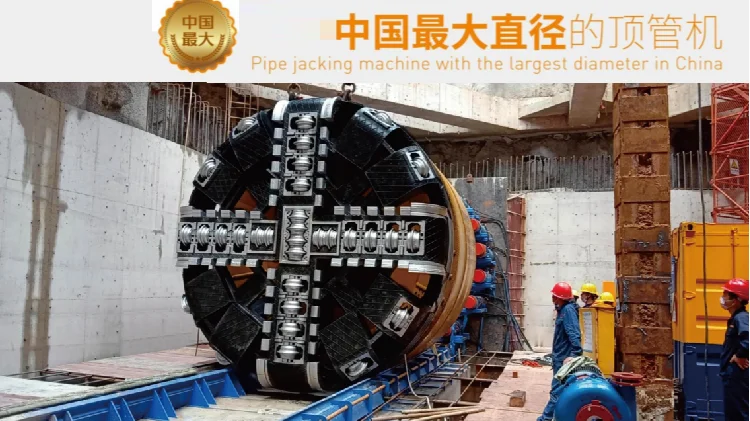

♥. Diameter ranges from 250mm to 4500mm and applied to different kinds of soil condition.


♥. Our pipe jacking machines are widely applied to pipeline laying,traffic track ,pipeline reconstruction ,projects crossing river or highway,such as drinking water pipe network,sewage pipe network,natural gas pipe network reconstruction projects in China and overseas.


♥. Sales and service network in the Middle East, Africa, Australia, Singapore, Malaysia, Indonesia, Thailand, Philippines etc.




♥. The only appointed trenchless technoloty training institution of China by China society for trenchless technology (CSTT) .
