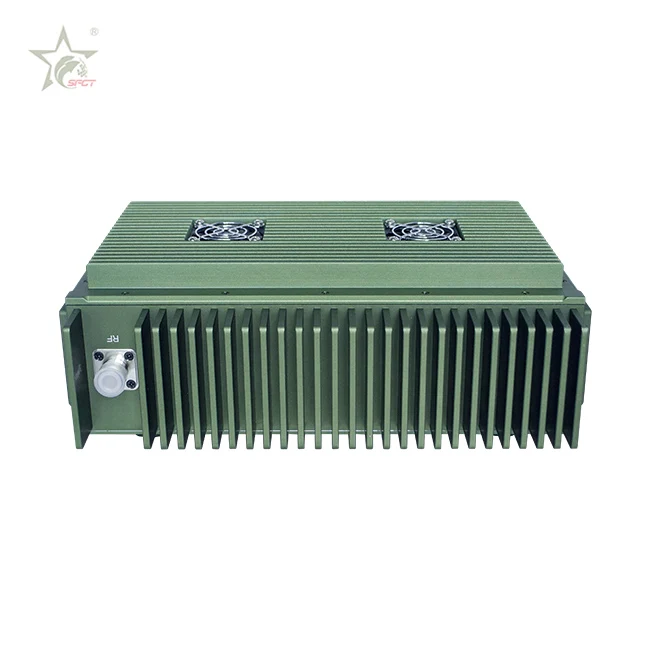

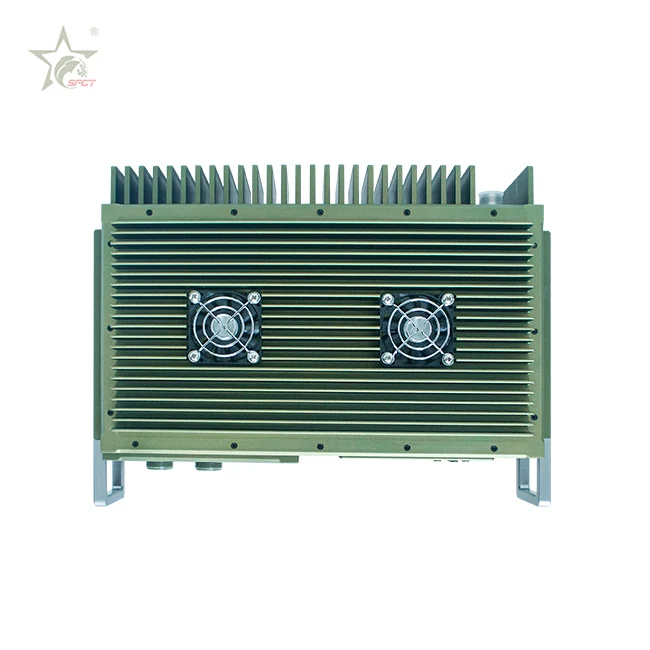

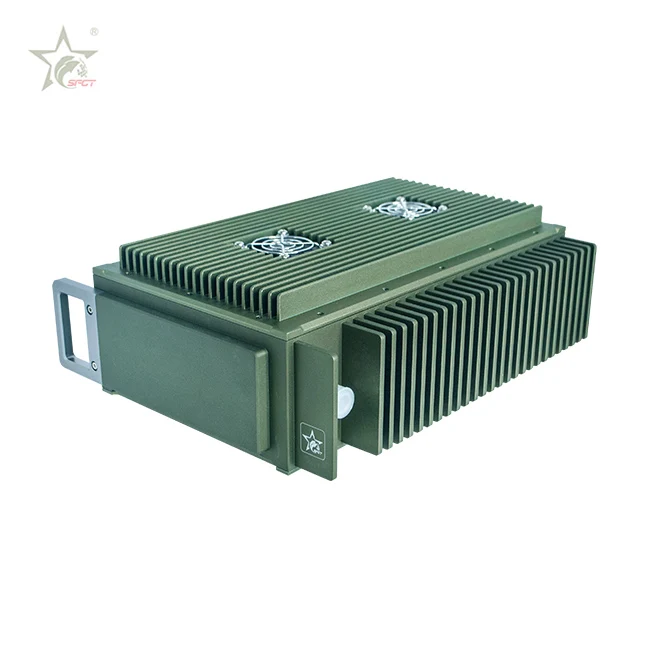

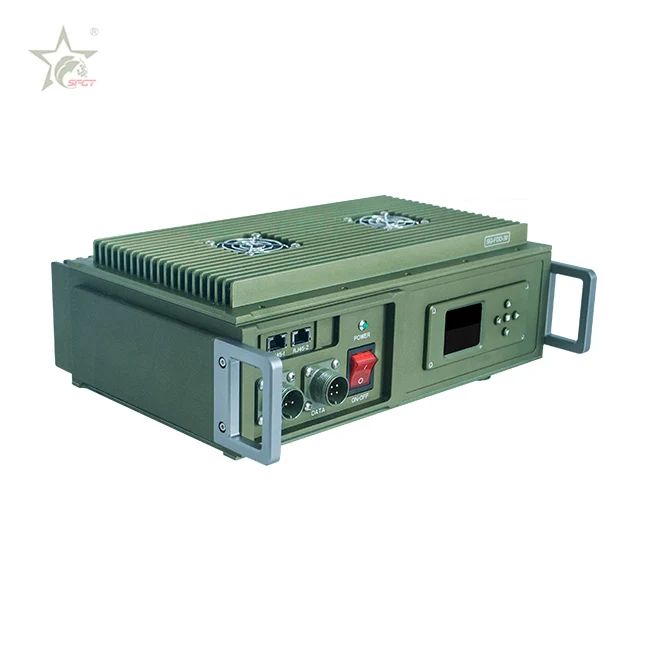

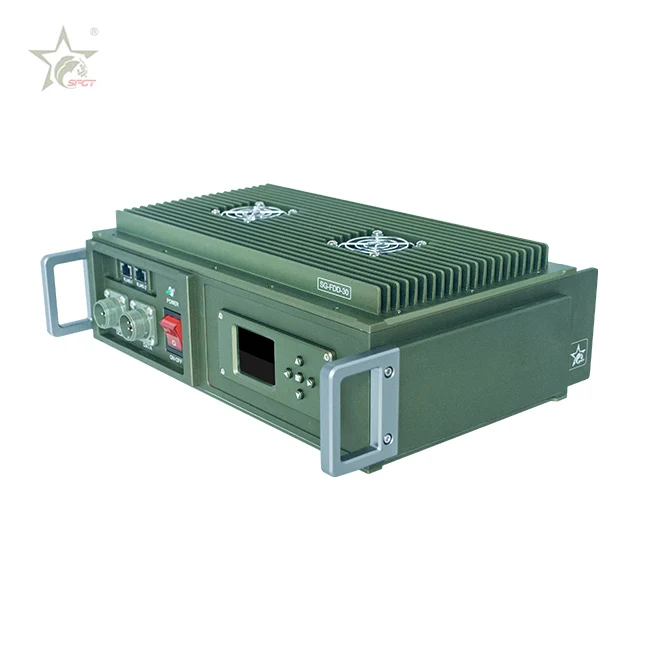

ETHERNET DATA REMOTE TRANSCEIVER CUSTOM TRANSMITTER RECEIVER STORAGE SYSTEM SPY EQUIPMENT

Product Overview

Description



ETHERNET DATA REMOTE TRANSCEIVER CUSTOM TRANSMITTER RECEIVER STORAGE SYSTEM



FDD-COFDM, using COFDM multi carrier modulation and demodulation technology is a new type of full duplex communciation system used in NLOS mobile transmission application.Supporting non-line of sight distance transmission.It uses transparent IP data to provide a balance and stable high-speed data rate up link(30Mbit/s)and downlink(30Mbit/s).



SFGT model is a high power Network IP radios based on COFDM modulation.It's special designed for Vehicle or Unmanned control vehicle in need for robust video wireless communcation and data control through IP network.

Model	SFGT-FD020VM
Power supply	DC28V/6.8A
TX output frequency	675MHz (can be customized 300-3300MHz),step in 1MHz
RX output frequency	715MHz (can be customized 300-3300MHz),step in 1MHz
RF bandwidth	1/2/4/8MHz
RF power output	45dBm
Encryption/decryption mode	AES128 bits(user-defined password)
Modulation	COFDM 2K
Transfer rate	2x30 Mbit/s uplink and downlink
RF connector	N type *2
Ethernet	Standard RJ45 port *2
Serial port	RS232 serial port
Baud rate	115200bps maximum
Two way audio	Aviation plug
LCD panel with keypad	Easy to set the related parameters
Dimension	320*210*110mm
Weight	8.7kg
Transmit distance	10-20 km NLOS / 20-40km LOS  on ground level

F&Q:
Q1.Could you do design for us?
Yes, when we know your requirement, we could customize the
equipment for you.

Q2.what's your advantages ?
A. advanced technology
B. Strictly quality control when producing.
C. Good service

Q3.How about the shipping?
For small orders, we will send the goods by International Express like
HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive. If
big quantity we will ship by Ocean transportation, it takes about one and half
month to arrive. if urgnet, you can select shipping by Air, but freight charge
will be more expensive.

Q4.What's the terms of payment?

TT, Paypal, Western Union, AliPay

Q5. What's' your After-sale service?
All products have pass strict inspection before they go out.
Belong to the product quality problem, provide free repair within one year.
Provide lifetime maintenance service
