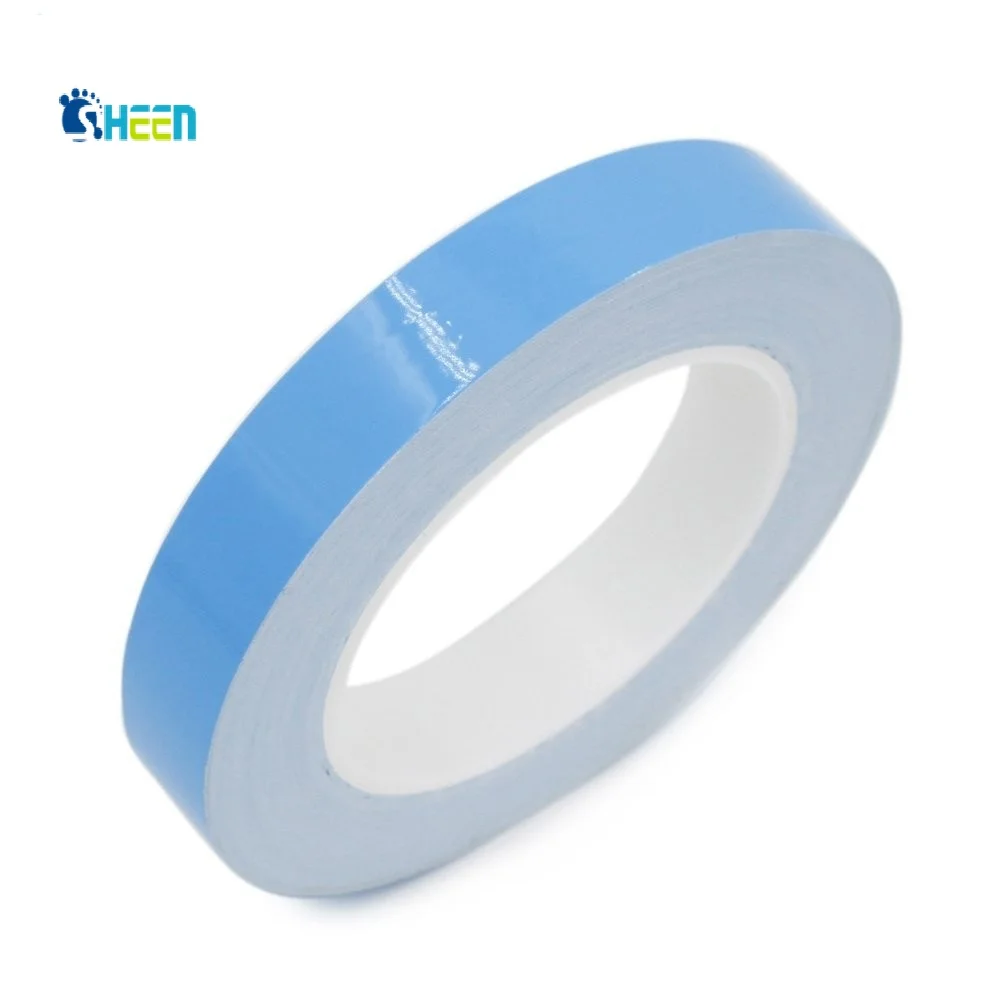

Thermal Conductive Tape For Cooling Components
- Category: >>>
- Supplier: Dongguan Sheen Electronic Technology Co. Ltd.
Share on (1600337414501):
Product Overview
Description

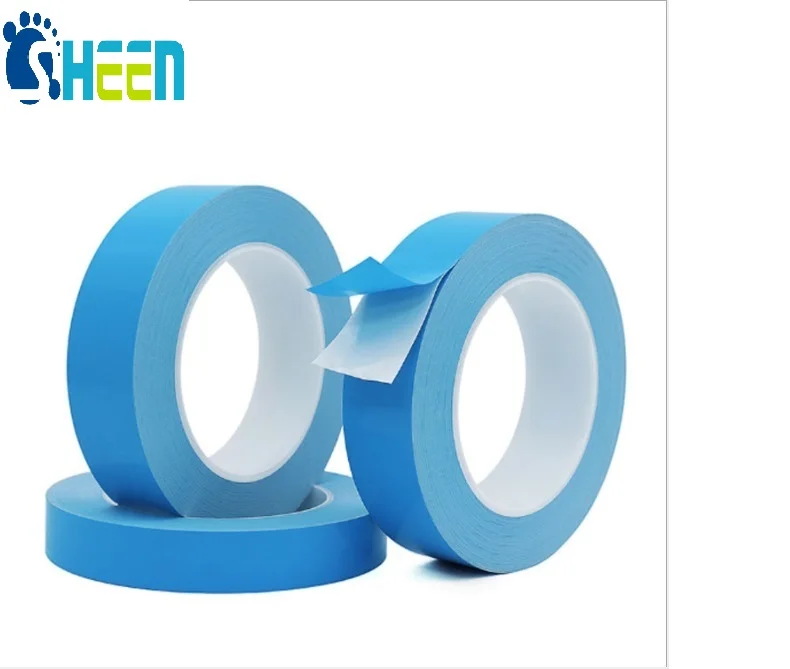

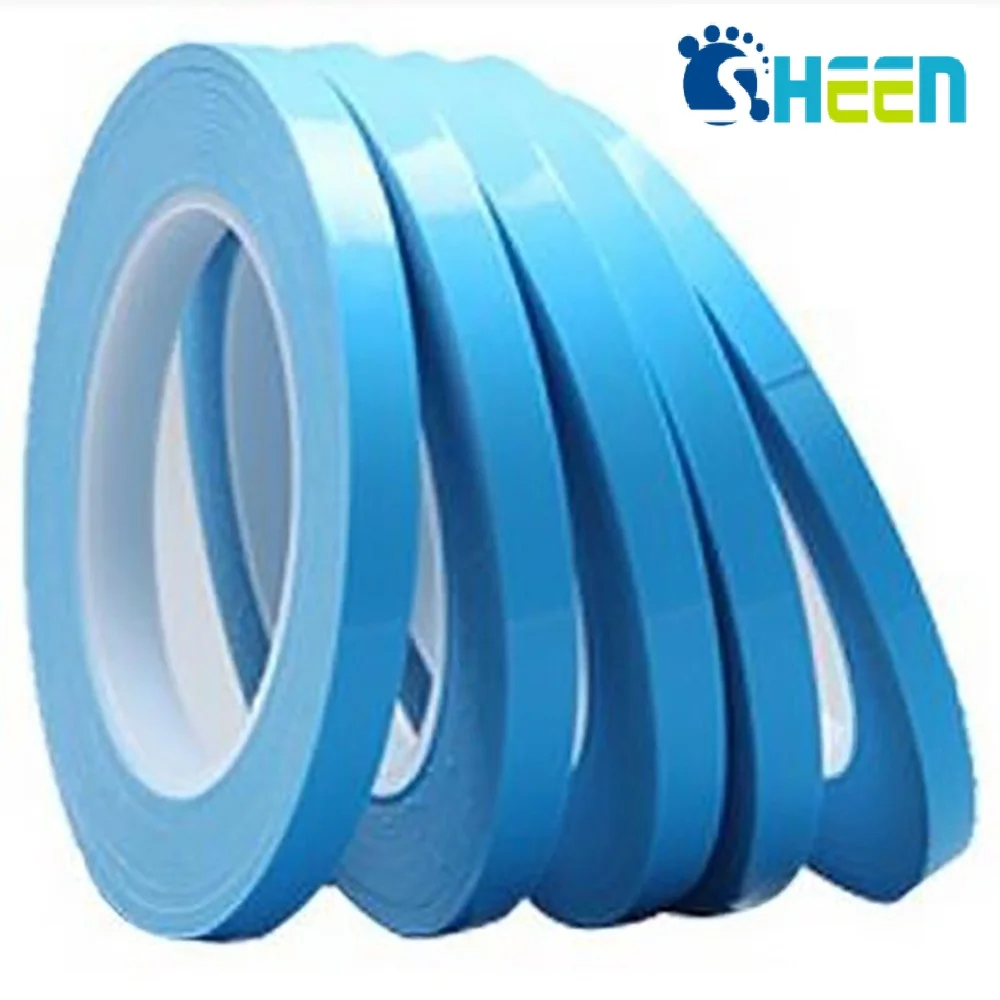

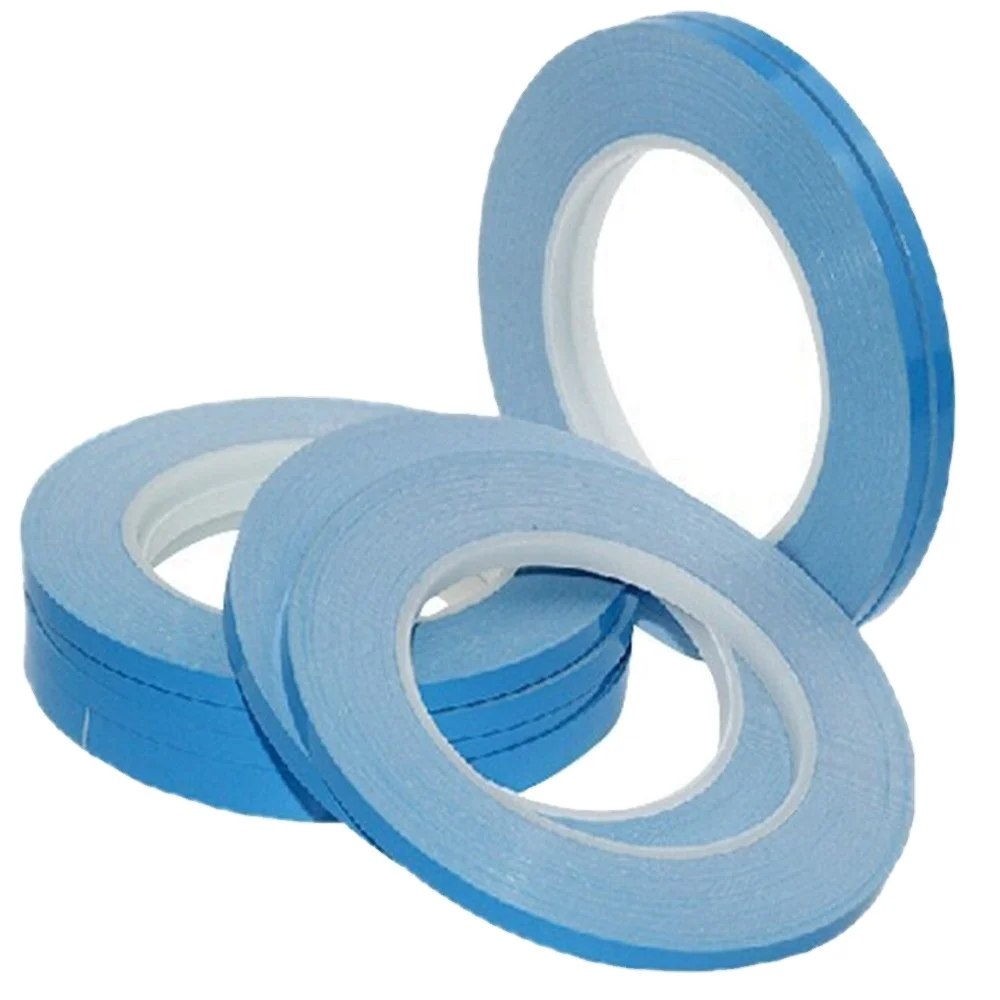

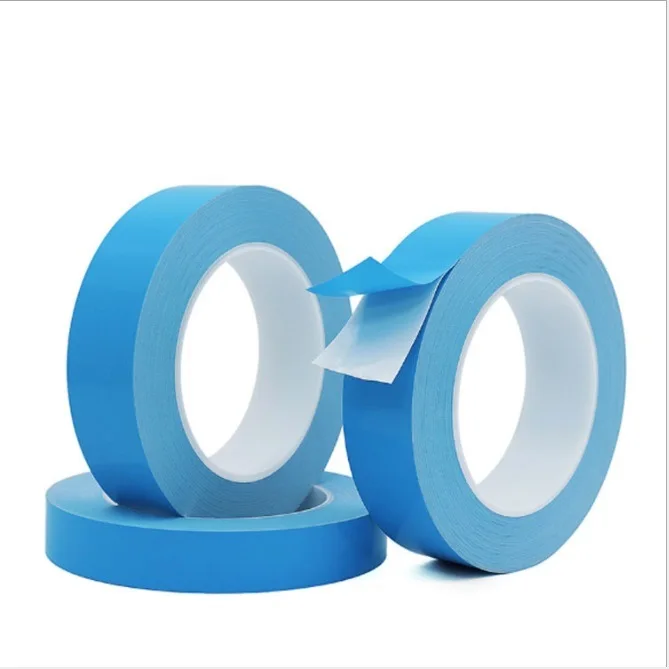

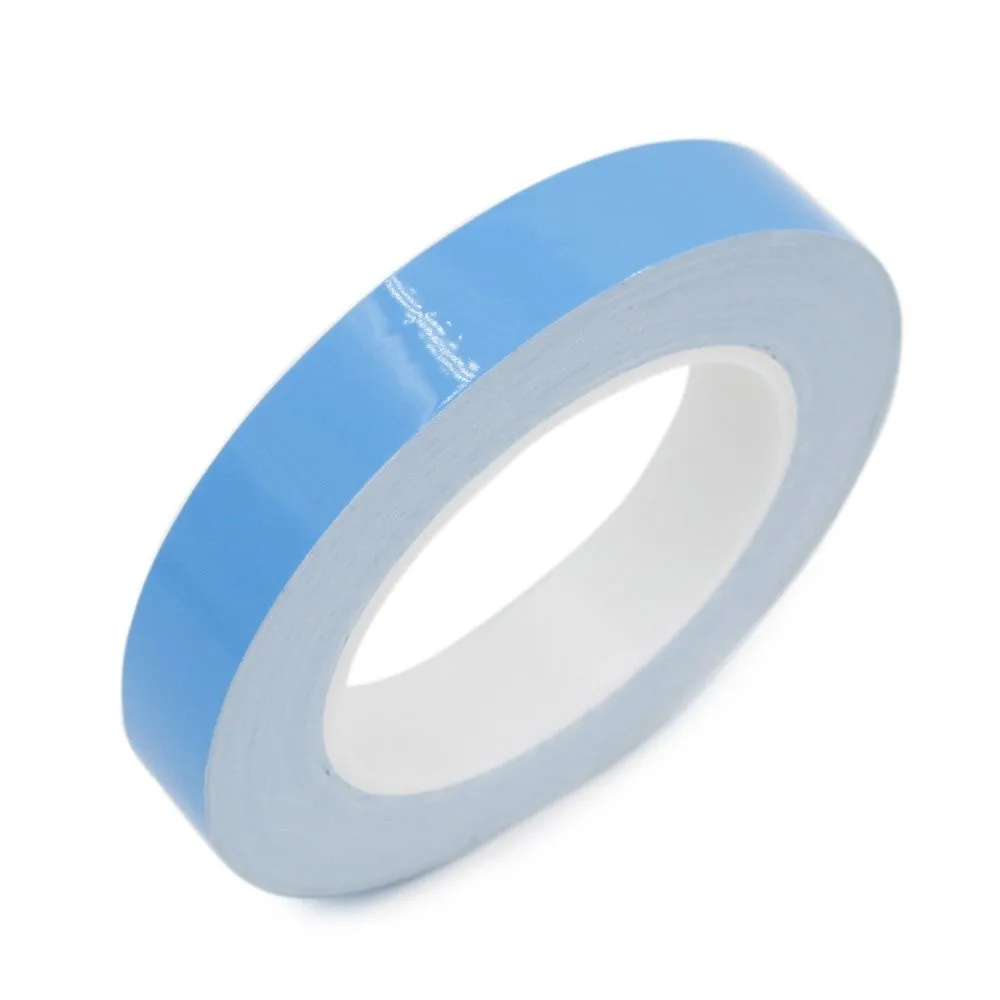

Thermal Conductive Tape For Cooling Components
Recommend Products
SA series Thermal adhesive tape | ||||||||||
Sheen Thermal adhesive tape series | Thermal conductivity | Carrier material | Adhesion to steel(kgf/25mm) | Thickness(mm) | Remark | |||||
1.3 W/mK | Aluminum foil | 1.5 | 0.16 | |||||||
1.0 W/mK | Fiberglass | 1.2-1.8 | 0.25±0.01 | |||||||
1.0 W/mK | Fiberglass | 1.2-1.8 | 0.2±0.01 | |||||||
1.0 W/mK | Fiberglass | 1.2-1.8 | 0.15±0.01 | |||||||
1.0 W/mK | Fiberglass | 1.2-1.8 | 0.25±0.01 | Flame retardant | ||||||
1.0 W/mK | Fiberglass | 1.2-1.8 | 0.2±0.01 | Flame retardant | ||||||
1.0 W/mK | / | 1.2-1.8 | 0.2±0.01 | |||||||
1.0 W/mK | / | 1.2-1.8 | 0.15±0.01 | |||||||
1.0 W/mK | / | 0.25±0.01 | 0.25±0.01 | Flame retardant | ||||||
1.0 W/mK | / | 1.2-1.8 | 0.2±0.01 | Flame retardant | ||||||
1.0 W/mK | / | 1.2-1.8 | 0.15±0.01 | Flame retardant | ||||||
1.5 W/mK | / | 1.8 | 0.2-0.5±0.01 | Flame retardant | ||||||
Product Description
SA306 thermal tape is widely used to bond heat sinks to microprocessors and other power consuming semiconductors. SA306 thermal tape has strong adhesive strength and low thermal resistance, which can effectively replace silicone grease and Mechanically fixed.
Color | White | Visual |
Thickness(mm) | 0.15±0.01 | ASTM D374 |
Breakdown voltage (V) | >4000 | ASTM D149 |
release force（kg/mm) | 1.8/25 | PSTC-3 |
Shear strength 1.0 kg @ 25 mm x 25 mm | > 48 hrs | PSTC-7 |
Thermal resistance 0.5kg @ 25mm x 25mm at 80℃ | > 24 hrs | *** |
Thermal Conductivity (W/mk) | 1.0 | ASTM D5470 |
Operating Temperature | -30℃ ~ 130℃ | *** |
RoHS (10) | PASS | IEC 62321 |
Halogen (4) | PASS | EN14582 |
REACH（191） | PASS | EN14372 |

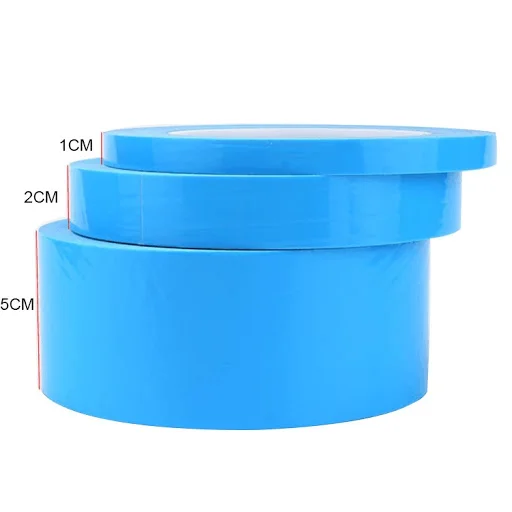

Various sizes and shapes can be customized
Roll form can be customized in a variety of widths.

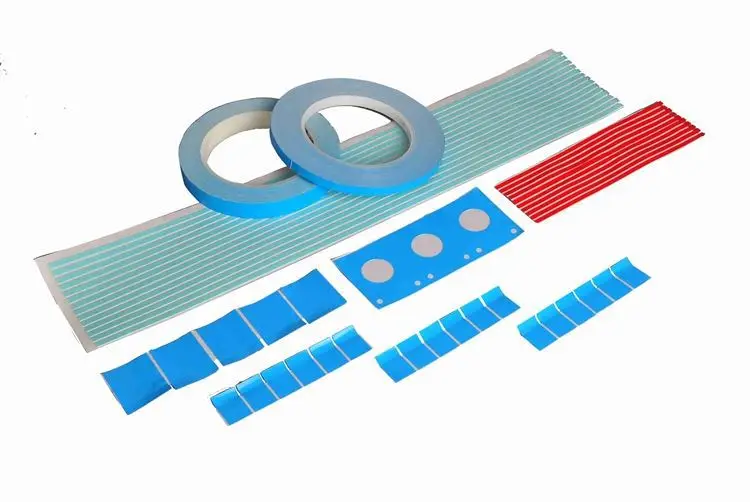

Sheet form can be customized in various shapes.
Sheet form can be customized in various shapes.
Thickness available
0.15mm 0.2mm 0.25mm are the most commonly used.
0.3mm 0.4mm 0.5mm can be customized.
Sertifications
ISO9001:2015
ISO14001:2015
IATF16949:2016
UL
REACH
ROHS
【 Product Usage 】
* 1.0W/m-K thermal conductivity
* High strength viscosity for various surfaces
* double-sided pressure sensitive adhesive tape
* High thermal conductivity acrylic adhesive
* can withstand long-term high temperature working environment

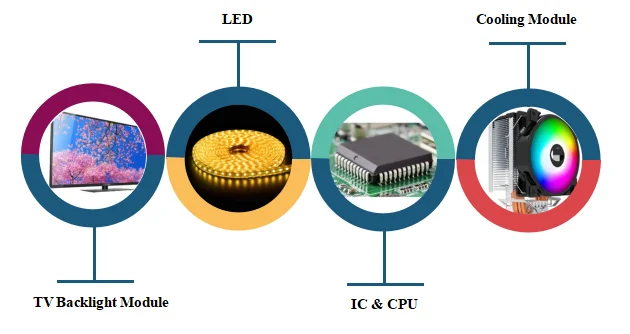

【Application 】
* LED lighting products
* chassis, frame or other cooling components
* Large capacity drive
* Heat pipe assembly
* RDRAM memory
* high frequency micro processing chip
* notebooks and desktop computers
* chassis, frame or other cooling components
* Large capacity drive
* Heat pipe assembly
* RDRAM memory
* high frequency micro processing chip
* notebooks and desktop computers
