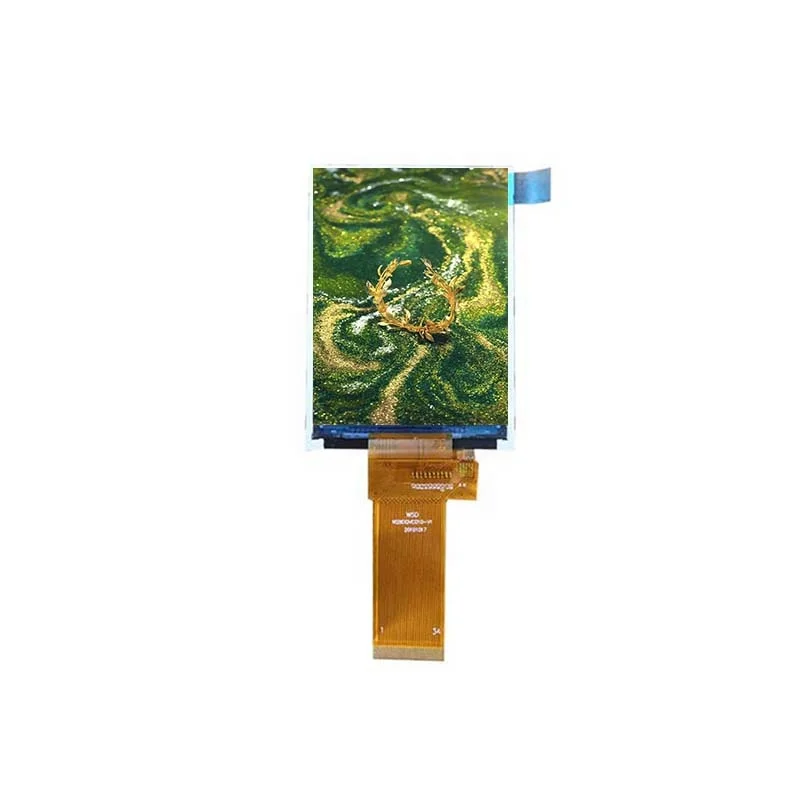

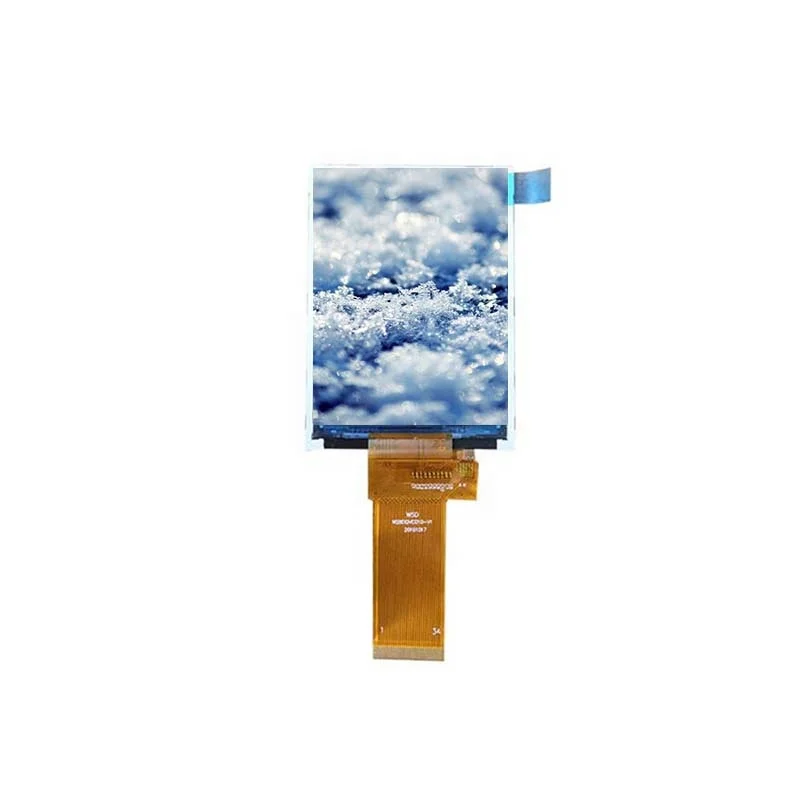

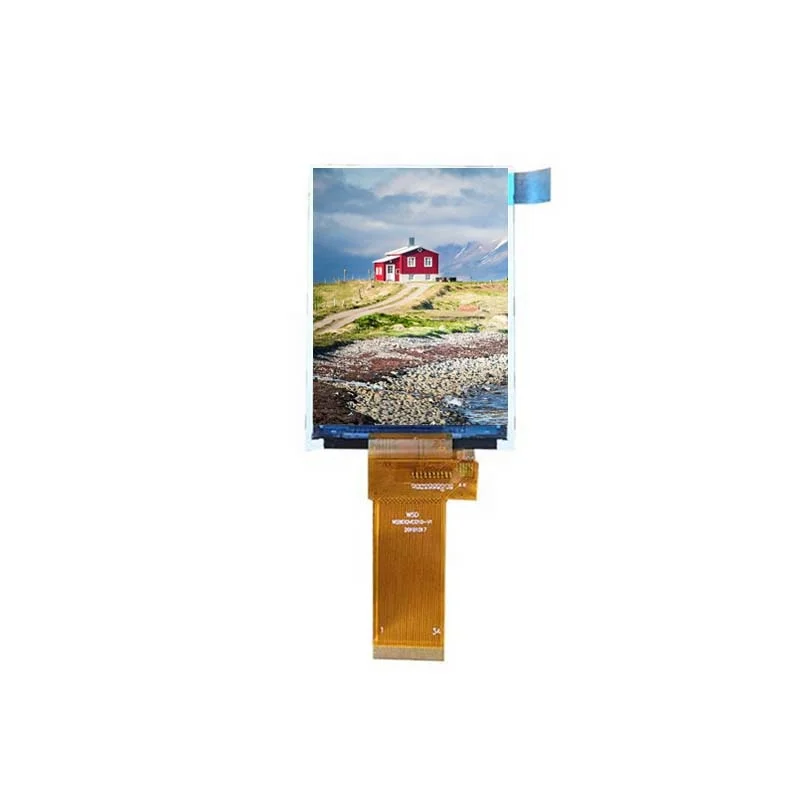

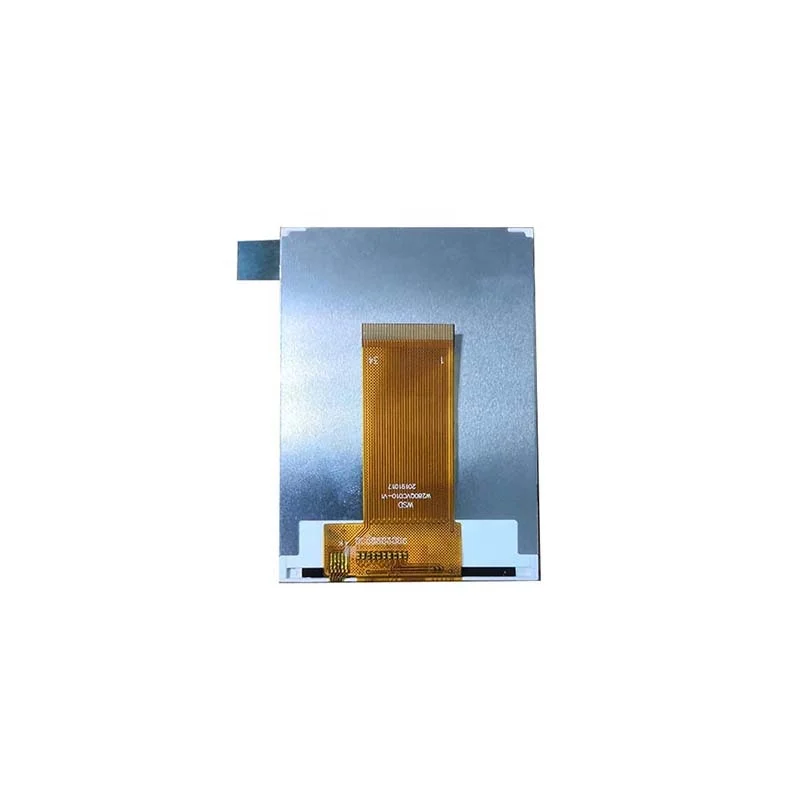

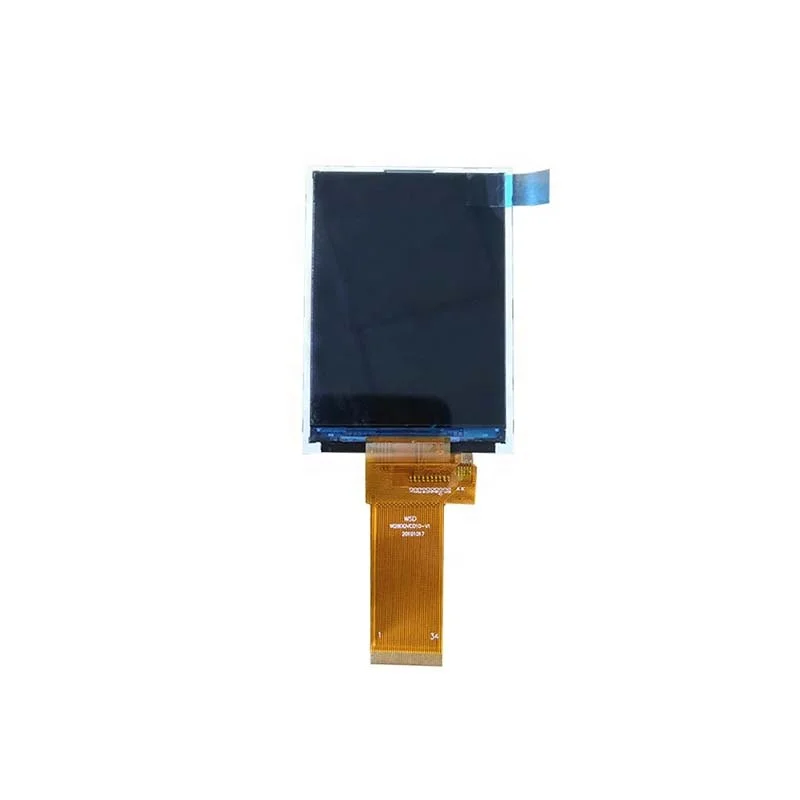

2.8 inch IPS 240*320 resolution SPI&MCU interface ILI9341 driver IC tft lcd display
- Category: >>>
- Supplier: Shenzhen Chance Technology Co. Ltd.
Share on (1600337542998):
Product Overview
Description
Specification
Item | Specifications | Unit | ||||||
Display Mode | Normally Black,Transmissive | - | ||||||
Display Technology | α-Si TFT active matrix | - | ||||||
Dimensional Outline | 50.0(H) X 69.2(V) X 2.35 | mm | ||||||
Active Area | 43.2 (H) X 57.6 (V) | mm | ||||||
Resolution | 240X(RGB)X320 | dots | ||||||
Pixel Size | 0.18X0.18 | mm | ||||||
Pixel Configuration | RGB Stripe | - | ||||||
Backlight | White LED | - | ||||||
Luminance | (300)(Typ.) | cd/m2 | ||||||
Surface Treatment | Anti-Glare | |||||||
Drive IC | ILI9341 | - | ||||||
Viewing Direction | ALL | o’clock | ||||||

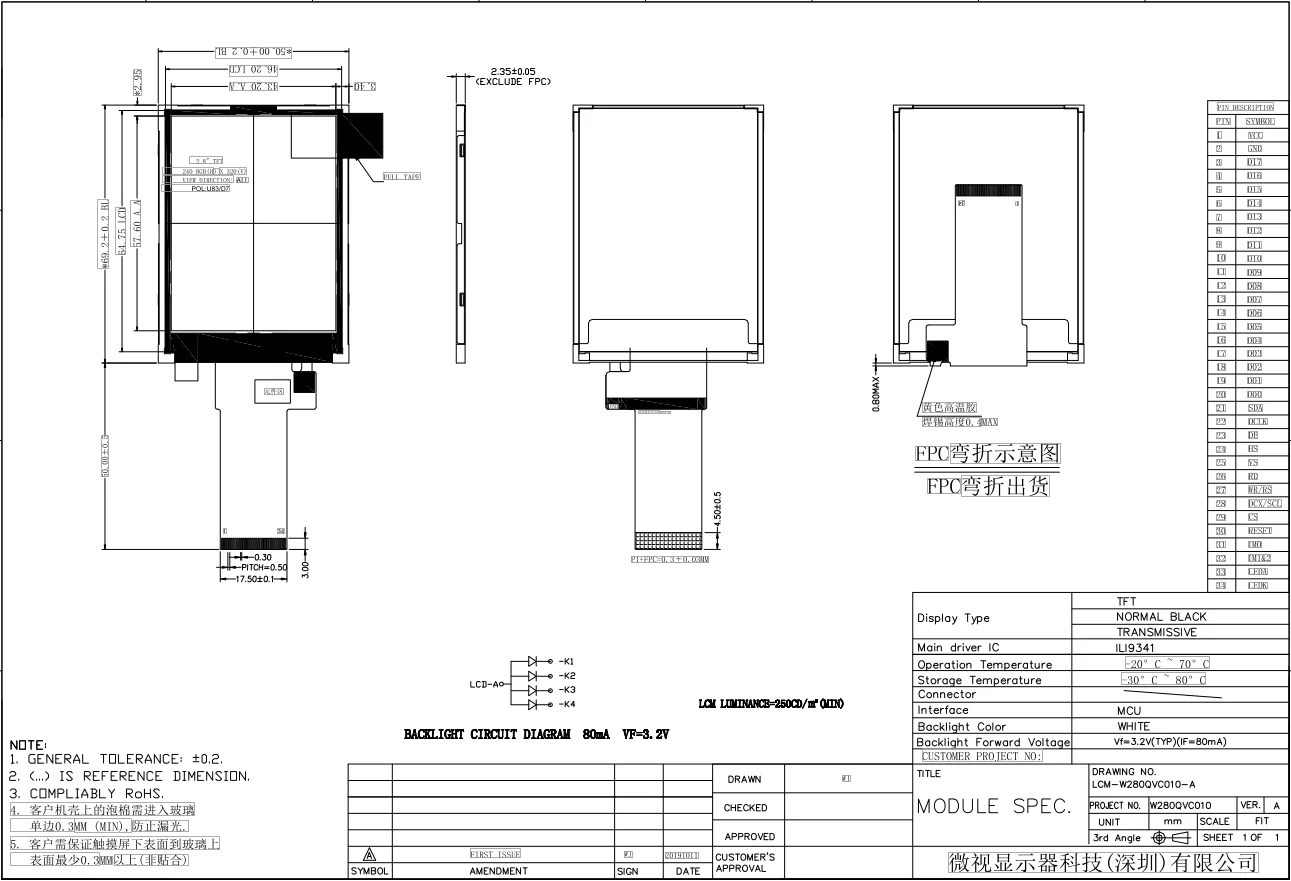

Drawing
Product Description
Comments
Why Choose Us
Production Flow
Equipments
Customer Visiting
Company Information
Shenzhen Chance Technology Co., Ltd. is an overseas sales part of Matrix Crystal Technology (Shenzhen) Co., Ltd , set up in 2005, in possession of 13-year experience at designing and manufacturing small LCD displays from 0.96" to 13.3", E-paper, OLED display. There are 6 production lines with all full-automatic machines, lapping-machines, COG+FOG machines, glue dispensers, BL assembly machines, etc.
10+ staff in quality team and 200 employees are here to produce the best products.
Welcome to do cooperation with us !
OEM Service
1.We can support Small MOQ
2.We can supply models for long term
3.Without Mold cost
4.1 Year quality Warranty
2.We can supply models for long term
3.Without Mold cost
4.1 Year quality Warranty
Lead Time
Samples （1-30PCS） immediately
31-100 PCS 1 week
101-500 PCS 1-2 weeks
501-1000 PCS 2-5 weeks
1001-5000 PCS 4-5 weeks
5000+ PCS 5-7 weeks
31-100 PCS 1 week
101-500 PCS 1-2 weeks
501-1000 PCS 2-5 weeks
1001-5000 PCS 4-5 weeks
5000+ PCS 5-7 weeks
FAQ
1. Where can I get the datasheet, initialization code and other technical files ?
Unfortunately, Alibaba can not Support upload/download the files for the time being, please contact with our sales.chat on Trade Manager or send me a email (alba@chance-display.com), we will send the datasheet by mail.
2. Is there a Touch Panel (Touch screen) on the display ?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.
Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.
Capacitive touch panel – Allows multi-touch operation as seen on a smart cell phones or tablets, and allow more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.
3. Is there a possibility to make a more brighter display?
Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high brightness backlight for you. And make it sunlight readable.
4. How to Understand Stock for Sale?
Appropriate stock is a very good support for the customer’s sampling and trial production demand.
The appropriate stock is also a guarantee of the quality. The production of the stock is always having more time than the production of the order. We have enough time to do more checking and to consider all the possible factors affecting the quality,what’s more, in case that our products has been found a problem at the customer’s production, we have the stocked ones to do the replacement.If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact with our sales for price, stock availability and lead time.
5. Never End of Supply, Our Long-term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. CHANCE gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.
Some controller IC may stop the production, we'll try our efforts to find the completely compatible ones. If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement. So you don't have to worry even your research time is very long.
Unfortunately, Alibaba can not Support upload/download the files for the time being, please contact with our sales.chat on Trade Manager or send me a email (alba@chance-display.com), we will send the datasheet by mail.
2. Is there a Touch Panel (Touch screen) on the display ?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.
Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.
Capacitive touch panel – Allows multi-touch operation as seen on a smart cell phones or tablets, and allow more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.
3. Is there a possibility to make a more brighter display?
Yes, please share us more details about the project requirements, and we will try to find a Solution and Customized high brightness backlight for you. And make it sunlight readable.
4. How to Understand Stock for Sale?
Appropriate stock is a very good support for the customer’s sampling and trial production demand.
The appropriate stock is also a guarantee of the quality. The production of the stock is always having more time than the production of the order. We have enough time to do more checking and to consider all the possible factors affecting the quality,what’s more, in case that our products has been found a problem at the customer’s production, we have the stocked ones to do the replacement.If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact with our sales for price, stock availability and lead time.
5. Never End of Supply, Our Long-term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. CHANCE gives the promise to every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.
Some controller IC may stop the production, we'll try our efforts to find the completely compatible ones. If the equivalent is unavailable, we'll make the new tooling and use the most similar IC as replacement. So you don't have to worry even your research time is very long.
6. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.
7. I am new for developing LCD modules.
Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get started.
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.
7. I am new for developing LCD modules.
Please don't worry about it. Our engineer will help you if you have any problems when you try to power on the display. We will send you the complete development documentation (datasheet, initial code, schematic, CAD drawing etc) and help you easy to get started.
