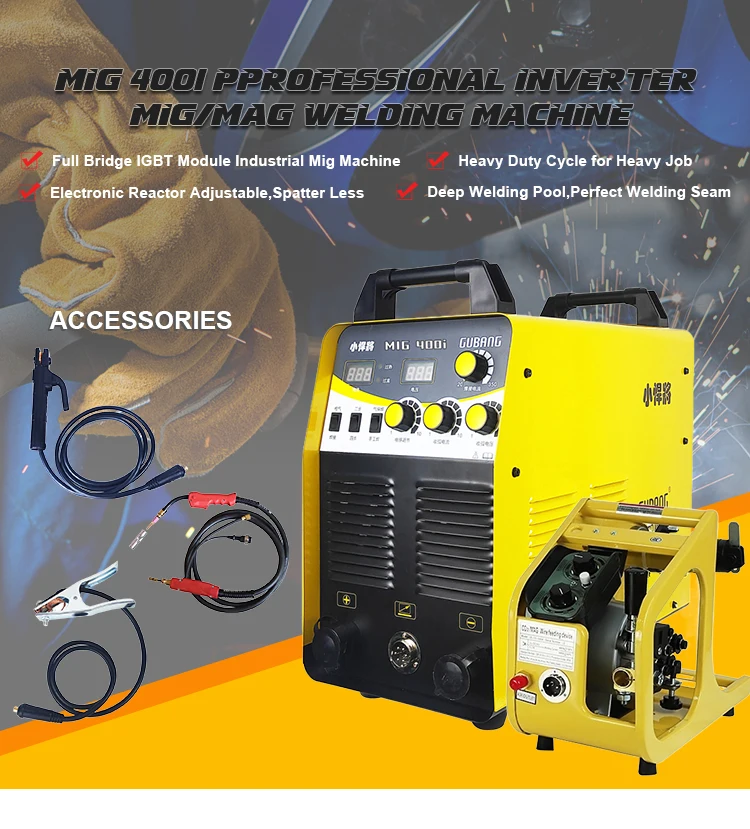

20 400A Igbt Inverter Mig Welding Machine Mag With External Wire Feeder
- Category: >>>
- Supplier: Shenzhen Gubang Technology Co. Ltd.
Share on (1600337609142):
Product Overview
Description
1. We are a powerful factory focusing on importers and sellers of professional welding and cutting equipment and large-scale hardware and electromechanical equipment;
2. Provide OEM and ODM services;
3. We supply self-developed and designed products, you can customize the appearance color of the product and print your trademark.
4. The text content and style on the packaging carton can be designed according to your requirements;
5. You can also choose to represent our brand GUBANG products, then our product color and packaging carton design are designed according to our own style;
6. The form of our shipments is generally by sea, including LCL for seaborne bulk cargo, generally 10-20 cubic meters; FCL for seaborne container cargo, such as 20GP, 40GP, 40HQ, etc.; it may also be air cargo;
Product Description
| FEATURES |
| √ Full bridge IGBT inverter technology, high reliability and less energy consumption, over-heat and over current protection . |
| √ MIG and MMA combination enables multiple functions and high cost eftectiveness . |
| √ Post-welding wire-end droplet elimination function, high no-load, slow wire feeding, high arc ignition successful rate . |
| √ Unique welding dynamics control circuit; double drive wire feeding configuration to ensure stable arc, less spatter, fine welding bead and high welding efficiency . |
| √ A prompt feedback circuit that provides for stable arc can keep electric arc adjusted responsively as wire stick-out varies . |
| √ High duty circle can withstand long time high load welding . |
| Type | IGBT INVERTER MIG MAG,External Wire feeder |
| Power Supply(V) | Three phase AC380V +-15% |
| Rated Input Power Capacity(KVA) | 17 |
| Input Frequency(Hz) | 50/60 |
| Non-load Voltage(V) | 65 |
| Output Current Range(A) | 20-400A |
| Wire feeder | External |
| Spool(kg) | 15 |
| Wire diameter(mm) | 0.8/1.0/1.2 |
| Rated Duty Cycle(%) | 60 |
| Efficiency(%) | 85 |
| Power Factor | 0.93 |
| Insulation Grade | F |
| Protection Grade | IP21 |
| Electrode Diameter(mm) | 1.6/2.5/3.2/4.0 |
| N.W./G.W.(kg) | 38/43 |
| Dimension(L*W*H)/mm | 515*255*470 |
| Packing Size(L*W*H mm)/1 pcs | 645*365*H540mm/ Brown carton |

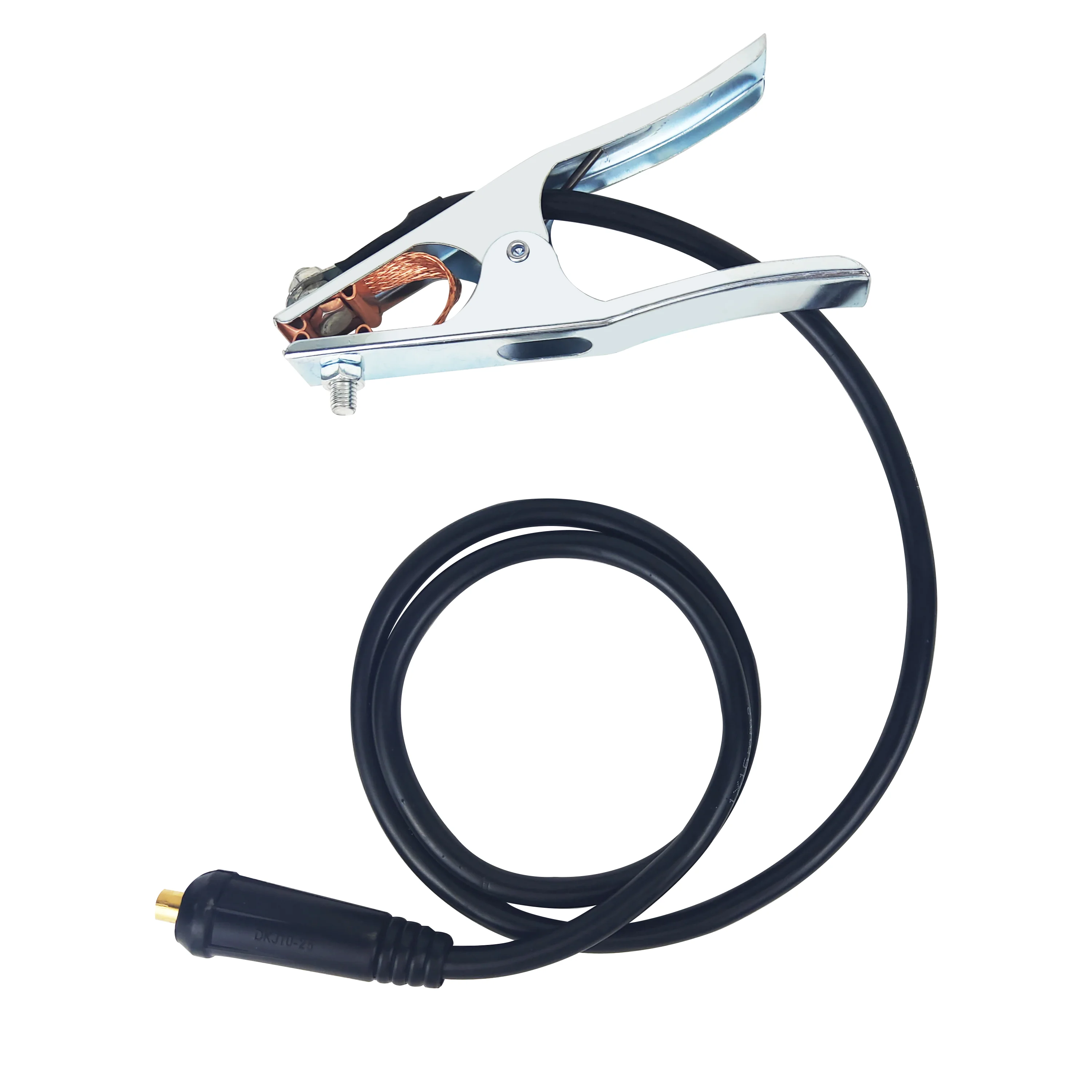

| Accessories | MIG torch,earth cable ,welding cable |
Company Profile

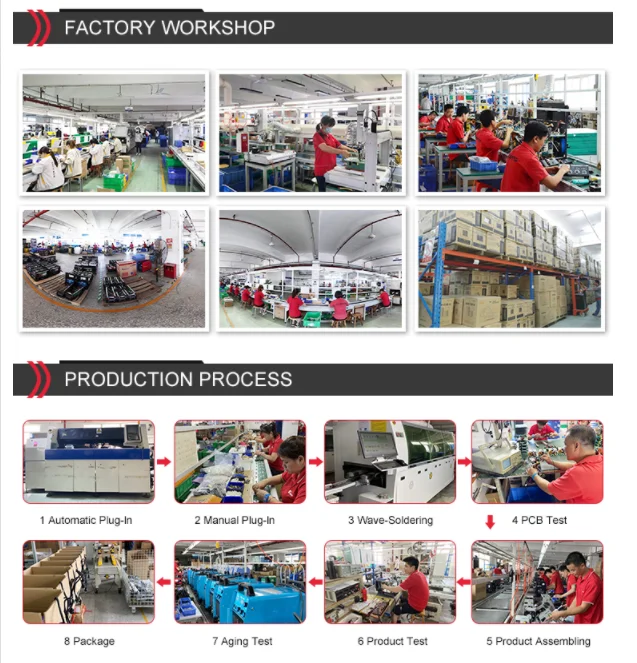

Factory Workshop
