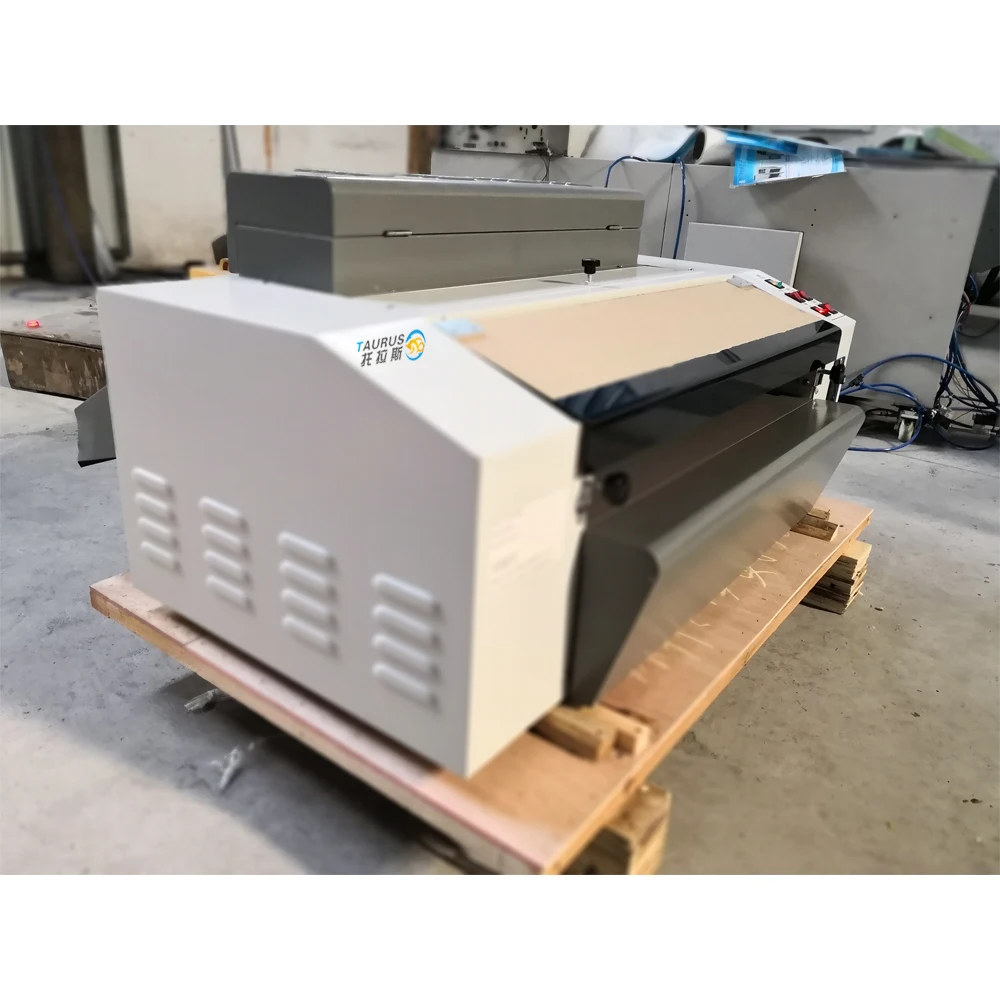

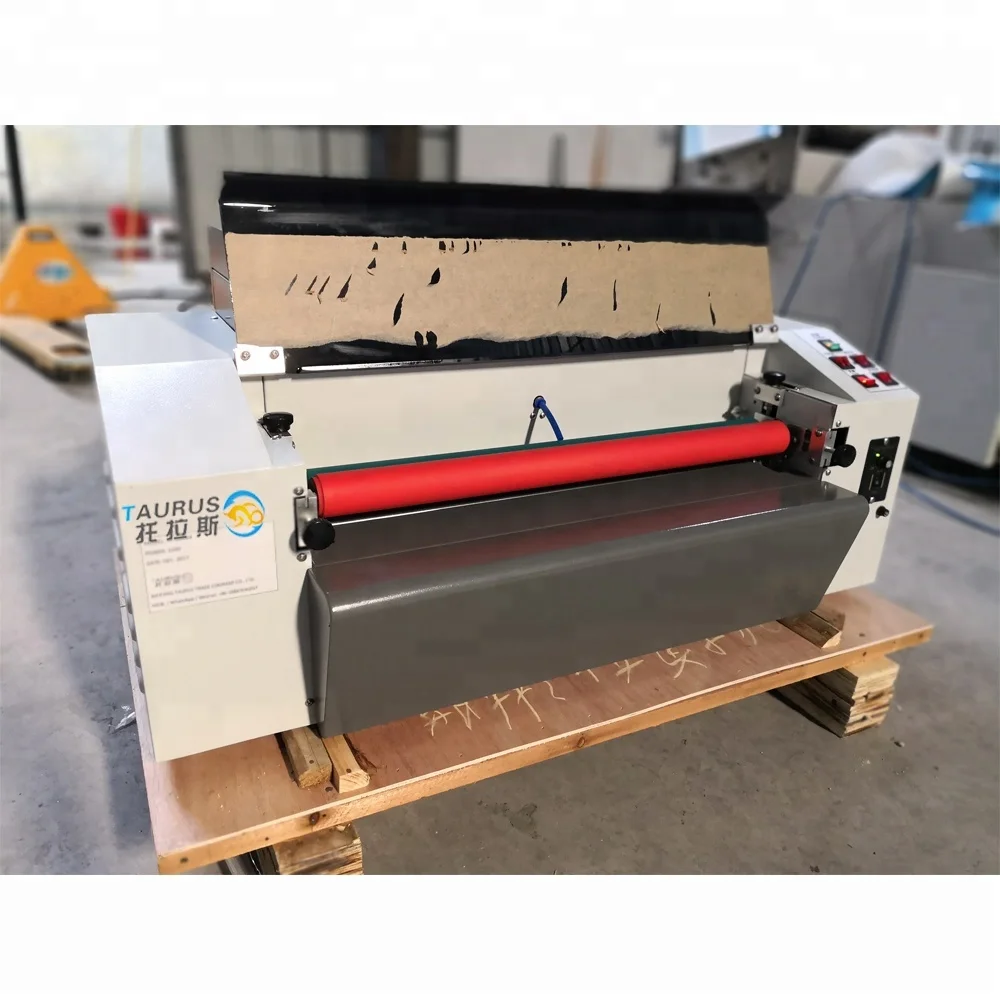

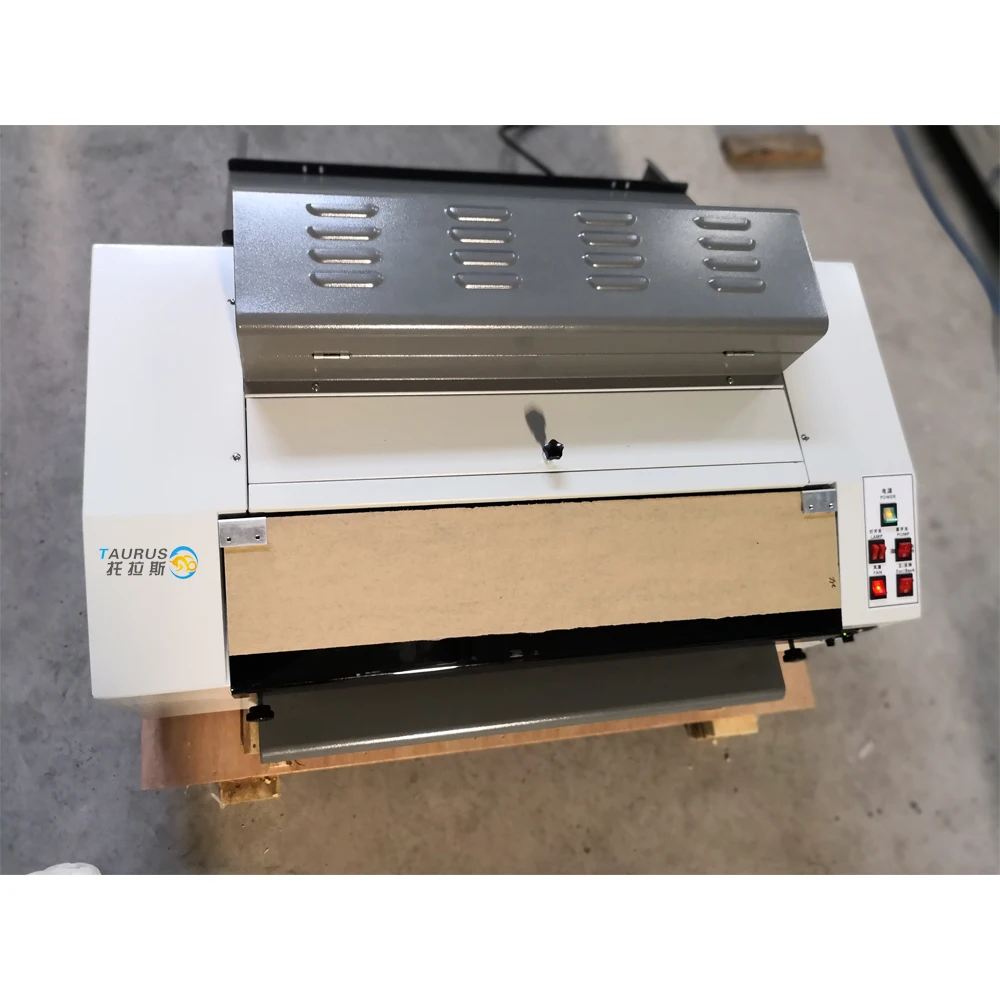

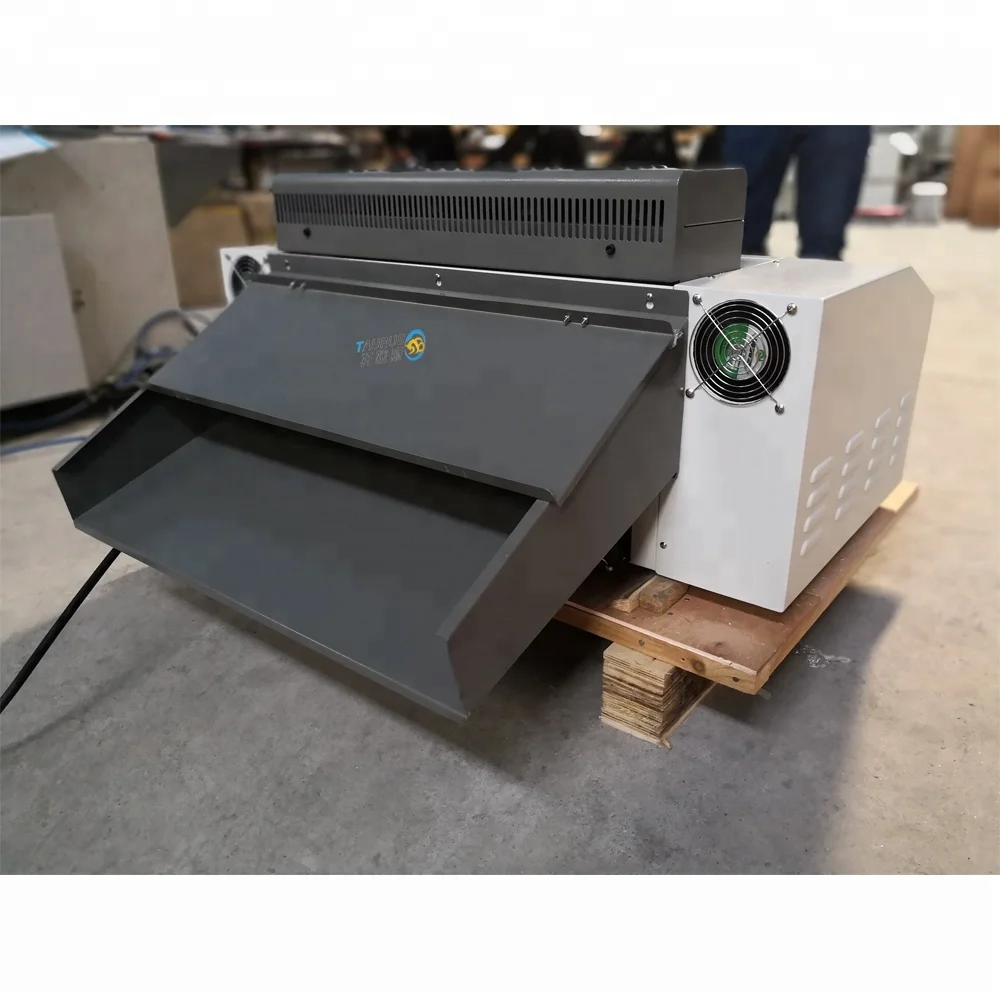

TR UVC24 UV Coating machine for sale the price of UV coating machine

Product Overview

Description



1,Exquisite appearance design:
Delicate design with small occupation which can save shippping cost. Easy handling, changing the complicated operation and bulky machine features.
2,Humanized design:
A, The outlet is made of aluminium alloy(rust-proof) with the automatically recycle system,reducing the UV liquid consumption and add UV liquid frequently .
B, The scraping board is made of unique material,more convenient for clients . No need to clean everyday, and no hurt the photos

C, The machine adopts the worm wheel design, to ensure all the rollers can move at the same time and have evenly coating thickness .
D, The interal design of coating machine , ultraviolet lighting is sealed and shielded and heat evenly, so that the UV liquid can be solidified in a short time
3,Low cost with high efficiency : Precision roller'design, coating evenly, the coating cost is RMB 0.35-0.50/square meter.
4,Range of Application :

Special material of double screw design, uv light is shielded competely and the photos are drying quickly and fast

applicable:



Applicable for coating with many papers, such as laser printing, inkjet photo, coated paper, adhesive paper
ect.After coating the papers can be water-proof, moisture-proof, anti-aging, anti- ultraviolet,and no hurt for the papers,repeated coating is accpepted . The UV liquid is attached to the picture'surface directly , after ultraviolet irradiation it will be solidified , not easy to drop , also can under the high temperature. Glossy and matt liquid are accepted ,the glossy liquid is shiny , brightly . The matt liquid is elegant ,mysterious appearance .
Now it has been widely used in magazine , photo printing, portrait painting, canves , book cover, pictures, calendars, cards, product samples, packages and cartons etc.



Model	Coating Width	Coating Thickness	Coating Speed	Voltage	Power	N.W/G.W	Dimension
TR-UVC12	320mm	0.2~2mm	15m/min	AC220V/50HZ	2.2KW	74kg/89kg	740*650*520mm
TR-UVC14	380mm	0.2~2mm	15m/min	AC220V/50HZ	2.2KW	78kg/95kg	790*650*490mm
TR-UVC18	480mm	0.2~2mm	15m/min	AC220V/50HZ	2.3KW	91kg/108kg	790*680*490mm
TR-UVC24	650mm	0.2~2mm	15m/min	AC220V/50HZ	4.4KW	116kg/129kg	1040*650*500mm
TR-UVC24A	650mm	0.2~2mm	15m/min	AC220V/50HZ	4.4KW	139kg/159kg	1040*650*1080mm
TR-UVC36	930mm	0.2~2mm	15m/min	AC380V/50HZ	7.5KW	173kg/192kg	1380*780*1080mm
TR-UVC50	1300mm	0.2~2mm	15m/min	AC380V/50HZ	6.9KW	400kg/450kg	1720*1120*1110mm
TR-UVC63	1600mm	0.2~2mm	15m/min	AC380V/50HZ	8.3KW	490kg/560kg	2.25*2.30*1.60 m 1.40*2.10*1.40m

1.How can I get sample to check your quality?

We have free sample available for all dear customers,you just have to pay the cost of freight or air courier.If you place order to us,we can deduct the cost from the total order amount.



2.If there is any problem on machine,how can I solve it?

First of all,we have online service,after submitting and problem we will come up with solution,if you can solve it yourself we will give you procedure step by step teach you solve it,by msg,pic,voice,or video talk.Normally we are good at video talk,and it is most successful method.If any electronic parts in problem which is occured itself(not improper operation),within one year warranty we will send new parts for replacement.You just cover the cost of frieght or air lift.



3.What's the lead time and lead term?

Leading time is 7 days after receipt of all payment.
