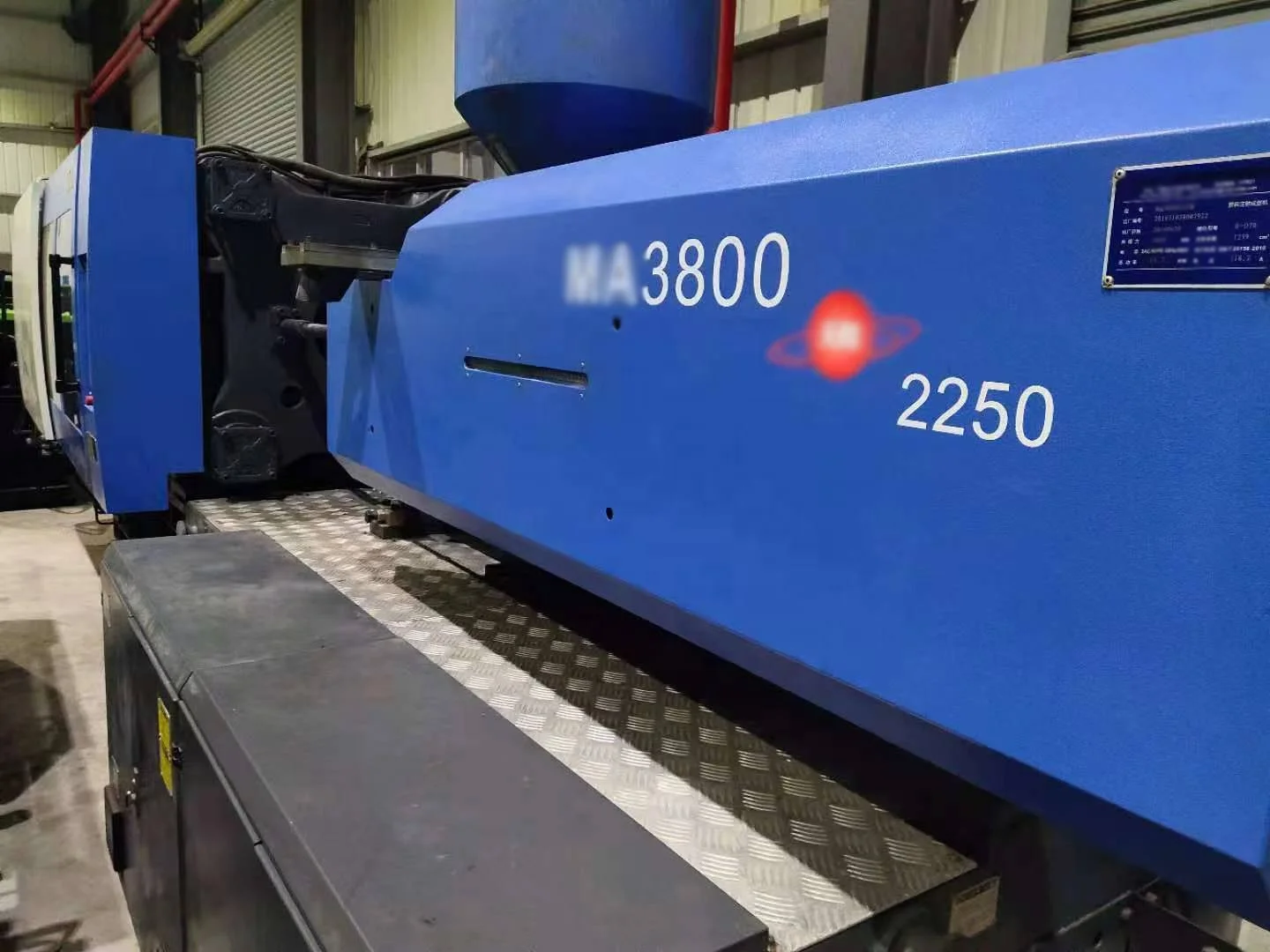

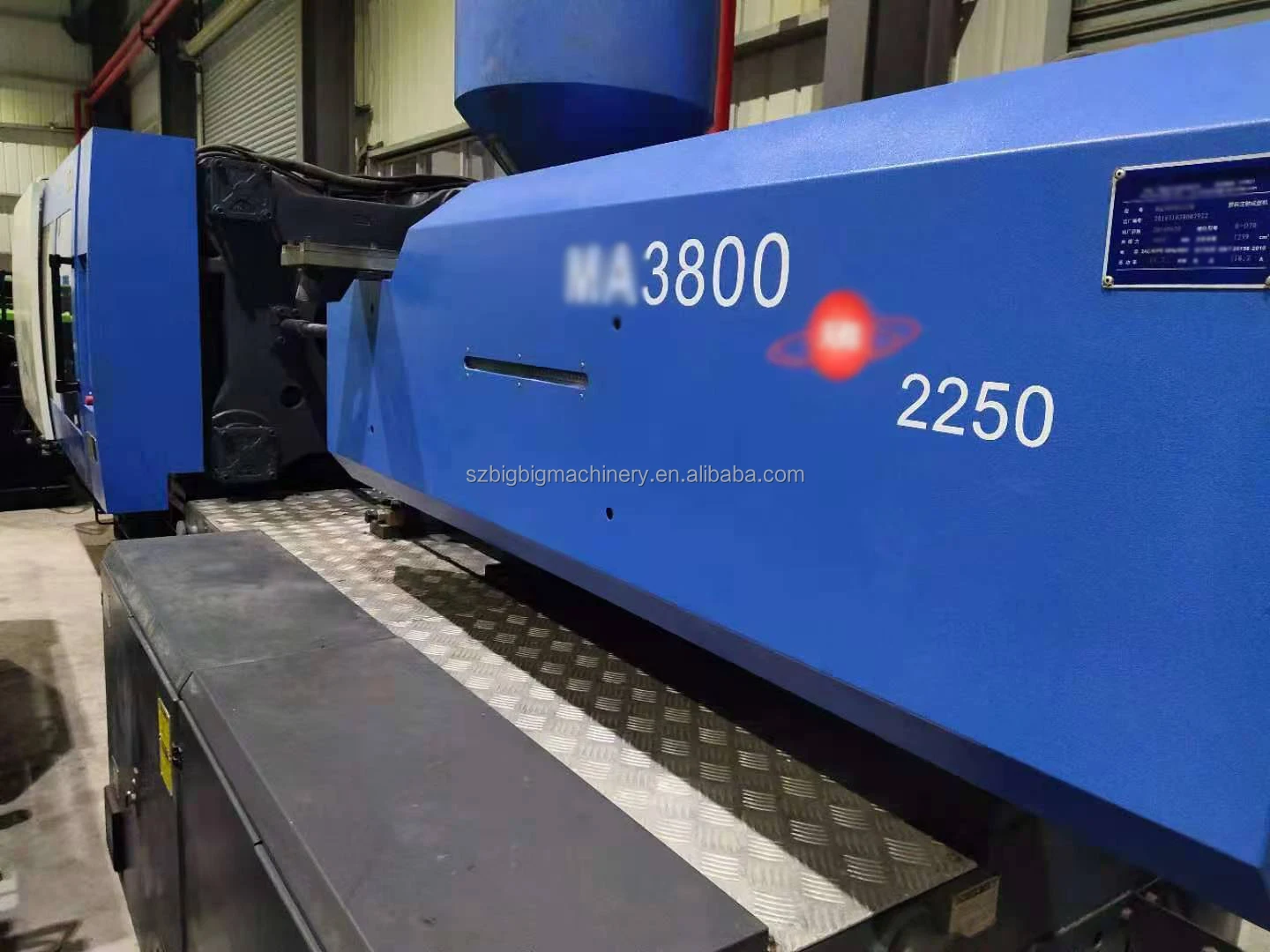

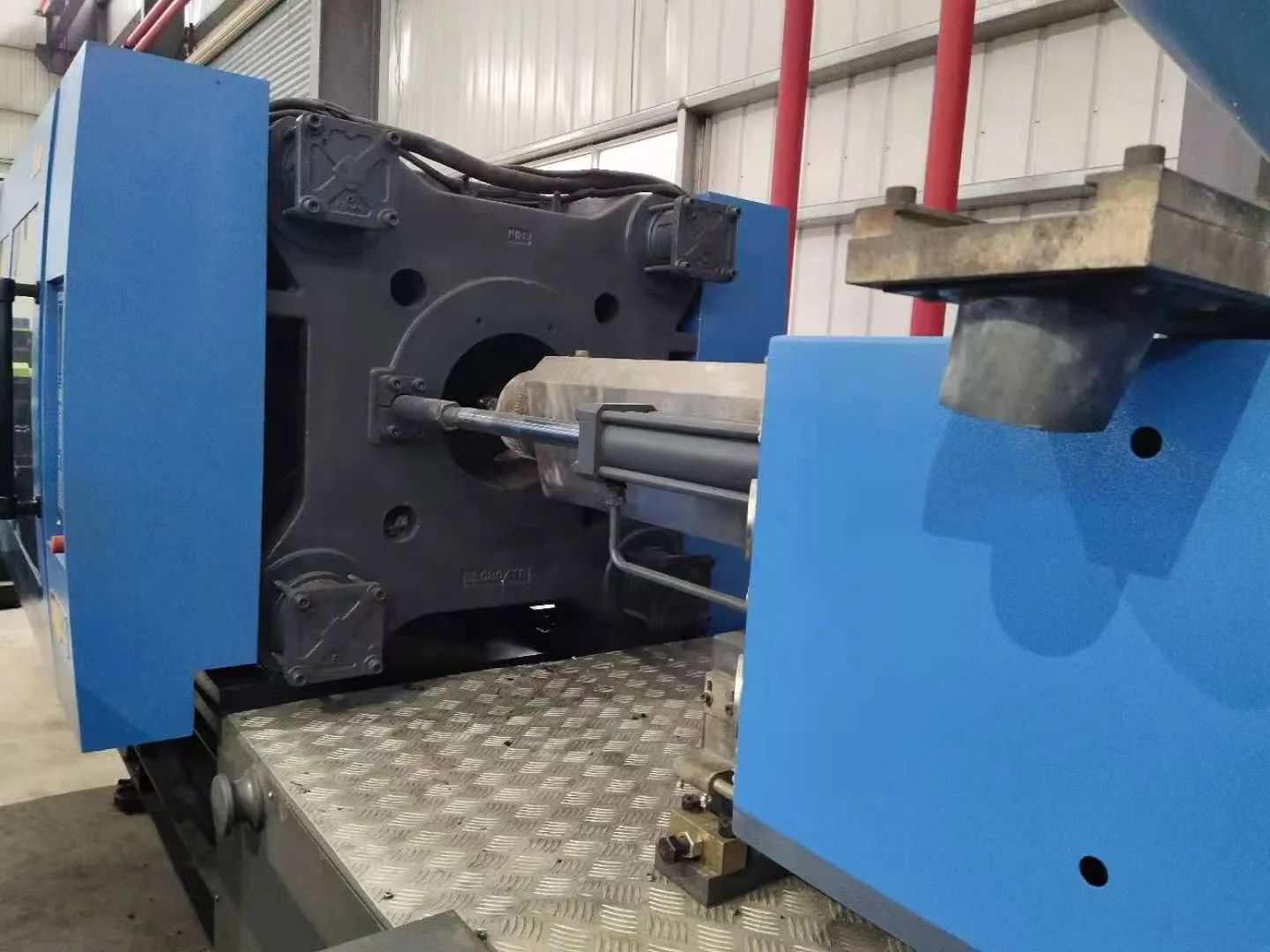

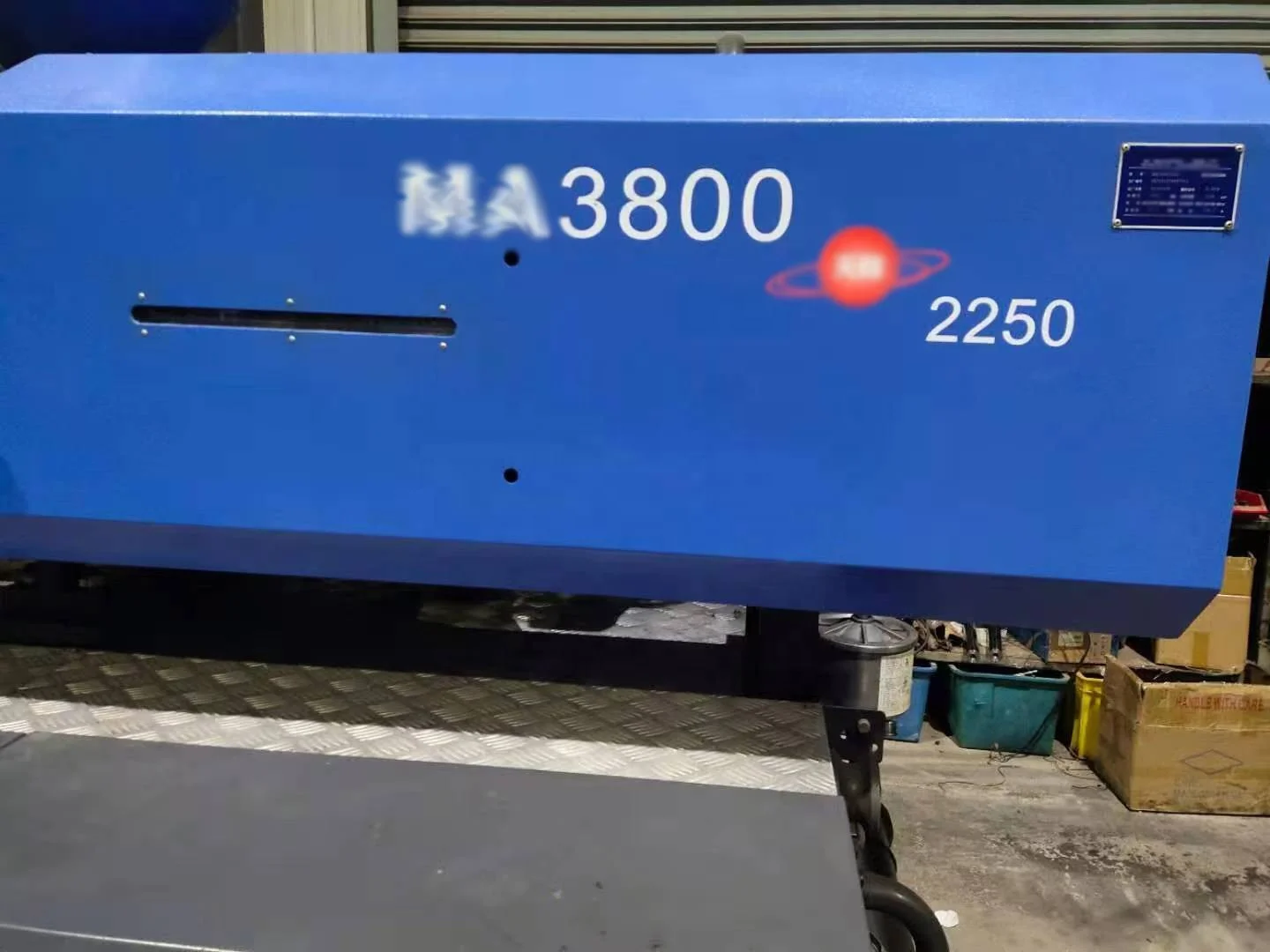

used rc precision 380 ton servo motor plastic injection molding machine for Fruit basket and Vegetable basket
- Category: >>>
- Supplier: Shenzhen Ruichengshijia International Trading Co. Ltd.
Share on (1600337679998):
Product Overview
Description
Products Description
With Longer life:
The new graphite steel casing greatly enhances the lubrication of the crankshaft and tie rods, ensuring smooth clamping operation, low noise, quieter and longer service life, which can reduce daily maintenance work.
Add More precise:
The force distribution of the template is uniform, the deformation is small, the service life of the machine is improved, and the product precision is effectively improved; the pressure center template structure is adopted, which not only effectively improves the product precision, but also protects the mold.
Take More efficient:
Years of experience and improvement, the optimized mold clamping unit makes the high-speed mold opening and closing more smooth, which can effectively shorten the takt time. The new technology drive system is matched with the professional servo motor gear pump design. Everything will bring the customer a very good machine.
Specification
item | value |
Condition | Used |
Style | Horizontal |
Injection Rate (g/s) | 325g/s |
Machine Type | Electric |
Injection Weight (g) | 1127g |
Weight (KG) | 15000kg |
Place of Origin | China |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, Other |
Showroom Location | None |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Core Components | Motor |
Year | 2016 |
Working hours | 4001-6000 |
Automatic | Yes |
Injection Pressure | 175Mpa |
Toggle Stroke | 680mm |
Max.Mold Height | 730mm |
Min.Mold Height | 280mm |
Ejector Stroke | 200mm |
Max.Pump Pressure | 160Mpa |
Pump Motor Power | 37KW |
Oil tank capacity | 1000L |
Clamping Force (kN) | 3800 |
Plastic Processed | PP |
Plastic Processed | PC |
Plastic Processed | ABS |
Plastic Processed | PVC |
Plastic Processed | ABS/PP |
Plastic Processed | PE/PP |
Ejector Number | 2 |
Type | Tube Head Injection |
Warranty | 1 Year |
After-sales Service Provided | Video technical support |
After-sales Service Provided | Field maintenance and repair service |
After-sales Service Provided | Online support |
Key Selling Points | Automatic |
After Warranty Service | Video technical support |
After Warranty Service | Online support |
Local Service Location | None |
Marketing Type | Hot Product 2019 |
Warranty of core components | 1 Year |
Screw Speed (rpm) | 1 - 185 rpm |
Screw L/D Ratio | 22 |
Distance between Tie Bars | 730mm*730mm |
Distance between Tie Bars(Width)(mm) | 730mm |
Screw diameter (mm) | 70 |
Certification | ISO9001 |
Open Stroke(mm) | 700 |
Power (kW) | 23.15 |
Mold Height(mm) | 280 - 730 mm |
Distance between Tie Bars(Height)(mm) | 730mm |
Ejector Stroke(mm) | 180 |
Theoretical Shot Volume(cm³) | 1239 |
Ejector Force(kN) | 110 |
