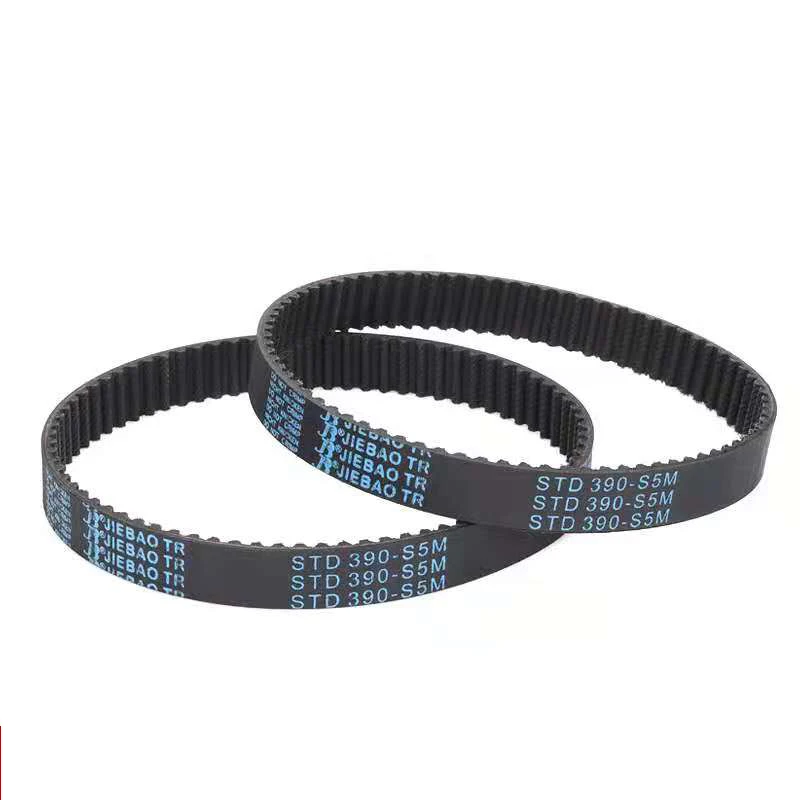

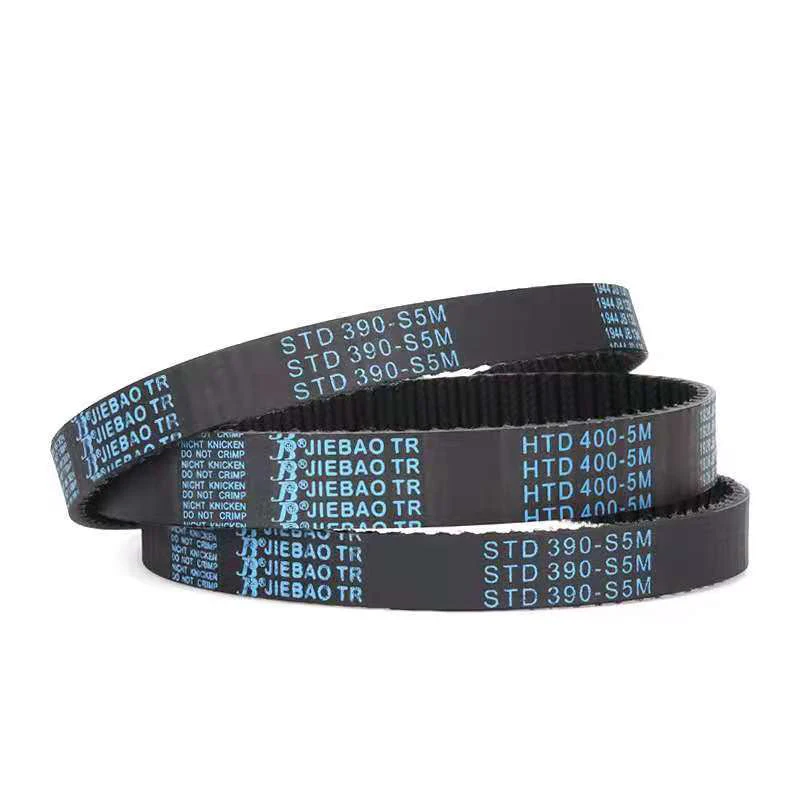

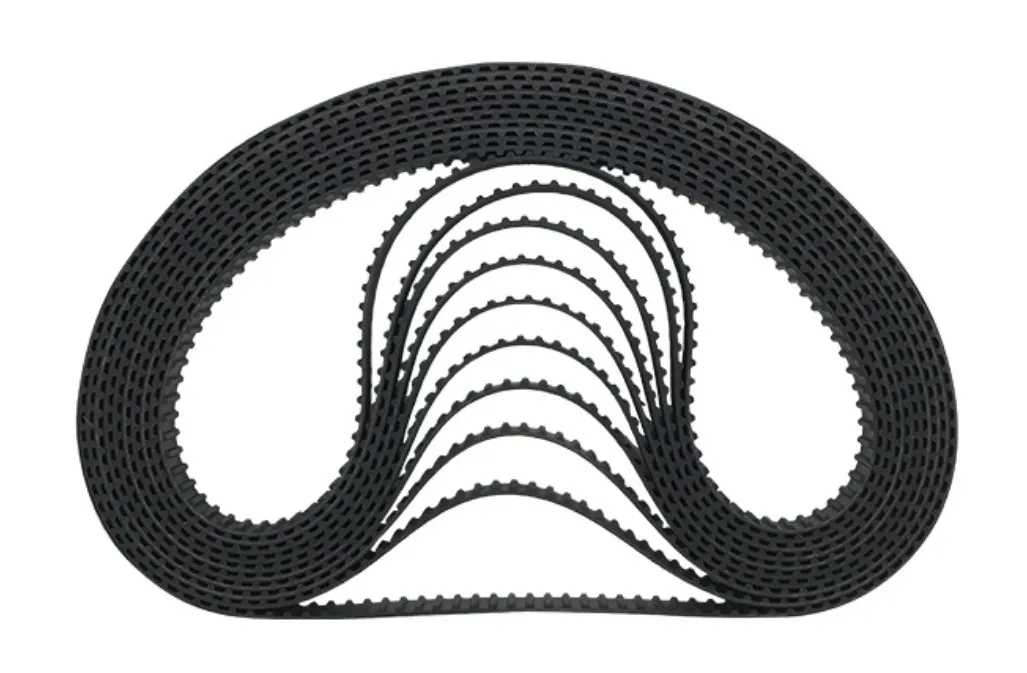

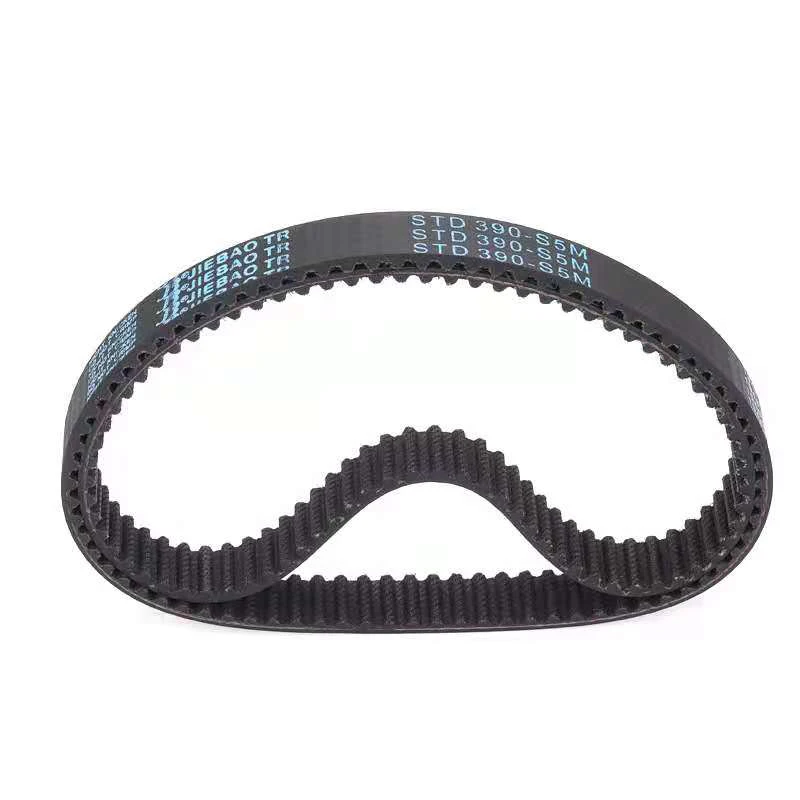

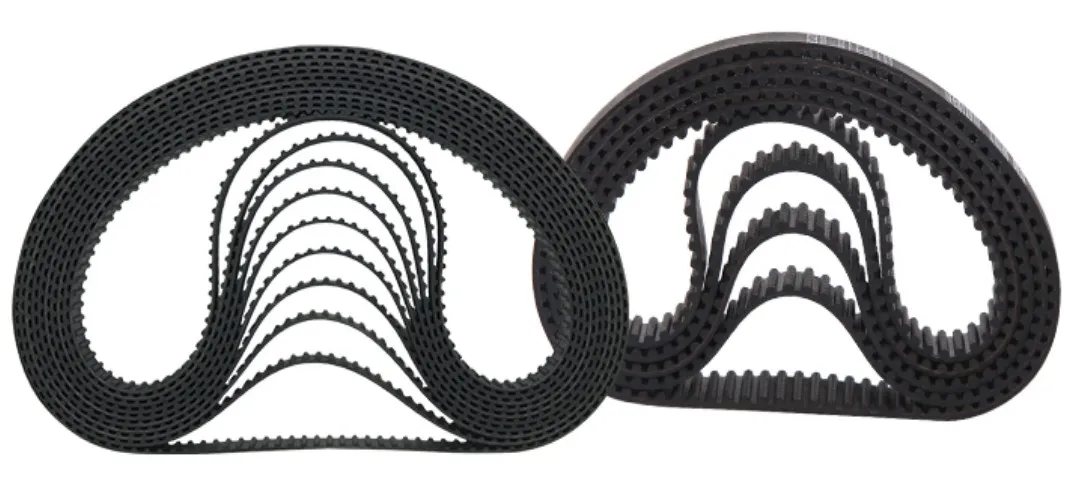

Rubber synchronous belt double sided tooth HTD1020 5M 1025 5M 1030 5M 1035 5M drive belt JIEBAO belt
- Category: >>>
- Supplier: Kunshan Meilide Industrial Automation Technology Co. Ltd.
Share on (1600337707884):
Product Overview
Description
product information
Tooth profile parameters
Circular arc tooth | ||||||||
Tooth shape code | Model number | Tooth pitch | Tooth height | Belt thickness | ||||
pb (irari) | ht (iran) | hs (iran) | ||||||
HTD | 3M | 3 | 1.22 | 2.4 | ||||
5M | 5 | 2.06 | 3.8 | |||||
8M | 8 | 3.36 | 6 | |||||
14M | 14 | 6.02 | 10 | |||||
20M | 20 | 8.4 | 13.2 | |||||
STPD/STS | S2M | 2 | 0.76 | 1.36 | ||||
S3M | 3 | 1.14 | 2.2 | |||||
S5M | 5 | 1.91 | 3.4 | |||||
S8M | 8 | 3.05 | 5.3 | |||||
S14M | 14 | 5.3 | 10.2 | |||||
HPPD/RPP | RPP3M | 3 | 1.15 | 1.9 | ||||
RPP5M | 5 | 1.95 | 3.5 | |||||
RPP8M | 8 | 3.2 | 5.5 | |||||
RPP14M | 14 | 6 | 10 | |||||

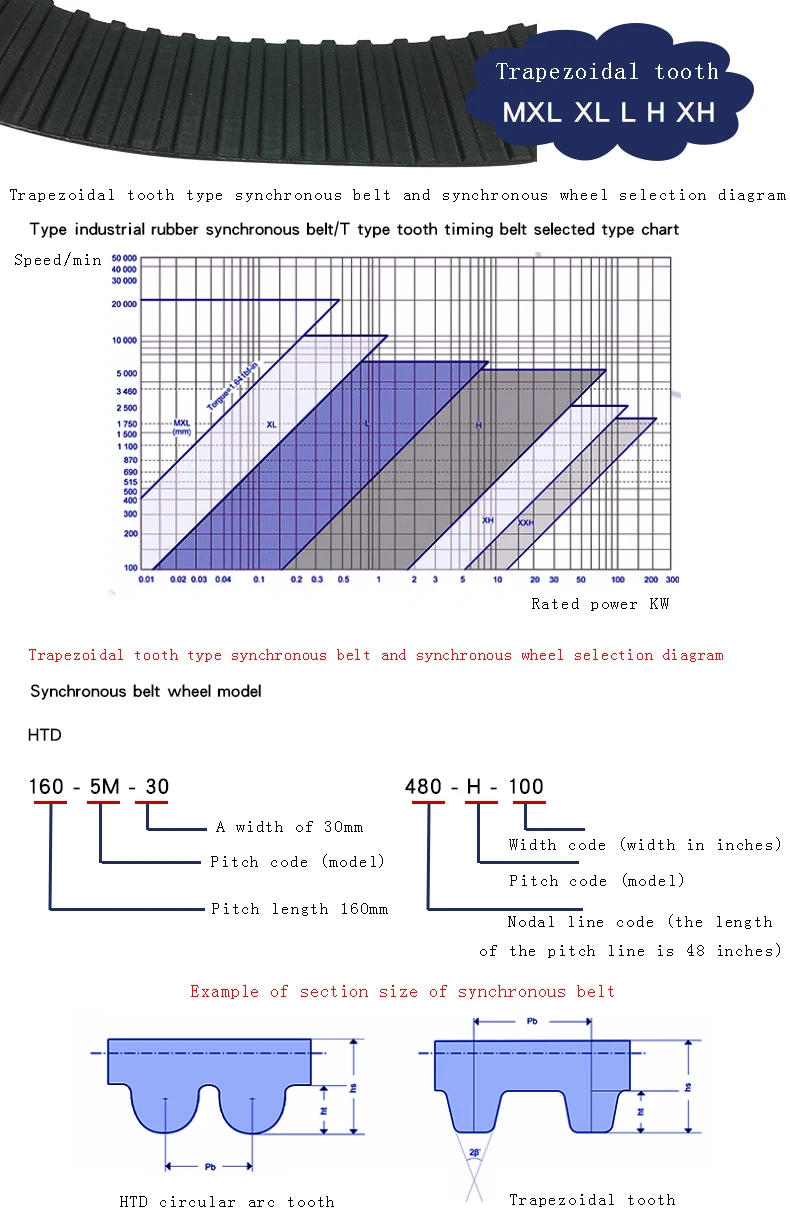

Trapezoidal tooth | ||||||||
Tooth pitch | Tooth height | Belt thickness | β ° | |||||
pb (irari) | ht (iran) | hs (iran) | ||||||
MXL | 2.032 | 0.51 | 1.14 | 40 | ||||
XL | 5.08 | 1.27 | 2.3 | 50 | ||||
XXL | 3.175 | 0.76 | 1.52 | 50 | ||||
L | 9.525 | 1.91 | 3.6 | 40 | ||||
H | 12.7 | 2.29 | 4.3 | 40 | ||||
XH | 22.225 | 6.35 | 11.2 | 40 | ||||
XXH | 31.75 | 9.53 | 15.7 | 40 | ||||
T2.5 | 2.5 | 0.7 | 1.3 | 40 | ||||
T5 | 5 | 1.2 | 2.2 | 40 | ||||
T10 | 10 | 2.5 | 4.5 | 40 | ||||
T20 | 20 | 5 | 8 | 40 | ||||
AT5 | 5 | 1.2 | 2.7 | 50 | ||||
AT10 | 10 | 2.5 | 5 | 50 | ||||
AT20 | 20 | 5 | 8 | 50 | ||||

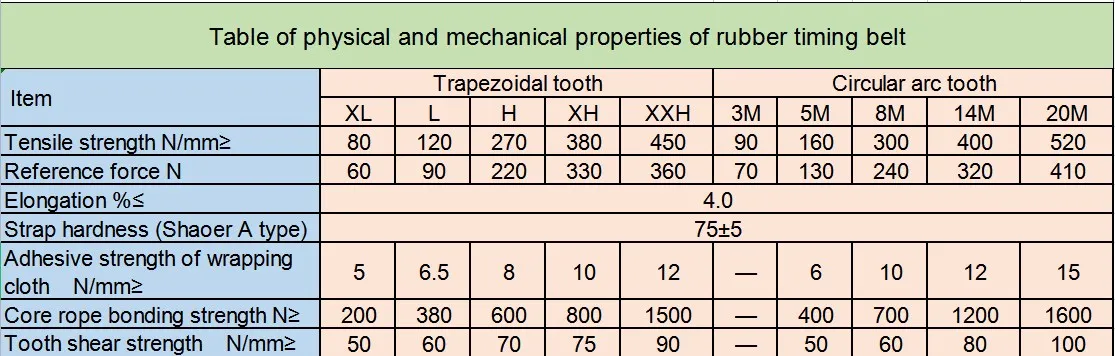

Product structure
Product structure | ||

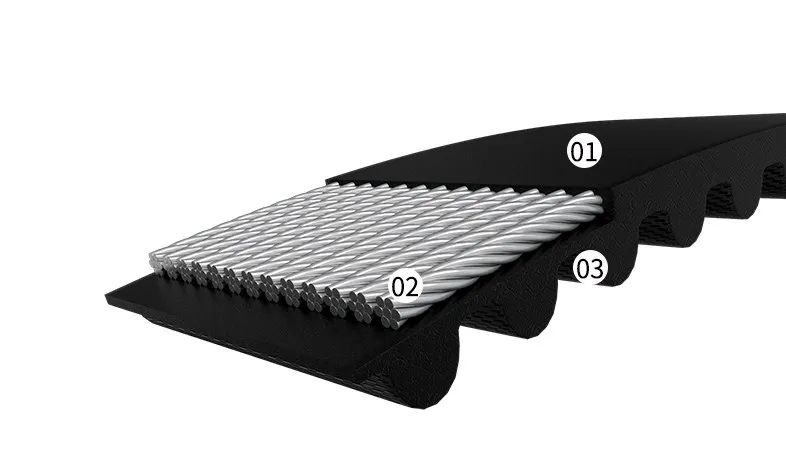

01, neoprene belt body | Has good oil resistance, heat resistance and anti-aging properties | |
02, glass fiber tension | Has high strength, good flex resistance and low elongation | |
03. Tooth surface nylon cloth | Has the wear resistance and shear strength of teeth | |

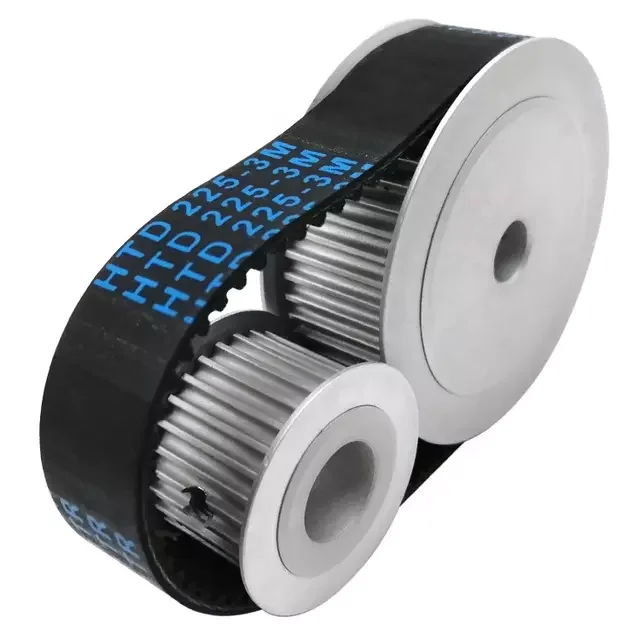

Circular arc tooth |

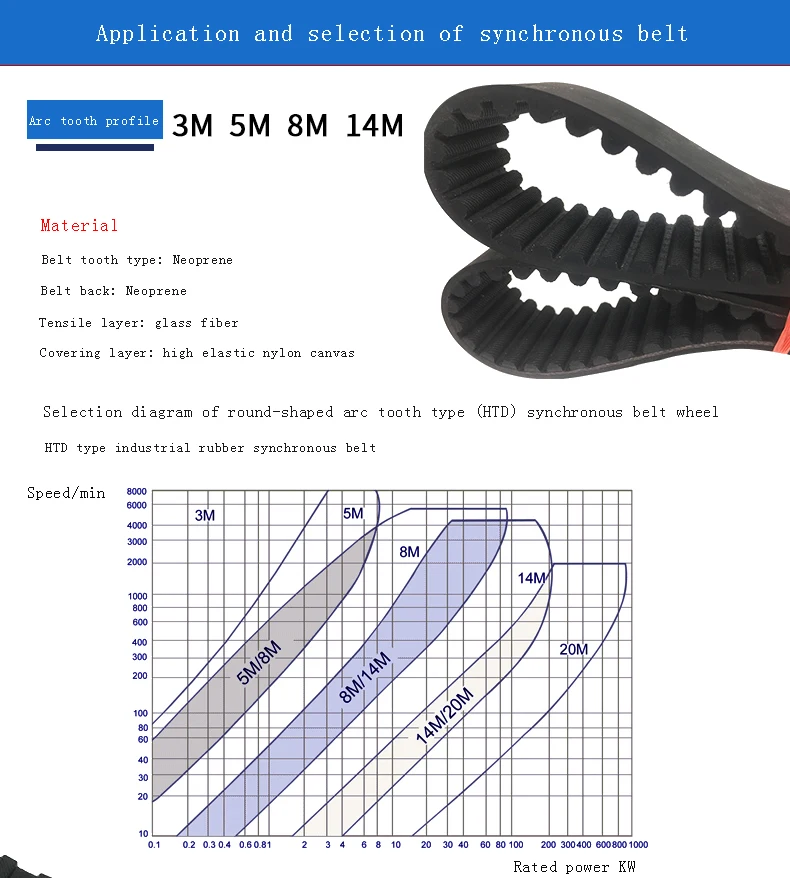

Performance characteristics: |
Suitable for high-power and high-torque transmission √ |
Its transmission power is 3-5 times larger than trapezoidal toothed belt wheel√ |
Rotation speed is mainly low and medium speed √ |
Trapezoidal tooth |
Performance characteristics: |
General industrial transmission √ |
Suitable for small and medium power transmission √ |
Larger linear speed can be used for higher speed transmission √ |
