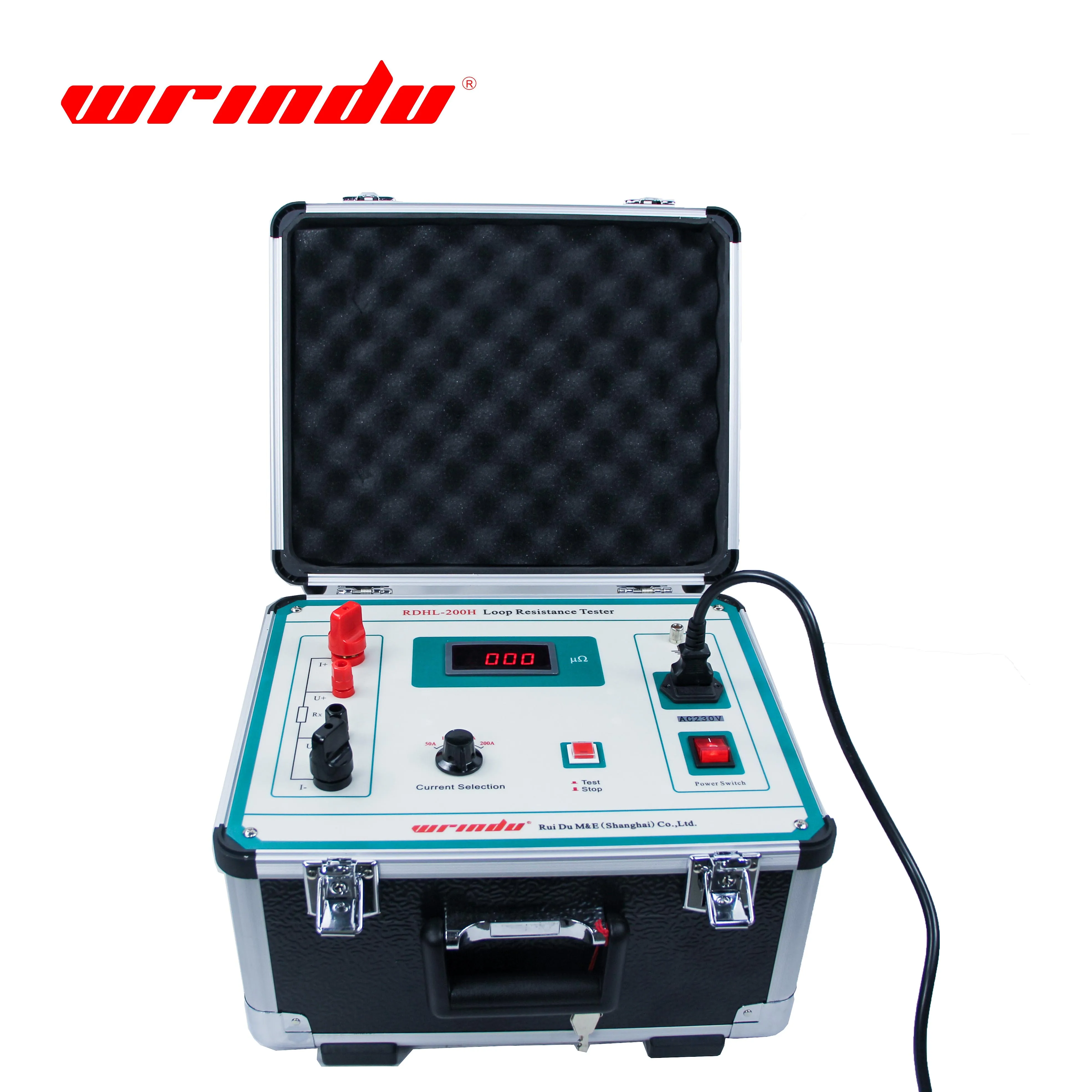

100a contact loop resistance tester digital micro ohmmeter megger
- Category: >>>
- Supplier: Rui Du Mechanical And Electrical(Shanghai) Co. Ltd.
Share on (1600337735360):
Product Overview
Description
Product Description
Product Paramenters
1.Measurement Range：1～1999μΩ
2.Resolution：1μΩ
3.Test Current: DC 50A, DC 100A, DC 150A, DC 200A, four fixed outputs.
4.Work Mode: continuous
5.Measurement Accuracy：0.5%±1d
6.Display；three and a half LCD
7.Power Supply：AC220V±10% 50Hz
8.8. Work Environment：Temperature：－10℃～40℃ Humidity：≤80 %RH
9.Dimension：380 mm×350 mm×260 mm
10.Weight：5kg（Accessories excluded）
2.Resolution：1μΩ
3.Test Current: DC 50A, DC 100A, DC 150A, DC 200A, four fixed outputs.
4.Work Mode: continuous
5.Measurement Accuracy：0.5%±1d
6.Display；three and a half LCD
7.Power Supply：AC220V±10% 50Hz
8.8. Work Environment：Temperature：－10℃～40℃ Humidity：≤80 %RH
9.Dimension：380 mm×350 mm×260 mm
10.Weight：5kg（Accessories excluded）
Product features
1.High current: For latest power supply technology, the tester can continuously output high current which overcomes the weakness of instantaneous current produced by pulsed power. It can effectively breakdown/puncture the oxide layer of the switches and then get precise results.
2.Strong anti-interference ability: The last number of test data will stably show in the LCD screen only with ±1 error even in strong Interference situation.
3.Long service life: All the precise resistances used in the tester can reduce the temperature’s impact on the measurement results and military connectors can enhance vibration resistance.
4.Convenience: Small size, light weight.
