AIGER Automatic Backwashing Agricultural Irrigation Plastic Disc Water Filter
- Category: Water Filter >>>
- Supplier: Beijing ZhongYuanTong Science & Technology Co. Ltd.
Share on (1600337760802):
Product Overview
Description
Product Description

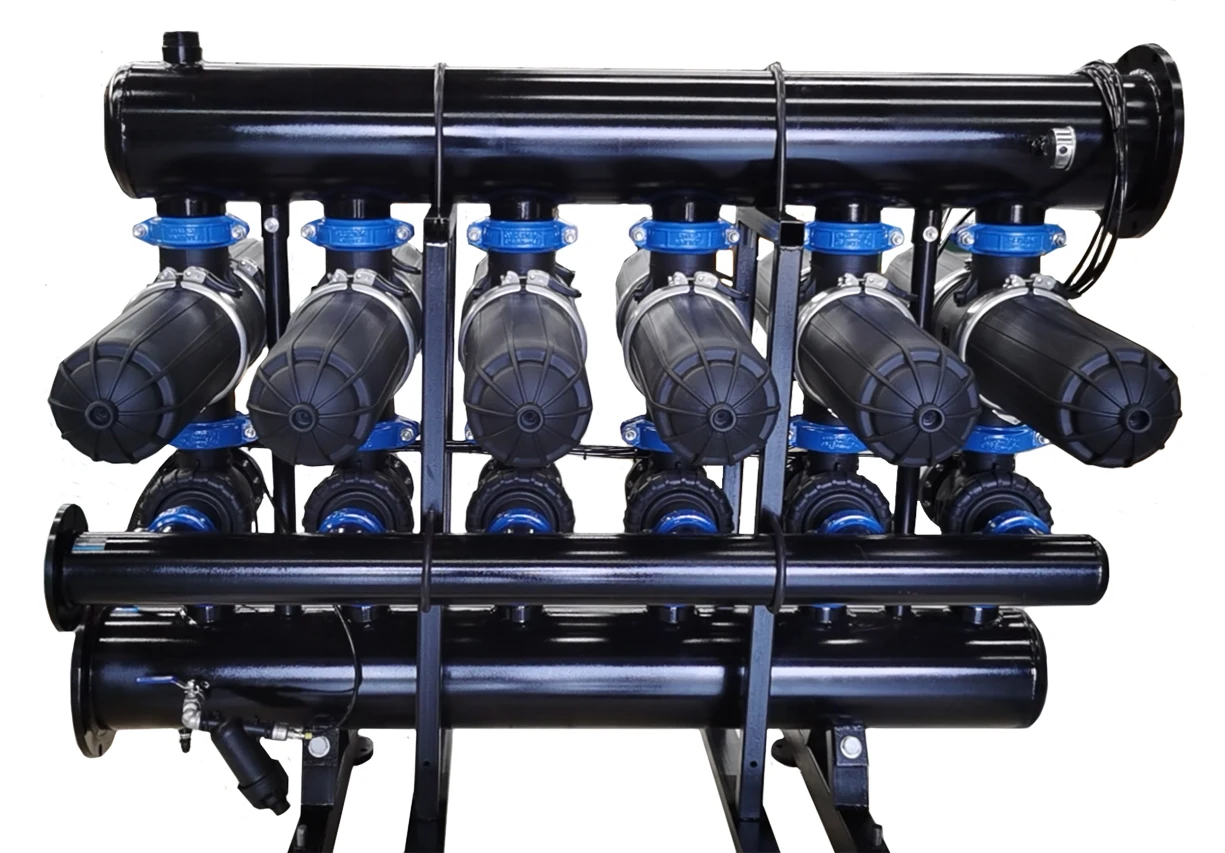

AGRICULTURE IRRIGATION AUTOMATIC BACKWASHING DISC WATER FILTER

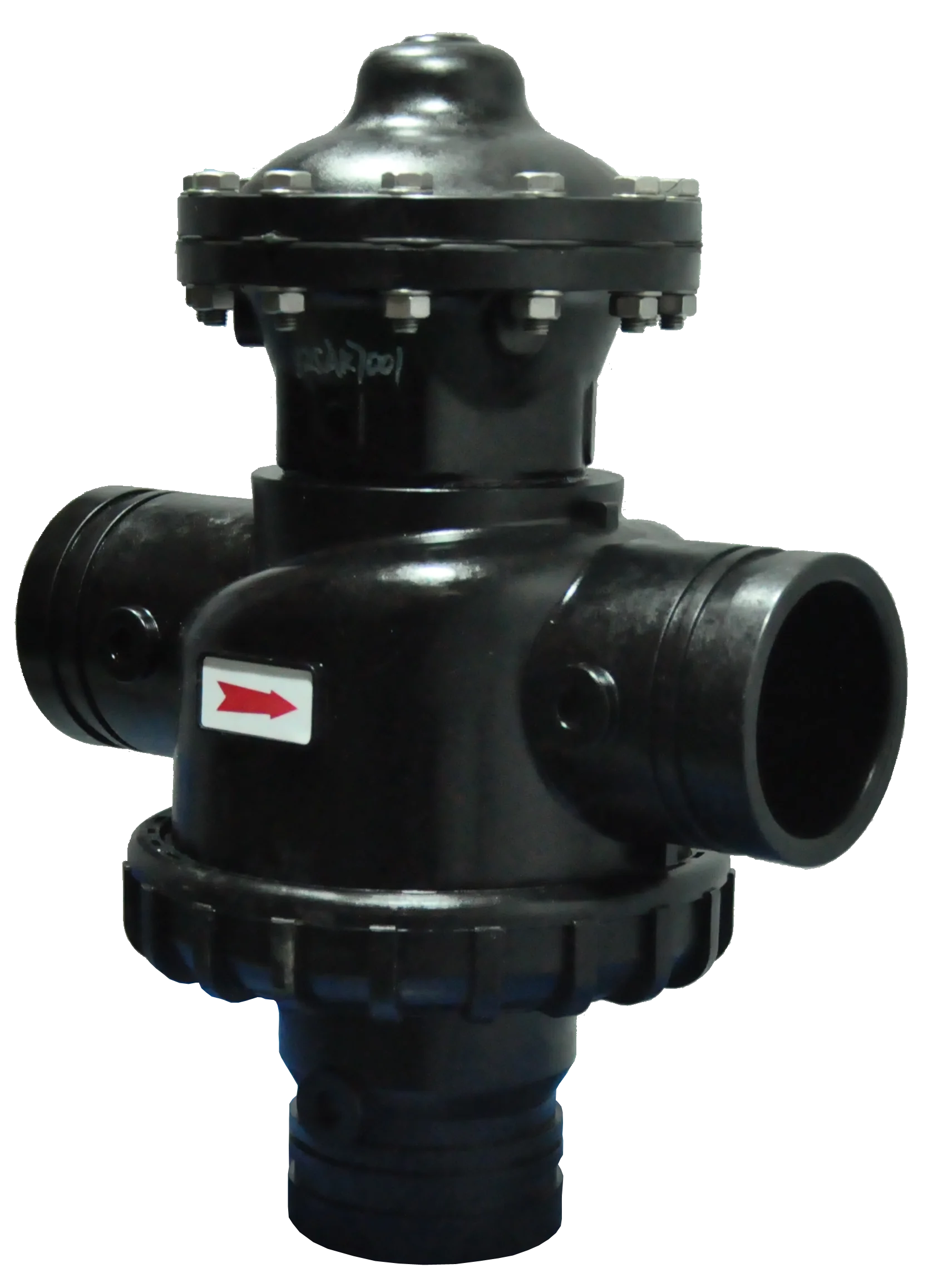

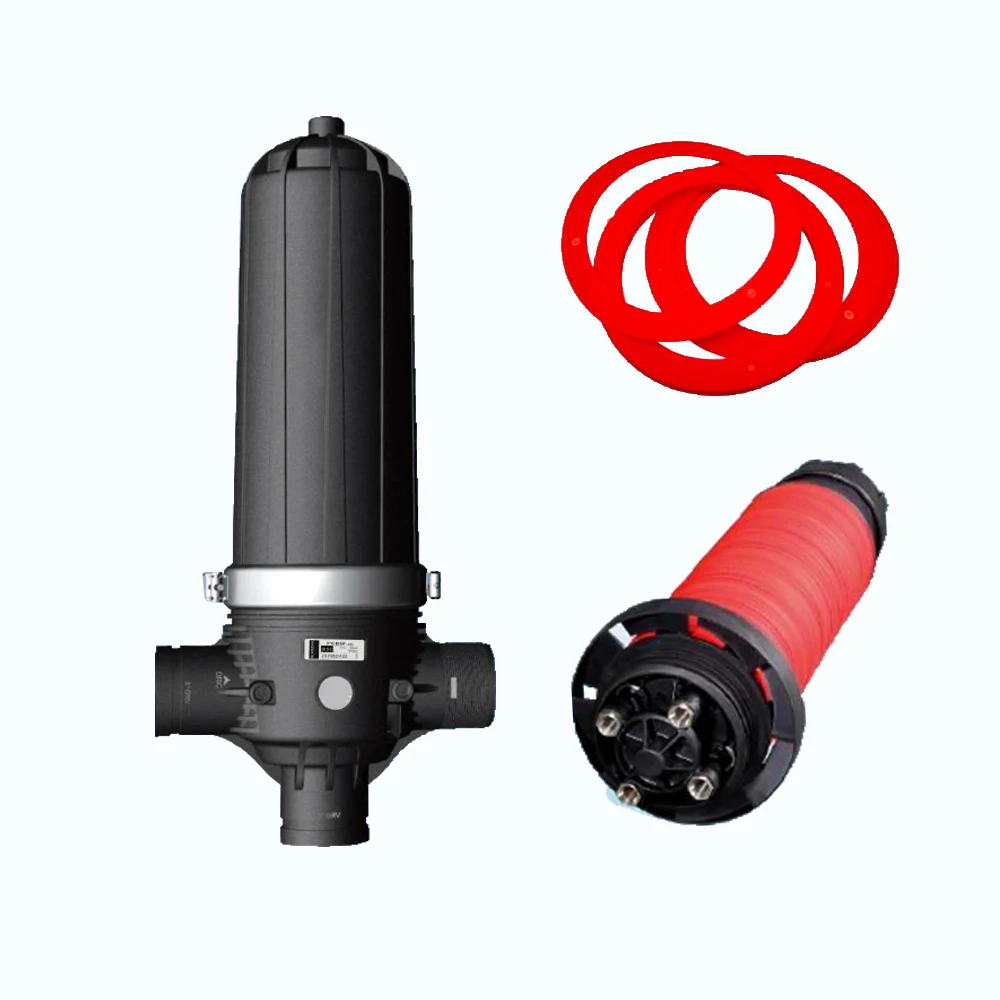

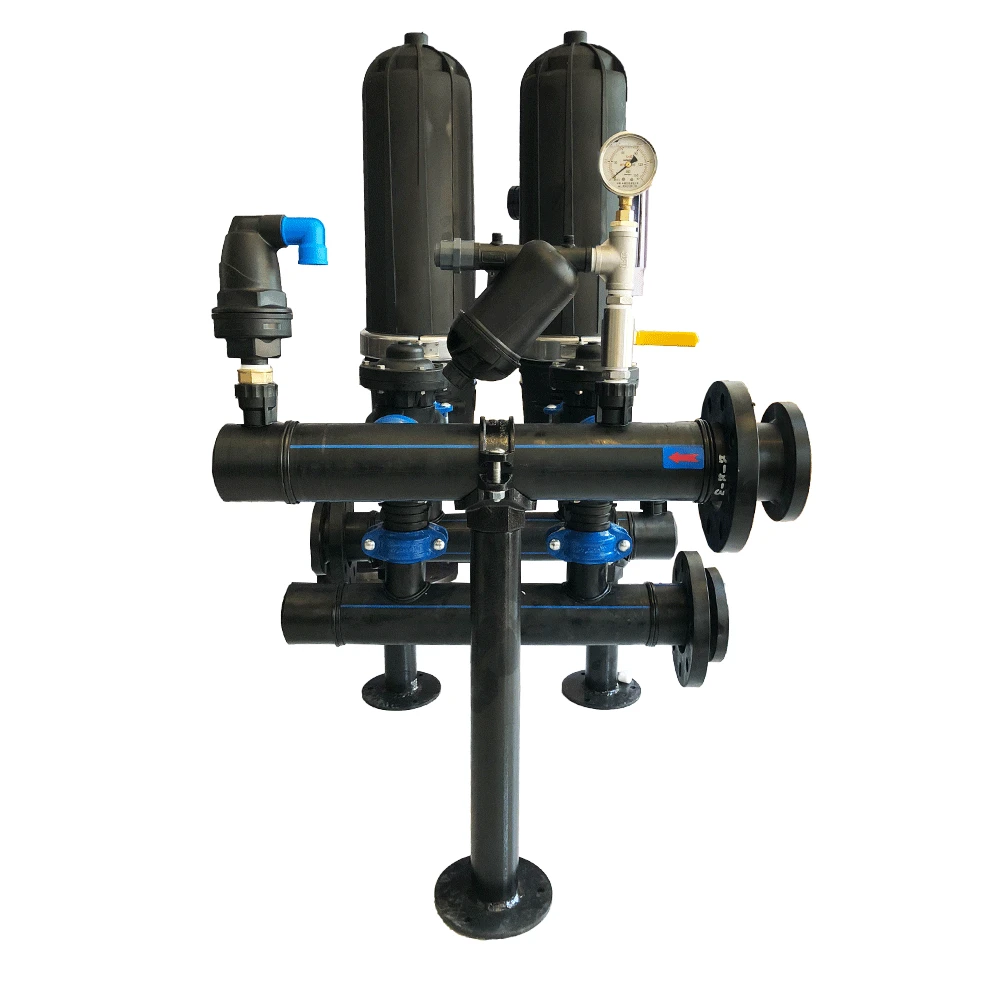

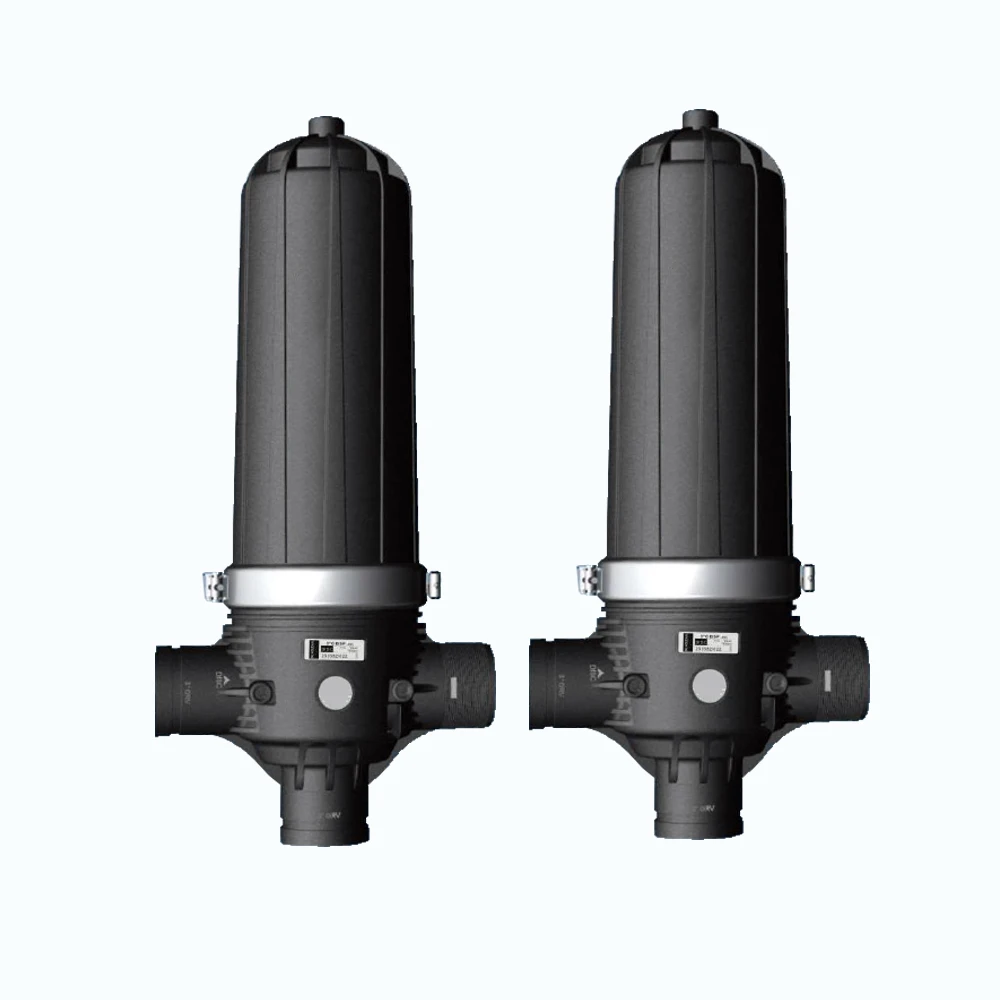

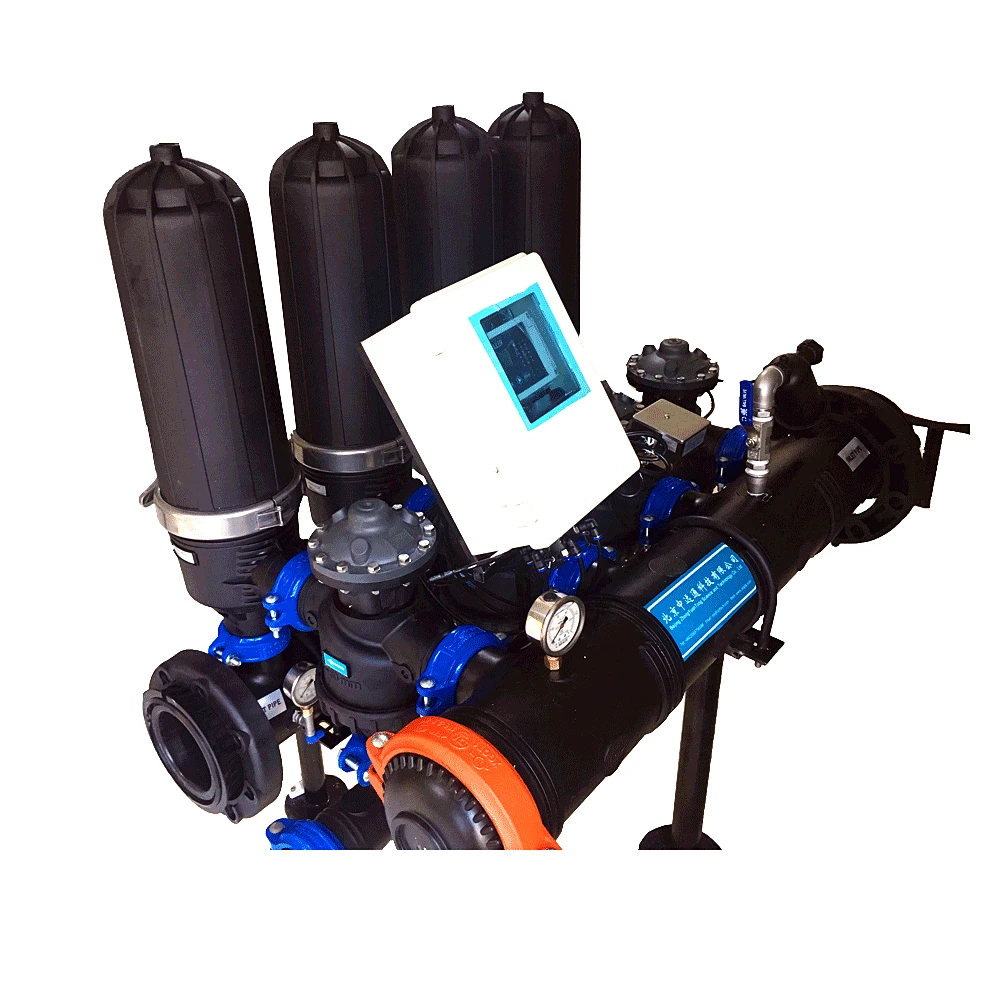

AIGER Automatic backwashing disc water filter is mainly composed by filter housing, discs, 3-way backwash valve, controller and pressure gauge. It is fully automatic operation.
- Backwash pressure as low as 1.5 bar
- High efficiency of filtration and backwash
- Water saving up to 40%
- Energy saving up to 20%
Specification
Operation pressure | 0.2-0.8MPa |
Backwash pressure | >0.15MPa |
Work temperature | <50℃ |
PH | 4-14 |
Drain of system | 3" ANSI 150# Flange or as per needs |
Flow rate of backwash | at least 8 m3/h |
Water consumption of each backwash cycle | Min. 30-66L/unit |
Filtration grade | 20µm, 50µm, 100µm, 130µm, 200µm |
Connection port | Standard flange |
Inlet/Outlet of system | Normally is 6" or 8" |
HOW IT WORKS
Filtering Process
There are thin grooves on the surface of the discs; the grooves in opposite direction between vicinity discs then make many crossed points. The numbers of crossed points are different along with different disc precision. The crossed points form many chamber and irregular channels will intercept suspending particles better by the next crossed point after they are skipped from the previous crossed points.
Cleaning Process
When there are many impurities accumulated in the grooves between discs, the disc filter will change water direction of inlet and outlet, compressed discs will open automatically and compressed water will inject to discs and rotate the discs quickly. The discs will be cleaned through injecting water and fast rotating. Then the filter will change water direction again to renew filtrationstatus.

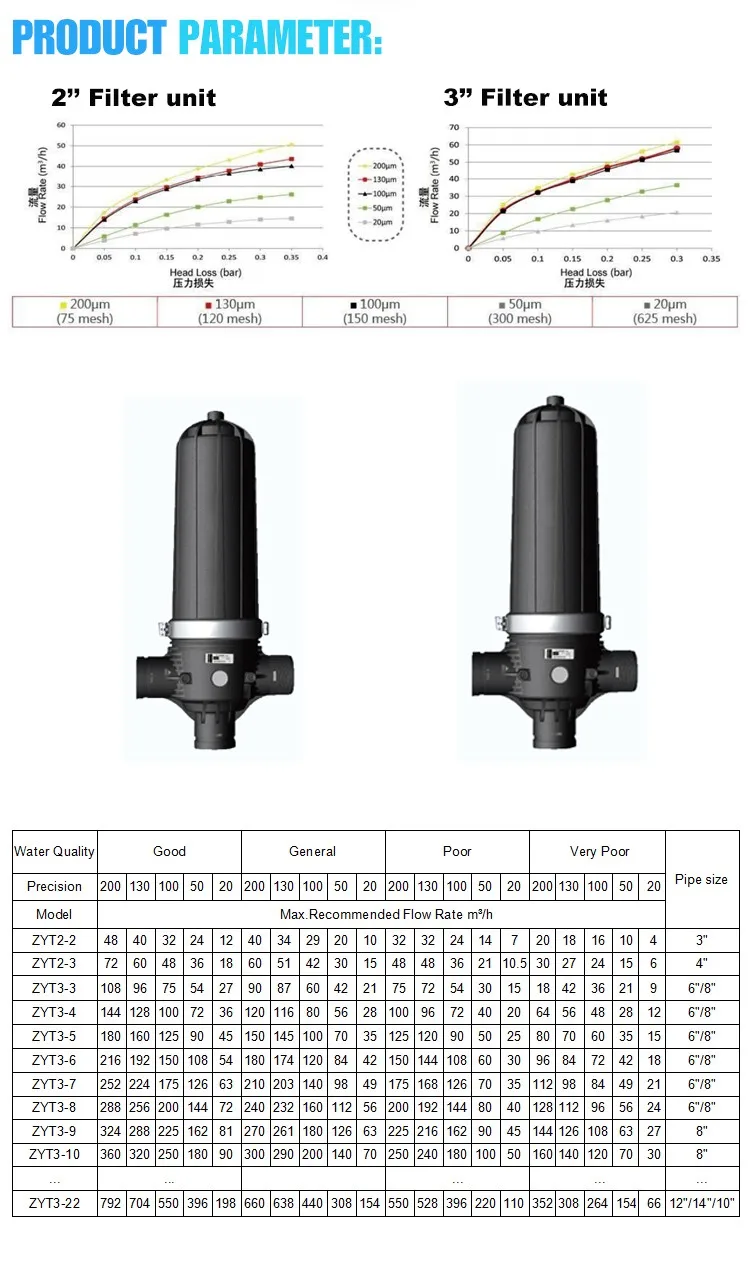

MODEL SELECTION

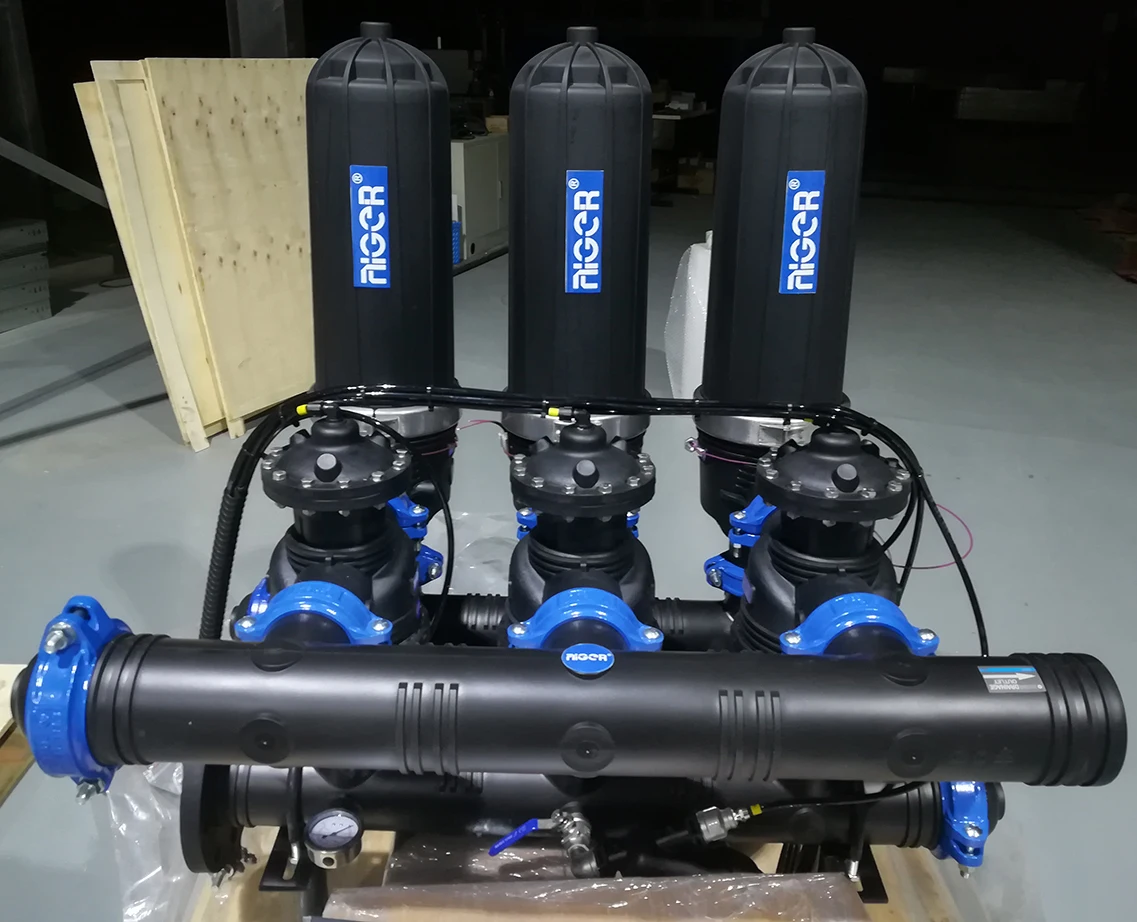

Packing & Delivery

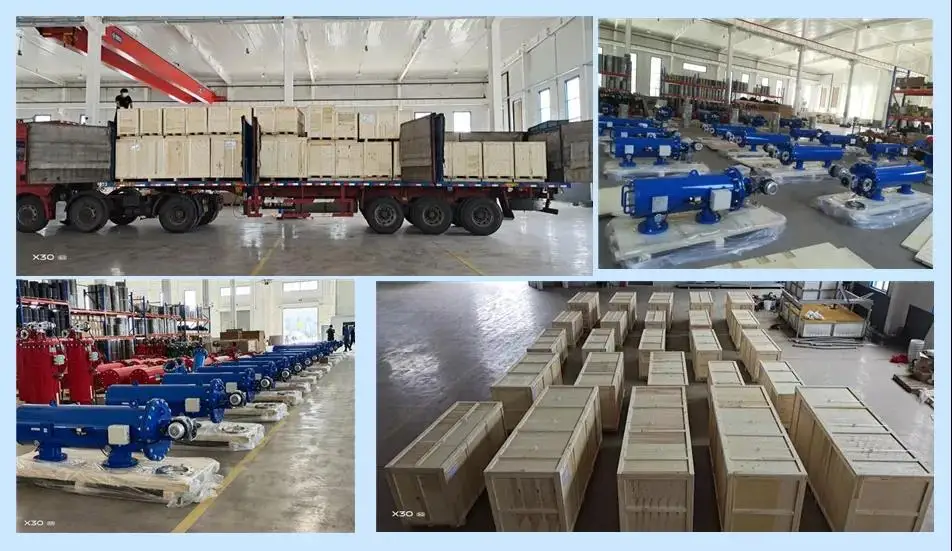

Our Disc water filter is wrapped in plastic film and then loaded into the plywooden box.

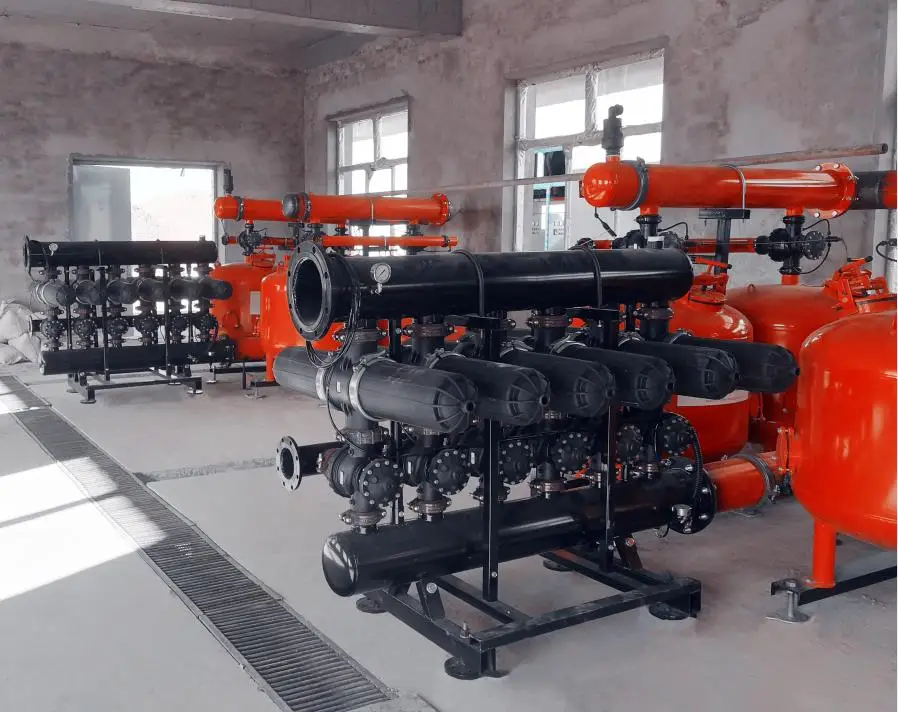

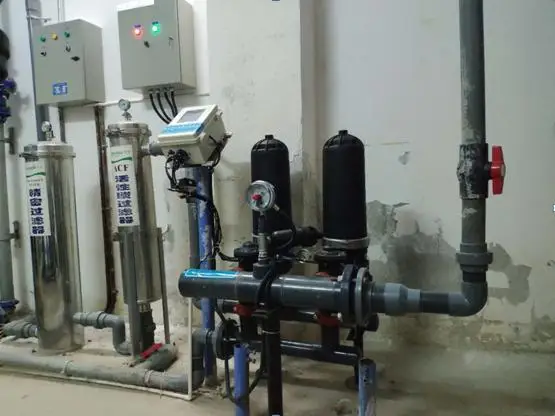

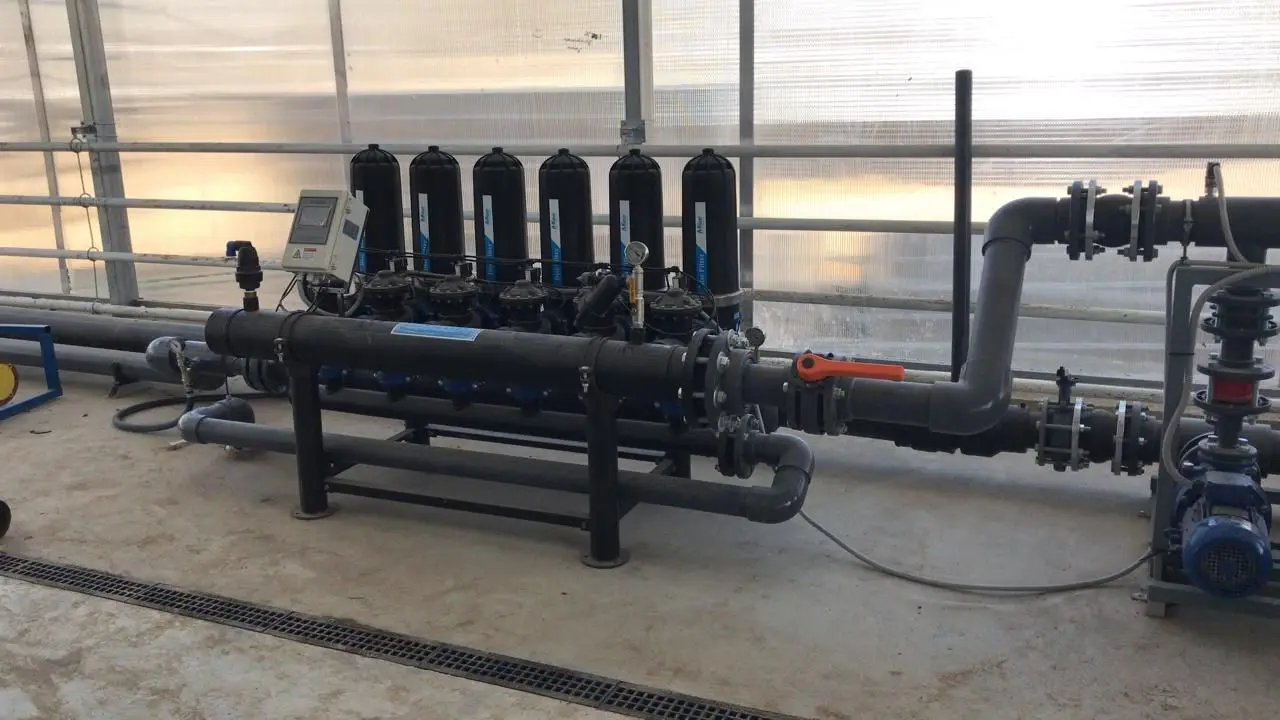

PROJECT CASE
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25 days, and it is also according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25 days, and it is also according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
