Car Auto LED Parking Sensor With 4 Sensors Reverse Backup Parking Radar 24GHz
- Category: Auto Parts & Accessories >>>
- Supplier: Dongguan Lintech Electronic Limited
Share on (1600337786643):
Product Overview
Description

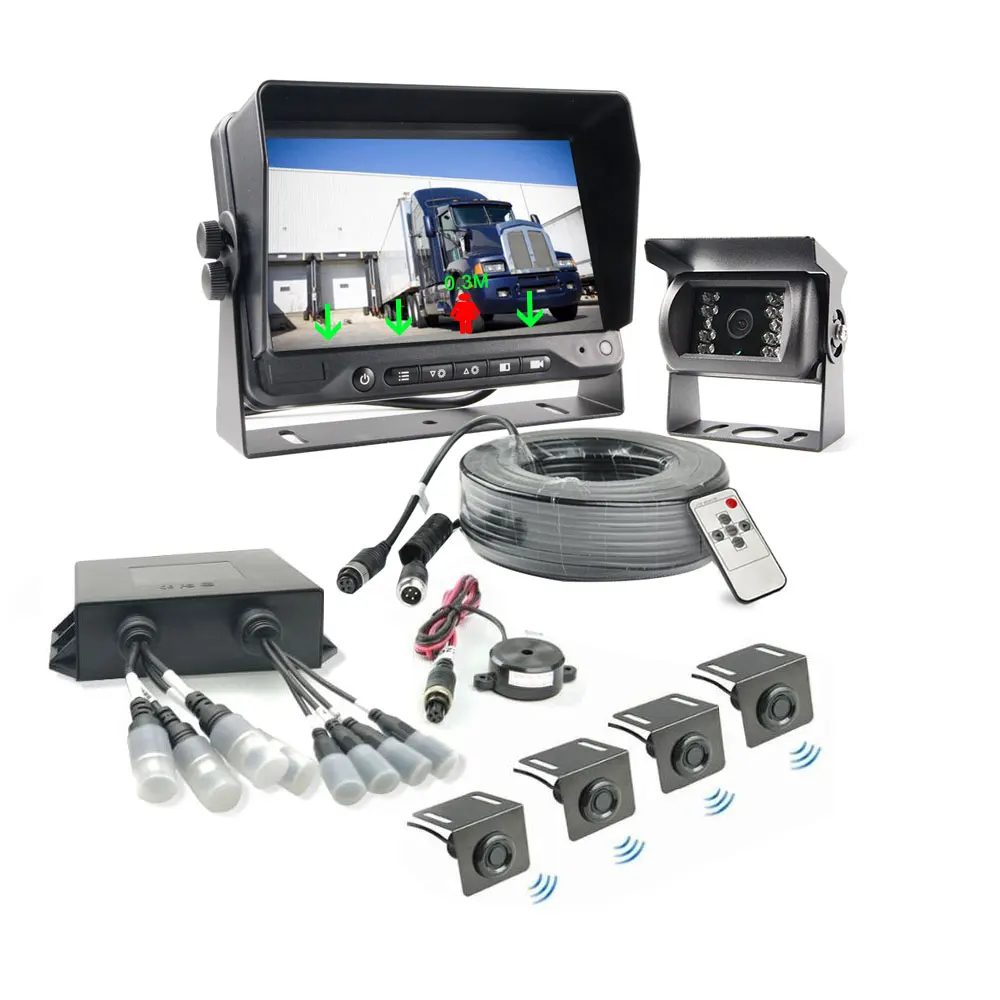

Car Auto LED Parking Sensor With 4 Sensors Reverse Backup Parking Radar 24GHz
Model: T-R4-B
Product Description
Product Introduction:
4 Ultrasonic Sensors
The 4 Ultrasonic Parking Sensors has Double CPU and advanced chipset for enhanced coverage and detection. Whether you are a driver, a passenger or simply a pedestrian walking, this device is important to install in every vehicle. Whether it is a car, a trailer, a van, or a truck, these sensors can serve as your protector and saviour outside your home. The crystal clear heavy-duty camera provides better images and videos for safer and a more worry-free driving.

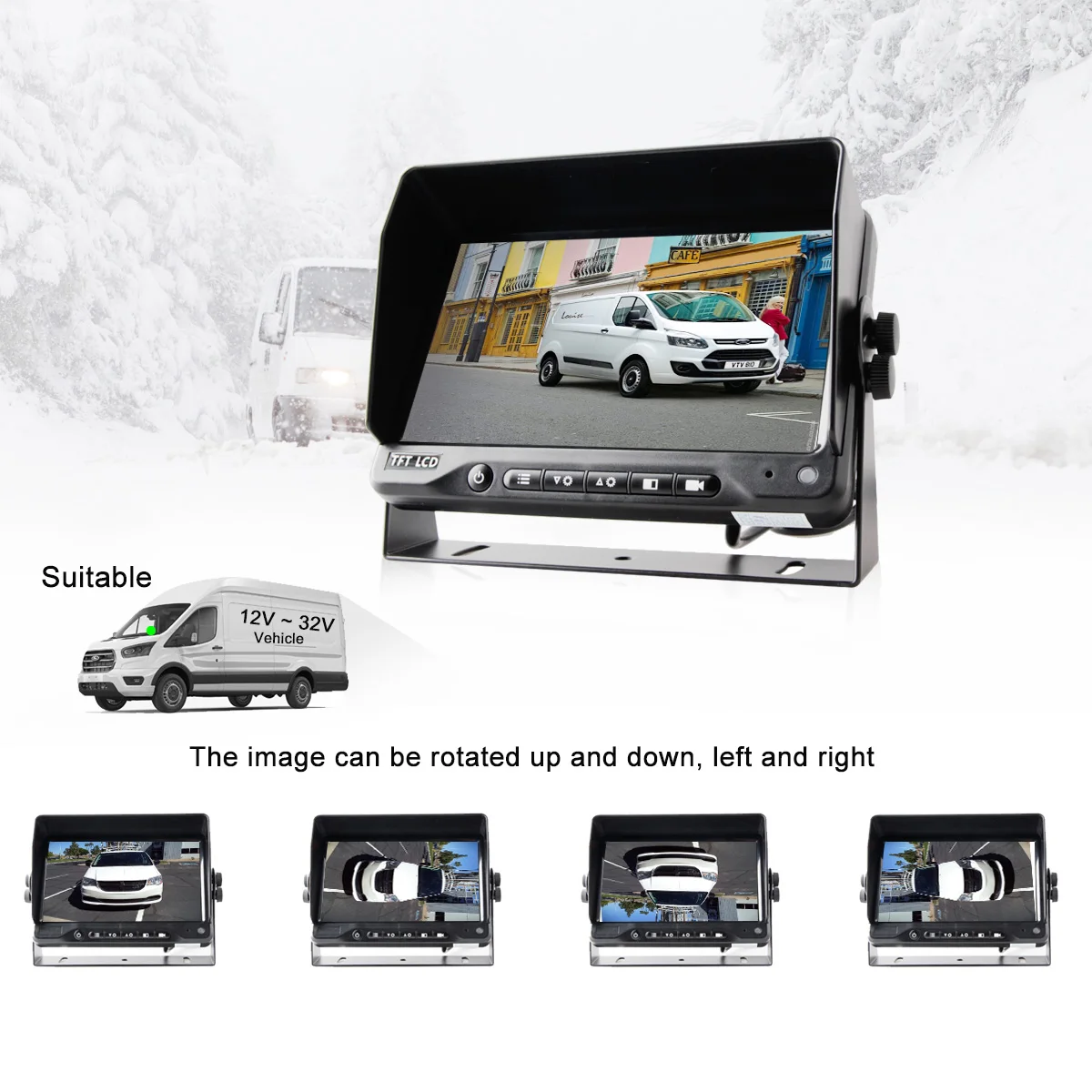

7 Inches HD Monitor
The wide 7" HD Monitor featuring 2AV inputs and 800 x 480 Digital Screen guarantees crystal clear image and video. This means that the monitor produces a sharper and brighter image and video if compared to the usual LCD display being offered in the market today. This same high-quality monitor refreshes a bit faster than any regular LCD monitor. It also shows the motion more flawlessly. If you want to guarantee convenient viewing, this sensor set is equipped with such an excellent and state-of-the-art monitor.

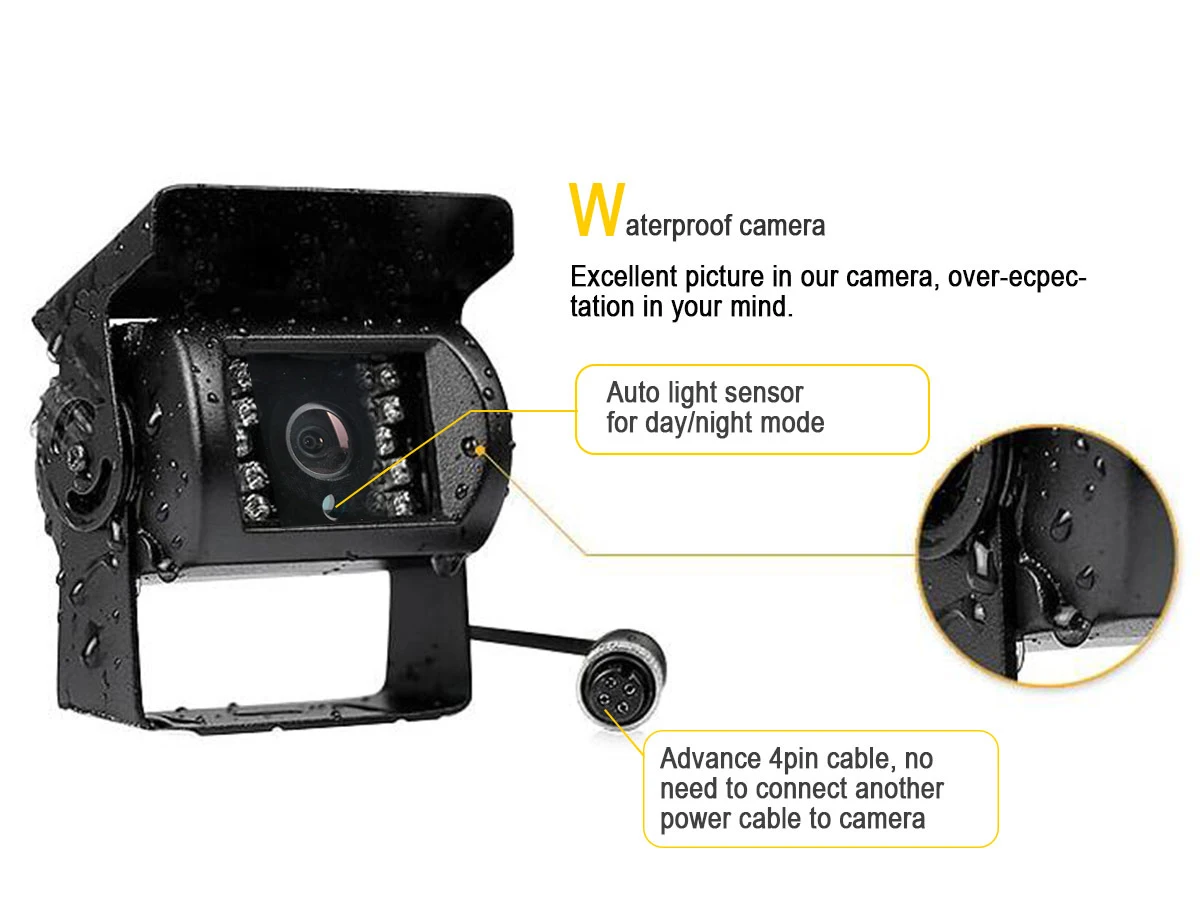

420TVL CCD Reversing Camera
It doesn't matter whether you are using the 4 Ultrasonic Sensors at daytime or nighttime. This essential car security device boasts of CCD reversing camera that produces clear images whether it is day or night. This means that you are about to own a that guarantees you picture perfect, better contrast in colour, and impressively features 11 infrared LED bulbs automatically alighting for maximum performance. With this specification, you can be sure of safe driving anytime, anywhere you are. The reversing function lets the driver see everything around and outside his car to avoid possible occurrence of accidents.
New:

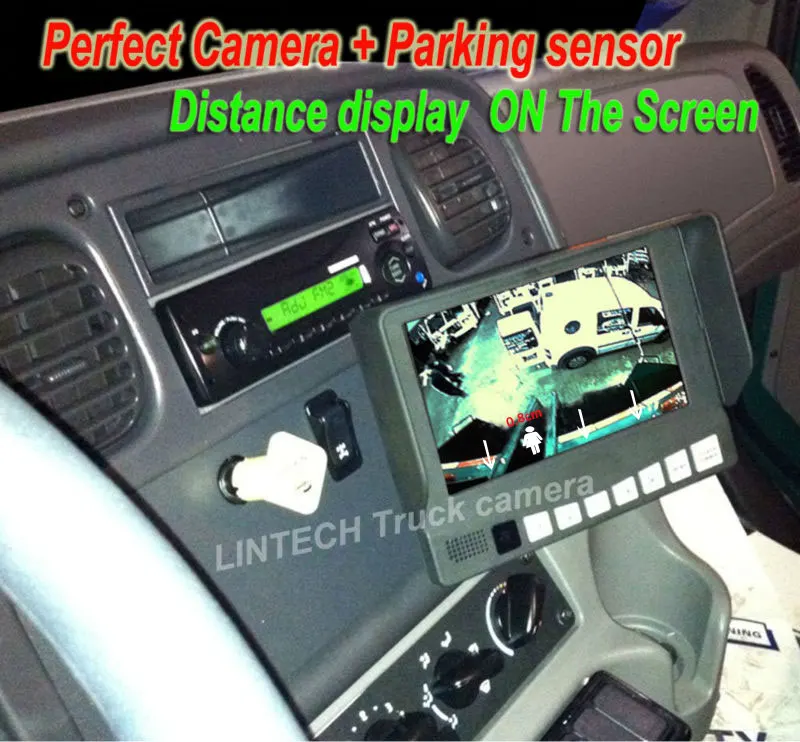

--Control Box can integrate the Sensor distance data and Camera's image signal, and display on the Monitor.
--Parking sensor with Buzzer alarm.
--Driver will can see, can hear at the same time.
| Features: |
| 1. Lightning protection anti-interference host (12-24 VDC) |
| 2. With buzzer BI..BI..BI.. When backup vehicle, The volume is not less than 100 db. |
| 3. Monitor direct connection control box, cable length without being limited by the car. |
| 4. Distance and image of camera will display on the Screen |
| 5. Style probe: Bracket screws or punch probe |
| 6. Probe special waterproof design, level of waterproof IP67. |
| 7. Lightning protection design, containing 600 w TVS diode. |
| 8. 7 inch TFT lcd monitor, ccd sensor camera |
| 9. Reversing system+parking sensor system |
| 10.The sensor installation interval of 40 cm is most suitable |
SPECIFICATIONS:
1) Van 4 probe reversing radar system, applicable to all the large vehicles;
2) When vehicle starts to reverse, system start working, or keeping work;

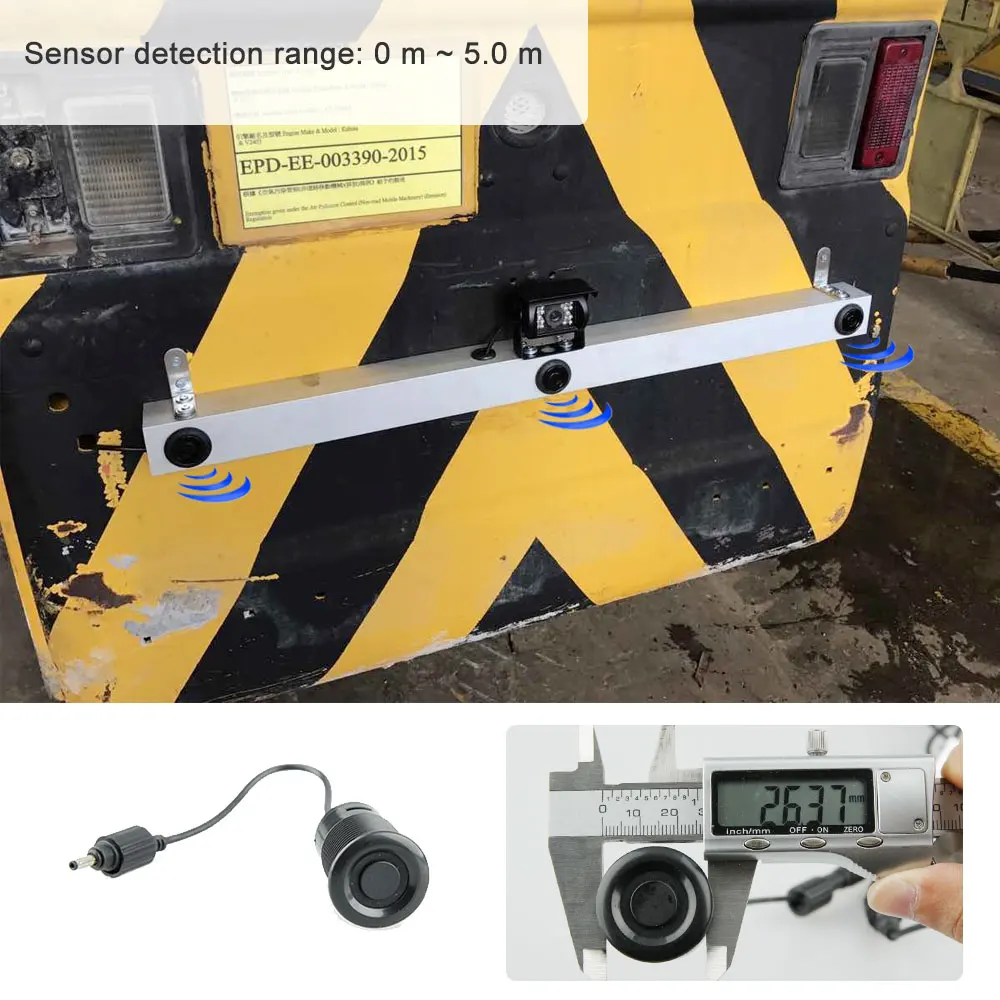

3) Sensor detection range: 0 m ~ 5.0 m
4) Speech at distance range: 0.3 meters to 5.0 meters;
5) Probe cable length : 3m standard (Customized)
6) Cable connection installation, prevent radio interference;
7) Lightning protection anti-interference boxes;

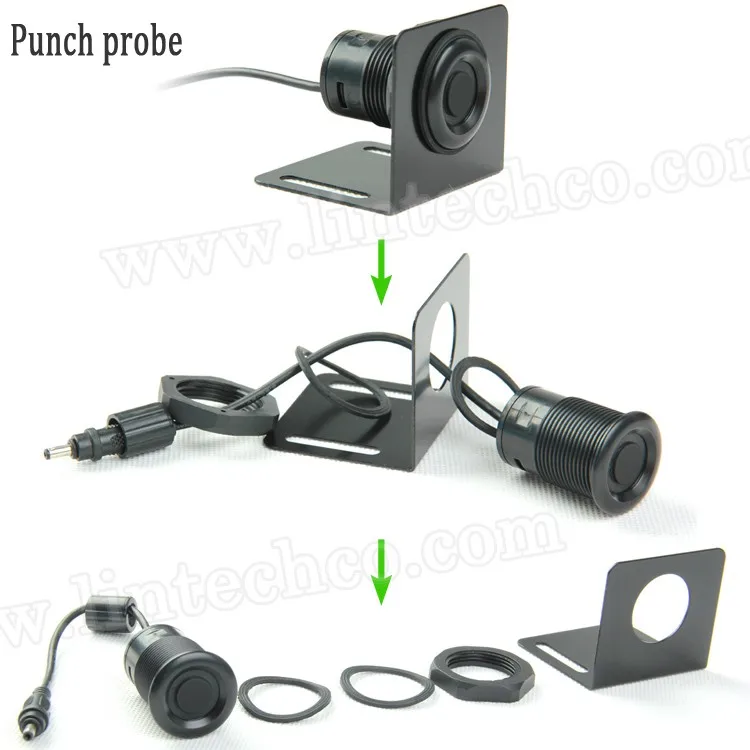

8) Bracket screws or punch probe (waterproof for thread form 4 probe);
9) 4 pins screw on extension cable to connect monitor to main control box, 15 meters;(other length customized);
10) Power input:12- 24VDC; Stand by : less than 1W
11) Operating frequency: 40 KHZ.
12) Probe Beam Angle: single Angle 60-80 degrees, can choose double Angle Y = 60-80 degrees, X = 100-120 degrees.

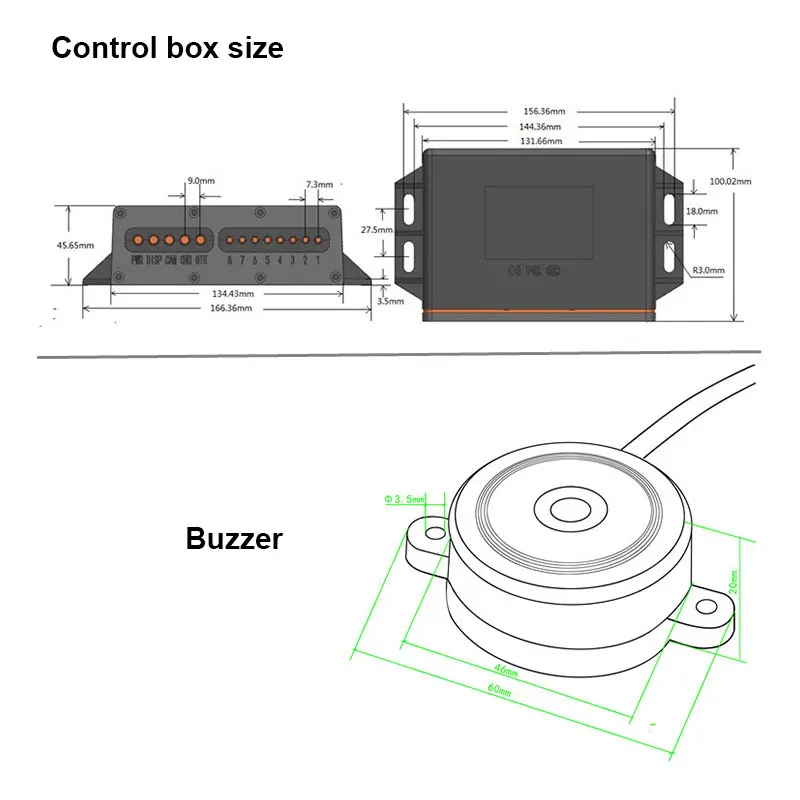

13) Size: length x width x height = 153mm x 99mm x47mm.
14) Low temperature - 40 °C, high temperature of 80 °C;

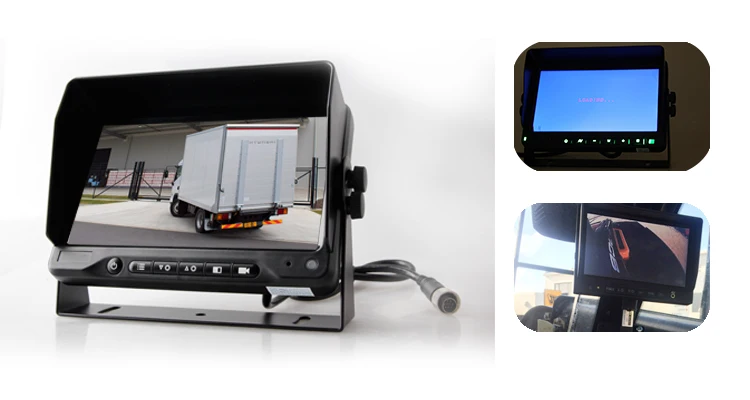

Monitor
Waterproof Probe

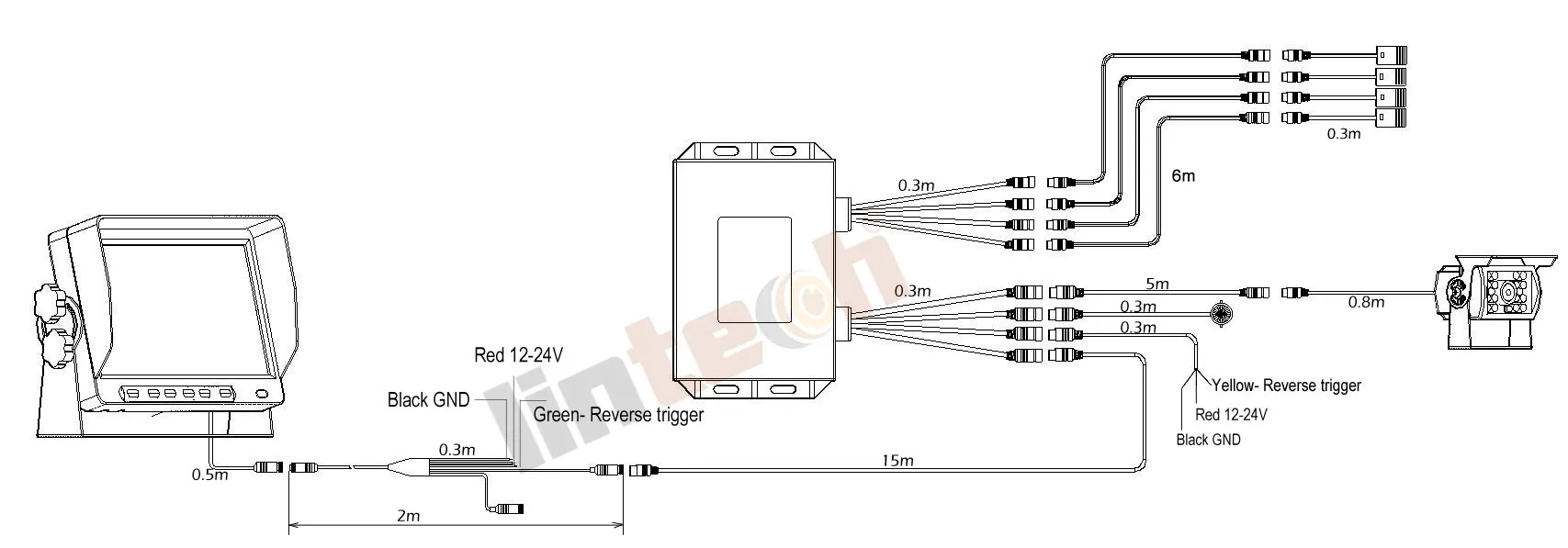

Installation diagram:

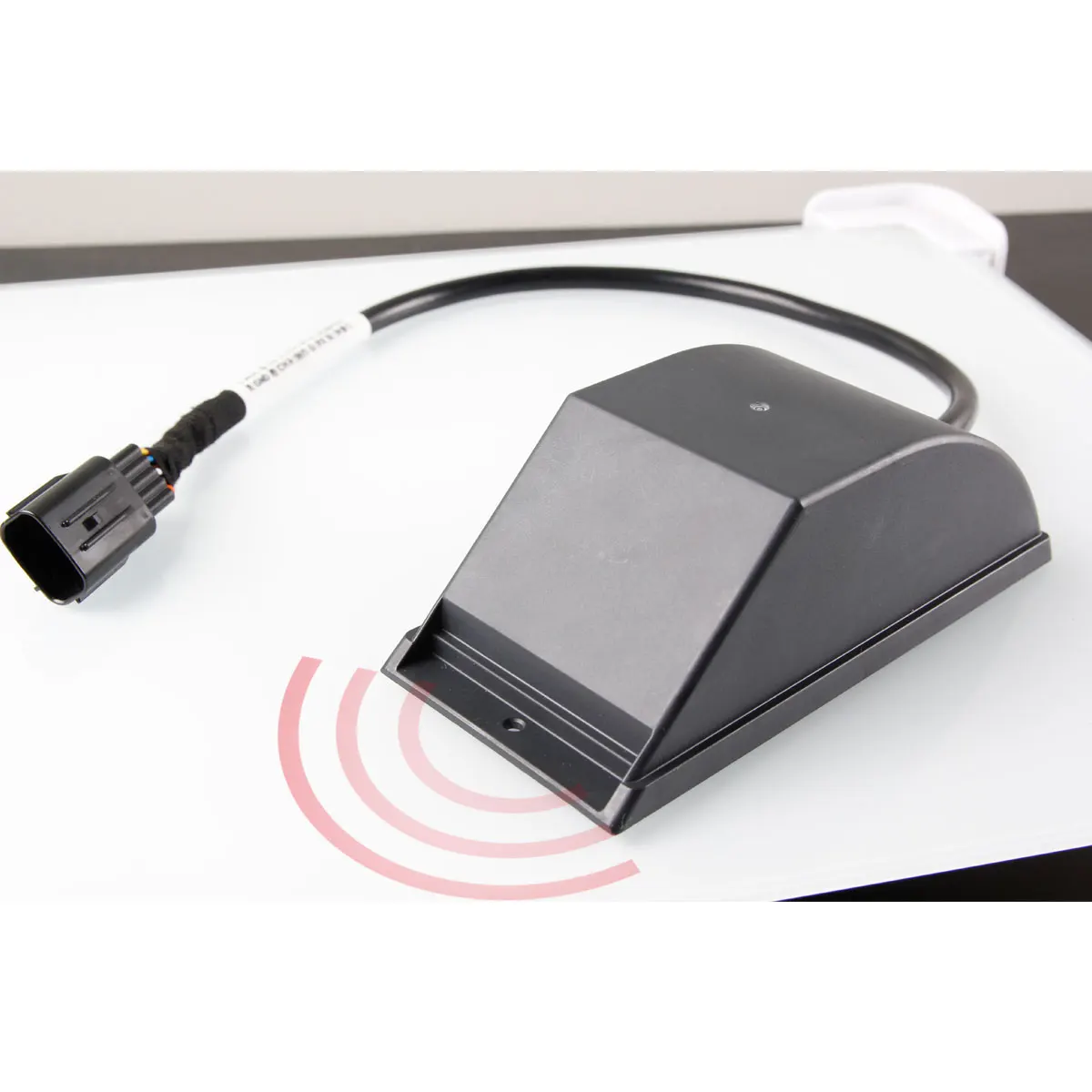

Similar sensor:(77GHz blind spot sensor):
>>>If you want more details and discount of this system. Please click here contact to us. <<<
Packaging & Shipping

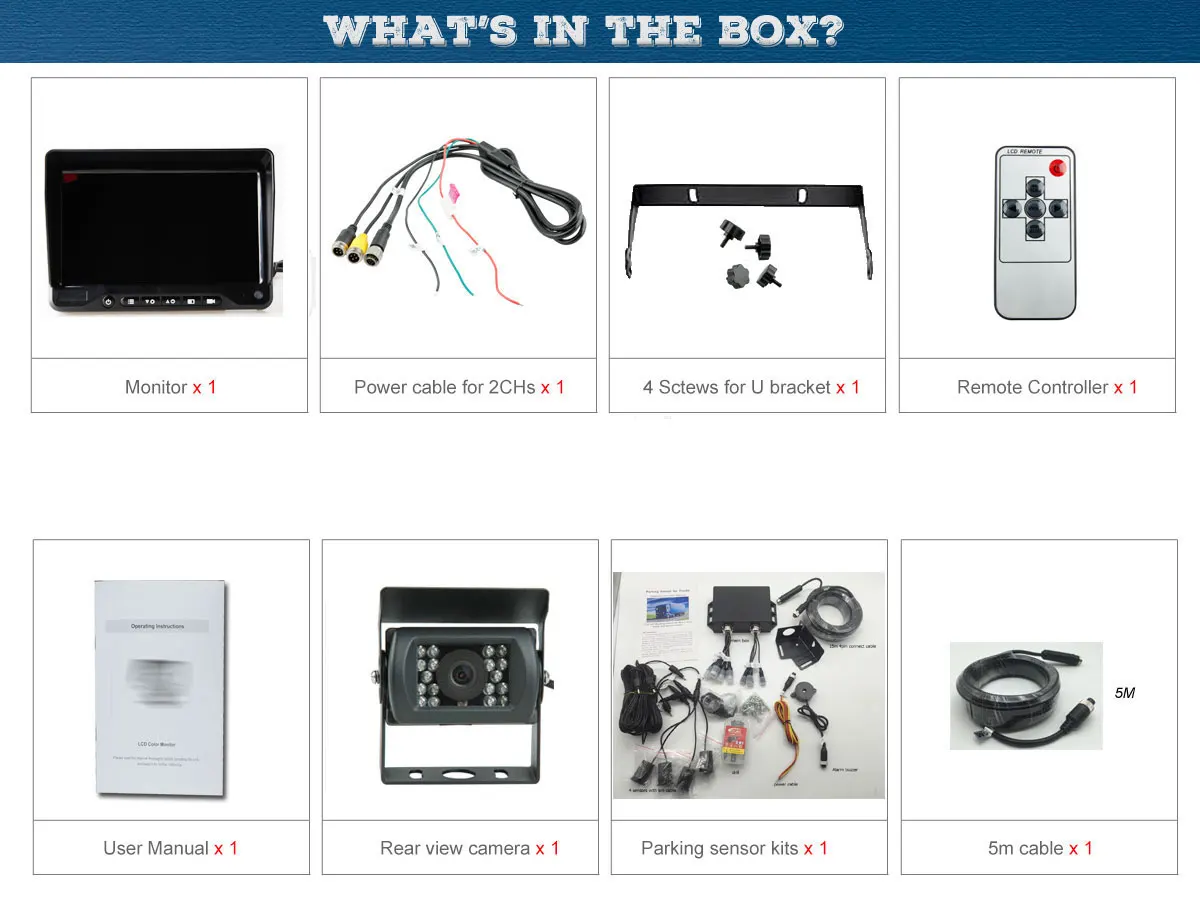

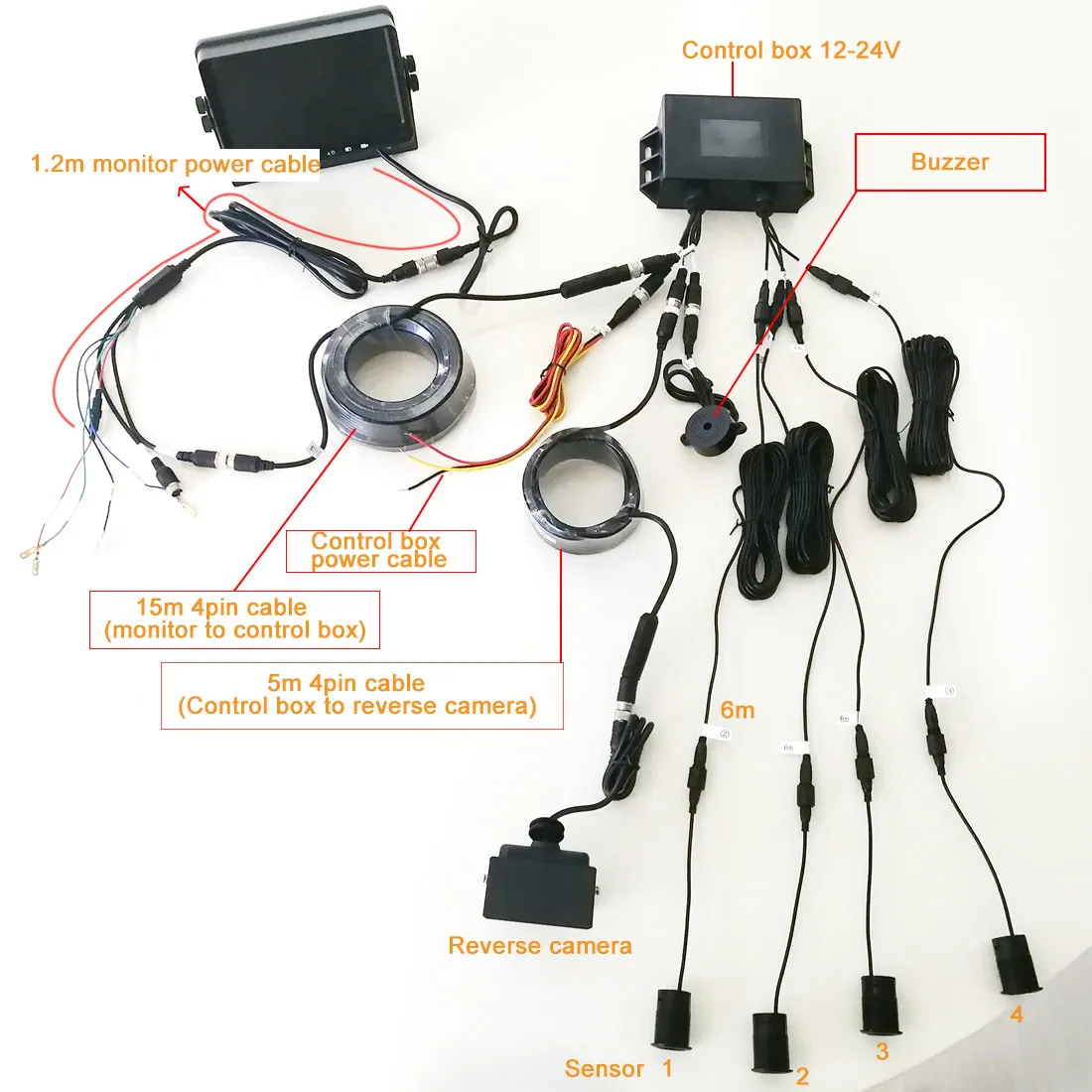

Package Contents:
1 x Main control box To adapt to the wide voltage, can work in 24 v and 12 v.
1 x Auto beeper buzzer (>100db)
1 x Power cable (50cm)
4 x waterproof thread form probe
1 x 7 inch TFT lcd color monitor
1 x rear view waterproof camera
1 x 15 meter 4 pin screw on extension cable (Optional 5M, 10M, 15M, 20M)
1 x 5 meter 4 pin screw on extension cable (Optional 5M, 10M, 15M, 20M)
Similar Products
FAQ
Q1:Why do we need to install such a reverse sensor system?
A1:Increases safetyThis truck reverse parking system helps to provide increased safety for truckers, pedestrians when reversing. The radar system can detect small children and low walls as well. Not just for truckers but for all drivers out there.

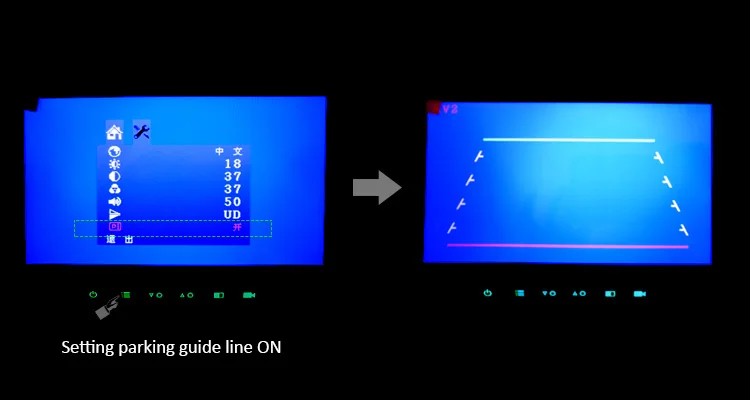

Q2:Does the monitor have parking guide line on and off?
A2:Yes, monitor with Parking Line Helps and guides you in parking or reversing your vehicle. A more convenient way to park safely.
Q3:What is the sensing distance of the radar sensor?
A3:The monitor with buzzer can help or guide you on the distance from 0.3m to 5M, built-in parking lines with different range distance alarm. Not just that it also has 4 Ultrasonic Sensors to be installed at the rear bumper of trucks, trailers, caravan or cars and works automatically when reversing. This system has Double CPU and advanced chipset for enhanced coverage and detection.
Our Services
1) Fast Service: Please feel free to contract us by Trade Manager or Email; All message will be replied within 12 hours.
2) Competitive Price: We will give you the competitive price,but we can not promise our price is the lowest considering the quality;We value performance price ratio more important than the lowest Price. but more, save more!
3) Product quality: We would control our products quality strictly,All items are checked and packed in good condition before delivery;It is very a effective way to reduce the percentage of products sent back for repair and save the cost for our oversea partners;
4) Fast Delivery: Normally Samples delivered in 5- 7days, Mass production delivered in 7-15 days;
5) Warranty: We provide 18 months warranty for all products, if the goods is defective, please notify us within 3 days of delivery
Company Information
Lintech Enterprises Limited / Dongguan Lintech Electronics Limited is a professional automotive safety video technical systems
supplier. we have our own factory and cooperated factories for producing different auto equips products.
With years experience and based on a traditional security products background, we have a clear target that to provide the most
competitive products not only in quality but also at price to clients with those mature auto equips.
We like to make those equips provide to our clients exactly meet their requirements and surely we adjust our products design
according to end user useful advise. And our innovation will make our enterprises as a leader in the auto equips field.
Auto mobile parts for safety purpose, product quality management system require equiped, ISO/TS16949 certificates and policy, EMC
certificates, E-mark(E9-10R05 / E9-S3 R7), CE, RoHs, FCC, SAE…, Lintech fllowing with market demand and keep working for improving
customer’s produt using experience.
supplier. we have our own factory and cooperated factories for producing different auto equips products.
With years experience and based on a traditional security products background, we have a clear target that to provide the most
competitive products not only in quality but also at price to clients with those mature auto equips.
We like to make those equips provide to our clients exactly meet their requirements and surely we adjust our products design
according to end user useful advise. And our innovation will make our enterprises as a leader in the auto equips field.
Auto mobile parts for safety purpose, product quality management system require equiped, ISO/TS16949 certificates and policy, EMC
certificates, E-mark(E9-10R05 / E9-S3 R7), CE, RoHs, FCC, SAE…, Lintech fllowing with market demand and keep working for improving
customer’s produt using experience.
FAQ
1.Can I use this Parking sensor on my Forklift and garbage truck?
---Yes, that is available.
2. Can I see the Distance and images shows on the screen?
--- Yes, drivers can see and hear what happen when they are reversing.
3. Can we use this system on lift safety alarm, when a people back forklift must be alarm?
---Yes, that is available. if any person or any car, machine etc in distances from 0.3m to 3m. alarm will be run.
4.How long can I get the sample for testing?
--- 3~7days after the product details and payment confirmed.
