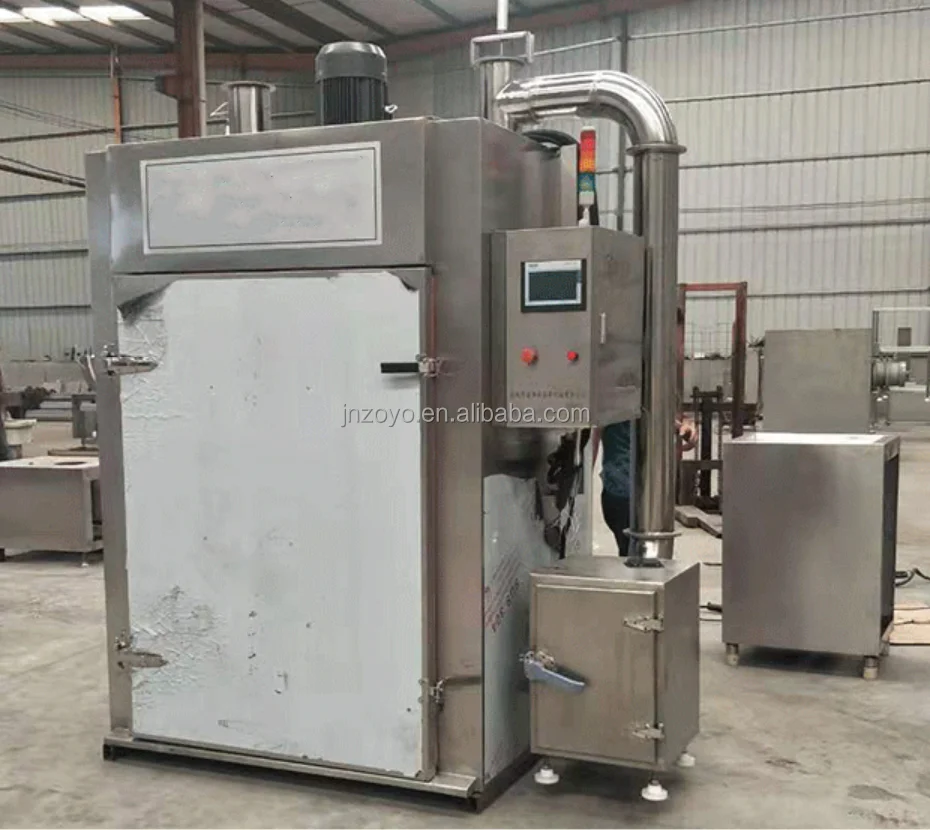

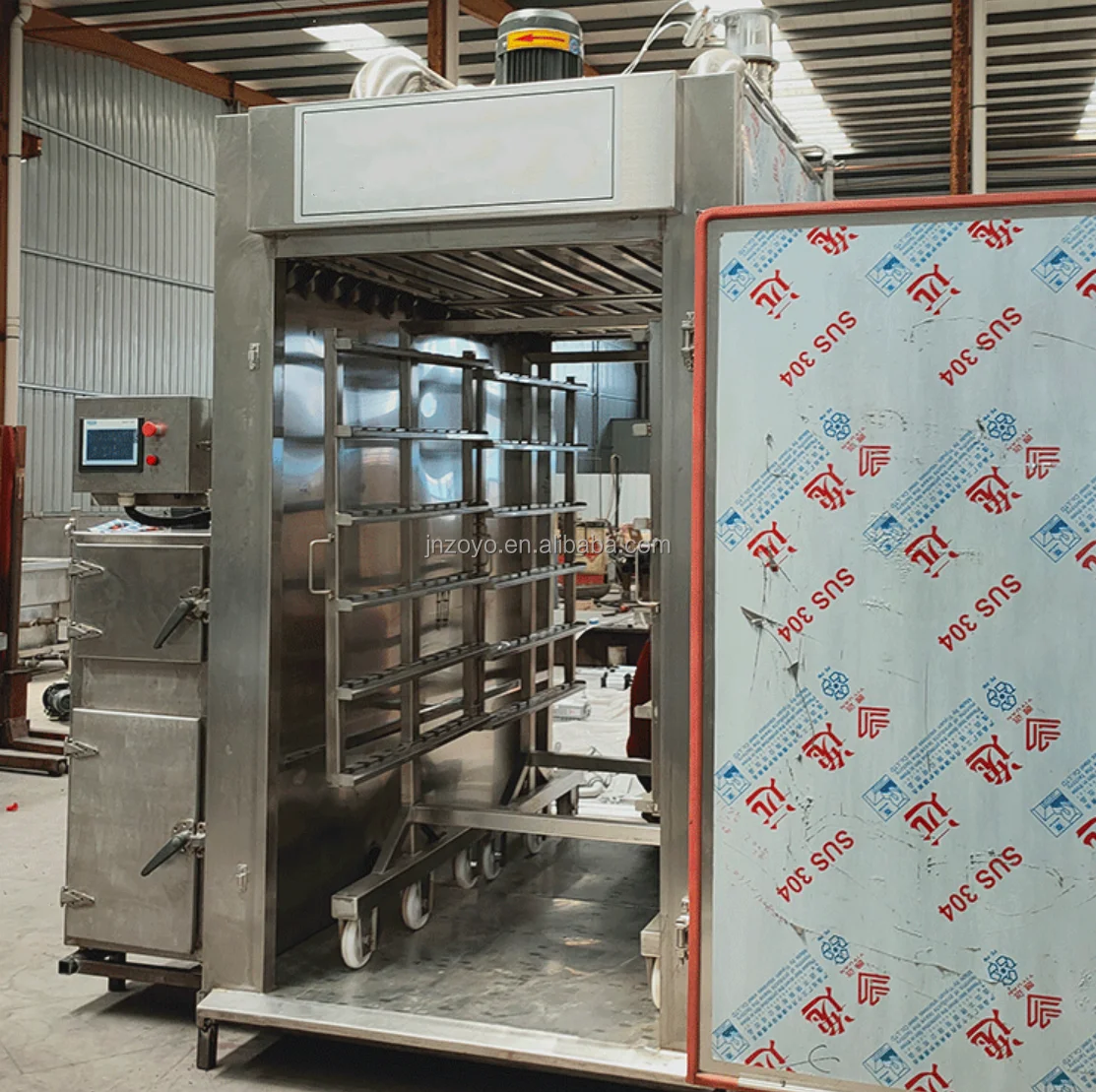

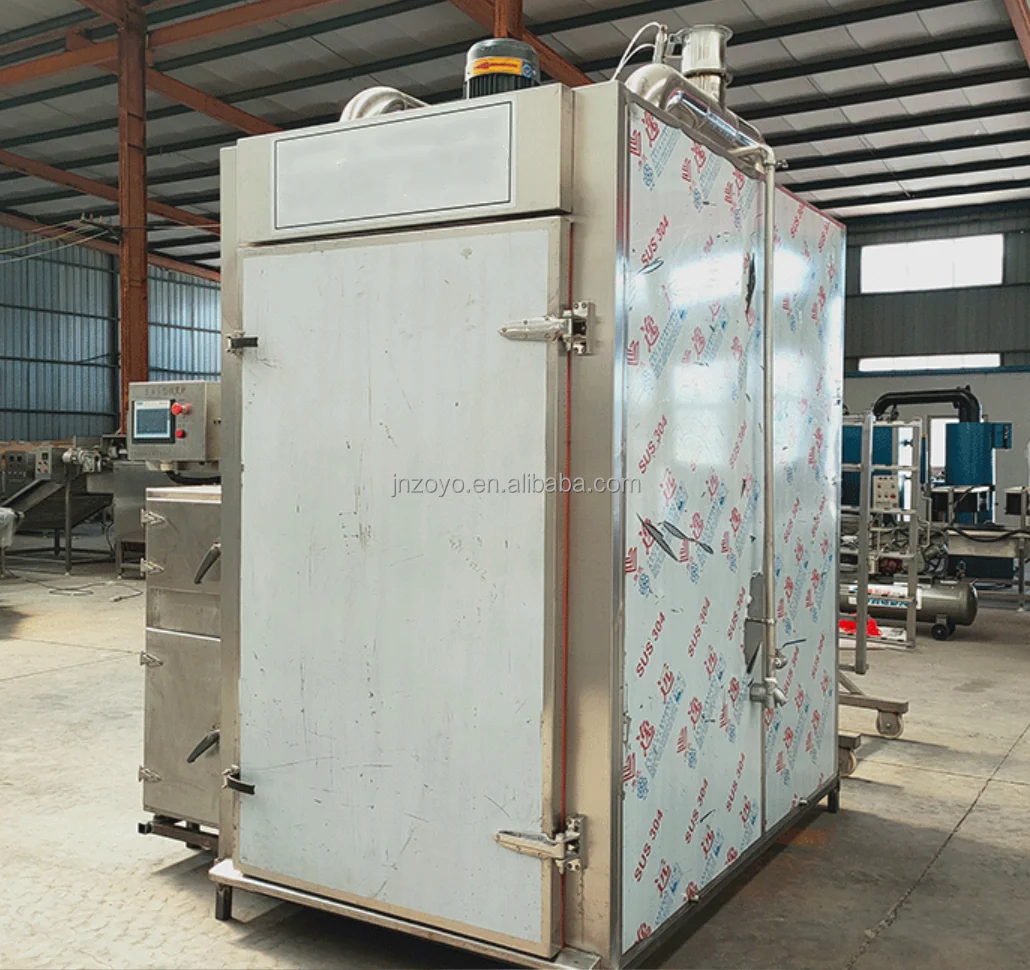

Bacon Sausage Meat Smoking House
Introduction
1)\tThe smoked furnace is widely used for cooking, drying, smoking, cleaning, etc. And it can be designed and manufactured according to users’ requirements.
2)\tThe smoked furnace is for smoking and color processing of chicken and duck bacons, sausages, Harbin red sausages, Taiwan roast, dried beans, jujube intestines, pig’s head meat, pig’s feet, eggs, quail eggs, salmon, fish and other products. It is an automatic operation equipment, mainly used for meat, fish products smoking technology.
3)\tThe whole smoked furnace is made of SS304 stainless steel, and the touch screen panel adopts German Siemens PLC.
4)\tThe users can set freely according to their own process requirements, stable and reliable.
5)\tThe equipment is equipped with an automatic alarm function, without manual care to save cost.





Details Images
















Our Advantages

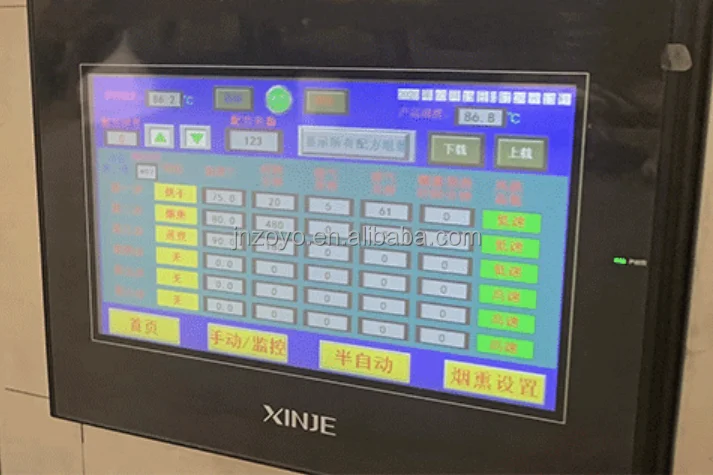

Touch screen panel
The panel is designed using German Siemens PLC, it can set freely according to customers’ process. It can alarm automatically due to an automatic alarming function.

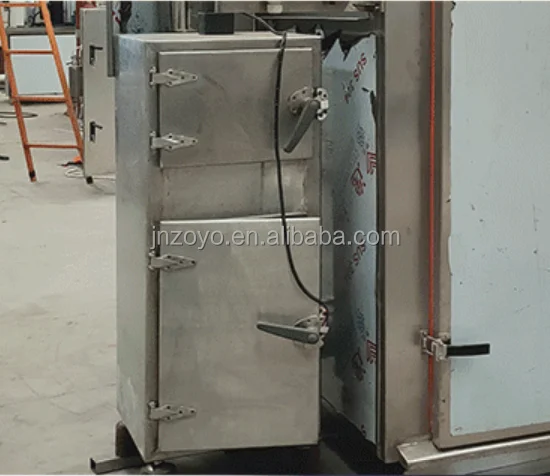

Smoke generator
This machine is equipped with a smoke generator, which is directly connected to the host through the pipelines. The structure is reasonable, and the smoke effect is evenly.

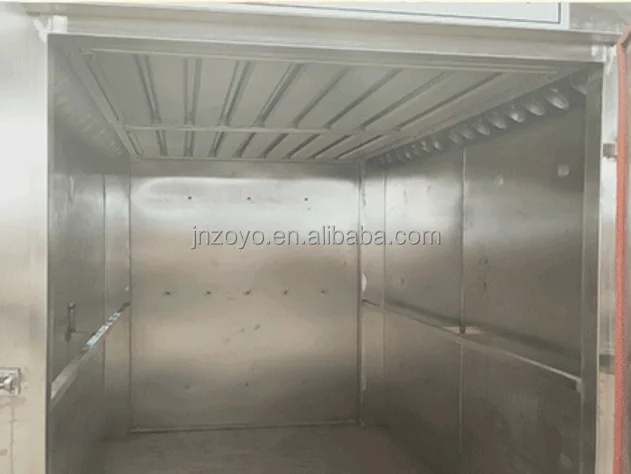

Air circulation system
This machine is equipped with 2 sets of circulating fans, 2 sets of circulating airways, 2pcs of fan blades, 2pcs of coils, to ensure the internal circulation system, and ensure the even drying and smoking, etc. The temperature inside is zero error.

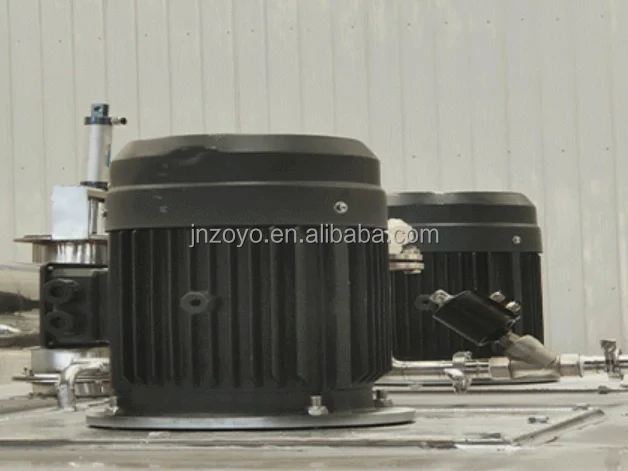

Heat insulated motor
The top of the furnace has a three-layer heat insulating device, so that the motor on the top is hot insulation, stable and durable.


Finished products








Specification


Voltage
380V
Heating mode
Steam mainly, electric auxiliary
Heating temperature
110-120℃, can made as per customers’ requirements
Motor power
11kW
Power of electric heating tube
54kW
Smoke generator power
6.75kW
Capacity
About 500kg, relate to the manual sausage hanging
Low pressure steam
0.05-0.1MPa
High pressure steam
0.3-0.4MPa
Sausage hanging trolley
1000*1000*1980mm(SS304)
Dimension(L*W*H)
5500*2000*2900mm(door open)

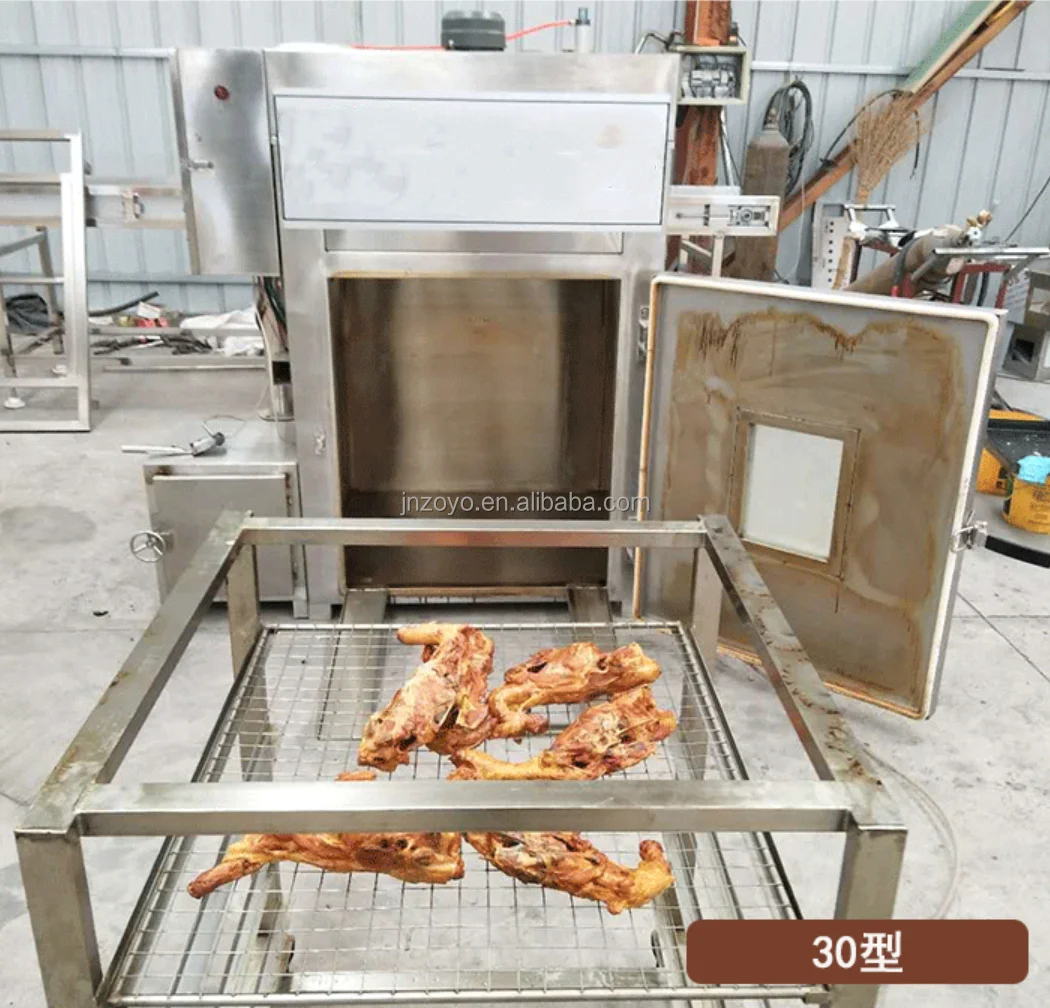

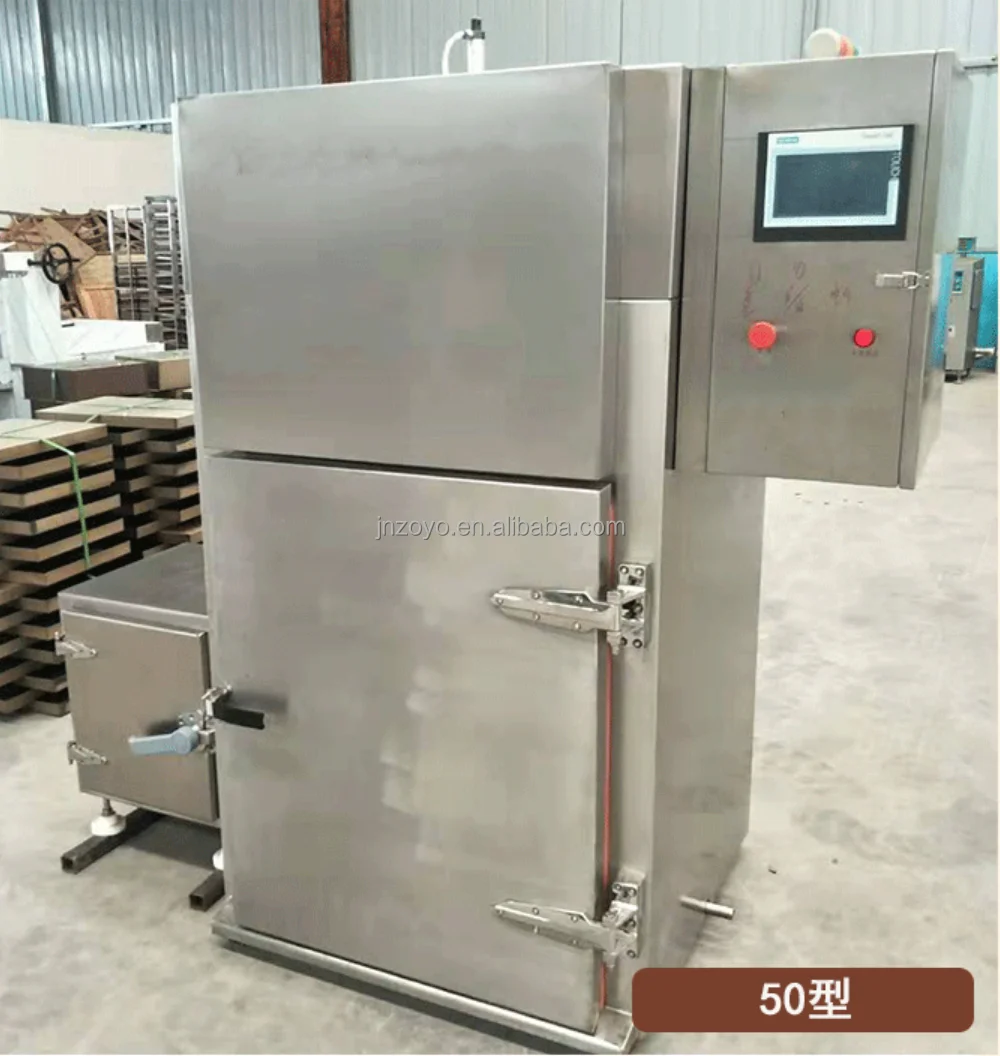

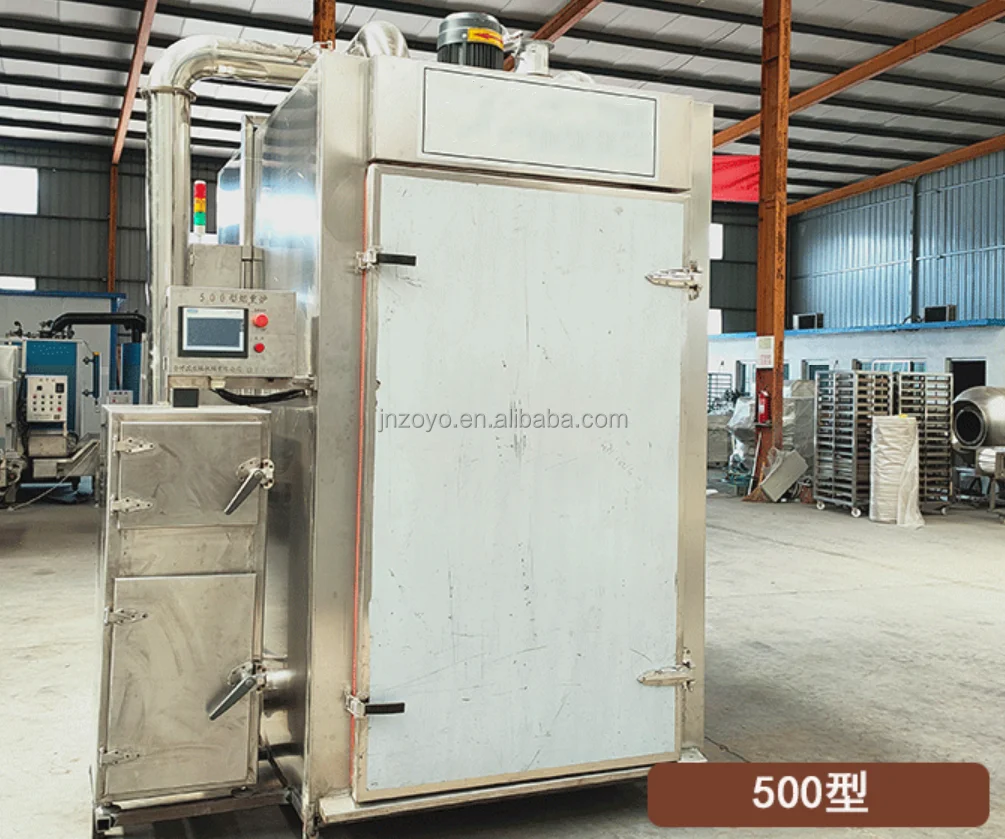

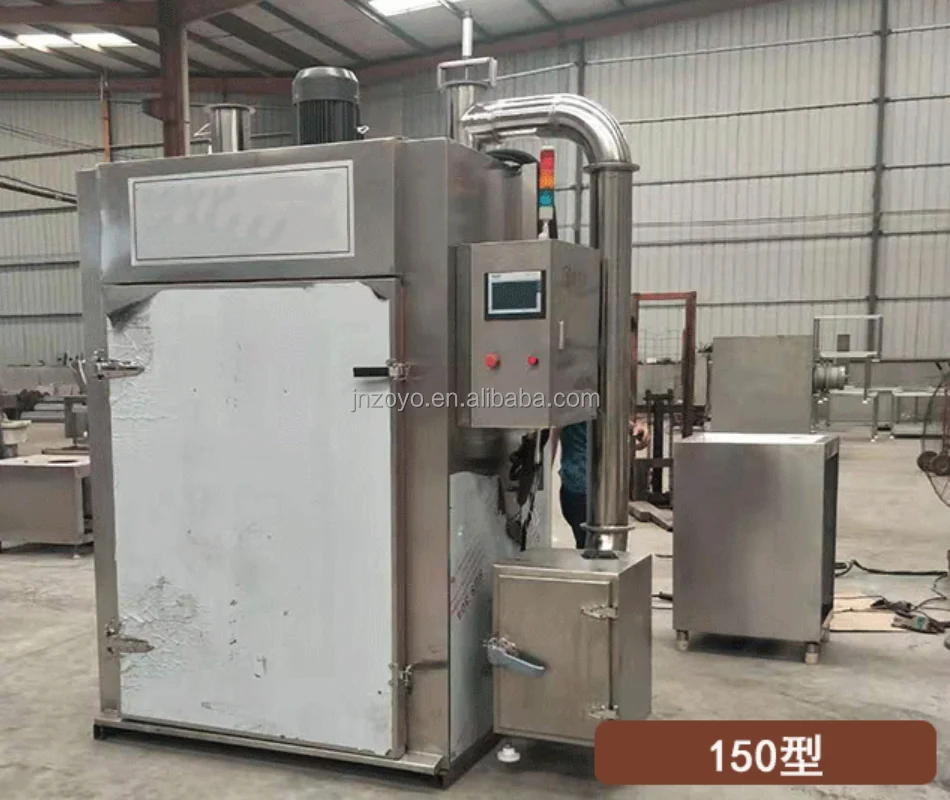

Other models for options
ZYY-30/50/100/150/250/1000 (can be customized as per customers' detailed requirements)


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

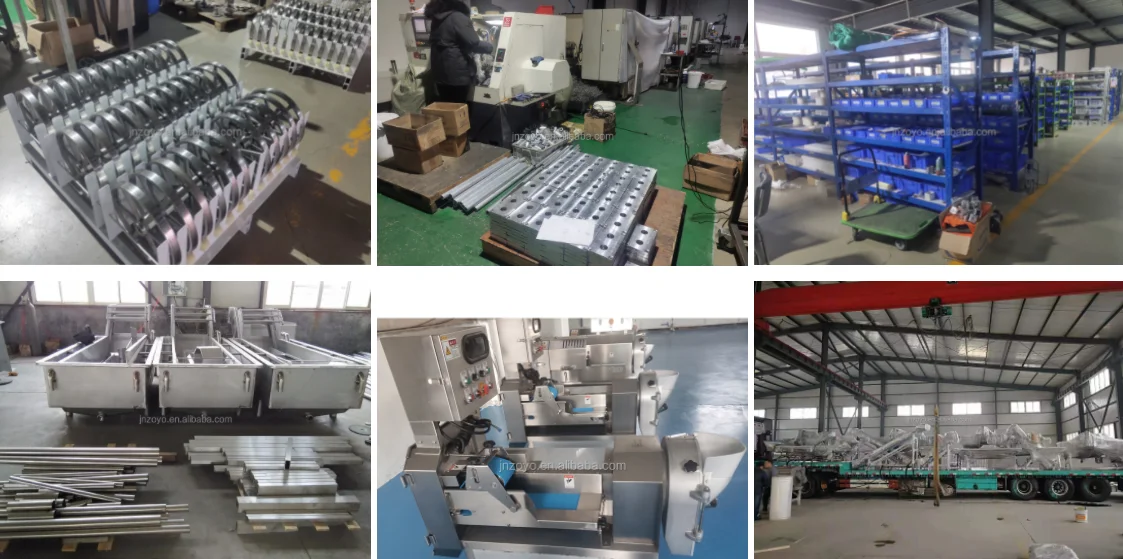

Company Profile
