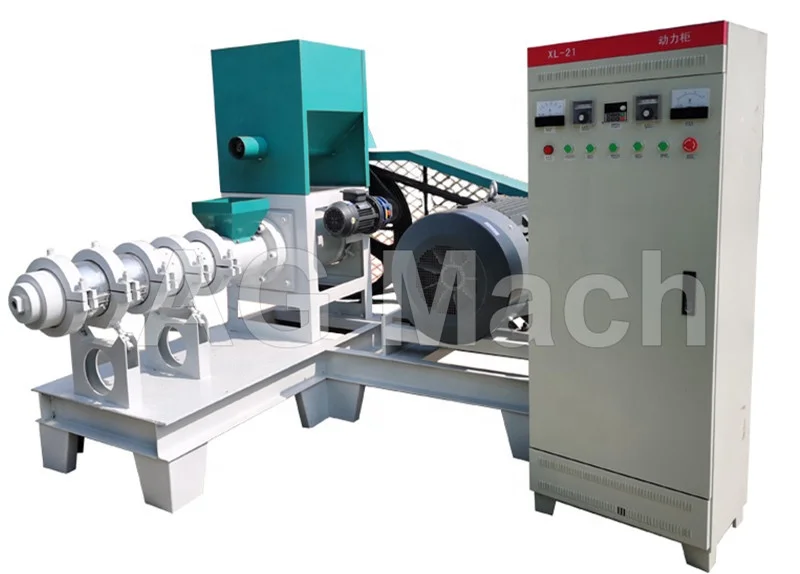

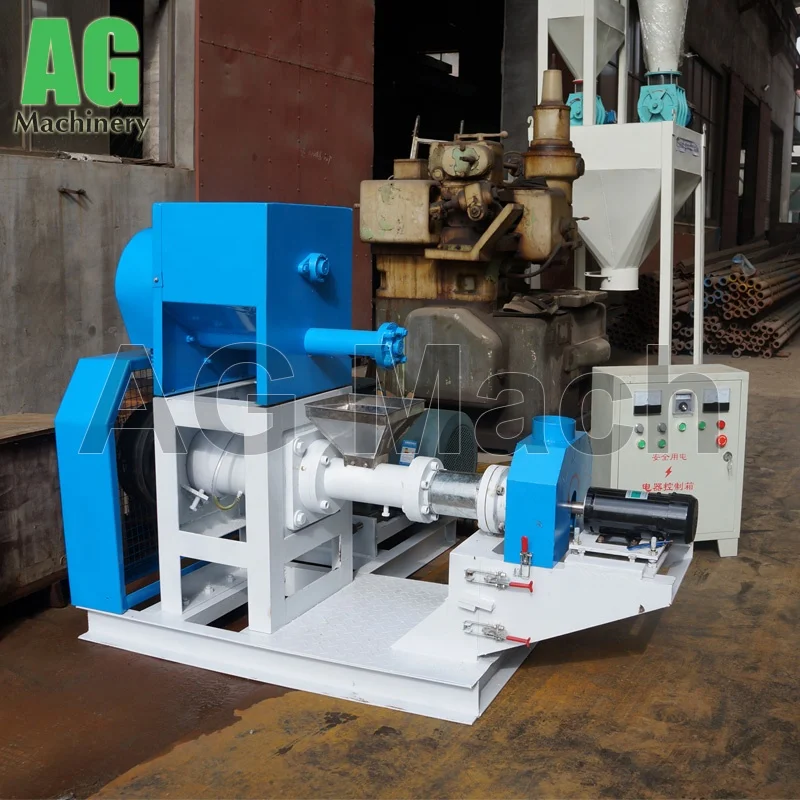

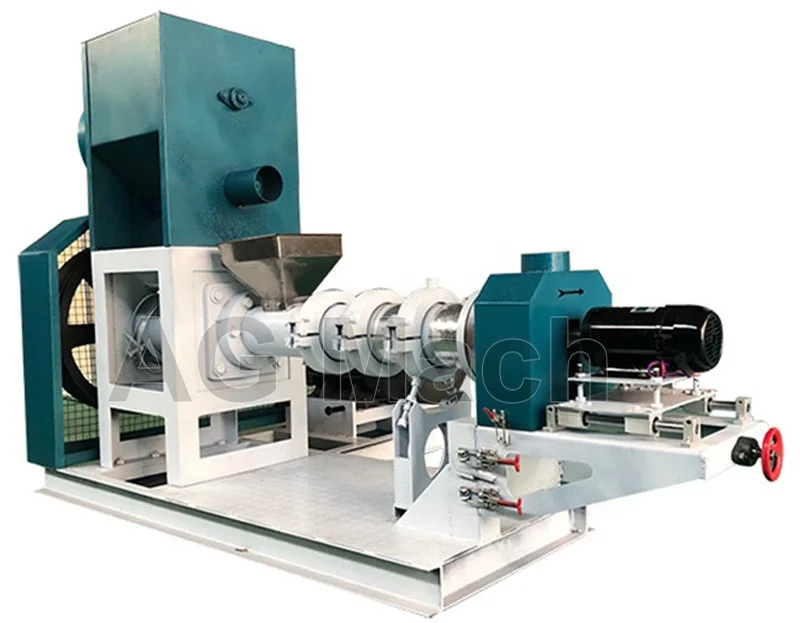

Automatic Corn puff snack extruder Soya bean extrusion machine
- Category: >>>
- Supplier: Zhengzhou AG Machinery & Equipment Co. Ltd.
Share on (1600337995498):
Product Overview
Description
Product Presentation
Introduction:
This soybean extruder adopts a combined main shaft, which can be adapted to the puffing processing of different materials and processing whole corn and soybeans. The supporting facilities are simple and the operation and maintenance are convenient. The main motor can be Siemens to ensure product quality.
The processing conditions of the Dry type extruder and the Wet type extruder are easily interchangeable, and the screw sleeve adopts an inlaid alloy steel bar structure, which has a longer service life.
The Full fat soybean extruder machine is widely used in extruded soybean, corn, suckling pig feed and other livestock and poultry feed, rice bran preservation, cotton meal, castor meal detoxification treatment, it is an ideal tool for feed processing enterprises.
The processing conditions of the Dry type extruder and the Wet type extruder are easily interchangeable, and the screw sleeve adopts an inlaid alloy steel bar structure, which has a longer service life.
The Full fat soybean extruder machine is widely used in extruded soybean, corn, suckling pig feed and other livestock and poultry feed, rice bran preservation, cotton meal, castor meal detoxification treatment, it is an ideal tool for feed processing enterprises.
Product Parameters
Model | Capacity for Soybean | Capacity for Corn/Maize | Main Power | Feeding Power | Screw Diameter |
DGP-70B | 200kg/h | 180-200kg/h | 18.5kw | 0.4kw | Φ70mm |
DGP-80B | 200-300kg/h | 200-250kg/h | 22kw | 0.4kw | Φ80mm |
DGP-90B | 350-400kg/h | 300-400kg/h | 37kw | 0.6kw | Φ90mm |
DGP-120B | 500-600kg/h | 500-550kg/h | 55kw | 0.6kw | Φ120mm |
DGP-135B | 800-900kg/h | 700-800kg/h | 75kw | 0.8kw | Φ135mm |
DGP-160B | 1000-1200kg/h | 900-1000kg/h | 90kw | 1.5kw | Φ160mm |
DGP-200B | 2000kg/h | 1800-2000kg/h | 132kw | 1.5kw | Φ200 |

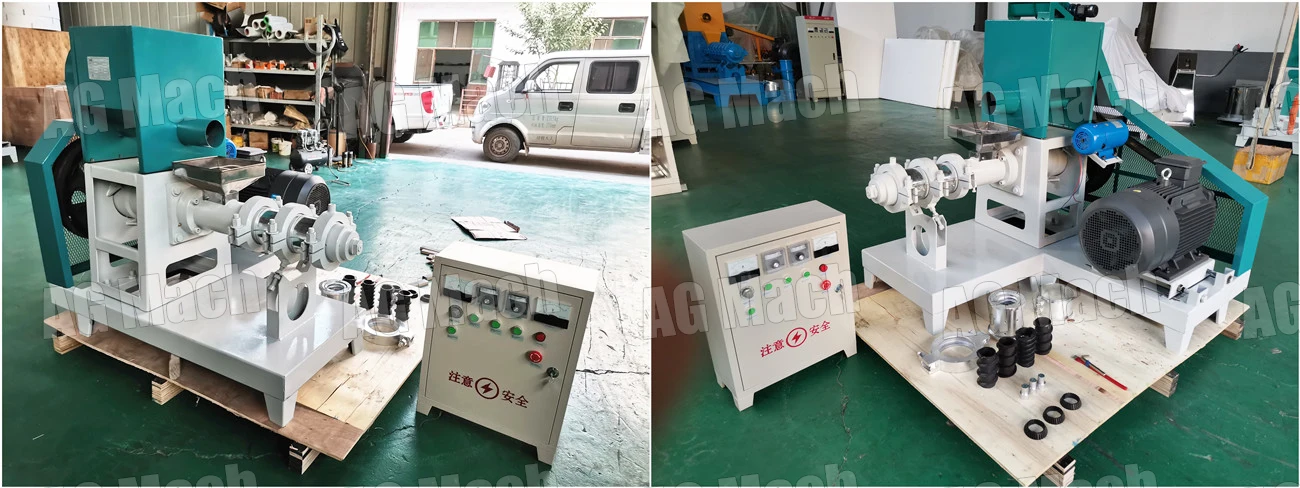

Detailed Images

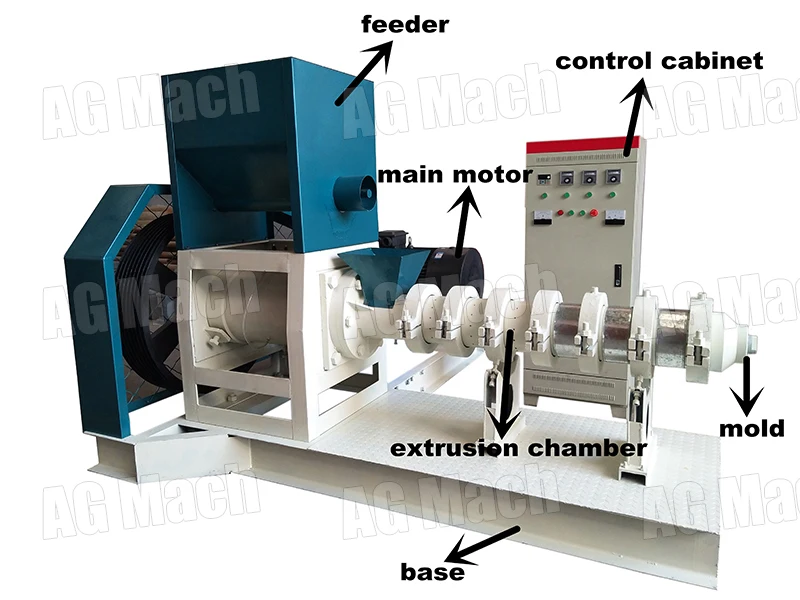

Working Principle of soybean extrusion machine:
1. The screw sleeve and screw are made of a special high-temperature resistant alloy just now.
They are formed by heat treatment.They are equipped with a unique pressurized die device to ensure the output and quality of the feed; and are equipped with an electric heating device to increase the boronization rate of the feed.
2. The main motor adopts high-quality Y series three-phase motor to ensure strong power.
3. The speed-adjustable feeding device is more convenient to operate, feeds evenly, and prevents material jams.
4. The discharging template is easy to replace. If you need feed with different diameters, you only need to change the hole
template. Ensure that the feed is clean and hygienic, which is conducive to protein denaturation and starch gelatinization, and is easy to absorb.
2. The main motor adopts high-quality Y series three-phase motor to ensure strong power.
3. The speed-adjustable feeding device is more convenient to operate, feeds evenly, and prevents material jams.
4. The discharging template is easy to replace. If you need feed with different diameters, you only need to change the hole
template. Ensure that the feed is clean and hygienic, which is conducive to protein denaturation and starch gelatinization, and is easy to absorb.

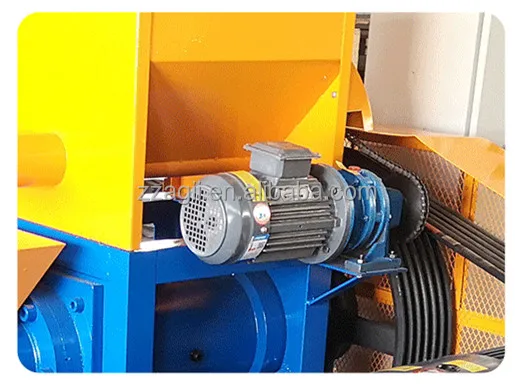

Feeding Motor
Copper core;
Solid quality;
Long service life

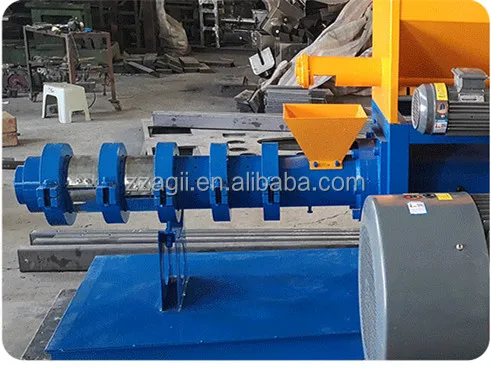

Puffing Chamber
Easy and Smooth Operation;
Fast molding
High efficiency extrusion

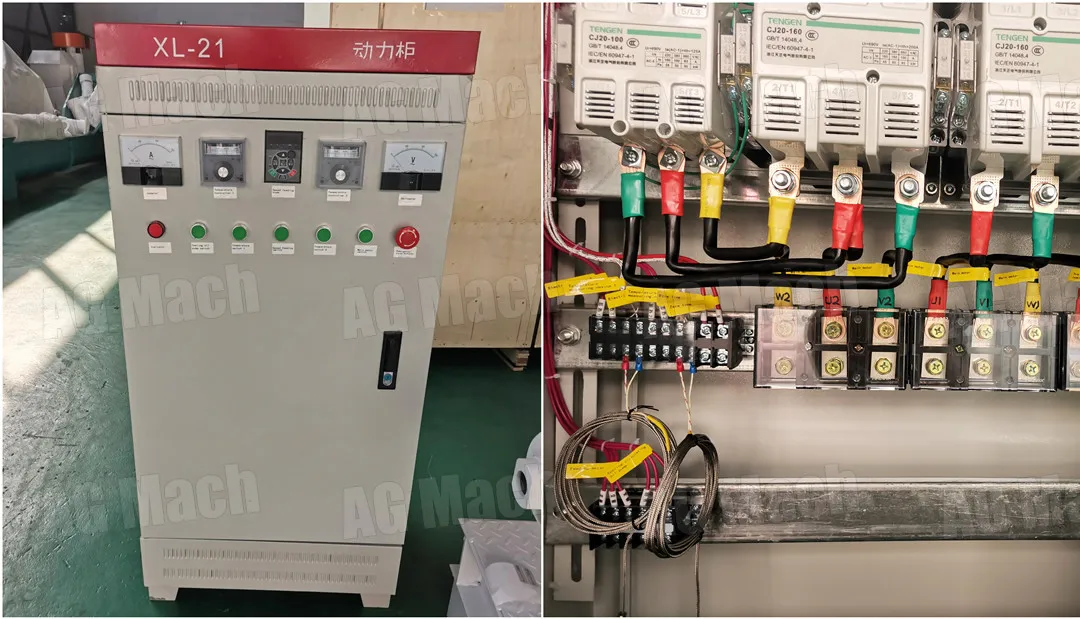

Controller Box
380V; 50Hz; three phases
(Can be customized as you need)

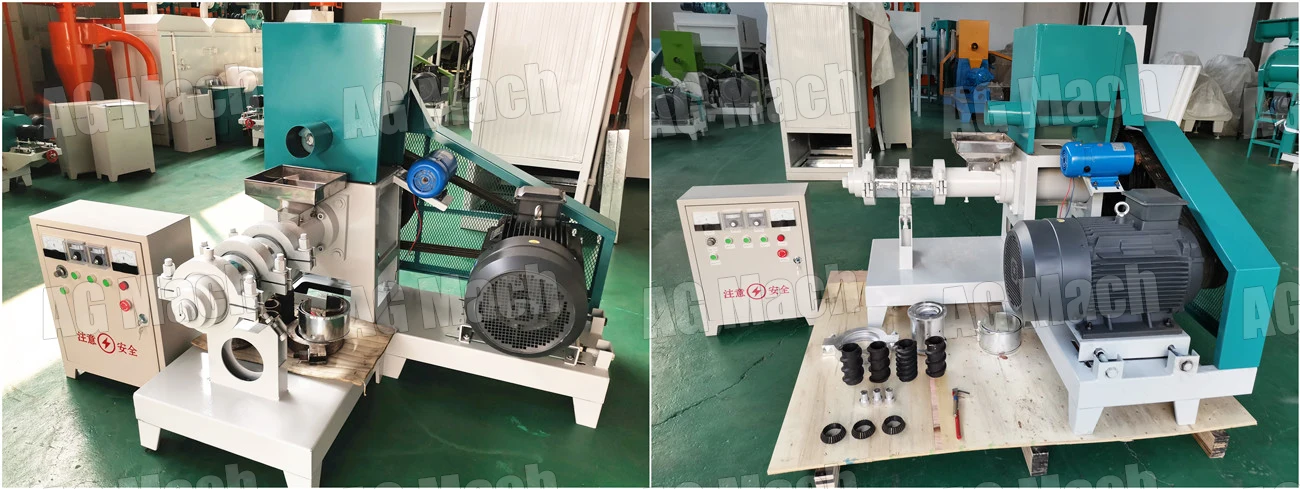

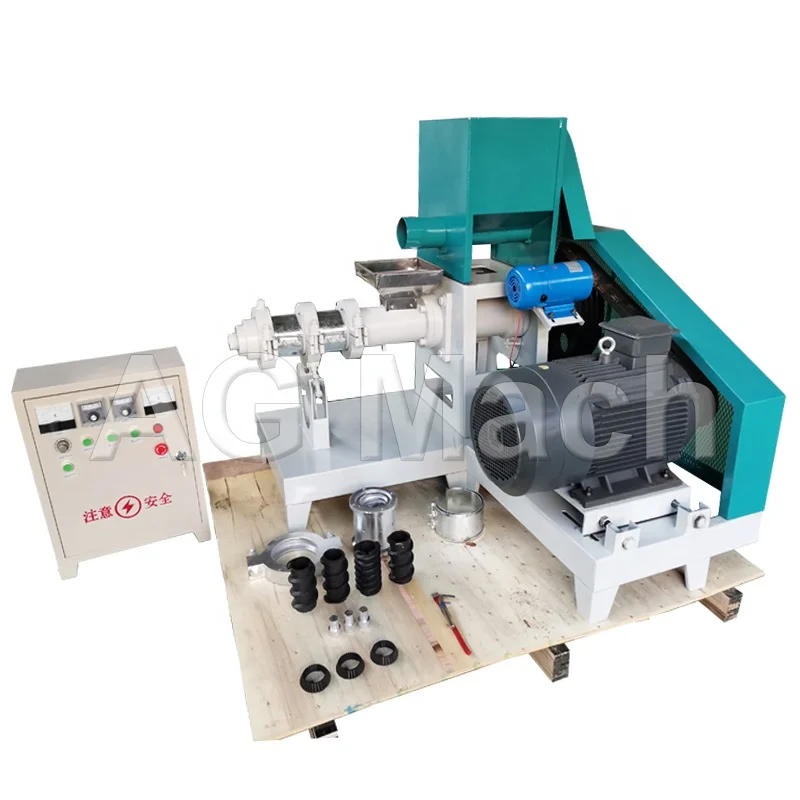

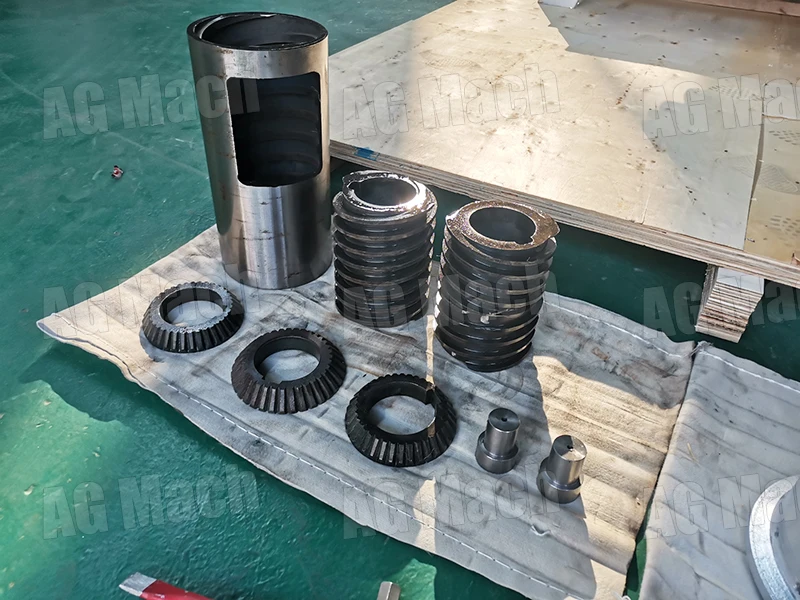

Spare Parts
1. Forming Mold
2. Screw sleeve
3. Wearing sleeve
4. Screw / thruster
5. Heating sheet
6. Blade/cutter
Raw Materials

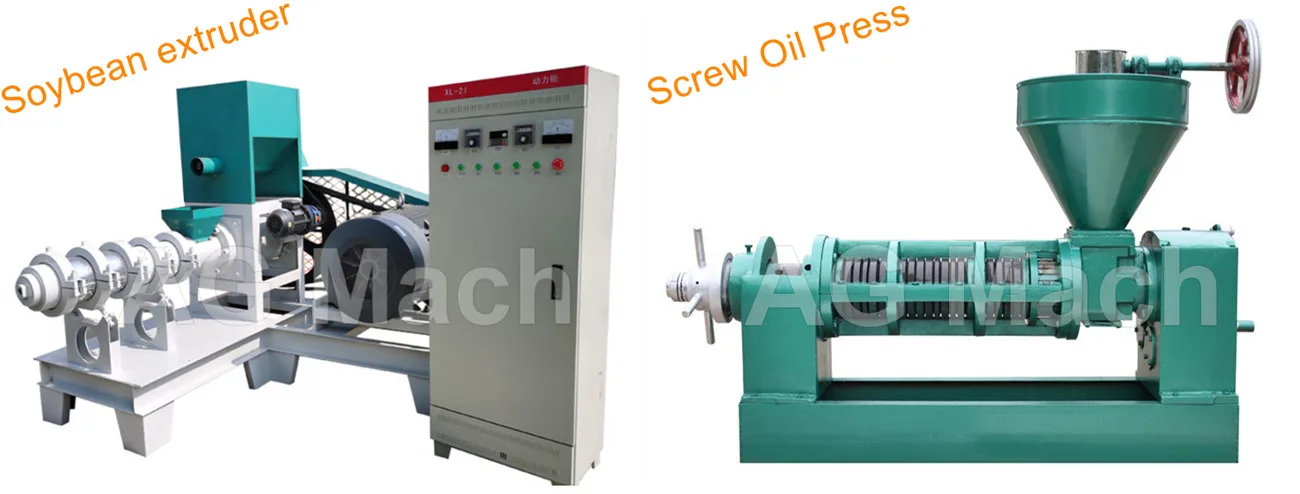

Soybean extruder is mostly used for soybean pretreatment, that is, a series of treatment processes such as cleaning, peeling, rolling, and puffing before soybean oil extraction, which makes the puffed to achieve better oil extraction effects.
The extruded material temperature is generally 110-120 degrees, the moisture after puffing is 11-13%, and the suitable immersion moisture is about 8-10%, and the temperature is 58-62°C.
In order to make the moisture content of the extruded material meet the requirements of leaching process, drying and cooling are required in most cases.
After cooling, the material has a moisture content of 8.5-10% and a discharge temperature of 58-62°C, which is more suitable for leaching and oil extraction.
Related Products

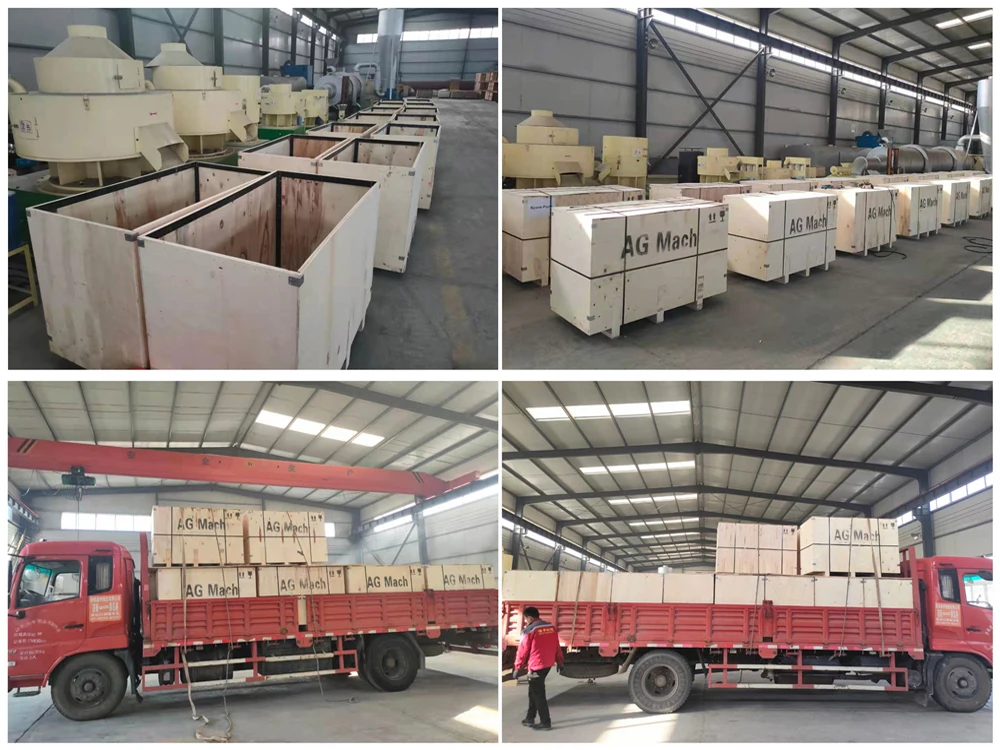

Packing&Shipping
