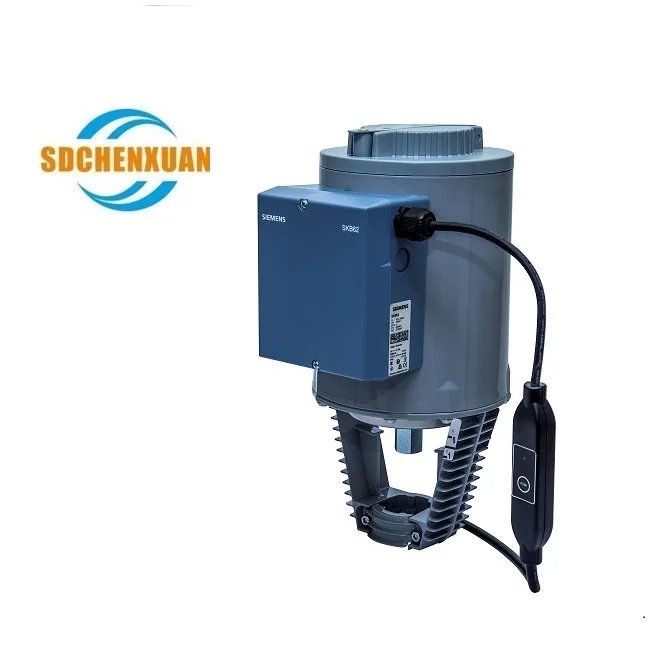

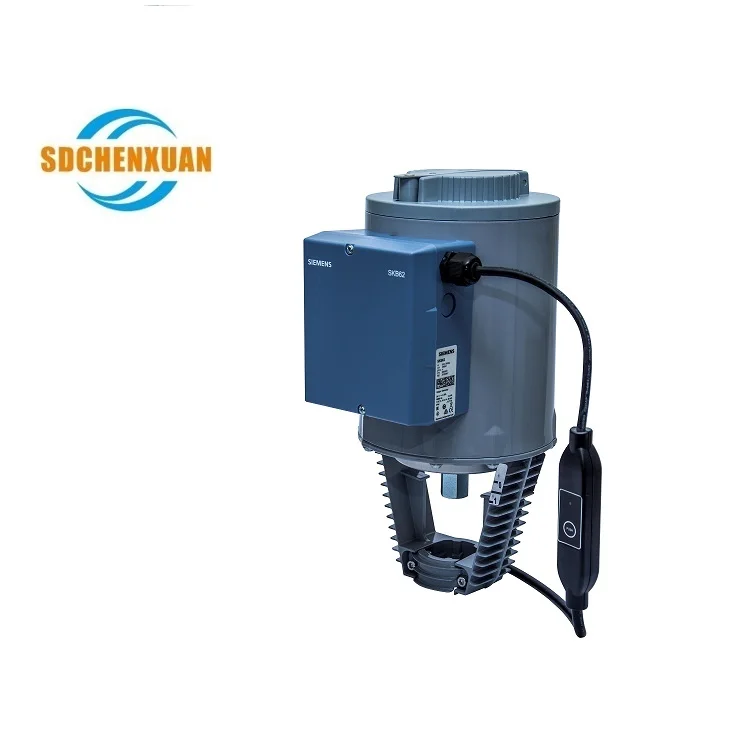

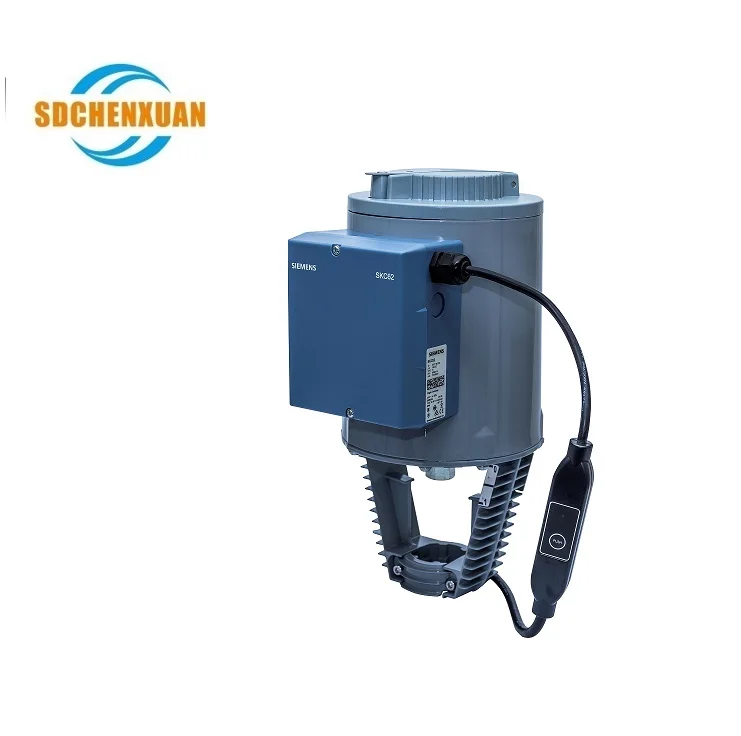

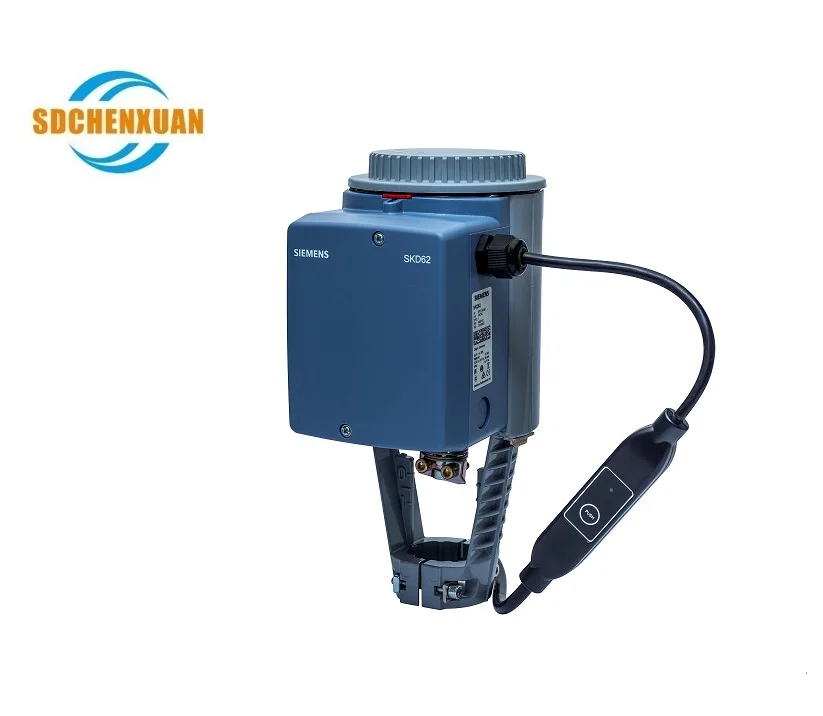

High Quality With Cheap Price Siemens SKD62/MO New And Original Have In Stock
Banner
Product Description

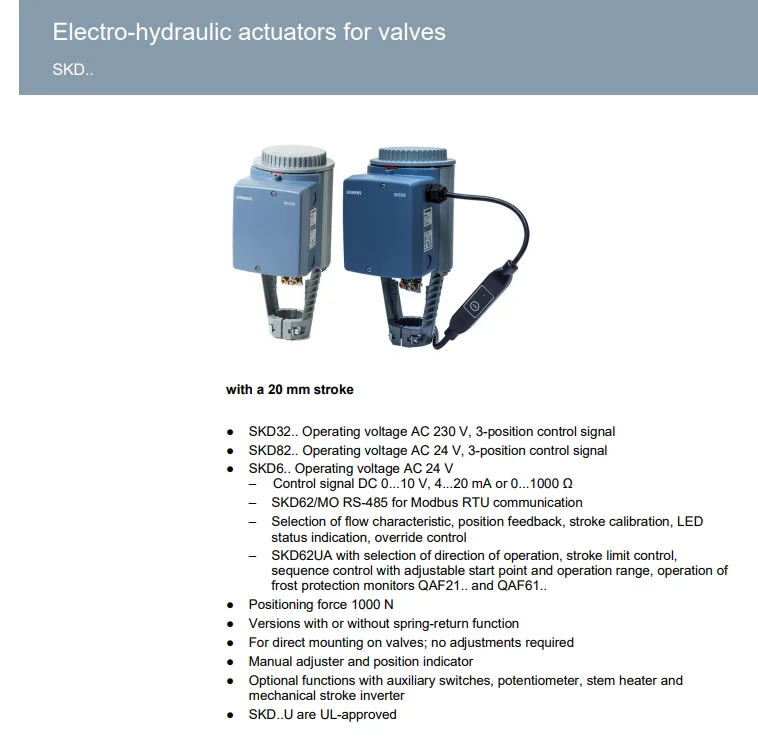

with a 20 mm stroke ● SKD32.. Operating voltage AC 230 V, 3-position control signal ● SKD82.. Operating voltage AC 24 V,
3-position control signal ● SKD6.. Operating voltage AC 24 V – Control signal DC 0...10 V, 4...20 mA or 0...1000 Ω – SKD62/MO
RS-485 for Modbus RTU communication – Selection of flow characteristic, position feedback, stroke calibration, LED status
indication, override control – SKD62UA with selection of direction of operation, stroke limit control, sequence control with
adjustable start point and operation range, operation of frost protection monitors QAF21.. and QAF61.. ● Positioning force 1000 N
● Versions with or without spring-return function ● For direct mounting on valves; no adjustments required ● Manual adjuster and
position indicator ● Optional functions with auxiliary switches, potentiometer, stem heater and mechanical stroke inverter ●
SKD..U are UL-approved
3-position control signal ● SKD6.. Operating voltage AC 24 V – Control signal DC 0...10 V, 4...20 mA or 0...1000 Ω – SKD62/MO
RS-485 for Modbus RTU communication – Selection of flow characteristic, position feedback, stroke calibration, LED status
indication, override control – SKD62UA with selection of direction of operation, stroke limit control, sequence control with
adjustable start point and operation range, operation of frost protection monitors QAF21.. and QAF61.. ● Positioning force 1000 N
● Versions with or without spring-return function ● For direct mounting on valves; no adjustments required ● Manual adjuster and
position indicator ● Optional functions with auxiliary switches, potentiometer, stem heater and mechanical stroke inverter ●
SKD..U are UL-approved
Attribute | Value |
Positioning signal | DC 0...10, DC 4...20, 0...1000 V |
Positioning force | 1000 N |
Stroke | 20 mm |
Spring return function | SKD62.. |
Position feedback | DC 0...10, DC 4...20 V |
Degree of protection | IP54 |
Medium temperature | -25…150 °C |
Ambient temperature, operation | -15...50 °C |
Mounting position | Upright to horizontal |
