Bidirectional Tension and Compression Charge Output Type Force Sensor CL YD 2312
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (1600338396207):
Product Overview
Description
Piezoelectric Force Transducer
Features
l Fast response of dynamic measurement
l Long duration of static calibration
l Little error of tension - compression sensitivity
Specifications
Model:CL-YD-2312
Sensitivity(20±5℃) | ~3 pC/N |
Sensitivity Error | ≤2% |
Measurement Range | ±5 kN |
Overload | 120 % |
Linearity | ≤1% F·S |
Hysteresis | <1% F·S |
Repeatability | <1% F·S |
Capacitance | 18 pF |
Insulation Resistance | >1013 Ω |
Resonant Frequency | 50 kHz |
Operating Temperature Range | -40~+150 ℃ |
Weight | 50 g |
Case Material | Stainless Steel |
Mounting | Through hole φ6 |
Sensing Element | 2-M5 |
Output | Side L5 |
Accessories |
|

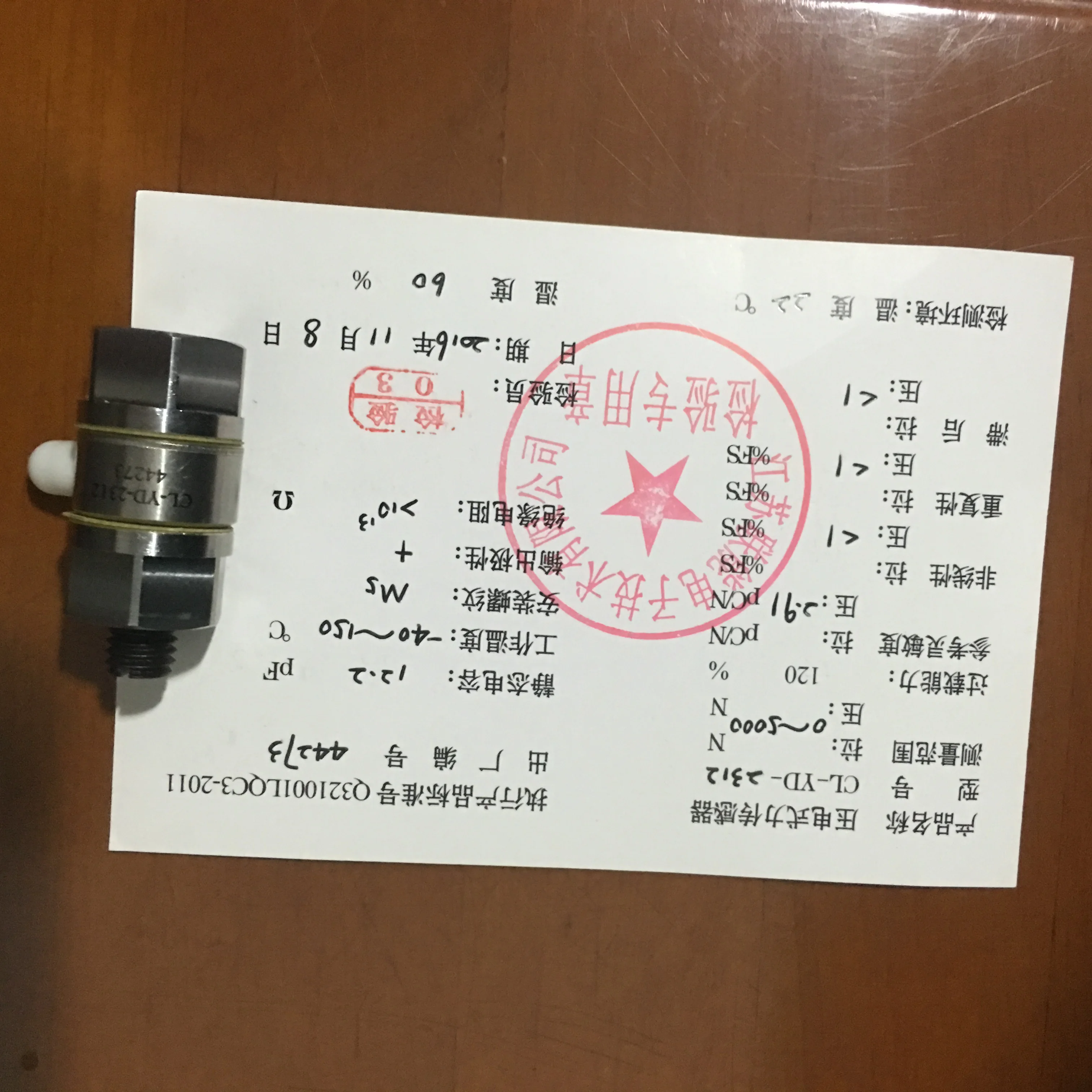

Certificate | Calibration parameter |
Protection cap | 1 |
2m,L5/ L5 STYV-1 | 1 |

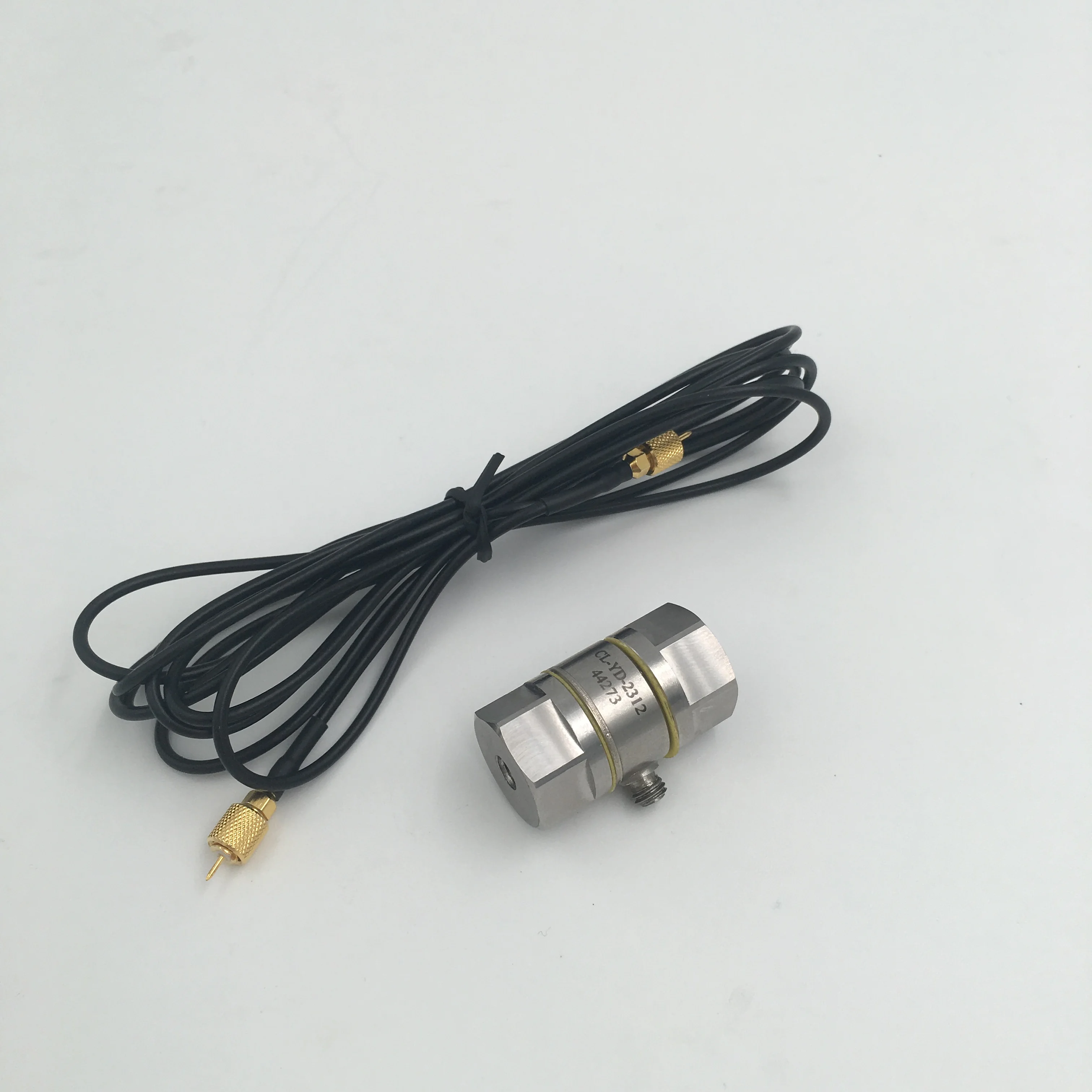

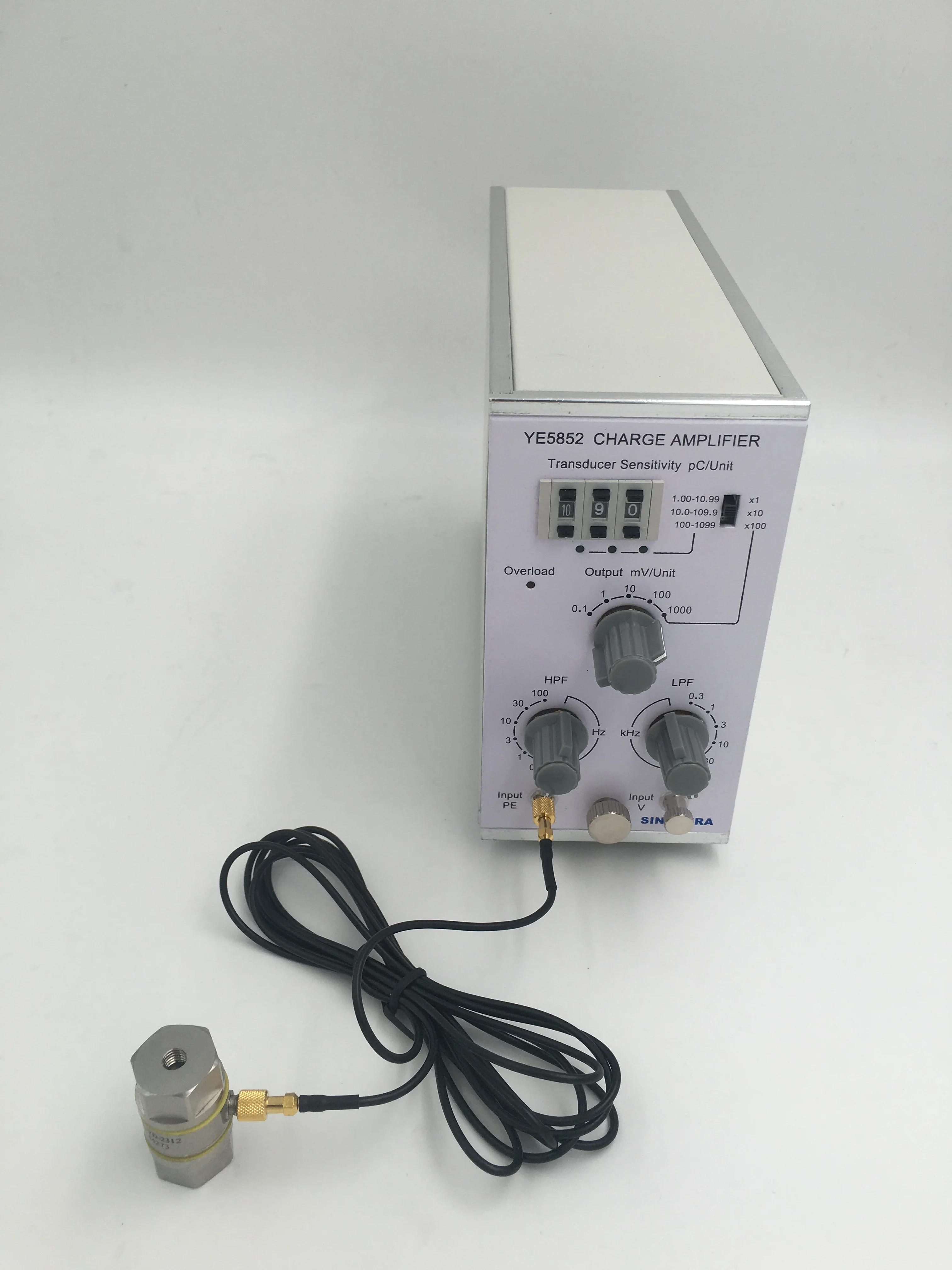

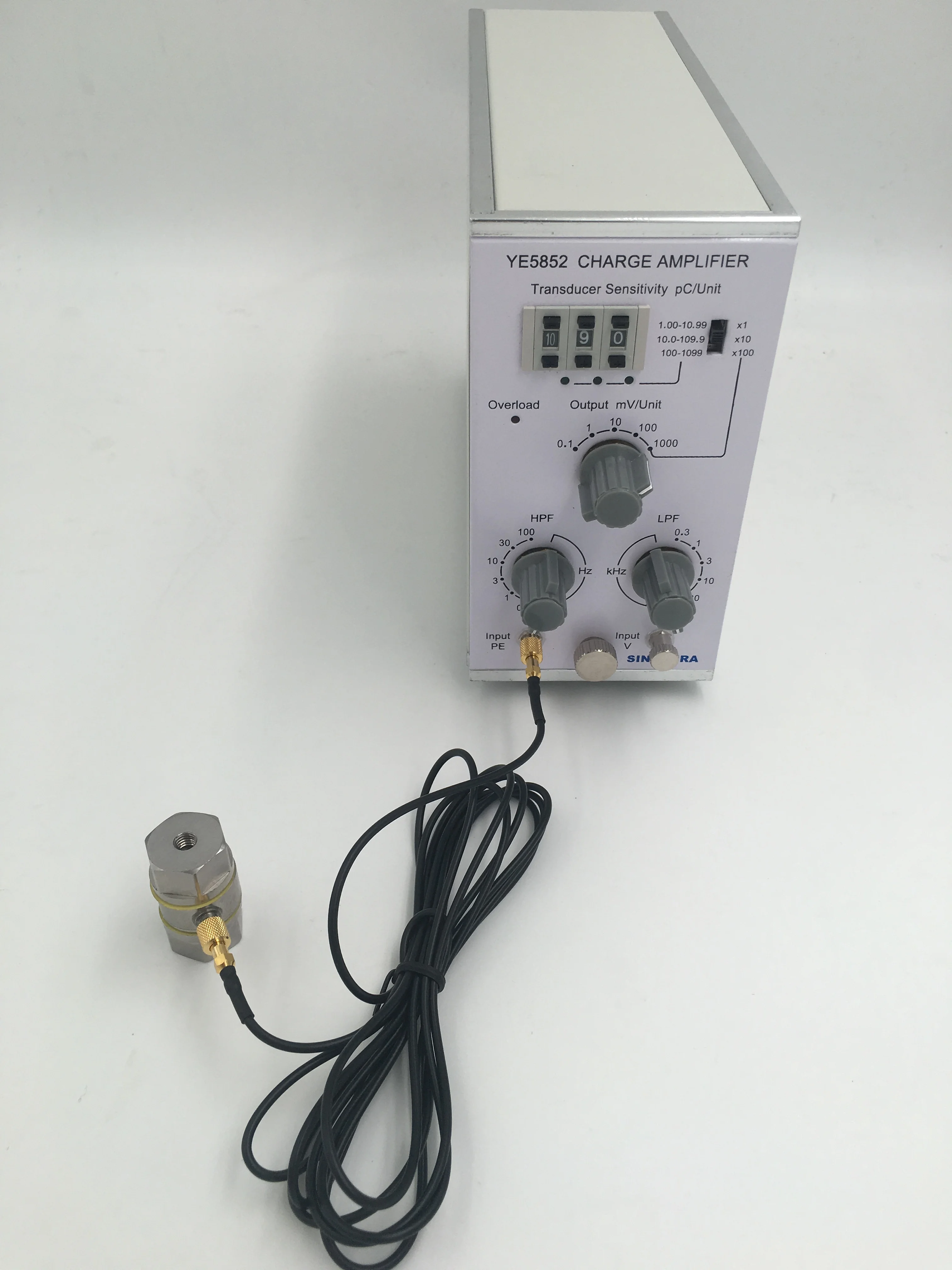

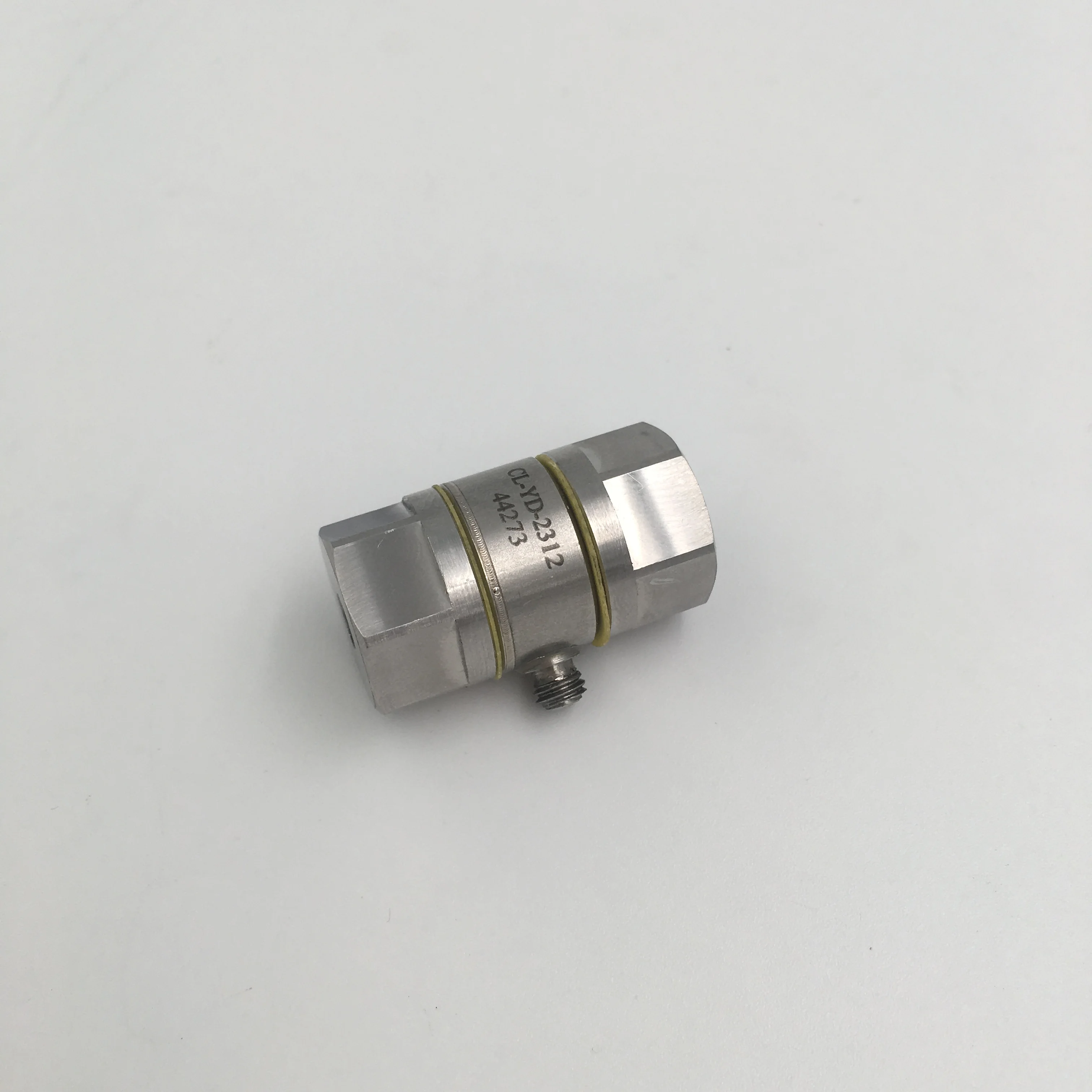

Detailed Images
Company Information
SINOCERA PIEZOTRONICS, INC was established in 2001, with 34.6 million yuan registered capital and factory area more than 9000m2.We are mainly engaged in the development, production, and sales of high-performance piezoelectric ceramic materials, piezoelectric sensors and dynamic testing instruments.
We are committed to the research and application development of high performance of piezoelectric ceramic materials. Successfully developed all kinds of different performance piezoelectric ceramic products, and the piezoelectric ceramic material ultra-high piezoelectric constant (D33 >800PC) has reached the international advanced level.
Our products has get a good reputation all over the world, for example, our professional D33 Test Meter was very popular. Also we have a good quality control system, have passed ISO9001. Some of the products have received the certificate for measurement assurance and the explosion proof certificate, Rohs certificate, CE certificate and so on.
