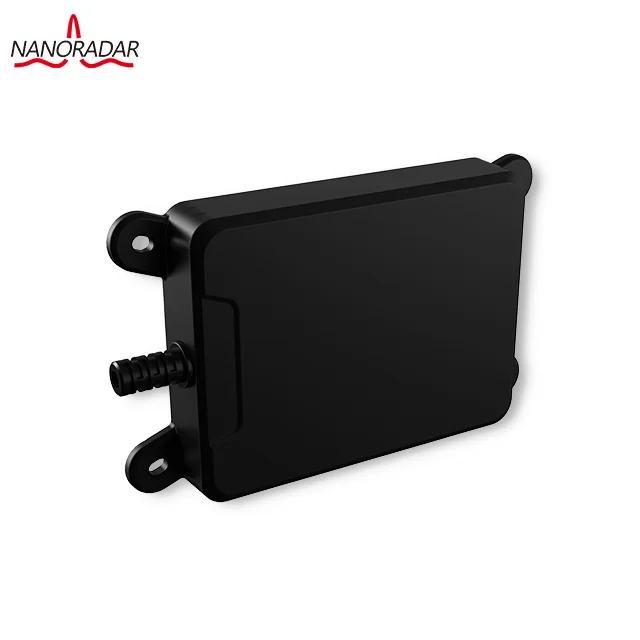

SR60 60M Perimeter Radar sensor for human motion detect
- Category: >>>
- Supplier: Hunan Nanoradar Science And Technology Co. Ltd.
Share on (1600338486994):
Product Overview
Description

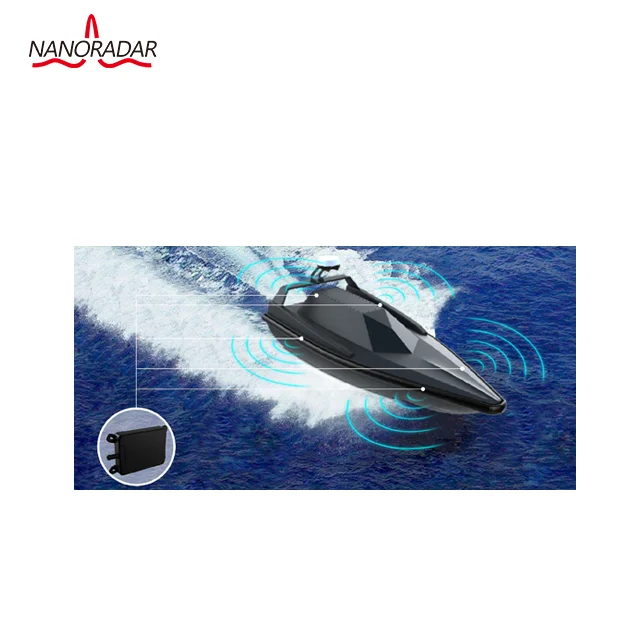

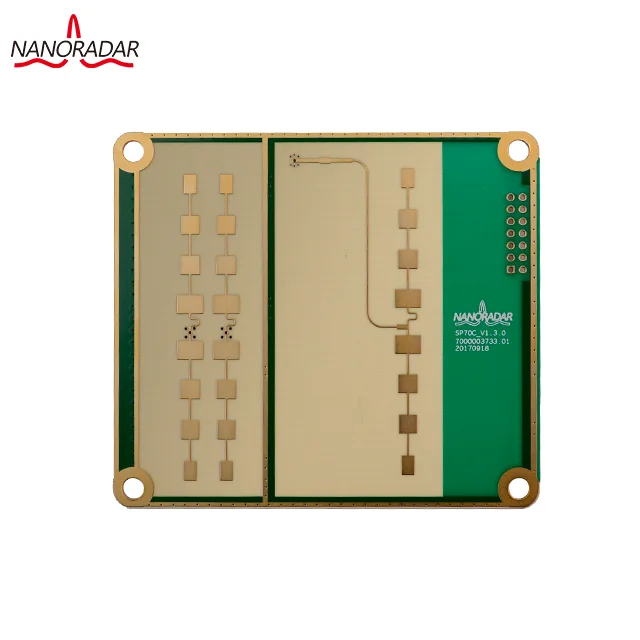

SR60 is a K-band radar sensor developed by Nanoradar, which utilizes 60GHz-ISM-Band and the design of double receiving antennas. With the advantages of long range measurement, small size, high sensitivity, light weight, easy to integrate and stable performances, it is now widely applied in the industrial measurement and collision avoidance, the personnel positioning and track in security fields ,unmanned ship range and collision avoidance, and automotive active safety and auto pilot and other fields. Therefore it is highly recognized by our partners.
Series:
60GHz MMW radar
Application:

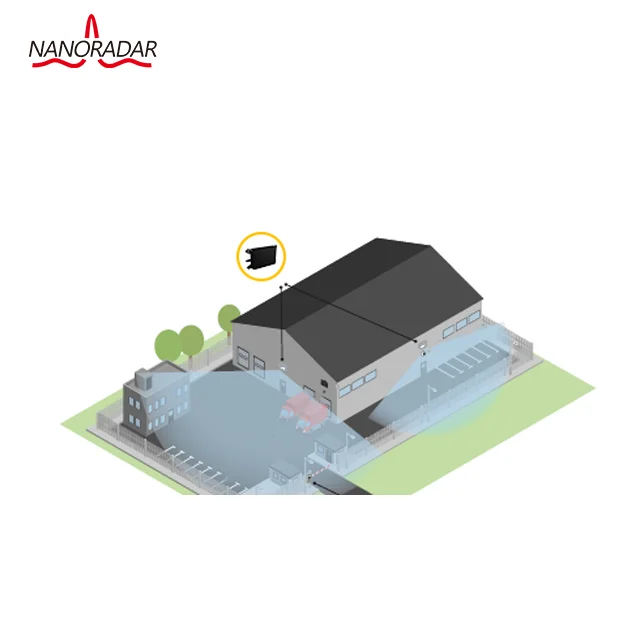

Applications: Perimeter Protection for Residential Villa,TrainStations,Warehouse
Features:
- Work in 60GHz-ISM for the detection of moving targets
- Accurately measure the moving direction ,range, velocity and angle of moving targets
- With UART interface
Specifications:
PARAMETER | CONDITIONS | MIN | TYP | MAX | UNITS |
System characteristics | |||||
Transmit frequency | 60.5 | 61.5 | GHz | ||
Output power(EIRP) | ≤21dBm | dBm | |||
Modulation type | FMCW | ||||
Update rate | 15 | Hz | |||
Communication interface | TTL&CAN | ||||
Distance/speed characteristics | |||||
Distance range | 1dBsm(Movingtarget) | ≥60m@±50° | m | ||
Speed range | -25 | 25 | m/s | ||
Antenna characteristics | |||||
Beam width/TX | Horizontal(-6dB) | -42 | 42 | deg | |
Elevation(-6dB) | -11 | 11 | deg | ||
Other characteristics | |||||
Supply voltage | 5 | 12 | 32 | V DC | |
Weight | 80 | g | |||
Outline dimensions | 63*71mm | mm | |||
About Nanoradar:
Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV, automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.
Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.
1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.
2. MR72---77GHz 40-80 meters UAV collision avoidance radar
3. CAR28T / 28F---Vehicle BSD/LCA radar
Heavy-duty vehicle collision avoidance radar.
4. MR76---77GHz 160 meters Automotive ADAS radar ( ACC/AEB)
5. NSR80W/NSR100W/NSR300W---Security perimeter intrusion detection
