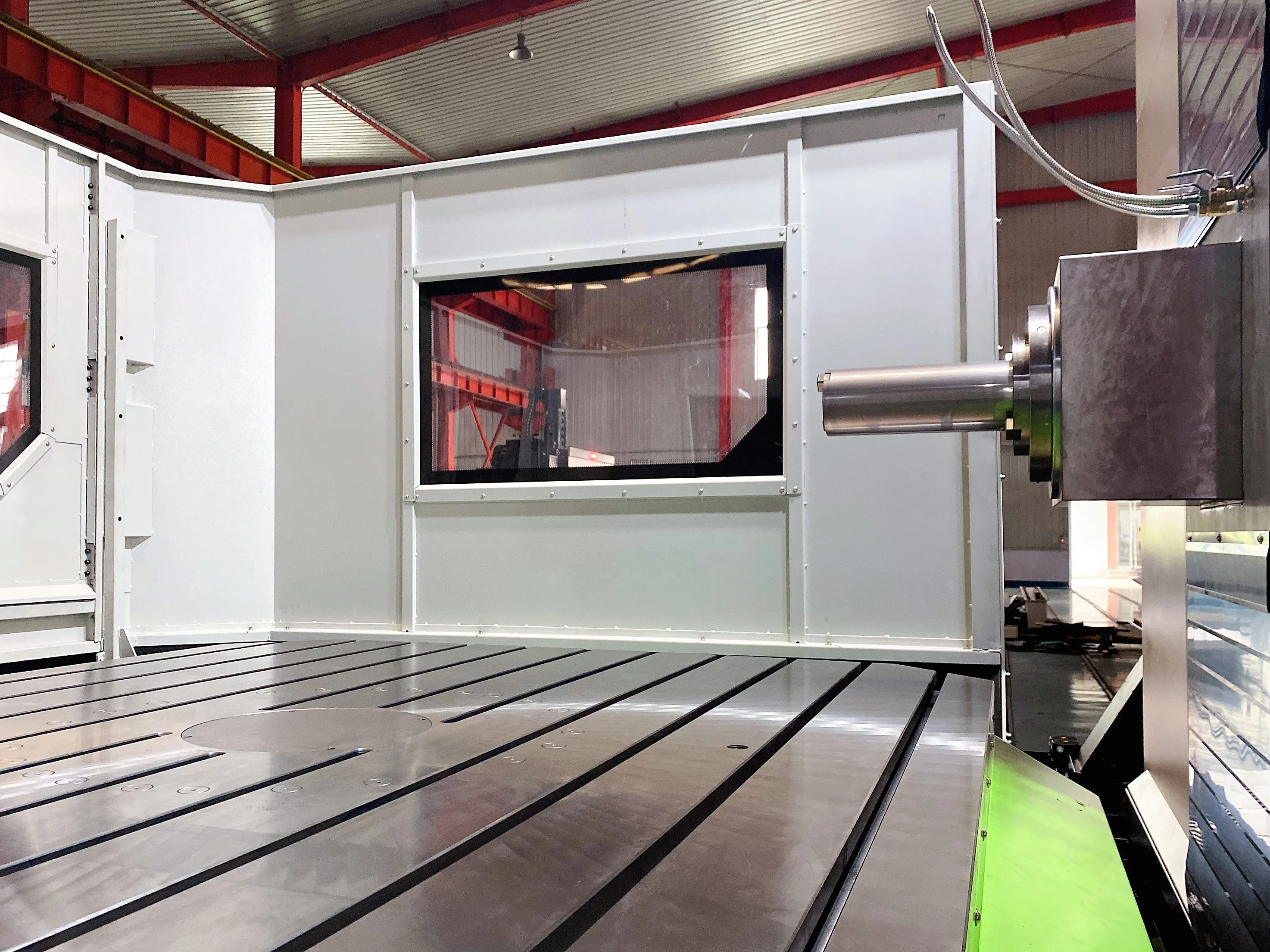

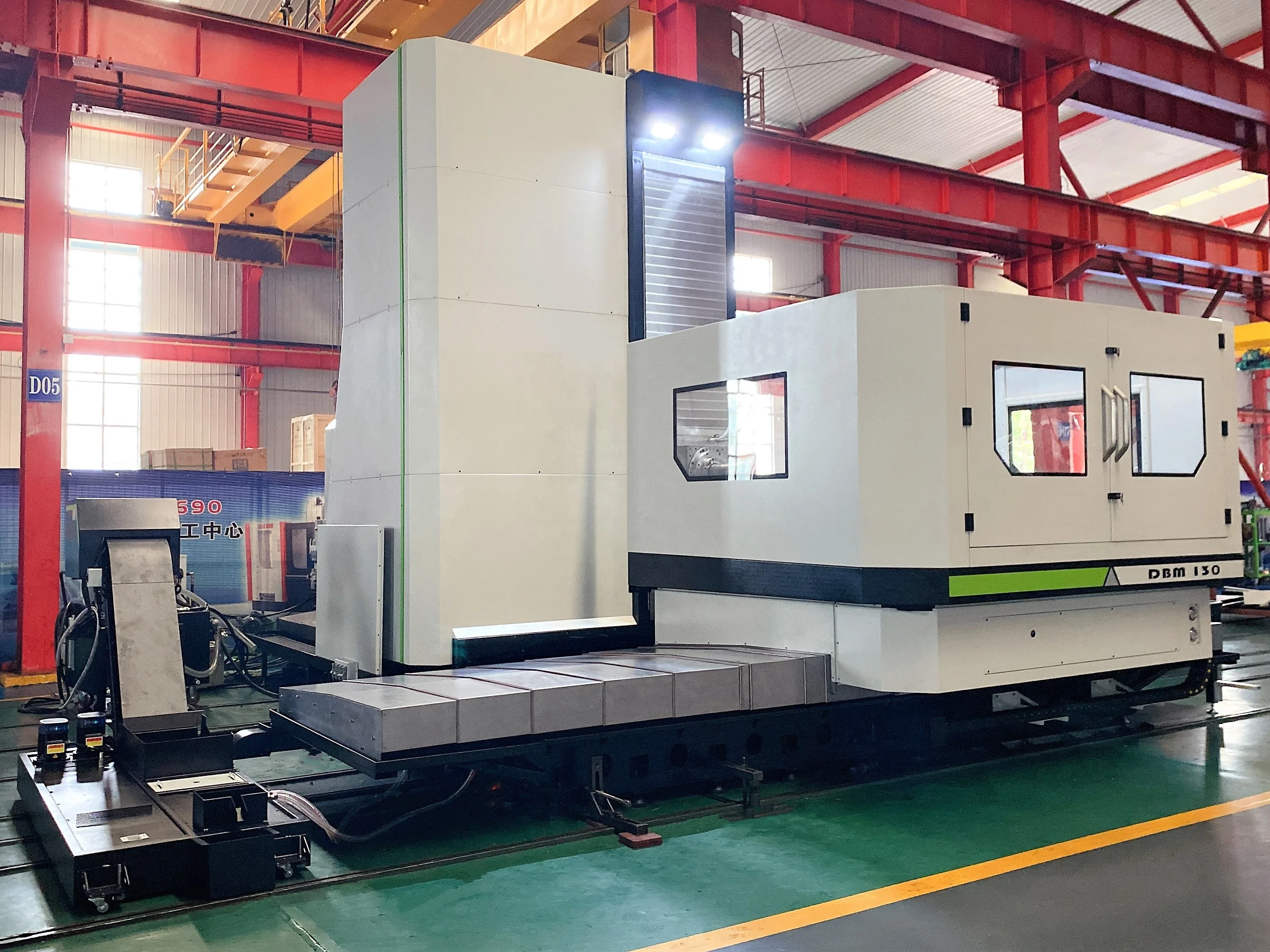

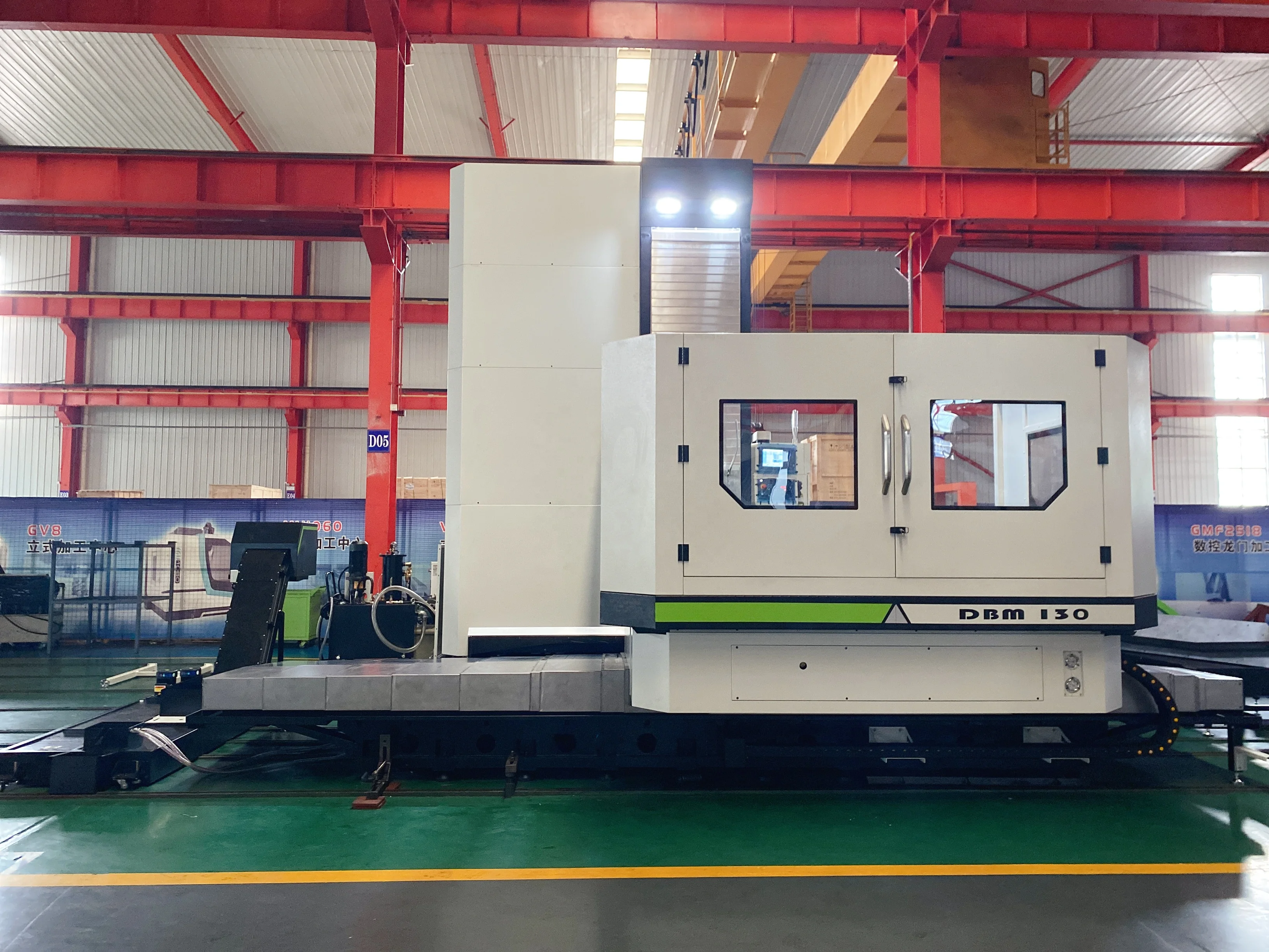

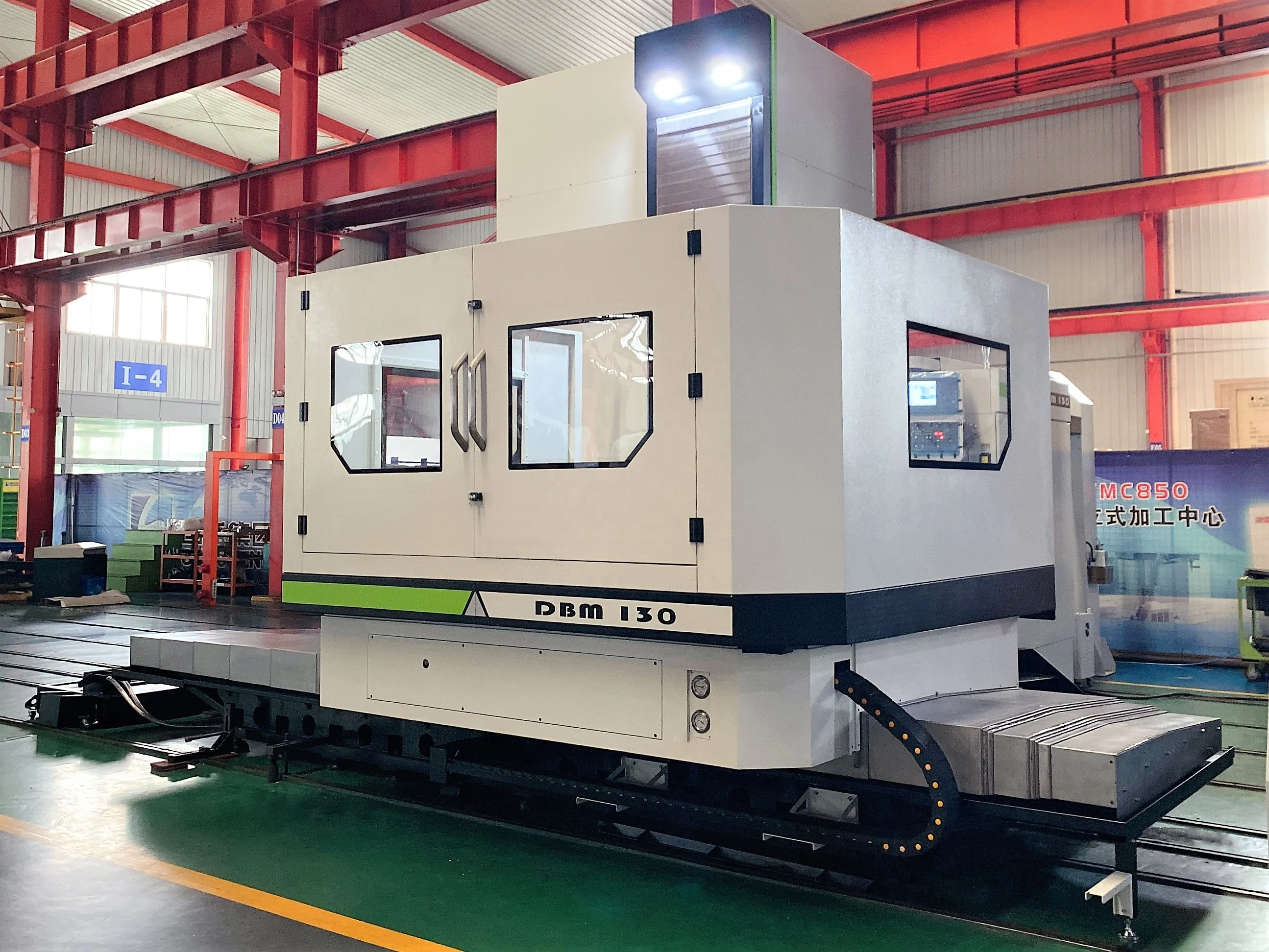

DBM130B горизонтальный станок с ЧПУ для Расточного бурения, используемый в обработке отверстий двигателя
- Category: Boring Machines >>>
- Supplier: Nantong Guosheng Intelligence Technology Group Co. Ltd.
Share on (1600338574528):
Product Overview
Description
Product Description
Details Images
1. Mihana casting, one - piece casting molding, high earthquake resistance.
2. High precision C3 class ball screw and heavy load P class roller linear slide rail, to ensure the axial and radial heavy cutting force.
3. The gear spindle head is cast in one piece. The spindle uses cylindrical double row roller bearings with large spacing, high precision and high rigidity NN to ensure stronger rigidity and machinability.
4. The rotary table is driven by worm gearu,imported hydraulic cylinder disc type locking, strong clamping mechanism can meet the cutting conditions of strong.
Specification
Model | Unit | DBM-130B | ||
Travel | ||||
X-axis travel | mm | 3000 | ||
Y-axis travel | mm | 2500 | ||
Z-axis travel | mm | 1500 | ||
W-axis travel | mm | 700 | ||
Spindle | ||||
Spindle center to worktable surface | mm | 125~2625 | ||
Spindle nose to worktable center | mm | 100~2300 | ||
Spinde diameter | mm | 130 | ||
Spindle taper | BT50 | |||
Rotating spindle speed | rpm/min | 35~3000 | ||
Number of steps of rotating speed of spindle | 2 Steps | |||
Spindle drive mode | Belt | |||
Spindle motor | kw | Fanuc 22/30 | ||
Max.torque of spindle | Nm | 3011/4109 | ||
Worktable | ||||
Table size | mm | 1800*2200 | ||
Division angle | deg | 0.001° | ||
Reference aperture | mm | Φ140H7 | ||
Max. load on worktable | kg | 15000 | ||
T-shot | mm | 22H7*160*11 | ||
Precision | ||||
Positioning accuracy of rotary table | arc-sec | 10″ | ||
Repeated Positioning accuracy of rotary table | arc-sec | 4″ | ||
Positioning accuracy | mm | 0.015 | ||
Repeated Positioning accuracy | mm | 0.01 | ||
Drive Mode | ||||
XYZ-axis | Direct-drive | |||
W-axis | Belt-drive | |||
Y-axis counterweight | Hyd.type | |||
Feed speed | ||||
Cutting speed X/Y/Z/W | m/min | 10/10/10/5 | ||
Rapid traverse speed X/Y/Z/W | m/min | 10/10/10/8 | ||
Tool magazine（Optional） | ||||
Capacity of tool magazine | 60 | |||
Max. tool weight | kg | 25 | ||
Max. tool length | mm | 500 | ||
Max. tool diameter (No adjacent tool) | mm | Φ125/250 | ||
Others | ||||
Air pressure | kgf/cm² | 6 | ||
Voltage | kva | 88 | ||
Tank Capacity | L | 550 | ||
Floor area (length*width*height) | mm | 7690*7790*5600 | ||
Weight | kg | 49000 | ||

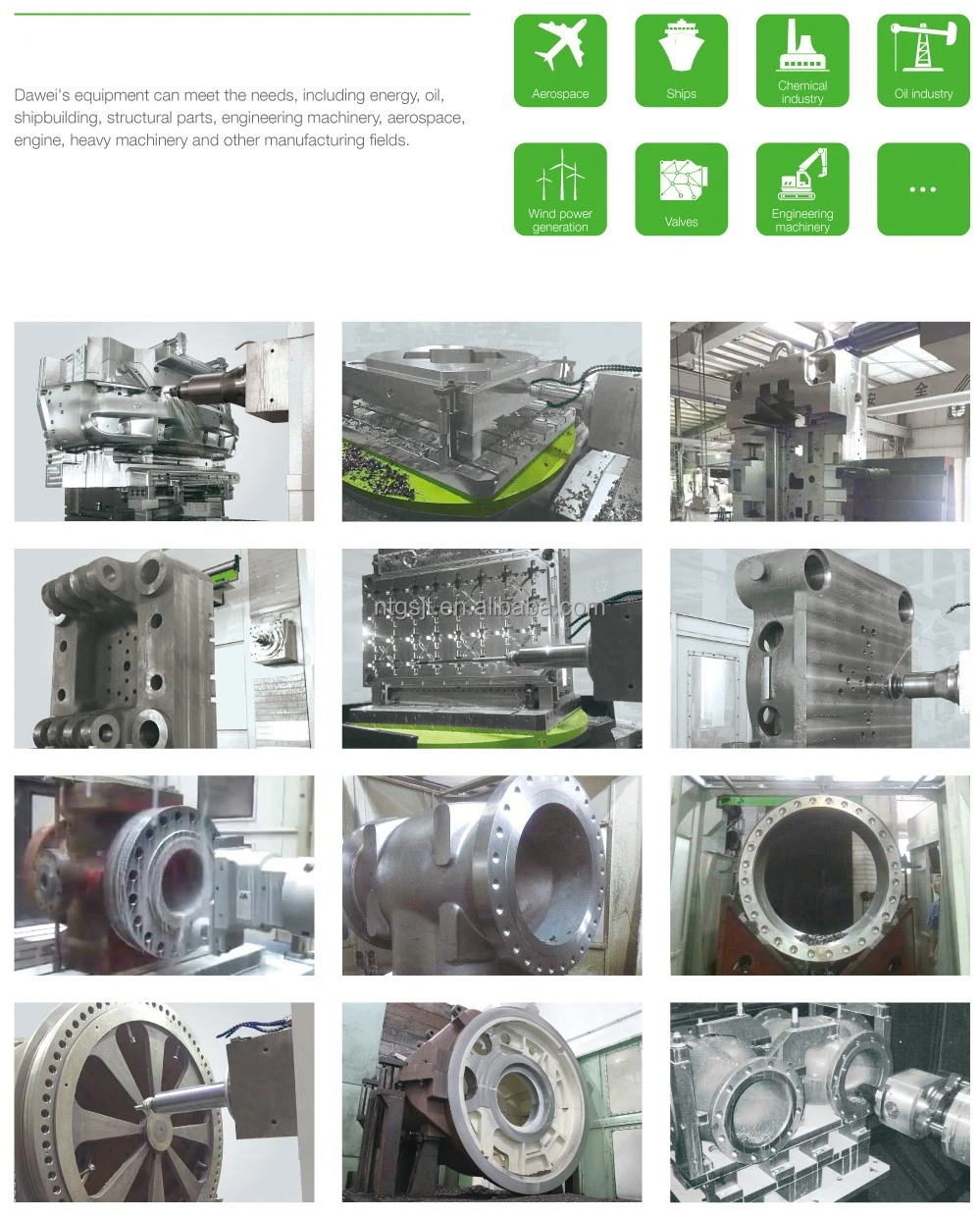

Application area
Packing & Delivery
To be packed in fumigation wooden case(s) ,or in carton(s),suitable for long distance ocean/overland/air freight transportation,well protected against moisture and shocks,pressure wetness.
Company Profile
Nantong Guosheng Machinery & Power-Generating Group Co. Ltd. is specialized in producing the advanced CNC Horizontal
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
