Factory Wholesale High Quality Sorting And Polishing Machine Used for all kinds of capsule
- Category: Capsule Polisher >>>
- Supplier: Nantong Jianfeng Machinery Co. Ltd.
Share on (1600338598679):
Product Overview
Description
Product Description

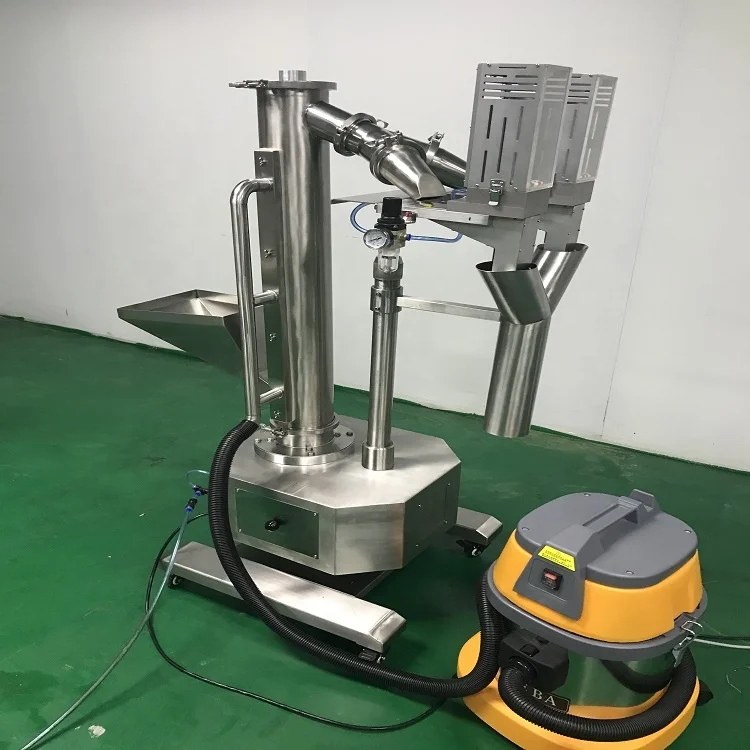

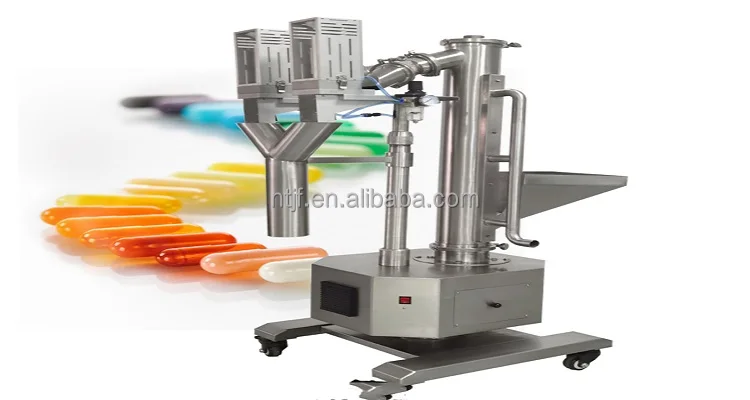

JF-3 Vertical Capsule Polishing Machine with Double Sorter
This is a vertical & double sorting polisher which is with high working capacity and good polishing effect. JF-3 vertical capsule polishing machine is fully made of 304 stainless steel, installed with frequency converter control. It runs stably. It's not only applied to polish capsules, eliminating the static electricity, but also eject empty capsules, less dosage capsules, separated capsules and fragment.This machine is for all sizes of capsules without the need to change parts.
We have various types of capsule counter, please tell us your needs, and we will recommend a suitable machine for you!

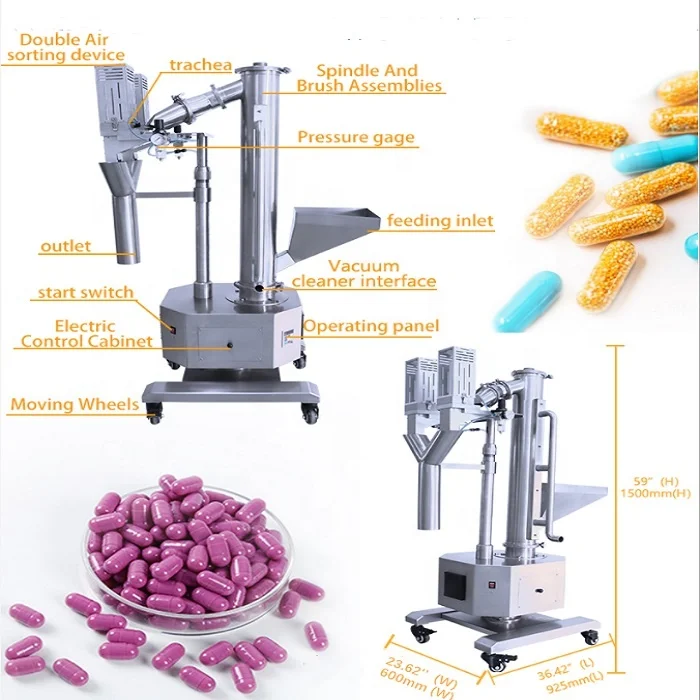

Main features
2).Double sorting functions of capsule polishing to leave high flexibility for follow-up equipment line;
3).Activity wheels for easy transportation .
4).Automatically sort less dosage, empty, fractured and cap-body separated capsule;
5).Fast-joint system to ensure safe and quick disassembly and assembly;
6).Parts in contact with medicine all made of 304 stainless steel or other material conforms to modern medicine safety standards;
7).Detachable brush on main shaft can be thoroughly cleaned. No blind spot during whole machine cleaning. Meet cGMP demands.
Details Images
Capsule storage
It is the capsule storage ,The role of temporary transfer of materials
Polisher & filling part
All stainless steel design instead of traditional mesh
Machine control part
The part is to control the machine working or stop ,Line connection.
The part is to control the machine working or stop ,Line connection.
Sorting part
.In the sorting device, the capsule separated by clean compressed air bar device, empty shell, debris and body cap can be collected into the accumulator
.In the sorting device, the capsule separated by clean compressed air bar device, empty shell, debris and body cap can be collected into the accumulator
Parameters
Model | JF-3 |
Rate of production | 10000 pcs/min |
Capsule size | 000#-5# |
Power supply | AC220V50/60Hz |
Air pressure and consumption | ~0.3 MPa |
Power | 200W |
Overall dimension(L*W*H) | 950mm*600mm*1500mm |
Machine weight | About 110 Kg |
Related Products
Let the machine work for you!
Dear customer, Maybe you have only bought one of our machines, but you shall know about our company’s complete production line,which will definitely satisfy you.
Dear customer, Maybe you have only bought one of our machines, but you shall know about our company’s complete production line,which will definitely satisfy you.
Eleven machines cooperate perfectly
* You can choose the complete line or just several machines of it, which is based on your own needs.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of
product packaging.
* You can choose the complete line or just several machines of it, which is based on your own needs.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of
product packaging.
Company Profile
Nantong Jianfeng machinery co., LTD is a professional engaged in research and development, production, management of
pharmaceutical and food machinery, science and technology enterprises. Founded in 1984, the registered capital of 2 million, covers an area of 12000 square meters, construction area of 6000 square meters, with annual sales of more than 25 million . With the first-class design research and development, manufacturing and installation and commissioning team, has developed into a certain scale pharmaceutical supplier.
pharmaceutical and food machinery, science and technology enterprises. Founded in 1984, the registered capital of 2 million, covers an area of 12000 square meters, construction area of 6000 square meters, with annual sales of more than 25 million . With the first-class design research and development, manufacturing and installation and commissioning team, has developed into a certain scale pharmaceutical supplier.
Product packaging
FAQ
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and can send to your email .
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and can send to your email .
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
