Boiler Parts
$6.50-7.00
LCD Touchscreen Thermostat Programmable Electric Floor Heating System Thermoregulator Touchscreen Automatic Thermostat
- Category: >>>
- Supplier: Chengdu Anlt Thermal Technology Co. Ltd.
Share on (1600338620166):
Product Overview
Description
Specification
Warranty | 2 years |
Floor Heating Valve | Thermostatic Mixing Valve |
After-sale Service | Online technical support, Free spare parts, Return and Replacement |
Material | Anti-flammable PC +ABS |
Project Solution Capability | graphic design, Cross Categories Consolidation |
Application | Hotel |
Design Style | Contemporary |
Place of Origin | China |
Brand Name | ANLT |
Model Number | 002 |
Type | Floor Heating Parts |
Protection Class | IP20 |
Buttons | Capacitive touch buttons |
Sensor | NTC3950, 10K |
Acccuracy | ±0.5℃ |
Shell Material | PC+ABS(Fireproof) |
Cable Lug | 2*1.5mm2 or 1*2.5mm2 |
Product Description
Programmable WI FI thermostat
Smart Thermostat Room Thermostat Knob Thermostat Mechanical Thermostat manual

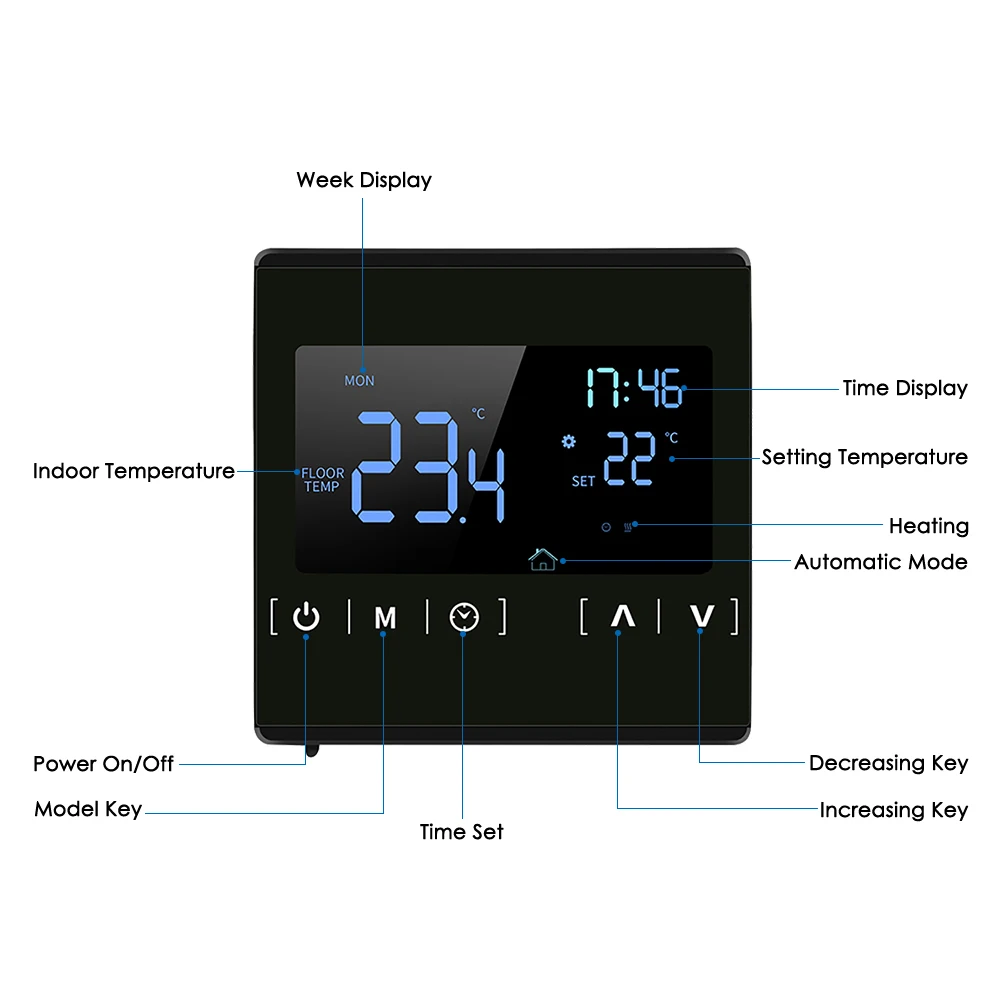

ANLT07H - Touch Screen Thermostat

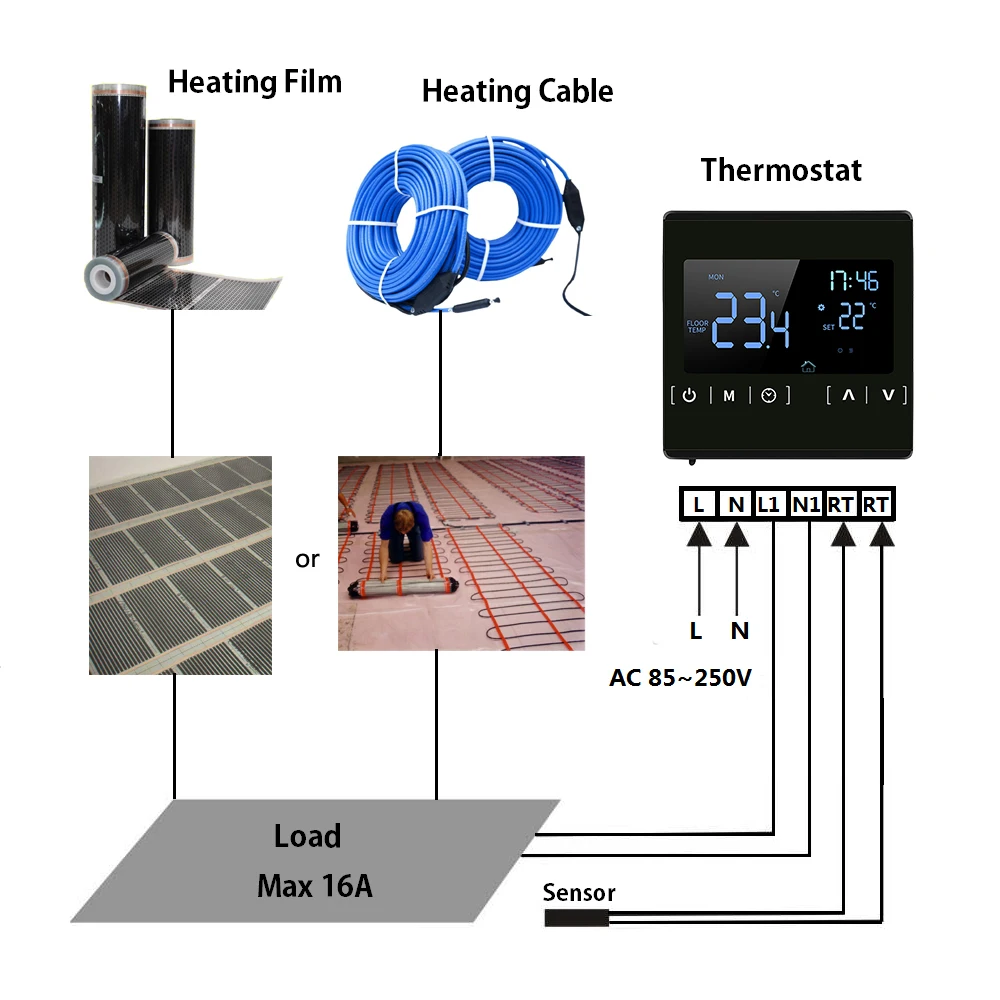

Power Supply: 85-250VAC
Display resolution: 0.1℃ Setting Unit: 0.5℃/step
Internal sensor measurement range: 0 - 40℃.
Setting range: 5 - 35℃ (default: 25℃)
Inside sensor: NTC B=3380 10k@25degrees Celsius
Max. switch power: 3A/16A/30A
External sensor measurement range: 0 - 99℃.
Setting range: 5 - 95℃ (default: 50℃)
Extra sensor: NTC B=3380 10k @25 degrees Celsius, length=3 meters
Display type: LCD, Display area: 60 x 45 mm
ANLTE52 - Room Thermostat
Applicable for hot water radiant and electric heating system.
Voltage: 220±10%VAC, 50/60Hz
Room setting Range: 1℃~50℃ (can adjust to 15℃~90℃)
External limitation: 20℃~90℃ (factory setting 65℃)
Sensor type: NTC Color : white ivory
Mounting: mounts directly onto wall or wall-box
Relative humidity: <85% (23℃)
Size of display: 58 mm X 35mm (H/W)
ANLT8600
Room Thermostat
Power Supply: 100-240VAC 50/60Hz
Power consumption: <1.5w
Setting Time + Black light + Large LCD screen Accuracy: ±1℃
Timing error: <1%
Temperature re-range: 5 - 35℃
Rubber-thermoplastic NTC Sensor Housing material:self-extinguishing PC
ANLT71.36
Mechanical Thermostat
Voltage: 220AVC+/-15% 50/60Hz
Power consumption: 3.5A
Re-range:5-30 Celsius
Maximum load:16A 3000W
Double control, LED indication working
Setting range: 10 ~55℃
Ambient temperature: -5~55℃
Protective housing: IP20
ANLTC70
Temperature Controller
Power supply: 230 V 50 Hz
Power consumption: 5 W
Adjusting range: 5°C ~ 40°C
Differential per. temp. : 0.5°C
Operating temp.: - 5°C ~ 50°C
Degree of protection: IP20
Material: self-extinguishing PC Floor sensor: NTC sensor 3 m
Packing Information
Product Model | Product Size | Inner Box Size | Qty/Ctn | Carton Measurement |
ANLT07H | 8.6 * 8.6 * 1.2 cm | 10 * 10 * 6 cm | 60pcs | 43 * 32 * 32 cm |
ANLT8600 | 9.4 * 8.7 * 1.8 cm | 11.3 * 9.7 * 7.2 cm | 84pcs | 56 * 45 * 42 cm |
ANLTE52 | 8.6 * 8.6 * 1.3 cm | 10 * 10 * 7 cm | 100pcs | 52.5 * 43 * 37 cm |
ANLT71.36 | 8.6 * 8.6 * 1.8 cm | 9 * 9 * 7 cm | 64pcs | 44 * 40 * 30 cm |
ANLTC70 | 8.6 * 8.6 * 1.2 cm | 10 * 10 * 6 cm | 50pcs | 53 * 33 * 23 cm |
Company Information
1. About Us
Chengdu ANLT Thermal Technology Co., Ltd. is a leading manufacturer of Electric Floor Heating Cable & Mat, Storage Heater, Electric Boiler, Ventilation System, Thermostats, Temperature Controller, Communication Cables and Electric products. With advanced and cost-effective heating products, ANLT believes in engaging with customers while providing customized services. As top three leading electric heating system manufacturer in China, it is the goal of ANLT to deliver heating products with excellent quality and to offer quick services to our customers.
Experience:
Established in 2009, located in Chengdu, China which is known as "Land of Aboundance", ANLT has proven to be reliable and trustworthy partners to help all aspects of electric heating for room heating, pipe warm preservation, snow-melting, de-icing, de-frosting, etc.
* Years of combined experience in researching and developing electric heating products.
* A factory with over 150 skilled and qualified employees, including experienced R&D engineers, technical experts and sales representatives.
2. Factory Overview
Located in Xindu Dist., Chengdu City, ANLT factory is more than 6000sq.m with over 150 skilled and qualified employees.
1. ISO9001 certified
2. Over 6000sq.m
3. More than 150skilled and qualified employees
4.10 experienced technical engineers
5. 5 qualified QC
6. 8 normal working hour with 2 shifts
7. Average production capacity is 15000sq.m per month
8. Strict and comprehensive test and inspection standard -- over 5000V high-voltage test,
9. 5 times of water-resistant test
10. 25-year warranty, at least 50-year working life
3. Our Products
-- Electric Floor Heating Mats
-- Electric Floor Heating Cables
-- Snow Melting Mats
-- Thermostats / Temperature Controllers
-- Accessories
4. Company Certifications
Our products are certified with CE, RoHS and PCT.
5. Exhibitions
FAQ
1. who are we?
We are based in Sichuan, China, start from 2009,sell to Domestic Market(60.00%),Western Europe(20.00%),North America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Heating Cable,Heating Mat,Thermostat
4. why should you buy from us not from other suppliers?
Our company located at sichuan,which is named "Land of Abundance"
and we have a factory in chengdu .and we have a long time development expericence as long as 18 years
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
We are based in Sichuan, China, start from 2009,sell to Domestic Market(60.00%),Western Europe(20.00%),North America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Heating Cable,Heating Mat,Thermostat
4. why should you buy from us not from other suppliers?
Our company located at sichuan,which is named "Land of Abundance"
and we have a factory in chengdu .and we have a long time development expericence as long as 18 years
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
Contact Us
Professional manufacturer locates in Chengdu, Sichuan. Welcome you to visit our facilities.
For more information, please contact with us freely. Thank you.
