100kg/hour Mini Laundry Toilet Bar Soap Making Machine Price Bath Soaps Stamping And Cutting Machinery

Product Overview

Description

Fully automatic laundry bar soap making machine detergent soap making machine

Laundry Soap Making Machine Sale Africa Introduction:
1. This laundry soap production line take soap noodles(soap bar) as raw materials.
2. The production starts with mixing soap bar,perfume pigment and,etc.

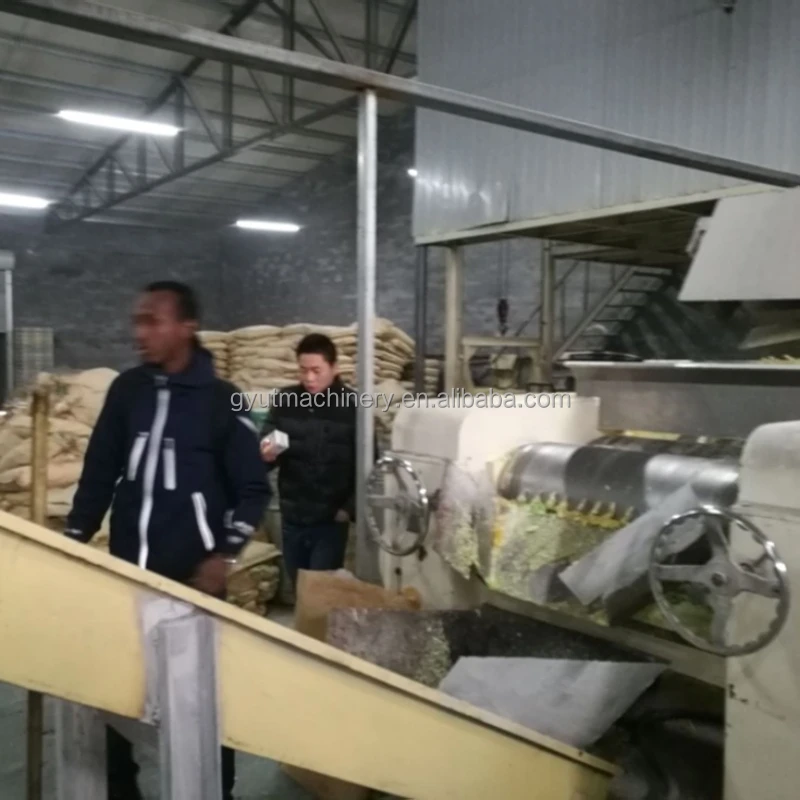

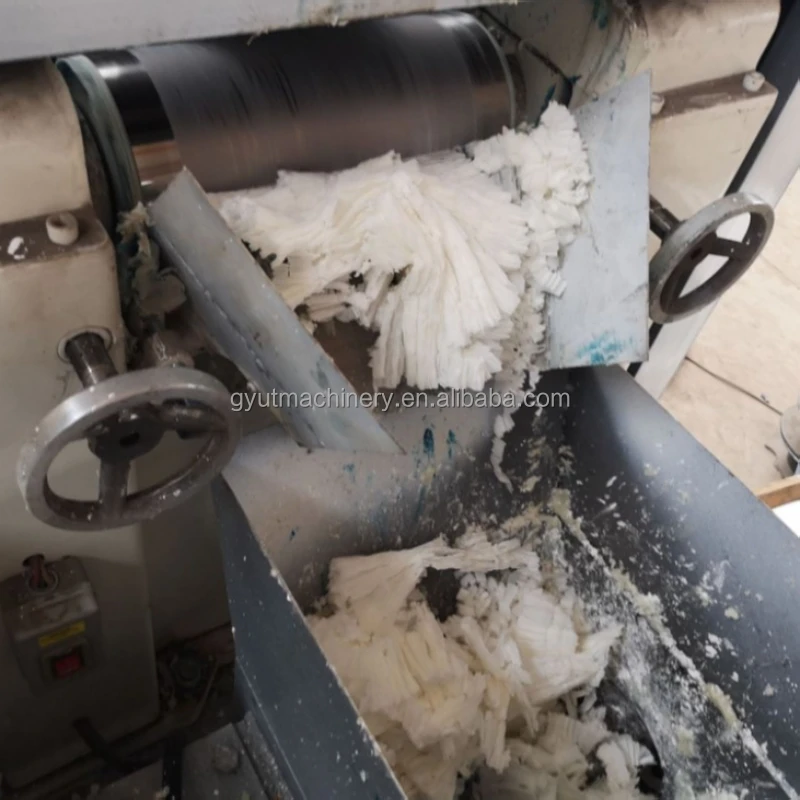

2. Then the mixed soap noodles enters in the three roller mill by conveyor belt, where soap thin sheets  are made.
3. The soap thin sheet then converted into desired long strip soap by the plodder machine.

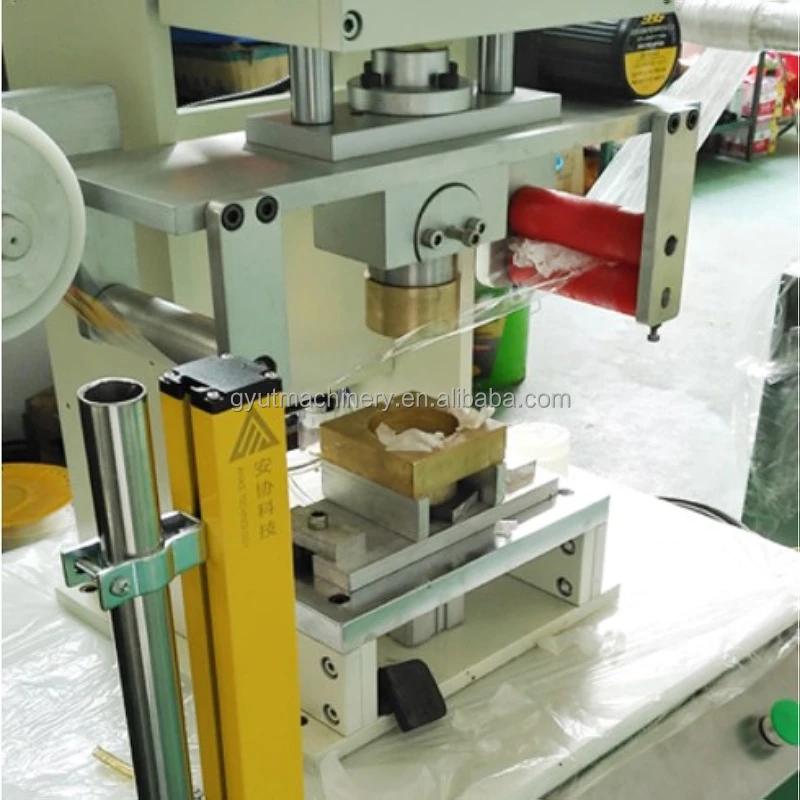

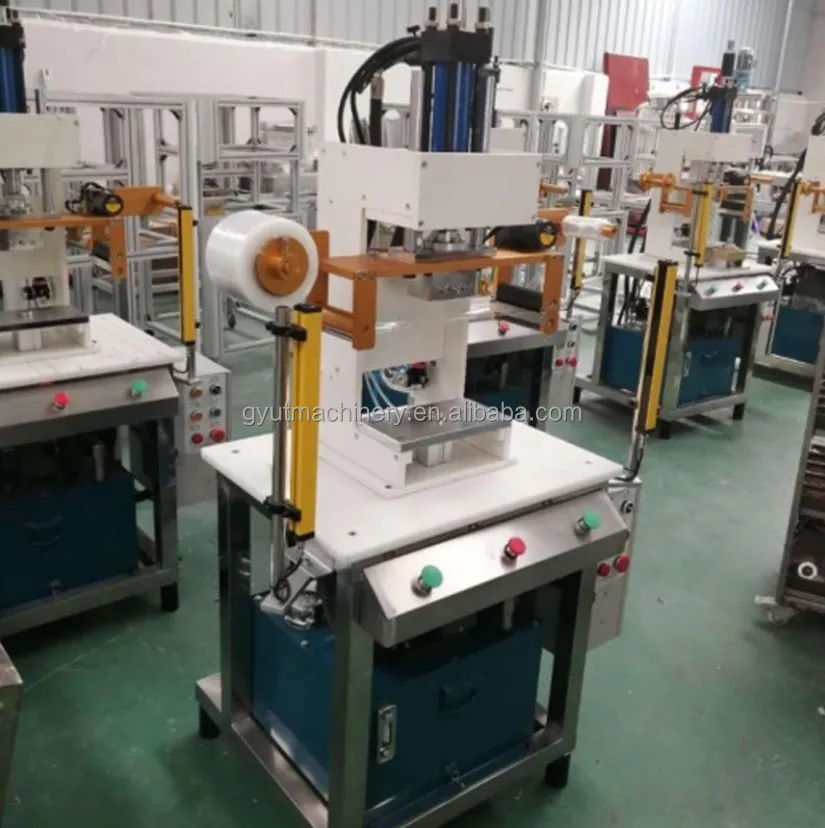

4. Then the long strip soap are cut into the soap bars required size by cutting machine(there are two kinds of cutting machine.One is mechanical.The other is automatic).
5. Finally, the soap bars gets packed by packing machine if needed.
6. Soap bars can be made 60g,120g,200g,260g,and so on

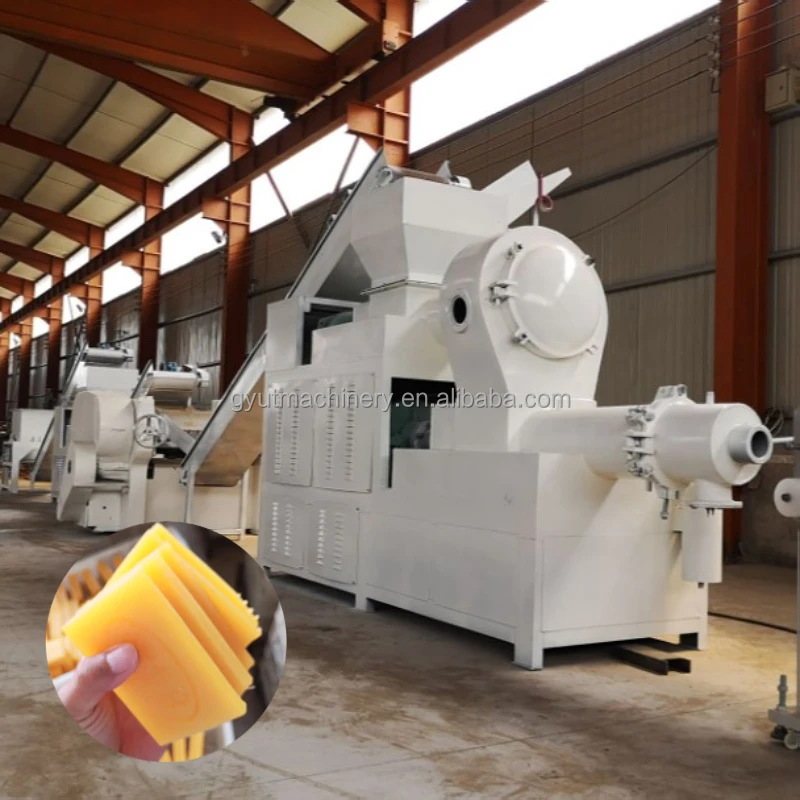

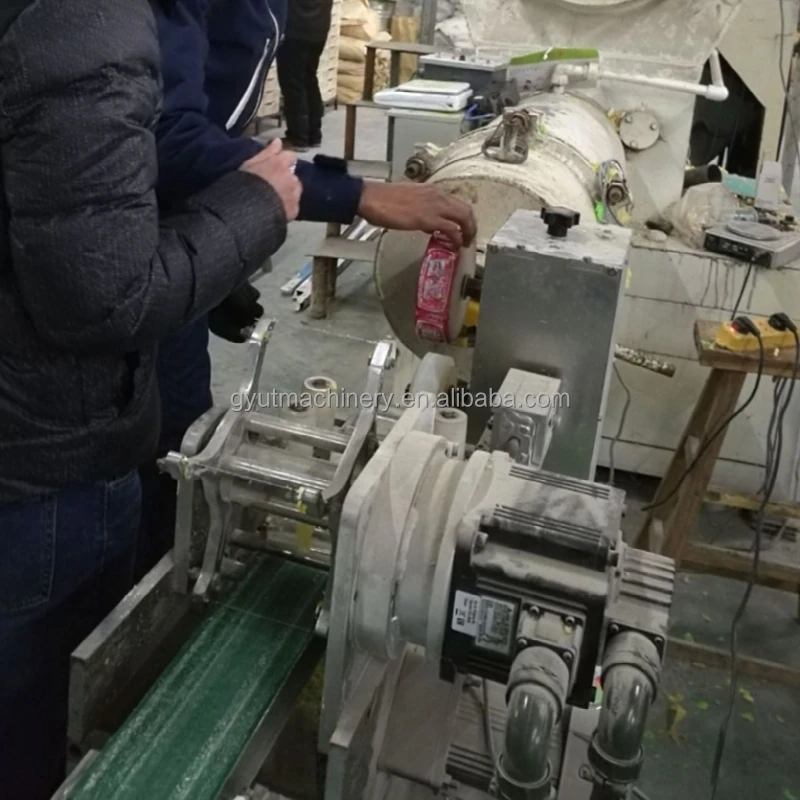

This  soap plant is use neat soap(soap noodle) as raw materials, capacity is  300-800kg/h. After mixing, grinding, vacuum extruder and print-cutter, this machinery can produce of fatty acids in 35-60% of the high-grade soap. The soap equipment adopts double screw vacuum plodder machine, it can make the soap compact, not easy to cracking.

Production conditions:
1. The water: 1 cubic circulating water (not consume)
2. Electricity: 60kilowatts/hour,380v, 50hz
3.Workshop requirement: 15 meters long,3m wide and 2.5 meters high(including workers operating area)
4. Operate person requirements: 2-4people/class

cheap price bar soap making machine Working process:
Mixing→convey→grind→convey→molding→cutting→convey→packing





Machine List :
Name	Quantity
Mixer	1 set
Simplex Machine	1 set
Three roller mill	1set
Vacuum Double Screw Plodder	1set
Vacuum Pump	1 set
Electronic cutting machine	1 set
Conveyor belt	3 set
