LY 5 10 15 20 Ton Heavy Material Transfer Truck Customized AGV Vehicle
- Category: >>>
- Supplier: Shanghai Zosn Hydraulic Co. Ltd.
Share on (1600338680701):
Product Overview
Description
Product Description

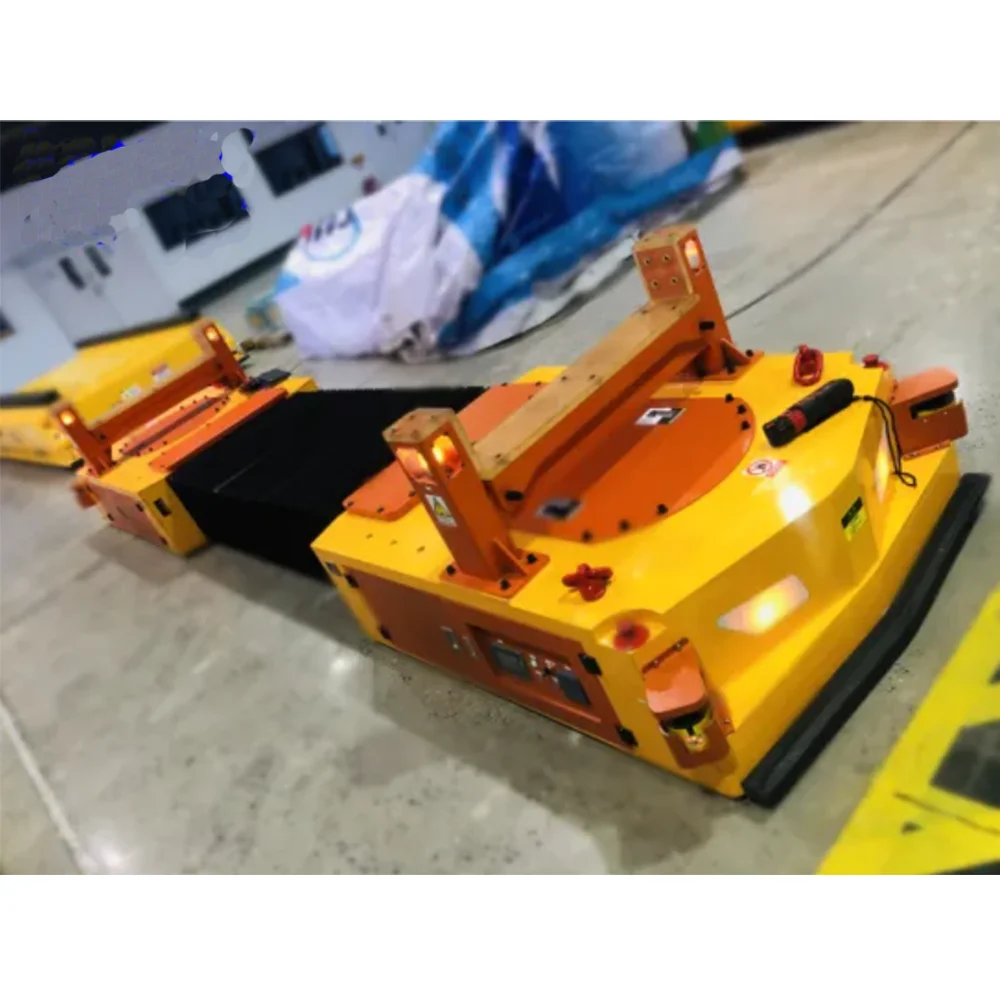

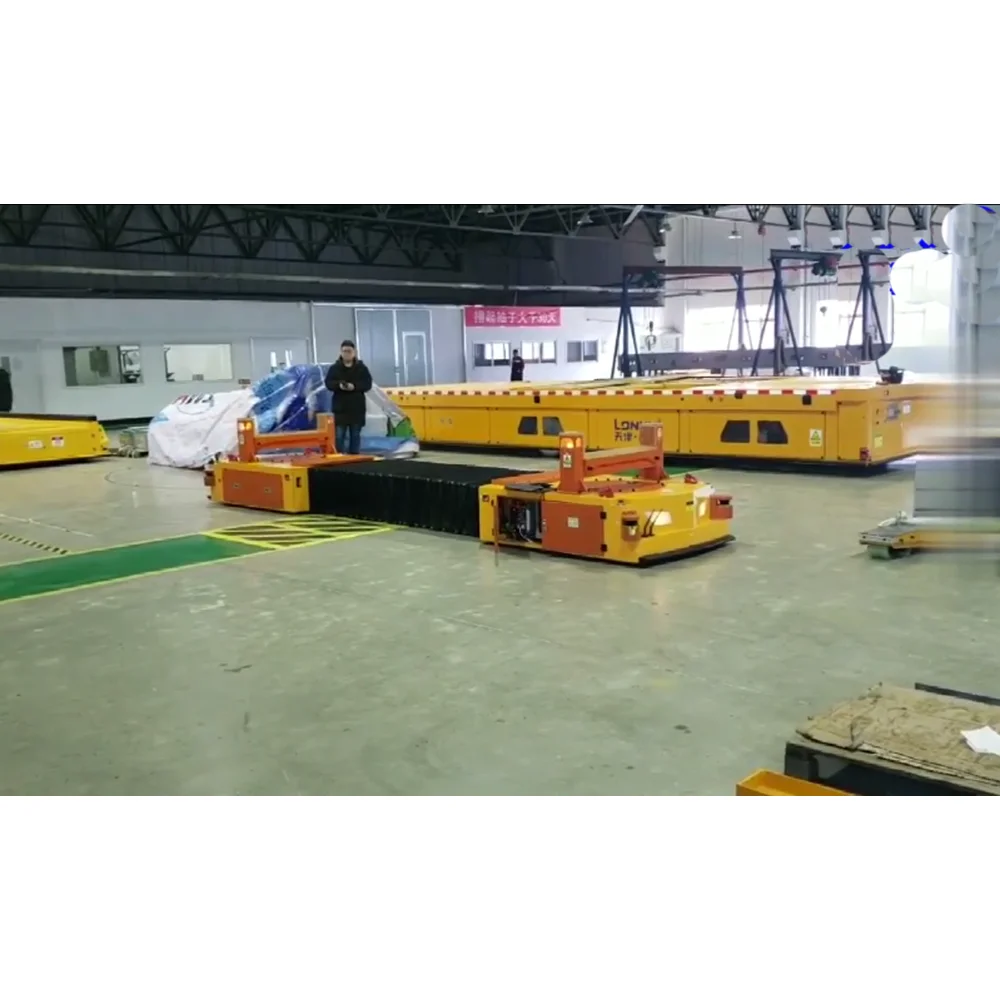

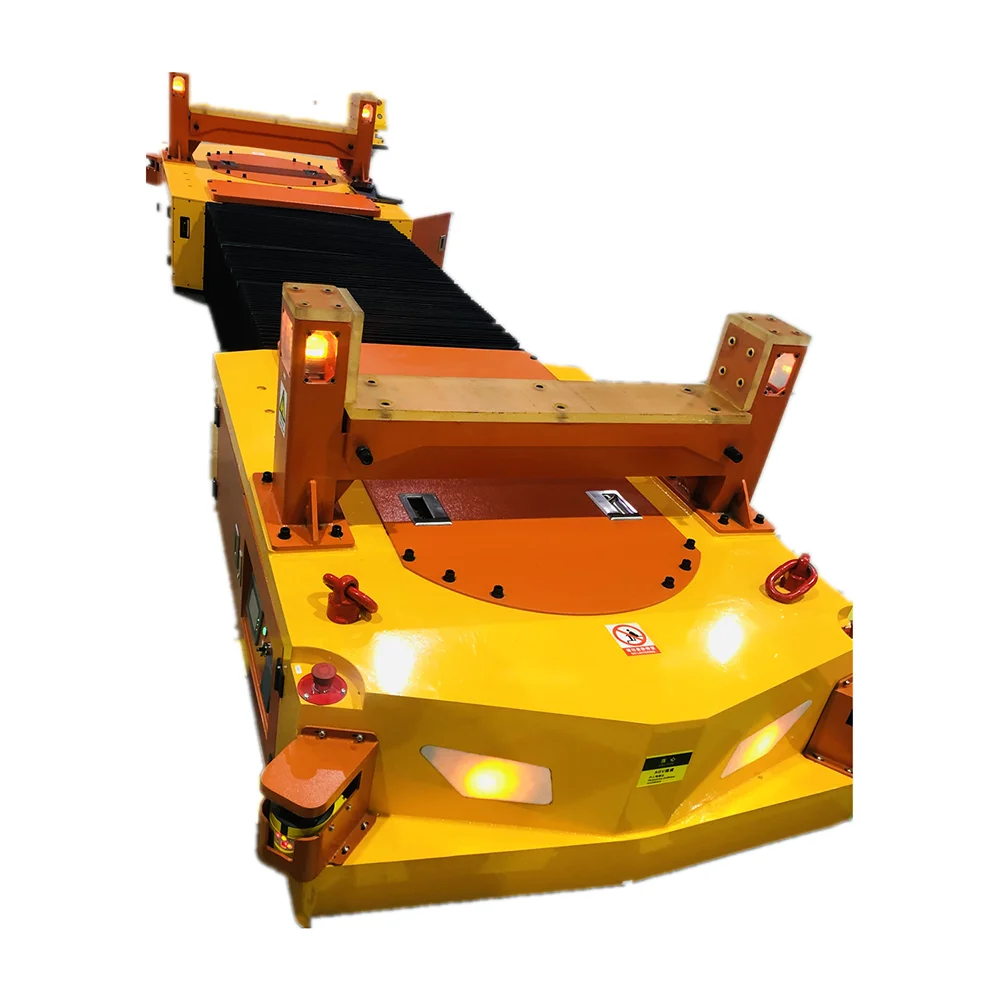

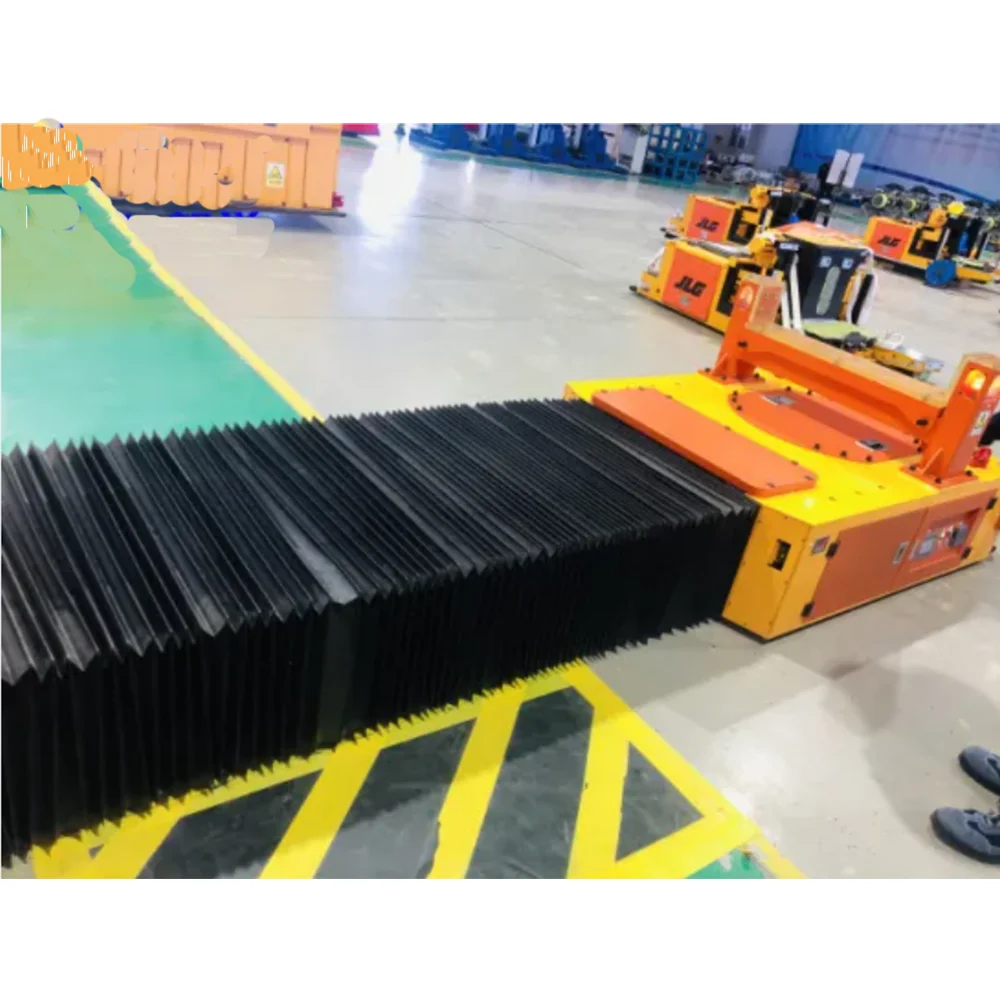

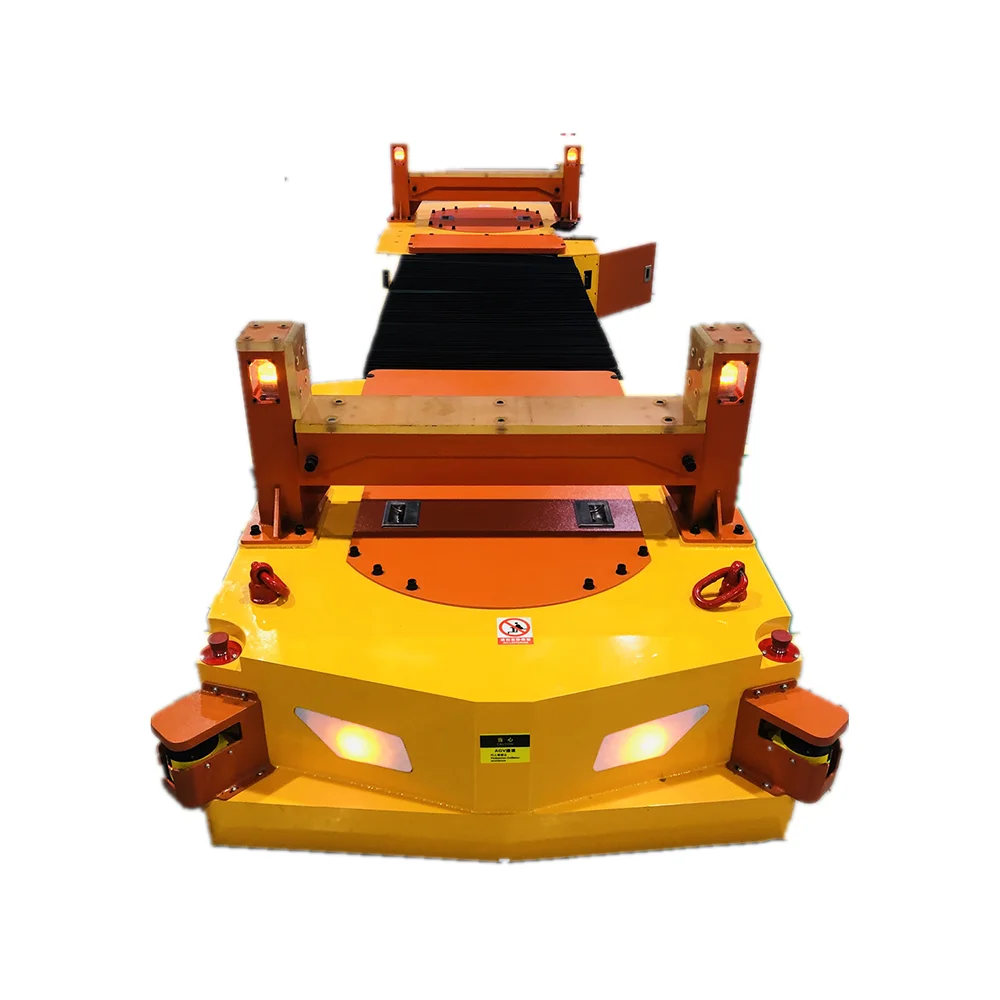

5T AGV Heavy Material Transfer Truck
（5-500ton Customizable）
Project Features
1. Self-adaptation on the complex ground of tracks and potholes
2. Equipped with weighing detection and centroid display
3. Automatic left-right centering system for docking with tooling
4. Operation under extremely cold environment of minus 30ºC
Technical Parameters
Items | Technical Requirements | Items | Technical Requirements |
Load capacity | 5T(10-500T)customizable | Jack-up height | Hydraulic independent suspension,150mm |
Design load | 5T | Jack-up speed | 10mm/s-15mm/s |
Kerb weight | 3T | Min. turning radius | 1.75m(When the body rotates) |
Dimensions | L4600×W1180×H550/800/1000mm | Parking accuracy | ±10mm |
Number of driving wheel | 8 wheel | Power supply mode | Lithium battery / external towing power supply / online automatic charging |
Navigate mode | Magnetic stripe | Safety sensing range | ≤3m, Adjustable, emergency braking distance is less than 20cm at full load, less than 40cm at non-load |
Operating environment | Indoor and outdoor operations | Alarm mode | Sound and light alarm prompt |
Direction | Forward and backward, move left and right, rotate | Security | Laser mine sweeping radar, safety touch, emergency stop button, warning light, buzzer |
Control mode | remote control | Design life | >ten years |
Communication | Wireless LAN (optional) | Walking speed | 5-30m/min (Continuously variable speed, customized) |
Driving Mode | Differential drive (load-supporting) |

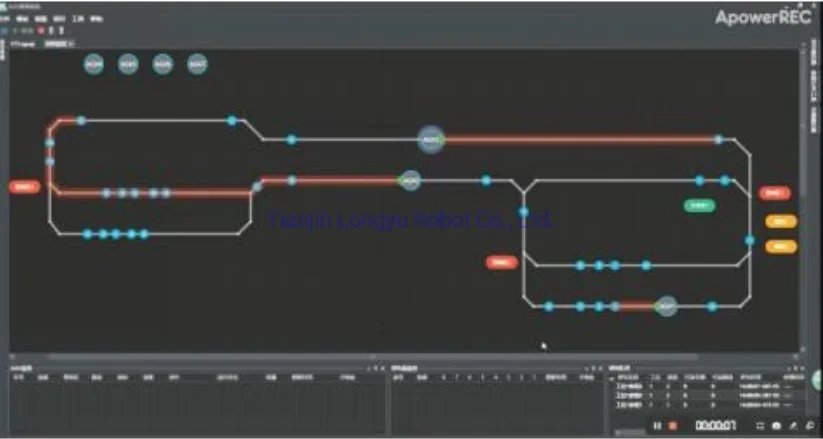

AGV Management and Control System
The AGV Control system is connected with Party A's MES system With automatic/manual dual insurance scheduling mode. Party A's MES system issues instructions for handling tasks to the AGV scheduling system. Then scheduling system issues instructions for handling to AGV vehicles. After the AGV completes the tasks, it feeds back the completion information to the MES system. AGV central management software realizes highly intelligent automated management of AGV vehicles by monitoring and control of the running AGV, real-time dynamic monitoring of the position of the AGV vehicle in the electronic map, updating the operating parameters of the AGV, controlling the behavior of the AGV vehicle and implementing traffic control at the intersection, which helps operators improve work efficiency and ensure safe driving of vehicles.
Automatic Charging Device
This automatic charging device is developed to meet the need of frequent matenal delivery of production and logistics. When its energy is lower thanthe preset value at working, the AGV will move to the charging station and communicate with this charging device. After the connection establishment, the charge electrodes will dock with the AGV automatically to achieve automatic charging. The electrodes will be separated from the AGV automatically when it finishes the charging and the AGV moves back to the working area for material delivering. Thus, this device keeps the operator away from moving the heavy battery and the hassle of installation and disassembly, which greatly save charging time and make the whole system much more humanized and automated.

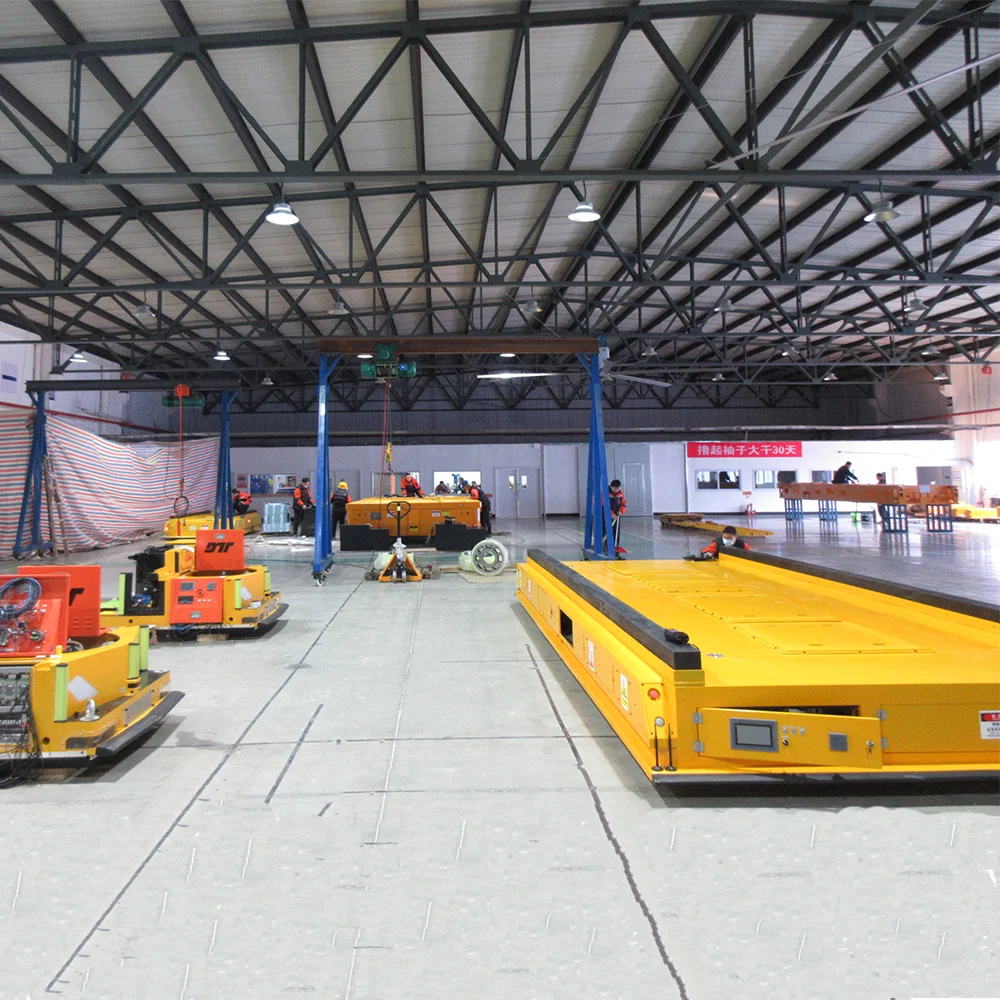

What is Heavy-load AGV?
Heavy-load AGV is the means of transportation used to load and transport heavy parts or components, and is one of the most critical equipment in the current logistics automation system.Heavy-load transportation has the advantages of easy operation, high safety, and stable operation with the functions of automatic lifting, hydraulic independent suspension, automatic leveling, automatic operation, anti-collision, prompt operation, all-round steering, and adaptation to uneven ground. With automated handling of large materials {overweight, overlength}, the heavy-load AGV is mainly used in warehousing, manufacturing, ports, airports, hazardous locations, special industries, etc., to improve the level of logistics automation in the heavy- load field, reduce labor intensity, improve production efficiency, shorten the logistics cycle, accelerate capital turnover, and improve economic benefits.
Application Field
Heavy-load AGV is suitable for various industries, especially the long, large and heavy products
High-speed rail industry
Auto industry
Aerospace
Wind power industry
Auto industry
Aerospace
Wind power industry
Entertainment industry
Manufacturing Industry
Military industry
Power Industry
Manufacturing Industry
Military industry
Power Industry
Why Choose Us
Reliable
Our office located in Shanghai China, welcome to visit us and do on site inspection any time. During Covid-19 period, we support on line factory visit and video meeting.
Professional
We have 2 production center and a 24-person engineer team with more than 2000 sucessful projects experience. We establish service teams for all of our customers to make sure each project's efficiency.
Best servise
We believe high quality and good servise makes good products. So we established a perfect pre-sale, sale and after-sale service mechanism. For all products we provide on-line or on-site pre-sale training and 1 year free warranty, lifetime maintenance to eliminate all customer concerns.
FAQ
1. Are you factory or only company?
We have factory to produce all kinds of chassis and complete solutions, such as firefighting robot, inspection robot, boat cleaning robot, etc. And attracted by our sufficient customer servise experience, we also authorised as general agency for some other brands.
2. Can you provide samples?
Due to the high cost and large volume for each model, we are sorry for not provide samples. But we support on site and the 3rd party inspection before delivery. Thanks for understanding.
3. How about the price and quality?
All of our products and accessories experience strict quality control process. We make sure all products we provide are newest model not eliminated stock ones.And we aims to provide the lowest price but with the best quality and service.
4. What payment term and how long the payment period?
T/T, 30%-50 deposit, balance before shipment after receiving our OQC report. We ask for 100% payment before shipment for new customers, for our A level customers we offer special payment period to help ease financial pressure.
5. How about the shipment?
Our packing meets international shipment standard.
We can quote the price base on FOB, CIF & CNF with sea shipping or air as you like, you can choose our forwarder or yours accordingly.
If Certificate of Country of Origion were needed, please let us know in advance.
We can quote the price base on FOB, CIF & CNF with sea shipping or air as you like, you can choose our forwarder or yours accordingly.
If Certificate of Country of Origion were needed, please let us know in advance.
