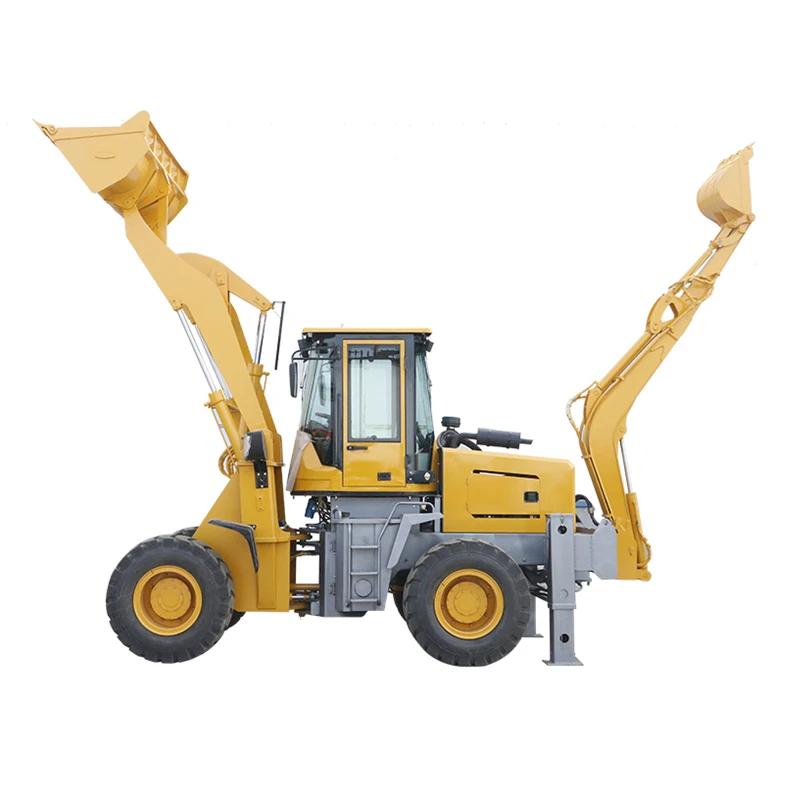

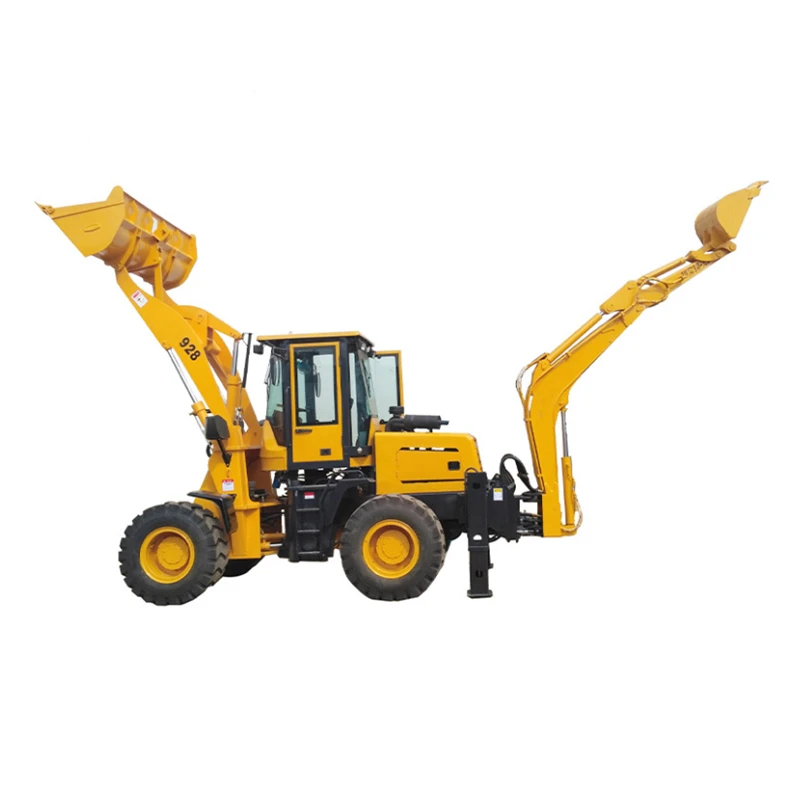

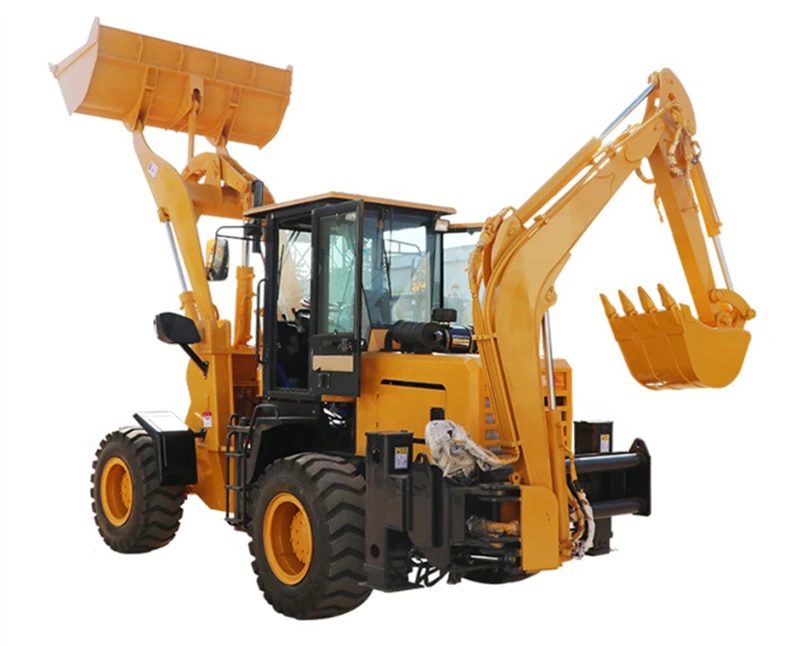

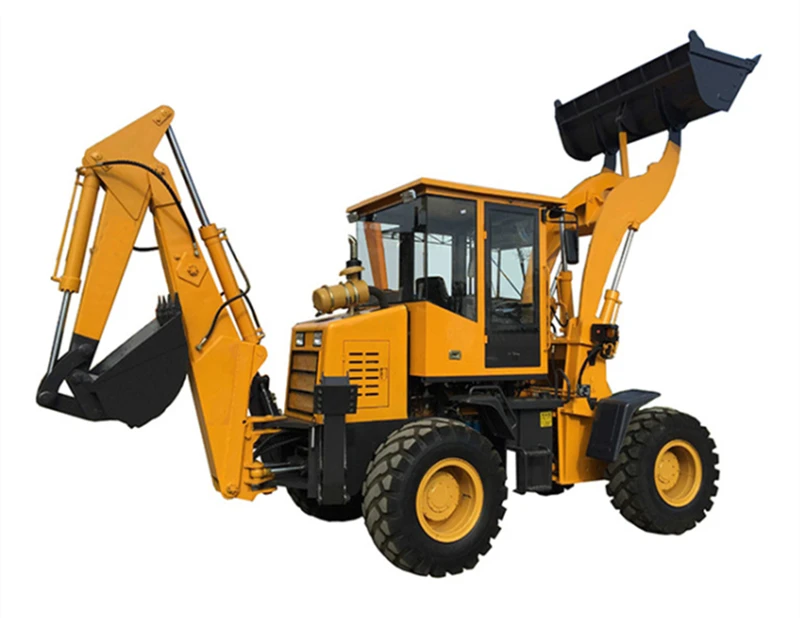

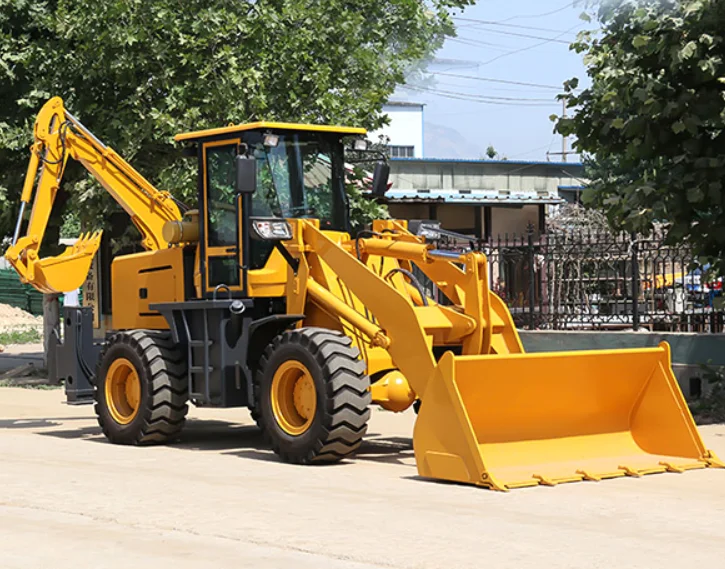

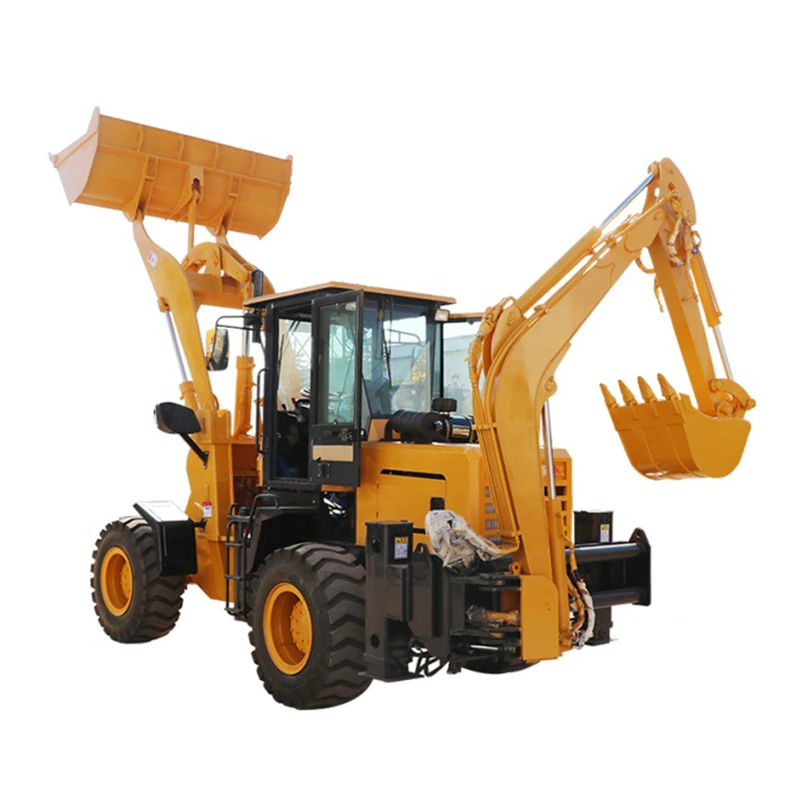

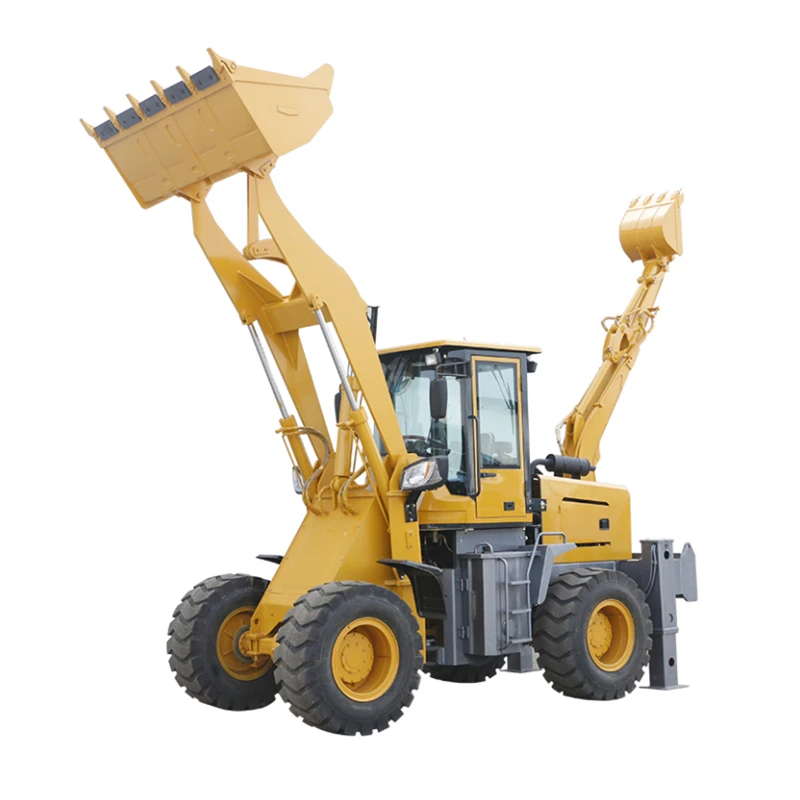

High operating efficiency 6 tons backhoe excavator loader, powerful loader backhoe, reliable back hoe loader backhoe
- Category: >>>
- Supplier: Taian Hiosen Machinery Co. Ltd.
Share on (1600338713441):
Product Overview
Description
Product model | WZ08-12 | WZ10-20 | WZ15-26 |
Dimension | 5100*1350*2580 mm | 5500*1750*2650 mm | 5800*1850*2750 mm |
Tread | 1100 mm | 1475 mm | 1500 mm |
Wheel base | 1910 mm | 2070 mm | 2315 mm |
Minimum clearance to ground | 250 mm | 250 mm | 220 mm |
System pressure | 16 Mpa | 16 Mpa | 16 Mpa |
Machine weight | 2200 Kg | 3400 Kg | 4800 Kg |
Maximum walking speed | 20 Km/h | 25 Km/h | 26 Km/h |
Maximum climbing gradient | 25° | 25° | 25° |
Minimum turning radius | 3000 mm | 3500 mm | 4000 mm |
Rated load | 1200KG | 1500KG | 1800 KG |
Maximum digging depth | 1500 mm | 2000 mm | 2700 mm |
Digging dumping height | 1500 mm | 1800 mm | 2200 mm |
Maximum digging radius | 2000 mm | 2700 mm | 4600 mm |
Maximum digging height | 2600 mm | 3300 mm | 4200 mm |
Maximum digging force | 25 Kn | 25 Kn | 28 KN |
Digging bucket capacity | 0.08 cbm | 0.1 cbm | 0.15 cbm |
Digging bucket width | 350 mm | 400 mm | 600 mm |
Turning angle | 180° | 180° | 180° |
Maximum dumping height | 2200 mm | 2800 mm | 3300 mm |
Maximum dumping reach | 800 mm | 800 mm | 850 mm |
Loading bucket capacity | 0.4 cbm | 0.5 cbm | 0.7 cbm |
Loading bucket width | 1300 mm | 1800 mm | 1900 mm |
Maximum loading height | 3000 mm | 3300 mm | 4200 mm |
Maximum force | 28Kn | 36Kn | 36KN |
Brand | Changchai/ Yunnei | Yunnei | Yunnei |
Type | Direct injection | Direct injection, 4-stroke | Turbo charged, 4-stroke |
Rated power | 25/37 KW | 37 KW | 58 KW |
Rated speed | 2400 r/min | 2400 r/min | 2400 r/min |
2 forward, 2 back | Fixed axis power shift | ZL28F | ZL29A |
Steer system | Hydraulic articulated steering | Hydraulic articulated steering | Hydraulic articulated steering |
| Tire | 825-16 | 20.5-16 | 23.5-16 |
Product model | WZ20-28 | WZ25-30 |
Dimension | 6200*1960*2800 mm | 6500*2040*2800 mm |
Tread | 1580 mm | 1630 mm |
Wheel base | 2550 mm | 2675 mm |
Minimum clearance to ground | 290 mm | 280 mm |
System pressure | 18 Mpa | 18 Mpa |
Machine weight | 5400 Kg | 6000 Kg |
Maximum walking speed | 28 Km/h | 28 Km/h |
Maximum climbing gradient | 25° | 25° |
Minimum turning radius | 4500 mm | 4500 mm |
Rated load | 2500 KG | 2800 KG |
Maximum digging depth | 2600 mm | 2600 mm |
Digging dumping height | 2300 mm | 2300 mm |
Maximum digging radius | 4600 mm | 4600 mm |
Maximum digging height | 4300 mm | 4300 mm |
Maximum digging force | 28 Kn | 28 Kn |
Digging bucket capacity | 0.3 cbm | 0.25 cbm |
Digging bucket width | 400 mm | 600 mm |
Turning angle | 180° | 180° |
Maximum dumping height | 3500 mm | 3500 mm |
Maximum dumping reach | 900 mm | 900 mm |
Loading bucket capacity | 1 cbm | 1.2 cbm |
Loading bucket width | 2100 mm | 2200 mm |
Maximum loading height | 4300 mm | 4300 mm |
Maximum force | 42Kn | 42KN |
Brand | Yunnei | Yunnei |
Type | Turbo charged, 4-stroke | Turbo charged, 4-stroke |
Rated power | 76 KW | 92 KW |
Rated speed | 2400 r/min | 2400 r/min |
2 forward, 2 back | Hydraulic torque converter ZL29A | Hydraulic torque converter ZL29A |
Steer system | Hydraulic articulated steering | Hydraulic articulated steering |
| Tire | 16/70-20 | 16/70-20 |
Q1. What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days. The rest time depends on the distance and transport method which need to be negotiated.
Q2. What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.
Q3. How long is the product guarantee?
We provide one year quality guarantee.
Q4. What kind of service could you provide?
1) Pre-sale service: we could assist you finding the suitable equipment according to your requirement.
2) On-sale service: we strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified goods safely.
3)After-sale service: we provide some consumables with the equipment; We have operation manual for instructing the basic installation and operation; video guidance for trouble shooting; engineers ready for field maintenance and repairing when necessary.
Q5. Can we have the special order like specification change, logo making?
Yes, we accept the customization. We can make it clear in the contract and then our technical start design and production as per your requirement.
For more questions, please feel free to contact us
