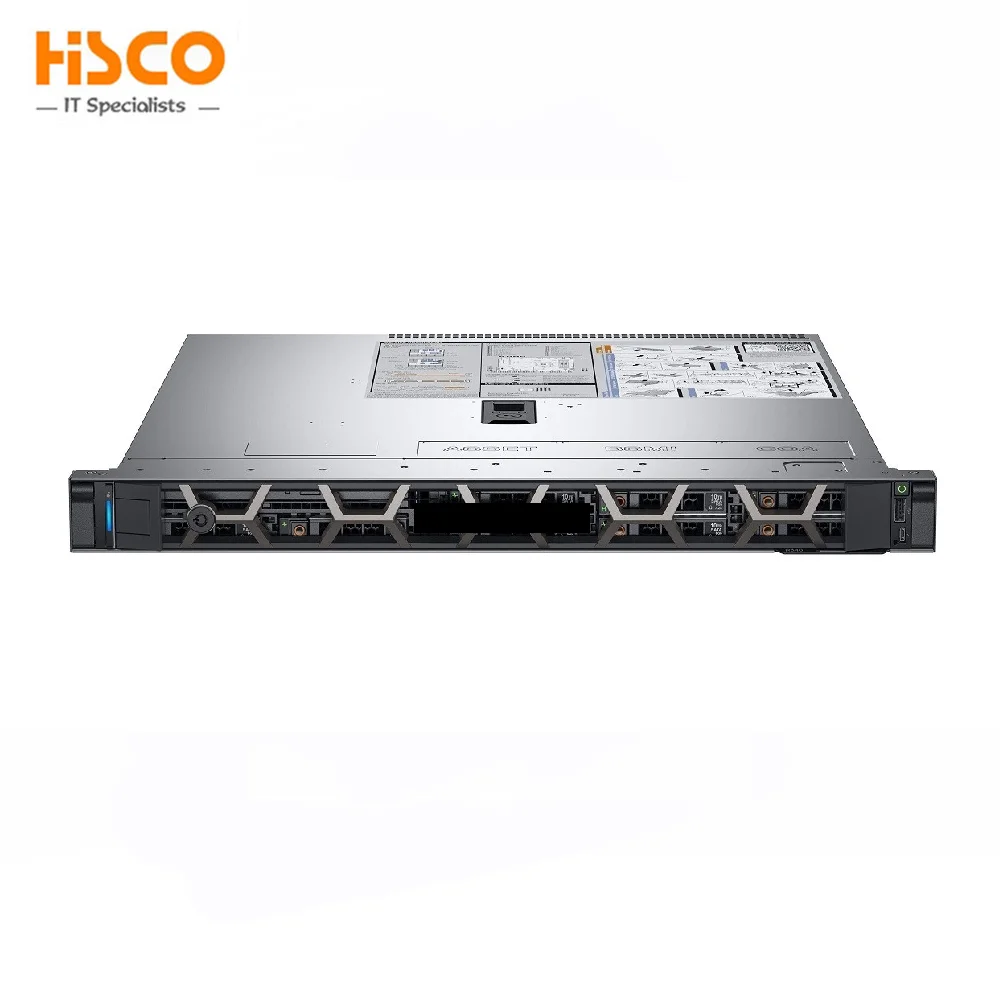

R340 For Dell PowerEdge R340 1U Rack Server for Small Business

Share on:

Price in USD:Details


Product Overview


Product Description

Product NameFor Dell PowerEdge R340 1U Rack ServerPart NumberR340


1 processor from the following: For Intel Xeon E-2200 product family


4 x DDR4 DIMM slots, Supports UDIMM, up to 2666MT/s, 64GB Max. Supports registered ECC

Storage controllers

Internal controllers: PERC H730P, H330, HBA330

Software RAID: PERC S140

External controllers: 12Gbps SAS HBA

Internal boot

Boot Optimized Storage Subsystem (BOSS): 2 x M.2 240GB (RAID 1 or No RAID) or 1 x M.2 240GB (No RAID only)

Internal Dual SD Module3 : 2x microSD (16GB, 32GB or 64GB) or 1x microSD (16GB, 32GB or 64GB)

Drive bays

Up to 8 x 2.5 hot-plug SATA, SAS (optional) or SSD

Up to 4 x 3.5 hot-plug SATA, SAS (optional) or SSD

Power supplies

Single or dual 350W (Platinum) or 550W (Platinum) hot-plug redundant power supplies

I/O & Ports

Networking Options:

2 x 1GbE LOM Network Interface Controller (NIC) ports

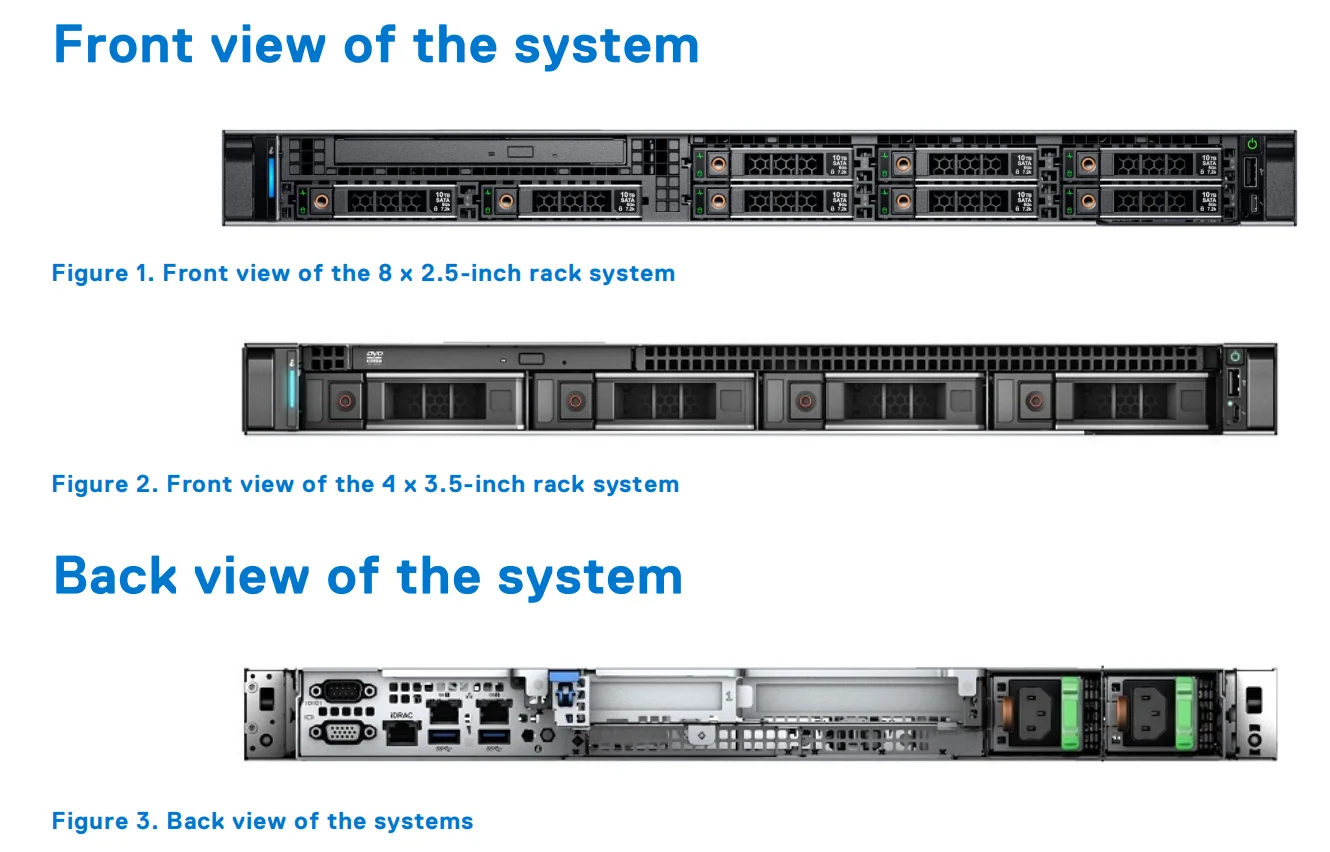

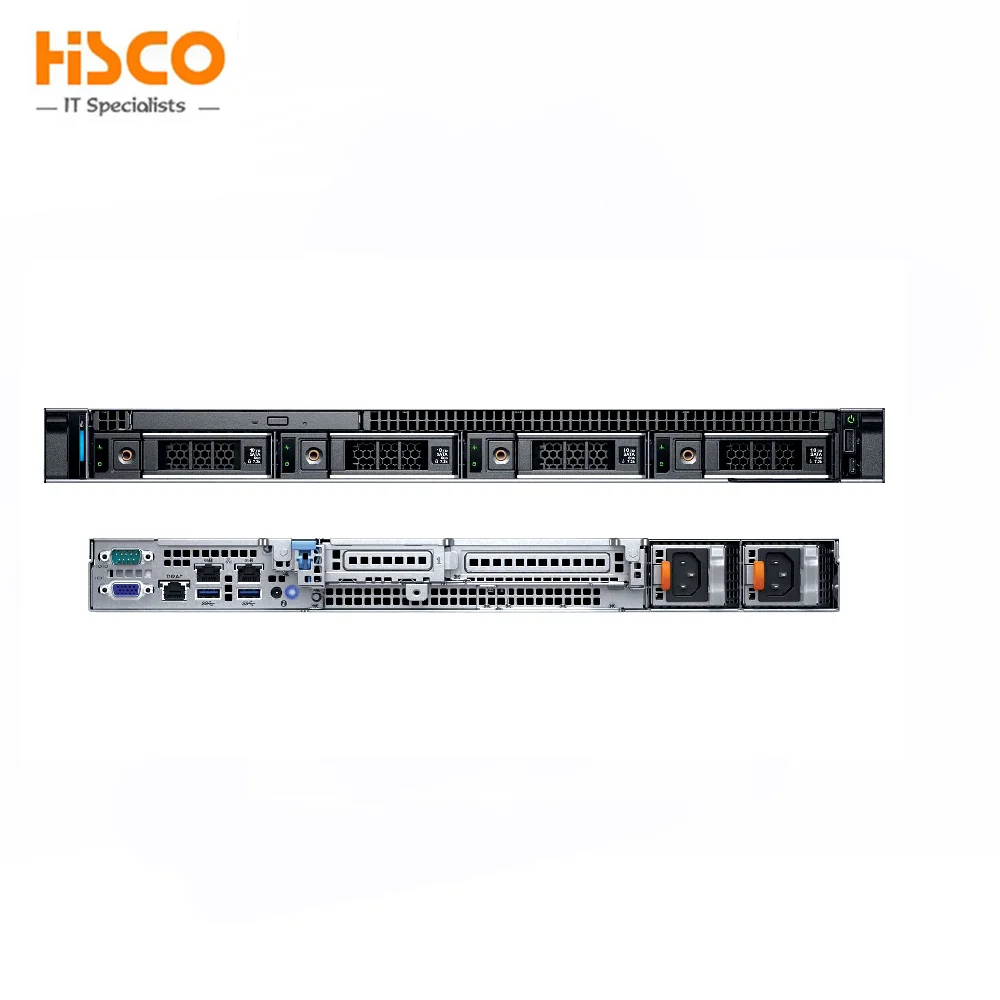

Front ports:

1x USB 2.0, 1 x IDRAC micro USB 2.0 management port

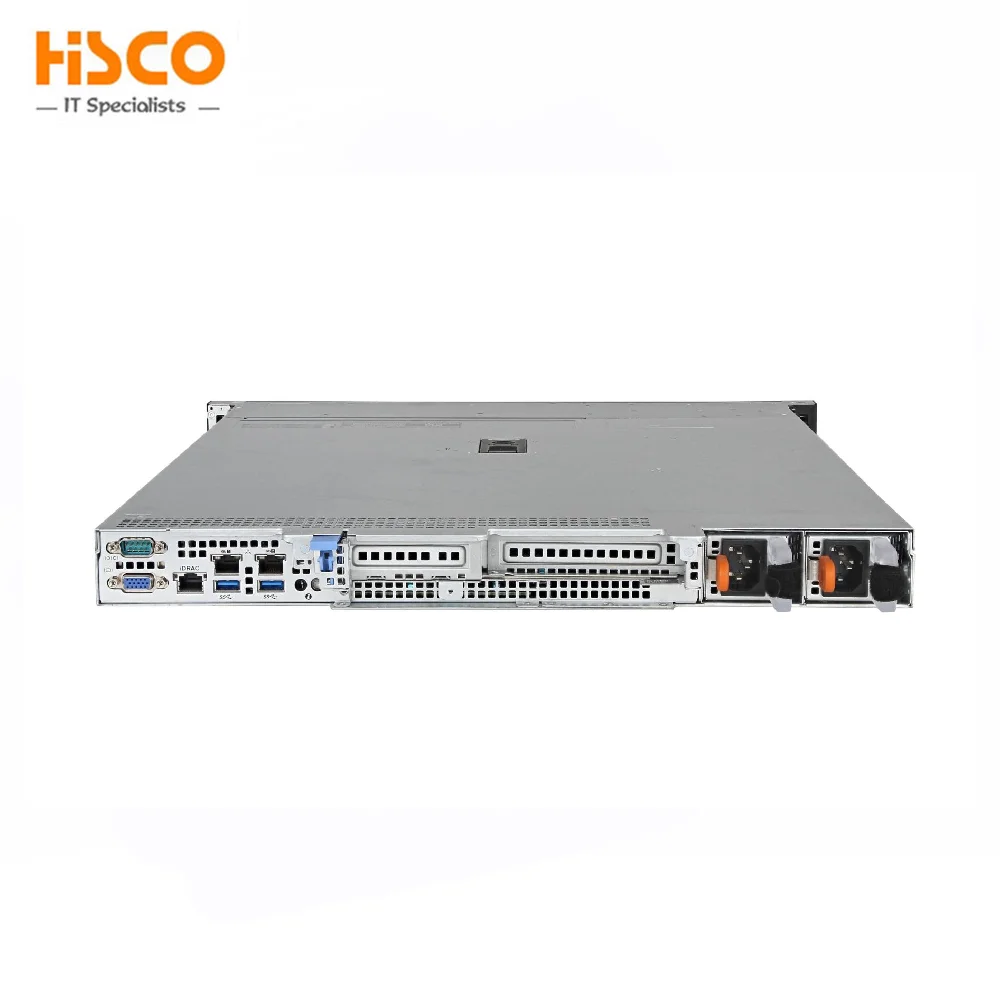

Rear ports: 2 x USB 3.0, VGA, serial connector

2 x PCIe Gen 3.0 slots:

• One x8 slot low-profile, half-length with x4 slot width

• One x16 slot low-profile/full-height, half-length

with x8 bandwith

Form factor:

Rack (1U)


Chassis width: 434.00mm (17.08 in)

Chassis depth: 595.63mm (23.45 in) (3.5” HDD config)

Chassis depth: 544.836mm (21.45 in) (2.5” HDD config)

Note: These dimensions do not include: bezel, redundant PSU

Chassis weight: 13.6 kg (29.98 lb.)

We supply most of parts above,contact me for further information.

My Skype  or Email:  .png

Product Overview


More hot-selling


867959-B21 868704-B21 868703-B21 868705-B21 868706-B21

869854-B21 742657-B21 793161-B21...

BTO816814-B21 816815-B21 879991-B21 867962-B21 P06423-B21 P06422-B21 P06421-B21 P06420-B21 P06419-B21 P02467-B21 P02466-B21 P02465-B21 P02464-B21 P02463-B21 P02462-B21...
For DellT640 T440 T340 T40 T140 R940 R940xa R840 R750xa R740xd R450 R740...
etc...More information please contact me!

Company Information

Shenzhen Chengdaxin Technology Co., Ltd is our domestic Company.

HISCO International Limited is our Hongkong Company.

We mainly work on HPE,  Intel, Dell, IBM, EMC, Brocade, Cisco, Seagate, Qlogic, Samsung and so on, servers and parts.

Our advantage is honesty and trustworthiness, skilled in technology, backed by strong IT resources, good after sales.

Win-win cooperation is our company's philosophy, is our core values.

Welcome IT partners from all over the world to negotiate business!

Packaging & Shipping


Warranty Policy

1. We provide 1-5 years replacement warranty. Warranty period begin after sales.

2. If our goods have any quality problem, within warranty period, we will replace it for you freely (Artificial damage will not accept a return).

3. We will be responsible for shipping charges.


Q: What's your advantages?
A: Good Price + Professional Service +  Rapid response + Fast delivery + Good After-sale service


Q: What's the MOQ for your products?
A:  1 piece / 1 unit / 1 set.


Q: What's the payment terms?
A:  T/T or Alibaba Trade Assurance order.


Q: When will send out the goods after payment?

A: Normally 2-3 working days.


Q: What's the package?
A: Original packing. We will pack it in an empty box to protect from damaged during transportation, and ensure you will receive the goods in good condition.

Q: How to ship the goods?

A: We ship the goods by FedEx / DHL/ UPS express.

     If the weight is over 45kg, we will ship by air.

     The freight is acoording to current price of these express companies.


Q: What's the warranty of your products?
A:  1-3 years (Used products:3 months or 6 months)


Q: What else products do you sell?

A: We also sell CPU, HDD, SSD,  GPU, RAM, SFP Module, HBA, PSU, Heat sink & Fan, Line Card, Networking cards, Controller, Expander Card, Chassis, Compute Card, Switch, Tape Drive, Server, Mini PC..., including HP, Dell, IBM, EMC, AMD, Juniper, Cisco, Intel, Brocade, Nvidia...
