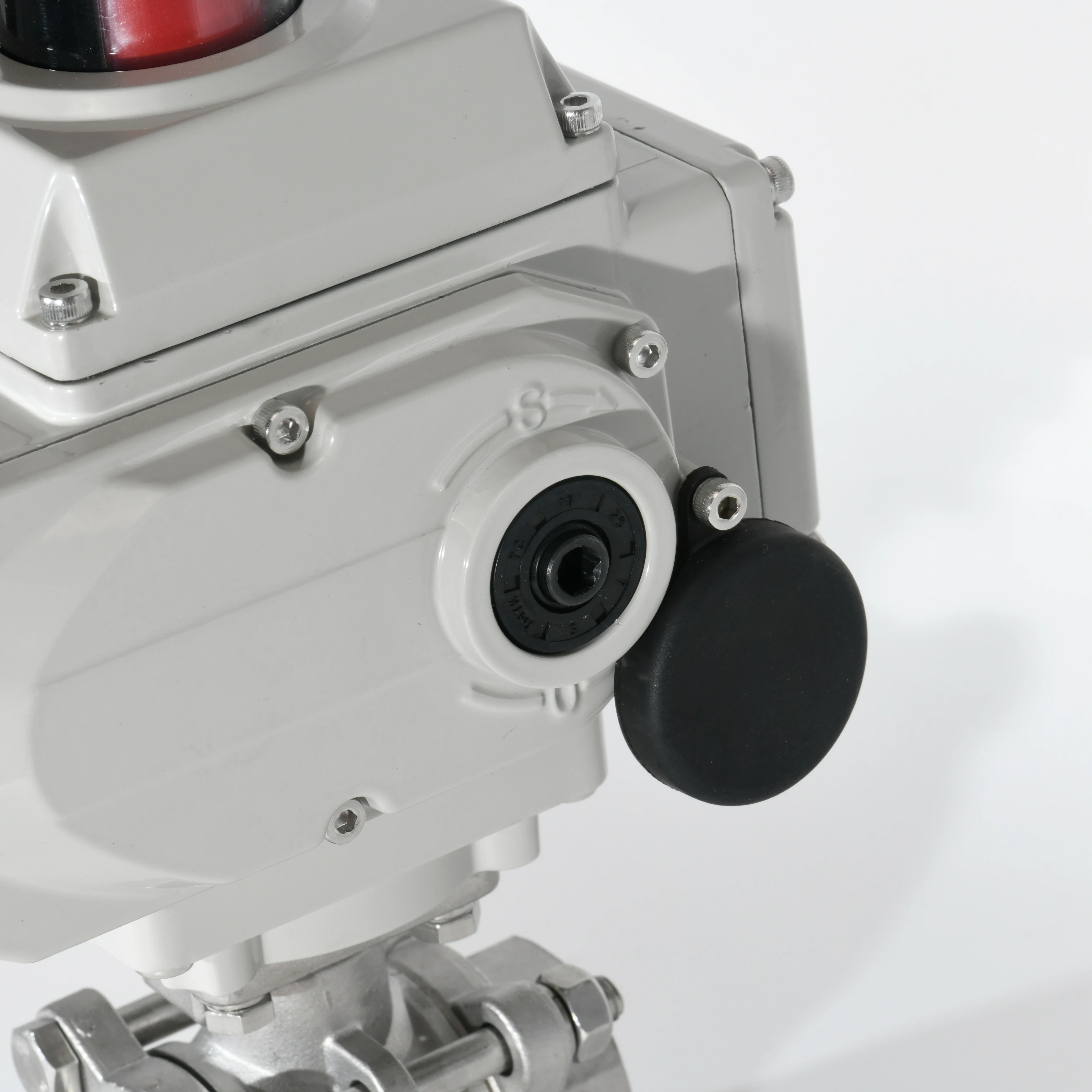

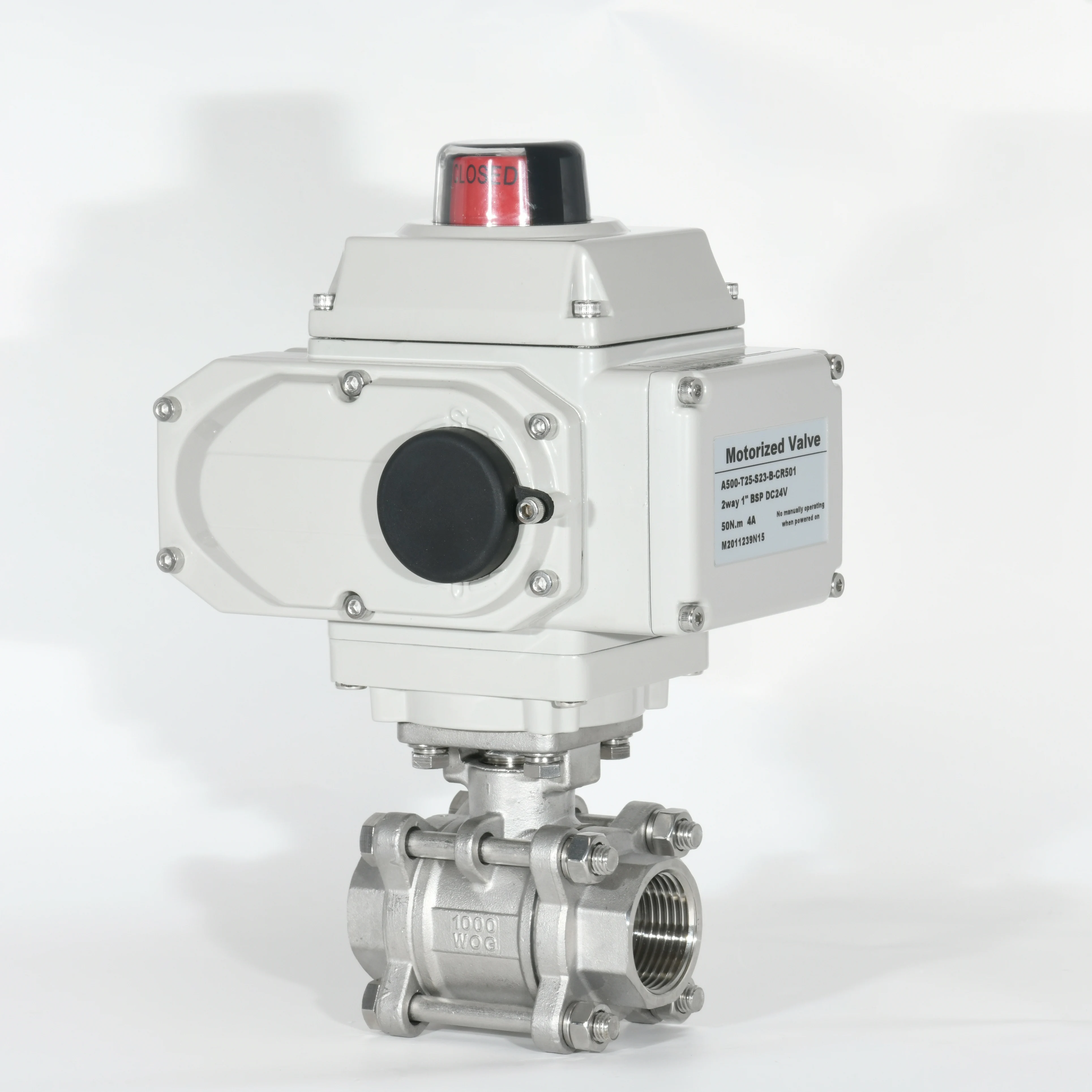

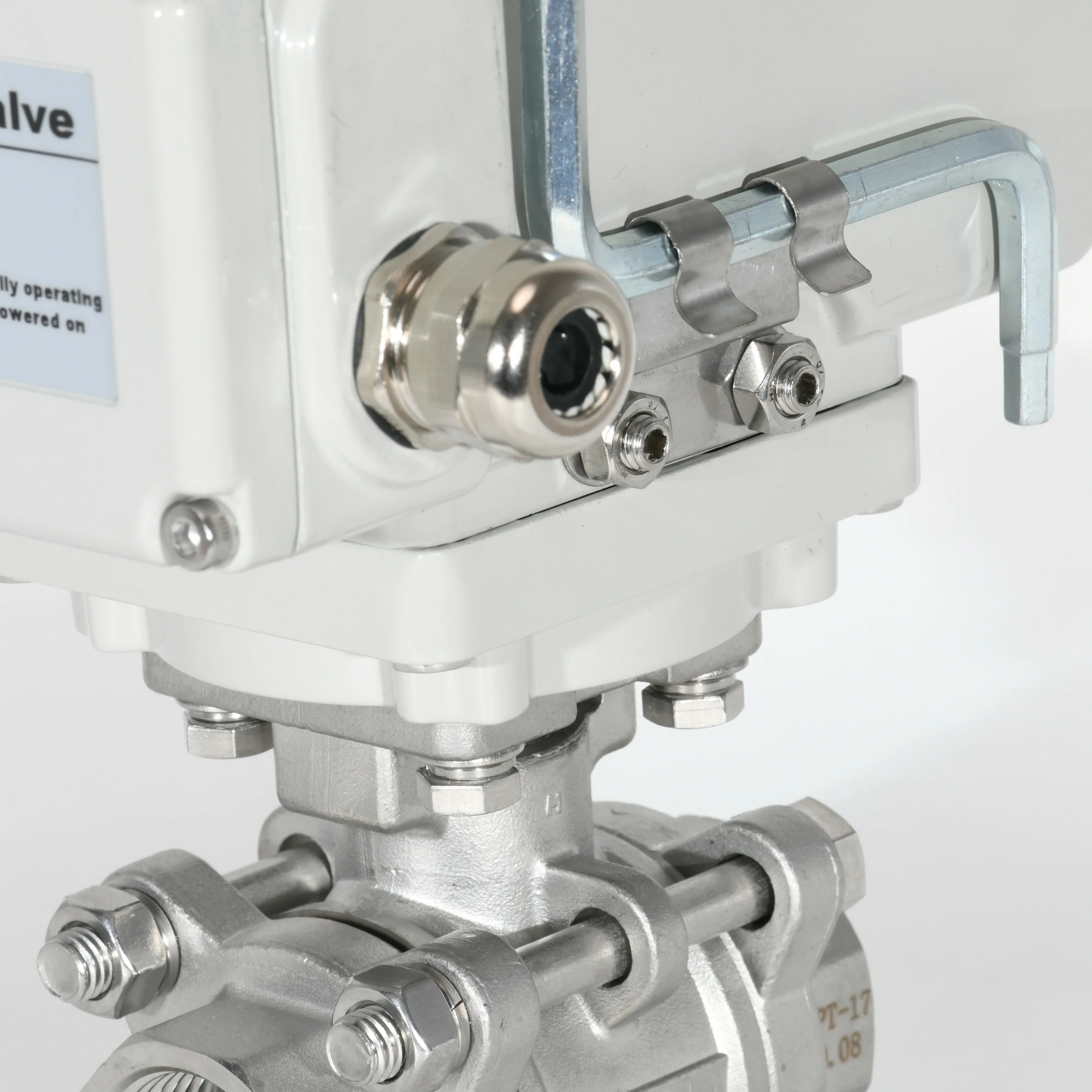

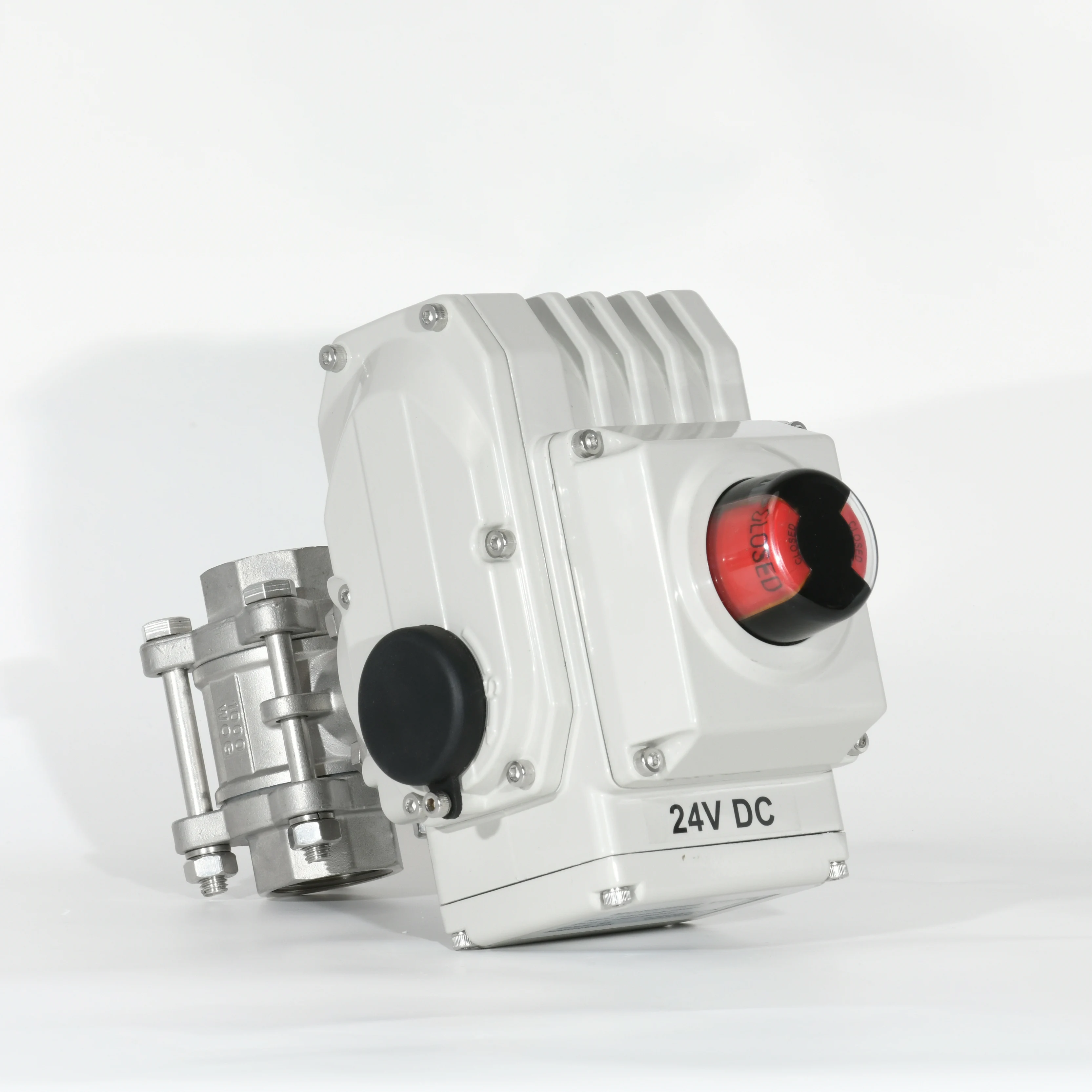

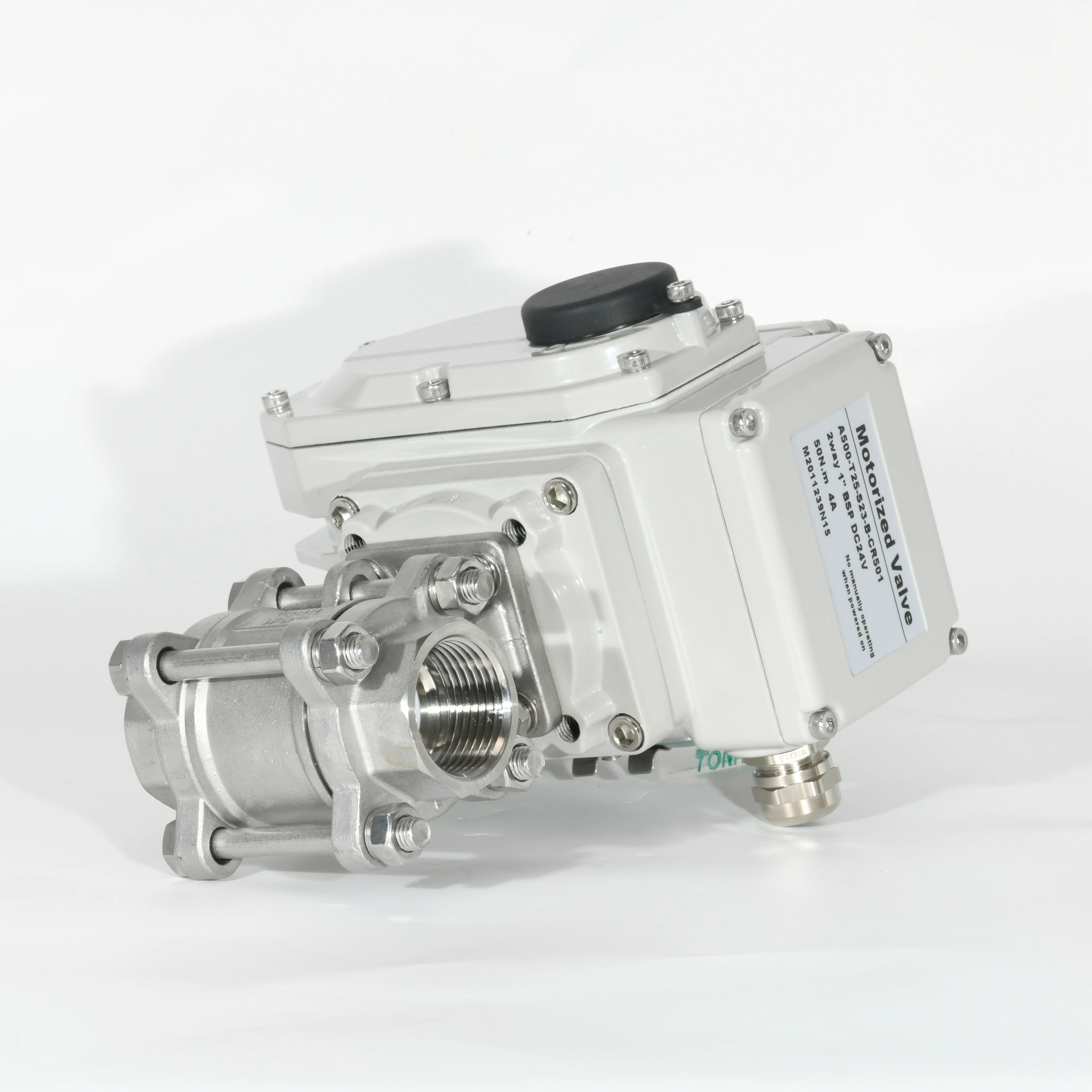

2 Way 50 N.M 2' three pieces stainless steel 304 electric control Ball Valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.Taizhou Ltd.
Share on (1600338827963):
Product Overview
Description
2 way three pieces electric shut off motorized water ball valve in stainless steel with manual override , AC110v /AC220V /DC/AC24V/DC12V, CR201,CR301,CR501 ,CR503 wire control,metal geal , PPO actuator housing ,IP 67, CE ,ISO5211 F03,F05 connecting .
Technical Parameters:
Product size :1-1/4''- 3'' (Optional )
Maximum working pressure 1.5MPa
Circulation medium Fluid, air
Rated voltage/DC12V DC24V AC/DC12/DC24V AC110/AC220V (Optional )
Wiring control methods CR2-01 CR2-02 , CR3-03 CR3-01 CR5-01 CR5-02,CR7-02(Optional)
Working current ≤4A
Open/close time ≤15S
Life time 70000 times
Valve Body material Brass Nickel plated Brass 304 Stainless steel (Optional)
Actuator material Engineering Plastics
Sealing material EPDM & fFKM
Actuator rotation 90°
Max. torque force 50N.m
Cable Length 0.5m,1.5m(Optional)
Environment temperature -15℃~50℃
Liquid temperature 2℃~90℃
Manual override Yes
Indicator Yes
Protection class IP67
Connection standard: ISO5211, F03,F04,F05
2 inches motorized valve assembly diagram :
Application
Water meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment
Packaging & Shipping
Our Services
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Company Information
When you inquiry our product , pls confirm the below detail diameter of the valve:
1, valve size , materail ,
2, working voltage ,
3, wiring control,
4 valve manual overide & open or close indicator ,
5, cable length
then Nadine (Skype :nadine84081) will provide you a resonable price .
