Grabs экскаваторный грейфер S для экскаватора от 10 до 20 тонн с двойным цилиндрическим грейпером
- Category: Grapples >>>
- Supplier: Guangxi,Xuvol,Construction,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

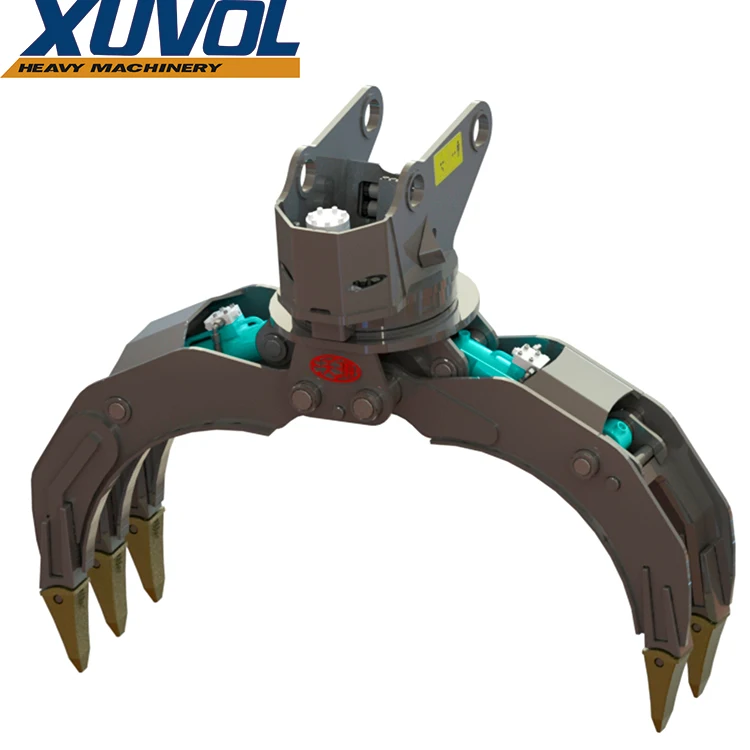

Grabs WYJ150S excavator grapple for 10 to 20 ton excavator with
double cylinder grapple

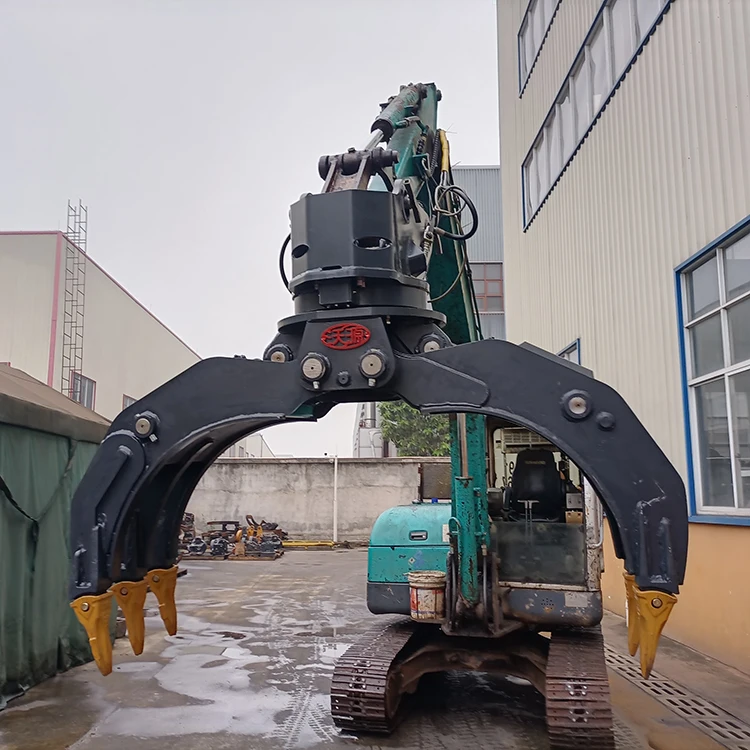

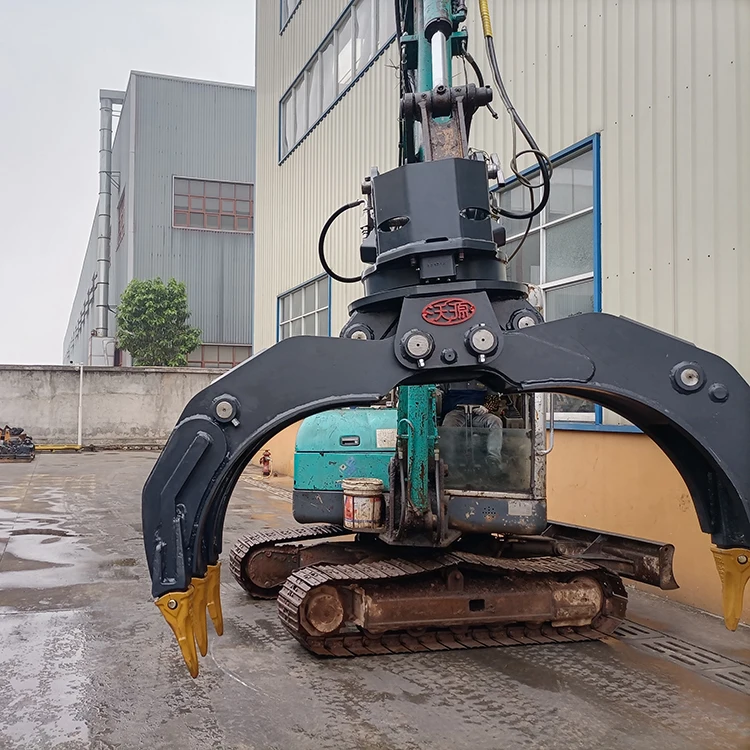

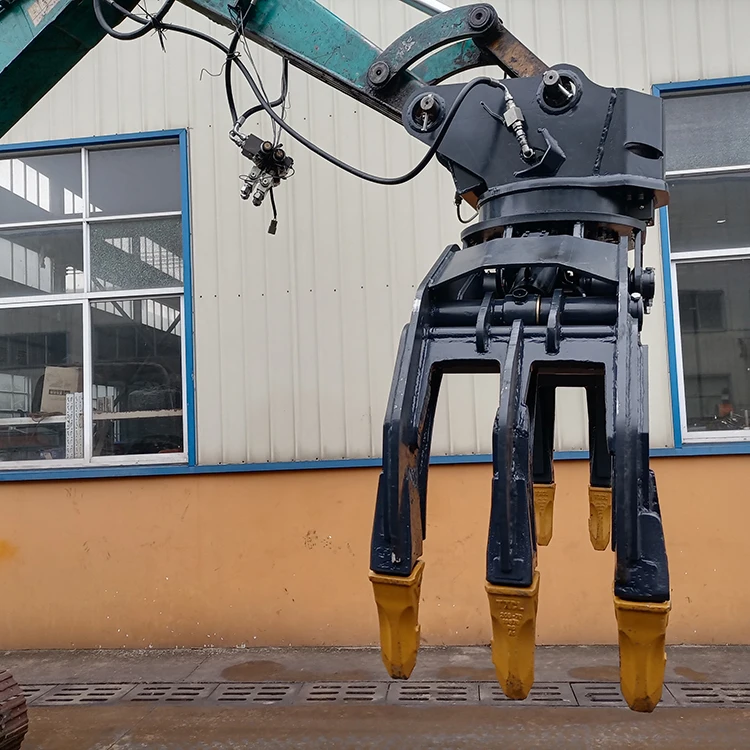

Details Images
WYJ-150S
1. Model: WYJ-150S Double cylinder
2. Weight: 738kg
3. Suitable excavator models:10-15 tons
4. Working pressure: 16~21MPa
5. Rotary drive type: vertical straight tooth, hydraulic brake
6. Clamp drive type: Five -Jaw type, double cylinder and without connecting bar
7. Suitable for large-scale port timber handling construction, eucalyptus handling, bamboo handling, sugarcane handling and other construction occasions, The holding structure will highly improve the operation efficiency.
8. Other name: grabs, excavator grapple, excavator grabs, log grab, excavator attachment, log grab, grapple
Grabs WYJ150S excavator grapple for 10 to 20 ton excavator with double cylinder grapple
Grapple Paramenters
Xuvol Grapple Specifications | WYJ-150S | ||
Whole Grapple | Grapple Type | double cylinder/Five-Jaw grapple/without connecting bar | |
Steel material | Q355B | ||
Optional electric control | ✔ | ||
Height when clamped(mm) | 1620 | ||
Height when opened(mm) | 1540 | ||
Width of inner/outer clamp(mm) | 322/492 | ||
Open Width Max(mm) | 1600±20 | ||
Minimum holding circle(mm) | ≦φ110 | ||
Maximum holding circle(mm) | φ600 | ||
Weight (excluding rotation)kg | 738 | ||
Suitable Excavator(Ton) | 10-20 | ||
Rotation method(grapple) | external meshing vertical rotation | ||
Module / raceway diameter | M5/315 | ||
Motor type | Cycloid motor | ||
Pressure(Mpa) | 16 | ||
Rod diameter/bore size | 45/80 | ||
Pressure(Mpa) | 21 | ||
Products Description
Advantages of the grapple:
2.The grapple control method adopts an electronic control handle operating system, equipped with imported solenoid valves, which can control the rotation speed
3.The WYJ-150S can rotate 360 degrees clockwise and counter clockwise, and the operation is smooth;
4.It can be stalled on 10t-15t excavator, Suitable for loading and unloading of sugarcane, pine, fir and other construction occasions.. Greatly improving work efficiency and greatly saving labor costs.
Xuvol log grapple WYJ-150S could be installed on 90% brand of excavator
1.More advanced electro-hydraulic ratio technology
OWN Pattents
Obtained: 2 utility model patents
5 design patents
Being accepted:
Being accepted:
2 patents
Human-machine Exchange
The Human-machine exchange interface of the fixture set by our company has independent intellectual property rights and can adjust various parameters of the wood clamp
Electro-hydraulic proportional solenoid valve
The electro-hydraulic proportional solenoid valve has strong versatility and can be applied to all excavators on the market
2.Compare with other Brand
Other Brand Grapple | Xuvol Grapple |
Proportional control is not available, and the action has a big damage to the object | Electro-hydraulic proportional control can be control to realize the integration of electro-hydraulic, soft and flexible action |
Rely on manual control the pressure of the grapple, Poor Personal skills will easily cause damage to the gripping objects | It can be clamped automatically, and the clamping time (0.1~1 second) and clamping pressure are adjustable, which can effectively protect the clamped object |
Unable to weigh | It can weigh the gripped objects and store the data |
Unable to send data | Data could be sent to the operator timely, ensure manage the material in time |
Company Profile
Guangxi Xuvol Construction Machinery Equipment Co.,Ltd
Xuvol specialized in R&D, manufacturing multi-functional excavator attachments for over 15 years. Products range include grapples, mini excavator, timber harvester head, suitable for different model excavators. OEM Service is available. We can design and produce the most suitable excavator attachments by different working condition requirements.Grabs WYJ-150S excavator grapple for 10 to 20 ton excavator with double cylinder grapple
Workshop
Plasma cutting machine
Welding Robots
Shot blasting machine
Vertical Machining Center
Longmen machining center
Laser Cutter

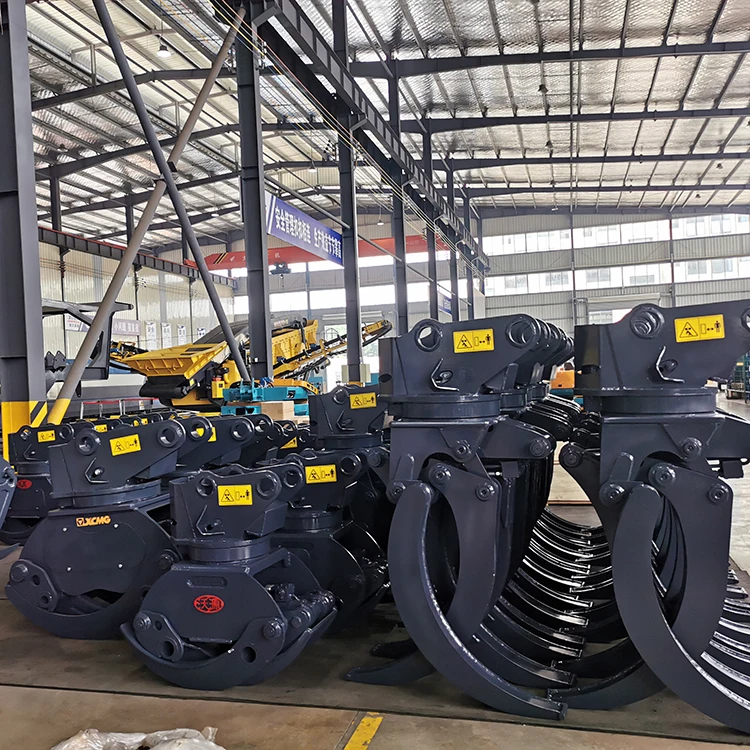

Production Line
Xuvol is the leading manufacturer of grapples in China. Over 1,000 sets are produced and sold annually, and the market share is about 40%!
Grabs WYJ150S excavator grapple for 10 to 20 ton excavator with double cylinder grapple
Product packaging
Grapple Package with stretch film and Wooden box
The standard package is wrap with stretch film and tied on wooden pallets. We will do special package by your requirements if you need.
Grabs WYJ150S excavator grapple for 10 to 20 ton excavator with double cylinder grapple
Certifications
CE, ISO Certificate
Xuvol excavator grapple meets the most global standard , we gain CE and ISO grapple Certificate. And offer other Certifications by customer requirements.
Welcome to our Factory!
333
1. Q:Are you manufacturer?
A:Yes, We are one of the leading excavator attachments manufacturer in China. With 15767m² factory area and 5 production lines.
2. Q:Do you offer OEM service?
A: Yes, We have a professional R&D team which ensure to make your idea turn into reality.
3. Q:How do you make sure the quality?
A:We pass CE and ISO Certificate, grapple products widely used on 90% of global excavator brands, exported to Japan, Vietnam, Indonesia, England and other countries.
