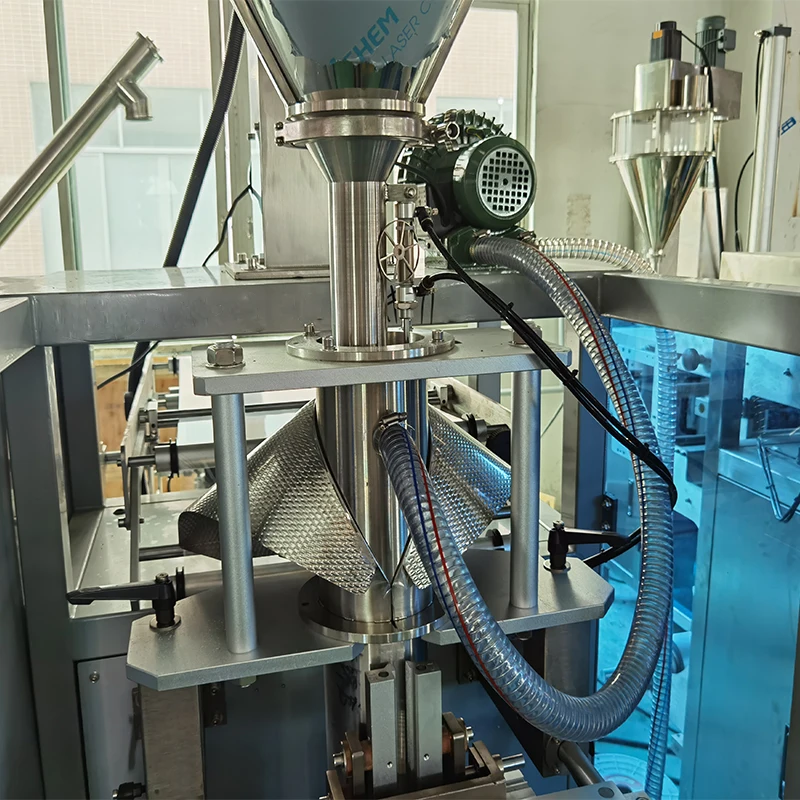

Factory Wholesale Corn Rice Milk Powder Seasoning Whole Grains Food Powder Packing Machine

Share on (1600338905650):


Price:$17,000.00 - $18,750.00

Quantity:


Product Overview

Description








Full Automatic Vffs System 3 In 1 Instant Premixed Coffee Powder Food Packing Machine










Products Description







































































Model


JY-30L


JY-50L


Hopper


30L


50L


Packing weight


1-500g


10-5000g


Packing accuracy


<100g±2%;100-500g±1%


<100g±2%;100-500g±1%;<5000g±0.5%


Filling speed


40-120 times/min


40-120 times/min


Total powder


1.7kw


1.9kw


Total Weight


130kg


200kg


Overall Dimension


860*460*880mm


1060*600*1100mm
























Details:

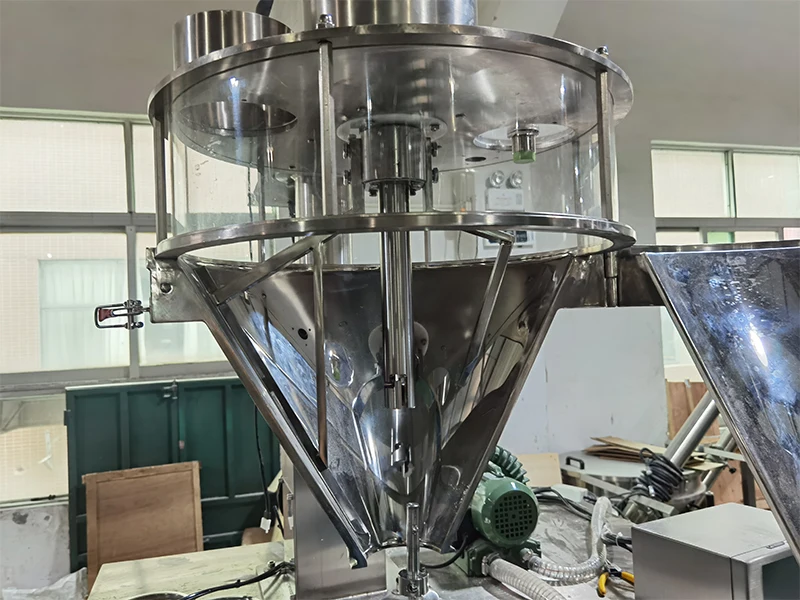

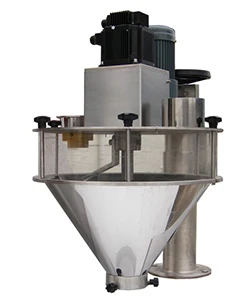

Auger Feeder:




Servo motor drive screw,which ensure stable and accurate,adjustable height handwheel.Inverter motor for mixing the powder inside for preventing powder from clumping.

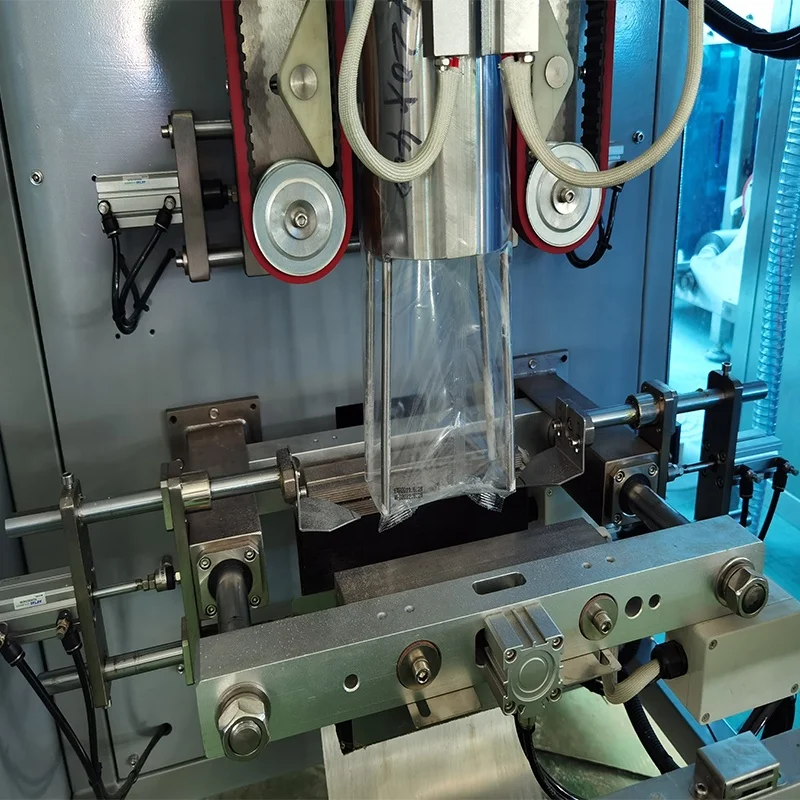

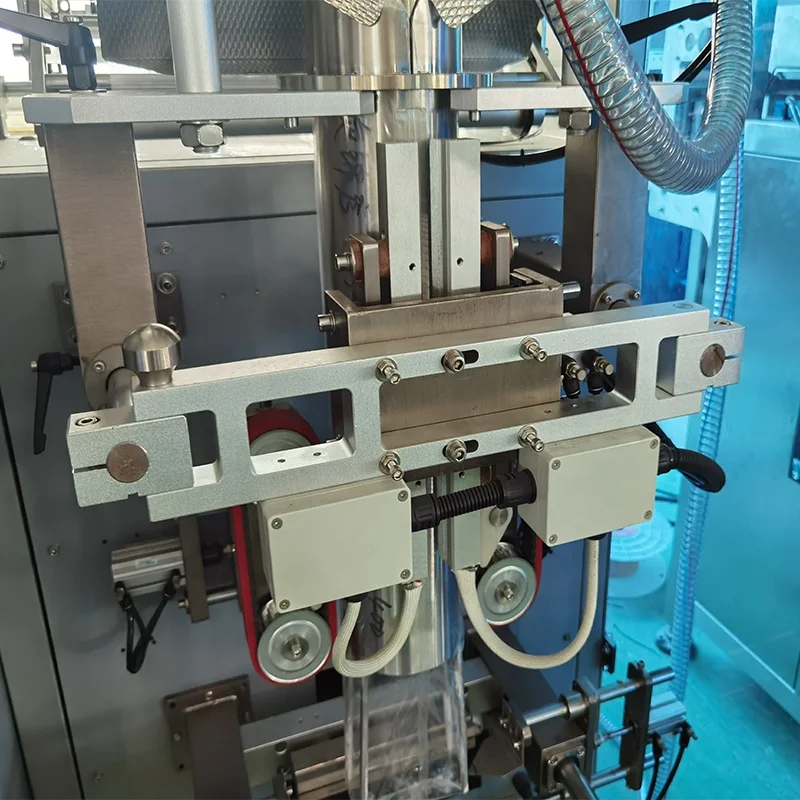

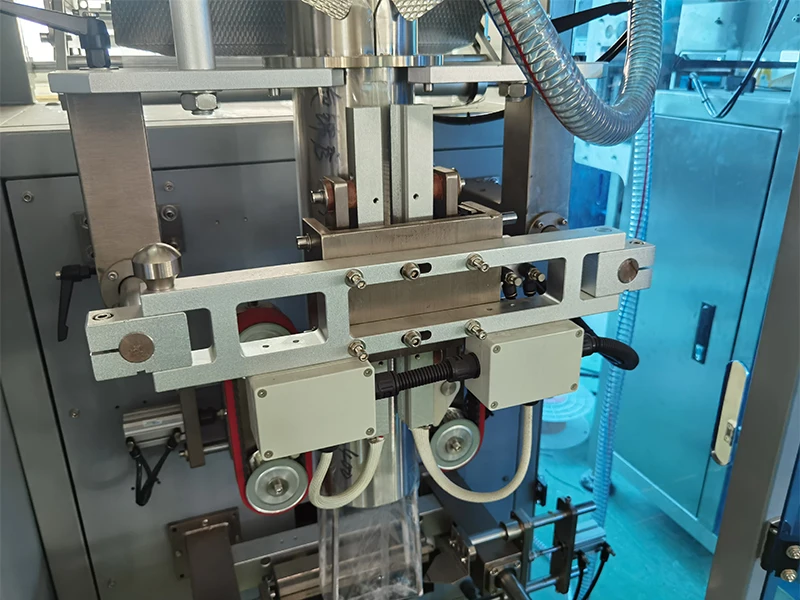

Sealling And Cutting:




The servo motor drive the double belt to draw the plastic film,which makes the bag flat and beautiful.

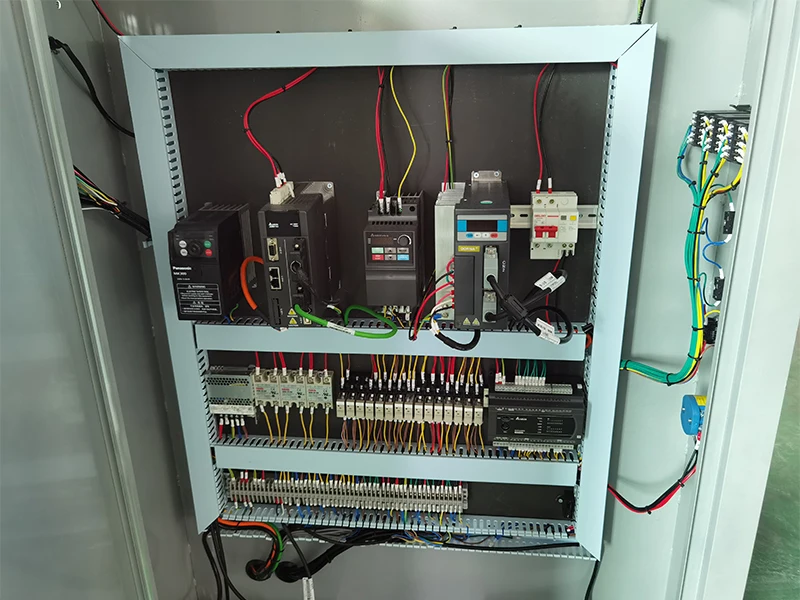

Circuit system control box:




Easy to control the machine via touch screen like parameters setting,this machine can also detect faults and stop automatically to protect itself and opertor,and the fault details will be display on the touch screen for troubleshooting.

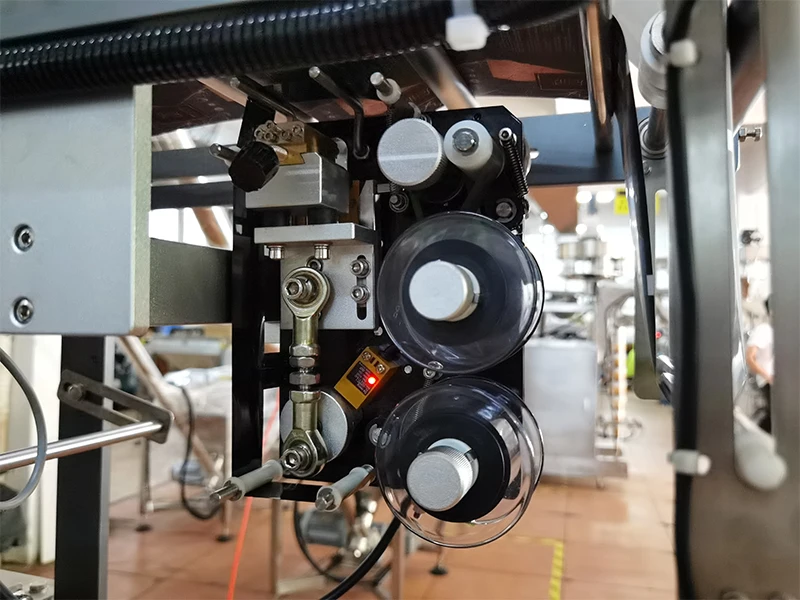

Date Printer:




Date printer is available to be equipped on this machine for printing production date on bags;the position of the bag cut can be according to position of the color code detected.











Product Paramters:
































































































Machine model:


JY-320BP


JY-420BP


JY-520BP


JY-720BP


Film width:


Max.320mm


Max.420mm


Max.520mm


Max.720mm


Film width Range(bag former):


120-320mm


150-420mm


240-520mm


280-720mm


Bag Width:


50-150mm


65-200mm


110-250mm


150-350mm


Bag Length:


50-200mm


80-300mm


80-400mm


80-500mm


Film roll Diameter:


Max.320mm


Max.320mm


Max.320mm


Max.320mm


Speed:


5-60bag/min


5-60bag/min


5-60bag/min


5-60bag/min


Measurement range:


50-250mm


150-1500ml


150-2000ml


50-5000ml


Film thickness:


0.04-0.12mm


0.04-0.12mm


0.04-0.12mm


0.04-0.12mm


Power:


220V/380V 50/60HZ



Machine size:


970*680*1960


1217*1015*1343


1488*1080*1490


1780*1350*2050


Machine Weight:


300kg


450kg


500kg


600kg









Optional function devices:
1. Hole punch device
2. Tear notch device
3. Linking bag control device
4. Air exhaust device
5. Nitrogen inflation device
6. Triangle package

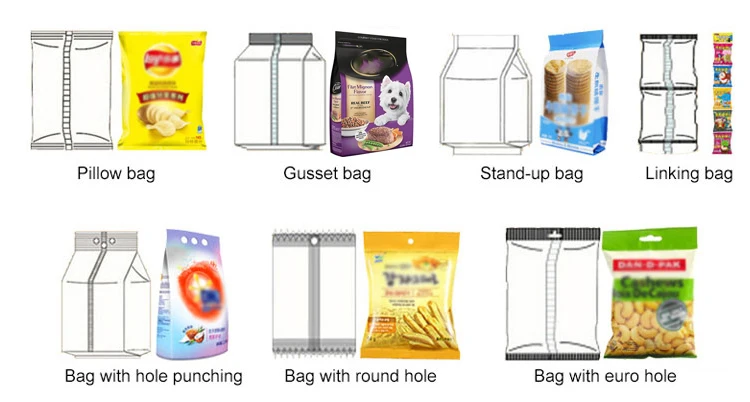

Characteristic:
1.Digital screen display with numerical setting and flexible operation; 2.Imported PLC control system and color touching screen, easy operation; 3.Imported film driving system and color sensor enable accurate position; 4.PID independent control of temperature, more suitable for different packaging material; 5.Multiple automatic alarming functions, maximum deduction the loss; 6.Dual encoders enable more stable performance; 7.Diversified bag-shaped provide pillow-shaped bags, standing/hanging/linking/ bags; 8.Available with inflatable device or code system enable broad application; 9.Automatic correct function and external film placing make simple and easier installation of packing film; 10. Multipurpose packaging, suitable for various packaging of similar product.

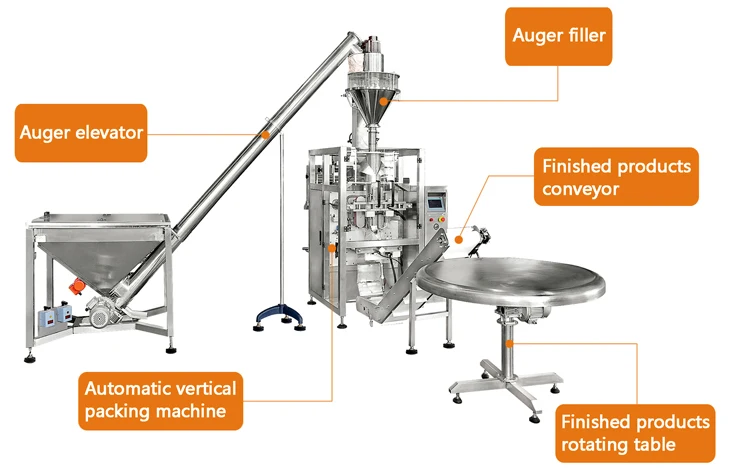

Application

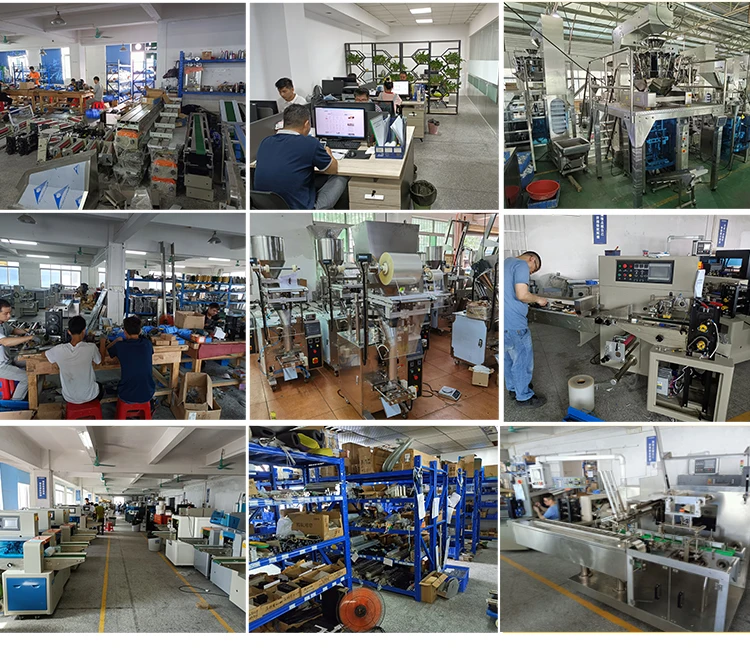

Company Profile

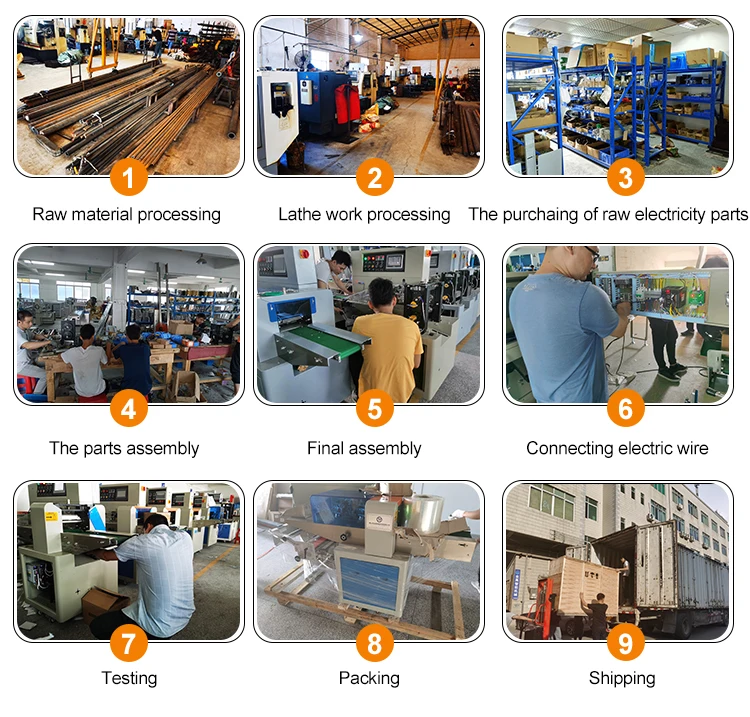

Production Process



















Our Services










Pre-sales Services: 1.Over 5,000 professional packing video,give you direct feeling about our machine. 2.Free packing solution from our chief engineer. Medium-sales Services:  JinYu have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality. After-sale Services: 1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you. 2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours. 3. Jinyu engineers & technician are available send to your countries for services if you agree pay the expenditure. 4. The machine will have One year guranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.









Certifications



















Delivery





















FAQ










Q1: How to find a Packing machine suitable for my product? Tell us about your product details and packing requirements. 1. What kind of product? 2.Production size or bag size of you need for the product packing ( the length, width and height) 3. The weigh of each pack you need. 4. You requirement for the machines and the bag type.  Q2: Are you a real factory/manufacturer? Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. you don’t have time? We can use live video and you can visit us on line. Q3:How about the after-sale service? (1)We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well. (2)More than 12 hours after-sale online service one day. (3) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side. Q4:What about your Guarantee of quality ? The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service. Q5: Do you also offer the wrapping film? Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable. Q6. Can you explain me the whole transaction progress ? 1. Sign the Contact/order on alibaba we have trade assurance. 2.Arrange 30% deposit to our factory 3.Factory arrange production 4.Testing & detecting the machine before shipping 5.Inspected by customer or third agency through online or site test. 6. Arrange the balance payment before shipment. Q7: Will you provides the delivery service? A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
