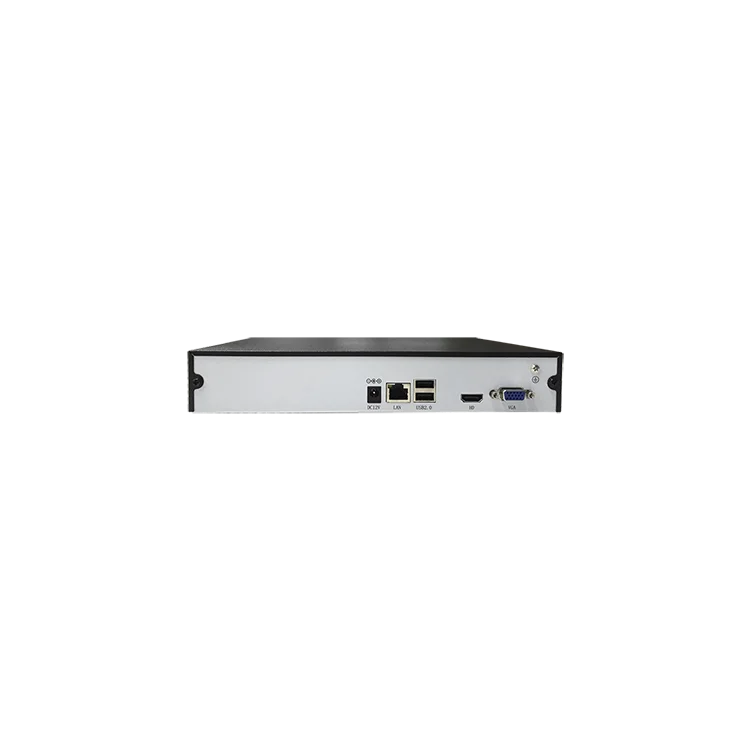

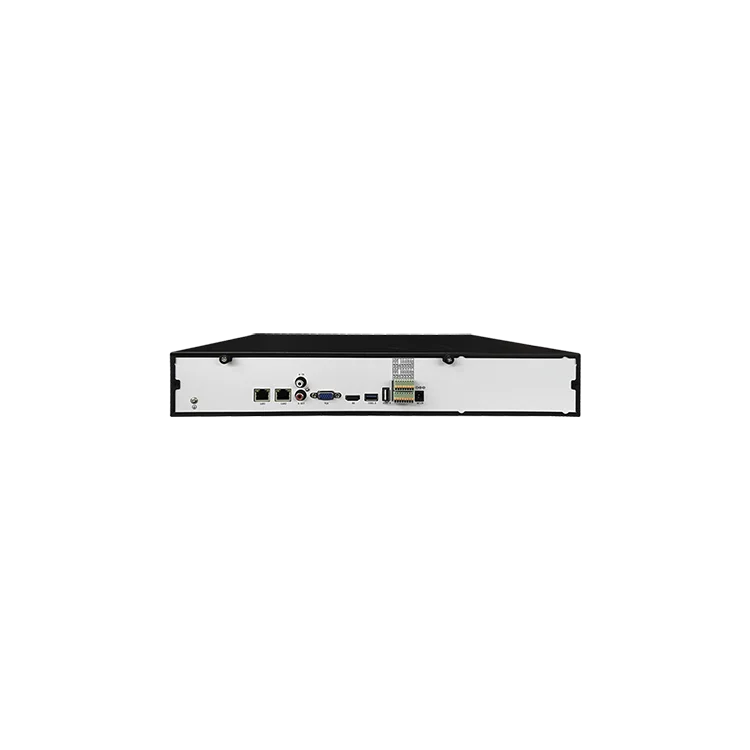

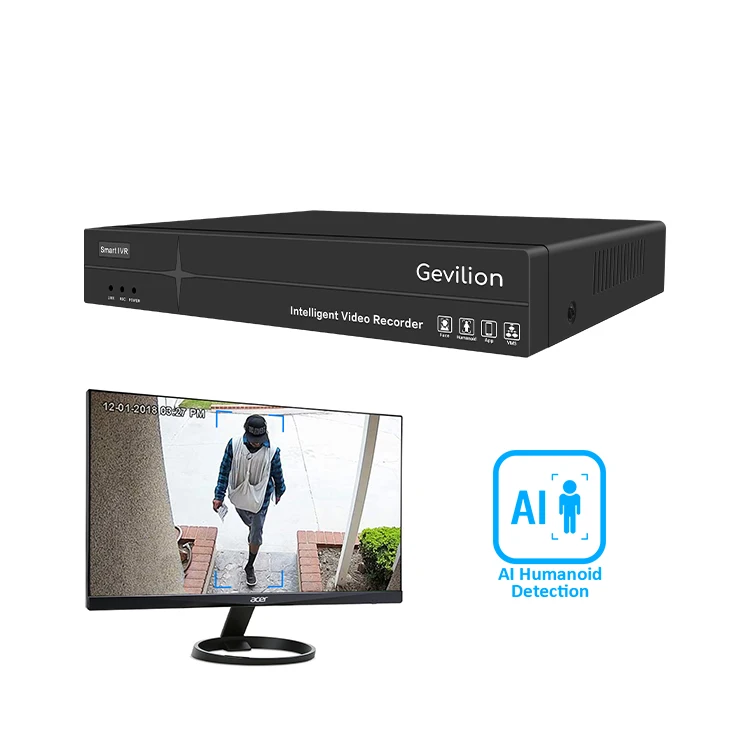

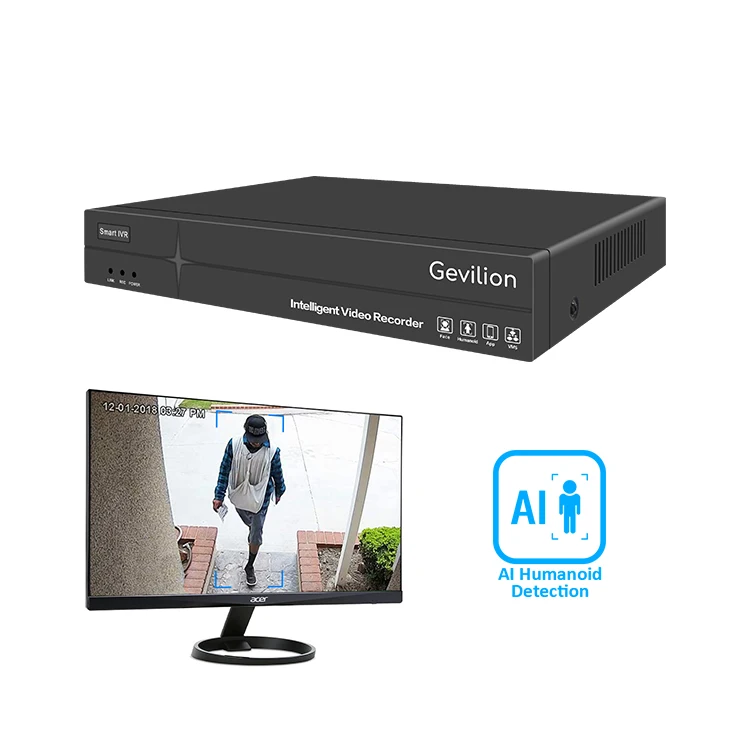

5MP Network Video Recorder 5MP Face Recognition NVR 32CH POE CCTV NVR
- Category: >>>
- Supplier: Shenzhen Gevilion Technology Limited
Share on (1600338969902):
Product Overview
Description
Products Description

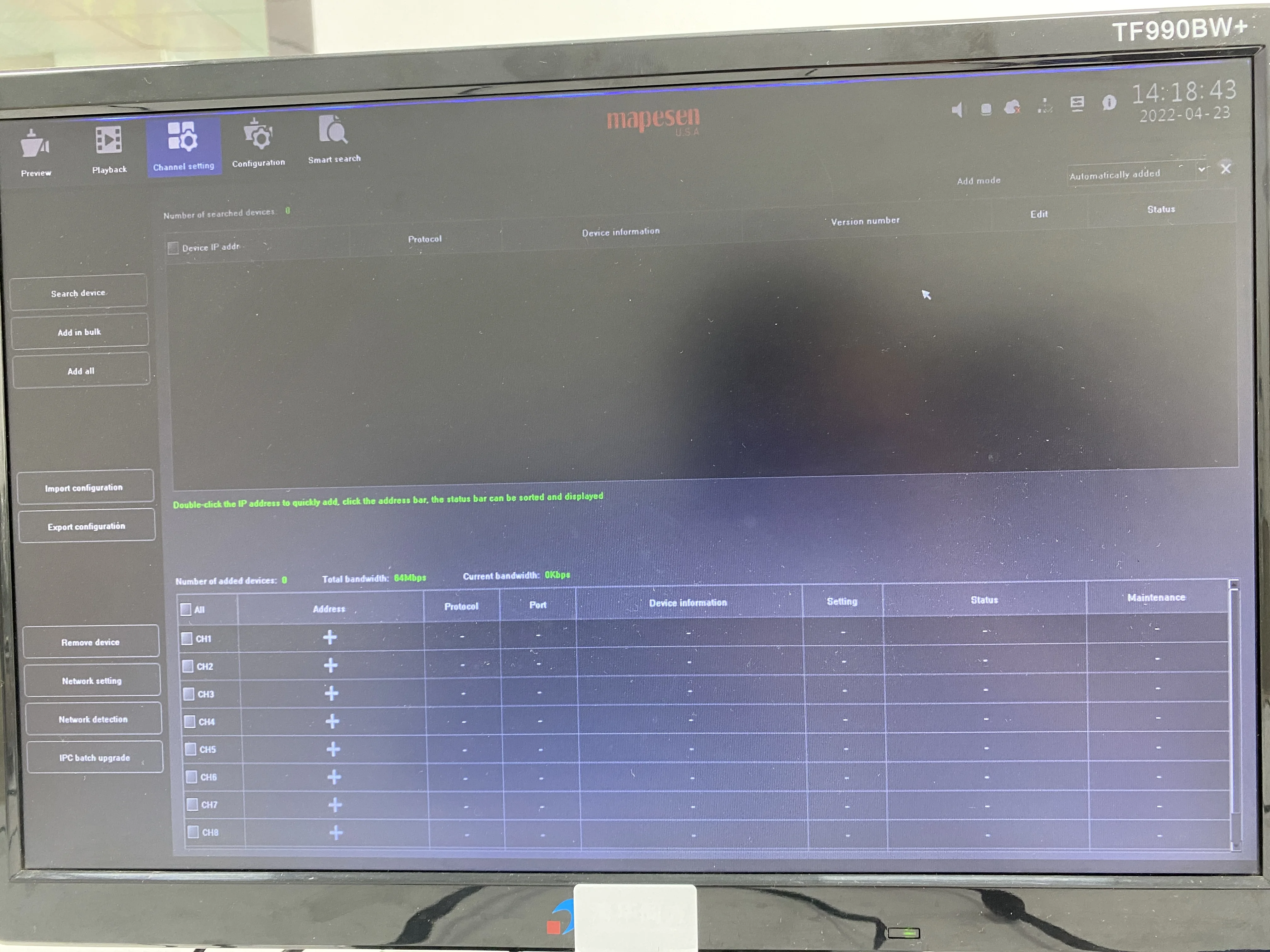

GUI Interface
Model | NVR-5M8232FS-Q | |
System | ||
Operating System | Embedded LINUX | |
Video & Audio Input | ||
Incoming bandwidth | 80Mbps | |
IPC Input | Normal mode: 32CH*5MP/3MP/2MP, 16CH*4K/5MP/3MP/2MP(Ordinary IPC) | |
Capture mode: 2CH /2MP(Ordinary IPC) +2CH 2MP (Specifies the face capture camera) | ||
Capture mode: 8CH /2MP(Ordinary IPC) +1CH /2MP (Specifies the face capture camera) | ||
Comparison model: 12CH /2MP(Ordinary IPC) +4CH 2MP (Specifies face comparison camera) | ||
Preview | Max 32CH | |
Video & Audio Output | ||
VGA | 1CH,1920×1080,1280×1024,1280×720,1024×768 | |
HDMI | 1CH 1920×1080,1280×1024,1280×720,1024×768 | |
RCA | 1CH | |
Video & Audio Encoding | ||
Audio Compression | G.711A | |
Audio Bit Rate | 64Kbps | |
Video & Audio Decoding | ||
IP channel Resolution | Main stream: up to 3840x2160 Auxiliary stream: D1/CIF | |
Video decoding | H.265+/H265 /H.264 | |
Playback | 1CH@4K, 4CH@1080P,16CH@D1 | |
Record Mode | Manual>Alarm>Motion detection>Timing | |
Search Mode | Search by time, calendar, event, channel | |
Backup Mode | USB Device/Network | |
Other Function | ||
Smart Functions | Target Count, Object Left/Lost, Electronic Fence, Line Crossing, Humanoid Detection, Retrograde Detection, Leave Position Detection (need front end IPC supported) | |
Motion Detection | Support | |
Face recognition | Support(The specified mode and the specified IPC are required) | |
Storage | ||
SATA | 2*SATA HDD | |
Capacity | Max 8T HDD | |
E-SATA | No | |
Network | ||
Network Protocols | DDNS,EMAIL,UPNP,NTP,DHCP,IP Filter,PPPoE,P2P | |
ONVIF | Support | |
RTSP | Support | |
APP | iPhone, Android | |
PC | Support | |
Interface | ||
Network Interface | 2pcs RJ45 10M/100M/1000M self-adaptive Ethernet interface | |
USB | 2pcs USB (1pcs 3.0) | |
Audio Output | 1PCS RCA,HDMI | |
Voice intercom input | 1pcs RCA | |
Alarm I/O | 4/1 | |
General | ||
Installation | Desktop Installation | |
Power Supply | DC12V3A | |
Consumption | ≤10W(without HDD) | |
Working Conditions | Temperature: -10℃- +55℃ Humidity: 10%∼90% | |
Company Profile

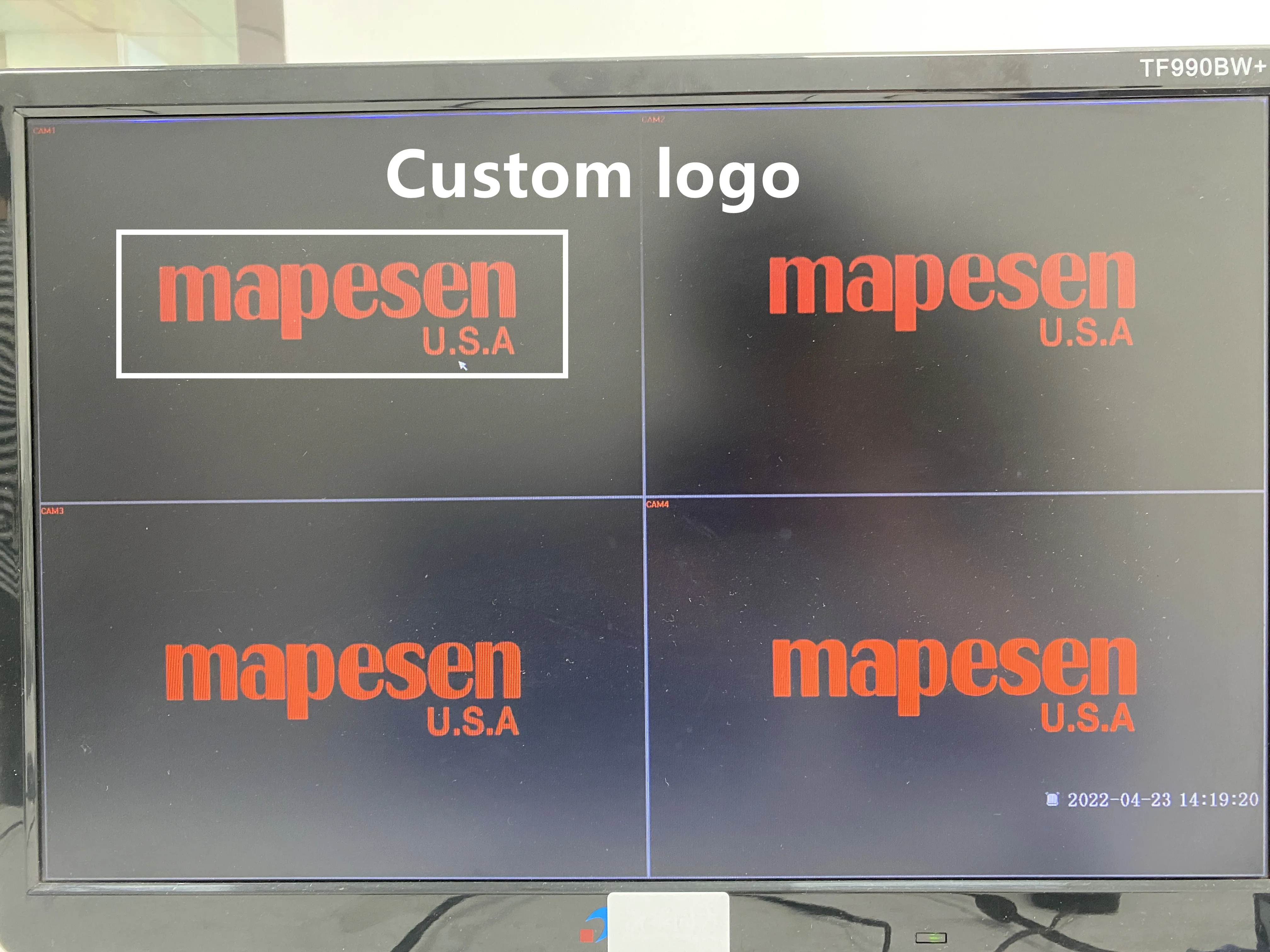

OEM & ODM Service
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
> ODM Projects acceptable and welcome to your inquiries!
> ODM Projects acceptable and welcome to your inquiries!
Exhibition
>Will attend many professional Security show each year: ISC America,Secutech Taiwan,IFSEC UK,Mips Russia,ESSEN Germany,Intersec Dubai,CPSE China.etc.Welcome to meet us at the show!
FAQ
1.Warranty & RMA
(1) 2 years free repair and lifetime technical support provided after the shipment date.
(2) Any product proves defective under normal usage, we will repair or replace it by free of Charge.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
2. OEM & ODM
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
> ODM Projects acceptable and welcome to your inquiries!
3. Payment Terms
T/T, Paypal, Western Union, Sinosure & L/C
> We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
> Sinosure & L/C acceptable according to the order amount
4. MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
5. How to order from us?
> Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
> We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the
order.
> After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery
date in 2 days.
> When the goods are ready, we will send by DHL, by air or by sea, or other shipping method appointed by the customers. and let
you know the tracking number and estimated time of arrival.
6.Technical Support
Professional technical support team 24 Hours Online!
(1) 2 years free repair and lifetime technical support provided after the shipment date.
(2) Any product proves defective under normal usage, we will repair or replace it by free of Charge.
> If you could repair the products by yourself, we will supply the spare parts.
> If you couldn't repair the products, please sent back to us, and we repair and afford 50% freight charge.
All our products are 100% passed strictly quality inspection before delivery. our detective rate is less than 1%
2. OEM & ODM
> OEM Silkprint LOGO/Sticker/Box/Manual/Software/Carton Box, Free of Charge with MOQ
> ODM Projects acceptable and welcome to your inquiries!
3. Payment Terms
T/T, Paypal, Western Union, Sinosure & L/C
> We accept T/T 30% deposit to arrange production,70% balance payment when goods ready.
> Sinosure & L/C acceptable according to the order amount
4. MOQ
Welcome trial order! Sample Order no MOQ; after sample order, MOQ 10pcs per model.
Silkprint OEM logo MOQ 100pcs, OEM Design box MOQ 1000pcs.
5. How to order from us?
> Please confirm the model no. & quantity that you would like to purchase with our sales person, or email to us
> We will send you a Proforma Invoice to specify net cost of mentioned goods, and other relevant charges once you confirm the
order.
> After you arrange the payment and send us the bank slip, Your order will be put into production, and let your know the delivery
date in 2 days.
> When the goods are ready, we will send by DHL, by air or by sea, or other shipping method appointed by the customers. and let
you know the tracking number and estimated time of arrival.
6.Technical Support
Professional technical support team 24 Hours Online!
