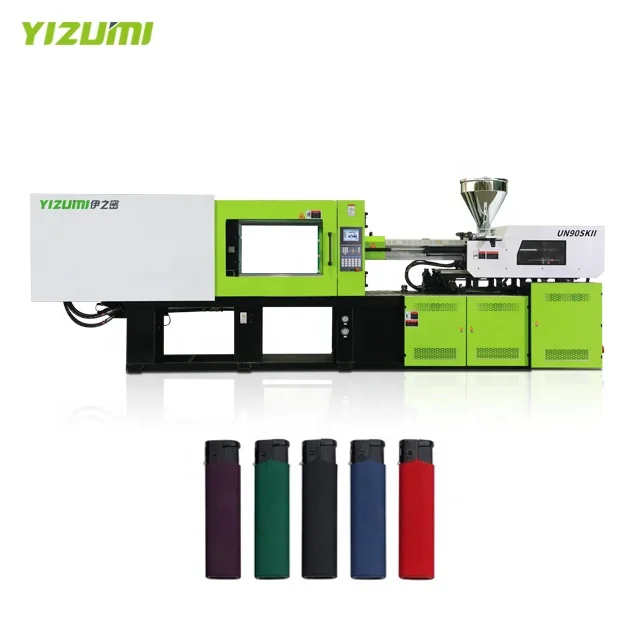

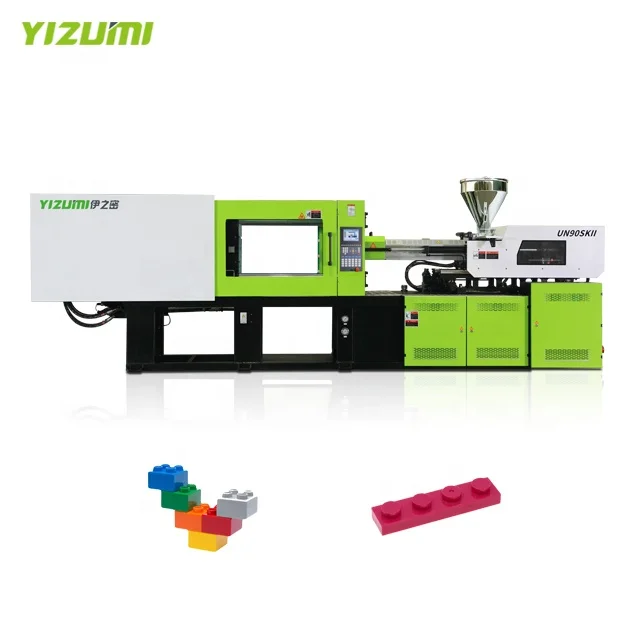

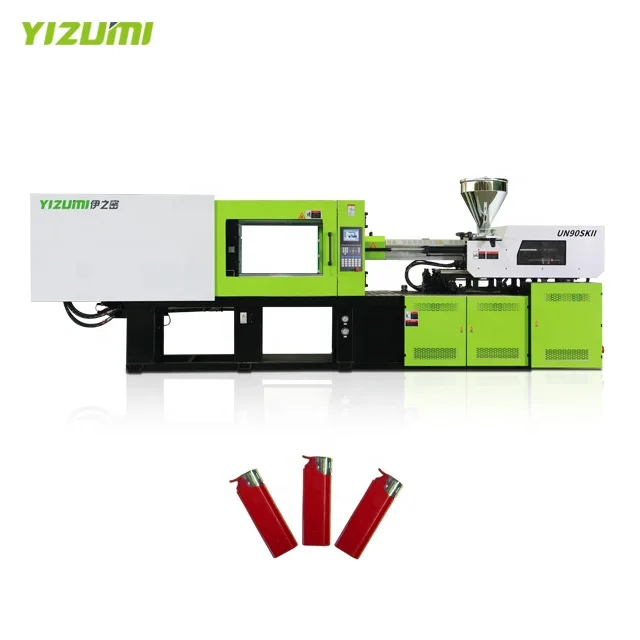

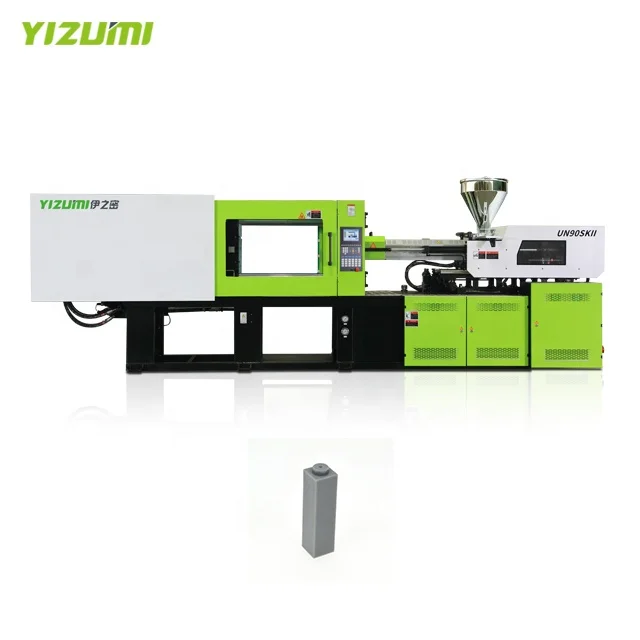

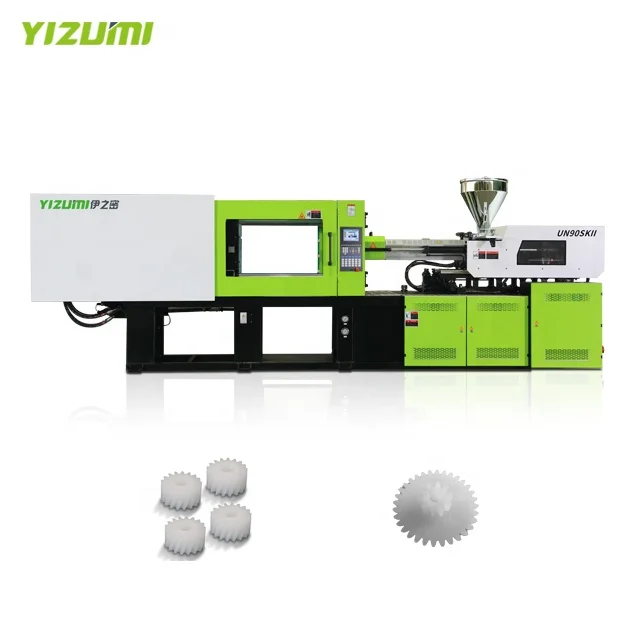

Hot sale 90 Ton YIZUMI Polymer Injection Molding Machine Small Machine UN90SKII IMM Low Price
- Category: >>>
- Supplier: Yizumi Precision Molding Technology Co. Ltd
Share on (1600338973036):
Product Overview
Description
Product Description
CLAMPING UNIT
Combination with T-Slot & bolt holes
The platen has both T slots and bolt holes in horizontal direction, but only bolt holes in vertical direction. Such layout makes the setup and removal of mold easier and increases the overall rigidity of platen.
Adjustment-free mechanical safety lock
The adjustment-free safety lock is located at the tail platen for automatic mechanical protection.
User-friendly
INJECTION UNIT
Movable hopper guide rails(standard
feature for 90T-320T)
Centralized lubrication module
Purge guard and barrel cover
User-friendly design
Standard features, including movable hopper guide rails, barrel cover, purge guard and centralized lubrication add to the
convenience of operation and maintenance and raises the overall efficiency for customers.
convenience of operation and maintenance and raises the overall efficiency for customers.
Optimized injection unit
UN260SKII-480SKII machines adopt integrated injection carriage frame design. The optimized design of injection mechanism increases the rigidity, ensures the coaxiality of forces on motion and injection, reduces resistance and improves the stability and accuracy of injection.
Optimized screw design
The plasticizing efficiency and quality are enhanced to meet customer needs for fast plasticization, good color mixing and easy cleaning
Hydraulic system
The third-generation servo
1.low energy consumption, strong power and fast response
2.Overall hydraulic circuit optimization reduces flow loss.
3.The resistance to moving parts, including the clamping unit and injection unit is further reduced, raising the response speed and reducing frictional loss.
Optimized oil cooler design
UN90-320SKII machines are equipped with built-in diaphragm type oil cooler and they have good look, compact structure and higher cooling efficiency.
Control system
MH9118 controller: fast speed, accurate control, easy operation, program for multiple processes, powerful
1. MH9118 controller which runs fast and clock rate up to 140MHZ
2. 8＂TFT 256-color LCD with independent CPU control
3. Machine control frequency of 140MHZ, scanning time of 1ms, fast response and accurate control
4. 100 sets of molding data storage with USB port
5. Production quality control with main process parameter statistics
6. Automatic tuning of PID settings for barrel temperature control
Specification
DESCRIPTION | UNIT | DATA | |
Injection unit | Shot volume | cm3 | 158.7 |
Shot weight (PS) | g | 146.0 | |
oz | 5.2 | ||
Screw diameter | mm | 35 | |
Injection pressure | Mpa | 185.6 | |
Injection rate | g/s | 94.7 | |
Screw L:D ratio | 20:1 | ||
Max. injection speed | mm/s | 107 | |
Screw stroke | mm | 165 | |
Screw speed(stepless) | r/min | 0-198 | |
Clamping unit | Clamping force | kN | 900 |
Opening stroke | mm | 320 | |
Space between bars | mm*mm | 360×360 | |
Max. Daylight | mm | 670 | |
mold thickness(Min.Max) | mm | 130-350 | |
Hydraulic ejection storke | mm | 100 | |
Ejector number | 5 | ||
Hydraulic ejection force | kN | 28 | |
Power unit | Hydraulic system pressure | Mpa | 17.5 |
Pump motor | kw | 11 | |
Heating capacity | kw | 6.9/7.8 | |
Number of temp control zones | 4 | ||
General | Dry cycle time | s | 1.9 |
Oil tank capacity | L | 135 | |
Machine dimensions(LxWxH) | m*m*m | 4.55×1.15×1.56 | |
Machine weight | kg | 3000 |
NOTE: The listed machine price is for standard machine only, any extra requirement (e.g. CE/UL/KCS safety standard and so on) will be subject to extra charge.
Packing & Delivery
Company Profile
Exhibition
Certifications
FAQ
Q1: Where is your factory located?
A1: Guangdong Yizumi Precision Injection Molding and Die Casting Technology Co., Ltd which is located at No.12, Shunchang Road,Daliang, Shunde, Foshan, Guangdong Province, China 528306
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Mold trial will be available in Yizumi factory ?
A8： Yes, Customer can send the mold to Yizumi factory and test.
Q9 . Do you provide any spare parts with machine?
A9: Yes, Yizumi will provide one set standard spare parts to customer including heater ,filter, screw head ,screw washer, checking ring ,sealings, etc.
A1: Guangdong Yizumi Precision Injection Molding and Die Casting Technology Co., Ltd which is located at No.12, Shunchang Road,Daliang, Shunde, Foshan, Guangdong Province, China 528306
Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Yizumi has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold and auxiliary selection but also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Currently we provide visit online by video call for the COVID-19.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Mold trial will be available in Yizumi factory ?
A8： Yes, Customer can send the mold to Yizumi factory and test.
Q9 . Do you provide any spare parts with machine?
A9: Yes, Yizumi will provide one set standard spare parts to customer including heater ,filter, screw head ,screw washer, checking ring ,sealings, etc.
