Product Overview

Description

Features and benefits

flat fan have very uni spraying

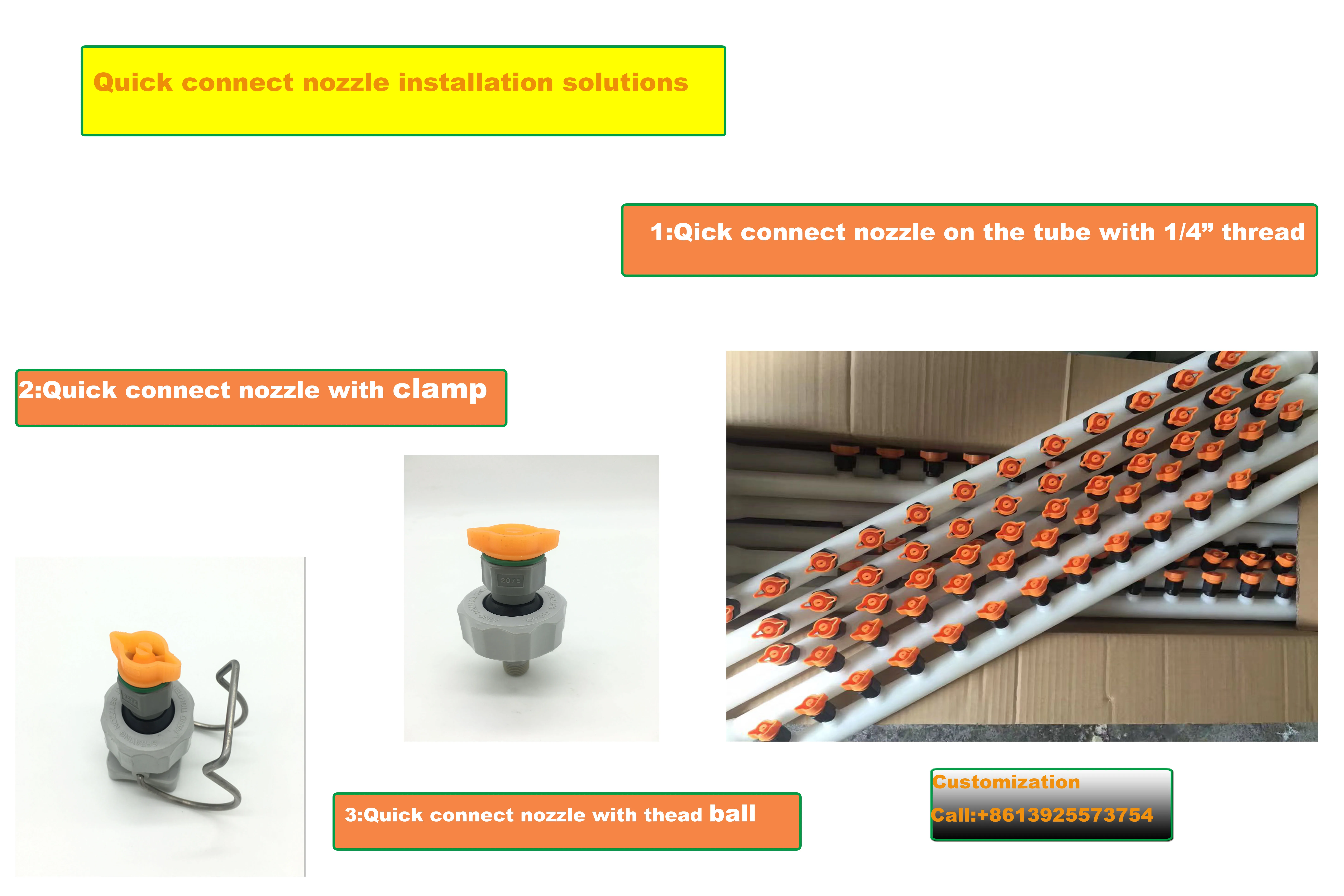

fast ad easy installation of spray tips without tools
automatic alignment
lower cost-nozzle body can be reused- only spray tips are replaced .

removable caps and vvanes for easy inspection and cleaning on some models
Non-removable vane contributes to uniform distribution across the impact area.

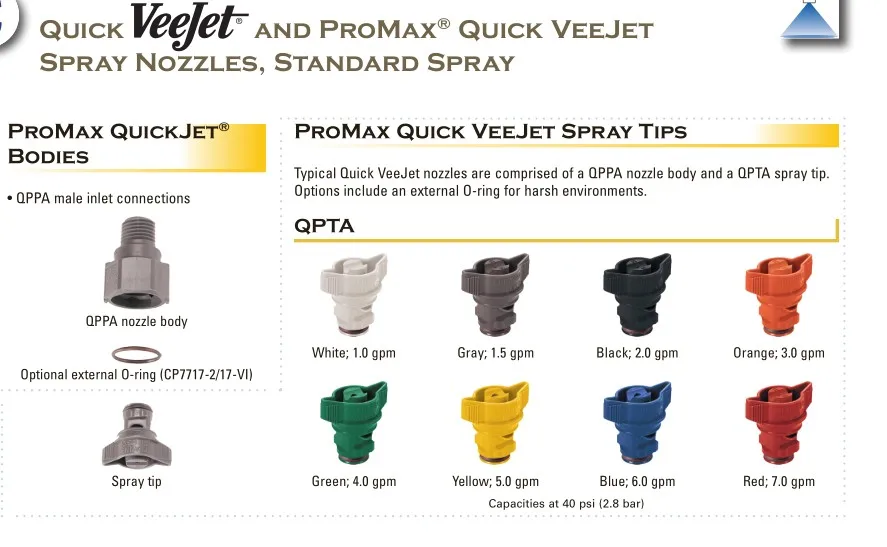

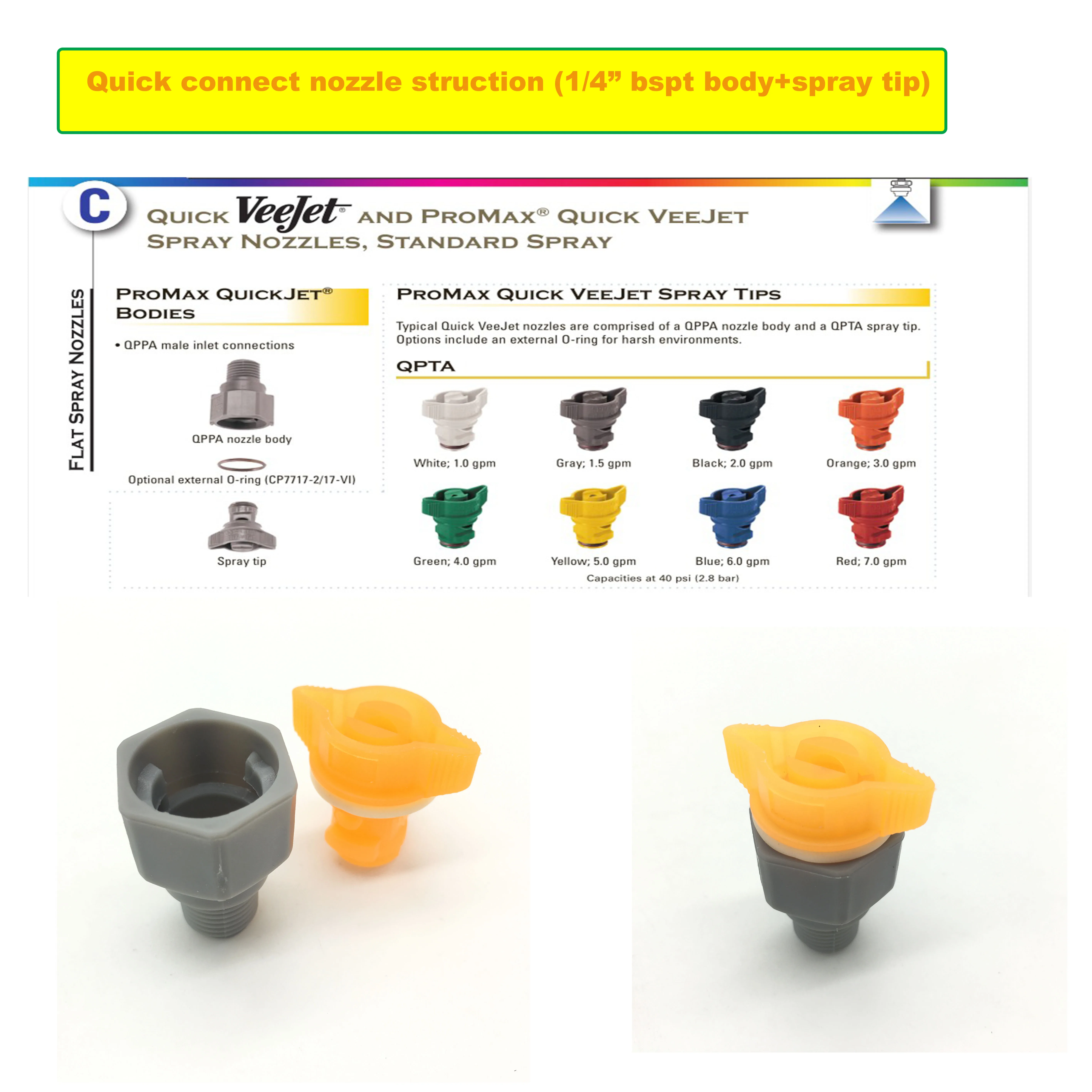

2057QPA Quick VeeJet
	Flat spray pattern
	Color-coded tips for easy identification
	Capacities: eight ranging from 1.0 to 7.0 gpm at 40 psi (4.6 to 32.0 l/min at 2.8 bar)
	Spray angles: 25° to 95° at 40 psi (2.8 bar)
	Maximum pressure: 200 psi (14 bar)

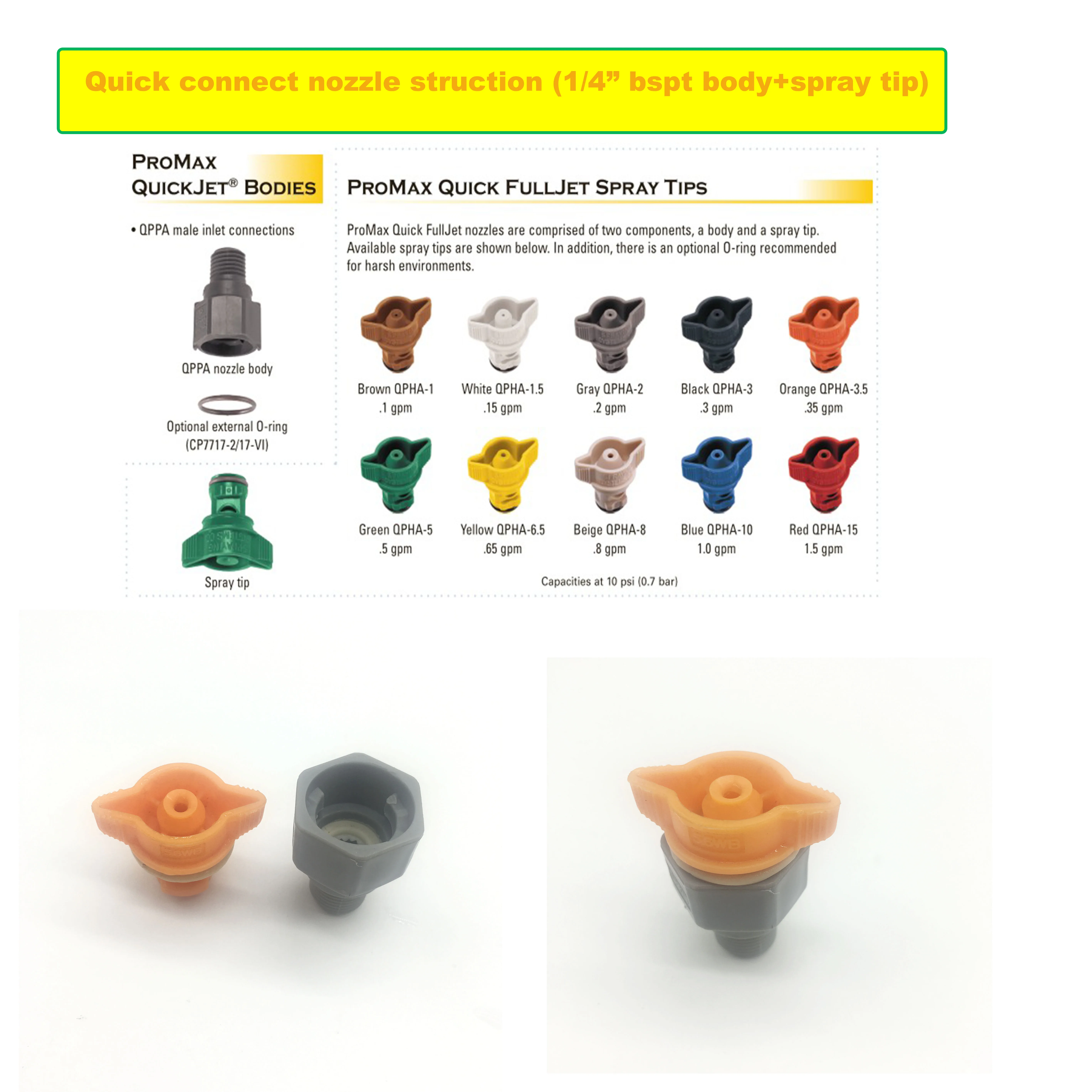

2057Quick Fulljet
	Full cone spray pattern
	Color-coded tips for easy identification

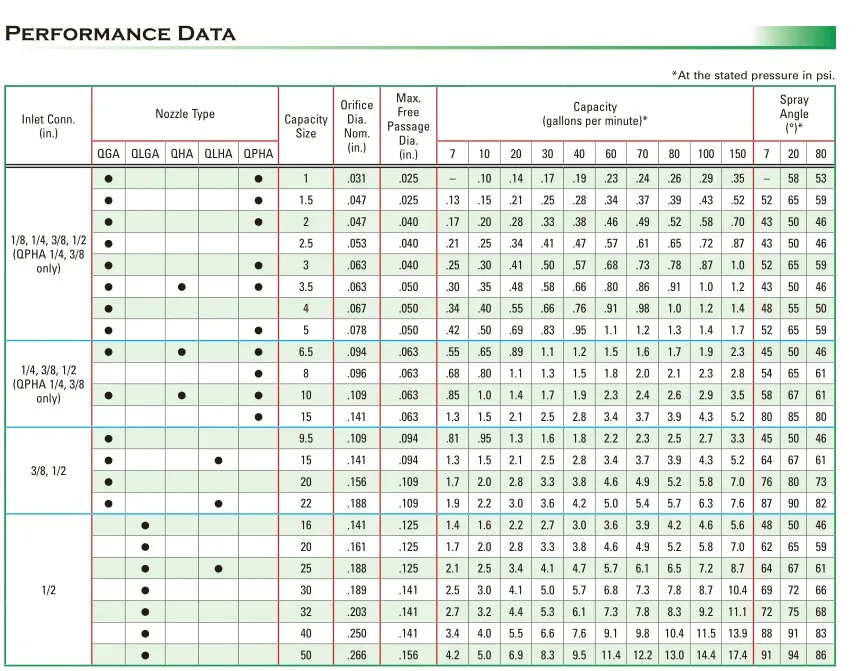

	Capacities: ten ranging from .19 to 2.9 gpm at 40 psi (0.85 to 12.7 l/min at 2.8 bar)
	Spray angles: 58° to 85° at 20 psi (1.5 bar)
	Maximum pressure: 150 psi (10 bar)
	Wide spray angle: 120° at 10 psi (0.7 bar)
	Wide angle capacities: seven ranging from 0.51 to 2.6 gpm at 40 psi (2.3 to 11.5 l/min at 2.8 bar)
	Wide angle maximum pressure: 80 psi (6 bar)

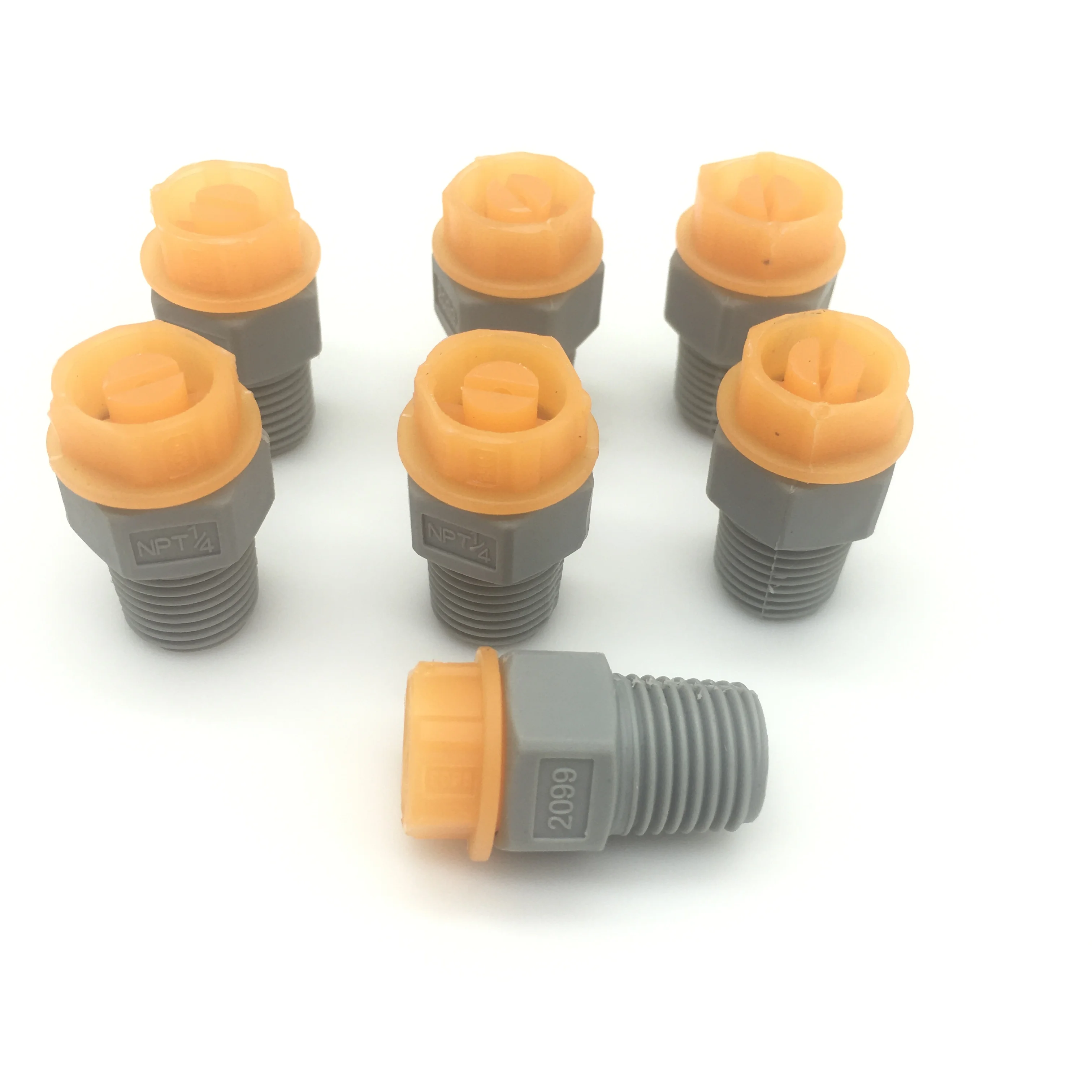

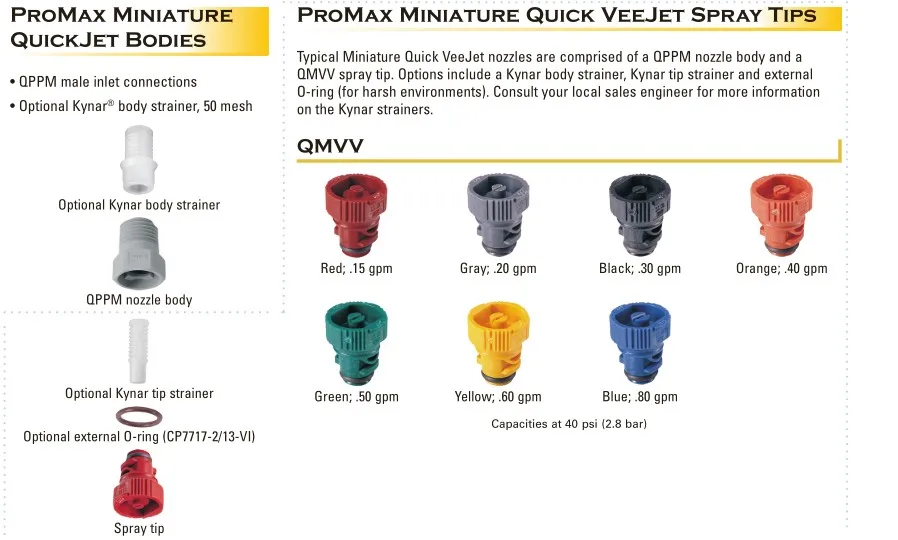

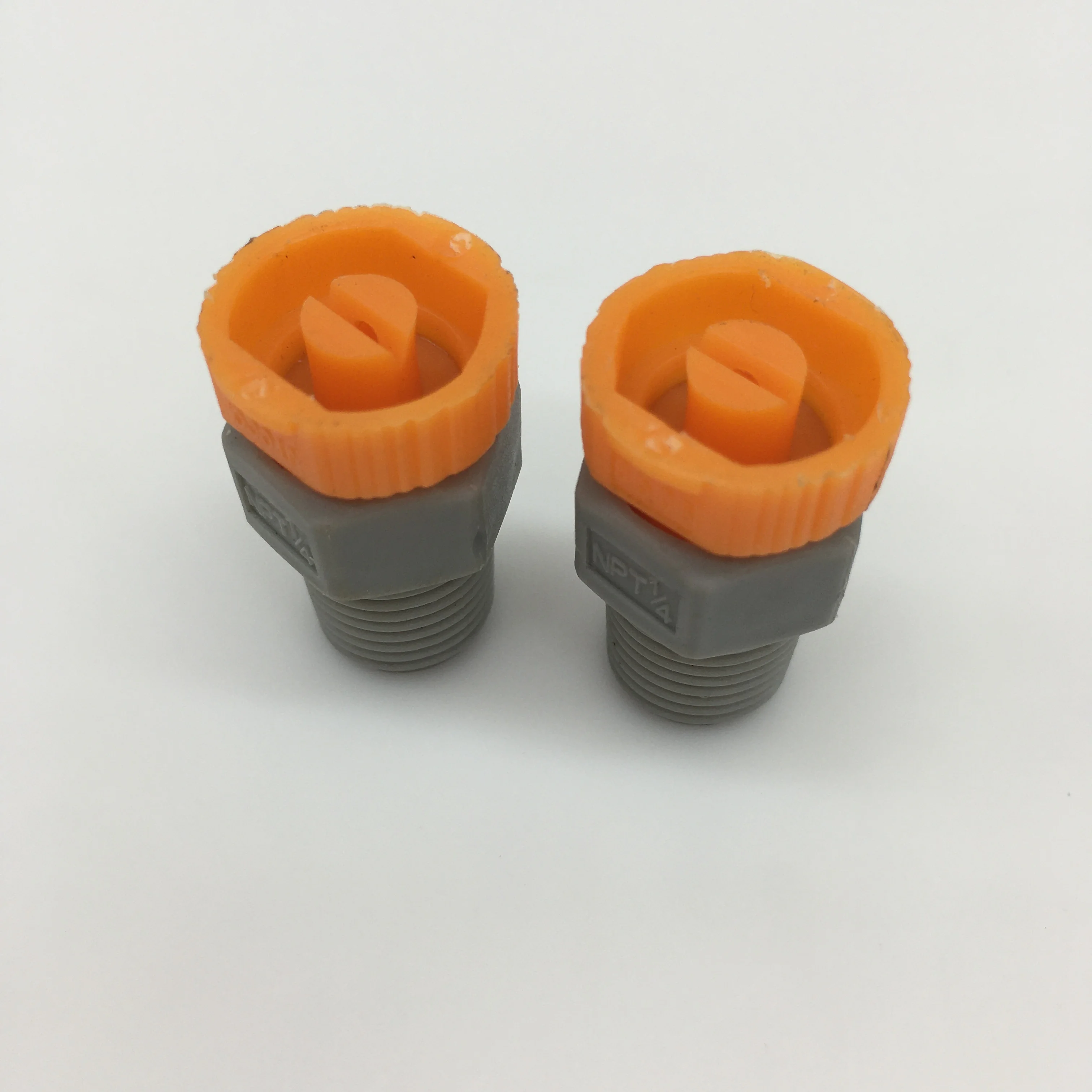

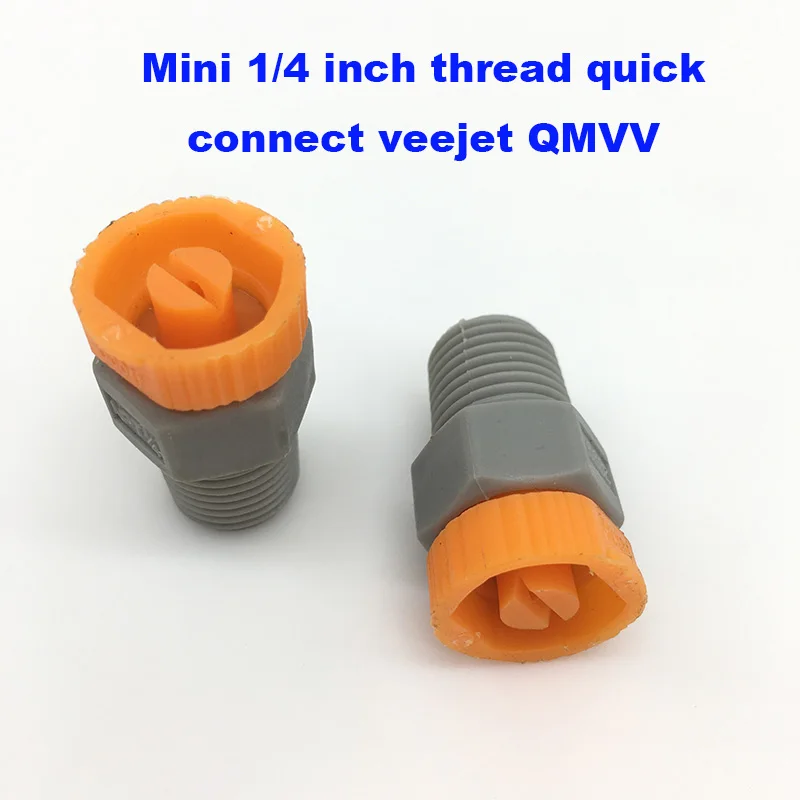

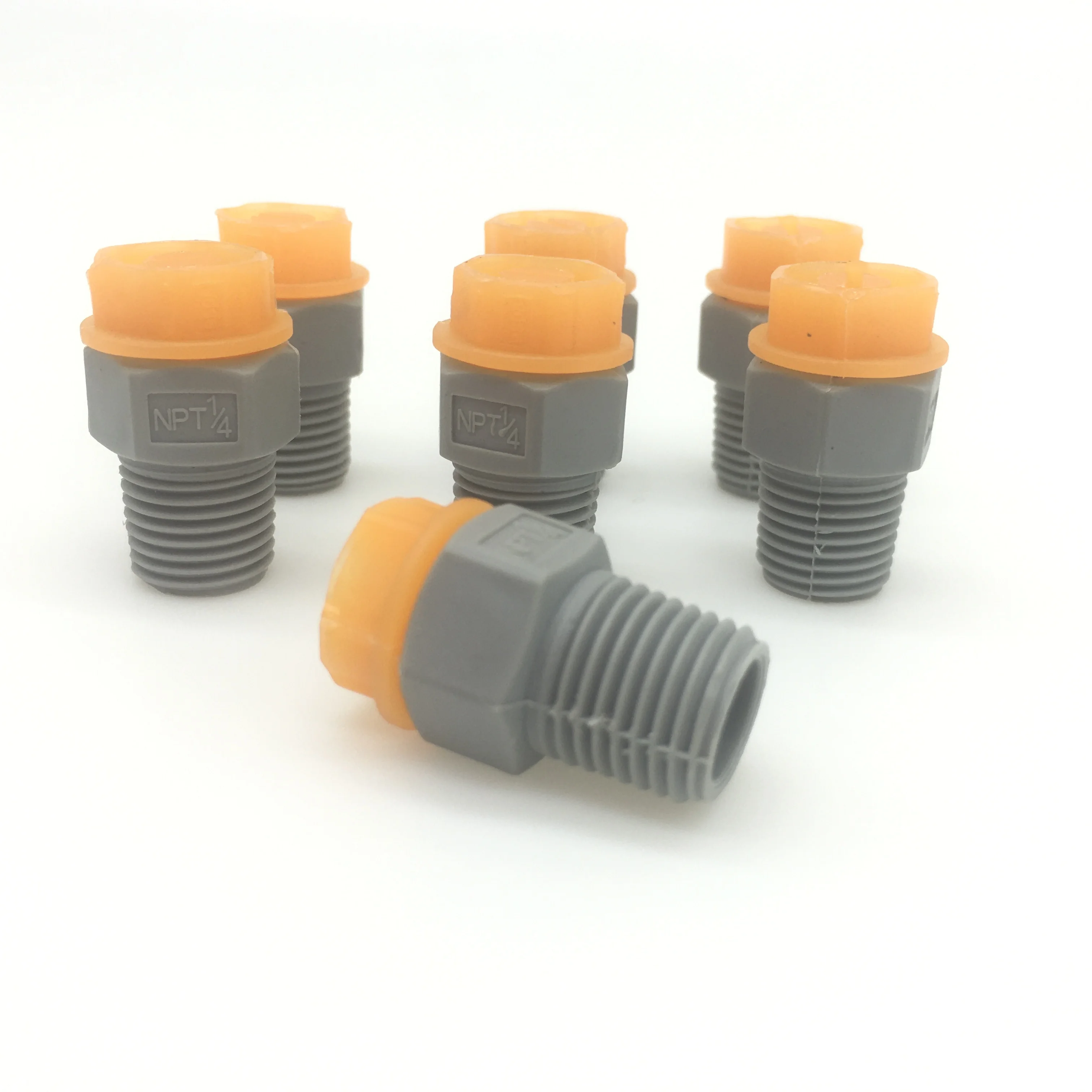

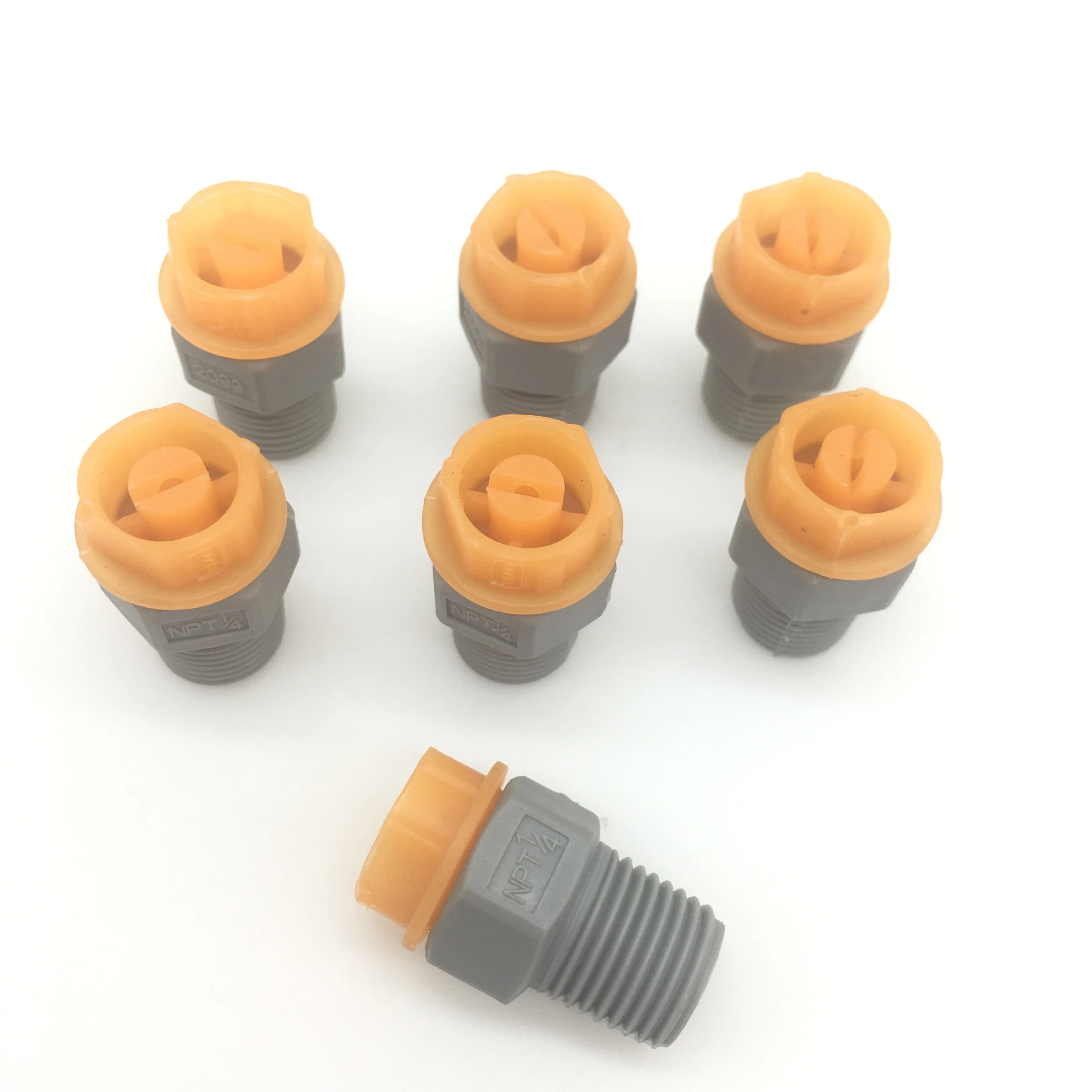

2099QPM Quick VeeJet
	Ideal for applications with limited space
	Nozzle measures slightly over 1" (2.54 cm) when mounted in standard header
	Color coded tips for easy identification
	Also available (PVDF) with no colorants or fillings to leach into spray
	Capacities: seven ranging from .15 to .8 gpm at 40 psi (0.59 to 3.2 l/min at 2.8 bar)
	Spray angles: 25° to 110° at 40 psi (2.8 bar)
	Maximum pressure in ProMax: 175 psi at 40°F (12 bar at 4°C)
	Maximum pressure in Kynar: 225 psi at 40°F (15.5 bar at 4°C)
	Maximum temperature in ProMax: 200°F at 50 psi (93°C at 3.5 bar)





Nozzles for all industries and applications



We manufacture in over 200 different materials with all conceivable spray angles, flow rates and droplet sizes. Our tank cleaning systems are able to clean anything from a light residue in a small process vessel to crude oil in an ocean going tanker. In short, whatever the application, whatever the fluid being sprayed or residue being cleaned we can help select the correct product for the job in a swift and hassle free way.



Experts in nozzle selection

All our products are sourced from high quality suppliers but what our customers really value is our technical expertise. With over 40,000 nozzles to choose from product selection can be daunting task for any engineer. We bring decades of experience to bare on any spray application project ensuring that correct product selection is simple and hassle free. Also we can normally match nozzles from our ranges with those of competitors and with a large stock can often help customer out if they are having trouble sourcing replacements in a hurry.

As part of the selection process we regularly advise customers on:

- Achieving the optimum drop size for your application
- Spray coverage
- Flow rates
- How different fluids affect spray characteristics
- How gas flows will affect spray patterns
- Nozzle material selection

Specialists in custom nozzle design

As a long established specialist supplier, most spraying applications will have been dealt with by our engineers before at some stage in the past. We are, however, always interested in helping out on novel applications and we have worked many times with customers to design custom nozzles for specific new application.
