LiFePo4 12V 20Ah IP56 Enclosure Protection Motorcycles Battery For UPS/ Back up Power/Solar Energy Storage Systems
- Category: >>>
- Supplier: Howell Energy Co. Ltd
Share on (1600339070810):
Product Overview
Description
Product Description
LiFePo4 12V 20Ah IP56 Enclosure Protection Motorcycles Battery For UPS/ Back-up Power/Solar Energy Storage Systems

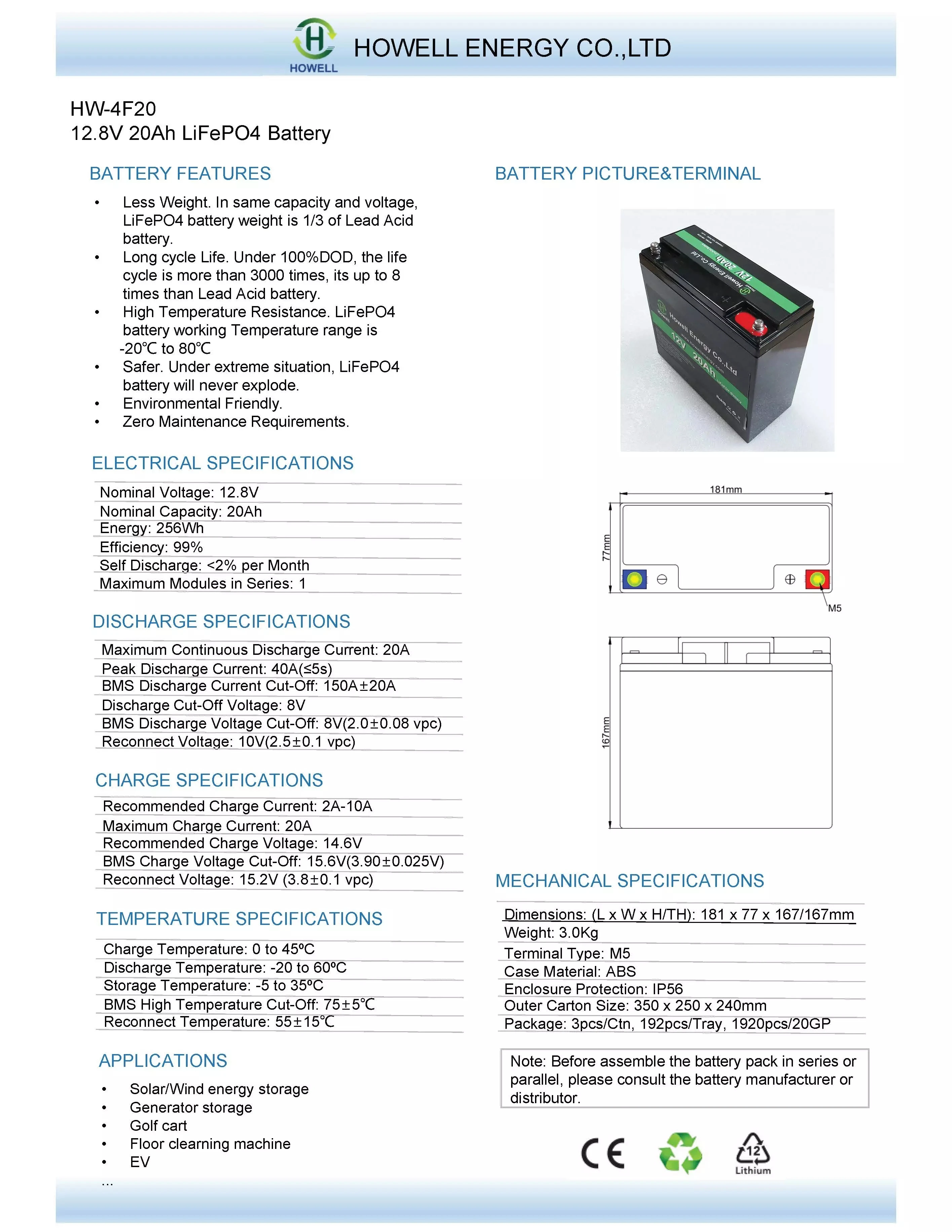

Specification for Battery:
Bitmap | Howell Energy Co.,Ltd |
HW-LFP 12V 20Ah battery specification | |
Model | HW-LFP 12V 20Ah-1 |
Dimension | 181 x 76 x 166 mm (thickness*width*length) |
Voltage | 12 V |
Capacity | 20Ah |
Impedance | <120 |
Discharge cut-off voltage | 8.0 V |
Maximum Charge voltage | 14.6 V |
Standard charge current | 0.5C |
Max working current | 2C |
Charging and charger | CC/CV with professional charger |
Weight | 2.75 kg |
Working temperature | Charge:0-60 degree |
Discharge:-20-55 degree | |
Storage temperature | minus 20 - 55 degree |
Normal temperature capacity | 20Ah |
Cycle life | 1500 cycles with DOD 100% to 80% capacity under normal temperature 2000 times cycle life |
Product Pictures
Cycle life Curve:
Discharge curve:
Charge Curve:
![M~0[%`IVI`TCN]%2L]{HA6.png](http://sc01.alicdn.com/kf/HTB1J0QljRmWBuNkSndV763sApXaM/202299713/HTB1J0QljRmWBuNkSndV763sApXaM.png)
Related battery types:
Customize battery:
We can custom lifepo4 battery packs through different cells as your requests.
More details, pls just feel free to contact us.

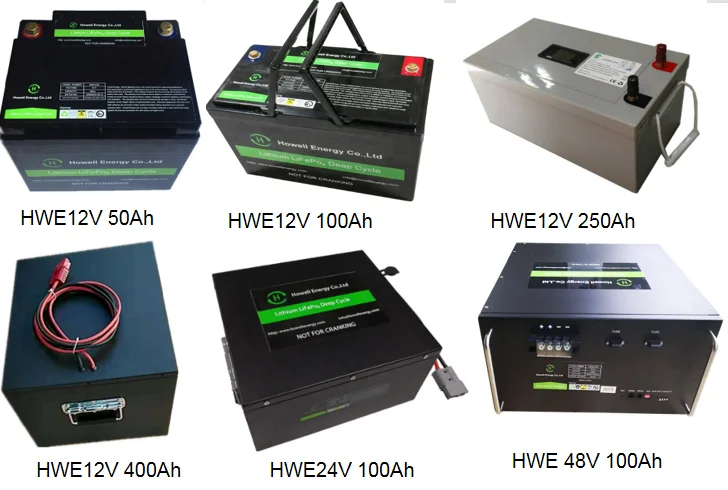

More Lifepo4 battery types:
Packaging & Shipping
Applications:
Company Information
About Us:
Brief introduction of Howell Energy:
Howell Energy Co., Ltd is the leading battery manufacturer in China mainland, who focus
on lithium battery including Lifepo4, Li-polymer, Li-ion, Lisocl2, and rechargeable NI-MH,
and rechargeable NI-CD rechargeable batteries, and the total power system solution, our batteries passed by UL, CE, ROHS and CB certifications.
More details of our company, pls visit our website: www.howellenergy.com
Contact Information
If you have any question or inquiry about our battery, do not hesitate to contact us.
