New Product Round With Welding Square Tube Scroll Stainless Steel 2.5 Inch 5ton 6 Axis 65mm Tube Bender
- Category: >>>
- Supplier: Changge Deleixi Machinery Equipment Co. Ltd.
Share on (1600339085352):
Product Overview
Description
Product Description

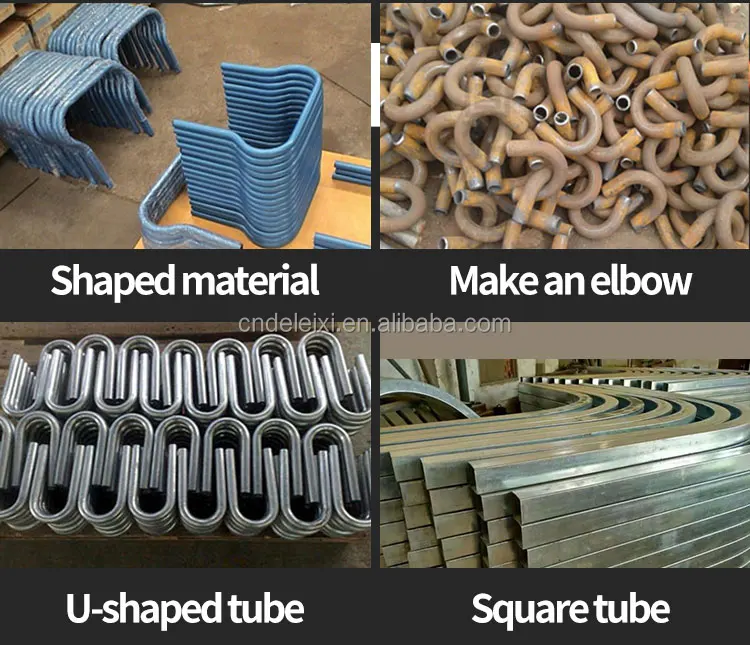

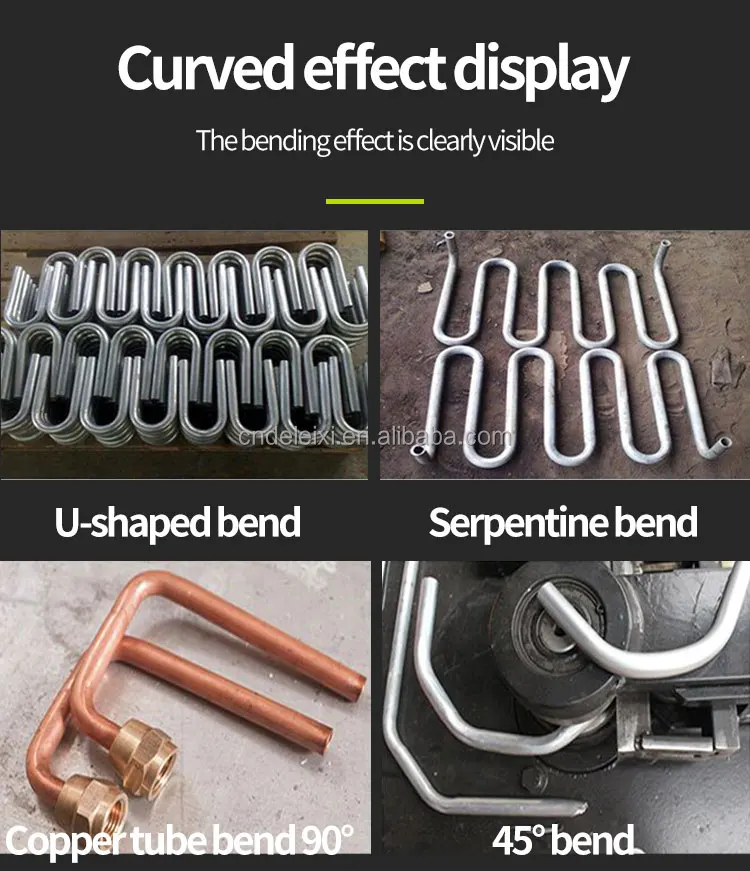

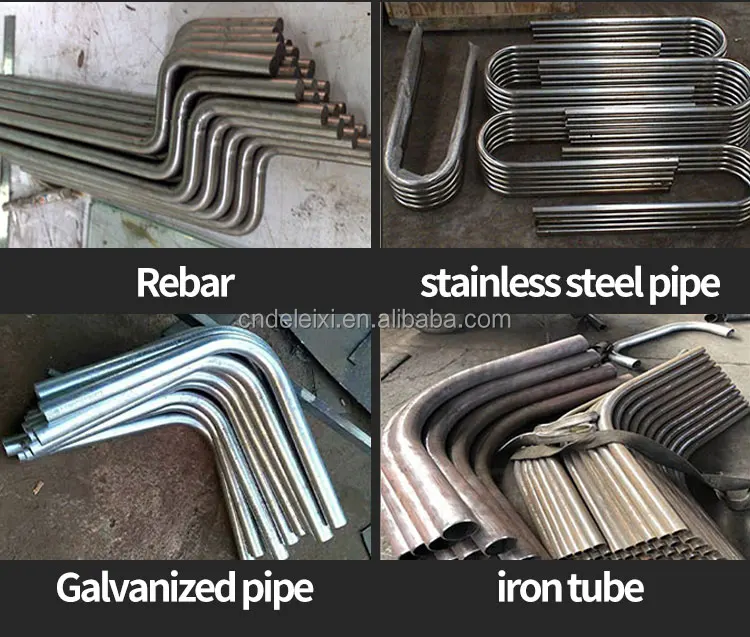

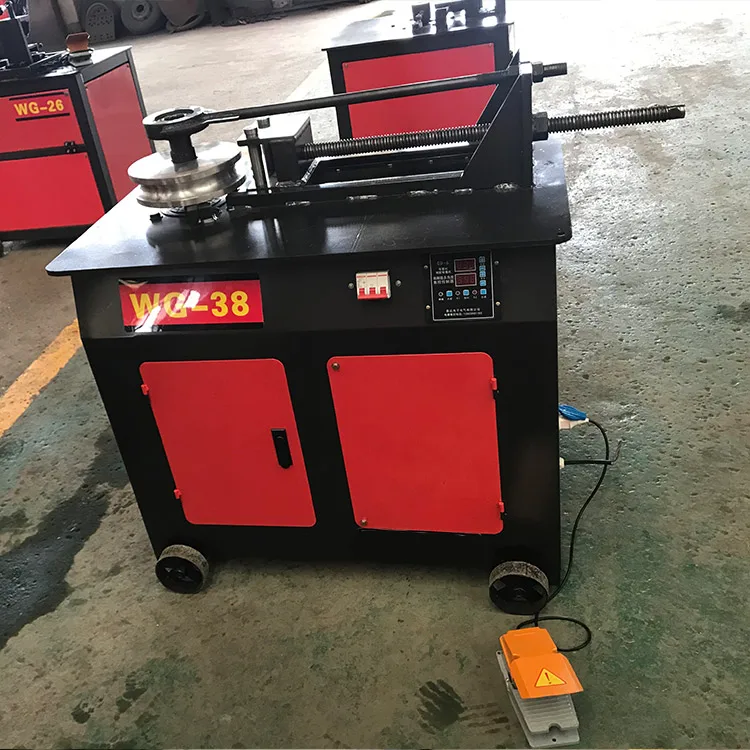

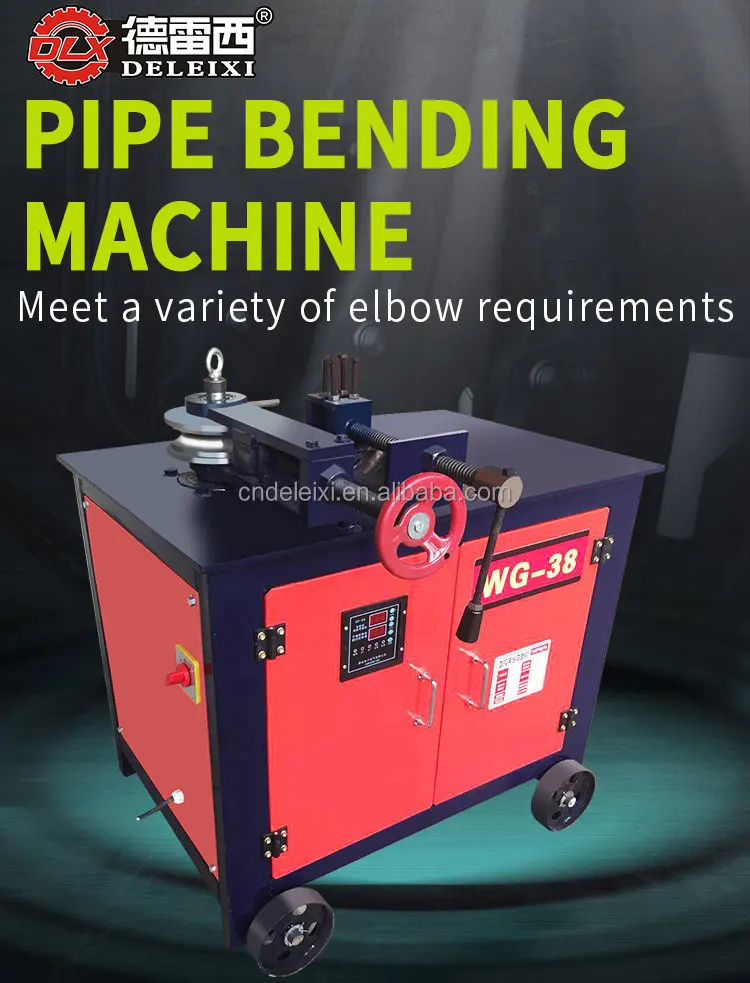

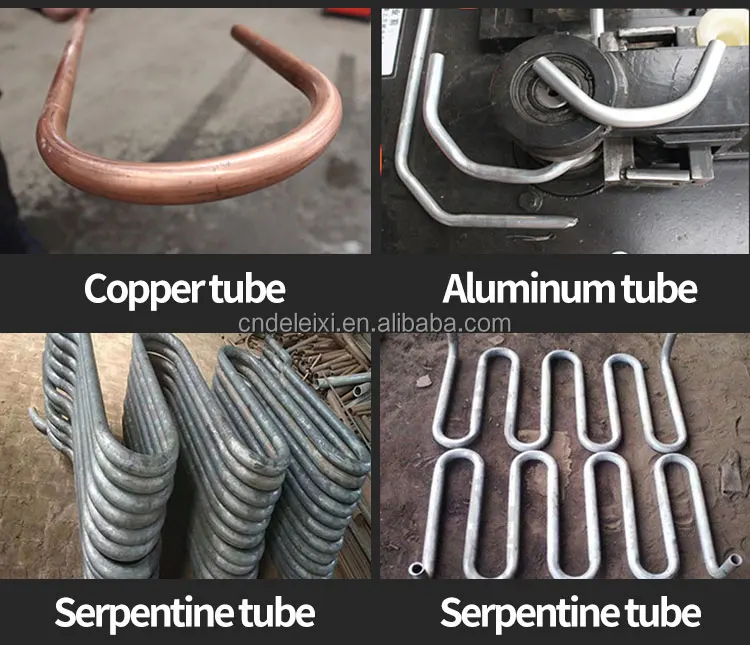

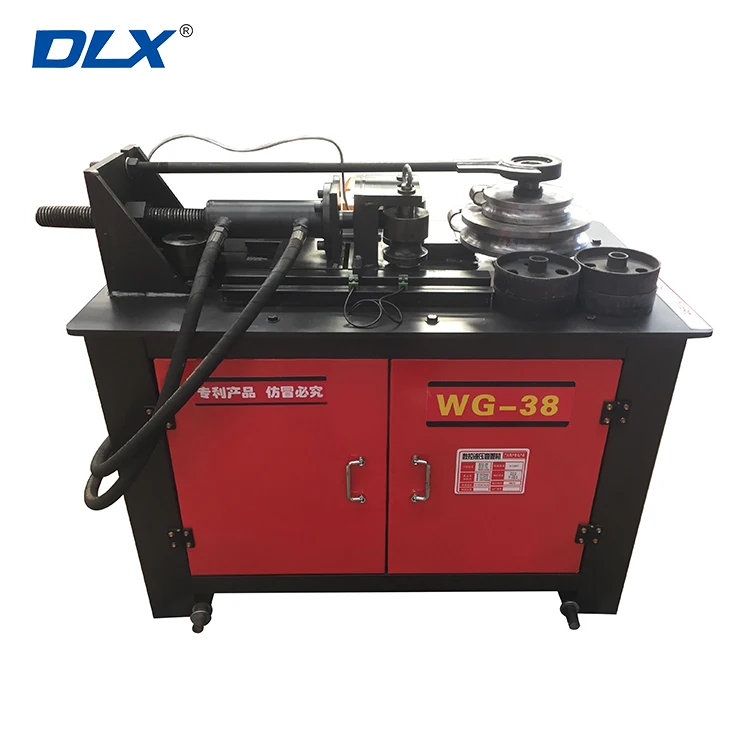

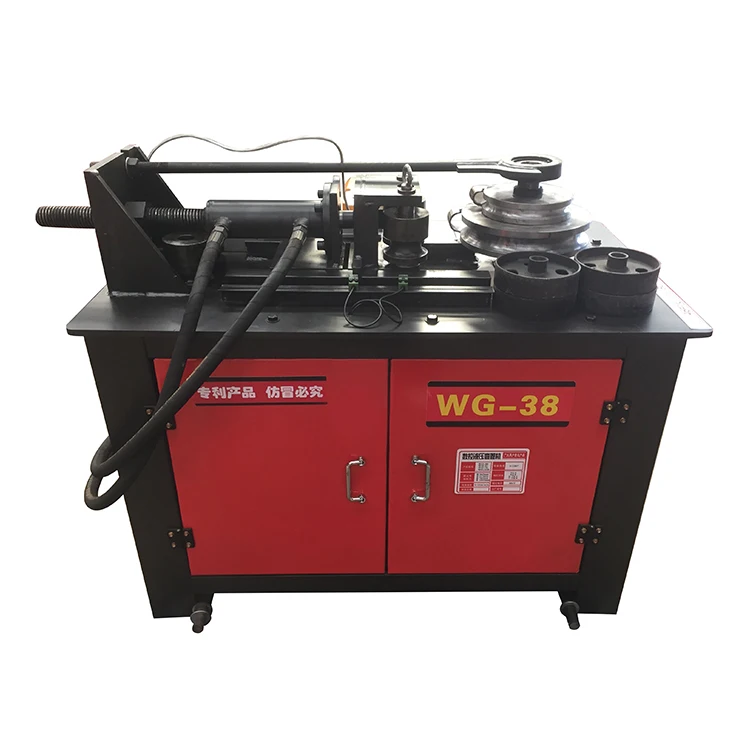

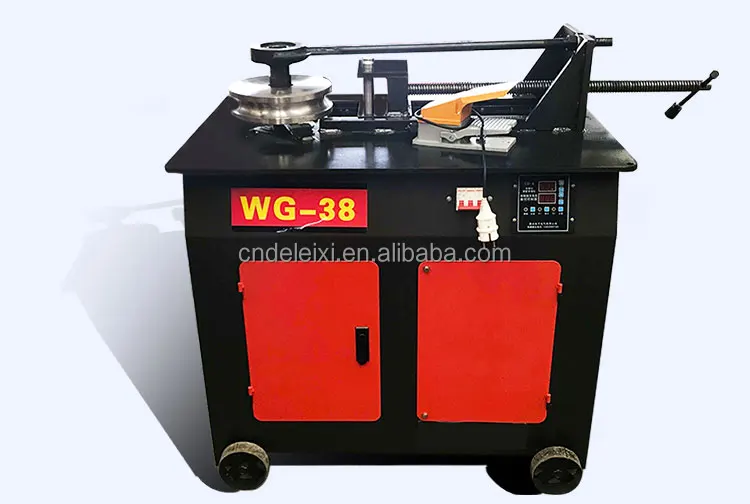

WG-38/51/76 CNC steel tube bending machine is mainly used for bending different kinds of tube materials,for example round or square mild carbon steel tube,201 or 304 stainless steel tube,rectangular steel tube,alumimum tube,cooper tube or other special shaped steel tube etc. And this machine always bend tubes into different angles from 5 to 180 degrees.

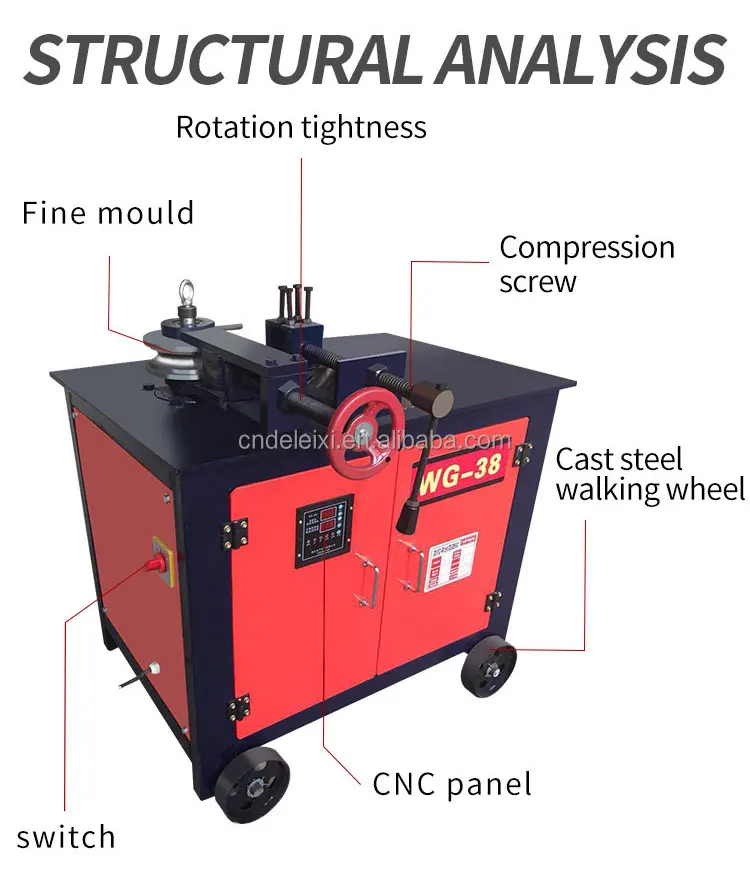

This model is our latest technical achievements of the research and development.Having the following characteristics:

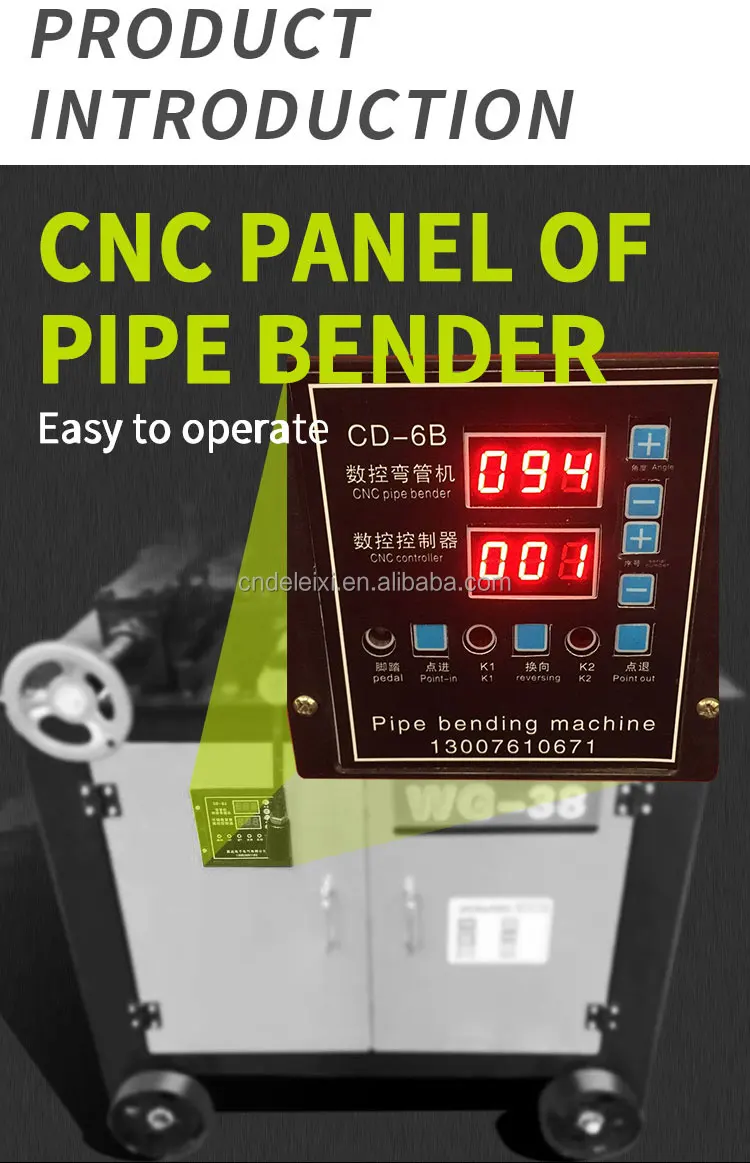

1.Use Micro CNC computer panel control the bending angles and batches.
2.Gear drive is durable and maintenance is convenient,only add the grease oil into the gear box.
3.Thin tube and thick tube could work well by this machine.
4.Foot switch add CNC operation,let the tube processing so easy and convenient.

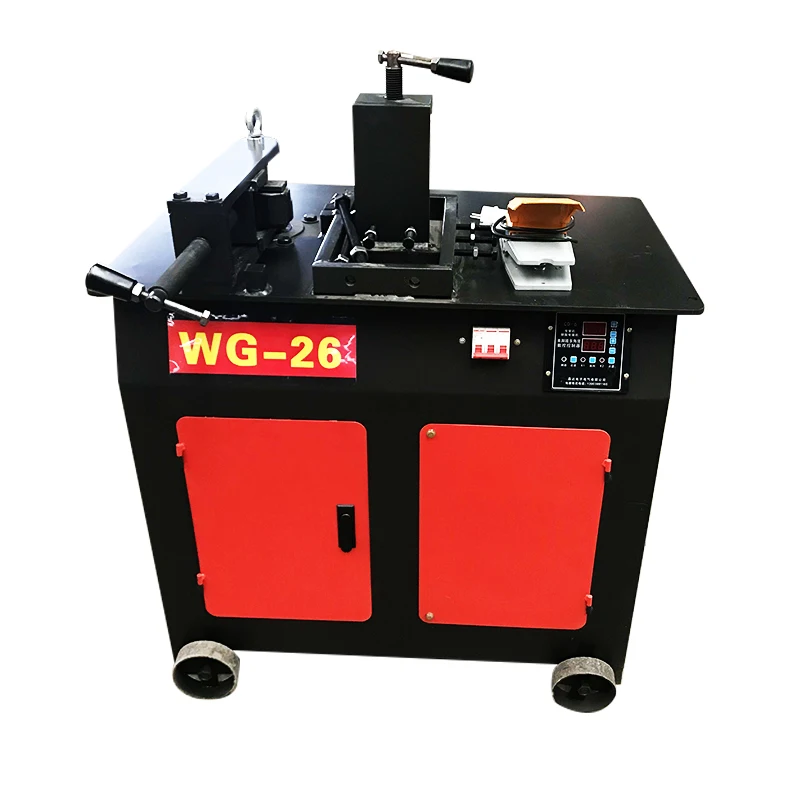

| Electric Small Semi-Automatic CNC Pipe Bending Machine Technical Parameter | |||||

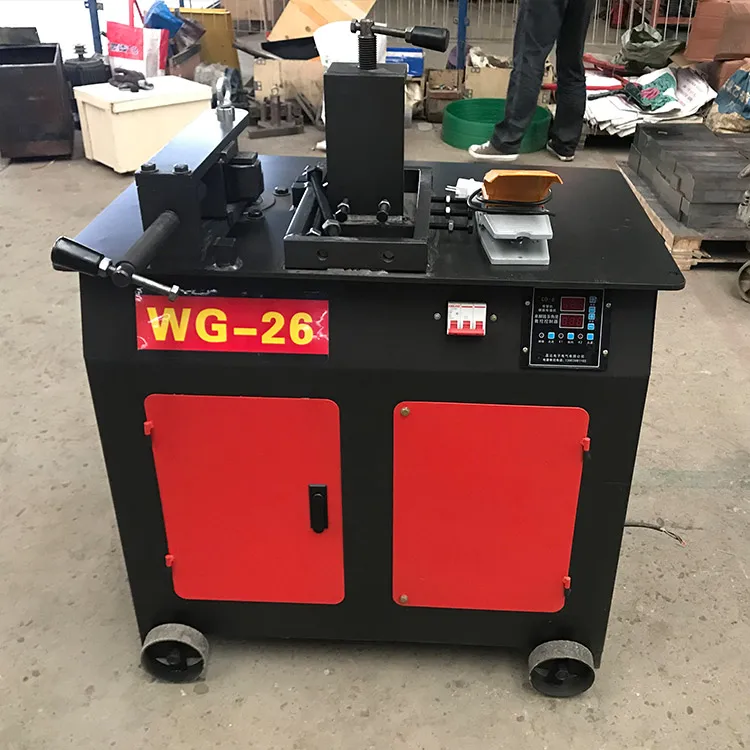

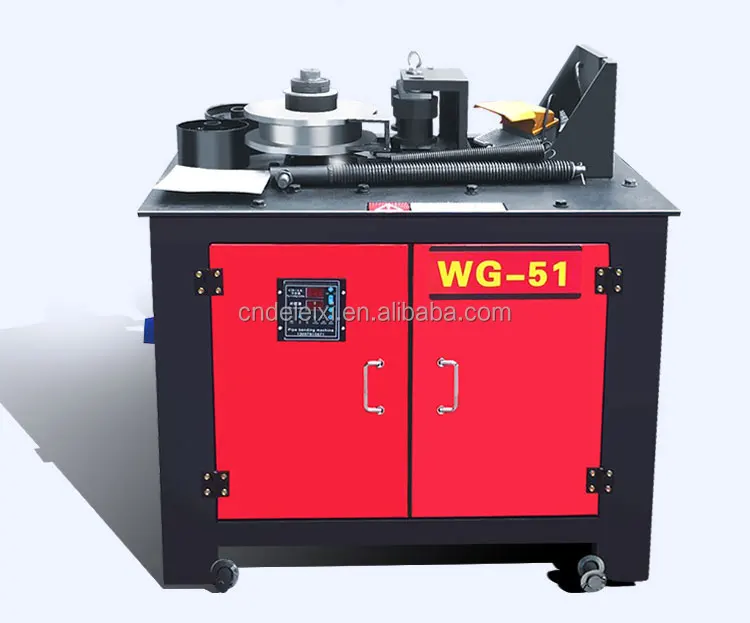

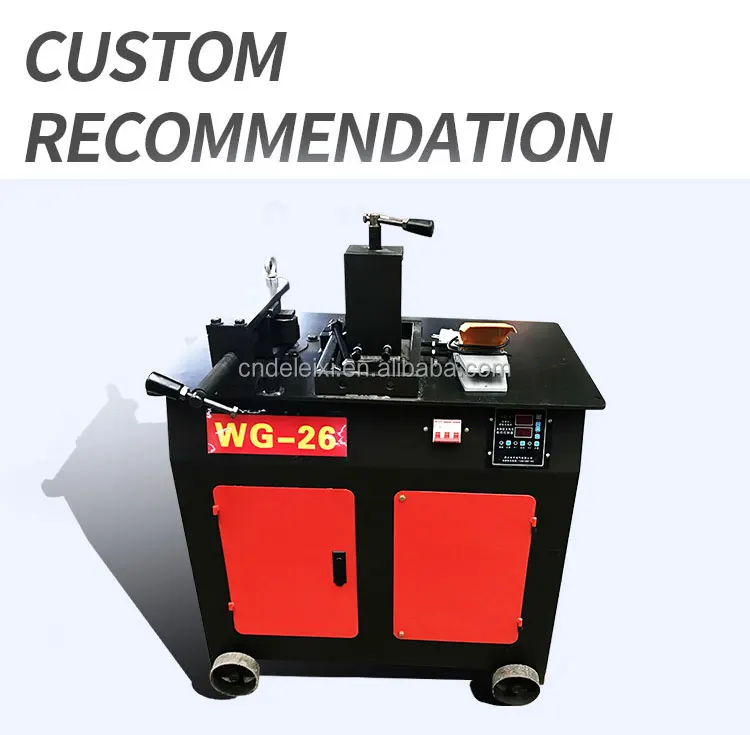

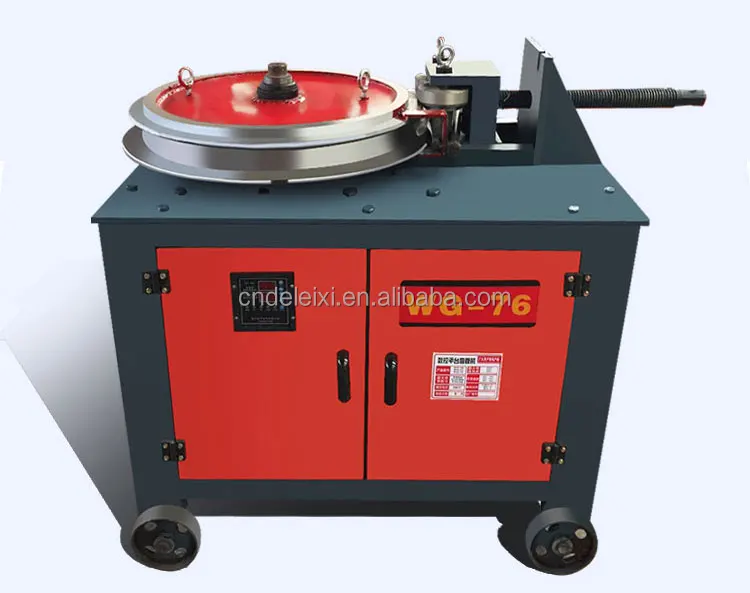

| Model | WG-26 | WG-38 | WG-51 | WG-76 | WG-76W |
| Engine Type | Electric Type | ||||
| Bending diameter | ≤26mm | ≤38mm | ≤51mm | ≤76mm | ≤76mm |
| Thickness Scope | ≤2mm | ≤3mm | ≤3mm | ≤3mm | ≤5mm |
| High bending speed | 10-20r/min | 10-20r/min | 4-6r/min | 3-5r/min | 3-5r/min |
| Bending Angles Quantity | 9 | 9 | 9 | 9 | 9 |
| Max bending angle | 180° | 180° | 180° | 180° | 180° |
| Min bending angle | 5° | 5° | 5° | 5° | 5° |
| Motor Power | 2.2kw | 3kw | 3kw | 4kw | 4kw |
| Power supply | 380V,50Hz,3Phase Alternating Current Or Customized | ||||
| Foot switch voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
| Dimensions(mm) | 850x600x850 | 920x650x850 | 930x680x850 | 940x750x850 | 980*760*850 |
| Weight | 220KG | 300kg | 350kg | 400kg | 430kg |
Hydraulic CNC Pipe Bending Machine Technical Parameter | |||
Model | WG-76A | WG-100A | WG-150A |
| Engine type | Hydraulic automatic type | ||
| Bending diameter | Φ25-76mm | Φ25-100mm | Φ25-133mm |
| Thickness scope | ≤3mm | ≤3mm | ≤5mm |
| motor power | 7.5KW | 7.5KW | 11KW |
| high bending speed | 9r/min | 9r/min | 9r/min |
| power supply | 380V 50HZ three phase or customized | ||
| Bending angles | 5-180° | 5-180° | 5-180° |
| bending angle quantity | 9 | 9 | 9 |
| dimensions | 1500*950*1250mm | 1800*1050*1350mm | 1900*1200*1400mm |
| weight | 1000kg | 1300kg | 1500kg |

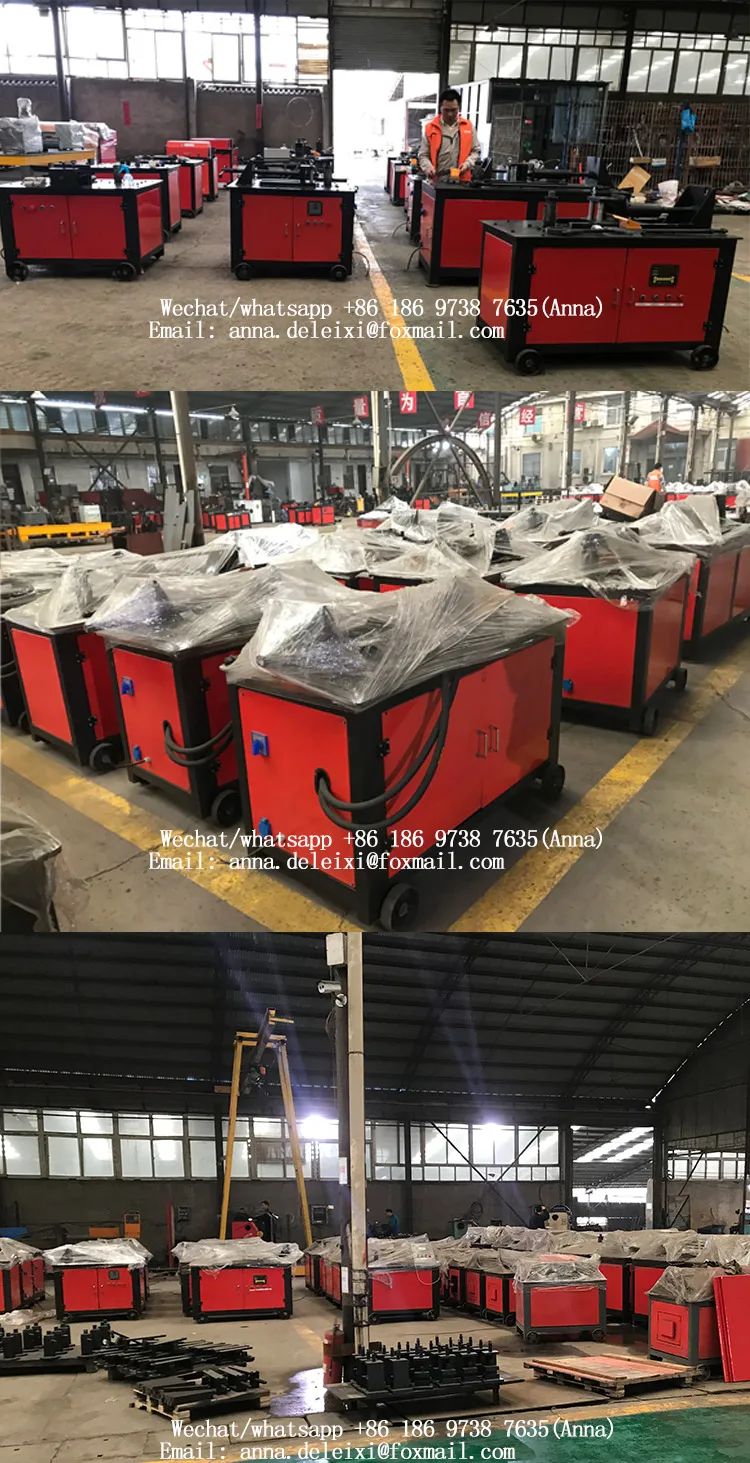

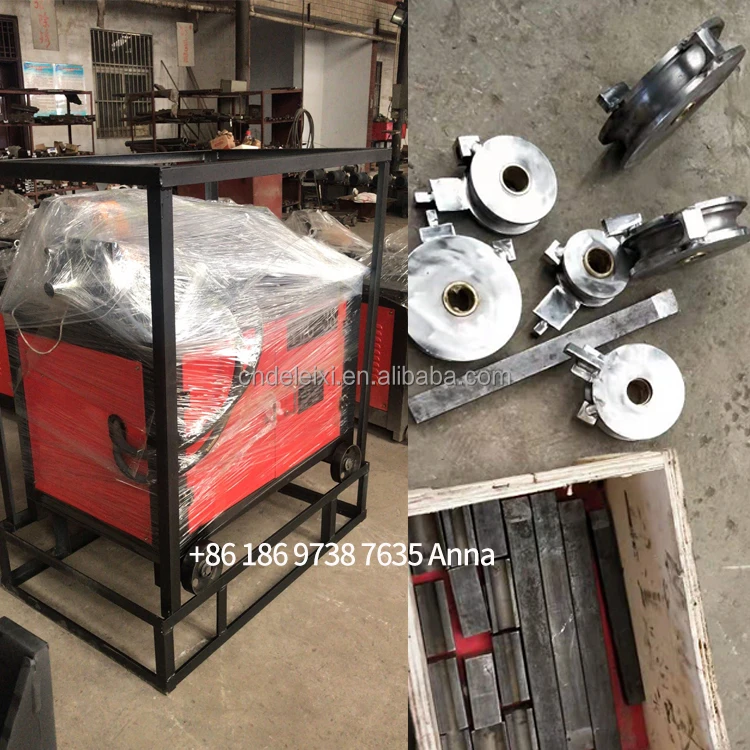

Packaging & Shipping
Packing and Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Company Information

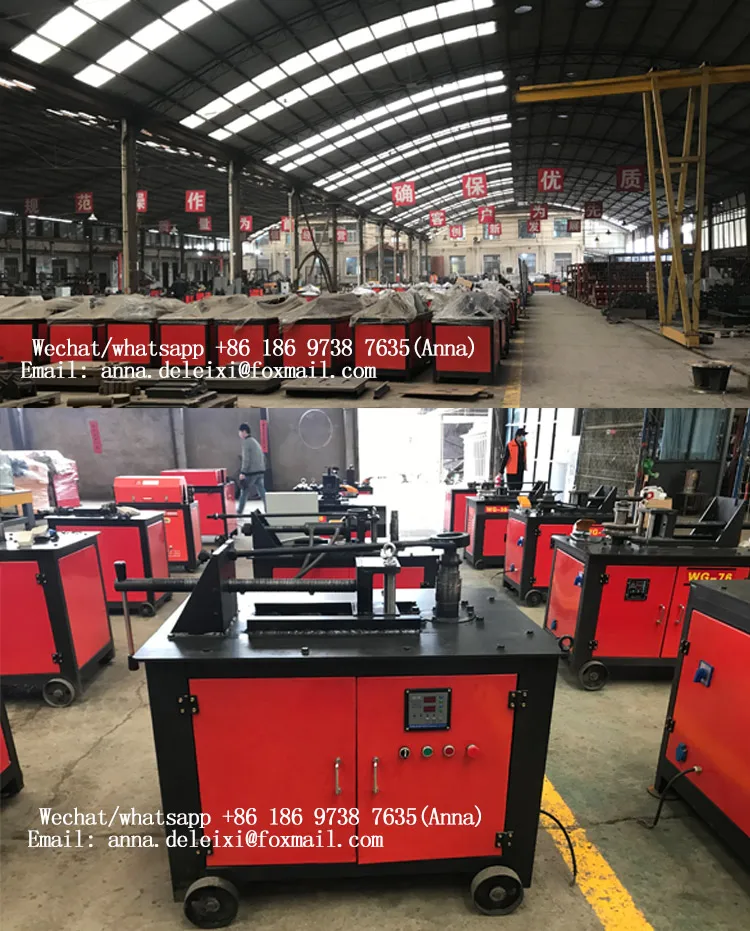

Changge Deleixi Machinery Equipment co. LTD is a manufacturer of processing machine our products include steel bar cutting machine,steel bar bending machine,straightening cutting machine,stirrup bending machine,plate compactor,tamping rammer ,trowel machine and so on, with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are very popular in Mid-east,Africa,European ,American .ect, they are widely used in building ,road,railway and other area.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our Services
1.We have more than10 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be
requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the
order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for
shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
